Product Type	Microwave Oven
Brand	Vivax
Model	MWO-2076SL
Capacity	20 liters
Dimensions (W x D x H)	Approx. 455 x 390 x 270 mm
Weight	Approx. 11.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	1200 W (microwave), 1000 W (grill)
Microwave Output Power	800 W
Grill Power	1000 W
Operating Frequency	2450 MHz
Turntable Diameter	255 mm
Control Type	Mechanical knobs and push buttons
Display	LED Digital Display
Functions	Microwave, Grill, Combination, Defrost, Timer, Auto Cook
Auto Cook Programs	8 pre-set menus
Defrost Function	By weight or time
Child Lock	Yes
Interior Light	Yes
Material	Stainless steel body, ceramic enamel interior
Cleaning Instructions	Wipe with a damp cloth, avoid abrasives
Safety Features	Door safety interlock, overheating protection
Accessories Included	Glass turntable, roller ring, grill rack
Warranty	2 years

Frequently Asked Questions - MWO-2076SL Vivax

How do I set the clock on the Vivax MWO-2076SL?

Press the Clock button, then use the + and - buttons to set the hour. Press Clock again, then set minutes. Confirm by pressing Clock or Start.

Can I use metal containers in this microwave?

No, metal containers can cause sparks. Use only microwave-safe glass, ceramic, or plastic containers.

Why does the microwave turn off during operation?

This could be due to overheating protection. Ensure vents are not blocked and let the microwave cool down before using again.

How do I defrost food using the defrost function?

Press the Defrost button, enter the weight of the food using the dial or buttons, and press Start. The microwave will calculate time automatically.

What does the 'Combination' mode do?

Combination mode alternates between microwave and grill, ideal for browning while cooking.

How to clean the interior?

Wipe with a damp cloth and mild detergent. Do not use abrasive cleaners. For stubborn stains, heat a cup of water with lemon juice for 2 minutes to loosen.

Is the turntable removable?

Yes, the glass turntable and roller ring can be removed for cleaning. Wash them in warm soapy water.

What should I do if the microwave does not start?

Check if the door is closed properly, the power cord is plugged in, and the timer is set. If problem persists, contact customer service.

Can I use the grill without the turntable?

No, the turntable must be in place for even cooking and to prevent damage.

How do I set the auto-cook programs?

Select the Auto Menu button repeatedly to choose the desired program (e.g., popcorn, pizza), then press Start.

USER MANUAL MWO-2076SL Vivax

User manual Service points

VIVAX

MWO-207□6/

VIVAX

HR

BiH

CG

Instructions for use

Microwave oven

MICROWAVE OVEN

MWO-2076SL

Instructions for use

Before installing and using the appliance, carefully read the supplied instructions.

IMPORTANT SAFETY INSTRUCTIONS 2

SPECIFICATIONS 4

INSTALLATION....4

RADIO INTERFERENCE....4

PRINCIPLE OF MICROWAVE COOKING 3

GROUNDING INSTRUCTIONS 3

BEFORE CALLING FOR SERVICE....3

PART NAMES 6

CONTROL PANEL 7

MICROWAVE POWER LEVEL 7

Use this button to select the microwave power level. This is the first step in the cooking process. 7

TIMER 7

MICROWAVE COOKING 7

For microwave-only cooking, there are six power levels available from which you can

choose the optimal one for the cooking task. 7

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Door lock
2. Oven window
3. Ring with wheels
4. Control panel
5. Waveguide
6. Glass turntable
7. Door opening button

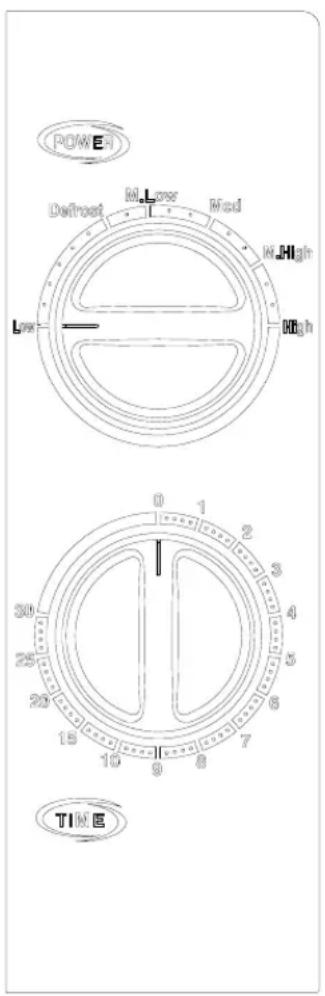

CONTROL PANEL

The control panel consists of two programmers. One is a timer and the other is a microwave power regulator.

MICROWAVE POWER REGULATOR

Use this button to select the microwave power. This is the first step in the cooking process.

TIMER

It allows for visually simple setting of cooking duration up to 30 minutes per cooking session.

MICROWAVE COOKING

For cooking with microwaves only, there are six power levels available, from which you can choose the optimal one for your cooking.

MWO-2076SL

Instructions for use

Before installing and using the appliance, carefully read the instructions!

Write the serial number in the space provided, below this text. The serial number is on the nameplate on your oven. Keep this information for future reference.

SERIAL NUMBER:

PRECAUTIONS TO AVOID POSSIBLE OVEREXPOSURE TO MICROWAVE RADIATION

IMPORTANT SAFETY INSTRUCTIONS 3

SPECIFICATIONS 4

INSTALLATION 4

RADIO INTERFERENCE 4

MICROWAVE COOKING PRINCIPLE....3

GROUNDING INSTRUCTIONS 3

BEFORE CALLING FOR SERVICE 5

PART NAMES....6

CONTROL PANEL 7

REGULATOR SNAGE MIKROTALASA....7

Use this button to select the microwave power level. This is the first step in the cooking process. . 7

TIME COUNTER....7

MICROWAVE COOKING 7

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed!

WARNING: To reduce the risk of burns, electric shock, fire, injury, or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not intended for industrial or laboratory use.
3. Do not operate the oven when empty (without food inside).
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
5. WARNING: Allow children to use the oven without supervision only if they have been given adequate instructions so that they can use the oven in a safe way and understand the hazards of improper use.
6. To reduce the risk of fire in the oven cavity: When heating food in plastic or paper containers, check the oven frequently for the possibility of ignition. * Before placing paper or plastic bags in

MWO-2076SL

MWO-2076SL

User Manual

Before installing and using the device, carefully read the manual.

Write the device's serial number in the designated place at the end of the text. The serial number is located on the back of the microwave and keep it in the manual for future reference.

Serial Number:

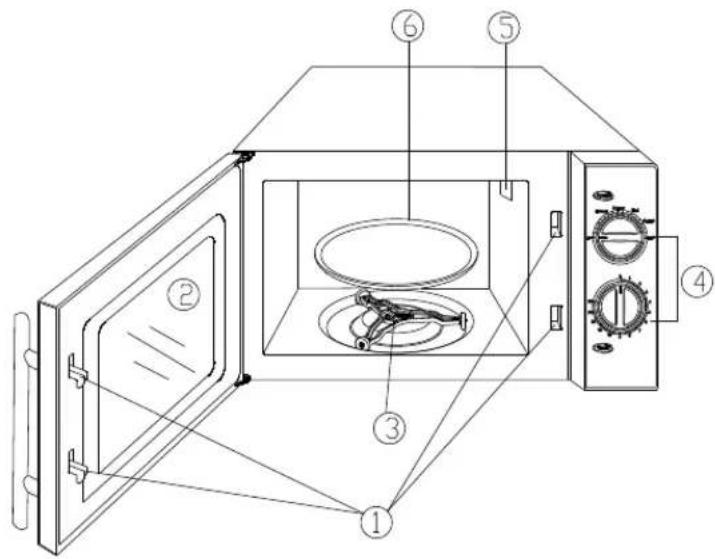

1. Door seal
2. Oven glass
3. Turntable ring
4. Control panel
5. Waveguide
6. Glass turntable
7. Door release button

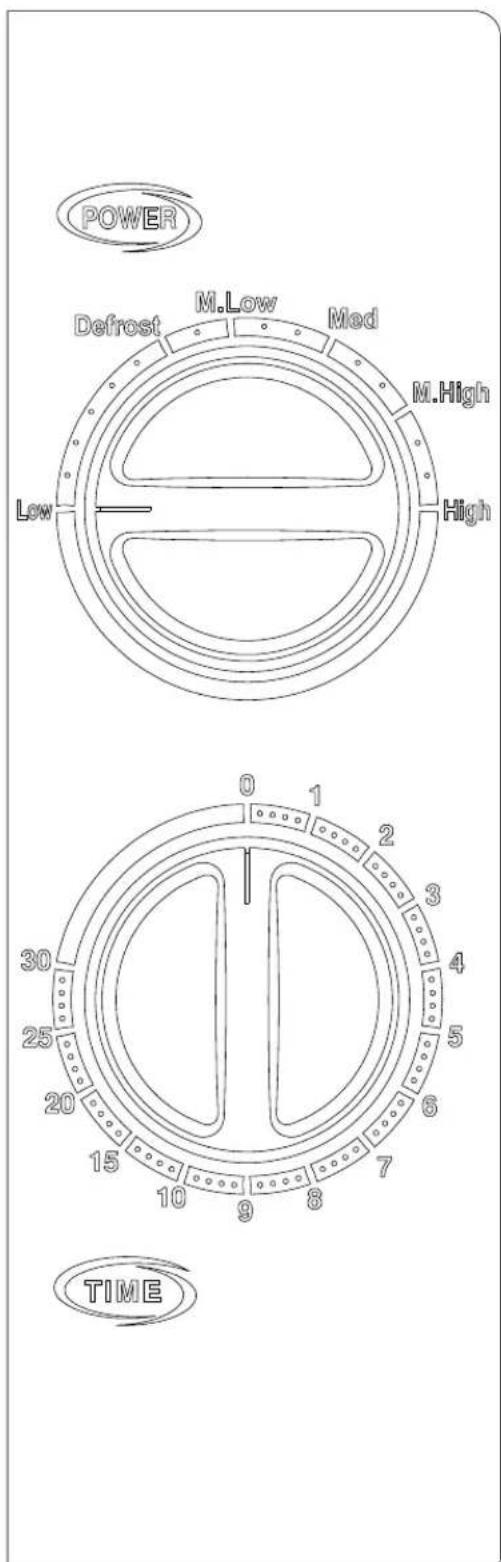

Control panel

MWO-2076SL

Owner's Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),

b. Hinges and latches (broken or loosened),

c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENT

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...... 1

IMPORTANT SAFETY INSTRUCTIONS ...... 2

SPECIFICATIONS 4

INSTALLATION 4

RADIO INTERFERENCE....4

MICROWAVE COOKING PRINCIPLES 5

GROUNDING INSTRUCTIONS....5

BEFORE YOU CALL FOR SERVICE 5

UTENSILS GUIDE 6

PART NAMES 6

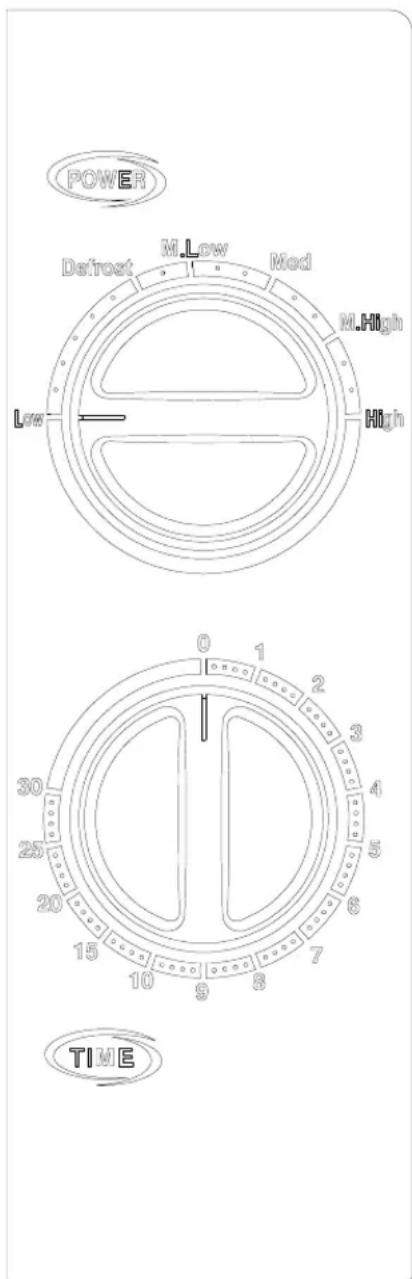

CONTROL PANEL 7

Power/Action Selector 7

Timer Knob....7

Microwave Cooking 7

OPERATION 8

CLEANING AND CARE 8

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity: When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. Remove wire twist-ties from paper or plastic bags before placing bag in oven. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
8. Microwave heating of beverage can result in

delayed eruptive boiling, therefore care has to be taken when handle the container.

1. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
2. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
3. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
4. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
5. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
6. Utensils should be checked to ensure that they are suitable for use in microwave oven.
7. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
8. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.
2. The microwave oven is only used in freestanding.
3. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
4. The accessible surface may be hot during operation.
5. The microwave oven shall not be placed in a cabinet.
6. The door or the outer surface may get hot when the appliance is operating.
7. The temperature of accessible surfaces may be high when the appliance is operating.
8. The appliance shall be placed against a wall.
9. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
10. Children being supervised not to play with appliance.
11. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
12. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
13. The microwave oven is for household use.

only and not for commercial use.

1. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
2. Please secure the turn table before you move the appliance to avoid damages.
3. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
4. The microwave oven is intended for defrosting, cooking and steaming of food only.
5. Use gloves if you remove any heated food.
6. Caution! Steam will escape, when opening lids or wrapping foil.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
8. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

SPECIFICATIONS

Power Consumption:	230-240V~50Hz, 1200W(Microwave)
Rated microwave power output:	700W
Operation Frequency:	2450MHz
Outside Dimensions:	262mm(H)×452mm(W)×360mm(D)
Oven Cavity Dimensions:	198mm(H)×315mm(W)×297mm(D)
Oven Capacity:	Compact 20Litres
Cooking Uniformity:	Turntable System
Net Weight:	Approx. 10.5 kg

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches, and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at the back, and 5cm on both sides. Do not cover or block any openings on the appliance. Do not remove the feet.
6. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.

Relocate the microwave oven with respect to the receiver.

1. Move the microwave oven away from the receiver.
2. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.
3. Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits.

Arrange food carefully. Place thickest areas towards outside of dish.

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with

another appliance.

1. Check to ensure that the control panel is programmed correctly and the timer is set.
2. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No
Metal Rack	No
Aluminum Foil & Foil Containers	No

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Turntable Roller
4. Control Panel
5. Wave Guide
6. Glass Tray

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Power Output	Description
1	100%	HIGH
2	85%	M.HIGH
3	66%	MED
4	48%	M.LOW
5	40%	DEFROST
6	17%	LOW

OPERATION

To start a cooking session,

1. Place food in oven and close the door.
2. Turn Power Selector to select a power level.
3. Use Timer knob to set a cooking time.

NOTE:

As soon as the timer is turned, oven starts cooking.

When selecting time for less than 2 minutes,

turn timer past 2 minutes and then return to the correct time.

CAUTION: ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

1. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
2. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
3. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
4. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
5. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed of at the particular disposal center provided by the municipalities.

SELLER'S SIGNATURE AND STAMP

1. This warranty guarantees

SELLER'S INVOICE NUMBER

SELLER'S SIGNATURE AND STAMP

1. This warranty

WARRANTY PERIOD AND CONDITIONS

WARRANTY PERIOD AND CONDITIONS

The warranty period begins from the day of purchase of the product and lasts for 24 months.

* filled in by the distributor when selling the device to the seller of the device

Datum prodaje krajnjem kupcu	Broj računa, fakture ovlašćenog prodavca	Potpis i pečat prodavca

The warranty does not exclude or affect the consumer's rights regarding the conformity of the goods with the contract.

Also, we inform consumers about their rights regarding non-conformity of goods as stated in Article 54 of the Consumer Protection Law:

• If the delivered goods are not in conformity with the contract, the consumer has the right to demand from the trader to remedy the non-conformity, free of charge, by repair or replacement, or to demand an appropriate price reduction or to terminate the contract regarding those goods.
• The consumer may, first of all, choose between requiring the non-conformity to be remedied by repair or replacement.
• If the remedy of the non-conformity is not possible or if it would impose a disproportionate burden on the trader, the consumer may require a price reduction or declare the contract terminated.
• Any repair or replacement must be carried out within a reasonable time and without significant inconvenience to the consumer, taking into account the nature of the goods and the purpose for which the consumer acquired them.
• All costs necessary to bring the goods into conformity with the contract, in particular the costs of labor, materials, collection, and delivery, shall be borne by the trader.
• The consumer has the right to terminate the contract if he cannot exercise the right to repair or replacement, or if the trader has not carried out the repair or replacement within a reasonable time, or if the trader has not carried out the repair or replacement without significant inconvenience to the consumer.
• For the obligations of the trader arising from the non-conformity of the goods, the manufacturer is in the position of a guarantor towards the consumer.
• The consumer may not terminate the contract if the non-conformity of the goods is minor.
• The rights referred to in paragraph 1 of this Article do not affect the consumer's right to claim damages from the trader for loss caused by the non-conformity, in accordance with the general rules on liability for damage.

NOTE

The warranty is valid only if the date of sale on the warranty card is confirmed by the stamp and signature of the authorized seller. When making a claim, please present the device and the warranty card with the receipt to the nearest authorized service center.

Alterations on the warranty card are not allowed!!!

SERVICE COUPON No. 1

Naziv :	Ser.br.:	Datum prijema :
Opis kvara :		Datum predaje :
Opis radova i ugrađeni delovi :		Servisirao :

SERVICE COUPON No. 2

Naziv :	Ser.br.:	Datum prijema :
Opis kvara :		Datum predaje :
Opis radova i ugrađeni delovi :		Servisirao :

SERVICE COUPON No. 3

Naziv :	Ser.br.:	Datum prijema :
Opis kvara :		Datum predaje :
Opis radova i ugrađeni delovi :		Servisirao :

Importer and distributor: KIM-TEC d.o.o. Viline Vode BB, Free Zone, 11000 Belgrade, Serbia Tel: [phone], Fax: [phone] www.kimtec.rs, [e-mail]

www.vivax.rs, [e-mail]

DEAR CUSTOMERS!

Kosova Electronic Service Center

Kosova Electronic Service Center

-VIVAX Air Conditions; White Goods and Small Home Appliances

MMM.vivax.com

VIVAX

HR BiH CG

Instructions for use

Microwave oven
