Product Type	French Door Refrigerator
Model Number	GC-B247JEDV
Brand	LG
Total Capacity	24 cu. ft. (approx.)
Dimensions (W x H x D)	35.8 x 70.0 x 33.5 inches (approx.)
Weight	280 lbs (approx.)
Energy Star Certified	Yes
Annual Energy Consumption	600 kWh (approx.)
Climate Class	SN-T (Subnormal to Tropical)
Refrigerant	R600a (Isobutane)
Compressor	Inverter Linear Compressor
Cooling Technology	DoorCooling+ (Multi Air Flow)
Ice Maker	Built-in In-Door Ice Maker
Water Dispenser	Internal (push button)
Smart Features	Smart Diagnosis (via app), Wi-Fi Ready
Shelves	Spill-Proof Tempered Glass (4)
Crisper Drawers	2 Humidity-Controlled
Freezer Drawers	1 Full-Width, 2 Lower Baskets
Lighting	LED Interior Lighting
Door Alarm	Yes
Child Lock	Yes (for ice & water)
Noise Level	39 dBA (approx.)
Maintenance	Condenser Coils: every 6 months

Frequently Asked Questions - GC-B247JEDV LG

How do I install the water filter?

Locate the filter compartment inside the refrigerator compartment near the top right. Push the old filter release button, pull it out, and insert a new LG-compatible filter (LT1000P or similar). Run 2-3 gallons of water through the dispenser to purge air and carbon dust.

What is the recommended temperature setting for the fridge and freezer?

The optimal refrigerator temperature is 37°F (3°C) and freezer is 0°F (-18°C). Use the control panel to adjust. Avoid overloading to maintain consistent airflow.

How do I activate Smart Diagnosis?

Press the 'Smart Diagnosis' button on the control panel. Hold the phone speaker near the logo on the fridge when prompted. The app will analyze the sound and provide troubleshooting steps. Alternatively, use the LG ThinQ app for Wi-Fi models.

Why is there water pooling inside the refrigerator?

Check the drain hole at the back of the fridge for clogs. Clean it with a pipe cleaner or hot water. Also ensure the door is sealing properly and not left open too long.

How often should I clean the condenser coils?

Clean the condenser coils every 6 months using a vacuum or coil brush. The coils are located behind the front base grille. Unplug the refrigerator before cleaning.

My ice maker is not producing ice. What should I do?

First, ensure the ice maker is turned on and the water supply is connected. Check if the water filter is clogged (replace if >6 months old). Reset the ice maker by holding the 'Ice Off' button for 10 seconds. If still not working, test the water inlet valve.

Can I reverse the door swing?

No, the LG GC-B247JEDV has French doors that open outward. Door reversal is not possible on this model due to the fixed hinge design and water line connections.

What does the 'Door Open' alarm mean?

The alarm sounds when a door is left open for more than 2 minutes. Close the doors completely. If alarm persists, check that nothing obstructs the door from closing fully.

How do I replace the water dispenser light bulb?

The internal water dispenser uses an LED light that is not replaceable. If it fails, contact LG customer service for assistance. Do not attempt to open the dispenser housing.

Why is the refrigerator making a clicking sound?

A clicking sound is normal when the compressor or defrost timer cycles on and off. If clicking is rapid or accompanied by vibration, check that the refrigerator is level and not touching surrounding cabinetry.

USER MANUAL GC-B247JEDV LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

ENGLISH

MFL70583735

Rev.00_022020

www.lg.com

Copyright © 2020 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS

This manual may contain images or content that may be different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS 4

READ ALL INSTRUCTIONS BEFORE USE....4

WARNING....4

CAUTION....9

INSTALLATION 11

Product Overview ....11

Before Installation 12

Removing the Fridge and Freezer Door....12

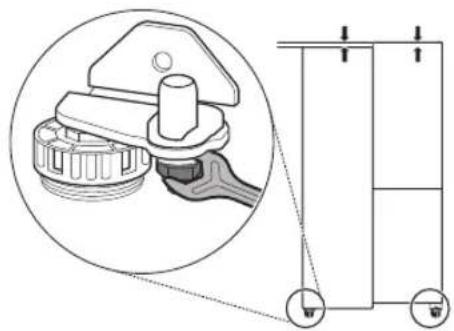

Levelling and Door Alignment ....14

Turning on the Power 15

Moving the Appliance for Relocation ....15

OPERATION 16

Before Use ....16

Product Features....18

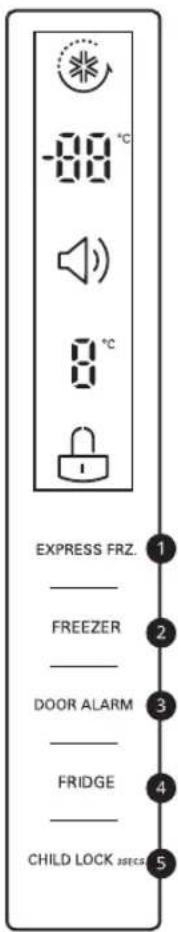

Control Panel....21

Door in Door....22

Fridge and Freezer Drawer....23

Icemaker 24

Shelf....25

Fridge and Freezer Door Basket 25

SMART FUNCTIONS...... 27

LG ThinQ Application....27

Smart Diagnosis....27

MAINTENANCE 28

Cleaning 28

TROUBLESHOOTING 29

Before Calling for Service 29

global_main.book.book Page 3 Thursday, February 20, 2020 1:36 PM

Information ....33

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

Safety Messages

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that failure to follow the instructions can cause minor injury or damage to the product.

WARNING

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury, or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This appliance is intended for household and similar applications only. It should not be used for commercial or catering purposes, or in any mobile application such as a caravan or boat.

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

- This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with a service agent or a similarly qualified person before disposing of them.

- If the power cord is damaged or the hole of the outlet socket is loose, do not use the power cord and contact an authorized service centre.

- If the power cord is damaged or the outlet socket hole is loose, do not use the power cord and contact an authorized service center.

- Do not locate multiple portable outlet sockets or portable power supplies at the rear of the appliance.

- Securely plug the power plug into the outlet socket after completely removing any moisture and dust.

- Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the outlet socket.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not tilt the appliance to pull or push it when transporting.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not use mechanical devices or other means to accelerate the defrosting process.
• Do not use a hair dryer to dry the inside of the appliance or place a candle inside to remove odors.
• Do not use electrical appliances inside the refrigerator.
• Make sure not to get a body part such as a hand or foot stuck while moving the appliance.
• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths, or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service center should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information center if you move and install the appliance in a different location.

Risk of Fire and Flammable Materials

• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an explosion.
• The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Installation

This appliance should only be transported by two or more people holding the appliance securely.

Install the appliance on a firm and level floor.

Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

Be careful not to expose the rear of the appliance when installing.

Install the appliance in a place where it is easy to unplug the power plug of the appliance.

Be careful not to let the appliance door fall during assembly or disassembly.

Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

Be careful not to point the power plug up or let the appliance lean against the power plug.

Do not connect a plug adapter or other accessories to the power plug.

- Do not modify or extend the power cable.

- Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

- This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and grounded in accordance with all local codes and ordinances.

- Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.
• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).
• The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power cord rating or higher and use the multi socket outlet only for the appliance.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.
• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.
• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.
• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the appliance.
• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such as candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane, R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

Disposal

- When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.

CAUTION

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Operation

- Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.

EN 10 SAFETY INSTRUCTIONS

• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.
• Do not hang from the appliance doors, storage room, shelf or climb up into it.
• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Do not use a thin crystal cup or chinaware when dispensing.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door or door in door.

Maintenance

• Do not clean glass shelves or covers with warm water when they are cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall. To remove frost from the appliance, contact an LG Electronics customer information centre.
• Dispose of the ice inside the ice bin in the freezer compartment during an extended power outage.

Installation

Product Overview

The appearance or components of the appliance may differ from model to model.

Front View

Accessories

*1: This feature is only available on some models.

① Spanner A*1 ② Spanner B*1 ③ Egg Box*1 ④ Ice Tray*1 ⑤ Owner's Manual

EN 12 Installation

Before Installation

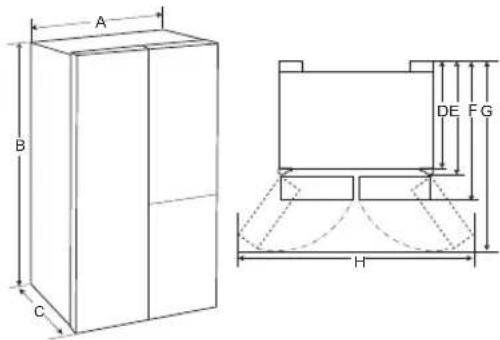

Dimensions and Clearances

Too small a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance between the back of the appliance and the wall when installing the appliance.

- Type A (mm)
A	912
B	1
C	717
D	615
E	690
F	717
G	1
H	1

NOTE

- You can determine what type of appliance it is by looking at the label inside the appliance.

Ambient Temperature

- The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.

- The internal temperatures could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on. - The climate class can be found on the rating label.

Climate Class Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38 / +18 - +38**
T (Tropical) +10 - +43* / +16 - +43 / +18 - +43**

* Australia, India, Kenya ** Argentina, Ecuador

NOTE

• The appliances rated from SN to T are intended to be used at an ambient temperature between 10 °C and 43 °C.

Removing the Fridge and Freezer Door

If your entrance door is too narrow for the appliance to pass through, remove the appliance doors and pass the appliance laterally.

WARNING

- Disconnect the power cord, house fuse or circuit breaker before installing, removing the doors, or cleaning the appliance. Failure to follow these instructions may result in death, fire or electric shock.

Removing the Freezer Door

1 Remove the screw from the hinge cover at the top of the appliance. Lift the hook, located at

the bottom of the front side of the cover, with a flat-head screwdriver.

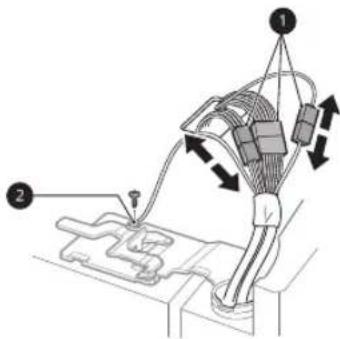

2 Disconnect all wire harnesses ①. Unscrew the ground wire ②.

3 Rotate the hinge lever 5 counterclockwise. Lift the top hinge 4 free of the hinge lever latch 3.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward. It is recommended that two or more people carry out the door removal and refitting.

4 Lift the freezer door until it is free of the bottom hinge assembly.

CAUTION

- Place the door on a non-scratching surface with the inner side facing up.

Removing the Fridge Door

1 Disconnect all wire harnesses ①.

2 Rotate the hinge lever ② clockwise. Lift the top hinge ③ free of the hinge lever latch ④.

CAUTION

- When lifting the hinge free of the hinge lever latch, be careful that the door does not fall forward. It is recommended that two or more people carry out the door removal and refitting.

3 Lift the fridge door until it is free of the bottom hinge assembly.

- Spanner Type B

CAUTION

- Place the door on a non-scratching surface with the inner side facing up.

Refitting the Fridge and Freezer Door

Refit the doors in the reverse sequence of their removal once the appliance has been passed through all access doors.

Levelling and Door Alignment

Before Beginning

When the appliance doors appear to be uneven, follow the instructions below to align the doors.

NOTE

- The spanner may differ depending on the model. You will be provided with either spanner type A or B.

- Spanner Type A

Levelling the Appliance

The appliance has two front levelling legs. Adjust the legs to alter the tilt from front to back or side to side. If the appliance seems unsteady, or the doors do not close easily, adjust the appliance's tilt using the instructions below.

Use the spanner ① to adjust the height by turning the leveling leg to the left to raise it or to the right to lower it.

Door Alignment for Freezer and Fridge Door

If the door of the appliance is not level, adjust the difference in the height of appliance door.

1 Open the door and use the spanner ① to loosen the keeper nut by turning it to the left.

2 Use the spanner ② to adjust the height by turning the adjustment hinge pin to the left or to the right.

CAUTION

- Do not adjust the height of the appliance door more than 3 mm.

3 Use the spanner ① to fasten the keeper nut by turning it to the right.

NOTE

• Leveling the doors may not be possible when the floor is not leveled, or is of weak or poor construction.
• The refrigerator is heavy and should be installed on a rigid and solid surface.
• Some timber flooring may cause levelling difficulties if it flexes excessively.

Turning on the Power

Connecting the Appliance

After installing the appliance, connect the power plug into the outlet socket.

NOTE

• After connecting the power supply cord (or plug) to the outlet, wait 3 or 4 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the Appliance for Relocation

Preparing for Relocation

1 Remove all food from inside the appliance. 2 Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance. 3 Tape parts such as shelves and the door handle to prevent them from falling off while moving the appliance. 4 Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright. 5 After installing the appliance, connect the power plug into a mains outlet socket and switch it on.

EN 16 OPERATION

OPERATION

Before Use

Notes for Operation

• Users should keep in mind that frost can form if the door is not closed completely or if the humidity is high during the summer.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Door Open Alarm

The alarm sounds 3 times in 30 second intervals if the door is left open or not completely closed for 1 minute.

NOTE

- Contact the LG Electronics customer information centre if the alarm sound continues after 30 seconds even after closing all doors.

Failure Detection

The appliance can automatically detect problems during the operation.

NOTE

• If a problem is detected, the appliance may not operate and an error code is displayed even when any button is pressed.
• If an error code is indicated on the display, do not turn off the power. Immediately contact the LG Electronics customer information centre and report the error code. If you turn off the power,

the repair technician from the our information centre may have difficulty finding the problem.

Suggestion for Energy Saving

• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.
• Store hot food only after it has cooled in order to prevent dew or frost.
• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.
• Do not set the temperature of the appliance lower than needed.
• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor. • Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.

Storing Foods Effectively

• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.
• Do not store food for a long period of time (more than 4 weeks) if it spoils easily at a low temperature.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Refrigerated foods and other food items can be stored on top of the vegetable drawer.
• Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.
• Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.
• Cool hot food before storing. If too much hot food is placed inside, the internal temperature of the appliance can increase and negatively affect other foods stored in the appliance.
• If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.
• If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature. In the event of a blackout, call the electricity company and ask how long it is going to last.
• You should avoid door openings while the power is off.
• When the power supply gets back to normal, check the condition of the food.

Max Freezing Capacity

• Express Freeze function will allow the freezer to reach its maximum freezing capacity. This generally takes up to 24 hours and automatically switches off.
• Express Freeze must be switched on for 2 hours before fresh products are placed in the freezer compartment. To get better air circulation, insert all inner parts like baskets, drawers, and shelves.

Freezing the Maximum Amount of Food

If large quantities of food are to be stored, all the freezer drawers should be taken out of the appliance and the food should be stacked directly on the freezer shelves in the freezer compartment.

CAUTION

- To remove the drawers, first remove the food from drawers and then pull out the drawers carefully. Not doing so could cause injury or damage to the drawers.

NOTE

- The shape of each drawer may be different, insert in the right position.

Two Star Compartment

• Two star (**) basket or drawer can be used to store ice and food from -12 °C to -18 °C for short periods.
• Two star frozen food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• Two star compartments are not suitable for the freezing of fresh food.

EN 18 OPERATION

Product Features

The appearance or components of the appliance may differ from model to model.

Exterior

*1: This feature is only available on some models.

1 Control Panel

Sets the refrigerator temperature and freezer temperature.

② Door in Door*1

This is a convenient storage area for frequently-used items that require easy access.

3 Door in Door Lever*1

Opens Door-in-Door.

Interior (Two Star **)

*1: This feature is only available on some models.

1 LED Lamp

The LED lamps inside the appliance light up when you open the door.

2 Freezer Shelf

This is where frozen foods such as meat, fish, and ice cream can be stored.

3 Icemaker

This is where ice is manually produced and stored.

4 Freezer Drawer

This is for long-term storage of frozen items.

5 Freezer Door Basket

This is where small packaged frozen food or frequently used foods can be stored.

6 Door in Door Compartment*1

This is where foods which are taken out frequently such as beverages and snacks are stored.

7 Bottle Rack

This is where drinks, tall bottles, or containers are stored.

CAUTION

- Do not store short bottles or containers. The items may fall and cause an injury or appliance damage.

8 Fridge Shelf

This is where refrigerated foods and other items are stored. Store the foods with higher moisture content at the front of the shelf.

The shelf height can be adjusted by inserting the shelf in another groove of different height.

The actual number of shelves will differ from model to model.

EN 20 OPERATION

9 Air Filter

This reduces odours inside the fridge compartment.

10 Snack Drawer

This is where small packages of refrigerated foods are stored.

11 Temperature Sensor*1

This sensor senses the temperature of the fridge compartment.

- Maintain the distance between the sensor and food to accurately sense the temperature.

12 Fresh Vegetable Drawer

This is where fruits and vegetables are stored to help maintain freshness by adjusting the humidity controller.

13 Egg Box*1

This is where eggs are stored.

- Do not use it as the ice bin or place it on the shelf on top of the fridge or the vegetable drawer.

14 Vegetable Drawer

This is where fruits and vegetables are stored to remain fresh for as long as possible.

15 Fridge Door Basket

This is where small packages of refrigerated foods, drinks and sauce containers are stored.

Control Panel

The actual control panel may differ from model to model.

Control Panel and Functions

① Express Freeze

This function can quickly freeze a large amount of ice or frozen foods.

• This function is enabled and disabled in turn each time you press the button.
• This function automatically terminates after a specific period has passed.

2 Freezer

Press this button repeatedly to select a desired temperature between -24 °C and -14 °C.

• The initial freezer temperature is -19 °C.

3 Door Alarm

This sets the alarm sound which is activated when the appliance door is opened.

4 Fridge

Press this button repeatedly to select a desired temperature between 1 °C and 7 °C.

• The initial fridge temperature is 4 °C.

EN 22 OPERATION

NOTE

- The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not the actual temperature within the appliance.

5 Child Lock

This locks the buttons on the control panel.

• To lock the control panel buttons, press and hold the Child Lock button for 3 seconds until the icon appears and the function is activated.
• To disable the function, press and hold the Child Lock button for 3 seconds until the 🔔 icon appears and the function is deactivated.

NOTE

• The control panel automatically turns off for energy saving.
• If there is any finger or skin contact with the control panel while cleaning it, the button function may operate.

Door in Door

This feature is only available on some models.

Using the Door in Door

Press the button on the center right of the door in door until it opens.

There is plenty of storage space inside the door in door and its surrounding baskets, allowing you to store food in an organized manner.

The door in door may be struck by the edge of the appliance and damaged.

Removing/Refitting the Door in Door Case

CAUTION

- Remove contents from the Door in Door compartment before removal.

CAUTION

- Do not open the door of the appliance with the Door in Door open, or do not open the Door in Door while the door of the appliance is open. The

1. Open the doors completely and remove the contents of the Door in Door case. Lift up and pull out the Door in Door case.

2. Mount them in the reverse order of the removal process.

Fridge and Freezer Drawer

CAUTION

• Always empty the drawers before removing them, and use both hands when removing and refitting them. • Make sure that the fridge doors are fully open before removing and refitting the drawers.

Using the Vegetable Drawer

*1: This feature is only available on some models.

The humidity in the vegetable crisper drawer can be controlled by sliding the lever in either direction.

• If moved to the left side, the air guide will be open and allow air to circulate through the drawer for reduced humidity.
• If moved to the right side, the air guide will be closed and will maintain any humidity that is currently in the crisper drawer.

Type A*1
Type B*1

Removing/Refitting the Drawers

1. Remove the contents of the drawer. Hold the handle of the vegetable drawers and gently pull them out.

2. Lift the vegetable drawer up and remove it by pulling it out.

3. Mount them in the reverse order of the removal process.

EN 24 OPERATION

CAUTION

• Always empty the drawers before removing them, and use both hands when removing and refitting them. • Make sure that the fridge doors are fully open before removing and assembling the drawers.

Icemaker

Before Using the Icemaker

WARNING

- Fill with potable water only into icemaker or dispenser water tank.

NOTE

• The icemaker produces ice normally once approximately 48 hours have passed after the appliance is initially installed. - If half-frozen ice is put into the ice storage bin, it will cause the exiting ice cubes to lump together. It takes about 4 hours at -20 °C for ice production. - If the freezer door is frequently opened, warm air enters the freezer compartment. It may take a longer time to freeze ice. - Be careful not to twist the ice maker with force since it can break. - Do not freeze the ice in the ice storage bin. This could break it and cause appliance damage or injury.

Using the Icemaker

*1: This feature is only available on some models.

Icemaker Type A*1

1. Hold the handle of the ice tray and pull it out.

2. Fill the ice tray with potable water up to the water line.

3. Place the ice tray back to its position carefully.

4. Rotate the icemaker handle clockwise.

5. Lift and remove the ice storage bin slightly.

Icemaker Type B*1

1. Fill the ice tray with potable water and place it in the freezer compartment.

2. After the water is frozen, hold the ice tray at its ends and twist gently.

NOTE

- You can remove the icemaker or ice storage bin to create more space inside the freezer if you do not use it.

Shelf

CAUTION

• Glass shelves are heavy. Use special care when removing them. - Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

Removing/Refitting the Shelf

1 Tilt up the front of the shelf and then lift the shelf straight up.

2 Pull the shelf out.

3 Mount them in the reverse order of the removal process.

CAUTION

• Glass shelves are heavy. Use special care when removing them. - Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact. • Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or food spilling.

Fridge and Freezer Door Basket

Removing/Refitting the Door Basket

1 Hold both edges of the basket and remove it by lifting it upward.

2 Refit the door baskets in the reverse order of the removal process.

3 Mount them in the reverse order of the removal process.

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with the ⚙ or ⚙ logo.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow the instructions to download and install the application.

LG ThinQ Application Features

Smart Diagnosis

If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Smart Diagnosis

This feature is only available on models with the 🎨 or 🎨 logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Child Lock button to activate the lock function.

- If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

2 Open the fridge door and then hold the phone on the upper right speaker hole.

- Position the phone so that its microphone is aligned with the speaker hole.

3 Press and hold the Freezer button for three seconds or longer while holding your phone to the speaker until the data transfer is complete.

- The diagnosis sound is generated after around 3 seconds.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

MAINTENANCE

Cleaning

General Cleaning Tips

- When cleaning the inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances. This may cause discolouration or damage to the appliance.

- Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

• After cleaning, check if the power cable is damaged.

Cleaning the Exterior

- When cleaning the outside air vents of the appliance by means of vacuuming, unplug the power cord from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock. Regular cleaning of the rear and side ventilation covers is recommended to maintain reliable and economical operation of the unit.

- Keep the air vents on the exterior of the appliance clean. Blocked air vents can cause fire or appliance damage.

- For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth. Do not use contaminated cloths when cleaning the stainless steel doors. Always use a dedicated cloth and wipe in the same direction as the grain. This helps reduce surface staining and tarnishing.

Cleaning the Interior

- When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to

the appliance. Otherwise, injury may occur due to the weight of stored foods.

• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet soft towel.
• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
• Never clean the shelves or containers in the dishwasher. The parts may become deformed due to the heat.

Cleaning the Condenser Cover

Use a vacuum cleaner with a brush to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

We recommend that this be done every 12 months to maintain operating efficiency.

TROUBLESHOOTING

Before Calling for Service

Cooling

Symptoms Possible Cause & Solution
There is no refrigeration or freezing.	Is there a power interruption?Check the power of other appliances.
	Check the power of other appliances.Plug the power plug in the outlet properly.
There is poor refrigeration or freezing.	Is the fridge or freezer temperature set to its warmest setting?Set the fridge or freezer temperature to a colder setting.
	Is the appliance in direct sunlight, or is it near a heat generating object such as cooking oven or heater?Check the installation area and reinstall it away from heat generating objects.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you put in too much food?Maintain an appropriate space between food.
	Are the appliance doors completely closed?Completely close the door and make sure that stored food is not obstructing in the door.
	Is there enough space around the appliance?Adjust the installation position to make enough space around the appliance.
The appliance contains a bad smell.	Is the fridge or freezer temperature set to 'Warm'?Set the fridge or freezer temperature to a colder setting.
	Did you put in food with a strong smell?Store foods with strong smells in sealed containers.
	Vegetables or fruit may have spoiled in the drawer.Strow away rotten vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.

EN 30 TROUBLESHOOTING

Condensation & Frost

Symptoms Possible Cause & Solution
There is condensation inside the appliance or on the bottom of the vegetable drawer cover.	Did you store hot food without cooling it first?Cool the hot food first before putting it inside the fridge or freezer.
	Did you leave the appliance door open?Although the condensation will disappear soon after you close the appliance door, you can wipe it with a dry cloth.
	Do you open and close the appliance door too frequently?Condensation can form due to the temperature difference from the outside. Wipe out the dampness with a dry cloth.
	Did you put warm or moist food inside without sealing it in a container?Store food in a covered or sealed container.
Frost has formed in the freezer compartment.	Doors may not be closed properly.Check if the food item inside the appliance is blocking the door and make sure that the door is tightly closed.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Is the air entry or exit of the freezer compartment blocked?Make sure that air entry or exit is not blocked so that the air can circulate inside.
	Is the freezer compartment overfilled?Maintain an appropriate space between items.
Frost or condensation has formed inside or outside the appliance.	Did you open and close the appliance door frequently or is the appliance door improperly closed?Frosts or condensation can form if the outside air penetrates inside the appliance.
	Is the installation environment humid?Condensation can appear on the exterior of the appliance if the installation area is too humid or on a humid day such as a rainy day. Wipe off any moisture with a dry cloth.
The side or front of the appliance is warm.	There are anti condensation pipes fitted to these areas of the appliance to reduce condensation forming from around the door area.The heat releasing pipe to prevent condensation is installed on the front and side of the appliance. You may feel it particularly hot right after the appliance is installed or during the summer. You can be assured that this is not a problem and is quite normal.

Symptoms Possible Cause & Solution
There is water inside or outside of the appliance.	Is there water leakage around the appliance?Check if the water has leaked from a sink or another place.
	Is there water on the bottom of the appliance?Check if the water is from the thawed frozen food or a broken or dropped container.

Parts & Features

Symptoms Possible Cause & Solution
The appliance door is not closed tightly.	Is the appliance leaning forward?Adjust the front feet to raise the front side slightly.
	Were the shelves properly assembled?Refit the shelves if needed.
	Did you close the door with excessive force?If you apply too much force or speed when closing the door, it may remain briefly open before closing. Make sure that you do not slam the door closed. Close the door gently.
It is difficult to open the appliance door.	Did you open the door right after you closed it?If you try to open the appliance door within one minute after you closed it, you may have difficulties because of the pressure inside the appliance. Try to open the appliance door again in a few minutes so that the internal pressure stabilizes.
Door mullion does not fold in and out properly.	Are front levelling legs extended, the appliance level, and doors aligned?Once the door baskets are filled, the doors may become misaligned, preventing the door mullion or the Auto Open Door function from working properly. Extend both front levelling legs fully so they are in firm contact with the floor. Follow the instruction in the Door Alignment section to raise the left fridge door until the door mullion is once again working properly. Adjust the right fridge door so it aligns with the left fridge door.
The inside lamp in the appliance does not turn on.	Lamp failureClose the door and re-open. If the lamp does not turn on, please contact the LG Electronics customer information centre. Do not attempt removal of the lamp.

EN 32 TROUBLESHOOTING

Noises

Symptoms Possible Cause & Solution
The appliance is noisy and generates abnormal sounds.	Is the appliance installed on a weak floor or improperly levelled?• Install the appliance on a solid and flat area.
	Does the rear of the appliance touch the wall?• Adjust the installation position to allow enough clearance around the appliance.
	Are objects scattered behind the appliance?• Remove the scattered objects from behind the appliance.
	Is there an object on top of the appliance?• Remove the object on top of the appliance.
Clicking noises The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or appliance control on some models) will also click when cycling on and off.• Normal Operation
Rattling noises Rattling	noises may come from the flow of appliance, the water line on the back of the unit (for plumbed models only), or items stored on top of or around the appliance.• Normal Operation
	Appliance is not resting evenly on the floor.• Floor is weak or uneven or levelling legs need to be adjusted. See the Door Alignment section.
	Appliance with linear compressor was moved while operating.• Normal operation. If the compressor does not stop rattling after three minutes, turn the power to the appliance off and then on again.
Whooshing noises Evaporator fan motor is circulating air through the fridge and freezer compartments.• Normal Operation
		Air is being forced over the condenser by the condenser fan.• Normal Operation
Gurgling noises Appliance flowing through the cooling system.• Normal Operation
Popping noises Contraction and expansion of the inside walls due to changes in temperature.• Normal Operation

Symptoms Possible Cause & Solution

Vibrating If the side or back of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound.· To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.

Memo

Memo

LG

Life's Good

EAC

	The symbol is used in accordance with the Technical Regulation of the Customs Union 005/2011 and indicates that the packaging of this product is not intended for secondary use and is subject to destruction. Do not use the packaging of this product for storing food products.
	The symbol indicates the possibility of deleting the package. The symbol may be supplemented with the designation of the packaging material in the form of a numeric code and / or letter designation.
Information The date	of manufacture is indicated on the label inside the refrigerator.

Service 33

Cleaning 33

TROUBLESHOOTING.... 35

KK 6 SAFETY INSTRUCTIONS

KK 8 SAFETY INSTRUCTIONS

KK 10 SAFETY INSTRUCTIONS

KK 12 INSTALLATION

INSTALLATION

Accessories

Before installation

-	A Tγρι (MM)
A	912
B	1
C	717
D	615
E	690
F	717
G	1
H	1

REMOVAL

REMOVAL

REMOVAL

REMOVAL

REMOVAL

Two-star section

KK 22 Usage

Product Features

1 Control Panel

① LED lamp

EN 24 Operation

EN 26 Operation

TROUBLESHOOTING

EN 28 Operation

EN 32 SMART FUNCTIONS

TROUBLESHOOTING

Service

Cleaning

TROUBLESHOOTING

EN 36 TROUBLESHOOTING

Noises

Smart Diagnosis....32

MAINTENANCE...... 34

Cleaning 34

INSTALLATION

Product Overview

Accessories

EN 14 INSTALLATION

Before Installation

Dimensions and Clearances

WARNING!

⚠️ WARNING!

EN 16 INSTALLATION

⚠️ WARNING!

⚠️ WARNING!

OPERATION

1 Control panel

EN 24 OPERATION

WARNING!

EN 30 OPERATION

NOTE

For notes

For notes

For notes

LG

Life's Good

EAC
