Product Type	Battery Pack
Brand	Fluke
Model	BC500
Category	Battery
Chemistry	Lithium-ion
Voltage	4.8 V
Capacity	3000 mAh
Dimensions	60 x 30 x 20 mm
Weight	100 g
Charging Time	4 hours
Compatibility	Select Fluke multimeters
Battery Life	Up to 100 hours typical
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Rechargeable	Yes
Number of Cells	4
Protection	Overcharge, overdischarge, short-circuit
Indicators	LED charge status
Connector	Proprietary (Fluke)
Maintenance	Clean contacts, avoid extreme temperatures
Safety	Do not disassemble, short-circuit, or expose to moisture
Spare Parts	Available through Fluke authorized service centers
Repairability	Not user-serviceable, replace entire pack

Frequently Asked Questions - BC500 FLUKE

How do I charge the BC500 battery?

Use only the Fluke approved charger designed for the BC500. Connect the charger to the battery connector and plug into a standard AC outlet. The LED indicator will show charging status. Charging typically takes 4 hours.

Is the BC500 compatible with Fluke 87V?

Yes, the BC500 is commonly used with the Fluke 87V multimeter, as well as other Fluke meters that use the same battery connector. Check your device manual for specific compatibility.

What is the battery life of the BC500?

Under typical usage, the BC500 provides up to 100 hours of continuous operation. Battery life depends on the device's power consumption and operating conditions.

Can I use the BC500 in other Fluke devices?

The BC500 is designed for select Fluke meters with a compatible connector and voltage requirement (4.8V). Verify your device's specifications before use to avoid damage.

How do I know when the battery is fully charged?

The LED indicator on the charger or battery will turn solid green or turn off when fully charged. Refer to the charger manual for exact indications.

Can I replace the cells in the BC500?

No, the BC500 is a sealed unit and not designed for cell replacement. Attempting to open it may damage the battery and void the warranty. Replace the entire pack when necessary.

What is the storage recommendation for the BC500?

Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Ideal storage temperature is between 20°C and 25°C. Keep it partially charged (around 50%) if storing long-term.

Does the BC500 have overcharge protection?

Yes, the BC500 includes built-in protection circuits against overcharging, overdischarging, and short-circuits to ensure safe operation.

How do I clean the battery terminals?

Use a dry cloth or cotton swab to gently clean the metal contacts. Ensure the battery is disconnected and turned off. Avoid using liquids or abrasive materials.

Where can I purchase a replacement BC500?

Replacement BC500 batteries are available through Fluke authorized distributors, online retailers like Amazon, or directly from the Fluke website. Always purchase genuine Fluke parts.

USER MANUAL BC500 FLUKE

International electrical symbols used on the Product and in this document are explained below.

Symbol	Description
	WARNING - RISK OF DANGER. Consult user documentation.
	WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
	DC (Direct Current)
	Double Insulated
	Conforms to European Union directives.
	Energy Efficiency Level VI
	This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste.Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 “Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste.
	Conforms to relevant South Korean EMC Standards.
	Certified by ETL Intertek to North American safety standards.
	Conforms to relevant Australian Safety and EMC standards.
	Conforms to relevant Safety standards in Japan
	10 year Environment Friendly Use Period (EFUP) under China Regulation - Administrative Measure on the Control of Pollution Caused by Electronic Information Products. This is the period of time before any of the identified hazardous substances are likely to leak out, causing possible harm to health and the environment.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Fluke's behalf. To obtain service during the warranty period, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

U.S.A.

Fluke Europe B.V

P.O. Box 1186

5602 BD Eindhoven

The Netherlands

FLUKE.

BC500

Universal Mains-Power Adapter

Instruction Sheet

Introduction

The BC500 is a universal mains-power adapter (the Adapter or Product) for measurement, control, and laboratory equipment. The Adapter is intended for operating and charging the Fluke BT500-Series Battery Testers. The Adapter is based on the switched-mode concept for high efficiency and low stand-by power consumption, and complies with level-VI requirements. It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal.

A mains cord is included to make the Adapter suitable for most types of mains outlet.

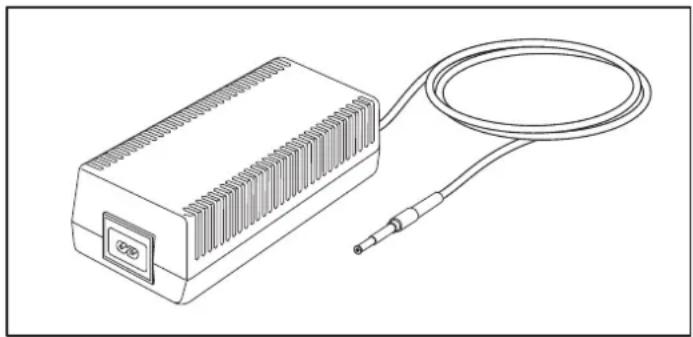

Line drawing of a rectangular electronic device with a coiled cable and terminal connector (no text or symbols)

How to Contact Fluke

To contact Fluke, call one of the following telephone numbers:

• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: [phone]
• Japan: [phone]
• Singapore: [phone]
• China: 400 921 0835
• Anywhere in the world: [phone]

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To view, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals.

PN 4862400

January 2017

© 2017 Fluke Corporation. All rights reserved. Product specifications are subject to change without notice.

Safety Information

A Warning identifies conditions and procedures that are dangerous to the user.

Warning

To prevent electrical shock, fire, or personal injury:

• Read these instructions carefully before using the Product.
• Use the Product only with Fluke test tools that have the type number 'BC500' specified for charge and operation.
• Use this Product only as specified.
• Do not open the Product, it has no user-serviceable parts inside.
• Do not use the Product around explosive gas, vapor, or in damp or wet environments.
• Use this Product indoors only.
• Examine the case before you use the Product. Look for cracks or missing plastic. Carefully look at the cable jacket and insulation around the terminals.
• Use only the mains power cord and connector approved for the voltage and plug configuration in your country and rated for the Product.
• Replace the mains power cord if the insulation is damaged or if the insulation shows signs of wear.
• Do not use the Product if it is altered or damaged.

Unpack

The Adapter includes these items:

• BC500 Switch Mode Power Adapter (main unit) with dc cable
  • 2-wire mains cords with male and female connector

At delivery of the Adapter, make sure that the shipment is complete and all items are undamaged. Contact your supplier if you see any damage.

Operation

The power cord connects the Adapter to the mains system. Do not block access to the power cord and power plug, these must remain accessible to the user at all times.

The Adapter is not equipped with a power switch. Disconnect the mains plug from the mains system when not in use.

In case the Adapter is damaged or any damage is suspected, disconnect from the mains system and have qualified service personnel inspect the Adapter before reconnecting to the mains system again.

To use:

1. Connect the mains cord to the Adapter.
2. Connect the power plug to the mains system.
3. Connect the dc plug to the test tool.

For continuous operation and recording with the test tool, keep the power adapter connected.

Note

Always fully charge the test tool battery before storage.

Specifications

Input

Nominal input voltage .... 100 Vac to 240 Vac, ±10 %

Input current....0.35 A at max. load

Nominal input frequency .... 50 Hz to 60 Hz ±5 %

Mains inlet.....IEC 60320-1 type C8

Input power, no load.... <0.1 W (@ 115 / 230 Vac)

Output

Output voltage.... 18 Vdc ±5 %

Output current....0 mA to 840 mA

Output cable length....2 m (6.5 ft)

Output connector 5.5 mm outer diameter, per DIN45232

Output polarity.... Inner contact positive, outer contact negative

Physical characteristics

Dimensions of main unit..... 79 mm x 149 mm x 49 mm

Housing material....Heat resistant ABS

Color (housing and cable)......Black

Weight....0.35 kg

Ingress Protection......IEC 60529, IP40

Environmental

Operating temperature....0 °C to 50 °C, up to 90 % rel. humidity, no

condensation

Storage temperature....-40 °C to +70 °C, 10 % to 95 % rel. humidity

Max. altitude.... 2000 m (6562 ft) above sea-level

Included accessories

Power cord....2-wire cord, with female connector acc.

IEC60320 style C7

Mains cord length.... 1.8 m (6 ft), male to female

Safety....IEC 61010-1, IEC 61010-2-030: CAT IV 600 V, Pollution Degree 2

Electromagnetic

Compatibility (EMC) ...... IEC 61326-1: Industrial Electromagnetic

Environment

CISPR 11: Group 1, Class A

Group 1: Equipment has intentionally generated and/or use conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself.

Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments, due to conducted and radiated disturbances.

Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.

Korea (KCC)....Class A Equipment (Industrial Broadcasting & Communication Equipment)

Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
