SBP3 - Battery FLUKE - Free user manual and instructions

Product Type	Rechargeable Battery
Brand	Fluke
Model	SBP3
Battery Chemistry	Lithium-ion (Li-ion)
Nominal Voltage	11.1 V
Capacity	3.0 Ah
Energy	33.3 Wh
Dimensions (L x W x H)	70 mm x 50 mm x 20 mm
Weight	150 g
Compatibility	Fluke 17B, 115, 179, and other compatible DMMs
Charging Time	3-4 hours (with Fluke approved charger)
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Safety Features	Overcharge, over-discharge, and short circuit protection
Cycle Life	Approximately 500 cycles
Maintenance	Clean with dry cloth; avoid moisture and extreme temperatures
Spare Parts	Replacement battery available (Fluke SBP3)
Repairability	Non-repairable; replace entire battery
Certifications	CE, UL, RoHS compliant
Warranty	1 year limited warranty

Frequently Asked Questions - SBP3 FLUKE

What devices is the Fluke SBP3 battery compatible with?

The Fluke SBP3 battery is compatible with many Fluke digital multimeters, such as the 17B, 115, 179, and other models that accept the same battery pack. Always check your device's manual for compatibility.

How do I charge the Fluke SBP3 battery?

Use only a Fluke approved battery charger designed for Li-ion batteries. Connect the battery to the charger and plug into a power outlet. The charging time is approximately 3-4 hours for a full charge.

Can I use the battery while it is charging?

No, the SBP3 battery is not designed to be used while charging. Remove it from the device and charge separately.

How should I store the battery when not in use?

Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. The recommended storage temperature is -20°C to 45°C (-4°F to 113°F). For long-term storage, keep at around 50% charge.

What is the expected lifespan of the SBP3 battery?

The SBP3 battery typically lasts for about 500 charge-discharge cycles before its capacity significantly degrades. Actual lifespan depends on usage and care.

Is the battery protected against overcharging?

Yes, the battery has built-in protection circuits to prevent overcharging, over-discharging, and short circuits, ensuring safe operation.

Can I replace the SBP3 battery myself?

Yes, the battery is designed for easy replacement. Simply remove the old battery from your device and insert the new one. No special tools are required.

What should I do if the battery gets wet?

If the battery gets wet, do not use it. Dry it thoroughly with a cloth and let it air dry completely. If any damage is suspected, replace the battery. Do not charge a wet battery.

How do I dispose of a worn-out SBP3 battery?

Dispose of the battery in accordance with local regulations for lithium-ion batteries. Do not throw it in household trash. Check with your local recycling center for proper disposal methods.

What is the voltage and capacity of the SBP3 battery?

The Fluke SBP3 battery has a nominal voltage of 11.1 V and a capacity of 3.0 Ah (33.3 Wh). This provides ample power for extended use of your Fluke device.

USER MANUAL SBP3 FLUKE

Charging Base/Power Supply with Adapters

Instruction Sheet

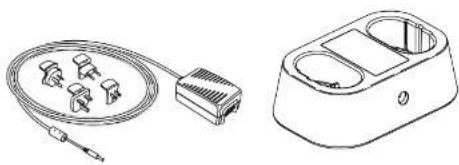

The Fluke FLK-TI-SBC3B Charging Base/Power Supply with Adapters charges the Fluke FLK-TI-SBP3B Smart Battery Pack for Thermal Imagers. The FLK-TI-SBC3B consists of a charging base, power supply, and power outlet adapters.

Technical line drawing of a medical or laboratory device with coiled tubing and a side-view housing (no text or symbols)

FN 4262179 May 2013

© 2013 Duke Corporation. All rights reserved.

All product names are manufacturers of their respective companies. Specific products are subject to change without price

Safety Information

Use the FLK-TI-SBC3B only as specified in this instruction sheet or other Fluke

product-specific manual. See Table 1 for a list of symbols used on the FLK-TI-SBC3B.

A Warning identifies hazardous conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that may cause damage to the Product or the equipment under test.

Warning

To avoid injury:

• Do not disassemble or short circuit the battery pack.
• Do not expose the battery pack to temperatures above 50 °C (122 °F).
• Do not incinerate or mutilate the battery pack.
• Use only ac adapters approved by Fluke for the product to charge the battery or power the product.

Table 1. Symbols

Symbol	Description
CE	Conform to requirements of European Union and European Free Trade Association.
∅∅∅	Imager connected to battery charger.
VWEC	Conform to relevant Australian standards.
SB	Conform to relevant Canadian and US standards.
Δ	Important information. See manual.
X	This product complies with the WEEE Directive (2002/96/EC) marking requirements.the offered anal indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, the product a classed as category B "Monitoring and Control Instrumentation" product. Do not dispose of this product as unsorted municipal waste. Go to Fluke's website for recycling information.

Charging the Battery

Before using the battery pack for the first time, charge the battery in the two-bay charging

base for at least two and one-half hours. For complete charging instructions, see the Thermal Imagers User Manual.

Specifications

See Table 2 for the specifications.

Table 2. Specifications

Battery Charging	10-15 Voc 2 A or charge battery pack in Insger with included ac adapter rated: 100-240 Vac 5000 Hz, 15 V 2 A
Charging / Power LED	Status Charging LED Power LED
	off no battery dotected no ac power input
	solid green charged ac power present
	blinking green charging ns
	blinking red	fault	ns
Dimensions	159.5 mm x 68.3 mm x 51.3 mm (6.28 in x 2.71 in x 2.02 in)
Operating Temperature -10 °C to 70 °C (-14 °F to 158 °F)
Storage Temperature	-20 °C to 80 °C (-4 °F to 178 °F) without batteries
Humidity Range	10 % to 95 % non-condensing

How to Contact Fluke

To contact Fluke, call one of the following telephone numbers:

• USA: 1-800-760-4523

• Canada: 1-800-36-FLUKE (1-800-363-5853)

• Europe: [phone]

• Japan: [phone]

• Singapore: [phone]

• Anywhere in the world: [phone]

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To view, print, or download the latest manual supplement, visit

http://us.fluke.com/usen/support/manuals.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Fluke's behalf. To obtain service during the warranty period, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Fluke Corporation Fluke Europe B.V

P.O. Box 9090 P.O. Box 1186

Everett, WA 98208-909D 56U2 BD Eindhoven U.S.A. The Netherlands

U.S.A. The Netherlands
