LB01 - Leaf blower G-TECHNOLOGY - Free user manual and instructions

Type	Cordless leaf blower
Brand	G-Technology (Gtech)
Model	LB01
Voltage	36 V
Battery capacity	4 Ah Li-Ion
Charge time	5 hours
Sound power level (declared)	104 dB(A)
Sound pressure level	90.6 dB(A)
Vibration	1.75 m/s², K=1.5 m/s²
Weight	4.3 kg
Charger input	100-240 V ~ 50/60 Hz, 50 W
Charger output	42 V DC, 1 A
Power control	Variable speed trigger
Nozzle	Included, bayonet mount
Intended use	Domestic only
Safety features	Auto cut-out on motor overheat, battery release lever
Battery level indicator	4 LED state-of-charge display
Charging indication	LEDs pulse during charge, turn off when full; charger LED flashes
Maintenance	Wipe with dry cloth; do not use water, solvents, or abrasives
Spare parts	Available from manufacturer (Gtech)
Warranty	2 years

Frequently Asked Questions - LB01 G-TECHNOLOGY

Can I use the leaf blower in rain?

No, the manual explicitly states do not use in rain or leave outdoors while raining. It is not waterproof.

How long does it take to fully charge the battery?

The battery takes up to 5 hours to fully charge. The LEDs pulse during charging and turn off when complete.

How do I start the leaf blower?

Insert the battery until it clicks, hold the handle firmly, and press the trigger. The power varies with pressure: more pressure = higher speed.

How do I clean the leaf blower?

Use only a dry cloth to wipe clean. Do not use water, solvents, polishes, or abrasive materials, and never immerse it in water.

What should I do if the leaf blower stops during use?

First, wait for the automatic cut-out to reset (if overheated). Then check the nozzle for debris and remove any blockages. Finally, recharge the battery if needed.

Why is my leaf blower vibrating abnormally?

Abnormal vibrations usually mean the nozzle is loose. Check and tighten the nozzle by twisting it clockwise until it clicks.

How do I remove the battery?

Push the release lever in the handle to unlock the battery, then slide the battery out of the cradle by its handle.

What do the charger LED flashes mean?

Slow red flash: battery is too hot – allow to cool. Rapid red flash: battery fault – contact Gtech. When fully charged, the charger LED flashes and battery LEDs turn off.

Is there a warranty on this leaf blower?

Yes, Gtech offers a 2-year warranty from date of purchase. It covers manufacturing defects but not normal wear, misuse, or unauthorized repairs.

Where can I buy spare parts?

Spare parts can be purchased directly from Gtech by calling 01905 345 891 or visiting www.gtech.co.uk. Use only genuine Gtech components.

USER MANUAL LB01 G-TECHNOLOGY

Line drawing of a hand holding a tool, with two green diagonal lines extending from it (no text or symbols)

OPERATING MANUAL

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury.

Personal Safety:

- Only use the leaf blower in the manner intended and as described in this manual.

- Keep out of reach of children and animals at all times.

- Only use in daylight or good artificial light.

- Always be sure of your footing on uneven ground, slopes or in slippery conditions.

- Do not over-reach or use on excessive steep slopes.

- Remove any stones, loose debris and other objects from the area.

- Pay special attention to the hazards posed to bystanders by thrown or flyaway objects.

- Stay alert, watch what you are doing and use common sense when operating a power tool.

- Do not use power tools while you are tired or under the influence of drugs, alcohol or medication. This may result in serious personal injury.

• Always be aware of your surroundings and stay alert for possible hazards.

- Use protective personal equipment such as safety glasses, non-skid safety shoes, sturdy gloves to reduce the risk of personal injury.

- Do not operate when barefoot or wearing open toed shoes. Always wear

substantial footwear and long trousers.

- Dress appropriately. Do not wear loose clothing or jewellery and keep hair, clothing and gloves away from moving parts.

- Avoid accidental starting. Ensure the trigger is off whilst picking up or carrying the product.

- Do not run with the leaf blower.

- When operating the leaf blower ensure that hands are correctly positioned on the handle.

- Do not operate the leaf blower if it is incomplete or has unauthorised modifications.

- Keep all body parts, especially hands and feet, away from the motor at all times.

- Ensure that the motor has fully stopped before cleaning, clearing a blockage, checking, or carrying out maintenance on the leaf blower.

- Carry the leaf blower by the handle.

- The operator is responsible for accidents or hazards occurring to other people at their property.

- Never operate the leaf blower if it is damaged.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge.

- Keep the product and all accessories

away from hot surfaces.

- Never modify the leaf blower in any way.

Electrical safety:

• Do not operate the leaf blower in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The motor may create sparks, which may ignite the dust and fumes.
• Do not use the leaf blower when a thunderstorm is approaching.
• Avoid body contact with earthed or grounded surfaces, such as pipes. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose the leaf blower to rain or wet conditions.
• Do not handle the charger or the leaf blower with wet hands.
• Before charging check the power supply and charger cables for signs of damage or ageing.
• For safety the leaf blower will automatically cut out if the motor becomes overheated. If this occurs, wait a few seconds for the cut out to reset and then use again.

Battery safety:

• Do not attempt to use the charger with any other product or to charge this product with any other charger.
• This product contains Li-Ion batteries. Do not incinerate batteries or expose to high temperatures, as they may explode.
• Do not charge the battery when the surrounding air temperature or the battery pack is below 0°C or above 45°C.

• After heavy use or in high temperatures the battery may become warm. Allow the product to cool for 30 minutes before charging.
- Use only with the battery pack supplied.
- Leaks from battery cells can occur under extreme conditions. If the liquid gets on your skin wash immediately with soap and water. If the liquid gets into your eyes, flush them immediately with cold water for a minimum of 10 minutes and seek urgent medical attention.
- Do not store the battery outside for prolonged periods of time, especially over the winter months.

Training

• Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields.
• Never operate the machine while people, especially children, or pets are nearby.

Operation

• Wear eye protection and stout shoes at all times while operating the machine.
• Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
• Never operate the machine if damaged.
• Switch on the motor only when pointed in the desired direction.
  • Always disconnect the machine from the power supply (removable battery)

1) whenever the machine is left unattended;
2) before clearing a blockage;
3) before checking, cleaning or working on the machine;
4) after striking a foreign object;
5) whenever the machine starts vibrating abnormally.

• Always ensure that the ventilation openings are kept clear of debris.

Maintenance and storage

• Disconnect the machine from the power supply (removable battery) before carrying out maintenance or cleaning work.
• Use only the manufacturer's recommended replacement parts and accessories.
• Inspect and maintain the machine regularly. Have the machine repaired only by an authorised repairer.
• When not in use, store the machine out of the reach of children.

Service:

• Do not use the leaf blower if the switch does not turn it on or off. Any power tool that cannot be controlled by the switch is dangerous and must be repaired or replaced.
• Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the leaf blower's operations. If damaged, have the power tool repaired or replaced.
• Before using the machine and after any impact, check for signs of wear and damage and repair or replace as necessary.
  • Always ensure that the ventilation openings are kept clear of debris.
• Have your leaf blower serviced by a qualified repair person using only genuine replacement parts. This will ensure that the safety of the leaf blower is maintained.
• Do not attempt to repair any damaged parts on the leaf blower unless you are qualified to do so.

Intended Use:

- This product is intended for DOMESTIC USE ONLY.

Warning Label Descriptions

Read instruction manual before use

Remove battery after use.

Wear eye protection when using this product.

Keep hair and loose clothing away from moving parts.

General hazard safety alert.

Wear ear protection when using this product.

Keep bystanders 5m away.

Do not use in rain or leave outdoors when raining.

Guaranteed sound power level.

Thank you for choosing a Gtech Leaf Blower

"I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of your new Leaf Blower at Trustpilot.co.uk. We will use your feedback to improve our products and services and let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, Owner of Gtech

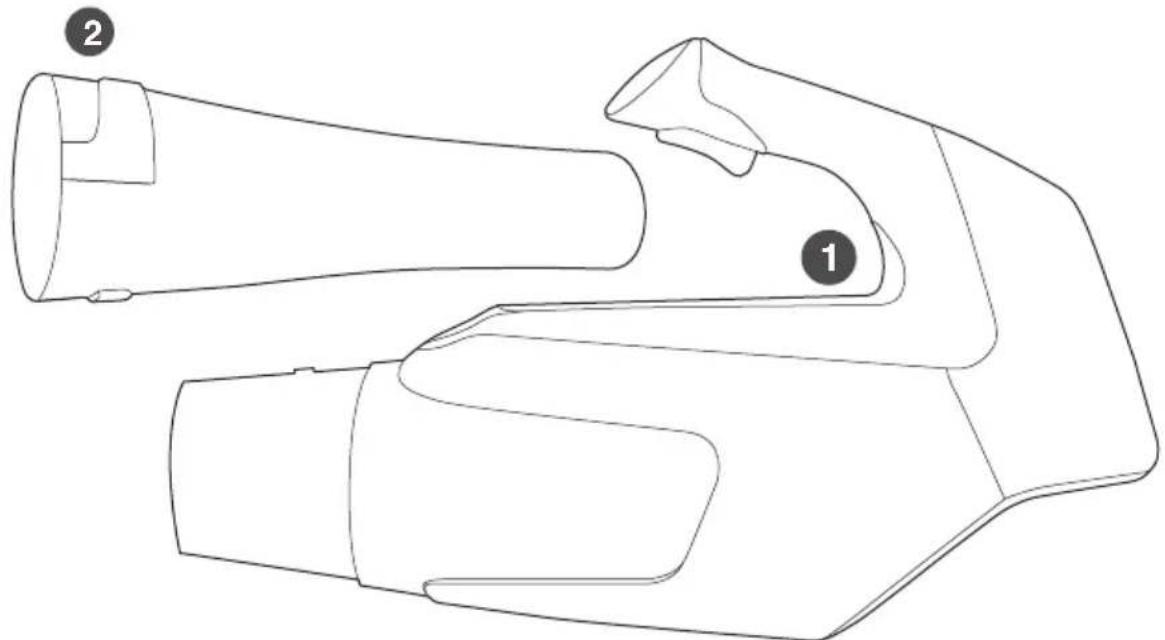

What's in the box

1 Leaf blower main body
2 Leaf blower nozzle

Line drawing of a mechanical device with two numbered components (1 and 2), no text or symbols present.

Assembly

Technical line drawing of a mechanical component with no visible text or symbols

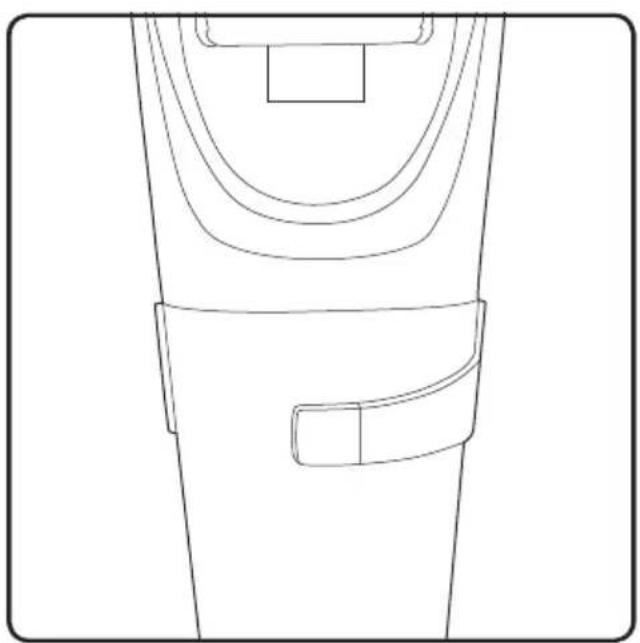

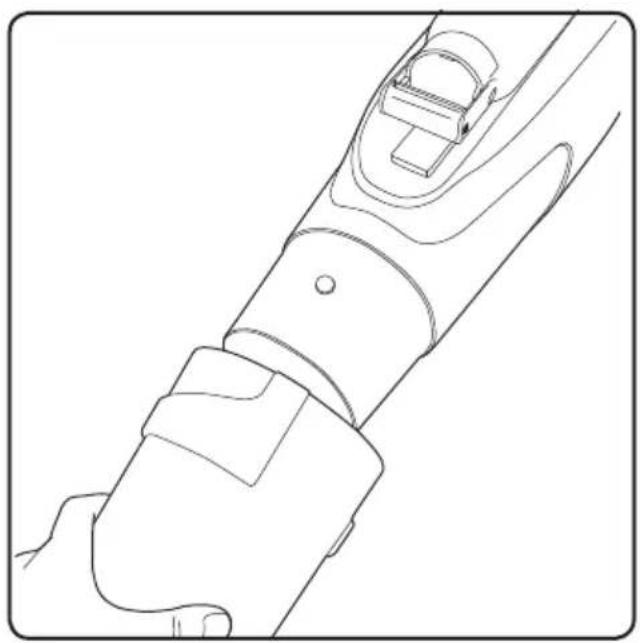

Align the bayonet on the nozzle to the marker on the main body.

Line drawing of a robotic hand with two green directional arrows indicating movement or force (no text or symbols)

Push the nozzle over the marker and twist the nozzle clockwise over the bayonet.

Line drawing of a mechanical component with no text or symbols

The nozzle will click into place once secured.

Line drawing of a hand holding a green mechanical component, no text or symbols present

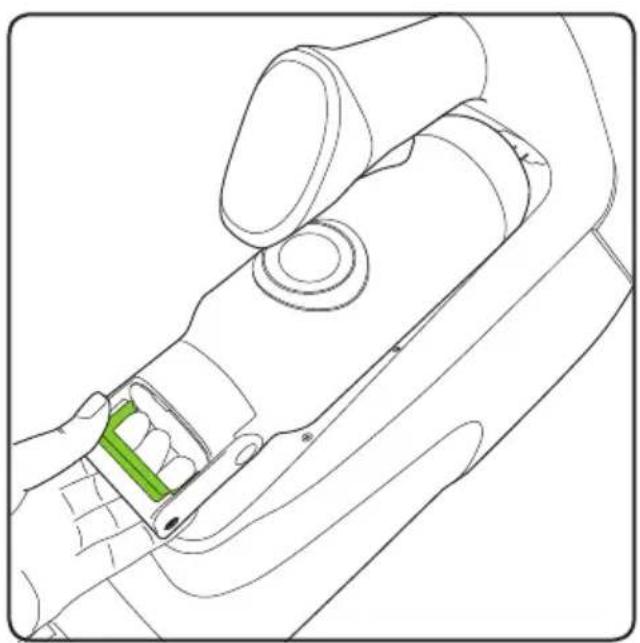

Insert the battery in the cradle and push until it clicks into place.

Operation

Illustration of a hand holding a small object with a green arrow indicating motion or force (no text or symbols)

To operate the leaf blower hold the handle firmly and press the trigger with your forefinger.

Illustration of a hand pressing down on a device with a green arrow indicating the process (no text or symbols present)

To stop the leaf blower, release the trigger.

Modes

Illustration of a hand holding a small object with a green arrow indicating motion or force (no text or symbols)

The leaf blower has variable power depending on the amount of pressure applied to the trigger. To provide more power, apply more pressure to the trigger.

Illustration of a hand holding a green tool with an arrow indicating motion or force (no text or symbols)

To provide less power to the leaf blower, apply lighter pressure to the trigger.

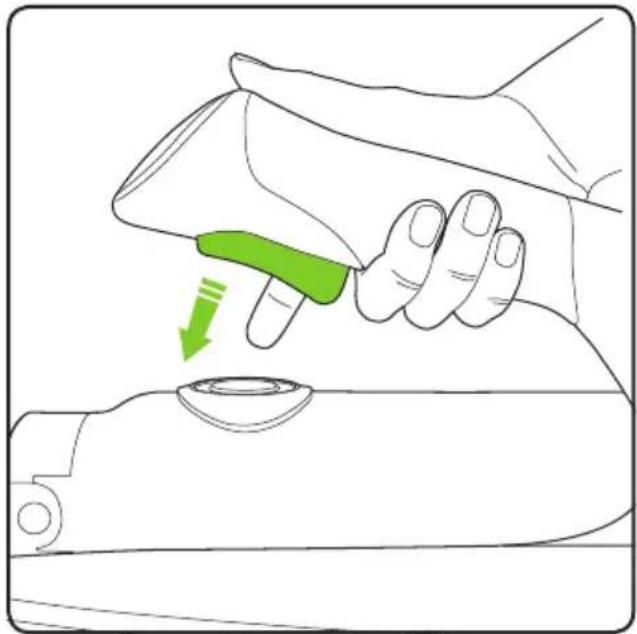

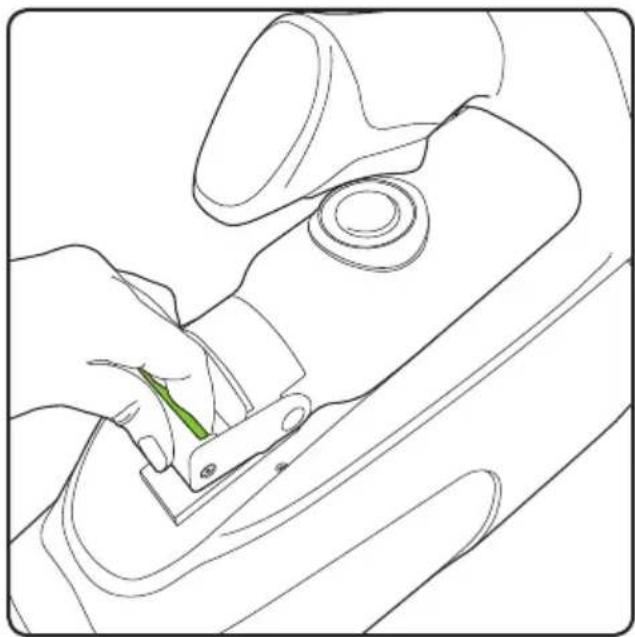

Removing the Battery

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

To remove the battery push the release lever in the handle to unlock the battery.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Then remove the battery from the cradle by the handle.

WARNING:

Do not store the battery outside for prolonged periods of time over the winter months.

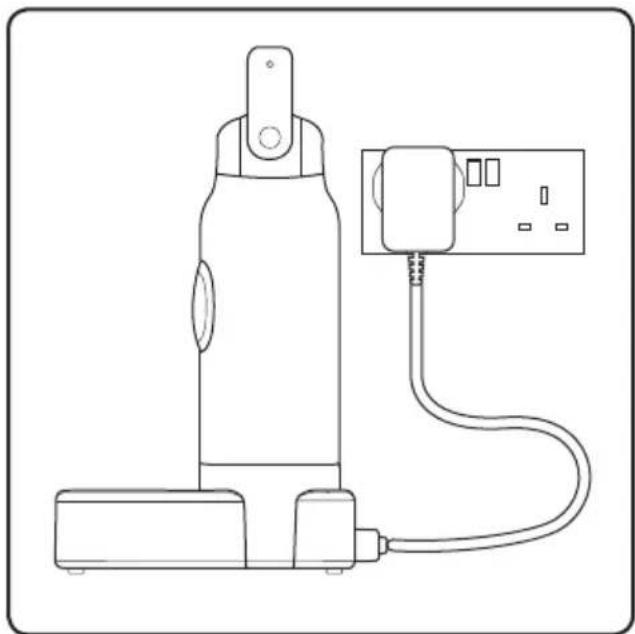

Charging

Line drawing of a spray bottle connected to a plug and cable, with no visible text or symbols

Place the battery onto the charging unit. Plug in the charger and switch it on.

Circular mechanical component with green and black segments, no text or symbols visible

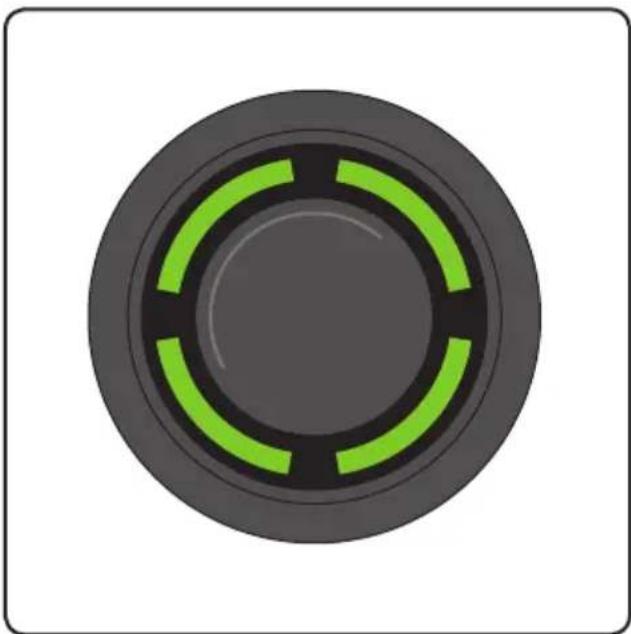

While charging, the LEDs will progressively pulse until all four are lit. When the battery is fully charged the LEDs will turn off and the charger LED will flash.
This should take up to 5 hours.

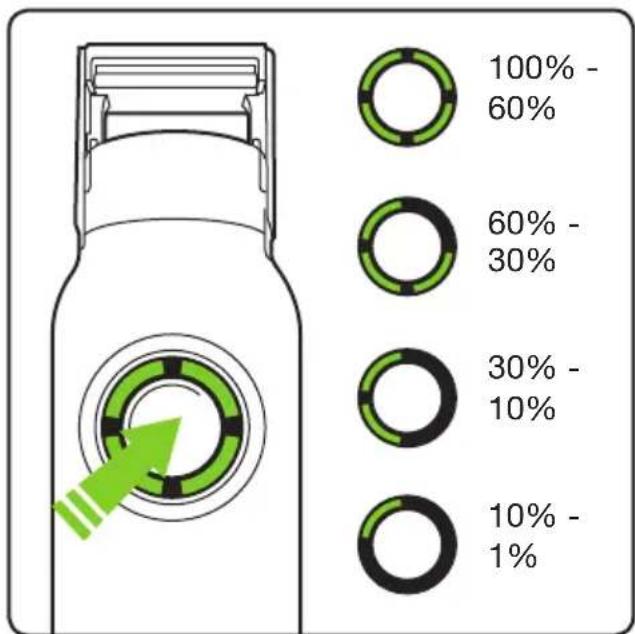

State of charge

To find out how much charge there is in the battery press the button in the centre of the state-of-charge display. The number of lit LEDs shows the charge.

To ensure that your Leaf Blower gives you long and reliable service, carry out the following maintenance regularly:

• Check for obvious defects such as loose or dislodged fixings and worn, damaged or loose parts.
• Check that covers and guards are correctly fitted and undamaged.
  • Always clean after use.
• Do not use water, solvents, or polishes to clean the leaf blower. Wipe clean with a dry cloth.
• Do not use abrasive materials to clean the product, and do not immerse it in water.
• Store in a secure, dry place, out of reach of children. Do not expose to moisture.

PLEASE NOTE: If the product needs to be repaired or replaced only use replacement parts supplied by the manufacturer.

Spare parts can be purchased from Grey Technology Ltd:

tel : [phone] www.gtech.co.uk

WARNING: Risk of electric shock. Pay attention to the position of garden cables.

WARNING: To reduce the risk of personal injury always wear eye protection. Personal protective equipment such as sturdy gloves and non-slip shoes are recommended.

Pay attention to the hazard posed to third parties from the increased working area of the leaf blower.

Always take care when other people are around you. The leaf blower may blow out stones and debris at high speed.

Troubleshooting

Leaf Blower fails to operate 1. Recharge battery.2. Check switch. It will click if operating correctly.3. Motor is jammed

Blowing time has reduced Fully discharge and recharge battery.

Abnormal vibrations Check the nozzle is securely screwed on.

Leaf Blower stops when in use 1. Wait for automatic cut out to reset.2. Check nozzle and remove any debris.3. Charge battery.

Charger flashing red (slow) Battery too hot. Allow to cool.

Charger flashing red (rapid) Battery fault. Call Gtech.

If this doesn’t solve your problem don’t worry, we will help.Go to www.gtech.co.uk or call 01905 345 891

GTECH LEAF BLOWER TECHNICAL SPECIFICATION

Voltage 36V
Battery capacity 4 Ah Li-Ion
Charge time 5 hours
Measured sound power level 102.2 dB(A)
Declared sound power level 104 dB(A)
Sound pressure level 90.6 dB(A)
Vibration 1.75m/s2 K=1.5m/s2
Weight	4.3kg
Charger INPUT	100V-240V~50/60 HZ 50W
Charger output voltage	42V DC ---- 1A

If your Gtech Leaf Blower breaks during the first 2 years, don't worry, we will mend it for you.

Go to www.gtech.co.uk/support or call 01905 345 891 for assistance.

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear.
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the leaf blower which is not in accordance with the leaf blower operating manual.
- Use of the leaf blower for anything other than normal domestic garden purpose.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech).
- If it is modified in any way.
- Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your warranty, please call the Gtech Customer Care Helpline on 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the leaf blower. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your leaf blower is under guarantee and will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your statutory right as a consumer.

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the product has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the product and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk
