USER MANUAL UH8080S UNIDEN

Remote Speaker MIC UHF CB Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

OWNER'S MANUAL

Introduction 4

Controls & Connectors 5

Indicators 7

Included with your UH8080S Transceiver 8

Optional Accessories 9

Connecting the Microphone 10

Slide Mount Bracket 11

Mounting the MIC Hanger 13

Operation 15

Turning on the Power 15

Setting the Auto Squelch 16

Selecting a Channel 17

Channel Banks - Using the POLICE button 17

Programming the Instant Priority Channel 18

Recalling the Instant Channel 18

Transmitting 18

CTCSS (Continuous Tone Coded Squelch System) 19

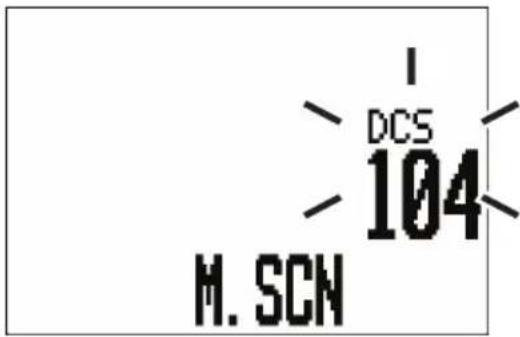

DCS (Digital Coded Squelch) 19

Call Tone Function (Wake Up Tones) 20

DUAL Watch 20

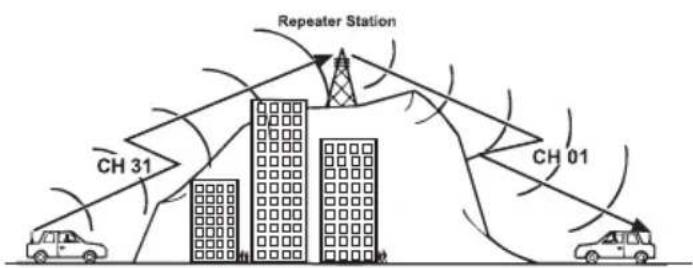

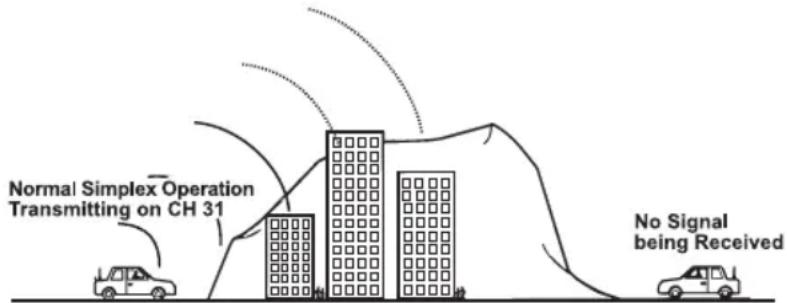

Using Repeater Channels 20

Operating the UHF CB Radio in Duplex Mode 21

Scanning 22

Add/Remove Channels from SCAN Memory 22

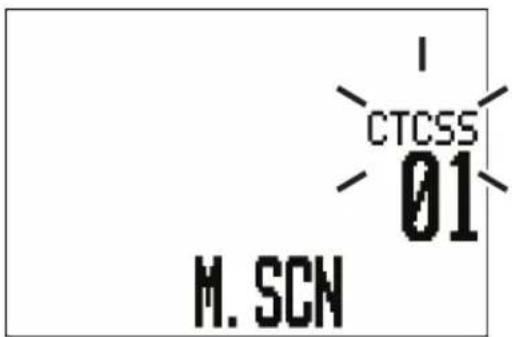

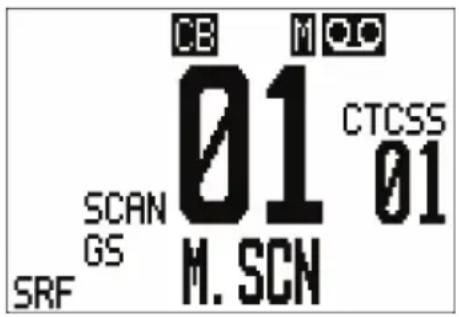

Master Scan 22

Open Scan (OS) Mode 24

Group Scan (GS) Mode 25

Priority Watch 26

Selecting the Call Tone (Wake Up Tone) 26

Busy Channel Lockout 27

Roger Beep 27

Key Beep On/Off 28

Alpha Tag 28

Volume Sync 29

Scramble On/Off 29

Backlight Colour 30

Backlight Level 30

LCD Contrast 30

Operation - Special Features 31

100 User Programmable RX Channels 31

Manually Programme a RX Channel 31

Store a Police/Fire frequency to a RX Channel 32

Store a frequency found using CLOSE CALL to a RX Channel 32

Instant Replay 33

Turning Instant Replay On/Off 33

Close Call RF Capture 34

Using Close Call 35

Selective Calling 36

Programming the Selcall ID for your UH8080S 37

Storing Selcall IDs of other users to the ID Memory 37

Tone Calling (Making a Selcall Call) 38

Receiver Quiet (TSQ) Mode 38

To Activate/Deavtivate Tone Squelch (TSQ) on a Channel 39

Receiving a Selcall 39

Scanning Tone Squelched Channels 40

Group Calling 41

Selcall ID Format 41

Selcall Settings 42

Tone Period 42

Lead-in Delay 42

Lead-in Delay Programming 43

Lead-in Tone 43

Alarm mode 44

Call Alarm Auto Mode 44

Call Alarm Continue Mode 44

Group Call Mode 44

SELCALL Tone Frequency List 45

CTCSS Codes Table 45

DCS Codes Table 46

UHF CB Channel Guidelines 47

UHF CB Channels & Frequencies 48

Warranty 50

The Uniden UH8080S is designed to provide you with years of trouble free service. Its rugged components and materials are capable of withstanding harsh environments. Please read this Operating Manual carefully to ensure you gain the optimum performance of the unit.

NOTE

The citizen band radio service is licenced in Australia by ACMA Radio-communications (Citizen Band Radio Stations) Class Licence and in New Zealand by MBIE General User Licence for Citizen Band Radio and operation is subject to conditions contained in those licenses.

Features

• UHF-CB Narrow Band (NB) Transceiver Radio ^1
- 80 Channel
• 5W Transmission Power
• Built-in AVS Circuitry
- Duplex Capability
• Built-in Selective Calling (SELCALL) Feature with Alpha Tag
• Roger Beep Function On/Off
• 10 Different Call Tones

Special Features

• 100 Extra User Programmable Receive Only Channels with Apha Tag ^2
- Pre-Programmed Police, Fire & Ambulance Frequencies ^2
- Instant Replay of Recent Received Signals
- Close Call ^1 RF Capture Feature ^2
• 2 Voice Scramble Settings

Control Features

• Remote LCD Speaker Microphone (Remote SPK/MIC) with Extension Cable
  • LCD Display with 7 Backlight Colours
  • LCD Brightness & Contrast control
• Slide Mount Bracket
  • +12V to +24V DC Power Input
  • Under and over voltage alert function
  • Signal Strength/ Power Meter
  • Volume Control
  • Base & Remote Mic Speakers

• External Speaker Jack
• Power On/Off Push Switch
- Front MIC Jack
• 5 Level Preset Squelch

Channel Features

• Channel Select
• Instant Channel Programming
  • One touch Instant Channel recalling
  • Dual Watch with Instant Channel
• Group Scan and Priority Channel Watch
• Open Scan
• Master Scan
• Scan Channel Memory On/Off separately with Open Scan, Group Scan
• Busy Channel Lock-out Function
  • 38 Built-in CTCSS (Continuous Tone Coded Squelch System) codes
  • 104 additional DCS (Digital Coded Squelch) codes that are user selectable

^1 Refer to p.47 - p.49 for channel information
2 Available frequencies & channels are within 400-520MHz Band only in 12.5kHz steps. Police, Fire & Ambulance reception is unencrypted analogue.
^3 AVS - Automatic Volume Stabilizer detects and manages incoming audio to comparable levels.

Base (Front & Rear)

Remote LCD Speaker MIC

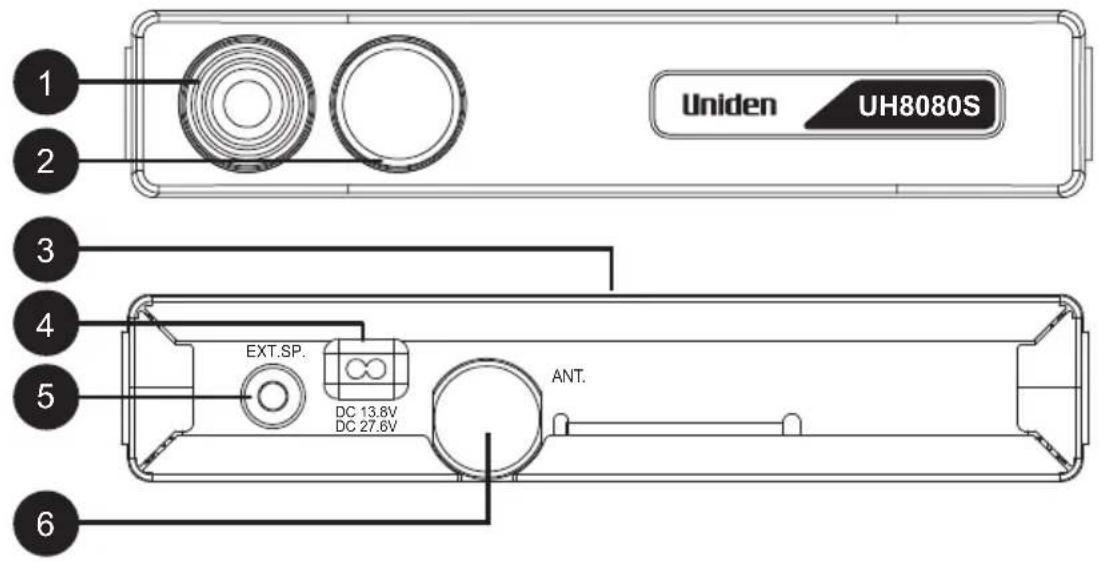

Base (Front & Rear)

1 MIC Jack
2 MIC Jack
3 Main Speaker

4 Power Input Connection (78.8VDC or 27.6VDC)
5 EXT SP - External Speaker Jack
6 UHF Antenna Connection

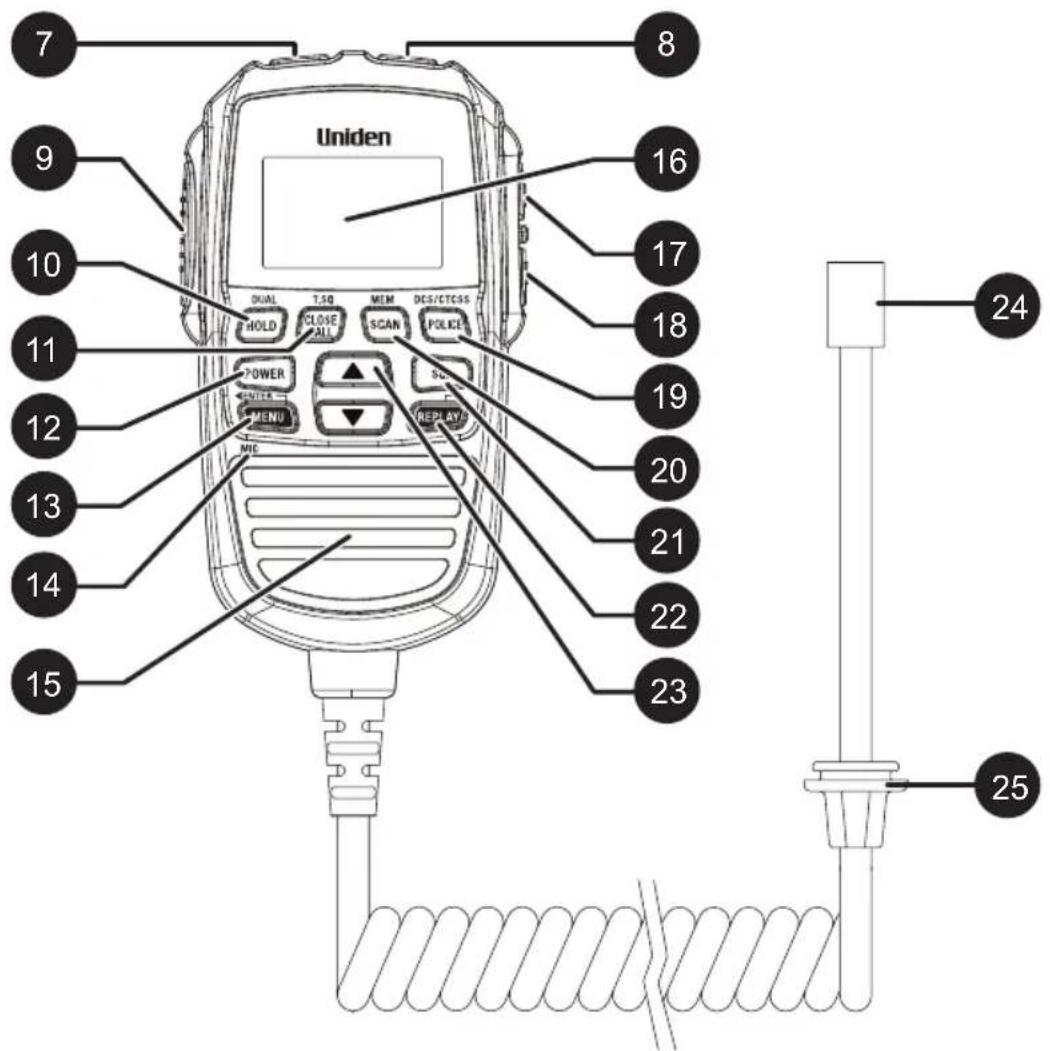

Remote LCD Speaker MIC

7 CALL - Call Tone Button /SELCALL - Selective Calling Button
8 INST - Instant Channel Button
9 PTT - Push To Talk Button
10 HOLD - Hold Button /DUAL - Dual Watch Button
11 CLOSE CALL - Close Call Button /T.SQ - Tone Squelch Channel
12 POWER - Power Button

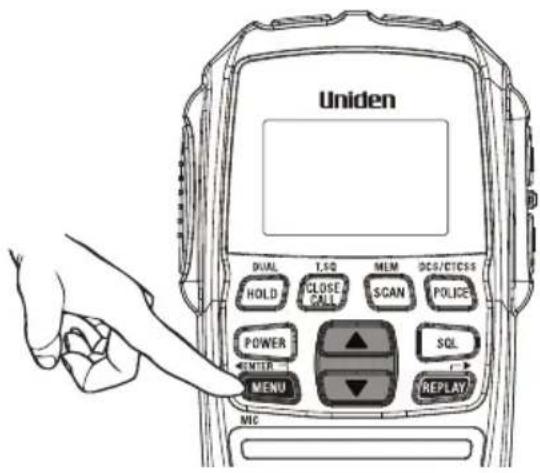

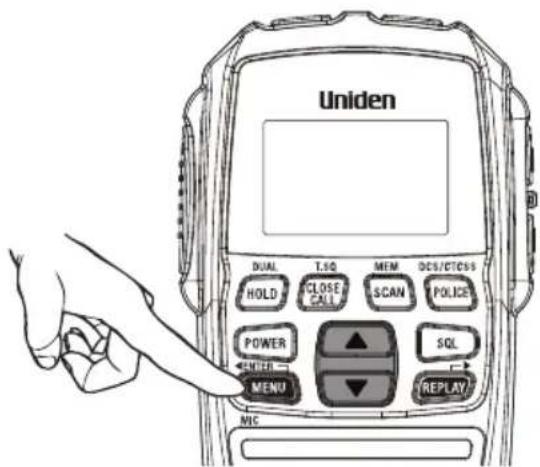

13 MENU - Menu Button /ENTER - Enter Button ◀ - Move selection left
14 MICROPHONE
15 SPEAKER

16 Liquid Crystal Display (LCD)
17 VOL △ - Volume Up Button
18 VOL - Volume Down Button
19 POLICE - Police/CB/Fire Button /DCS/CTCSS - DCS & CTCSS Button
20 SCAN - Scan Button /MEM - Memory Button
21 SQL - Squelch Button
22 REPLAY - Replay Button ▶ - Move selection right
23 / -Select Up and Down Buttons
24 RJ45 type plug
25 Front MIC Jack Cover

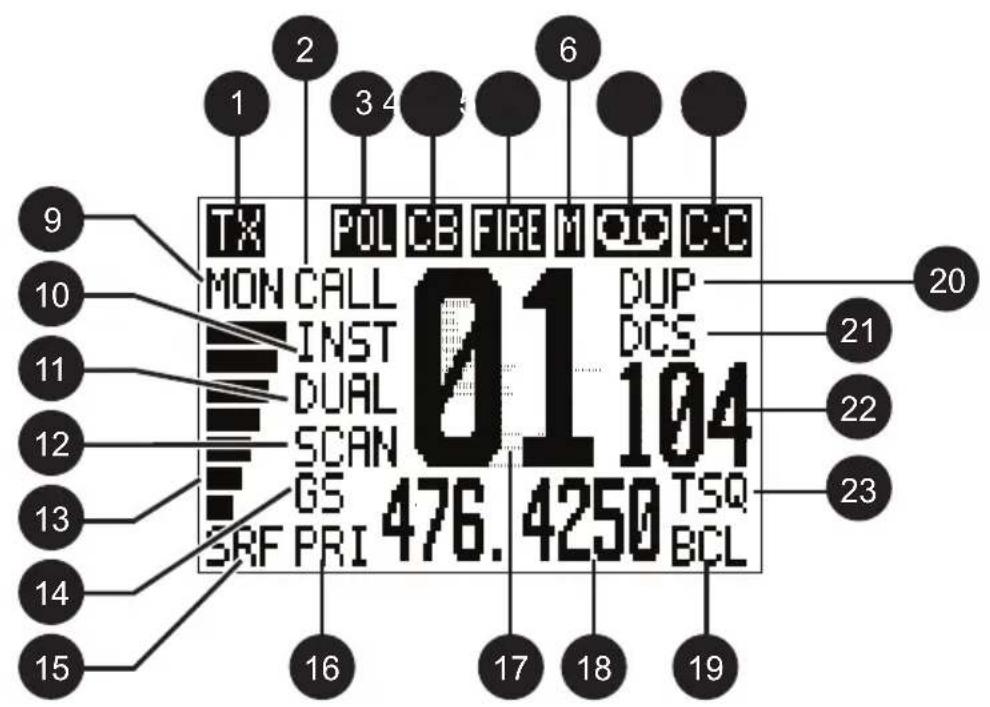

1 TX/BUSY - Transmit/Busy
2 CALL/CAL - Call Tone Transmit/ Selcall Transmit
3 POL - Police Bank
4 CB - UHF CB + Extra RX Channel Bank
5 FIRE - Fire (+ Ambulance) Bank
6 M - Channel in Memory
7 - Replay Function is enabled
8 C-C - Close Call mode
9 MON/SQT - Flashing: Monitor/Tight Squelch
10 INST - Instant Channel
11 DUAL/HOLD - Dual Watch/Hold
12 SCAN - Scan mode
13 Signal Power Level

14 GS - Group Scan
15 S/RF-Receive Signal or Transmit
16 PRI - Priority Channel Watch
17 UHF-CB Channel
18 Channel Frequency /Alpha Tag display
19 BCL - Busy Channel Lockout
20 DUP/LIST - Duplex Channel/Close Call lockout list
21 DCS/CTCSS - DCS/CTCSS selected
22 DCS/CTCSS Code Number /Extra RX Channel Indicator
23 TSQ - Tone Squelch enabled

Included with your UH8080S Transceiver

Line drawing of a handheld electronic device with control panel and connector (no text or symbols)

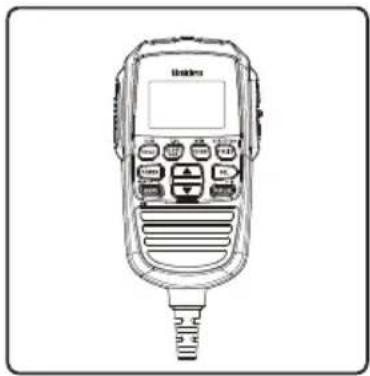

Remote LCD Speaker Microphone (RM880)

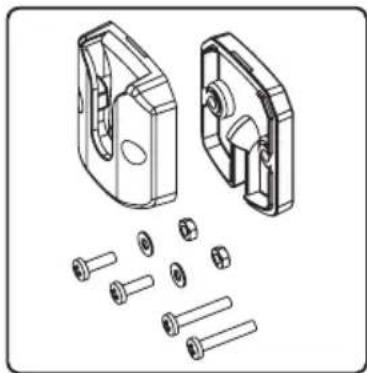

Owner's Manual Microphone Hanger with screws, washers

Technical line drawing of mechanical components including a housing and bolt assembly (no text or symbols)

screws, washers

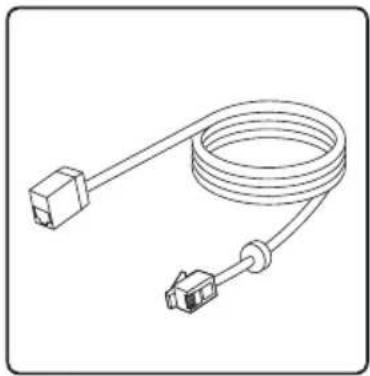

Line drawing of a coiled cable with two connectors (no text or symbols)

Extension Cable (EC770)

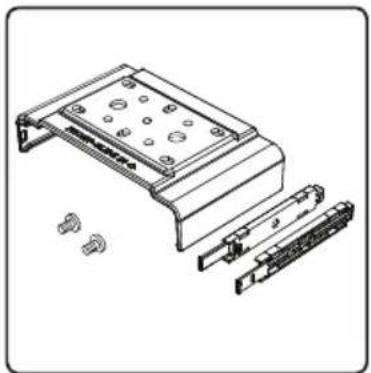

Technical line drawing of a mechanical assembly with multiple components and mounting holes (no text or symbols)

Slide Mount Bracket, Guide Rails and Screws

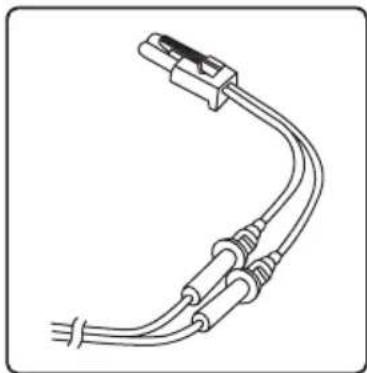

Line drawing of a flexible electrical plug with three leads and terminal connectors (no text or symbols)

DC Power Cord with fuse

Technical illustration of a metal bracket with multiple bolt holes and a separate view of its components (no text or symbols)

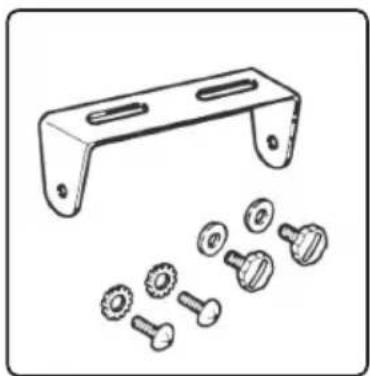

Mounting Bracket, Mounting Screws, Washer Stars And Screws

Technical line drawing of a mechanical connector or connector (no text or symbols)

Adaptor Cable

Line drawing of two electronic devices with ports and connectors (no text or symbols)

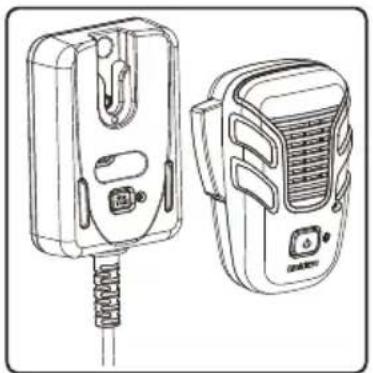

DECT Wireless Speaker Microphone (MK800W)

• UHF Antenna
• External Speaker

Visit the UH8080S page on the website for more information on the availability of optional accessories:

www.uniden.com.au for Australia

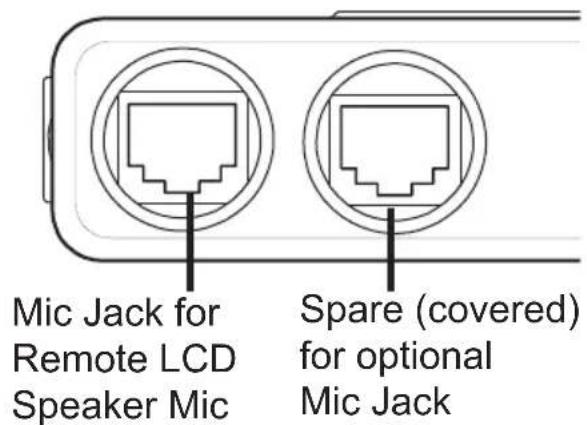

MIC Jack

Before connecting the Microphone Jack decide if you need to use the 2 metre Extension Cable - simply connect the MIC plug into the jack end of the Extension Cable

Push the MIC plug or Extension Cable plug into the MIC jack of the radio until the connection locks into place. Gently tug the MIC or Extension Cable cord to test that the connection is locked. Use the rubber cover which is on the cord to seal the MIC jack entry from dust.

Disconnecting the MIC from the MIC Jack

Pull back the rubber cover and move it down along the cord. Using the flat blade of a screwdriver or similar object carefully push the lock tab of the MIC plug towards the MIC cord and at the same time tug on the MIC cord to draw back the MIC plug.

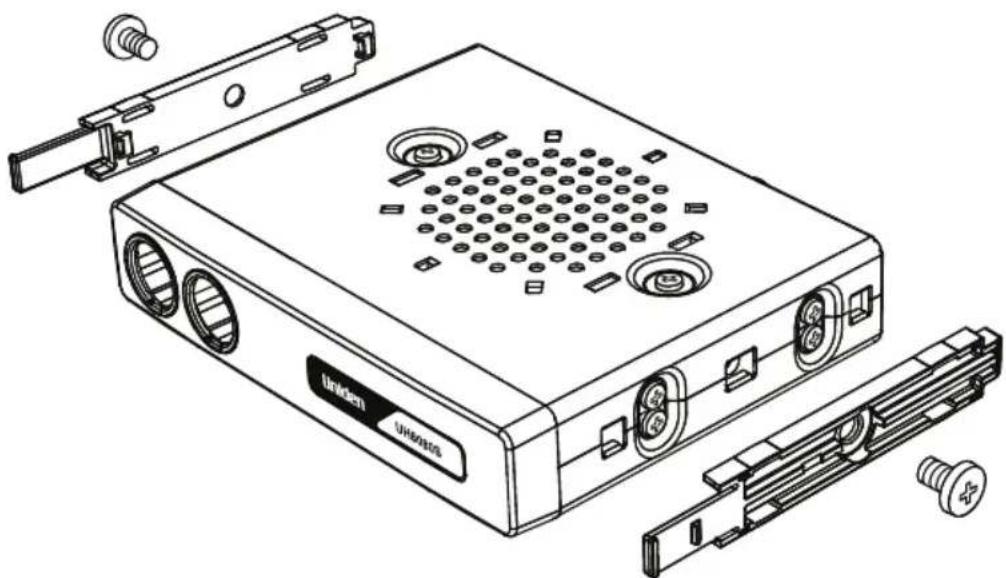

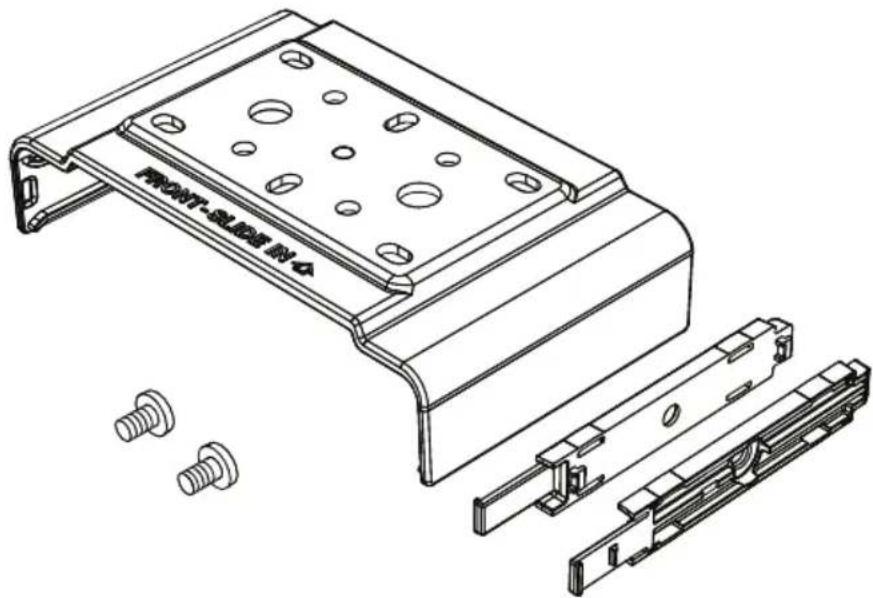

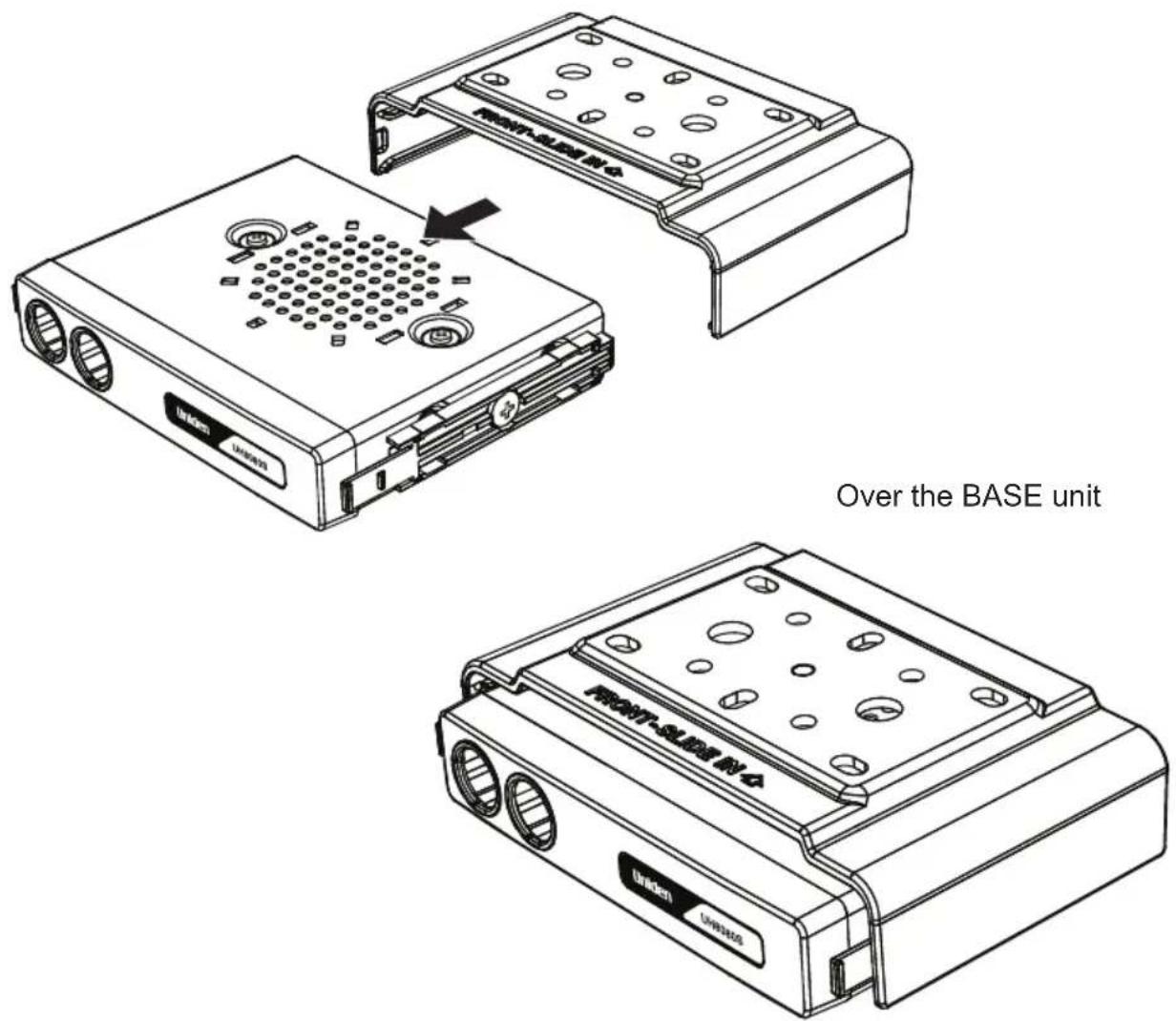

How to attach Slide Mount Bracket?

When you unpack the box, ensure that you have the slide mount bracket, guide rails and the screws.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Align the guide rails along the side of the base and insert them into the slots provided. Then use the screws to lock them securely in position.

Technical line drawing of a computer drive with labeled ports and components (no text or symbols beyond labels)

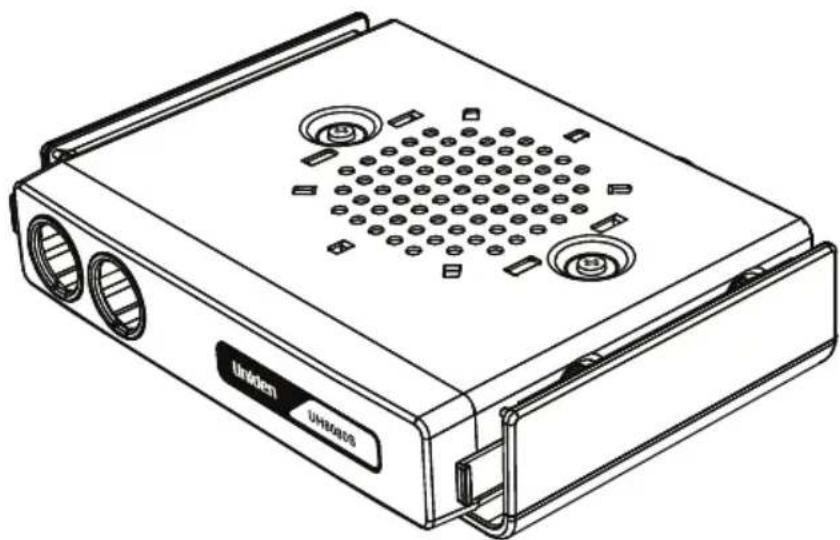

Slide Mount Bracket

Slide the bracket along the guide rails to attach the bracket to the unit.

Under the BASE unit

Line drawing of a portable electronic device with ventilation slots and a perforated top panel (no text or symbols)

The Microphone Hanger comes in two parts. How and where you mount the MIC hanger will determine which parts to use.

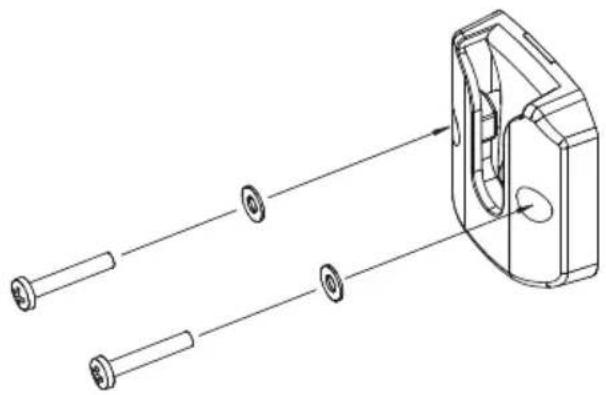

Conventional Mounting with Screws

Use the front part of the MIC Hanger only.

Locate a suitable mounting position and mark and drill two 3mm holes.

Fix the MIC Hanger into place with screws.

Technical line drawing of a mechanical component with multiple cylindrical parts and a housing (no text or symbols)

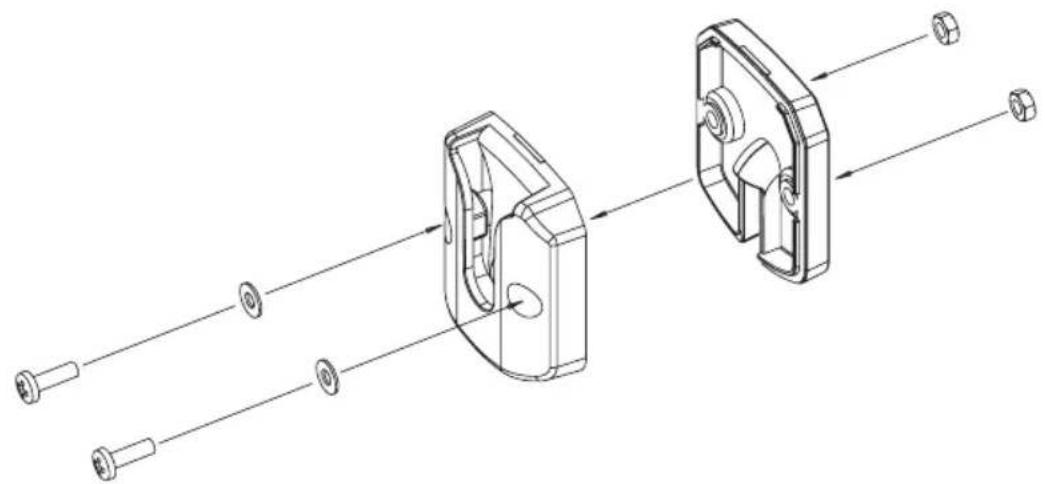

Conventional Mounting with Double Sided Tape (not supplied)

High quality Double-Sided tape can be found at good retail stores.

Secure the front and back pieces of the MIC Hanger using the supplied binding screws.

Locate a suitable mounting position.

Apply high quality Double-Sided tape onto the flat area of the MIC Hanger back piece and then press firmly to the mounting position.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

MIC Hanger mounted over MIC Cable

NOTE

The curly cord of the Remote LCD Speaker MIC can extend up to 1.5m. For practical installation of the MIC Hanger mounted over MIC Cable use this method with the Extension Cable.

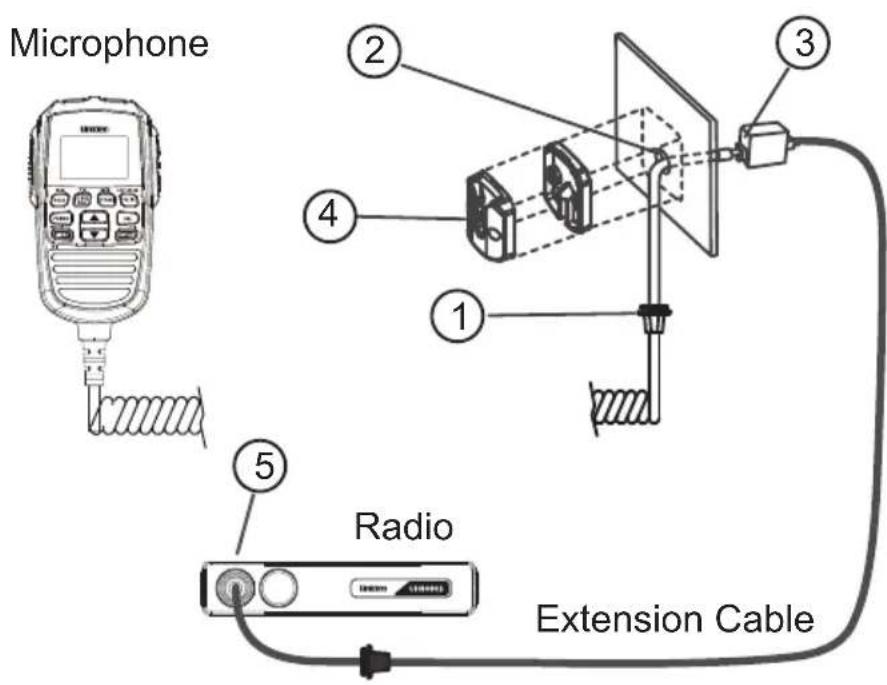

The plug of the extension cable connects to the Radio. The socket end of the extension cable connects with the microphone plug.

1. The rubber collar (dust cover) on the microphone cable is not required and can be cut away or pushed out of the way along the cable.
2. Drill a 13mm hole at the MIC hanger location.
3. Thread the microphone plug through the hole and connect with the extension cable.
4. Mount the MIC Hanger over the hole and cable.
5. At the Radio: Connect the extension cable plug to the MIC Jack. Fit the rubber bushing over the MIC jack.

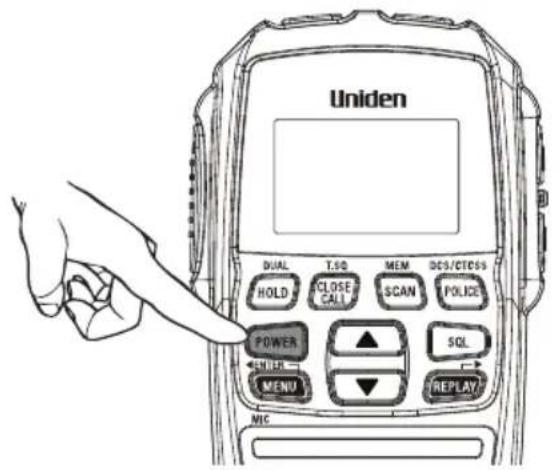

Turning on the Power

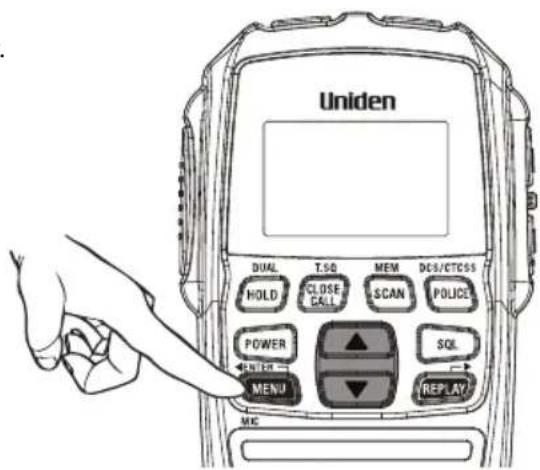

Press and hold [POWER].

Low-Voltage/High-Voltage Alert

The UH8080S can operate on 12VDC (13.8V) or 24VDC (27.6V) power supply, with the range between 10.2VDC to 28.8VDC.

If the power supply voltage exceeds 28.8VDC, an alert tone sounds and HI DC flashes for 5 seconds. The power source must not exceed 32VDC otherwise permanent damage may occur to your radio, which may not be covered by the manufacturer's warranty.

If the input voltage falls below 10.2VDC, LO DC flashes for 5 seconds. The power turns off automatically if voltage falls below 9.0VDC.

Switch your UH8080S OFF and disconnect it from the power source, before locating the cause of the power supply problem.

Setting the Auto Squelch Level

The Auto Squelch feature has 5 preset squelch levels:

SQL-0 - Squelch open

SQL-1 - maximum sensitivity (minimum squelch)

SQL-2 - moderate sensitivity

SQL-3 - medium sensitivity

SQL-4 - minimum sensitivity (max/tight squelch)

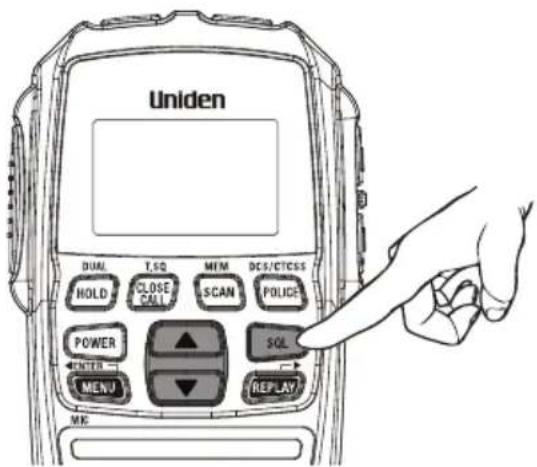

1. Press [SQL]. The squelch setting flashes.

2. Press ▲ / ▼ to change the setting.

NOTE

• If SQL-0 (squelch open) is selected then MON (monitor) icon flashes.
• If SQL-4 (tight squelch) is selected then SQT icon flashes.

• Selecting tight squelch mode may prevent the reception of weak signals.
  • High noise areas may still break the squelch.

• Press [SQL] to store the setting.

Selecting a Channel

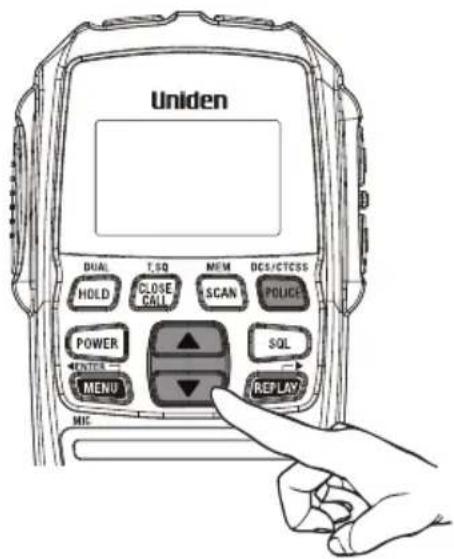

Press ▲ to select the desired channel.

Channel Banks - Using the POLICE Button

The UH8080S has three banks (groups) of channels to select from;

CB UHF CB + User programmable RX channels ^1

POL Pre-programmed Police frequencies ^2

FIRE Pre-programmed Fire & Ambulance frequencies ^2

When the CB icon is showing the 80 UHF-CB and any user programmed RX channels will be available for selection or scanning. The 80 UHF-CB channels are

numbered 01-80. The user programmable RX channels are numbered 81-180 and only show, in the DCS/CTCSS code area, when programmed.

When the POL icon is showing then pre-programmed police frequencies will be available. When the FIRE icon is showing then pre-programmed fire & ambulance frequencies will be available. The police, fire & ambulance frequencies do not have channel numbers, instead PO appears in the channel display for a police frequency and FI appears for a fire or ambulance frequency.

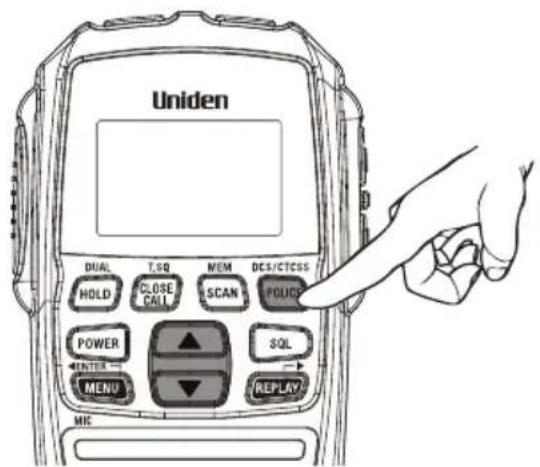

1. Press [POLICE] to select the desired channel bank(s) combination.

The channel banks can be selected as follows;

----	CB	----
POL	----	----
----	----	FIRE
POL	----	FIRE
POL	CB	----
----	CB	FIRE
POL	CB	FIRE

NOTE

^1 Available frequencies & channels are within 400-520MHz Band only in 12.5kHz steps.
^2 Police, Fire & Ambulance reception is unencrypted analogue.

For your reference a list of the available channels, corresponding frequencies and guidelines for their use is printed on p.47 - p.49. For Australia, Channels 05 and 35 are reserved for Emergency Calls.

Programming the Instant Priority Channel

Press ▲ to select the Priority Channel you prefer. Press and hold [INST] for 2 seconds to store the new setting. INST icon appears to designate the Instant channel.

Recalling the Instant Channel

Momentarily press [INST] to return to the Instant Channel. Press [INST] again to return to the previous channel.

Transmitting

The UH8080S transmits only on UHF-CB Channels.

NOTE

For your reference a list of the available channels, corresponding frequencies and guidelines for their use and selection is printed on p.47 - p.49. For Australia, Channels 05 and 35 are reserved for Emergency Calls.

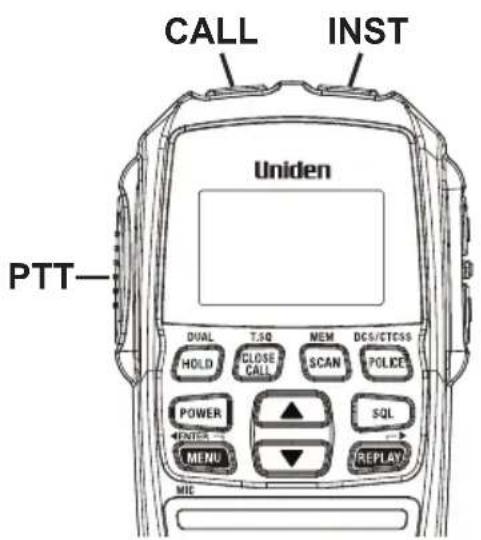

Select the desired channel. Press [PTT] on the side of the Remote LCD Speaker MIC and speak normally into the microphone. Hold it approx. 7cm from your mouth. Release [PTT] to end the transmission and listen for a reply.

CTCSS (Continuous Tone Coded Squelch System)

Use the CTCSS or DCS privacy codes to talk to UHF-CB users, who are using the same code, without hearing other users on the same channel.

When a CTCSS or DCS tone is set for a UHF-CB channel, the CTCSS or DCS tone is displayed in the DCS/CTCSS code area. For channels with the setting of CTCSS OFF, there will be no display in the DCS/CTCSS code area.

NOTE

CTCSS and DCS is not available on CH 05 and CH 35. For your reference a list of the available channels, corresponding frequencies and guidelines for their use and selection is printed on p.47 - p.49. For Australia, Channels 05 and 35 are reserved for Emergency Calls.

Press ▲ / ▼ to select the desired channel to use CTCSS.

Press and hold [DCS/CTCSS].

CTCSS icon flashes.

Press ▲ / ▼ to select the desired CTCSS code 01 - 38.

Press [DCS/CTCSS] once to store the new setting.

To turn off CTCSS (or DCS) select the oFF code during setting.

DCS (Digital Coded Squelch)

DCS is a digital extension of CTCSS. It provides 104 extra, digitally coded, squelch codes that follow after the 38 CTCSS codes. CTCSS 1-38, followed by DCS 1-104.

Follow the steps for setting a CTCSS code. Press ▲ / ▼ until the DCS codes appear.

Press [DCS/CTCSS] to set. The DCS icon and code will display.

Call Tone Function (Wake Up Tones)

Press the microphone [CALL/SELCALL] Button. A three second wake up ringing tone will be transmitted.

You may select from 10 types of tones (see p.26).

NOTE

Current regulations require calling tones to be restricted to one transmission per minute. If a second transmission is attempted within one minute then an error tone will sound.

DUAL Watch

Dual watch will continuously monitor the Instant channel and the current channel for activity (see Programming the Instant Priority Channel, p.18).

Press and hold [DUAL]. DUAL icon appears and two beeps will sound.

To cancel DUAL Watch press and hold [DUAL]. DUAL icon disappears.

NOTE

• Every 1.5 seconds the Instant channel is monitored for 100msec.
• Dual watch function stops temporarily when receiving a signal.
• Dual watch function is invalid in Scan mode.

Using Repeater Channels

UHF CB repeaters are used to retransmit or relay your signal. Repeaters will extend the range of your radio and overcome the shielding effect caused by solid obstructions. In normal Simplex operation, your radio transmits on one particular frequency and receives on that same frequency.

If there is a barrier that partially blocks your transmitted signal, the probability of another radio receiving the signal is very slim. Hills, tall buildings, metallic structures,...etc tend to act as a screen between radios.

Standard Operation without the aid of a Repeater station.

Operation with the aid of a Repeater Station (Duplex).

The signal coming from your radio is received by the Repeater Station and the re-transmitted at the same time on another channel. This operation is called "Duplexing".

For example,

CH01 on Duplex Mode will Receive on CH01 but Transmit on CH31

CH02 on Duplex Mode will Receive on CH02 but Transmit on CH32 etc...

If you transmit on CH01 Duplex mode, you are actually transmitting on CH31 the repeater station down-converts your signal and retransmits on CH01.

Operating the UHF CB Radio in Duplex Mode

For this example we are adopting CH01 as the channel being used in your area for repeater use.

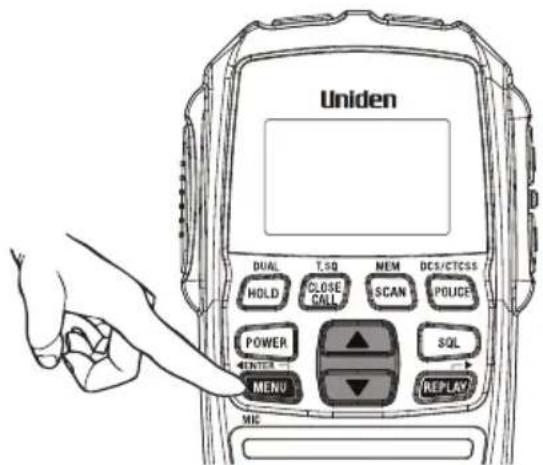

1. Press [MENU]. The duplex setting flashes.

2. Press ▲ / ▼ to change the setting between ON or OFF (standard channel numbering).

3. Press and hold [MENU] to save & exit from the menu mode.

DUP icon displays when a selected channel is set to Duplex mode.

- Only channels 01 - 08, and channels 41 - 48 are available for Duplex.

- Check with your local Retailer for information on available repeaters.

- If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Scanning

The UH8080S' Scanning feature allows you to search for active channels automatically.

There are 3 scanning modes;

Open Scan (OS),

Group Scan (GS) and

Master Scan (M.SCN) (a special case of Group Scan).

During SCAN the UH8080S only checks channels or frequencies that are in the SCAN Memory, which are indicated by the M (memory) icon. The UH8080S maintains two SCAN Memories; one for Open Scan (OS) mode and the other for Group Scan (GS)

mode, to give you flexibility and allow you to use the radio more effectively.

NOTE

Group Scan and Master Scan modes share the same SCAN Memory.

Furthermore, any combination of the three channel groups can be scanned by pressing [POLICE] during scan (except Master Scan) to select the desired channel groups.

1. Press [SCAN] to start Scanning.

2. The SCAN icon appears.

3. The scan direction can be changed at any time by pressing

1. Press [SCAN] to stop Scanning.

Add/Remove Channels from SCAN Memory

Select OS/GS Scanning Mode. Select the channel you want to store.

Press and hold [MEM]. MEM icon appears and two beep tones sound.

To remove the channel from SCAN memory, press and hold [MEM] once more.

The MEM icon disappears.

MASTER SCAN Mode

MASTER SCAN is the default scan mode and is enabled to allow continual communication across congested channels.

Master Scan scans channels stored into GS Memory and only opens the squelch for signals with the correct subcode (CTCSS or DCS tone).

To achieve this, all radios in your group must have the same channels in GS memory (group channels) and use the same Subcode (CTCSS or DCS tone).

By scanning only group channels, radios in the network will be able to detect and

receive group transmissions- continual communication without interruption. When transmitting in this mode, the radio switches to an unused group channel if it detects another signal with no code, or the wrong code, on the channel last used by the group. In this way, all group users will be able to have continual communication to or from other users.

CH09-CH20 are stored into GS Memory and CTCSS01 is set for MASTER SCAN Subcode by default. The GS memory can be changed, channel by channel, if desired - but for Master Scan to work effectively each radio in the group must have the same channels in its GS memory.

To add/remove channels from GS SCAN Memory, refer the section above.

NOTE

RX only Channels (CH22, CH23, CH61, CH62 and CH63), Emergency Channels (CH05, CH35), User Programmable RX Channels (CH81 to CH180) and Police or Fire (& Ambulance) channels group will not be included in MASTER SCAN Mode even though stored into GS Memory Also channels for which Duplex Setting are On will be skipped in MASTER SCAN Mode.

To select MASTER SCAN Mode:

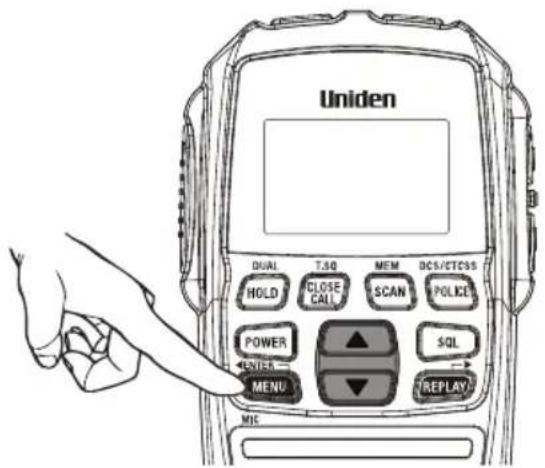

1. Press [MENU] three times.
   The SCAN setting flashes.
2. Press ▲ / to change the setting to MS.

MS: Master Scan is ON with the current GS channel memory. Open/Group Scan is disabled.

P1: Master Scan is ON with loading CH09-20 in GS.
P2: Master Scan is ON with loading CH21-30, 39, 40 in GS.
P3: Master Scan is ON with loading CH49-60 in GS.
P4: Master Scan is ON with loading CH61-70, 79, 80 in GS.

1. Press [MENU] one more time.
2. Press ▲ / ▼ to select the desired Subcode (CTCSS or DCS).

1. Press and hold the [MENU] to save and exit from the Menu Mode.

NOTE

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Open Scan (OS) Mode

All UHF-CB, user-programmed extra RX channels, Police and Fire & Ambulance frequencies have been added to the OS SCAN Memory for convenience. To add/remove channels from OS SCAN Memory, refer to p.22.

Allows continuous scanning of all selected channels. If an active channel is found, scanning will stop on that channel. If the received signal ceases, the unit will wait 3 seconds for the signal to return, otherwise scanning resumes.

After transmission in scan mode, the unit will wait 20 seconds for the signal to return, otherwise scanning resumes.

To select OS Scan Mode:

1. Press [MENU] three times. The SCAN setting flashes.
2. Press ▲ / ▼ to change the setting to OS.
3. Press and hold [MENU] to save and exit from the Menu mode.

If SCAN is deactivated while on an active channel, the UH8080S will stay on that active channel. If no channels are active, the UH8080S will reinstate the starting channel.

OS Mode is indicated by the absence of the GS icon.

Group Scan (GS) Mode

GS Mode has CH09 to CH20 in the SCAN Memory by default. Channels must be stored to the GS SCAN Memory before group scan can start. To add/remove channels from GS SCAN Memory, refer to p.22.

Includes the accessory feature Priority Watch which allows you to monitor the Instant Priority Channel while scanning (see p.18 for setting Instant Priority Channel and p.26 to turn on Priority Watch).

GS Scanning checks the Instant Priority Channel for activity regularly when Priority Watch is ON.

If the Priority Channel becomes active the radio will stay on that channel for as long as the signal is present. If the received signal ceases, Priority Scanning continues after 3 seconds.

If scanning stops on a channel which is not a Priority Channel, UHF CB Radio will continue monitoring the Priority Channel for activity while listening to the active one.

To select GS Scan Mode:

1. Press [MENU] three times. The SCAN setting flashes.

2. Press ▲ / ▼ to change the setting to GS.

3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Priority Watch

To switch Priority Watch On/Off;

1. Press [MENU] two times. The Priority Watch setting flashes.

2. Press ▲ / to change the setting between ON or OFF.

3. Press and hold [MENU] to save & exit from the menu mode.

If SCAN is deactivated while it is tuned to an active channel, the UH8080S will stay on that active channel. If none of the channels are active, the UH8080S will reinstate the scan start channel.

If OS/GS Scanning is initiated when there are no channels programmed in OS/GS memory, an error tone will be heard and scanning will not start (see Add/Remove Channels from SCAN Memory, p.22).

Selecting the Call Tone (Wake Up Tone)

1. Press [MENU] five times. The call tone setting flashes.

2. Press ▲ / ▼ to change the setting between 1, 2, 3... 10.

3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Busy Channel Lockout

If the channel is already in use, you can prevent the UHF CB Radio from transmitting. This is particularly important when using CTCSS/DCS.

1. Press [MENU] six times. The BCL setting flashes.

2. Press ▲ / ▼ to change the setting between ON or OFF.

3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UH8080S will automatically exit the Menu Mode.

Roger Beep

1. Press [MENU] seven times. The roger beep (ROGER) setting flashes.

2. Press ▲ / ▼ to change the setting between ON or OFF.

3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UH8080S will automatically exit the Menu Mode.

Key Beep On/Off

1. Press [MENU] eight times. The key beep (BEEP) setting flashes.
2. Press ▲ / to change the setting between OFF, 1, 2, 3... 7.
3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Alpha Tag

The SELCALL IDs and Extra Receive Channels have the option of displaying a name (Alpha Tag) instead of the ID or frequency. Set Alpha Tag to ON to display the name if it has been programmed.

1. Press [MENU] nine times. The Alpha Tag (ALPHA) setting flashes.

2. Press ▲ / to change the setting between ON or OFF.

3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Volume Sync

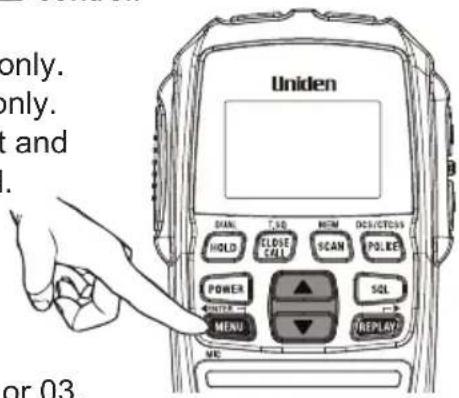

Use this to set which speaker(s) the Volume ▲ buttons control.

Set 01 to control the speaker volume of the Base unit only. Set 02 to control the speaker volume of Remote MIC only. Set 03 to control the speaker volume of both Base unit and Remote MIC - both volume levels will be synchronised.

1. Press [MENU] 10 times.

The Volume Sync setting flashes.

1. Press ▲ / to change the setting between 01, 02 or 03.

2. Press and hold [MENU] to save & exit from the menu mode.

NOTE

- The speaker that is not selected for control maintains its previous volume setting.

- When an optional External Speaker is connected to the Ext.Sp. jack of the base, it substitutes for the Base unit speaker which becomes muted. Therefore 01 MAIN & 03 SYNC control the External Speaker in place of the base unit speaker.

NOTE

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

Scramble On/Off

Scramble enables private communications by scrambling the voice signal. This prevents users without descrambler equipment or a compatible unit understanding the conversation. Select desired channel.

1. Press [MENU] 11 times. The Scramble setting flashes.

2. Press ▲ / ▼ to change the setting between OFF, 1 (Scramble-1), 2 (Scramble-2).

3. Press and hold [MENU] to save & exit from the menu mode.

NOTE

For safety purposes Scramble is invalid on channel 5, 11 and 35.

Backlight Colour

1. Press [MENU] 12 times. The current Backlight colour (CLEAR, BLUE, RED, PURPLE, GREEN, CYAN or YELLOW) setting flashes.
2. Press ▲ / ▼ to change to the desired colour setting.
3. Press and hold [MENU] to save & exit from the menu mode

Backlight Level

1. Press [MENU] 13 times. The Backlight level (LIGHT) setting flashes.
2. Press ▲ / to change the setting between OFF, 01, 02 and 03.
3. Press and hold [MENU] to save & exit from the menu mode.

LCD Contrast

1. Press [MENU] 14 times. The LCD Contrast setting flashes.
2. Press ▲ / ▼ to change the setting between 01 (low contrast) to 10 (high contrast).
3. Press and hold [MENU] to save & exit from the menu mode.

If a button is not pressed within 10 seconds the UHF CB Radio will automatically exit the Menu Mode.

100 User Programmable RX Channels

The UH8080S has 100 receive only channels (CH81 to CH180) which can be programmed with frequencies ranging from 400-520MHz (in 12.5kHz steps). The extra RX channels only appear, as part of the CB channel bank, when a frequency has been programmed to a channel. There are three ways to programme RX channels;

1. If you know the frequency you may manually programme it to a channel.
2. Store a Police or Fire (& Ambulance) frequency to a channel.
3. Use the Close Call RF Capture feature to find a nearby strong signal & store this frequency to a channel.

Furthermore, the RX channels can be Alpha Tagged (given a name) if desired.

Manually Programme a RX Channel

In CB channel mode (UHF CB channel);

1. Press & hold [MENU]. The lowest available empty RX channel will flash.
2. Press ▲ / if you wish to select another RX channel.
3. Press [SQL] to begin the frequency edit. The MHz digit range flashes. Use ◀ or ▶ to shift between MHz range (between 400-520MHz) & kHz range (in 12.5kHz steps).

Press ▲ / ▼ to select the desired frequency within MHz & kHz ranges.

1. When desired frequency is entered press [SQL] to move to Alpha Tag selection. A cursor flashes in the 1st alpha position.

If you do not wish to name the channel then skip this step.

Press ▲ / ▼ to select the desired alpha character.

Use ◀ or ▶ to shift between cursor positions.

1. When finished press [SQL]. A long confirmation tone sounds to indicate the new channel is programmed.
   The channel flashes to enable selection for programming of next channel if desired.

2. Press and hold [ENTER], or wait for 10sec, to exit programming mode.

Store a Police or Fire frequency to a RX Channel

Select the Police or Fire (& Ambulance) channels group by pressing [POLICE], and then select a desired frequency using ▲ / ▼

Or during SCAN, when scan stops on a Police or Fire (& Ambulance) frequency which you wish to store press [HOLD] to stay on that frequency.

1. Press and hold [MENU]. The lowest available empty RX channel will appear, alternating with the selected Police and Fire (& Ambulance) frequency.
2. Change the RX channel using ▲ / ▼ desired.
3. Press and hold [ENTER]. A confirmation tone sounds to indicate the new channel is programmed.

The RX channel number flashes.

1. If a name is desired press [SQL] twice to begin Alpha Tag edit (see manual programming above).
2. Press and hold [ENTER], or wait for 10sec, to exit programming mode.

Store a frequency found using CLOSE CALL to a RX Channel

Start Close Call RF Capture feature.

When an active frequency is found which you wish to store press [HOLD] to stay on that frequency.

1. Press and hold [MENU]. The lowest available empty RX channel will appear, alternating with the found frequency.
2. Change the RX channel using ▲ / ▼ desired.
3. Press and hold [ENTER]. A confirmation tone sounds to indicate the new channel is programmed.

The RX channel number flashes.

1. If a name is desired press [SQL] twice to begin Alpha Tag edit (see manual programming above).
2. Press and hold [ENTER], or wait for 10sec, to exit programming mode.

Instant Replay

The Instant Replay feature automatically records up to 1 minute of received signal(s) which can be instantly replayed (through the speaker) by pressing [REPLAY].

Instant Replay automatically records receive signal(s) in the following modes;

• CB & Extra RX channel, Police and Fire (& Ambulance) channel mode
- Scan Mode
- Close Call RF Capture mode

Instant Replay does not record when in monitor mode (SQT-0 setting in normal channel mode).

Press [REPLAY] at anytime to;

1. Playback the most recent received signal.

OR

1. Playback the most recent recorded signal in the replay buffer (if Instant Replay automatic receive record was turned Off, see Turning Instant Replay On/Off below).

During playback the display shows REPLAY and the number of the currently playing recording.

After the most recent received signal has been played back, a long confirmation tone sounds and the radio returns to the previous mode.

During playback older recordings can be accessed by pressing ▲ / ▼ to skip forward/back between recordings stored within the 1 minute buffer. The record number indicates which discrete recording is currently being replayed.

• Received signals shorter than 500ms are not recorded.
• Automatic recording of receive signal(s) is temporarily suspended during Instant Replay playback.
• Older recordings are automatically overwritten when new recordings are stored.
• Most received communications are short and the 1 minute buffer may contain several recordings.
  • Transmissions (TX) are not recorded.

Turning Instant Replay On/Off

Instant Replay is ON by default. The 📄con displays to indicate Instant Replay automatic record is On.

Press and hold [REPLAY] to turn Instant Replay On/Off. Two beep tones sound.

Turn Instant Replay Off if you want to prevent the current 1 minute of recordings from being overwritten.

Close Call™ RF Capture

The Close Call RF Capture feature sets the UH8080S so it detects and then displays the frequency of a nearby strong radio transmission. Close Call RF capture works great for finding frequencies at venues such as malls and sporting events.

Close Call RF Capture doesn't tune to a frequency to check for a transmission, instead it directly detects the presence of a strong, nearby signal and instantly tunes to the source's frequency. The UH8080S only tries to find Close Call transmissions from 400-520 MHz.

• Close Call RF capture works well for locating the source of strong local transmissions such as mobile and handheld two-way radios in areas with no other strong transmission sources. However, if you are in an area with many transmission sources (such as pager radio transmitters, multi-use radio towers, traffic control devices, etc.), Close Call RF capture might not find the transmission you are searching for, or it might find a transmission other than the one you are searching for.
• Close Call works better with some types of transmissions than others. It might not correctly display frequency information for transmitters using a highly directive antenna (such as an amateur radio beam antenna), if there are many transmitters operating at the same time in the same area, or if the transmitter is a broadcast television station.

Using Close Call

To start or stop Close Call RF Capture:

1. Press [CLOSE CALL].

The C-C icon appears and C.CALL is displayed when Close Call RF Capture mode.

When a signal is found a confirmation chirp is sounded and CC FOUND flashes on the display. Press any key (except CLOSE CALL key) when CC FOUND is displayed to show the frequency. The signal strength is also displayed with CC FOUND display.

Lockout an Undesired Frequency

If the signal frequency is undesired (for instance it is a data channel) then the frequency can be added to the lockout list and ignored in future.

1. First press [HOLD] to stay on that frequency.
2. And then press and hold [HOLD] to lockout that frequency and resume Close Call RF Capture mode.

Unlock a Locked out frequency

1. The locked out frequencies can be reviewed by pressing [MENU]. LO displays and the lowest frequency in the lockout list flashes.
2. Press ▲ / ▼ to view other frequencies in the list.
3. Press and hold [HOLD] to unlock the currently displayed frequency. Two beeps sound.
4. Press [MENU] to resume Close Call RF Capture mode.

NOTE

- Close Call RF Capture feature is separate to and cannot be operated at the same time as SCAN or normal receive mode.

Selective Calling

Selective Calling (Selcall) is a special Sequential Tone Squelch System that allows the user to receive/transmit calls selectively from/to an individual or group, on a shared busy channel. Therefore Selcall is a group feature used by groups with similarly set up radios.

The UH8080S has a Selective Calling system. Exceptional features, like 10 Selcall ID Memories, Receiver Quieting, Tone Squelch Scanning, Tone and Group Calling make the UH8080S superior to other transceivers in its class.

Receiver Quieting (Tone Squelch)

When activated on individual UHF-CB channels (except for emergency CH05 and CH35), it automatically mutes the receiver audio circuit of the radio. It will stay in this Quiet mode as long as the Selcall tone code (Selcall ID) required to open the muting circuit is not received.

Call Alarm

When a received code matches to your Selcall ID, an alarm (CA Alert) will be emitted informing you that a caller is on the channel.

Tone Squelch Scanning

Scans only tone squelched Channels.

Tone Calling

Allows you to selectively call another radio. Up to 10 Selcall IDs can be stored for for frequently called radios.

Group Calling Capability

Transmits Group Calls.

Programming the Selcall ID for your UH8080S

The radio Selcall ID is the ID other users will identify as being your radio. It is set in the Selcall settings menu as follows:

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The UH8080S should turn on in the SELCALL Menu selection state (no tone will sound). Cd displays to indicate the Call ID setting (factory default ID is 00000).
3. Press [SQL] to begin the Selcall ID edit. The 5th digit of the ID flashes.
4. Use ◀ or ▶ to shift between digits. A 6th digit (for 6 tone Selcall) is available and indicated by a ‘_’.
5. Press ▲ / ▼ to select the desired ID.
6. Press and hold [ENTER] to exit the setting mode.
7. Press and hold [ENTER] again to exit programming mode. A long confirmation tone sounds.

Storing Selcall IDs of other users to the ID Memory

1. Press and hold [SELCALL]. The Selcall ID memory will open.
2. Press ▲ / ▼ to select the desired memory slot to edit.

NOTE

• Up to 10 ID memories can be stored.

• If you expect to make calls to radios not stored in the ID memory then leave memory ID 1 blank for manual ID entry at the time of the call.

• Press [SQL] to begin the ID edit. The 5th digit of the ID flashes.

• Use ◀ or ▶ to shift between digits. A 6th digit (for 6 tone Selcall) is available and indicated by a ‘_’.
• Press ▲ / ▼ to select the desired ID.
• When desired ID is entered press [SQL] to move to Alpha Tag selection. A cursor flashes in the 1st alpha position. The default aplha tag is blank - displays as No Name. If you do not wish to name the ID then skip to step 9.
• Press ▲ / ▼ to select the desired alpha character.
• Use ◀ or ▶ to shift between cursor positions.
• When finished press [SQL]. A confirmation tone sounds to indicate the ID is programmed. The memory number flashes to enable selection for programming of next memory if desired.
• Press and hold [ENTER], or wait for 10sec, to exit programming mode.

Tone Calling (Making a Selcall Call)

Tone Calling allows you to selectively call other radios.

For convenience, the Selcall ID of the radio you are going to call should be in the Selcall ID memory (see Storing Sellcall IDs of other users to the ID Memory p.37). If not then the Selcall ID can be manually entered for this call.

To Call:

1. Select the channel that you and your group agreed to use for Selective Calling.
2. Press and hold [SELCALL] for 2 seconds.

A double beep tone will sound and the last stored ID or last transmitted ID will be displayed.

1. Use ▲ / ▼ to select the desired Selcall ID.

If the desired Selcall ID is not stored in the ID memory you can manually enter the ID as follows;

a) Press [SQL] to begin ID edit. The 5th digit of the ID flashes.
b) Use ◀ or ▶ to shift between digits. A 6th digit (for 6 tone Selcall) is available and indicated by a ‘_’.
c) Press / to select the desired ID.

1. Press [SELCALL] to transmit the Selcall.

CAL will display when transmitting the Selcall.

An acknowledge tone coming from the called radio will be received if you have successfully made contact. The acknowledge tone for the UH8080S is a succession of three low tone beeps.

Receiver Quiet (TSQ) Mode

Puts the receiver in the QUIET mode (also known as the Tone Squelch (TSQ) mode) for the selected channel. When activated, the transceiver prevents any unwanted conversations in the channel from being heard unless the call is specifically directed to you and the Selcall ID required to open the QUIET condition has been received.

NOTE

Under this condition, PTT is temporarily disabled. If you wish to use the same Channel for normal communication, simply remove the channel from QUIET mode.

To Activate/Deactivate Tone Squelch (TSQ) on a Channel

1. Use ▲ to select the channel you want to put in or take out of 'QUIET' mode.
2. Press and hold [TSQ] for 2 seconds. Two beeps will sound and the TSQ icon appears on or disappears from the LCD display.

Receiving a Selcall

While in TSQ mode, when UH8080S receives a code matching your Selcall ID, it will perform the following operations:

a) Automatically responds to the caller by transmitting Acknowledge Tones.
b) Informs you that a caller is on the Channel by emitting a CALL ALARM (Default Alarm Setting: four successive beeps in a regular interval for 10 seconds. Refer to p.44, 'Alarm Mode' for other alarm settings) and displays the CAL icon.

c) Flashes the TSQ icon for about 20 seconds allowing you to use the PTT button. If you are not able to respond within the 20 second period, TSQ icon stops flashing and 'QUIET' mode resumes.

NOTE

The UH8080S can decode a Selcall call even though not in 'QUIET' mode.

Scanning Tone Squelched Channels

If you are using two or more Channels in the TSQ mode, you can monitor all of these Channels for selective calls by using the TSQ scanning feature.

To use this feature start the TSQ Scan by pressing and holding [TSQ] for 2 seconds during Open Scan or Group Scan.

Unlike Normal Scanning, TSQ scans and checks detected signals for Selcall information. If this information is not found, TSQ Scanning resumes.

When a call is received during TSQ Scanning, UH8080S follows the same response as when receiving a call on a Tone Squelch Channel. It differs only in the following ways:

1. If the call is not answered within 20 seconds, TSQ Scanning resumes.

The CAL icon remains on the LCD display.

To look for the Channel where the CALL is received.

a) Cancel TSQ Scanning by pressing [SCAN].

b) Using ▲ / ▼ browse through the TSQ Channels. The CAL indicator marks the Channel where the Call is received.

1. When answered, TSQ Scanning is automatically deactivated. The Channel is removed from the QUIET Operating Mode.

To deactivate TSQ Scanning:

a) Press and hold [TSQ] for 2 seconds. The unit returns to Normal Scanning Mode.

b) Press [SCAN]. The whole scanning operation is cleared.

c) When a Selcall is received, press PTT.

NOTE

The chance of receiving and decoding Selcalls effectively during TSQ Scanning can be increased in many different ways. You can either decrease the number of channels to be scanned thus increasing the scanning speed – or – change some of the Selcall parameters (refer to 'Selcall Programming').

Group Calling

The UH8080S has the capability to respond to Group Calling and to transmit Group Calling Codes.

Group Calling allows you to call members of your group simultaneously. However, to do this, you need to follow a certain format (see below) when programming your TX Selcall ID.

Selcall ID Format

To call Transmitter SELCALL ID

10 radios [X] [X] [X] [X] [A]

100 radios [X] [X] [X] [A] [A]

1000 radios [X] [X] [A] [A] [A]

where: [X] is a common Selcall ID prefix of your group

- and - [A] is the CCIR Assigned Group Tone Code

Example:

If one group comprises 10 members with Selcall IDs the ID numbers could be as follows:

Group ID # Individual ID#

[1] [2] [3] [4] [0]

[1] [2] [3] [4] [1]

[1] [2] [3] [4] [2]

[1] [2] [3] [4] [3]

to -

[1] [2] [3] [4] [9]

all in TSQ mode at CH20

If someone transmits ID 1234A on CH20, all of the above units will open their Tone Squelched Receiver.

Group Calls and ordinary Selcalls can be differentiated in the following manner:

Group Call - Low tone beeps

Ordinary Selcall - High tone beeps

SELCALL Settings

Tone Period

Tone period is the duration of one tone in a Selcall ID sequence. The setting of this parameter depends on the type of application. On long distance communications, for example: where the signal strength of the transmitted information is greatly reduced and affected by noise, it is advisable to use a longer Tone Period. A long Tone Period gives the decoder more time and information to check and evaluate the code.

NOTE

However, be sure that all the radios in your group use the same Tone Period setting. Otherwise you will not be able to selectively call one another.

The UH8080S allows you to select which Tone Period is best for you. The three most commonly used tone settings (40,70 or 100 mSec) are available. With the freedom to change this parameter, you can easily adapt to the existing system in your group without the inconvenience of having the unit serviced by the dealer.

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The SELCALL Settings Menu will display (no tone will sound).
3. Press [MENU] repeatedly to select the Tone Period setting - which is indicated on the display as Pd.
4. Press [SQL] to edit the setting. The current setting flashes.
5. Press ▲ / ▼ to select the desired tone period from 40ms, 70ms or 100ms.
6. Press [SQL] to exit the setting.
7. Press and hold [ENTER], to save and exit programming mode.

Lead-in Delay

Lead-in delay is a Selcall transmission parameter that ‘wakes-up’ and helps the receiver of the other radio to lock onto the incoming signal. Each time a Selcall ID is transmitted, the Lead-in Delay attaches itself to the beginning of the code sequence and causes the transmitter to be on for a longer period prior to the code transmission. This makes for a stronger communication link between the transmitter and the other receiver.

One major advantage to having the longer Lead-in Delay is when selectively calling another radio via a repeater station. A longer Lead-in Delay helps to stabilise both the communication link from your radio to the repeater station and from the repeater station to the other radio.

Lead-in Delay Programming

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The SELCALL Settings Menu will display (no tone will sound).
3. Press [MENU] repeatedly to select the Lead-in Delay setting - which is indicated on the display as Ld.

4. Press [SQL] to edit the setting. The current setting flashes.

5. Press ▲ / ▼ to select the desired Lead-in delay period from 500ms, 1000ms, 2000ms, 3000ms or 4000ms.

6. Press [SQL] to exit the setting.

7. Press and hold [ENTER], to save and exit programming mode.

Lead-in Tone

The Lead-in Tone, when programmed, 'rides' on the Lead-in Delay.

Hence, when transmitting a Selcall ID, a continuous tone will be heard for the duration of the Lead-in Delay. The main purpose of the Lead-in Tone is to increase the probability of contact between your unit and another radio when TSQ Scanning.

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The SELCALL Settings Menu will display (no tone will sound).
3. Press [MENU] repeatedly to select the Lead-in Tone setting - which is indicated on the display as LT.

4. Press [SQL] to edit the setting. The current setting flashes.

5. Press ▲ / ▼ to select the desired Lead-in Tone.

NOTE

- If you want to remove the Lead-in Tone choose the space [ _ ] Bar.

1. Press [SQL] to exit the setting.
2. Press and hold [ENTER], to save and exit programming mode.

Alarm Mode

When a received code matches to your receiver Selcall ID the UH8080S will respond based on the Call Alarm mode.

Call Alarm - Auto mode (Default)

a) Transmit an Acknowledge tone to the Caller.
b) Emit CALL Alarm for 10 seconds only.
c) Resume Quiet condition automatically after 20 seconds if the call is not answered.
d) The Unit will start decoding again when the 20 second period elapsed and the call remained unanswered.

Call Alarm - Continue mode

a) Transmit an Acknowledge Tone to the Caller.
b) Initially an alarm of four successive beeps is emitted for 20 seconds and then two successive beeps every four seconds continuously unless answered.
c) The Quiet Condition is never resumed.
d) The Unit continues to check if incoming codes have your Receiver Selcall ID even though the Quiet Condition is already opened. When detected, it will send an acknowledge Tone to the caller and then resets the Call Alarm.

NOTE

For both of the above mentioned modes, transmission by using the PTT button is possible when the TSQ icon is flashing.

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The SELCALL Settings Menu will display (no tone will sound).
3. Press [MENU] repeatedly to select the Alarm mode setting - which is indicated on the display as AL.
4. Press [SQL] to edit the setting. The current setting flashes.
5. Press ▲ / ▼ to select the desired Alarm mode from AUTO or CONT.
6. Press [SQL] to exit the setting.
7. Press and hold [ENTER], to save and exit programming mode.

Group Call Mode

The Group Tone period can be adjusted to increase the ability to identify group calls. Group 01 mode sets the tone period to 1 tone period (default). Group 02 mode sets the first group tone period to 3 tone periods.

1. Power Off the UH8080S.
2. Press and hold [POWER] and [MENU]. The SELCALL Settings Menu will display (no tone will sound).
3. Press [MENU] repeatedly to select the Group Call mode setting - which is indicated on the display as GROUP.
4. Press [SQL] to edit the setting. The current setting flashes.
5. Press ▲ / ▼ to select the desired Group Call mode from 01 or 02.
6. Press [SQL] to exit the setting.
7. Press and hold [ENTER], to save and exit programming mode.

SELCALL Tone Frequency List

Tone No.	Tone Frequency (Hz)	Tone No.	Tone Frequency (Hz)
0 1981 8	1747
1 1124 9	1860
2 1197 A	(Group) 2400
3 1275 B	930
4 1358	C	2247
5 1446	D	991
6 1540	E (Repeat)	2110
7 1640 F	1055

CTCSS Codes Table

Code No.	Frequency (Hz)	Code No.	Frequency (Hz)
“oF” OFF	20	131.8
1	67.0	21	136.5
2	71.9	22	141.3
3	74.4	23	146.2
4	77.0	24	151.4
5	79.7	25	156.7
6	82.5	26	162.2
7	85.4	27	167.9
8	88.5	28	173.8
9	91.5	29	179.9
10	94.8	30	186.2
11	97.4	31	192.8
12	100.0	32	203.5
13	103.5	33	210.7
14	107.2	34	218.1
15	110.9	35	225.7
16	114.8	36	233.6
17	118.8	37	241.8
18	123.0	38	250.3
19	127.3

Code No.	DCS Code (Octal)	Code No.	DCS Code (Octal)	Code No.	DCS Code (Octal)
1 023 36	223 71 445
2 025 37	225 72 446
3 026 38	226 73 452
4 031 39	243 74 454
5 032 40	244 75 455
6 036 41	245 76 462
7 043 42	246 77 464
8 047 43	251 78 465
9 051 44	252 79 466
10 053 45	255 80 503
11 054 46	261 81 506
12 065 47	263 82 516
13 071 48	265 83 523
14 072 49	266 84 526
15 073 50	271 85 532
16 074 51	274 86 546
17 114 52	306 87 565
18 115 53	311 88 606
19 116 54	315 89 612
20 122 55	325 90 624
21 125 56	331 91 627
22 131 57	332 92 631
23 132 58	343 93 632
24 134 59	346 94 654
25 143 60	351 95 662
26 145 61	356 96 664
27 152 62	364 97 703
28 155 63	365 98 712
29 156 64	371 99 723
30 162 65	411 100 731
31 165 66	412 101 732
32 172 67	413 102 734
33 174 68	423 103 743
34 205 69	431 104 754
35 212 70	432

Always listen on a channel (or observe the receive signal level meter) to ensure it is not already being used before transmitting.

Channels 5 and 35 are used for emergency channels.

CTCSS, DCS, TSQ and SELCALL will not operate on these channels.

Please follow these guidelines for channel use in Australia:

• Channels 05 and 35 are Emergency Channels.
  • Channel 11 is a Calling Channel.
• Channels 22 and 23 are for telemetry and telecommand applications, channels 61, 62 and 63 are for future use and TX is inhibited on these channels.

General communication is accepted on all other channels with these guidelines:

• Channel 40 - road channel (Australia).
• Channels 01-08 (and 31-38), and Channels 41-48 (and 71-78) are repeater channels.

Important information - 80 Channel UHF-CB channel expansion

To provide all users additional channel capacity within the UHF-CB Band. The ACMA will change the majority of the current wideband 40 channel use to narrowband channel use. This allows for additional channels to be added, up to 80 Channels.

This simply means that the new narrowband radio you have purchased will have more channels than older radios. Please refer to the guidelines above and the channel chart for further channel information.

A list of currently authorised channels can also be obtained from the ACMA website in Australia and the MBIE website in New Zealand.

Interference / Poor Audio

When a new narrowband radio receives a signal from an older wideband radio the speech may sound loud - however the radio's built-in AVS (Automatic Volume Stabilizer) circuitry will detect and manage incoming audio to comparable levels.

Narrowband radios operating on CH41 - CH80 may encounter interference from a nearby wideband radios transmitting on high power on an adjacent channel (frequency).

When an older wideband radio receives a signal from a new narrowband radio the speech may sound quiet - the wideband radio user simply adjusts their radio volume for best performance.

The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated.

UHF-CB Channels and Frequencies

CH No.	Simplex Mode Transmit / Receive Frequency (MHz)	Duplex Mode Transmit Frequency (MHz)	CH No.	Simplex Mode Transmit / Receive Frequency (MHz)
1 476	425 477.175 (CH31)	21 476.925
2 476	450 477.200 (CH32)	22 476.950 (RX only)
3 476	475 477.225 (CH33)	23 476.975 (RX only)
4 476	500 477.250 (CH34)	24 477.000
5 476	525 477.275 (CH35)	25 477.025
6 476	550 477.300 (CH36)	26 477.050
7 476	575 477.325 (CH37)	27 477.075
8 476	600 477.350 (CH38)	28 477.100
9 476	625 29 477.125
10 476	650 30 477.150
11 476	675 31 477.175
12 476	700 32 477.200
13 476	725 33 477.225
14 476	750 34 477.250
15 476	775 35 477.275
16 476	800 36 477.300
17 476	825 37 477.325
18 476	850 38 477.350
19 476	875 39 477.375
20 476	900 40 477.400

UHF-CB Channels and Frequencies

CH No.	Simplex Mode Transmit / Receive Frequency (MHz)	Duplex Mode Transmit Frequency (MHz)	CH No.	Simplex Mode Transmit / Receive Frequency (MHz)
41 476.4375 477.1875 (CH 71) 61				future use476.9375 (RX only)
42 476.4625 477.2125 (CH 72) 62				future use476.9625 (RX only)
43 476.4875 477.2375 (CH 73) 63				future use476.9875 (RX only)
44 476.5125 477.2625 (CH 74) 64 477.0125
45 476.5375 477.2875 (CH 75) 65 477.0375
46 476.5625 477.3125 (CH 76) 66 477.0625
47 476.5875 477.3375 (CH 77) 67 477.0875
48 476.6125 477.3625 (CH 78) 68 477.1125
49 476.6375 69 477.1375
50 476.6625 70 477.1625
51 476.6875 71 477.1875
52 476.7125 72 477.2125
53 476.7375 73 477.2375
54 476.7625 74 477.2625
55 476.7875 75 477.2875
56 476.8125 76 477.3125
57 476.8375 77 477.3375
58 476.8625 78 477.3625
59 476.8875 79 477.3875
60 476.9125 80 477.4125

UNIDEN UH8080S UHF CB Transceiver

IMPORTANT: Satisfactory evidence of the original purchase is required for warranty service

Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below.

Warrantor: The warrantor is Uniden Australia Pty Limited ABN 58 001 865 498 ("Uniden Aust").

Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the UH8080S UHF CB Transceiver (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.

Warranty period: This warranty to the original retail purchaser is only valid in the original country of purchase for a Product first purchased either in Australia or New Zealand.

Product 5 Years
Battery Pack & Accessories	1 Year

If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be:

(A) Damaged or not maintained in a reasonable manner or as recommended in the relevant Uniden Owner's Manual;
(B) Modified, altered or used as part of any conversion kits, subassemblies or any configurations not sold by Uniden Aust;
(C) Improperly installed contrary to instructions contained in the relevant Owner's Manual
(D) Repaired by someone other than an authorized Uniden Repair Agent in relation to a defect or malfunction covered by this warranty; or
(E) Used in conjunction with any equipment, parts or a system not manufactured by Uniden.

Parts Covered: This warranty covers the Product and included accessories.

User-generated Data: This warranty does not cover any claimed loss of or damage to user-generated data (including but without limitation phone numbers, addresses and images) that may be stored on your Product.

Statement of Remedy: If the Product is found not to conform to this warranty as stated above, the Warrantor, at its discretion, will either repair the defect or replace the Product without any charge for parts or service. This warranty does not include any reimbursement or payment of any consequential damages claimed to arise from a Product's failure to comply with the warranty.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty is in addition to and sits alongside your rights under either the COMPETITION AND CONSUMER ACT 2010 (Australia) or the CONSUMER GUARANTEES ACT (New Zealand) as the case may be, none of which can be excluded.

Procedure for obtaining warranty service: Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the address shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim. Prior to delivery, we recommend that you make a backup copy of any phone numbers, images or other data stored on your Product, in case it is lost or damaged during warranty service.

UNIDEN AUSTRALIA PTY LTD

Service Division

345 Princes Highway,

Rockdale, NSW 2216

Phone: [phone]

Email: [e-mail]

THANK YOU FOR BUYING A UNIDEN PRODUCT.

Uniden®

© 2014 Uniden Australia Pty Limited. Printed in Vietnam. U01UT957AZZ(0)
