Pico Mod - Keyboard Erica Synths - Free user manual and instructions

Product Type	Eurorack Modulation Module
Brand	Erica Synths
Model	Pico Mod
Category	Eurorack Module
Width	3 HP
Depth	Approximately 30 mm (including power connector)
Weight	Approximately 50 g
Power Requirements	+12V: 30 mA, -12V: 10 mA
Power Connector	10-pin Eurorack ribbon cable
Main Functions	LFO, Random Voltage Generator, Envelope Follower, Sample & Hold, VCO (low frequency)
Controls	4 knobs: Rate, Shape, Mod, Level; 1 mode selector switch
Inputs	1 CV input (0-5V), 1 Gate/Trigger input
Outputs	1 CV output (-5V to +5V), 1 Gate output (0-5V)
Input Impedance	100 kΩ
Output Impedance	1 kΩ
Protection	Reverse power protection
Construction	PCB with aluminum front panel
Included Accessories	Power ribbon cable, mounting screws

Frequently Asked Questions - Pico Mod Erica Synths

What is the Pico Mod?

The Pico Mod is a compact Eurorack modulation module from Erica Synths, offering multiple modulation sources like LFO, random voltage, and envelope follower in a small 3 HP footprint.

How do I power the Pico Mod?

Connect a standard 10-pin Eurorack power ribbon cable to the module, ensuring the red stripe aligns with the -12V mark on the board. It draws approximately 30 mA on the +12V rail and 10 mA on the -12V rail.

What are the main functions of the Pico Mod?

The module features five modes selectable via a switch: LFO, Random (S&H based), VCO (low frequency oscillator), Env Follow (envelope follower), and CHS (chaos). Each mode has adjustable parameters via four knobs.

How do I change the mode on the Pico Mod?

Use the mode selector switch on the left side of the panel to cycle through the five modes. The current mode is indicated by an LED color: green (LFO), yellow (Random), red (VCO), blue (Env Follow), purple (CHS).

What are the knob functions?

Knob 1 (Rate): controls frequency/speed. Knob 2 (Shape): adjusts waveform shape or randomness. Knob 3 (Mod): modulates parameter depending on mode. Knob 4 (Level): sets output amplitude.

Can the Pico Mod be used as a VCO?

Yes, in VCO mode it acts as a low frequency oscillator with a range of about 0.01 Hz to 20 Hz. It is intended for modulation rather than audio-rate, but can be pushed to audio rates with external CV.

What are the input and output levels?

The CV input accepts 0-5V. The CV output ranges from -5V to +5V. The gate output is 0-5V. All signals are Eurorack-compatible.

Is the Pico Mod compatible with other Eurorack cases?

Yes, it conforms to the Eurorack standard. It fits any case with 3 HP of space and can be powered by any Eurorack power supply via the standard ribbon cable.

How do I reset or calibrate the Pico Mod?

The module has no user calibration. If issues arise, check power connections and ensure no short circuits. For factory reset, contact Erica Synths support. Regular use requires no calibration.

Where can I find the user manual?

The user manual is available as a free PDF download from the Erica Synths website or from notice-facile.com. It includes detailed descriptions of each mode and patch examples.

USER MANUAL Pico Mod Erica Synths

WITH PICO SERIES WE CHALLENGED OURSELVES – CAN WE MAKE ANY SUPERIOR FUNCTIONALITY SYNTH MODULE 3HP WIDE AND AFFORDABLE?

ERICA PICO MODULATOR COMBINES ENVELOPE GENERATOR AND VCA IN ONE MODULE WITH STRAIGHT-FORWARD CONTROLS FOR LIVE PERFORMANCES.

FEATURESTECHN

SELECTABLE AD OR ASR MODES SELECTABLE LIN OR LOG ENVELOPE SHAPES LOOP MODE WITHOUT GATE IN ENVELOPE OUTPUT GATE IN AND OUTPUT SIGNAL CONTROL LEDS

ATTACK TIME 0-4" (8" IN LOOP MODE) DECAY/RELEASE TIME 0-4" (8" IN LOOP MODE) EG AMPLITUDE OV - 10V VCA ATTENUATION LEVEL (OV CV IN) -80DB VCA GAIN 1

POWER CONSUMPTION +28MA, -5MA

MODULE WIDTH 3HP

MODULE DEPTH 35MM

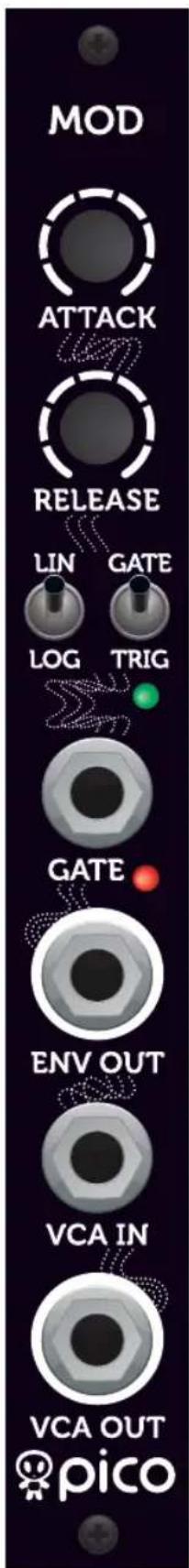

pico

MOD

USE THIS KNOB TO SET ATTACK TIME

USE THIS KNOB TO SELECT DECAY/RELEASE TIME

SWITCH BETWEEN LINEAR OR LOGARITHMIC ENVELOPES

PATCH THE GATE SIGNAL HERE TO TRIGGER THE ENVELOPE. WHEN NO CABLE IS PATCHED HERE, THE MODULE AUTOMATICALLY ADVANCES TO LOOPING MODE

THIS IS ENVELOPE OUTPUT

TIS IS VCA OUTPUT

SWITCH BETWEEN TRIGGERED (AD) OR GATED (ASR) MODES! IN TRIG MODE THE MODULE IGNORES GATE LENGTH AND TRIGGERS THE ENVELOPE IN AD MODE ON THE RISING EDGE OF INCOMING SIGNAL

THIS LED INDICATES INCOMING GATE SIGNAL

THIS LED GIVES VISUAL FEEDBACK ON ENVELOPE OUT SIGNAL

TIS IS VCA INPUT. PATCH HERE AUDIO SIGNAL, YOU WISH TO MODULATE. THE INPUT IS AC COUPLED TO AVOID CLIPPING

PLEASE FOLLOW THE INSTRUCTIONS FOR USE OF THE ERICA SYNTHS MODULE BELOW, 'CAUSE ONLY THIS WILL GUARANTEE PROPER OPERATION OF THE MODULE AND ENSURE WARRANTY FROM ERICA SYNTHS.

WATER IS LETHAL FOR MOST OF THE ELECTRIC DEVICES, UNLESS THEY ARE MADE WATERPROOF. THIS ERICA SYNTHS MODULE IS NOT INTENDED FOR USE IN A HUMID OR WET ENVIRONMENT. NO LIQUIDS OR OTHER CONDUCTING SUBSTANCES MUST GET INTO THE MODULE. SHOULD THIS HAPPEN, THE MODULE SHOULD BE DISCONNECTED FROM MAINS POWER IMMEDIATELY, DRIED, EXAMINED AND CLEANED BY A QUALIFIED TECHNICIAN.

DO NOT EXPOSE THE MODULE TO TEMPERATURES ABOVE +50°C OR BELOW -20°C. IF YOU HAVE TRANSPORTED MODULE IN EXTREME LOW TEMPERATURES, LEAVE IT IN ROOM TEMPERATURE FOR AN HOUR BEFORE PLUGGING IT IN.

TRANSPORT THE INSTRUMENT CAREFULLY, NEVER LET IT DROP OR FALL OVER. WARRANTY DOES NOT APPLY TO MODULES WITH VISUAL DAMAGES.

THE MODULE HAS TO BE SHIPPED IN THE ORIGINAL PACKAGING ONLY. ANY MODULE SHIPPED TO US FOR RETURN, EXCHANGE AND/OR WARRANTY REPAIR HAS TO BE IN ITS ORIGINAL PACKAGING. ALL OTHER DELIVERIES WILL BE REJECTED AND RETURNED TO YOU. MAKE SURE YOU KEEP THE ORIGINAL PACKAGING AND TECHNICAL DOCUMENTATION.

THIS DEVICE COMPLIES TO THE EU GUIDELINES AND IS MANUFACTURED RoHS CONFORMING WITHOUT USE OF LED, MERCURY, CADMIUM AND CHROME. NEVERTHELESS, THIS DEVICE IS SPECIAL WASTE AND DISPOSAL IN HOUSEHOLD WASTE IS NOT RECOMMENDED.

erica synths

YOU WILL FIND ERICA SYNTHS TERMS OF WARRANTY AT WWW.ERICASYNTHS.LV. ITEMS FOR RETURN, EXCHANGE AND/OR WARRANTY REPAIR HAVE TO BE SENT TO:

ERICA SYNTHS

ANDREJOSTAS STR. 12

RIGA

LATVIA

LV-1045

USER MANUAL BY GIRTS OZOLINS@ERICA SYNTHS

DESIGN BY INETA BRIEDE@CARRE BRANDING

COPYING, DISTRIBUTION OR ANY COMMERCIAL USE IN ANY WAY IS PROHIBITED AND NEEDS THE WRITTEN

PERMISSION BY ERICA SYNTHS. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

IN CASE OF ANY QUESTIONS, FEEL FREE TO CONTACT US THROUGH WWW.ERICASYNTHS.LV OR VIA E-MAIL
