Product Type	Synthesizer Module
Brand	Patching Panda
Model	Vibrazum
Category	Eurorack Synthesizer Module
Format	Eurorack (3U)
Width (HP)	10 HP
Depth	35 mm (including power cable)
Power Consumption	+12V: 80 mA / -12V: 40 mA
Weight	120 g
Main Functions	Voltage-controlled oscillator (VCO) with waveshaping, sync, and frequency modulation
Controls	Frequency, FM amount, waveshape, sync switch, output level
Inputs	1x FM CV input (0-10V), 1x Sync input, 1x 1V/Oct input
Outputs	1x Audio output (10Vpp), 1x Square wave output
Power Supply	Eurorack bus board (+12V, -12V, GND) via 10-pin ribbon cable
Maintenance	Keep dry and dust-free; clean with soft, dry cloth
Safety	Power off before connecting/disconnecting; avoid reverse polarity
Repairability	User serviceable: replaceable ICs; contact support for spare parts
Warranty	2 years limited warranty
Documentation	User manual available for download in PDF

Frequently Asked Questions - Vibrazum Patching Panda

What is the Patching Panda Vibrazum?

The Vibrazum is a Eurorack synthesizer module by Patching Panda that functions as a voltage-controlled oscillator with waveshaping capabilities.

What are the power requirements of the Vibrazum?

It requires +12V at 80 mA and -12V at 40 mA, connected via a standard 10-pin ribbon cable to the Eurorack bus board.

How do I connect the Vibrazum to my Eurorack case?

Ensure the case is powered off. Connect the 10-pin ribbon cable to the module with the red stripe oriented to -12V. Then plug into the bus board and secure the module with screws.

What outputs does the Vibrazum provide?

It has two outputs: a main audio output (10Vpp) and a dedicated square wave output.

Can I use the Vibrazum for bass sounds?

Yes, the VCO can generate low-frequency tones; use the frequency control and FM inputs to shape bass sounds.

What is the width of the Vibrazum module?

The module occupies 10 HP (horizontal pitch) in a Eurorack case.

Is the Vibrazum compatible with 5V Eurorack systems?

It is designed for standard ±12V systems. If your case only provides 5V, you may need an additional power supply.

How do I sync the Vibrazum with other modules?

Use the Sync input to connect a clock or trigger signal. The module will reset its waveform cycle on each incoming pulse.

What is the warranty on the Vibrazum?

Patching Panda offers a 2-year limited warranty covering manufacturing defects. Keep your receipt.

Where can I download the full manual?

The user manual is available for free in PDF format on notice-facile.com or the Patching Panda website.

USER MANUAL Vibrazum Patching Panda

Stylized black-and-white illustration of a stylized face with floral patterns and decorative elements (no text or symbols)

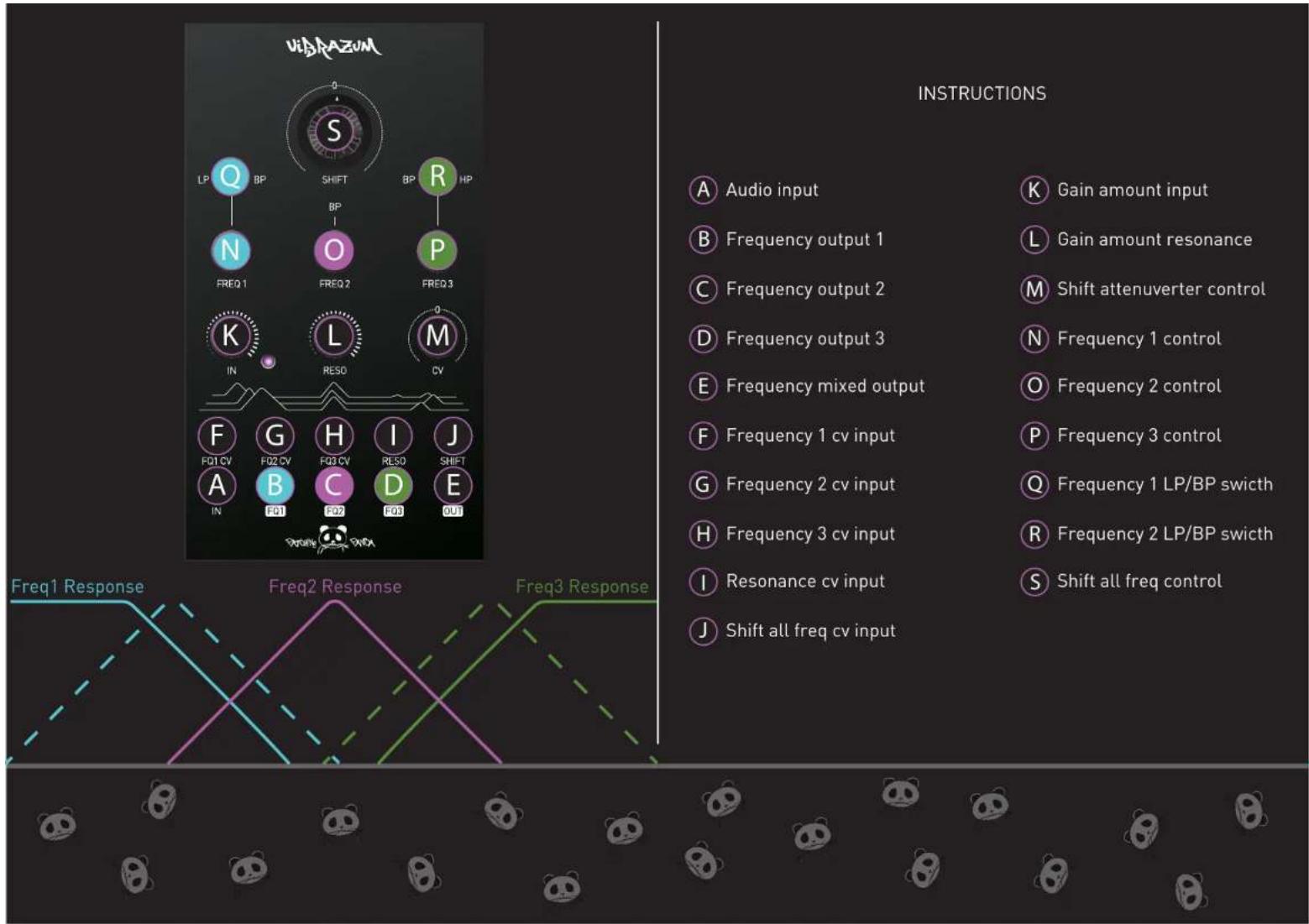

INTRODUCTION:

Triple resonant multi-VCF capable of subtle to extreme tone shaping. The three channels have dedicated frequency outputs and mix output. It was designed to create movement to the sound thanks to the individual frequency voltage control inputs.

Each channel is able to sweep through all the frequency spectrum. A dedicated shift control with attenuverter cv input is able to swap all 3 filtres at the same time.

Different types of drawing in the spectrum are possible to play with.

The Vibrazum shines at high feedback with 24dB slope, the resonance is full of rich harmonics from a gnarly tone-shaping tool of sonic destruction to vowel robotic sounds.

INSTALLATION:

* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortunately if you damage the module by powering in the wrong direction it will not be covered by the warranty.
* After connecting the module check again you have connected the right way, the red line should be on the -12V

Illustration of cartoon pandas on a dark background (no text or symbols)
