USER MANUAL CFS-T RR HILTI

Instructions for use

Note: The Hilti instructions for use and the safety data sheet must be read before installation. The approval must be observed. For professional use only.

Dimensions of the CFS-T RR plug seal

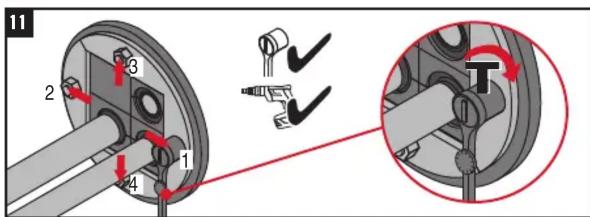

Type Space avail.	Hole dia. (max. dia. using adapter/strip)			Dimensions in mm		Torque (T) Nm
	AxB cm	2 D3 / ø mm	D1 D2
CFS-T RR 50 30x30		9	50 (66)	50	56	6
CFS-T RR 70	40x40	16	70 (86)	70	76	6
CFS-T RR-90	60x60	36	90 (106)	90	100	6
CFS-T RR 100	60x60	36	100 (116)	100	110	6
CFS-T RR-103	60x60	36	103 (119)	103	110	6
CFS-T RR 125	80x80	64	125 (141)	125	135	6,5 – 8
CFS-T RR 150	90x90	81	150 (166)	150	160	6,5 – 8
CFS-T RR-154	90x90	81	154 (170)	154	160	6,5 – 8
CFS-T RR 200	120x120	144	200 (216)	200	210	6,5 – 8

Adapters and strips for diameter adjustment

Type Description		thickness in mm	increase in dia in mm	Picture Non-Cut Plug (Cables not running)
Adapter CFS-T AS-100		1	+2
Adapter	CFS-T AS-125	1	+2
Adapter	CFS-T AS-150	1	+2
Adapter	CFS-T AS-200	1	+2

Sealing Strip	CFS-T SST60x1x720 HFE	1	1x1 mm = +22x1 mm = +4		ø +2mm <ø +4mm <ø +8mm <ø +16mm
Sealing Strip	CFS-T SST60x4x720 HFE	4 1x4 mm = +82x4 mm = +16
