LH-CK6530W - Video recorder LG - Free user manual and instructions
Find the device manual for free LH-CK6530W LG in PDF.
| Product Type | Video Recorder (VCR) |
| Brand | LG |
| Model | LH-CK6530W |
| Dimensions (W x H x D) | 430 x 58 x 280 mm |
| Weight | 2.5 kg |
| Power Input | AC 110-240V, 50/60 Hz |
| Power Consumption | 25 W |
| Recording Media | VHS tape (standard play) |
| Playback Formats | VHS, S-VHS |
| Number of Heads | 4 video heads |
| Timer Recording | Up to 8 programs within 1 month |
| Special Features | Auto head cleaning, index search, auto tracking, repeat play |
| Inputs | RF antenna input, composite AV input (RCA) |
| Outputs | RF output, composite AV output (RCA), S-Video output |
| Remote Control | Included (infrared) |
| Cleaning and Maintenance | Use a VHS head cleaning cassette; clean the tape path every 6 months |
| Safety Precautions | Do not expose to moisture; unplug during storms; no objects inserted into slots |
| Spare Parts Availability | Remote control, AC power cord, AV cables |
| Reparability | Repairs only by qualified service personnel; no user-serviceable parts inside |
| General Information | Standard definition recording; compatible with all VHS videocassettes |
Frequently Asked Questions - LH-CK6530W LG
User questions about LH-CK6530W LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Video recorder in PDF format for free! Find your manual LH-CK6530W - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LH-CK6530W by LG.
USER MANUAL LH-CK6530W LG
Please read this manual carefully before operating your set. Retain it for future reference.
Designs and specifications are subject to change without notice for improvement.
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER
CAUTION:
This unit employs a Laser System.
To ensure proper use of this product, please read this owner's manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Notes on copyrights:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without permission.
This product is equipped with copy protection measures developed by Macrovision. Copy protection signals are recorded on some discs. When recording these discs on a VCR, picture noise will appear during playback.
This product incorporates copyright protection technology that is protected by certain U.S. patent claims and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Model No.
Serial No.
Table of Contents
INTRODUCTION
Safety Precautions....2
Table of Contents....3
Before Use 4-5
playable Discs....4
Precautions 5
Notes on Discs 5
About Symbols 5
Front Panel....6
Display Window....7
Remote Control 8
Rear Panel 9
SYSTEM SETUP
Connections 10-12
Basic TV Connections 10
Optional TV Connections 10
Optional Equipment Connections 11

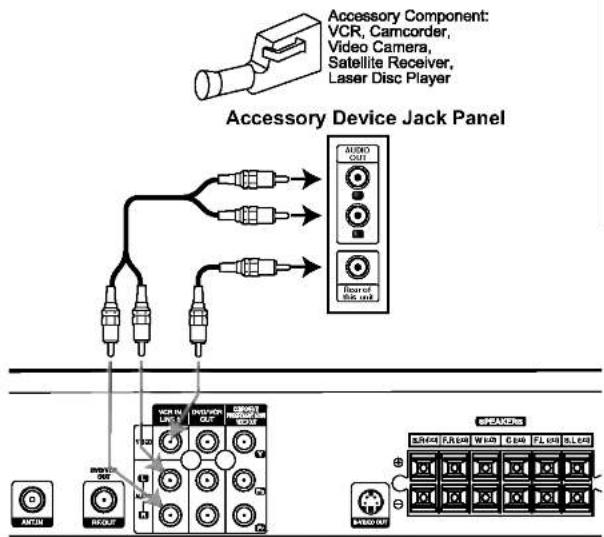

Accessory Audio/Video (A/V) Connections ..... 11

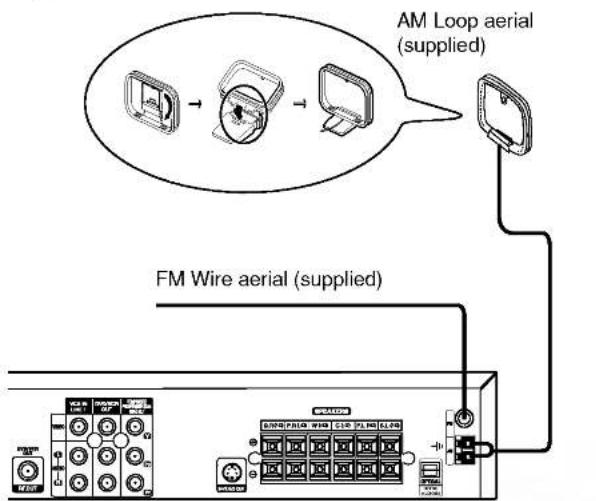

Radio Aerial Connections 11

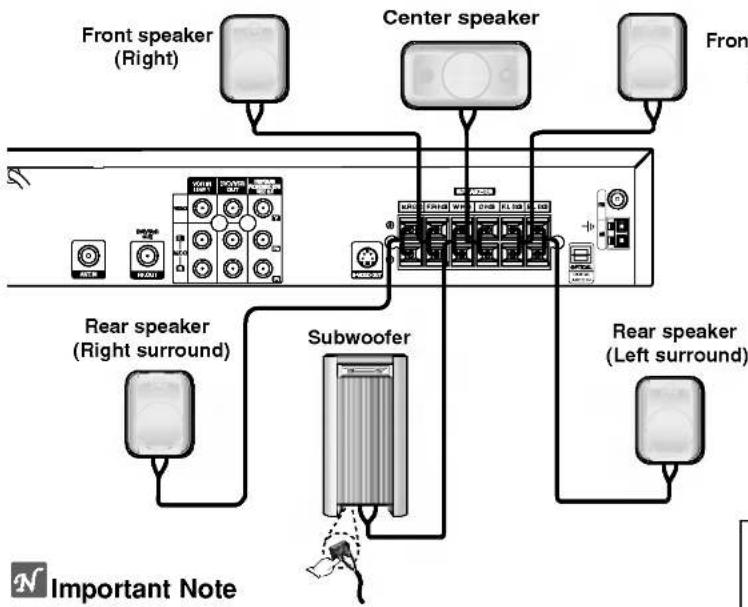

Speaker System Connections 12

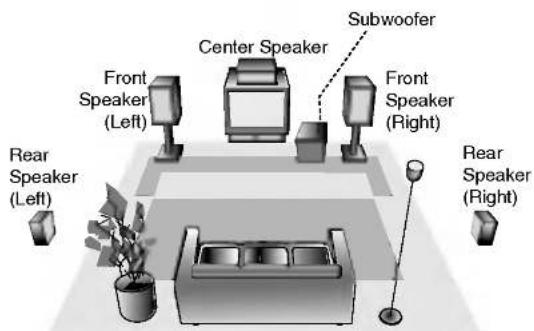

Speaker Positioning....12
VCR Operation Setup 13-17
Tuning in a video channel on your TV 13
Using your VCR for the very first time 13
How to using the main menu 14
Tuning in TV Stations Automatically ..... 14

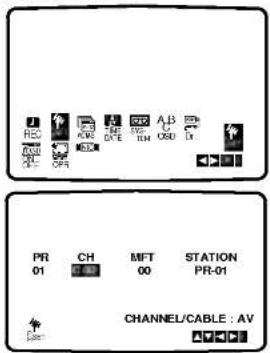

Tuning in TV Stations Manually 15
Setting the clock Manually 16
To set the colour system 16
Changing the order of TV Stations....17
Deleting TV Stations 17
DVD Operation Setup 18-23
General Explanation 18
On-Screen Display....18
Initial Settings 19-23
- General Operation.... 19
- LANGUAGE 19
- DISPLAY....20
• AUDIO 21-22
- OTHERS....22
- LOCK (Parental Control) 23
OPERATION
VCR Operation 24-28
Playing a tape 24
Instant Timer Recording (ITR) 25
Timer recording using On Screen Display....26
On Screen Display....27
Tape Counter Memory Stop 27

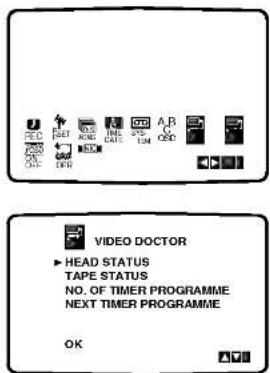

Video Doctor (Self-Diagnosis) 27
ez (easy) repeat....27
Hi-Fi Stereo Sound System 28
Copying from DVD To VCR 28
Recording from another video recorder ..... 28
DVD or Video CD Operation 29-32
Glossary for Audio Stream & Surround mode ..... 29
Sound Mode 29
Playing a DVD and Video CD....30
General Features 30-32
- Moving to another TITLE....30
- Moving to another CHAPTER/TRACK ..... 30
- Slow Motion 30
- Still Picture and Frame-by-Frame Playback ..... 31
- Search 31
- Repeat 31
- Repeat A-B 31
• Time Search 31
- Last Scene Memory .... 31
- Zoom 32
- Marker Search 32
Special DVD Features 32
- Title Menu....32
- Disc Menu.... 32
- Camera Angle 32
- Changing the Audio Language. 32
- Changing the Audio Channel....32
- Subtitle 32
Audio CD or MP3/WMA Disc Operation .... 33
Playing an Audio CD and MP3/WMA Disc ..... 33
- Pause 33
- Moving to another Track 33
- Repeat Track/ All/ Off 33
- Search 33
JPEG Disc Operation....34
Viewing a JPEG disc 34
- Slide Show 34
- Moving to another File. 34
- Still Picture 34
Programmed Playback 35
- Repeat Programmed Tracks 35
- Erasing a Track from Program List. 35
- Erasing the Complete Program List....35
Operation with DivX Disc 36
RADIO Operation 37-38
Presetting the Radio Stations....37
Listening to the Radio 37
To Clear the Stored Radio Stations 37
Tuning into a Stations Manually 38
Tuning into a Stations Automatically....38
Mute 38
KARAOKE Operation 39-43

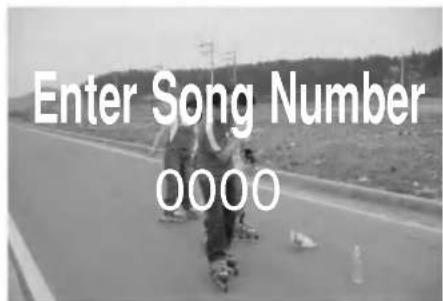

Karaoke Basic Playback 39
Karaoke Advanced Playback....39-40
Karaoke MENU Playback 40-43
- SETUP 40

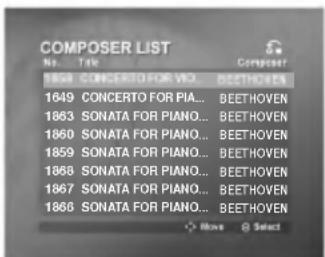

• MUSIC LIST....41-42
• RANDOM 43
- CHALLENGE 43
REFERENCE
Troubleshooting....44
Language Code List....45
Country Code List 46
Specifications 47
About the symbols for instructions
⚠️ Indicates hazards likely to cause harm to the unit itself or other material damage.
N Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
Before Use
playable Discs
 | DVD(8 cm / 12 cm disc) |
 | Video CD (VCD)(8 cm / 12 cm disc) |
 | Audio CD(8 cm / 12 cm disc) |
In addition, this unit can play a DVD±R, DVD±RW, SVCD and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG or DivX files.
Notes
- Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
- Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
- Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added. Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.
Regional code of the DVD player and DVDs
This DVD player is designed and manufactured for play-back of region "2" encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled "2" or
"ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.
ote on DTS-encoded CDs
When playing DTS-encoded CDs, excessive audio level may be heard from the analog stereo output. To avoid possible damage to the audio system, turn down the volume before playing back such discs, adjust the volume gradually, and keep the volume level low. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output of the unit.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content or additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.
Track (Video CD and audio CD only)
Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.
Scene
On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.
A scene is composed of one or several tracks.
Types of video CDs
There are two types of video CDs:
Video CDs equipped with PBC (Version 2.0)
PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.
Video CDs not equipped with PBC (Version 1.1)
Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.
Before Use
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.
To keep the exterior surfaces clean
Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
To obtain a clear picture
The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor.
Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.)
For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

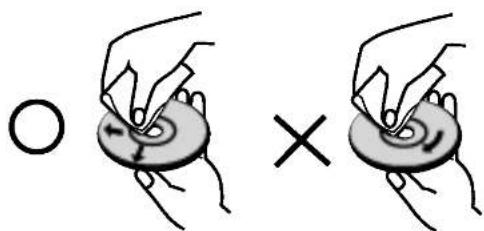

Cleaning discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
About Symbols
About the 🔊 symbol display
“ ” may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.
About the disc symbols for instructions
A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.
DVD DVD
VCD2.0 Video CDs with the PBC (playback control)
VCD1.1 Video CDs without the PBC (playback control)
CD Audio CDs
MP3 MP3 disc
WMA WMA disc
JPEG JPEG disc
DivX DivX disc
Selecting Viewing Sources
You must select one of your output sources (DVD/KARAOKE or VCR) to view on the TV screen.
- If you want to view DVD/KARAOKE deck output source: Press DVD/KARAOKE on the remote control or DVD/VCR/KARAOKE on the front panel until READING indicator in the display window lights and output source of DVD/KARAOKE deck is viewed on the TV screen.
• If you want to view VCR deck output source:
Press VCR on the remote control or DVD/VCR/ KARAOKE on the front panel until VCR indicator in the display window lights and output source of VCR deck is viewed on the TV screen.
• If you want to listen to FM/AM radio broadcasts:
Press FM/AM on the remote control until RADIO indicator in the display window lights and the frequency band appears on the TV screen.

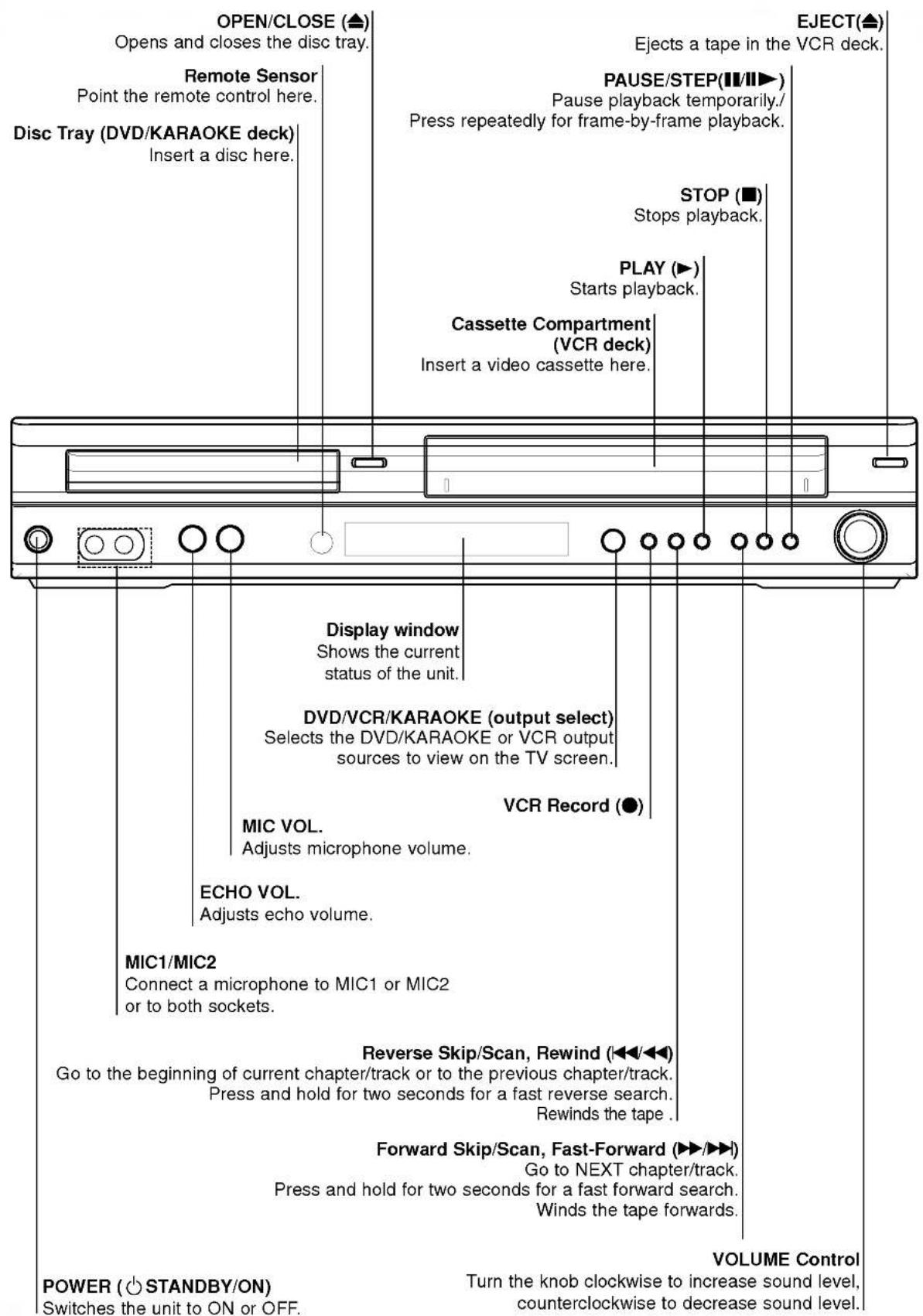

Front Panel

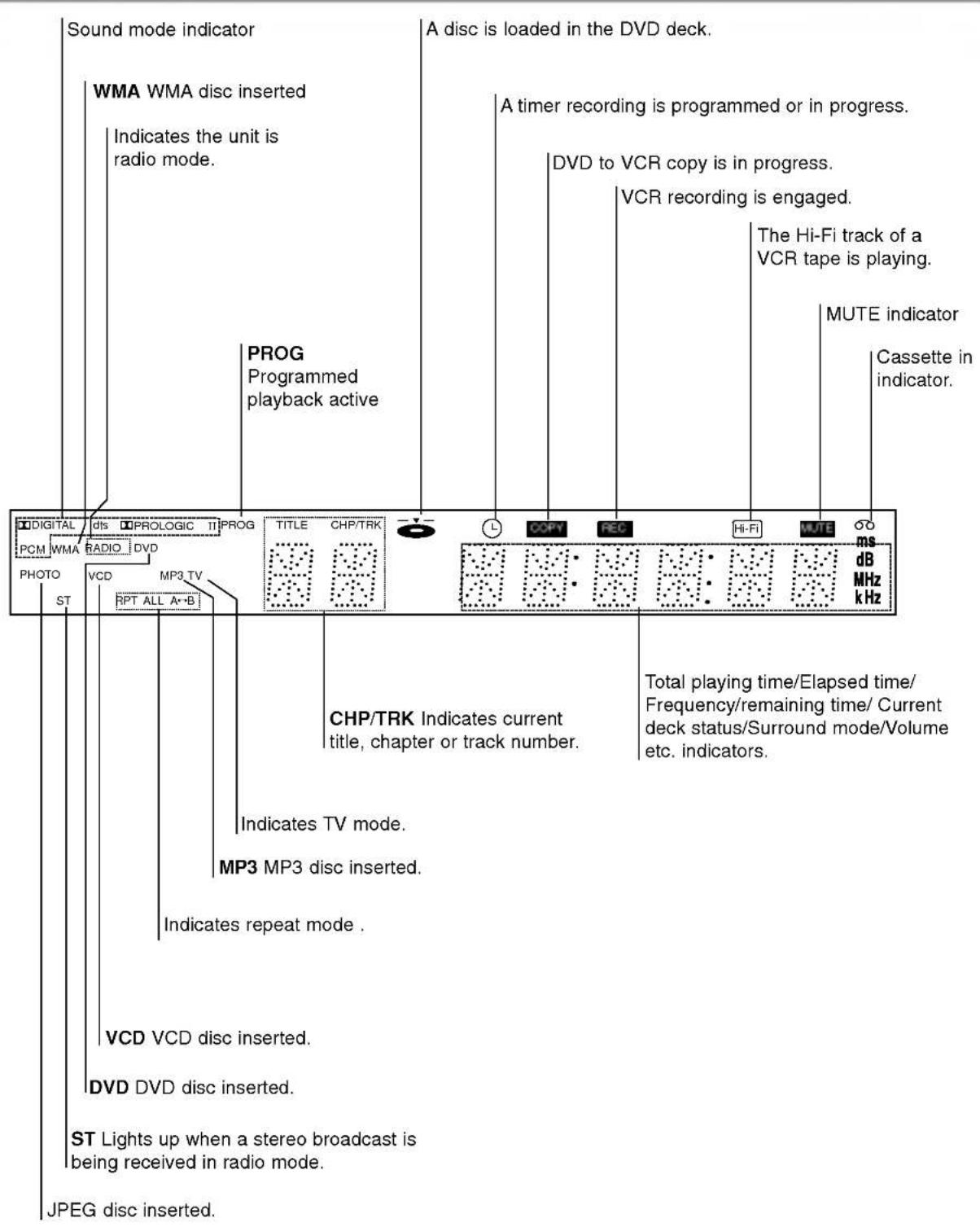

Display Window

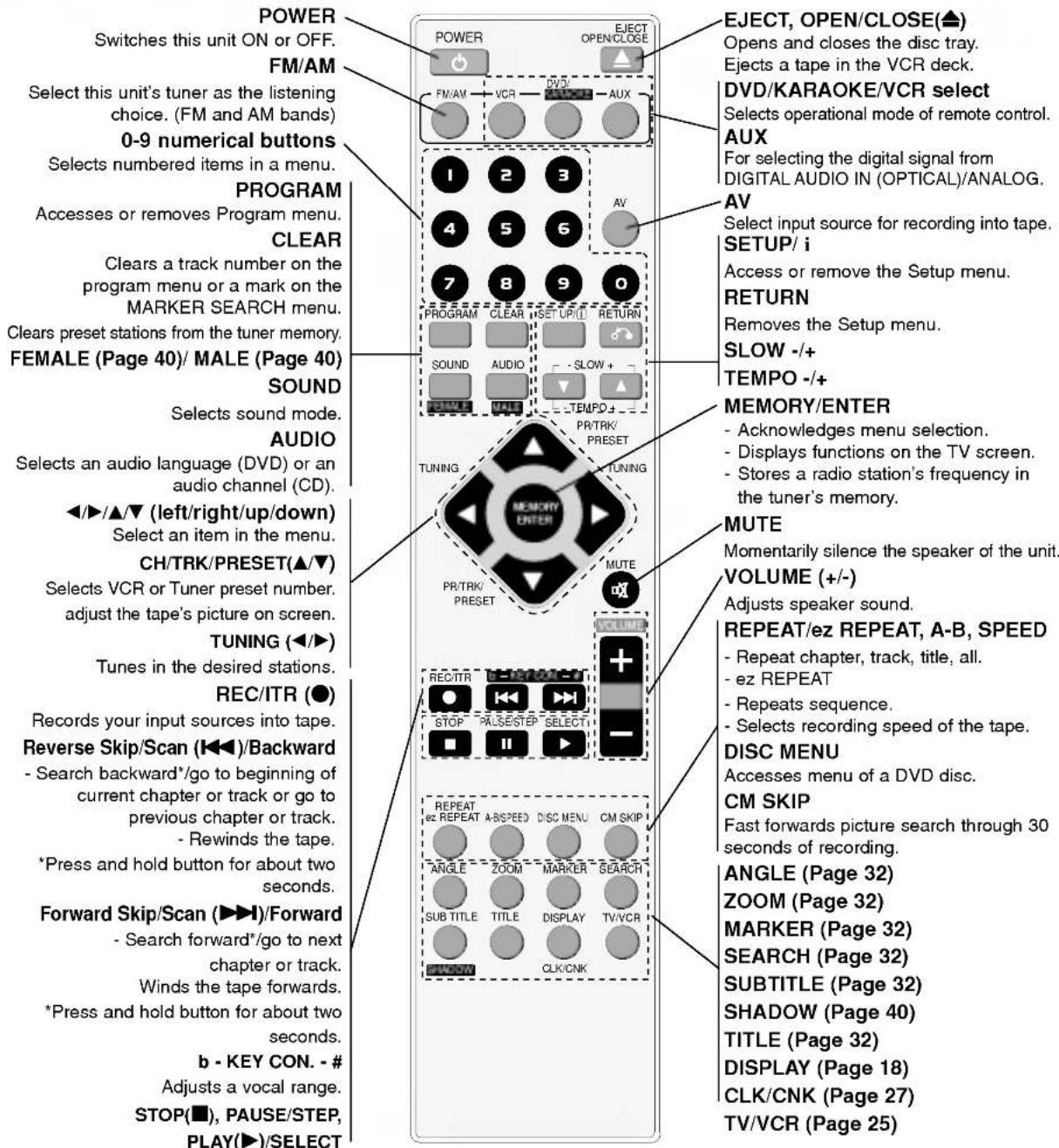

Remote Control
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
- Distance: About 23 ft (7 m) from the front of the remote sensor
- Angle: About 30° in each direction of the front of the remote sensor
Remote control battery installation
Caution
Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

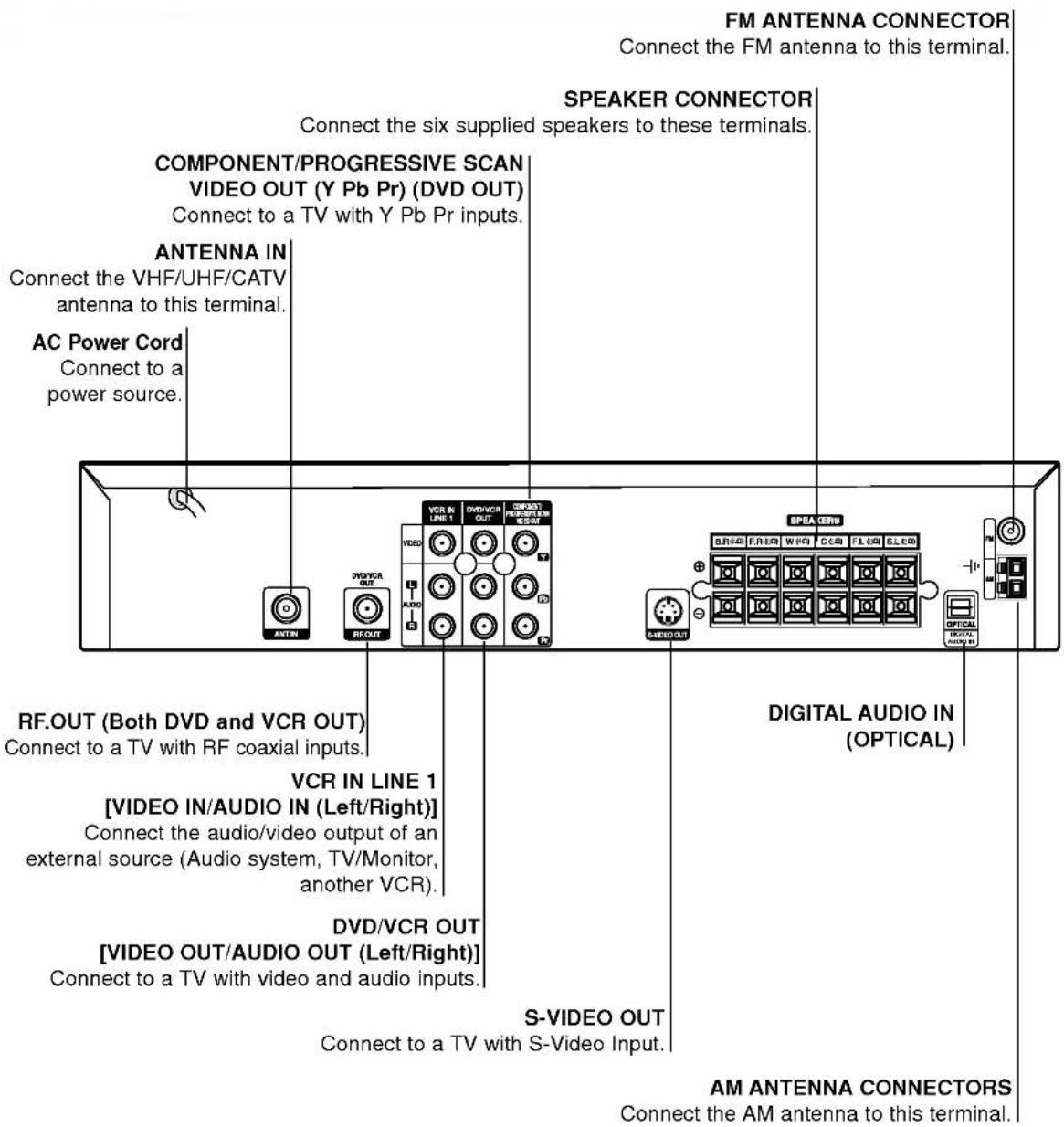

Rear Panel
![FM ANTENNA CONNECTOR Connect the FM antenna to this terminal. SPEAKER CONNECTOR Connect the six supplied speakers to these terminals. COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD OUT) Connect to a TV with Y Pb Pr inputs. ANTENNA IN Connect the VHF/UHF/CATV antenna to this terminal. AC Power Cord Connect to a power source. RF.OUT (Both DVD and VCR OUT) Connect to a TV with RF coaxial inputs. VCR IN LINE 1 [VIDEO IN/AUDIO IN (Left/Right)] Connect the audio/video output of an external source (Audio system, TV/Monitor, another VCR). DVD/VCR OUT [VIDEO OUT/AUDIO OUT (Left/Right)] Connect to a TV with video and audio inputs. S-VIDEO OUT Connect to a TV with S-Video Input. DIGITAL AUDIO IN (OPTICAL) AM ANTENNA CONNECTORS Connect the AM antenna to this terminal.](/content/2026/05/1055640/images/de1a02386940634216214f48318e3f597fce4d8c32b68b44e658945479e1f853.jpg)
Dust protection cap

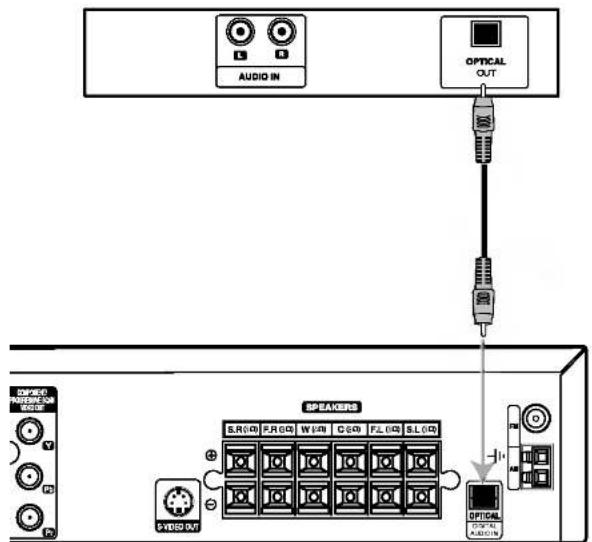

Remove the dust protection cap from the DIGITAL AUDIO IN (OPTICAL) jack and connect the optical digital cable (not supplied) securely so that the configurations of both the cable and the connector match. Keep the dust protection cap and always reattach the cap when not using the connector to protect against dust intrusion.
Dust protection cap
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
Connections
ips
- Depending on your TV and other equipment you wish to connect, there are various ways to connect the unit.
- Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.
- Make sure this unit is connected directly to the TV. Set the TV to the correct video input channel.
Caution

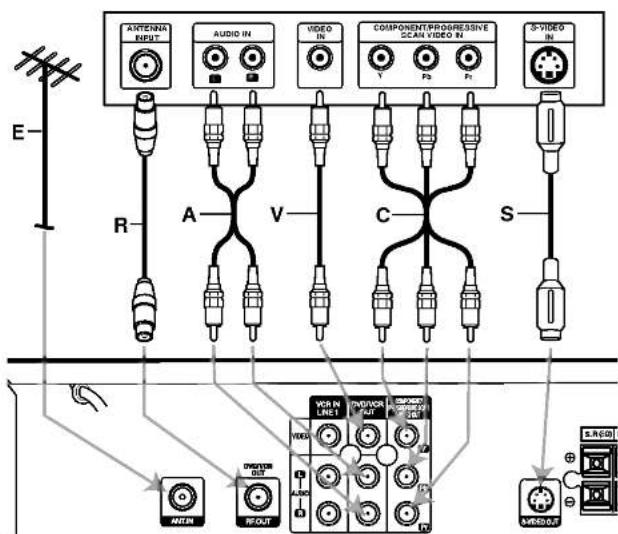

Basic TV Connections
- Make one of the following connections, depending on the capabilities of your existing equipment.
Basic connection (RF)
1 Connect the RF antenna cable from your indoor/outdoor antenna to ANT.IN jack on the rear panel of this unit (E).
2 Connect the supplied RF antenna cable from the RF.OUT jack on the rear panel of this unit to your television's Antenna Input (R).
Basic connection (AUDIO/VIDEO)
1 Connect the DVD/VCR VIDEO OUT jack on the rear panel of this unit to the VIDEO IN jack on the TV using the supplied video cable (V).
2 Connect the Left and Right DVD/VCR AUDIO OUT jacks on the rear panel of this unit to the Left and Right AUDIO IN jacks on the TV using the supplied audio cables (A).
Rear of TV
Rear of this unit
Optional TV Connections
S-Video Connection
1 Connect the S-VIDEO OUT jack on the rear panel of this unit to the S-VIDEO IN jack on the TV using the S-Video cable (S).
2 Connect the Left and Right AUDIO OUT jacks on the rear panel of this unit to the audio left/right in jacks on the TV using the supplied audio cables (A).
Component Video (Color Stream®) connection
1 Connect the COMPONENT/PROGRESSIVE SCAN VIDEO OUT jacks on the rear panel of this unit to the corresponding in jacks on the TV using Y Pb Pr cables (C).
2 Connect the Left and Right AUDIO OUT jacks on the rear panel of this unit to the Left and Right AUDIO IN jacks on the TV (A) using the supplied audio cables.
Progressive Scan (ColorStream® pro) connection
- If your television is a high-definition or "digital ready" television, you may take advantage of the unit's progressive scan output for the highest video resolution possible.
- If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the unit.
1 Connect the COMPONENT/PROGRESSIVE SCAN VIDEO OUT jacks on the rear panel of this unit to the corresponding in jacks on the TV using Y Pb Pr cable (C).
2 Connect the Left and Right AUDIO OUT jacks the rear panel of this unit to the Left and Right AUDIO IN jacks on the TV (A) using the supplied audio cables.
otes
- Set the Progressive Scan to "On" on the DVD setup menu for progressive signal, see page 20.
- Progressive scan does not work with the analog video connections (yellow VIDEO OUT and S-VIDEO OUT jack) or RF OUT connection.
Connections
Optional Equipment Connectinons
Optional Device, etc
Rear of this unit
[Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)]
Connect the OPTICAL IN jack on the unit to the OPTICAL OUT jack on optional equipment. Use an optional audio cable.
Caution:
Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.
Notes
- If the audio format of the digital output does not match the capabilities of your unit, the DVD Karaoke will produce a strong, distorted sound or no sound at all.
- Six Channel Digital Surround Sound via digital connection can only be obtained if your unit is equipped with a Digital Multi-channel decoder.
- To see the audio format of the current unit in the On-Screen Display, press AUDIO.
Accessory Audio/Video (A/V) Connections
Connect the AUDIO L/R (VCR IN LINE 1)/VIDEO (VCR IN LINE 1) jacks on the rear panel of this unit to the AUDIO/VIDEO OUT jacks on your Accessory Device Jack Panel using the optional audio/video cables.
Rear of this unit
Radio Aerial Connections
Connect the supplied FM/AM aerial for listening to the radio.
- Connect the AM loop aerial to the AM aerial connector.
- Connect he FM wire aerial to the FM aerial connector.
Notes
- To prevent noise pickup, keep the AM loop aerial away from this unit and other components.
- Be sure to fully extend the FM wire aerial.
- After connecting the FM wire aerial, keep it as horizontal as possible.
Connections
Speaker System Connections
Connect the speakers using the supplied speaker cords.
To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).
Important Note
About Ferrite Core
Be sure to attach the ferrite core to the speaker cables (for connecting to this unit).
This ferrite core can reduce noises.

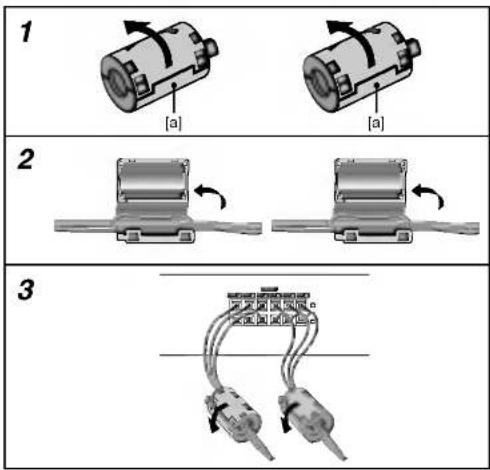

How to attach the ferrite core.
1 Push the stopper [a] of the ferrite core to open.
2 Wind the Rear Speaker (Right Surround) cable once on one ferrite core. Pass the Front Speaker (Right) cable and the Subwoofer Speaker cable straight on one ferrite core. Wind the Rear Speaker (Left Surround) cable on the other ferrite core. Pass the Front Speaker (Left) cable and the Center Speaker cable straight on the other ferrite core.
3 Close the ferrite core until it clicks.
Speaker Positioning
In the case of normal position use the 6 speakers (2 front speakers, center speaker, 2 rear speakers and subwoofer).
If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a subwoofer.
- Front speakers
According to your listening position set up the speakers for equal distance. And by hearing position set up the interval between speakers to 45 degree.
- Center speaker
It is ideal that the center speakers and front speakers are same height. But normally place it above or below the television.
- Rear speakers
Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround play-back. For best results, do not install the rear speakers too far behind the listening position and install them at or above the level of the listener's ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse the sound.
In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the rear speakers above 60 - 90 cm than the listener's ears.
- Subwoofer
This can be placed in any front position.
![1 [a] 2 [a] 3](/content/2026/05/1055640/images/25babaf9873d87ad4ad2a0062af3c4d2e92b1cb8b55421baf4d66ac06851436c.jpg)
Speaker Positioning Example
VCR Operation Setup
Tuning in a video channel on your TV
Notes
- If you have used a AUDIO and VIDEO cables (Yellow, White and Red jack) you will not have to tune your TV, simply select the AV channel. The AV channel is already pre-tuned for optimum video playback on your TV. This connection will give you a better picture quality.
- Your TV receives signals from the video recorder (VCR) like another TV station. If your TV do not have Audio/Video jacks you have to select a channel number on your TV and tune it in so that you may watch video tapes.
- The output frequency of this video recorder (VCR) is set at UHF channel 36. If channel 36 is already used by another TV station, or if the picture is distorted, you can change the transmitter channel of your VCR. Stages 5 \~ 8 will show you how to change the output frequency of your VCR.
1 Make sure that you have correctly installed your VCR as described earlier in this book. Press POWER to turn on your VCR. Turn on your TV.
2 Insert a pre-recorded video tape into your VCR and press PLAY (▶) on the remote control. Select a TV channel number on which you wish to watch video's.
Don't worry if you don't have a video-tape to play at this stage! If you switch your VCR on and continue stages 3 \~ 4, instead of seeing video playback tune your TV until you see a bright blue screen.
3 Tune this channel until the video picture is sharp and the sound is clear.
4 Store this channel on your TV.
You will need to look at the TV instruction book if you do not know how to do this.
5 Only carry out stages 5 \~ 8 if you cannot obtain clear video playback as described in stages 1 \~ 4. Select a TV channel number on which you wish to watch video's.
Make sure that your VCR is in standby pressing POWER on the remote control (only the clock will be displayed).
6 Press ◀◀/◀◀ or ▶▶/▶▶ on the front of your unit for more than 4 seconds.
RF36 will appear in the display window.
The following picture will be displayed on the TV screen.
7 Press ◀◀/◀◀ or ▶▶/▶▶ on the front of your unit or ▲ or ▼ on the rmote control to select another video channel.
You may select any channel number between 22 and 68.
You can also set it to "OFF" if there is any interference when your TV is connected to the VCR with Audio/Video cables.
8 Select a TV channel number on which you wish to watch video's.
Press POWER on the front of your VCR when you have finished.
Tune this channel so that a bright blue screen appears.
Store this channel on your TV.
Notes
Make sure that you have correctly installed your VCR and successfully tuned in a dedicated video channel on your TV. If you do not tune in a dedicated video channel on your TV you will be unable to view and record video tapes!
Using your VCR for the very first time
Following picture will display on the TV screen when you have just connected your video recorder for the very first time.
To make tuning TV stations, please follow stages 3 to 4 as shown "ACMS" (see page 14).
VCR Operation Setup
How to using the main menu
This VCR can easily be programmed by using the menus displayed on screen.
The menus are controlled from the Remote Control Handset.
1 Switch on your TV set and video recorder by pressing the POWER button.
2 Press SETUP/ i button. The main menu will appear on the TV screen.
- REC - Timer recording setting (see page 26).
- PR SET - Manual tuning setting (see page 15).
- ACMS - ACMS (Automatic Channel Memory System) (see page 14).
• TIME DATE - Date & clock setting (see page 16). - SYSTEM - To set the Colour TV System (see page 16).
- ABC OSD - To change the language setting for OSD. You can select the language among English, Deutsch, Français, Italiano, Español and Portuguese.
- Dr. - To check a problem with your VCR (see page 27).
- F.OSD ON/OFF - To display the operational mode of your VCR (see page 27).
- OPR - To improve the playback picture (see page 24).
- NIC - To activate or deactivate the NICAM digital sound (see page 28).
3 Press ◀ and ▶ to select the desired menu. Press MEMORY/ENTER and press ▲ or ▼ to select.
4 Press "SETUP/ i" to return to a TV picture.
Tuning in TV Stations Automatically
If the TV broadcast signal is weak your VCR may not detect the necessary information and will not be able to store them correctly. To overcome this problem please turn to the MANUAL TUNING section on page 15.
1 Press POWER to turn on your VCR.
2 Press SETUP/ i button. The main menu will appear on the TV screen. Press ◀ or ▶ to select the ACMS. Press MEMORY/ENTER.
3 Press MEMORY/ENTER again to start the automatic tuning process.
4 The TV STATION TABLE will appear when tuning is complete. Press SETUP/ i to save your settings.
VCR Operation Setup
Tuning in TV Stations Manually
In certain areas of the country broadcast signals may be too weak for your VCR's automatic tuning process to find or assign TV stations correctly. You must tune in these weaker broadcast stations manually in order for your VCR to store them.
1 Press SETUP/ i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the PR SET.
Press MEMORY/ENTER.
Press SETUP/ i.
The station table will appear.
Press ▲ or ▼ to select the programme number that you want to tune (for example, PR 09).
Press MEMORY/ENTER.
Press AV to select C (Standard stations) or S (Cable stations):
C02 - C70, S01 - S41.
Enter the channel number of station that you want to tune with the numbered buttons or use ▲ or ▼ to find the required station.
Searching will stop when it locates a stations.
Press ▶ to select MFT.
Press ▲ or ▼ to adjust.
5 Press ▶ to select STATION so that you may name your TV station.
Press MEMORY/ENTER.
6 Press ▲ or ▼ to select letters and numbers for the new station name.
Press ◀ or ▶ to move back and forth between characters.
Press MEMORY/ENTER.
7 Press SETUP/ i, confirm the station placement. Press SETUP/ i again.
Your new TV station has now been tuned into your VCR.
If you wish to manually tune other stations repeat stages 1 - 7.
VCR Operation Setup
Setting the clock Manually
The clock in your VCR controls time and date settings for your VCR.
1 Press SETUP/ i.
Press ◀ or ▶ to select TIME DATE.
Press MEMORY/ENTER.
2 Use the numbered buttons on the remote control to alter the HOURS, MINUTES, DAY, MONTH and YEAR.
Please note your VCR uses a 24 hour clock. e.g.
1pm will be displayed as 13:00.
The day of the week will appear automatically when you enter the year.
3 If you make a mistake press ◀ or ▶ and enter the correct details.
4 Press SETUP/ i.
To set the colour system
1 Press SETUP/ i.
2 The main menu will appear on the TV screen.
3 Press ◀ or ▶ to select the SYSTEM and press MEMORY/ENTER.
4 Press ▲ or ▼ to select according to the COLOUR system used.
5 Press ◀ or ▶ to select the RF AUDIO.
Press ▲ or ▼ to select according to the RF AUDIO used.
6 Press SETUP/ i to remove the menus from the TV screen.
VCR Operation Setup
Changing the order of TV Stations
After tuning TV stations into your VCR you may wish to change the order in which they are stored without having to retune them! The instructions given on this page will show you how you can simply move them into your desired order.
1 Press SETUP/ i.
The main menu will appear on the TV screen. Press ◀ or ▶ to select the PR SET. Press MEMORY/ENTER.
Press SETUP/ i.
Press ▲ or ▼ to select the programme number you want to move (for example, PR 03). Press ▶.
3 Press ▲ or ▼ to select the programme number you want to move to (for example, PR 05).
Press MEMORY/ENTER
The selected programme will be moved to the new programme number.
If you wish to move other TV stations repeat stages 1 - 4. PressSETUP/ i to remove the menus from the TV screen.
Deleting TV Stations
After tuning TV stations into your VCR you may wish to delete a station.
The instructions given on this page will show you how easily delete any unwanted TV stations.
1 Press SETUP/ i.
The main menu will appear on the TV screen. Press ◀ or ▶ to select the PR SET. Press MEMORY/ENTER.
Press SETUP/ i.
Press ▲ or ▼ to select the programme number you want to delete. (for example, PR 03)
Press
After a short while, the selected station will be deleted.
4 Press SETUP/ i to remove the menus from the TV screen.
If you wish to delete other TV stations repeat stages 1 - 3.
How to selecting Stored TV stations:
Stored TV stations can be selected in either of two ways. Press PROG. ▲ or ▼ to select different stations that are tuned into your VCR.
You may also directly select stations using the numbered buttons on the remote control.
DVD Operation Setup
Caution:
Before using the remote control, press the DVD/KARAOKE button to select the device to be operated.
General Explanation
This manual gives basic instructions for operating the DVD Karaoke. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol 🔔 appears on the TV screen, indicating that the operation is not permitted by the DVD Karaoke or is not available on the disc.
On-Screen Display
General playback status can be displayed on the TV screen. Some items can be changed on the menu.
On-screen display operation
Press DISPLAY during playback.
Press ▲/▼ to select an item. The selected item will be highlighted.
Press ◀ or ▶ to change the setting of an item. The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press MEMORY/ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat title
Repeat sequence
Resume play from this point
Action prohibited or not available
Notes
- Some discs may not provide all of the features on the on-screen display example shown below.
- If no button is pressed for 10 seconds, the on-screen display disappears.
Example: On-Screen Display during playing DVD
| Items | Function / Action using ▲ / ▼ to select item | Selection Method | |
| Title Number |  | Shows the current title number and total number of titles / skips to the desired title number. | ◀/▶, Numbers, or MEMORY/ENTER |
| Chapter Number |  | Shows the current chapter number and total number of chapters / skips to the desired chapter number. | ◀/▶, Numbers, or MEMORY/ENTER |
| Time search |  | Shows the elapsed playing time / searches by elapsed time. | Numbers,MEMORY/ENTER |
| Audio language and Digital Audio Output mode |  | Shows the current audio soundtrack language, encoding method, and channel number / changes the setting. | ◀/▶ or AUDIO |
| Subtitle language |  | Shows the current subtitle language / changes the setting. | ◀/▶ or SUBTITLE |
| Angle |  | Shows the current angle number and total number of angles / changes the angle. | ◀/▶ or ANGLE |
| Sound |  | Shows the current sound mode / changes the setting. | ◀/▶ or SOUND |
Example: On-Screen Display during playing VCD
| Items | Function / Action using ▲ / ▼ to select item | Selection Method | |
| Track Number |  | Shows the current track number, total number of tracks and PBC On mode / skips to the desired track number. | ◀ / ▶, Numbers, or MEMORY/ENTER |
| Time |  | Shows the elapsed playing time (display only). | - |
| Audio Channel |  | Shows the audio channel / changes the audio channel. | ◀ / ▶ or AUDIO |
| Sound |  | Shows the current sound mode / changes the setting. | ◀ / ▶ or SOUND |
DVD Operation Setup
Initial Settings
By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 19 to 23.
To display and exit the Menu:
Press SETUP/ i to display the menu. A second press of SETUP/ i will take you back to initial screen.
To go to the next level:
Press ▶ on the remote control.
To go back to the previous level:
Press ◀ on the remote control.
General Operation
1 Press SETUP/ i.
The setup menu appears.
2 Use ▲/▼ to select the desired option then press ▶ to move to the second level.
The screen will be shown the current setting for the selected item, as well as alternate setting(s).
3 Use ▲ / ▼ to select the second desired option then press ▶ to move to the third level.
4 Use ▲/▼ to select the desired setting then press MEMORY/ENTER to confirm your selection.
Some items require additional steps.
5 Press SETUP/ i or PLAY to exit the setup menu.
LANGUAGE
OSD
Select a language for the Setup menu and on-screen display.
Disc Audio / Subtitle / Menu DVD
Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.
Original: Refers to the original language in which the disc was recorded.
Other: To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 45. If you enter the wrong language code, press CLEAR on the remote control.
DVD Operation Setup
DISPLAY
TV Aspect DVD
4:3: Select when a standard 4:3 TV is connected. 16:9: Select when a 16:9 wide TV is connected.
Display Mode DVD
Display Mode setting works only when the TV Aspect mode is set to "4:3".
Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen.
Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.
Progressive Scan DVD
Progressive Scan Video provides the highest quality pictures with less flickering. If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.
To Turn ON progressive scan:
Connect component out of the DVD to the input of your monitor/television, set your television or monitor to Component Input.
- Select "Progressive Scan" on the DISPLAY menu then press ▶.
- Select "On" using the ▲ / ▼ buttons.
- Press MEMORY/ENTER to confirm your selection. The confirm menu will appear.
- When the confirm menu appears on your screen Cancel is highlighted as default. Use the ◀ / ▶ buttons to highlight Enter.
- Pressing ENTER will set the player to Progressive scan mode.
Caution
Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit.
1) Remove any disc from the unit and close the disc tray. See that "NO DISC" is displayed on the display window
2) Press and hold STOP (■) for five seconds then release it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.
DVD Operation Setup
AUDIO
Each DVD disc has a variety of audio output options. Set the player's AUDIO options according to the type of audio system you use.
5.1 Speaker Setup DVD
Select speaker settings, including volume balance and distance, or test the speaker settings.
Speaker settings are only active on the Analog Multi-Channel Output.
Speaker Setup
Make the following settings for the built-in 5.1 channel surround decoder.
- Press SETUP/ i. The setup menu appears.
- Use ▲ / ▼ to select the AUDIO option then press ▶ to move to the second level.
- Use ▲ / ▼ to select the Speaker Setup option then press ▶ to move to the third level. "Select" is highlighted.
- Press MEMORY/ENTER and 5.1 Speaker Setup menu appears.
- Use ◀ / ▶ to select the desired speaker.
- Adjust options using ▲ / ▼ / ◀ / ▶ buttons.
- Press MEMORY/ENTER to confirm your selection. Returns to the previous menu.
Speaker selection
Select a speaker that you want to adjust. [Front speaker (Front L), Center Speaker, Front speaker (Front R), (Center), Rear speaker (Rear R), Rear speaker (Rear L) or Subwoofer (Woofer)]
Size
Since the speaker settings are fixed, you cannot change the setting.
Volume
Press ◀/▶ to adjust the output level of the selected speaker. (-5dB \~ 5dB)
Distance
If you have connected speakers to your DVD Player, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.
Press ◀ / ▶ to adjust the Distance of the selected speaker.
Test
Select "All" to test the signals of each speaker.
Adjust the volume to match the volume of test signals memorized in the system.
Front L → Center → Front R → Rear R → Rear L → Woofer
You can adjust the volume during operating the test tone, first use ▲ / ▼ to select Volume or Speaker option then use ◀ / ▶ buttons to select volume or speaker, so that all speaker's volume is same from the listener's position.
DVD Operation Setup
Dynamic Range Control (DRC)
With the DVD format, you can hear a program's sound-track in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing dialog intelligibility. Set DRC to On for this effect.
Notes
- The DRC function works only during playback of Dolby Digital recorded discs.
- The level of Dynamic Range Compression may differ depending on the DVD disc.
Vocal
Set Vocal to On only when a multi-channel Karaoke DVD is playing. The karaoke channels on the disc will mix into a normal stereo sound.
OTHERS
PBC
VCD
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played according to the PBC.
Off:Video CDs with PBC are played the same way as Audio CDs.
DivX(R) Registration
DivX
You can show the DivX DRM (Digital Right Management) Registration code for your unit only.
The Registration code is used for VOD (Video-On-Demand) service agent. You can purchase or rental an encrypt movie file.
Notes
If you rent the DivX VOD file, it has several options of viewing limits as show below.
• Display the number which you can watch the file.
• The rental has been expired.
- Display the authorization error.
DVD Operation Setup
LOCK (Parental Control)
Rating DVD
Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.
The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable.
1 Select "Rating" on the LOCK menu then press ▶.
2 To access the Rating, Password and Country Code features, you must input the 4-digit security code you created.
If you have not yet entered a security code you are prompted to do so.
Input a 4-digit code and press MEMORY/ENTER. Enter it again and press MEMORY/ENTER to verify. If you make a mistake before pressing MEMORY/ENTER, press CLEAR.
3 Select a rating from 1 to 8 using the ▲/▼ buttons.
Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.
Unlock
If you select unlock, parental control is not active and the disc plays in full.
Note
If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.
4 Press MEMORY/ENTER to confirm your rating selection, then press SETUP/ i to exit the menu.
Password (Security Code)
You can enter or change password.
1 Select Password on the LOCK menu then press ▶.
2 Follow step 2 as shown left (Rating). "Change" or "New" is highlighted.
3 Enter the new 4-digit code, then press MEMORY/ENTER. Input it again to verify.
4 Press SETUP/ i to exit the menu.
If you forget your Security Code
If you forget your security code you can clear it using the following steps:
1 Input the 6-digit number "210499" on the setup menu and the security code is cleared.
2 Enter a new code as described above.
Note
When "INPUT POUND" appears on the TV screen, press STOP (■) and then press SETUP/i to move to the setup menu.
Country Code DVD
Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter.
1 Select "Country Code" on the LOCK menu then press ▶.
2 Follow step 2 as shown left (Rating).
3 Select the first character using ▲ / ▼ buttons.
4 Shift the cursor using ▶ button and select the second character using ▲ / ▼ buttons.
5 Press MEMORY/ENTER to confirm your country code selection.
VCR Operation
Playing a tape
You will only be able to load and eject video cassettes when your VCR is plugged into the mains. Your VCR may also playback recordings from NTSC tapes (on PAL TV).
Getting a better picture
When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press ▲ or ▼ on the remote control to manually adjust the tracking until any distortions have been removed. Press numbered 0 on the remote control to switch automatic tracking back on again.
1 Make sure that you have correctly connected your VCR as described earlier in this book. Turn on your TV.
Press POWER to turn on your VCR.
Insert the video cassette into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
2 Press PLAY (▶) to start playing your tape. If you load a video cassette which has had its record protection tab removed, playback of the cassette will start automatically.
AUTO TRACKING
Your VCR will automatically adjust the tracking to give the best picture quality.
3 Press PAUSE/STEP to still a picture.
Press PAUSE/STEP repeatedly to advance the tape frame by frame.
If you press ▶▶, the picture will be slowed down at about 1/19 times the normal playback.
Tapes can be paused for up to 5 minutes. After 5 minutes your VCR will stop the tape to prevent damaging the tape or your VCR.
Still picture quality can be improved slightly by pressing ▲ or ▼.
4 Press PLAY (▶) to continue playing your tape. Picture search:
During playing back press either ▶▶ or ◀◀ and this will enable you to rapidly wind the tape (7 times normal playback) and see where you are on the tape.
Logic search:
During fast forwarding or rewinding press and hold ▶▶▶ or ◀◀◀ the picture will be played back at 7 times normal playback speed.
5 Slow motion playback, Shuttle :
During playing back or still picture press ◀ or ▶.
You can reach the following playback speeds.
(REV, -PBx3, -play, still, slow, play, PBx2, CUE)
To switch off the slow motion and shuttle, press the desired function.
During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape.
If distortions can be seen in the picture, reduce them with ▲ or ▼.
6 Press STOP (■) to end playback.
Press EJECT(▲).
If the end of the tape is reached, your VCR will stop playback automatically, rewind, stop, eject the tape.
CM (Commercial Message) Skip:
This feature enables you during playback of a tape to skip a commercial break in a few seconds, then resume normal playback.
While tape is playing press CM SKIP on the remote control to skip commercial (or another programme material).
Repeatedly press CM SKIP to skip:
1 Press 30 seconds
2 Press 60 seconds
3 Press 90 seconds
4 Press 120 seconds
5 Press 150 seconds
6 Press 180 seconds
OPR (Optimum Picture Response)
This feature automatically improves playback picture quality by adjusting your VCR to the condition of the tape.
1 Press SETUP/ i.
2 Press ◀ or ▶ to select OPR.
3 Press MEMORY/ENTER.
4 Press ▲ or ▼ repeatedly to select: OFF, SOFT or SHARP.
Please note you may only set OPR when playing a tape.
5 Press SETUP/ i return to screen.
VCR Operation
Instant Timer Recording (ITR)
Your VCR allows you to make recordings using a variety of simple methods:
Instant Timer Recording (ITR) start recording immediately for a set period of time or until the video cassette runs out.
Your VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.
1 Make sure that you have correctly connected your VCR as described earlier in this book. Press POWER to turn on your VCR.
2 Insert a video cassette with protection tab into your VCR. The video cassette should have the window side facing up and the arrow facing away from you.
3 Press ▲ or ▼ to select the programme number you wish to record. You may also directly select programme number using the numbered buttons on the remote control.
4 If you wish to record directly from the AUDIO L/R (VCR IN LINE 1)/VIDEO (VCR IN LINE 1) terminals repeatedly press AV until the socket you wish to record from is displayed.
5 Press SPEED if you wish to record in Long Play or Standard Play. SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP.
6 Press REC/ITR (●) to start recording. RECORD will appear on the TV screen. Press REC/ITR (●) several times. Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.
7 Press PAUSE/STEP to avoid recording unwanted scenes.
Press PAUSE/STEP to continue recording. If you press PAUSE/STEP during ITR, this unit will enter the record pause mode and ITR is cancelled.
Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused. After 5 minutes your VCR will stop recording to prevent damaging the tape or your VCR.
8 Press STOP (■) twice within 5 seconds to end recording.
Press EJECT(▲).
EJECT will appear on the TV screen for a few seconds.
Notes
- If you do not wish to record on a tape (this can happen quite easily by accident!) remove the protection tab on the back edge of the video cassette.
- It is possible to record on a video cassette with the record protection tab removed by covering the hole with self adhesive tape.
- Remember you can record one programme while watching another by starting your instant recording, press TV/VCR to appear TV indicator in the display window and then selecting a different channel on your TV.
VCR Operation
Timer recording using On Screen Display
You may set up to seven timer record events within one month of the current date.
Note
Before setting the timer make sure that you have set the VCR clock correctly and you know which stations you have tuned TV stations on your VCR.
1 Insert a video cassette with protection tab into your VCR. The video cassette should have the window side facing up and the arrow facing away from you.
2 Press SETUP/ i. Press ◀ or ▶ to select REC. Press MEMORY/ENTER.
3 Press MEMORY/ENTER to start setting the timer record event. If all timer record events are full press ▲ or ▼ to select the event that you wish to remove and replace. Press ◀ to delete the event.
4 Press the numbered buttons to enter the station that you wish to record. When selecting stations 1 - 9, press 0 first, then the channel number; for example Stations 3 - 03. You may also select Channels by pressing ▲ or ▼. Once selected press ▶. If you wish to record from AUDIO L/R (VCR IN LINE 1)/ VIDEO (VCR IN LINE 1) from the rear of your unit, press AV to select for correct display.
5 Press the numbered buttons to enter the date of the programme. If you press MEMORY/ENTER before entering the date you may select one of the following automated recording features. Press ◀ or ▶ to select, then press MEMORY/ENTER to confirm. DLY To record every day (except Saturday and Sunday) at the same time. SU \~ SA To record at the same time every week.
6 Press the numbered buttons to enter the recording start and end times of the programme that you wish to record. Please note your VCR uses a 24 hour clock. e.g. 1pm will be displayed as 13:00. You may also select the start and end times by pressing ▲ or ▼.
7 Press ▶ to select the recording speed. Press ▲ or ▼ to select the desired tape speed (SP, IP, or LP). IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program.
8 Check that the timer event details are correct. Press SETUP/i twice. If PLEASE CHECK is displayed, you have entered incorrect and will need to re-enter the data. Press POWER to switch your VCR Standby. ⑨ will appear in the video recorder's display while your VCR waits to make the recording. To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode.
9 Press STOP twice within 5 seconds to end recording.
Notes
- If at a later date you wish to delete or change any of the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Press ▲ or ▼ to select the event that you wish to delete or change. Press ◀ to delete the event...or Press MEMORY/ENTER to change; then press ◀ or ▶ to select; Station, Date, Start and End times and LP. Press ▲ or ▼ to enter the correct information.
- If Timer record events Overlap... Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.
Example: Programme 1 is programmed to start at 16:00 and end at 17:00. Programme 2 is programmed to start at 16:30 and end at 17:30. (In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)
VCR Operation
On Screen Display
You may easily display the current time or tape counter, amount of tape left, day, month, year, day of week, programme channel, tape speed and operational mode of your VCR will appear on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.
1 Press CLK/CNT to display. Press CLK/CNT repeatedly to cycle through the display options. The tape counter and amount of tape left will appear if there is a tape loaded.
2 After 3 seconds the majority of the On Screen Displays will clear leaving only the clock or tape counter and the amount of tape left on the screen. Press CLK/CNT again to remove all displays from the TV screen.
Tape Counter Memory Stop
The Digital Tape Counter can be displayed on the display window instead of the time by pressing CLK/CNT on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.
1 Press CLK/CNT. Press CLEAR to set the counter to 0:00:00. Press PLAY (▶) or start recording. The tape counter will display the actual play time in hours, minutes and seconds.
2 Press STOP (■) when playback or recording is complete. Press ◀◀◀. The tape will rewind and automatically stop with the counter returns to 0:00:00.
Video Doctor (Self-Diagnosis)
This feature informs you that there is a problem with your VCR. These error messages will appear on the TV screen.
1 Press SETUP/ i.
Press ◀ or ▶ to select Dr.
Press MEMORY/ENTER.
2 Press ▲ or ▼ to check a problem. HEAD STATUS
- PLEASE CLEAN:
Clean your video heads.
TAPE STATUS
● NOT RECORDABLE:
Insert a tape with its protection tab in place
NO. OF TIMER PROGRAMME
2
Shows the number of timer recording.
NEXT TIMER PROGRAMME
● PR-01 26 10:00\~11:00 SP
Shows the current status of timer recording.
3 Press SETUP/ i.
ez (easy) repeat
By pressing & holding ez REPEAT during play back, the holding section is replayed twice automatically.
1 During play back, press & hold ez REPEAT at the point where repeat play is to be concluded. Then, your VCR will go into reverse search.
2 Release ez REPEAT at the point where repeat play is to start. The holding section is replayed twice automatically.
Note
- Pressing ez REPEAT again during repeat play, will return to normal play.
VCR Operation
Hi-Fi Stereo Sound System
Your VCR will record and playback Hi-Fi stereo sound. In addition it has a stereo NICAM digital stereo sound decoder. This allows you to record and playback the sound in several different ways. Video cassettes recorded on your VCR will have a normal mono audio track and two VHS Hi-Fi stereo audio tracks. These stereo tracks allow you to make audio recordings in Hi-Fi stereo or bilingual mode from a TV broadcast, stereo audio system, video disc or another Hi-Fi VCR.
1 Your VCR's NICAM digital sound decoder allows you to enjoy broadcasts with NICAM sound, as well as standard stereo, bilingual and mono sound. The particular type of sound received or that recorded will be briefly displayed on the TV screen for a couple of seconds:
STEREO NICAM
Sound is automatically recorded on the Hi-Fi stereo and mono tracks of the video tape.
BIL NICAM
Both audio channels will be recorded on the Hi-Fi stereo tracks. The primary language channel (left) will be recorded on the mono track of the video tape.
MONO
The sound is recorded on the Hi-Fi tracks and the mono track of the video tape without any separation.
2 Press AUDIO repeatedly until the desired audio mode appears.
3 The choice is STEREO, LEFT, RIGHT and MONO. In BIL NICAM playback the primary language is output on the left channel and the secondary channel is output simultaneously from the right channel when audio output is set to STEREO. The primary language will be output from both channels when the audio setting is MONO.
Please note that when adjusting the tracking control Hi-Fi stereo sound may revert to MONO.
Copying from DVD To VCR
This unit allows you to copy the contents of a DVD to a VHS tape with a press of the REC/ITR (●) button.
Note
- If the DVD you are attempting to copy is copy protected, you may not be able to copy the disc.
1 Insert Disc. Insert the disc you wish to copy in the DVD deck and close the disc tray.
2 Insert VHS Tape. Insert a blank VHS videotape into the VCR deck.
Copy the DVD to VHS Tape.
Press REC/ITR (●) on the remote control.
- The DVD will go into Play mode and the VCR will go into Record mode.
- If the DVD disc menu appears, you may need to press the Play button manually to begin copying.
Note
If you press REC/ITR (●) on the remote control, be sure this unit in DVD mode.
Stop the Copy Process.
When the DVD is finished playing, press the STOP (■) button to end the copy.
- You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.
Recording from another video recorder
With this video recorder you can make recordings from an external source, such as copying from another video recorder or a camcorder.
Note
In the following description, this video recorder will be one used for recording and will be referred to as VCR B. The other appliance will be used for playback and will be referred to as VCR A.
1 VCR A should be connected to the AUDIO L/R (VCR IN LINE 1)/ VIDEO (VCR IN LINE 1) on the rear panel of your unit.
2 Insert the recorded tape into VCR A and a blank tape into VCR B.
3 To start recording, press the REC/ITR (●) on VCR B and PLAY (▶) on VCR A.
4 When you want to finish copying, press STOP (■) on this video recorder and then STOP (■) the VCR A.
DVD or Video CD Operation
Mini Glossary for Audio Stream & Surround mode
dts
Allows you to enjoy 5.1(or 6) discrete channels of high quality digital audio from DTS program sources such as discs, DVD and compact discs, etc.bearing the trademark. DTS Digital Surround delivers up to 6 channels of transparent audio(which means identical to the original masters) and results in exceptional clarity throughout a true 360 degree sound field. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.
DIGITAL
The Dolby Digital surround format lets you enjoy up to 5.1 channels of digital surround sound from a Dolby Digital program source. If you play DVDs with “####” mark, you can enjoy even better sound quality, greater spatial accuracy, and improved dynamic range.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and double-D symbol are trademarks of Dolby Laboratories.
PROLOGIC II
Dolby Pro Logic II creates five full-bandwidth output channels from two-channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.
MOVIE mode:
The Movie mode is for use with stereo television shows and all programs encoded in Dolby Surround. The result is enhanced soundfield directionality that approaches the quality of discrete 5.1-channel sound.
BYPASS
Outputs the sound from the front left and right speakers and subwoofer.
Sound Mode DVD VCD2.0 VCD1.1 CD
You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.
When DVD is inserted
You can change the Digital Audio Output mode by pressing the AUDIO button on the remote control during playback. Although the DVD contents differ from disc to disc, the following explains the basic operation when this feature is used.
a) After you select 2 channel (For example or ) by pressing AUDIO button, press SOUND button repeatedly.
b) After you select 5.1 channel (For example or ) by pressing AUDIO button, press SOUND button.
- " ", indicator will be displayed on the TV screen. - " BYPASS" indicator will be only displayed on the display window.
When Video CD is inserted
Each time you press SOUND button, the sound mode of Video CD is changed on the display window as the following order.
BYPASS → STUDIO → CLUB → HALL → THEATER 1 → CHURCH → PL II MOVIE → BYPASS...
After you select the "Bypass" of sound mode by pressing SOUND button, press AUDIO button. The Left, Right and Stereo of audio channel will be displayed on the TV screen.
When CD is inserted
Each time you press SOUND button, the sound mode of Audio CD is changed on the display window as the following order.
BYPASS → STUDIO → CLUB → HALL → THEATER 1 → CHURCH → PL II MOVIE → BYPASS...
For your reference
- The unit memorizes the last mode settings for each source individually.
- You can identify the encoding format of program software by looking at its packaging.
- Dolby Digital discs are labelled with the 📄 logo.
- Dolby Surround encoded programs are labelled with the ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☑
- DTS Digital Surround discs are marked with DTS.
- When you play sound tracks with 96kHz sampling frequency, the output signals will be converted to 48kHz (sampling frequency).
- When you use a microphone except Karaoke function, you can't enjoy 5.1 channel output. Only 2 channel sound will out by the influence of the microphone system.
DVD or Video CD Operation
Playing a DVD and Video CD
Playback Setup DVD VCD2.0 VCD1.1
- Turn on the TV and select the video input source connected to the DVD player.
- Audio system: Turn on the audio system and select the input source connected to the DVD player.
Press OPEN/CLOSE (▲) to open the disc tray.
Load your chosen disc in the tray, with the label facing up.
When a double-sided DVD is inserted, make sure the side you want to play is facing down.
Press OPEN/CLOSE (▲) to close the tray. READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY. In some cases, the disc menu might appear instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a DVD or Video CD which contains a menu.
DVD
Use the ◀▶ ▲▼ buttons to select the title/chapter you want to view, then press MEMORY/ENTER to start playback.
Press TITLE or DISC MENU to return to the menu screen.
WCD2.0
- Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.
- Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 22.
Notes
- If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see "Parental Control", on page 23).
– DVDs may have a region code. - Your player will not play discs that have a region code different from your player. The region code for this player is 2 (two).
- To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode.
General Features
Note
Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.
Moving to another TITLE DVD
When a disc has more than one title, you can move to another title as follows:
- Press DISPLAY, then press the appropriate numbered button (0-9) to select a title number.
Moving to another CHAPTER/TRACK
DVD VCD2.0
When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:
- Press ◀◀◀ or ▶▶◀ briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
- Press I◄◄ twice briefly to step back to the previous chapter/track.
- To go directly to any chapter during DVD playback, press DISPLAY. Then, press ▲▼ to select the chapter/track icon. Then, enter the chapter/track number using the numbered buttons (0-9).
Note
For two-digit numbers, press the numbered buttons (0-9) in rapid succession.
Slow Motion DVD VCD2.0 VCD1.1
1 Press SLOW -/+ during pause. The player will enter SLOW mode.
2 Use the SLOW -/+ to select the required speed: ◀ 1/16, ◀ 1/8, ◀ 1/4 or ◀ 1/2 (backward), or ▶ 1/16, ▶ 1/8, ▶ 1/4 or ▶ 1/2 (forward).
3 To exit slow motion mode, press PLAY.
Note
Slow motion playback in reverse is not applicable for Video CD.
DVD or Video CD Operation
General Features (continued)
Still Picture and Frame-by-frame playback
DVD VCD2.0 VCD1.1
1 Press PAUSE/STEP during playback.
The player will now go into PAUSE mode.
2 You can advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly on the remote control.
Search DVD VCD2.0 VCD1.1
1 Press and hold ◀◀◀ or ▶▶◀ for about two seconds during playback.
The player will now go into SEARCH mode.
2 Press and hold ◀◀ or ▶▶I repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X8, ◀◀X16,
◀◀X100 (backward) or ▶▶X2, ▶▶X4, ▶▶X8,
▶▶X16, ▶▶X100 (forward).
With a Video CD, the Search speed changes: ◀◀X2,
◀◀X4, ◀◀X8, ◀◀X16 (backward) or ▶▶X2, ▶▶X4,
▶▶X8, ▶▶X16 (forward).
3 To exit SEARCH mode, press PLAY.
Repeat DVD VCD2.0 VCD1.1
DVD Video Discs - Repeat Chapter/Title/Off
1 To repeat the currently playing chapter, press REPEAT.
The Repeat Chapter icon appears on the TV screen.
2 To repeat the title currently playing, press REPEAT a second time.
The Repeat Title icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
Video CDs - Repeat Track/All/Off
1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT a second time.
The Repeat All icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
Repeat A-B DVD VCD2.0 VCD1.1
To repeat a sequence in a title:
1 Press A-B at your chosen starting point.
A- appears briefly on the TV screen.
2 Press A-B again at your chosen end point.
A-B appears briefly on the TV screen, and the repeat sequence begins.
3 To cancel the sequence, press A-B.
Time Search DVD
The Time Search function allows you to start playing at any chosen time on the disc.
1 Press DISPLAY during playback. The on-screen display appears on the screen.
The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, press ▲▼ to select the Time Search icon in the on-screen display.
The “-:-:-” appears in the Time Search box.
3 Within 10 seconds, use the number buttons to enter the required start time. Enter hours, minutes, and seconds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press MEMORY/ENTER to confirm the start time.
Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.
Last Scene Memory DVD
This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.
Note
This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.
DVD or Video CD Operation
General Features (continued)
Zoom DVD VCD2.0 VCD1.1
The Zoom function allows you to enlarge the video image and to move through the enlarged image.
1 Press ZOOM during playback or still playback to activate the Zoom function. If you press ZOOM repeatedly, the magnification level increases up to four steps. 100% size (screen fit mode) → 400% size → 800% size → 1600% size → 100% size (screen fit mode)
2 Use the ◀▶▲▼ buttons to move through the zoomed picture.
Note
The zoom function may not work for some DVDs.
Marker Search DVD VCD2.0
You can start playback from a memorized point. Up to nine points can be memorized. To enter a mark, follow these steps.
1 During disc playback, press MARKER when playback reaches the spot that you want to memorize. The Marker icon will appear on the TV screen briefly.
2 Repeat step 1 to enter up to nine Marker points on a disc.
To Recall a Marked Scene
1 During disc playback, press SEARCH.
The MARKER SEARCH menu will appear on the screen.
2 Within 10 seconds, press ◀▶ to select a Marker number that you want to recall.
3 Press MEMORY/ENTER.
Playback will start from the Marked scene.
4 To remove the MARKER SEARCH menu, press SEARCH.
To clear a Marked Scene
1 During disc playback, press SEARCH.
The MARKER SEARCH menu will appear on the screen.
2 Press ◀▶ to select the Marker number that you want to erase.
3 Press CLEAR.
The Marker number will be erased from the list.
4 Repeat steps 2 and 3 to erase additional Marker numbers.
5 To remove the MARKER SEARCH menu, press SEARCH.
Special DVD Features DVD
Checking the contents of DVD Video discs: Menus
DVDs may contain menus that allow you to access special features. To use the disc menu, press DISC MENU. Then, press the appropriate number button to select an option. Or, use the ◀/▲/▼ buttons to highlight your selection, then press MEMORY/ENTER.
Title Menu DVD
1 Press TITLE.
If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.
Disc Menu DVD
Press DISC MENU. The disc menu is displayed.
Camera Angle DVD
If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.
- Press ANGLE repeatedly during playback to select a desired angle.
The number of the current angle appears on the display.
Changing the Audio Language DVD
Press AUDIO repeatedly during playback to hear a different audio language or audio track.
Changing the Audio Channel VCD2.0 VCD1.1
Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).
Subtitles DVD
Press SUBTITLE repeatedly during playback to see the different subtitle languages.
Note
If 🖼 appears, the feature is not available on the disc.
Audio CD or MP3/WMA Disc Operation
Playing an Audio CD and MP3/WMA
Disc CD MP3 WMA
The DVD Karaoke can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs.
Audio CD
Once you insert an audio CD a menu appears on the TV screen. Press ▲ / ▼ to select a track then press PLAY or MEMORY/ENTER and playback starts.
MP3 / WMA
- Press ▲ / ▼ to select a folder, and press MEMORY/ENTER to see the folder contents.
- Press ▲ / ▼ to select a track then press PLAY or MEMORY/ENTER. Playback starts.
Notes
- If you are in a file list on the MP3/WMA menu and want to return to the Folder list, use the ▲ / ▼ to highlight 📄_ and press MEMORY/ENTER.
- Press DISC MENU to move to the next page.
- On a CD with MP3/WMA file and JPEG file, you can switch MP3/WMA and JPEG menu. Press TITLE and MP3/WMA or JPEG word on top of the menu is highlighted. Then, use ◀ / ▶ to select MP3/WMA or JPEG then press MEMORY/ENTER.
Pause CD MP3 WMA
1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.
Moving to another Track CD MP3 WMA
- Press ◀◀◀ or ▶▶◀ briefly during playback to go to the next track or to return to the beginning of the current track.
- Press ◀◀ twice briefly to step back to the previous track.
- In case of audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.
Repeat Track/All/Off CD MP3 WMA
You can play a title/chapter/all/track on a disc.
1 Press REPEAT when playing a disc. The repeat icon appears.
2 Press REPEAT to select a desired repeat mode.
- Track: repeats the current track
• All: repeats all the tracks on a disc.
- Off(No display): does not play repeatedly.
Search CD MP3 WMA
1 Press and hold ◀◀◀ or ▶▶◀ for about two seconds during playback.
The player will now go into SEARCH mode.
2 Press and hold ◀◀ or ▶▶I repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).
3 To exit SEARCH mode, press PLAY.
MP3 / WMA disc compatibility with this player is limited as follows:
- Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
- Bit rate: within 8 - 320kbps (MP3), 32-192kbps (WMA)
- The player cannot read an MP3/WMA file that has a file extension other than ".mp3" / ".wma".
• CD-R physical format should be ISO 9660 - If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
- File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
- They should not contain special letters such as / ? * : "< > I etc.
- The total number of files on the disc should be less than 999.
This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.
Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
JPEG Disc Operation
Viewing a JPEG disc
JPEG
This unit can play discs with JPEG files. Before playing JPEG recordings, read the notes on JPEG Recordings on right.
Insert a disc and close the tray.
The JPEG menu appears on the TV screen.
Press ▲ / ▼ to select a folder, and press MEMORY/ENTER. A list of files in the folder appears.
Tip
If you are in a file list and want to return to the Folder list, use the ▲/▼ buttons on the remote to highlight
“■-” and press MEMORY/ENTER to return to the previous menu screen.
If you want to view a particular file, press
▲ / ▼ to highlight a file and press MEMORY/ENTER or PLAY.
Slide Show starts from the selected file if Speed option is not Off.
While viewing a file, you can press STOP(■) to move to the previous menu (JPEG menu).
Tip
- Press DISC MENU to move to the next page.
- There are four Slide Speed options: □ : >>> (Fast), >> (Normal), > (Slow) and off.
Use ▲▼◀▶ to highlight the Speed. Then, use ◀/▶ to select the option you want to use then press MEMORY/ENTER.
- If you set Speed option to Off, Slide Show is not active.
Slide Show
Use ▲▼◀▶ to highlight the ■ (Slide Show) then press MEMORY/ENTER.
Moving to another File
Press ◀◀◀ or ▶▶▶ once during viewing a picture to advance to the next file or to the previous file.
Still Picture
1 Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.
2 To return to the slide show, press PLAY or press PAUSE/STEP again.
JPEG disc compatibility with this player is limited as follows:
- Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2760 x 2048 pixels and burn another disc.
- The total number of files and folders on the disc should be less than 999.
- Some discs may be incompatible due to a different recording format or the condition of disc.
- Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
- If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" file.
- File names without ".jpg" extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in Windows Explorer.
Programmed Playback CD MP3 WMA
The Program function enables you to store your favorite tracks from any disc in the player memory. A program can contain 300 tracks (Audio CD/MP3/WMA).
1 Insert a disc.
Audio CD and MP3/WMA Discs: Audio CD or MP3/WMA menu appears as below.
Audio CD Menu
MP3/WMA Menu
2 Select a track on the List.
3 Press PROGRAM. Or, select “♪→(Add)” icon then MEMORY/ENTER to place the selected track on the Program list. Repeat to place additional tracks on the list.
Note
You can add all tracks in the disc. Select "→ (Add All)" icon then press MEMORY/ENTER.
4 Select the track you want to start playing on the Program list. Press and hold ▲ / ▼ to move to the next / previous page.
5 Press PLAY or MEMORY/ENTER to start. Playback begins in the order in which you programmed the tracks and "PROG." appears on the display window. Playback stops after all of the tracks on the Program list have played once.
Repeat Programmed Tracks
You can play a title/chapter/all/track on a disc.
1 Press REPEAT when playing a disc. The repeat icon appears.
2 Press REPEAT to select a desired repeat mode.
- Track: repeats the current track
• All: repeats all the tracks on a disc.
- Off(No display): does not play repeatedly.
Erasing a Track from Program List
1 Use ▲▼◀▶ to select the track that you wish to erase from the Program list.
2 Press CLEAR. Or, select “ ^## (Delete)” icon then Press MEMORY/ENTER to place the selected track on the Program list. Repeat to erase additional tracks on the list.
Erasing the Complete Program List
Select "a _n (Del all)", then press MEMORY/ENTER. The complete Program for the disc is erased.
Note
The programs are also cleared when the disc is removed.
To resume normal playback from programmed playback Select a track on the List then press MEMORY/ENTER. "PROG." disappears from the display window.
DivX Disc Operation
The unit can play the MPEG4 encoded files (.avi, mpg, .mpeg, .divx etc) and subtitle files (.srt, .smi, sub).
1 Insert the MPEG4 encoded disc and close the tray.
The DivX menu appears on the TV screen.
2 Press ▲ / ▼ to select a folder, and press MEMORY/ENTER to see the folder contents.
3 Press ▲ / ▼ to select a track then press PLAY or MEMORY/ENTER.
Playback starts.
Pause DivX
- Press PAUSE/STEP during playback.
- To return to playback, press PLAY.
Still Picture and Frame-by-frame playback
DivX
1 Press PAUSE/STEP during playback.
The player will now go into PAUSE mode.
2 You can advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly on the remote control.
Repeat Track/All/Off DivX
You can play a title/chapter/all/track on a disc.
1 Press REPEAT when playing a disc. The repeat icon appears.
2 Press REPEAT to select a desired repeat mode.
- Track: repeats the current track
- All: repeats all the tracks on a disc.
- Off (No display): does not play repeatedly.
Subtitle DivX
Press SUBTITLE repeatedly before playback to see the different subtitle language.
Search DivX
1 Press and hold ◀◀◀ or ▶▶▶ for about two seconds during playback.
The player will now go into SEARCH mode.
2 Press and hold I◀◀ or ▶▶▶ repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X8, ◀◀X16 (backward) or ▶▶X2, ▶▶X4, ▶▶X8, ▶▶X16 (forward).
3 To exit SEARCH mode, press PLAY.
Display DivX
Press DISPLAY during playback.
General playback status can be displayed on the TV screen.
DivX disc compatibility with this player is limited as follows:
• Available resolution size of the DivX file is under 720x576 (W x H) pixel.
- The file name of the DivX subtitle is available by 20-40 characters (differs from language).
- If there is impossible code to express in the DivX file, it may be displayed as "_" mark on the display.
- If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.
- If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
- If the file is recorded with GMC, the unit supports some of 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.
playable DivX subtitle file
● ".srt ", ".smi ", ".sub "
playable DivX file
● ".avi ", ".mpg ", ".mpeg "
playable Codec format
● "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "XVID ", "MP43 ", "3IVX ", "MP42".
playable Audio format
● "AC3", "DTS", "PCM", "MP3", "WMA".
- Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
- Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
Radio Operation
Presetting the Radio Stations
You can preset 30 stations for FM and AM. Before tuning, make sure that you have turned down the volume.
1 Press FM/AM on the remote control until the frequency band appears on the display and TV screen.
2 Press ▲▼ on the remote control to select your desired radio channel.
3 Press FM/AM on the remote control to select the desired band.
4 Hold down TUNING ◀ or ▶ on the remote control for 1 or 2 seconds, and a station is searched for automatically.
5 Press MEMORY/ENTER on the remote control.
6 Repeat steps 2 to 5 to store other stations.
MEMORY
Listening to the Radio
Preset radio stations in this unit's memory first (see "Presetting the radio stations" on the left).
1 Press FM/AM on the remote control until the frequency band appears on the display and TV screen. The last received station is tuned in.
2 Press ▲▼ on the remote control repeatedly to select the preset station you want. Each time you press the button, this unit's tunes in one preset station at a time.
3 Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.
To Clear the Stored Radio Stations
1 Press FM/AM on the remote control until the frequency band appears on the display and TV screen.
2 Press ▲▼ on the remote control to select your desired station.
3 Press CLEAR the remote control to clear the stored radio station.
Radio Operation
Tuning into a Station Manually
1 Press FM/AM on the remote control until the frequency band appears on the display and TV screen.
2 Press FM/AM on the remote control to select the desired band.
3 Press TUNING ◀ or ▶ on the remote control to tune in the desired station.
Tuning into a Station Automatically
Hold down TUNING ◀ or ▶ on the remote control for 1 or 2 seconds, and a station is searched for automatically.
Note
- The search may not stop at a station with a very weak signal.
Mute
Press MUTE to mute your unit.
You can mute your unit in order, for example, to answer the telephone, MUTING appear in the display.
KARAOKE Operation
You can play KARAOKE (singing along) with karaoke disc by connecting a microphone to the unit. You can enjoy KARAOKE with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the singer's voice.
Karaoke Basic Playback
1 Check if the system is connected. (Refer to the page 10-12.)
2 Turn on the powers of TV (or Amplifier) and DVD Karaoke and enter to the video mode on TV.
3 Press OPEN/CLOSE (▲) to open the disc tray and load supplied karaoke disc in the tray with the label facing up.
4 Press OPEN/CLOSE (▲) to close the tray.
[TV Screen]
5 Connect the microphone to the MIC 1 or MIC 2 jack.
6 Select the melody number you want by pressing NUMERIC buttons.
If you cancel the selected melody number, press the CLEAR.
7 Press PLAY. The selected melody number is played. Sing in tone with microphone. After melody ends, it is stopped automatically and score appears.
Note
When you use a microphone except Karaoke function, you can't enjoy 5.1 channel output. Only 2 channel sound will out by the influence of the microphone system.
Karaoke Advanced Playback
To Adjust MIC Volume
Turn the MIC VOL. on the front panel clockwise to increase the microphone volume or counterclockwise to decrease it. (0\~15 steps)
To Adjust ECHO Volume
You can give an echo effect to the sound from the microphones.
Turn the ECHO VOL. on the front panel clockwise to increase the echo volume or counterclockwise to decrease it. (0\~15 steps)
Key Control
You can change the key to suit your vocal range. You can adjust the key to 13 steps (6steps higher, 6steps lower and the original key). - The setting appears on the screen.
Press b- KEY CON. - # buttons repeatedly on the remote control to find the key that suits your vocal range.
- To flatten the key one by one, press the KEY CONTROL (b) repeatedly during playback.
- To sharp the key one by one, press the KEY CONTROL (#) repeatedly during playback.
- To return to the original key, press the KEY CONTROL (b/#) repeatedly to appear the original key.
KARAOKE Operation
Reserving the Songs
When you want to make a reservation of next melody, you can enjoy the most 8 melodies reservation Without waiting.
1 Press the NUMERIC buttons to reserve melody number you want in the karaoke disc play mode.
Melody number appears on the TV screen.
Press PROGRAM.
The melody number is made a reservation.
Repeat steps 1-2.
You can reserve 8 songs.
T ip
After the one song finishes its playback, the next song will be playback automatically.
To cancel the reserved song
Each time you press CLEAR, the reserved song will be cancelled one by one.
To cancel or change the wrong reserved song
Press the PROGRAM to move to the desired position, then press the CLEAR to cancel the reserved song.
Male/Female Function
If you want to sing a song of MAN's or WOMEN's key, press MALE/FEMALE button repeatedly to change MAN's or WOMEN's key.
Tempo Change
You can use this function when you want to play fast or slow.
- Press TEMPO + repeatedly during singing to play faster.
- Press TEMPO - repeatedly during singing slower.
Shadow Function
If the screen caption and the song's subtitle are mixed up, the song's subtitle may be invisible. In this case, to highlight the song's subtitle, press SHADOW.
- It will be highlighted by background shadow image.
Karaoke MENU Playback
Preparation
Press DISC MENU on the karaoke mode. The main MENU appears on the screen.
Main MENU (On the TV screen)
SETUP
1 Select "1. SETUP" by pressing ▲ / ▼ on the main menu.
2 Use ◄/▶ to select the desired option, and press SELECT/ENTER.
SCORE On/Off
On: When singing by selection of melody, song score comes out after one piece of song is ended.
To cancel it, select the Off.
FANFARE On/Off
On: In condition of POWER ON, scoring fanfare operates. The fanfare sound comes out after singing finished.
To cancel it, select the Off.
LYRIC On/Off
On: When singing by selection of melody, song lyric appears on the TV screen.
To cancel it, select the Off.
CHORUS On/Off
On: When singing by selection of melody, song chorus is heard a sound.
To cancel it, select the Off.
Note
To move to the main menu, press MENU or RETURN.
KARAOKE Operation
MUSIC LIST
POP SONGS and CAROLS & KID'S SONGS
1 Select "2. MUSIC LIST" by pressing the ▲ / ▼ on the main menu. The POP SONGS, CAROLS & KID'S SONGS and CLASSICAL MUSIC menu will be shown on the TV screen.
2 Select "1.SONG LIST" or "2.SINGER LIST" by pressing the 🔊/♥, and press SELECT/ ENTER. SONG LIST and SINGER LIST menu will be shown on the TV screen.
SONG LIST
1 Select "1.SONG LIST" and select the initial of the song title you want by pressing the ▲ / ▼, then press SELECT/ ENTER.
2 Select the song title you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
SINGER LIST
1 Select "2.SINGER LIST" and select the initial of the singer you want by pressing the ▲ / ▼ in the SONG LIST and SINGER LIST menu, and press SELECT/ ENTER.
2 Select the singer you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
3 Select the song title of the singer you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
Note
To move the previous mode, select the 📋 by pressing the 🔊/♥, then press SELECT/ ENTER.
KARAOKE Operation
CLASSICAL MUSIC
1 Select "3. CLASSICAL MUSIC" by pressing the ▲ / ▼ on the MUSIC LIST menu, then press SELECT/ENTER.
The CLASSIC LIST and COMPOSER LIST menu will be shown on the TV screen.
CLASSIC LIST
1 Select "1.CLASSIC LIST" and select the initial of the song title you want by pressing the ▲/▼, then press SELECT/ ENTER.
2 Select the song title you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
COMPOSER LIST
1 Select "2. COMPOSER LIST" and select the initial of the composer you want by pressing the ▲ / ▼, then press SELECT/ENTER.
2 Select the composer you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
3 Select the song title of the composer you want by pressing the ▲ / ▼, and press SELECT/ ENTER.
Note
To move the previous mode, select the 📄 by pressing the 🔊 / √, then press SELECT/ ENTER.
KARAOKE Operation
RANDOM
1 Select "3. RANDOM" by pressing ▲ / ▼ on the main menu.
2 Press SELECT/ENTER to begin randomly.
CHALLENGE
It has a function which enjoy a song game dividing by two teams of red team & blue team.
1 Select "4. CHALLENGE" by pressing ▲/▼ on the main menu. It appears as below.
2 Select "SET NUMBER TO WIN" by pressing 🔊/♥, and select one of NUMERIC buttons 1\~9 by pressing 🔊/♥ to select winner's number, then press SELECT/ ENTER.
3 Select "CHALLENGE SCORE" by pressing 🔊/▼, and select one of 60,70,80 or 90 by pressing 🔊/▼ to select success score, then press SELECT/ ENTER.
4 Select "START" by pressing ▲ / ▼, then press SELECT/ ENTER. It appears as below.
5 Select number you want by pressing ▲/▽ and press SELECT/ ENTER. Sing along with the accompaniment.
6 Repeat step 4\~5. Change the team of red team or blue team alternately.
7 When reaching the targeted winning number, the "CONGRATULATION!" will be shown on the TV screen. It appears as below.
Whether you keep going the song game or not, select "1. YES" or "2. NO" by pressing ▲ / ▼ as below.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
| Symptom | Cause | Correction |
| No power. | The power cord is disconnected. | Plug the power cord into the wall outlet securely. |
| The power is on, but the unit does not work. | No disc is inserted. | Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.) |
| No picture. | The TV is not set to receive DVD signal output. | Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. |
| The video cable is not connected securely. | Connect the video cable into the jacks securely. | |
| The connected TV power is turned off. | Turn on the TV. | |
| There is no sound or only a very low-level sound is heard. | The equipment connected with the audio cable is not set to receive DVD signal output. | Select the correct input mode of the audio so you can listen to the sound from the unit. |
| The audio cables are not connected securely. | Connect the audio cable into the jacks securely. | |
| The power of the equipment connected with the audio cable is turned off. | Turn on the equipment connected with the audio cable. | |
| The audio connecting cord is damaged. | Replace it with new one. | |
| The playback picture is poor. | The disc is dirty. | Clean the disc. |
| The unit does not start playback. | No disc is inserted. | Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.) |
| An unplayable disc is inserted. | Insert a playable disc. (Check the disc type, color system and Regional code.) | |
| The disc is placed upside down. | Place the disc with the playback side down. | |
| The disc is not placed within the guide. | Place the disc on the disc tray correctly inside the guide. | |
| The disc is dirty. | Clean the disc. | |
| A menu is on the TV screen. | Press the SET-UP button to turn off the menu screen. | |
| The Rating level is set. | Cancel the Rating function or change the rating level. | |
| Severe hum or noise is heard. | The plugs and jacks are dirty. | Wipe them with a cloth slightly moistened with alcohol. |
| The disc is dirty. | Clean the disc. | |
| The speakers and components are connected poorly. | Connect the speakers and components securely. | |
| The unit is located with too close to the TV. | Move your TV away from the audio components. | |
| Radio stations cannot be tuned in. | The antenna is positioned or connected poorly. | Connect the antenna securely. |
| Adjust the antennas and connect an external antenna if necessary. | ||
| The signal strength of the stations is too weak (when tuning in with automatic tuning). | Tune in the station manually. | |
| No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations). | Preset the stations. | |
| The remote control does not work properly. | The remote control is not pointed at the remote sensor of the unit. | Point the remote control at the remote sensor of the unit. |
| The remote control is too far from the unit. | Operate the remote control within about 23 ft (7 m). | |
| There is an obstacle in the path of the remote control and the unit. | Remove the obstacle. | |
| The batteries in the remote control are exhausted. | Replace the batteries with new ones. |
Language Code List
Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 19).
| Code | Language | Code | Language | Code | Language | Code | Language |
| 6566 | Abkhazian | 7074 | Fiji | 7678 | Lingala | 8373 | Singhalese |
| 6565 | Afar | 7073 | Finnish | 7684 | Lithuanian | 8375 | Slovak |
| 6570 | Afrikaans | 7082 | French | 7775 | Macedonian | 8376 | Slovenian |
| 8381 | Albanian | 7089 | Frisian | 7771 | Malagasy | 8379 | Somali |
| 6577 | Ameharic | 7176 | Galician | 7783 | Malay | 6983 | Spanish |
| 6582 | Arabic | 7565 | Georgian | 7776 | Malayalam | 8385 | Sudanese |
| 7289 | Armenian | 6869 | German | 7784 | Maltese | 8387 | Swahili |
| 6583 | Assamese | 6976 | Greek | 7773 | Maori | 8386 | Swedish |
| 6588 | Aymara | 7576 | Greenlandic | 7782 | Marathi | 8476 | Tagalog |
| 6590 | Azerbaijani | 7178 | Guarani | 7779 | Moldavian | 8471 | Tajik |
| 6665 | Bashkir | 7185 | Gujarati | 7778 | Mongolian | 8465 | Tamil |
| 6985 | Basque | 7265 | Hausa | 7865 | Nauru | 8484 | Tatar |
| 6678 | Bengali; Bangla | 7387 | Hebrew | 7869 | Nepali | 8469 | Telugu |
| 6890 | Bhutani | 7273 | Hindi | 7879 | Norwegian | 8472 | Thai |
| 6672 | Bihari | 7285 | Hungarian | 7982 | Oriya | 6679 | Tibetan |
| 6682 | Breton | 7383 | Icelandic | 8065 | Panjabi | 8473 | Tigrinya |
| 6671 | Bulgarian | 7378 | Indonesian | 8083 | Pashto, Pushto | 8479 | Tonga |
| 7789 | Burmese | 7365 | Interlingua | 7065 | Persian | 8482 | Turkish |
| 6669 | Byelorussian | 7165 | Irish | 8076 | Polish | 8475 | Turkmen |
| 7577 | Cambodian | 7384 | Italian | 8084 | Portuguese | 8487 | Twi |
| 6765 | Catalan | 7465 | Japanese | 8185 | Quechua | 8575 | Ukrainian |
| 9072 | Chinese | 7487 | Javanese | 8277 | Rhaeto-Romance | 8582 | Urdu |
| 6779 | Corsican | 7578 | Kannada | 8279 | Rumanian | 8590 | Uzbek |
| 7282 | Croatian | 7583 | Kashmiri | 8285 | Russian | 8673 | Vietnamese |
| 6783 | Czech | 7575 | Kazakh | 8377 | Samoan | 8679 | Volapük |
| 6865 | Danish | 7589 | Kirghiz | 8365 | Sanskrit | 6789 | Welsh |
| 7876 | Dutch | 7579 | Korean | 7168 | Scots Gaelic | 8779 | Wolof |
| 6978 | English | 7585 | Kurdish | 8382 | Serbian | 8872 | Xhosa |
| 6979 | Esperanto | 7679 | Laothian | 8372 | Serbo-Croatian | 7473 | Yiddish |
| 6984 | Estonian | 7665 | Latin | 8378 | Shona | 8979 | Yoruba |
| 7079 | Faroese | 7686 | Latvian, Lettish | 8368 | Sindhi | 9085 | Zulu |
Country Code List
Enter the appropriate code number for the initial setting "Country Code" (See page 23).
| Code | Country | Code | Country | Code | Country | Code | Country |
| AD | Andorra | ER | Eritrea | LC | Saint Lucia | SC | Seychelles |
| AE | United Arab Emirates | ES | Spain | LI | Liechtenstein | SD | Sudan |
| AF | Afghanistan | ET | Ethiopia | LK | Sri Lanka | SE | Sweden |
| AG | Antigua and Barbuda | FI | Finland | LR | Liberia | SG | Singapore |
| AI | Anguilla | FJ | Fiji | LS | Lesotho | SH | Saint Helena |
| AL | Albania | FK | Falkland Islands | LT | Lithuania | SI | Slovenia |
| AM | Amenia | FM | Micronesia | LU | Luxembourg | SJ | Svalbard and Jan Mayen Islands |
| AN | Netherlands Antilles | FO | Faroe Islands | LV | Latvia | ||
| AO | Angola | FR | France | LY | Libya | SK | Slovak Republic |
| AQ | Antarctica | FX | France (European Territory) | MA | Morocco | SL | Sierra Leone |
| AR | Argentina | MC | Monaco | SM | San Marino | ||
| AS | American Samoa | GA | Gabon | MD | Moldavia | SN | Senegal |
| AT | Austria | GB | Great Britain | MG | Madagascar | SO | Somalia |
| AU | Australia | GD | Grenada | MH | Marshall Islands | SR | Suriname |
| AW | Aruba | GE | Georgia | MK | Macedonia | ST | Saint Tome and Principe |
| AZ | Azerbaidjan | GF | French Guyana | ML | Mali | SU | Former USSR |
| BA | Bosnia-Herzegovina | GH | Ghana | MM | Myanmar | SV | El Salvador |
| BB | Barbados | GI | Gibraltar | MN | Mongolia | SY | Syria |
| BD | Bangladesh | GL | Greenland | MO | Macau | SZ | Swaziland |
| BE | Belgium | GM | Gambia | MP | Northern Mariana Islands | TC | Turks and Caicos Islands |
| BF | Burkina Faso | GN | Guinea | MQ | Martinique (French) | TD | Chad |
| BG | Bulgaria | GP | Guadeloupe (French) | MR | Mauritania | TF | French Southern Territories |
| BH | Bahrain | GQ | Equatorial Guinea | MS | Montserrat | ||
| BI | Burundi | GR | Greece | MT | Malta | TG | Togo |
| BJ | Benin | GS | S. Georgia & S. Sandwich Isls. | MU | Mauritius | TH | Thailand |
| BM | Bermuda | MV | Maldives | TJ | Tadjikistan | ||
| BN | Brunei Darussalam | GT | Guatemala | MW | Malawi | TK | Tokelau |
| BO | Bolivia | GU | Guam (USA) | MX | Mexico | TM | Turkmenistan |
| BR | Brazil | GW | Guinea Bissau | MY | Malaysia | TN | Tunisia |
| BS | Bahamas | GY | Guyana | MZ | Mozambique | TO | Tonga |
| BT | Bhutan | HK | Hong Kong | NA | Namibia | TP | East Timor |
| BV | Bouvet Island | HM | Heard and McDonald Islands | NC | New Caledonia (French) | TR | Turkey |
| BW | Botswana | NE | Niger | TT | Trinidad and Tobago | ||
| BY | Belarus | HN | Honduras | NF | Norfolk Island | TV | Tuvalu |
| BZ | Belize | HR | Croatia | NG | Nigeria | TW | Taiwan |
| CA | Canada | HT | Haiti | NI | Nicaragua | TZ | Tanzania |
| CC | Cocos (Keeling) Islands | HU | Hungary | NL | Netherlands | UA | Ukraine |
| CF | Central African Republic | ID | Indonesia | NO | Norway | UG | Uganda |
| CG | Congo | IE | Ireland | NP | Nepal | UK | United Kingdom |
| CH | Switzerland | IL | Israel | NR | Nauru | UM | USA Minor Outlying Islands |
| CI | Ivory Coast | IN | India | NU | Niue | ||
| CK | Cook Islands | IO | British Indian Ocean Territory | NZ | New Zealand | US | United States |
| CL | Chile | OM | Oman | UY | Uruguay | ||
| CM | Cameroon | IQ | Iraq | PA | Panama | UZ | Uzbekistan |
| CN | China | IR | Iran | PE | Peru | VA | Vatican City State |
| CO | Colombia | IS | Iceland | PF | Polynesia (French) | VC | Saint Vincent & Grenadines |
| CR | Costa Rica | IT | Italy | PG | Papua New Guinea | ||
| CS | Former Czechoslovakia | JM | Jamaica | PH | Philippines | VE | Venezuela |
| CU | Cuba | JO | Jordan | PK | Pakistan | VG | Virgin Islands (British) |
| CV | Cape Verde | JP | Japan | PL | Poland | VI | Virgin Islands (USA) |
| CX | Christmas Island | KE | Kenya | PM | Saint Pierre and Miquelon | VN | Vietnam |
| CY | Cyprus | KG | Kyrgyzstan | PN | Pitcairn Island | VU | Vanuatu |
| CZ | Czech Republic | KH | Cambodia6 | PR | Puerto Rico | WF | Wallis and Futuna Islands |
| DE | Germany | KI | Kiribati | PT | Portugal | WS | Samoa |
| DJ | Djibouti | KM | Comoros | PW | Palau | YE | Yemen |
| DK | Denmark | KN | Saint Kitts & Nevis Anguilla | PY | Paraguay | YT | Mayotte |
| DM | Dominica | KP | North Korea | QA | Qatar | YU | Yugoslavia |
| DO | Dominican Republic | KR | South Korea | RE | Reunion (French) | ZA | South Africa |
| DZ | Algeria | KW | Kuwait | RO | Romania | ZM | Zambia |
| EC | Ecuador | KY | Cayman Islands | RU | Russian Federation | ZR | Zaire |
| EE | Estonia | KZ | Kazakhstan | RW | Rwanda | ZW | Zimbabwe |
| EG | Egypt | LA | Laos | SA | Saudi Arabia | ||
| EH | Western Sahara | LB | Lebanon | SB | Solomon Islands |
Specifications
General
| Power supply | Refer to the main label. |
| Power consumption | 70W |
| Mass | 6.3 kg |
| External dimensions (W x H x D) | 430 X 97.5 X 370 mm |
| Operating temperature | 5°C to 40°C (41°F to 104°F) |
| Operating humidity | 5 % to 90 % |
Tuner/Amplifier
| FM Tuning Range | 87.5 - 108.0 MHz or 65 -74 MHz, 87.5 -108.0 MHz |
| Intermediate Frequency | 10.7 MHz |
| Signal to Noise Ratio | 55/55 dB (Mono/Stereo) |
| AM Tuning Range | 522 - 1611 kHz or 530 - 1610 kHz or 530 - 1720 kHz |
| Intermediate Frequency | 450 kHz |
| Signal to Noise Ratio | 32 dB |
| Output Power | Front: 45W + 45W (8Ω / ch THD 10 %), Center: 45W (8Ω / ch THD 10%) |
| Rear: 45W + 45W (8Ω / ch THD 10 %), Subwoofer: 90W (4Ω / ch THD 10 %) | |
| T.H.D | 0.8% |
| Frequency Response | 100 - 19000 Hz |
| Signal-to-noise ratio | 75 dB |
DVD/VCD/CD Section
| Frequency response (audio) | 200 - 18000 Hz |
| Signal-to-noise ratio (audio) | More than 80 dB (1 kHz) |
| Signal-to-noise ratio (video) | More than 80 dB (1 kHz) |
| Dynamic range (audio) | More than 80 dB |
| Video output | 1.0 V (p-p), 75 Ω |
| S-video output | (Y) 1.0 V (p-p), 75 Ω(C) 0.3 V (p-p), 75 Ω |
| Component Video output | (Y) 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2 |
VCR Section
| Timer | 24 hours display tape |
| RF Modulator | UHF 22-68 (Adjustable) |
| Video Head system | Double azimuth 4 heads, helical scanning. |
| Frequency Response | 200 - 8000Hz |
| Audio | -6.0dBm, more than 47 kohms |
| Video | 1.0 Vp-p, 75 ohms, unbalanced |
Speaker Section
| Speaker Name | Front Speaker (L/R) | Center Speaker | Rear Speaker (L/R) | Subwoofer |
| Type | 2 Way 2 Speaker | 2 Way 2 Speaker | 2 Way 2 Speaker | 1 Way 1 Speaker |
| Impedance | 8 Ω | 8 Ω | 8 Ω | 4 Ω |
| Frequency Response | 130 - 20000 Hz | 130 - 20000 Hz | 130 - 20000 Hz | 55 - 1500 Hz |
| Sound Pressure Level | 83 dB/W (1m) | 83 dB/W (1m) | 83 dB/W (1m) | 80 dB/W (1m) |
| Rated Input Power | 50 W | 50 W | 50 W | 100 W |
| Max. Input Power | 100 W | 100 W | 100 W | 200 W |
| Net Dimensions (W x H x D) | 103X134X110mm | 204X103X109mm | 103X134X110mm | 244X422X321mm |
| Net Weight | 0.9 kg | 1.0 kg | 0.9 kg | 7.2 kg |
- Design and specifications are subject to change without notice.
