USER MANUAL Ceiling Microphone Array ClearOne

The ClearOne Ceiling Microphone Array enhances any conferencing application which demands high-quality audio. Easily installed and affordable, the Ceiling Microphone Array delivers exceptional audio quality.

Featuring three wide-range microphones mounted together into a single unit array, the Ceiling Microphone Array provides the rich sound of three individual unidirectional microphones while maintaining full 360-degree coverage.

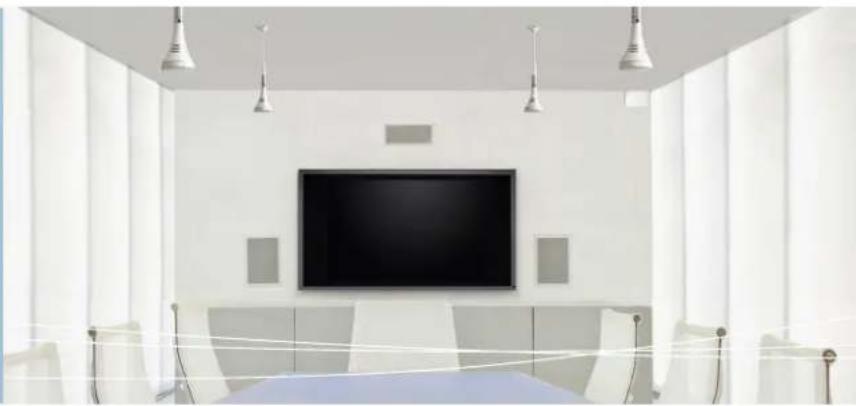

Interior view of a modern meeting room with white walls, a black TV on the wall, and hanging pendant lights (no text or symbols visible)

White handheld microphone with ventilation grille and connector (no visible text or symbols)

Black conical microphone with textured surface (no visible text or symbols)

Applications

Medium to Large Conference Rooms

Boardrooms

Overflow Areas

Training Rooms

Courtrooms

Distance Learning Centers

Convention Centers and Hotels

Features

Interference Protection

+ RF hardened and shielded for immunity from interference

Superior Audio Performance

Full 360-degree coverage

- Three unidirectional elements reduce reverberation and noise

Design minimizes noise pickup from ceiling sources

Compatibility

- Optimized to work with ClearOne mixers - CONVERGE Pro, INTERACT Pro, INTERACT Pro 8i, INTERACT AT

Expandability

Multiple* ceiling microphone arrays can be connected to any ClearOne mixer for covering a large room space

Easy Setup

- Standard CAT5 Ethernet cable runs back to the mixer

Designed for quick installation into drop ceiling tiles

- Includes 12" and 24" drop down cables for varying ceiling heights

Minimal Visibility

Sleek unobtrusive design

- Frees table area while maintaining speech quality and intelligibility

Compact size: 3.3" x 1.5" (83.8 mm x 38.1 mm)

* The number of ceiling microphone arrays depends on the maximum number of microphone inputs supported by the mixer.

Black handheld medical device with a curved neck and connector (no text or symbols visible)

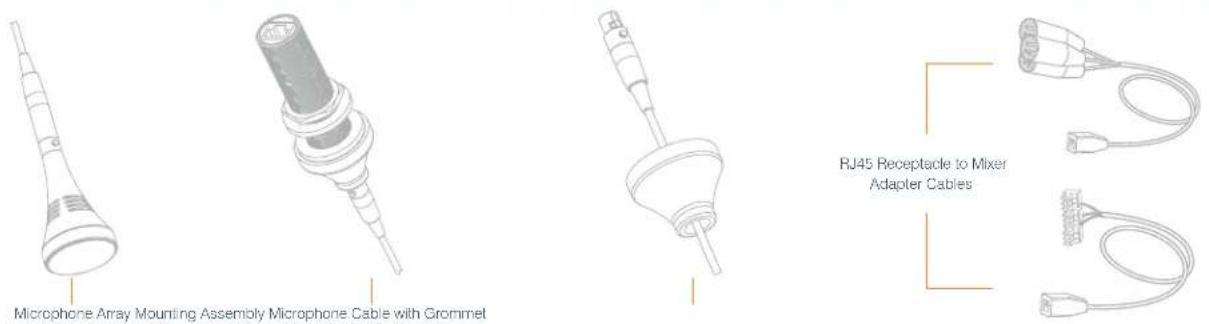

> COMPONENTS

Functional Specifications

ACOUSTIC CHARACTERISTICS

Polar Pattern: Cardioid

Dynamic Range: 80 dB, 1 kHz @ max SPL

Signal/Noise Ratio: 60 dBA, 1kHz @ 1Pa

Frequency Response: 100 Hz - 12kHz

Sensitivity: 114 mV/Pa

ELECTRICAL CHARACTERISTICS

Element: Fixed-charge back plate permanently

polarized condenser

Phantom Power Requirement: 12-52 vdc, 2 mA typical

Impedance: 200 Ω

CABLES INCLUDED

12-inch and 24-inch 4-pin mini-XLR drop-down cable

25-foot RJ45 male to RJ45 male CAT5e

RJ45 receptacle to mixer adapter cable

MOUNTING

Ceiling tile pass-through mounting assembly

Max cable length from array to mixer: 300 ft (91.44m)

MECHANICAL

DIMENSIONS

(W x D xH): 3.3' x 1.5' (83.8 mm x 38.1 mm)

WEIGHT

2.2 lbs (1 kg)

ENVIRONMENTAL

910-001-013-W - White Coiling Microphone Array kit for CONVERGE Pro and INTERACT Pro (includes RJ45 receptacle to Mini-Phoenix mixer adapter)

910-001-013-B - Black Ceiling Microphone Array kit for CONVERGE Pro and INTERACT Pro (includes RJ45 receptacle to Mini-Phoenix mixer adapter)

910-001-014-W - White Ceiling Microphone Array kit for INTERACT AT (includes RJ45 receptacle to XLR-M mixer adapter)

910-001-014-B - Black Ceiling Microphone Array kit for INTERACT AT (includes RJ45 receptacle to XLR-M mixer adapter)

(Each kit includes Microphone Array Module, Mounting base,

12 and 24 inch drop-down cables, 25 foot RJ45 plenum rated CAT5c cable, RJ45 receptacle to mixer adapter cable.)

PICK-UP PATTERN

Interior view of a modern meeting room with a conference table, chairs, and orange-lit ceiling (no text or symbols)

120" from array
(Best pick-up)

180" from array
(Good pick-up)

Clearone Contacts

North America

Tel: [phone]

Toll Free: 800-945-7730

TechSales: 1-800-707-6994

Fax: [phone]

[e-mail]

Europe & Oceania

Tel: [phone]

[e-mail]

Asia Pacific

Tel: [phone]

[e-mail]

Latin America

Tel: [phone]

[e-mail]

Middle East

Tel: [phone]

[e-mail]

Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne's products

All rights reserved. Information in this document subject to change without notice, © 2013 ClearOne, 802-225-101-DS Revision 2.0 October 2013.
