TW 1600.4 - Subwoofer BLAUPUNKT - Free user manual and instructions

Product Type	Subwoofer
Brand	Blaupunkt
Model	TW 1600.4
Speaker Size	12 inches (30 cm)
Impedance	4 ohms
RMS Power	400 W
Peak Power	1600 W
Frequency Response	20 Hz - 200 Hz
Sensitivity	90 dB (2.83V/1m)
Enclosure Type	Sealed
Dimensions (H x W x D)	350 x 350 x 350 mm
Weight	15 kg
Power Supply	Passive (requires external amplifier)
Main Functions	Deep bass reproduction, low distortion
Maintenance	Clean with a dry, soft cloth; avoid moisture
Safety	Do not expose to water or excessive heat; keep away from children
Spare Parts	Contact Blaupunkt authorized service center
Repair Information	Only qualified personnel should attempt repairs
General Information	Designed for car audio systems; compatible with most head units

Frequently Asked Questions - TW 1600.4 BLAUPUNKT

What is the recommended amplifier power for the Blaupunkt TW 1600.4?

A monoblock amplifier delivering 400-600 W RMS at 4 ohms is ideal. Ensure the amplifier is capable of handling 4 ohm loads.

Can I use this subwoofer at home?

Yes, but you will need a suitable amplifier (e.g., home theater subwoofer amp) and a proper enclosure. It is primarily designed for car audio.

What is the impedance of the TW 1600.4?

The subwoofer has a 4 ohm impedance, which is standard for many car audio systems.

How do I install the subwoofer in my car?

Mount the subwoofer in a suitable enclosure, connect the positive and negative terminals to your amplifier, and ensure the enclosure is securely fixed to prevent movement.

What are the dimensions of the Blaupunkt TW 1600.4?

The subwoofer is approximately 350 x 350 x 350 mm (each side). Ensure your enclosure is sized accordingly.

Does it come with a grille?

No, a grille is not included. You may purchase a compatible grille separately for protection.

What is the power handling of this subwoofer?

The RMS power handling is 400 W, with a peak capacity of 1600 W. Do not exceed these ratings.

How do I clean the subwoofer?

Gently wipe the cone and surround with a soft, dry cloth to remove dust. Avoid using any liquids or cleaners.

What type of enclosure should I use?

A sealed enclosure is recommended for accurate bass, but a ported enclosure can increase efficiency. Consult the manual for specific volume recommendations.

Is the TW 1600.4 compatible with a 2 ohm system?

No, this subwoofer is 4 ohm only. Connecting to a 2 ohm load may damage the amplifier if not designed for it.

USER MANUAL TW 1600.4 BLAUPUNKT

Recommended Woofer Enclosure

	Liters gross	Liters net	Fs	Fb
Sealed:	34	32.81	45 Hz	30 Hz

Blaupunkt India Private Limited 47, Atlanta Society, Nariman Point Mumbai- 400 021. India. Toll Free: 1800 209 6820 [e-mail] | www.blaupunkt.com

BLAUPUNKT

Sound | Subwoofer Tw 1600.4

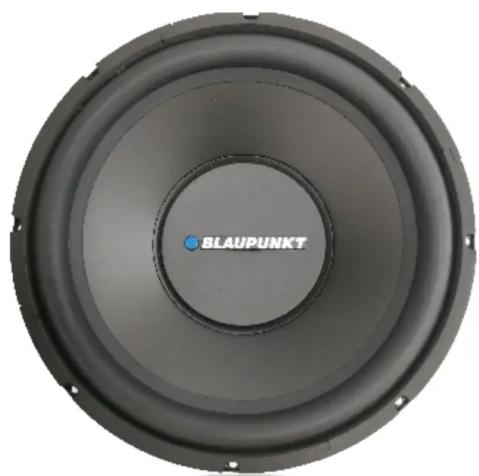

Close-up of a black speaker cone with 'BLAUPUNKT' branding on the front face (no other text or symbols visible)

Enjoy it.

Tw 1600.4

Tw 1600.4

Warranty

We provide a manufacturer's warranty for our products bought within India. You can view the warranty terms at www.blaupunkt.com or ask for them directly at:

Blaupunkt India Private Limited

47, Atlanta Society, Nariman Point, Mumbai - 400 021. India.

Safety Notes:

Please observe the following safety notes during the installation & connection.

• Disconnect the negative terminal of the battery. Observe safety notes of the vehicle manufacturer.
• Prior to drilling mounting holes, make sure that no cables & parts of the vehicle will be damaged.
• Do not install subwoofers on loose rear parcel shelves (fastback vehicles)
• Leave ample clearance between the cables and other harnesses. Use cable glands for holes with sharp edges

Notes about installing a subwoofer in enclosures:

Before installing the subwoofer in an enclosure guidelines, please observe some fundamental design instructions:

• Subwoofers with infinite baffle can be installed in a vehicle by simply using a wooden board trimmed to size which ensures an acoustic separation between the front and rear of a woofer. The wooden board is affixed in the boot under the rear shelf or at the back of the rear seat bench. Any existing air gaps should be sealed with sealing material.
• The shape of the enclosure plays a major role with respect to the playback of low frequencies. However, try to avoid unusual shapes which require extensive work with respect to trimming and gluing.
• MDF boards or high-quality plywood made out of birch with a thickness of 18 to 25mm are perfectly suited for building woofer enclosures.
• All abutting housing walls should be glued, screwed together and sealed to avoid detachment due to vibration & external environmental influences in a vehicle.
• To avoid vibration, stiffening ribs or bracing are used for large woofer enclosures.
• Acoustic insulating material which fills the inside volume to at least 20% increases the effective enclosure volume by 5 to 15%.

• The cables from the amplifier to the subwoofer should be kept as short as possible & have a cross section of at least 2.5mm ² .

• The finished subwoofer enclosure should be perfectly stable and airtight.

• If possible, use bass reflex ports with a diameter of 7 to 10cm to avoid the port noise generally associated with smaller openings. PVC pipes are available commercially in different diameters. The pipe sections can be installed inside the enclosure using appropriate joints and fittings.
• Use an active (electronic) crossover, such as those integrated into all Blaupunkt amplifiers. The use of passive crossovers is not recommended.

Recycling and disposal

To dispose of the product, please use the available waste return and collection systems.

Subject to changes!

Technical data

Performance

• Maximum power handling (Watts): 1500
• Nominal power handling (RMS): 250W
• Nominal impedance (Ohms): 4
• Frequency response (Hz): 30-300
• Efficiency (dB / 2.83V / 1m): 87dB

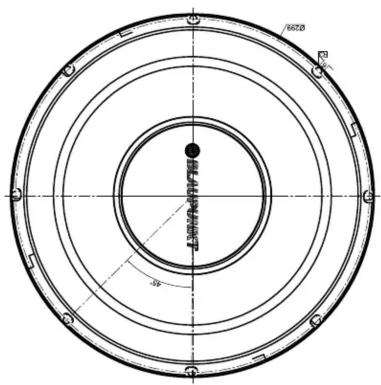

• Diameter Installation hole (mm): 282
• Diameter Installation hole (inch): 11.1
• Thiele Small Parameter fs (Hz): 29.8
• Thiele Small Parameter Qts: 0.62z
• Thiele Small Parameter Qes: 0.61
• Thiele Small Parameter Qms: 7.08
• Thiele Small Parameter Vas (I): 93.25
• Thiele Small Parameter Xmax (mm):
• Recommended sealed enclosure size:
11.1
8
1.2 cubic ft. (34 Liters)
