Product Type	Range Hood
Brand	Westinghouse
Model	WRI814BB
Installation Type	Under Cabinet
Width	30 inches (76.2 cm)
Depth	19 inches (48.3 cm)
Height	6 inches (15.2 cm)
Weight	25 lbs (11.3 kg)
Power Supply	120 V, 60 Hz, 5 A
Fan Speeds	3 speeds
Airflow Capacity	400 CFM
Noise Level (Max)	65 dB
Lighting	2 x 20W Halogen bulbs
Control Type	Push button
Grease Filter Type	Aluminum mesh, dishwasher safe
Ducting	6 inch round (vertical or horizontal)
Recirculation Option	Yes (charcoal filter required)
Maintenance	Clean grease filters monthly; replace charcoal filters every 6 months
Safety Features	Thermal overload protection
Spare Parts	Filters, bulbs, fan motor available from Westinghouse
Energy Star Certified	Yes
Warranty	1 year limited

Frequently Asked Questions - WRI814BB WESTINGHOUSE

What are the dimensions of the Westinghouse WRI814BB range hood?

The range hood measures 30 inches wide, 19 inches deep, and 6 inches high.

How do I clean the grease filters?

The aluminum mesh filters are dishwasher safe. Remove them and wash with mild detergent, or soak in hot soapy water and scrub gently.

Can this range hood be used in recirculation mode?

Yes, it can be used in recirculation mode with charcoal filters (not included). Install charcoal filters to capture odors, and replace every 6 months.

What type of bulbs does the range hood use?

It uses two 20W halogen bulbs. Ensure the hood is disconnected from power before replacing.

How do I install the range hood?

Installation is standard under-cabinet. Secure the hood to the cabinet above with screws, connect ductwork or install charcoal filters for recirculation, and wire to 120V power. Refer to the manual for detailed steps.

What is the maximum noise level?

The noise level is up to 65 dB on the highest fan speed.

How often should I replace the charcoal filters?

Charcoal filters should be replaced every 6 months or more frequently if the hood is used heavily.

What is the warranty period?

WESTINGHOUSE offers a 1-year limited warranty covering defects in materials and workmanship.

Can I duct the hood horizontally or vertically?

Yes, the 6-inch round duct can be configured for vertical or horizontal exhaust. Choose the best route for your kitchen.

How do I reset the thermal overload protection?

If the hood shuts off due to overheating, wait for it to cool down. The thermal overload will reset automatically. Ensure proper ventilation and clean filters to prevent recurrence.

USER MANUAL WRI814BB WESTINGHOUSE

Line drawing of a three-panel appliance cabinet with handles and mounting holes (no text or symbols)

WELCOME TO WESTINGHOUSE

Thank you for purchasing a Westinghouse appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Westinghouse.

LEGEND

The symbols you will see in this booklet have these meanings:

WARNING!

This symbol indicates information concerning your personal safety

CAUTION!

This symbol indicates information on how to avoid damaging the rangehood

IMPORTANT!

This symbol indicates tips and information about use of the rangehood

ENVIRONMENT!

This symbol indicates tips and information about economical and ecological use of the rangehood

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments
• Farm houses
• By clients in hotels, motels and other residential type environments
• Bed and breakfast type environments.
  • Catering and similar non-retail applications

CONTENTS

3 Important safety instructions
4 Installation
6 Operation and maintenance
7 Warranty

RECORD MODEL AND SERIAL NUMBER HERE:

Model:

Serial No:

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

SAFETY INSTRUCTIONS

Please read this manual carefully prior to installing and using the rangehood in order to avoid damage or injury. The manufacturer will not accept liability for damage caused from not following these instructions. If you need assistance contact Customer Care. Please keep the manual for future reference and pass it on to any new owners of the appliance.

ENVIRONMENT!

Remove and discard any packaging material before using this accessory. Most of the packaging materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in the appropriate collection containers.

WARNING!

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Ensure the rangehood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
• Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
• Do not flambe or have an exposed flame under the rangehood.
  • This rangehood is not recommended for barbecues.
• The exhaust air from the rangehood must not be discharged into any heating flue, which may carry combustion products from other sources.
• Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
• There must be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• Always cover lit gas burners with pots or pans when the rangehood is in use.
• Always switch off gas burners before you remove pots or pans.
• Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

CAUTION

• Accessible parts may become hot when used with cooking appliance.
• Regulations concerning the discharge of air have to be fulfilled.
• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Cleaning

• Wipe the rangehood body and flue with a sponge or soft cloth soaked in warm soapy water, and dry with a soft cloth, for stainless steel models apply a stainless steel protector. Donot use oven cleaners or other abrasive materials.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.

Electrical Connection

• Check that the mains voltage matches with the voltage on the data plate inside the rangehood.
• Check that the installation complies with standards of local gas and electricity authorities.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agehor a similarly qualified person in order to avoid a hazard.
• This appliance has a 1.2m power cord and 10A plug, ensure that the plug is accessible after installation.

Accessories

• Use 150mm round exhaust ducting for best performance.
• When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
• Try to keep exhaust duct short and straight.
• Keep bends in the exhaust duct to a minimum.
• Do not restrict exhaust duct.
• Reducing the size of the exhaust duct will reduce the airflow of the rangehood. Please read instructions carefully. Service calls resulting from incorrect installation will be charged for.

Installation must comply in all respects with your gas and electrical authorities. This rangehood is an indoor domestic appliance, and has been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 60335.2.31

INSTALLATION

Standard ducting installation

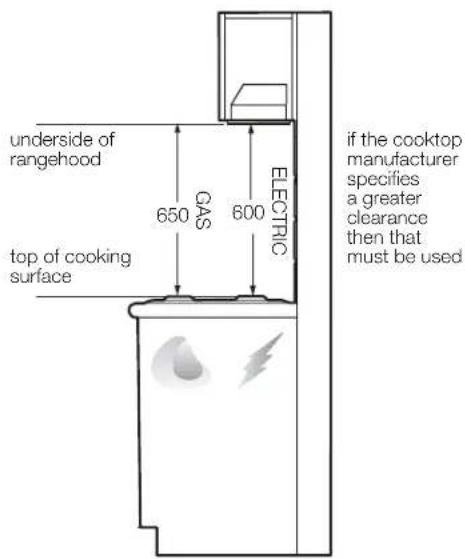

It is recommended that the unit be positioned at a minimum of 600mm for an electric cooktop and 650mm for a gas cooktop, and no further from the cooktop than 800mm. The unit becomes less effective as the distance from the cooking surface to the rangehood increase.

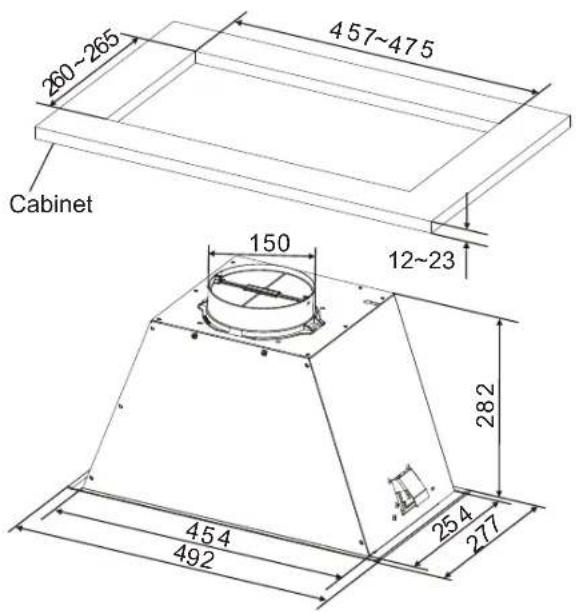

Fixing point dimensions - WRI514BB

WARNING!

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

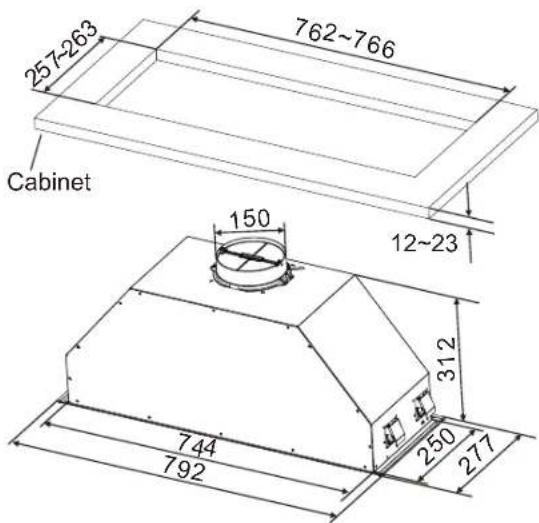

Fixing point dimensions - WRI814BB

Parts supplied with hood

1 x ∅ 150mm air outlet
1 x ∅ 150-120mm reducer
2 x self tapping screws 3.5 x 12mm

Parts to be purchased

• Aluminium tape or cable ties to secure flue pipe
• Ducting acce ssories

Cutting the cabinet

Cut the slot in the cabinet according to the fixing point dimension.

Fixing the air outlet

Use screws to fix the air outlet to the rangehood.

Fixing the rangehood

Fix the rangehood to the cabinet from bottom side until you hear the 'click' sound.

INSTALLATION

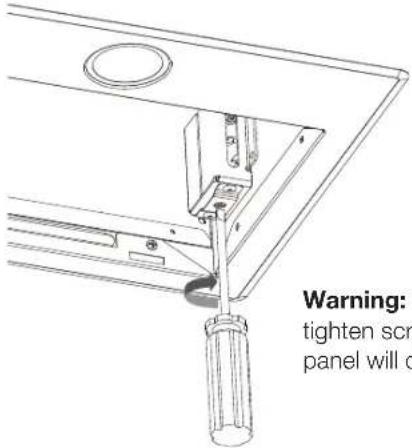

Fastening the fasteners

Fasten the fasteners by turning the screw clock-wise.

Warning: Do not over tighten screws or fascia panel will deform.

Fixing the flue pipe

Fix a ∅ 150mm, non-combustible, rigid flue pipe to the exhaust transition duct using cable ties or duct tape.

Diagram of a cylindrical object with a mesh pattern placed on a base, no text or symbols present.

i IMPORTANT!

Where required and when using semi-rigid duct always install duct with smooth bends to minimise pressure loss.

* For best performance use ∅150mm flue, smaller diameter flue will reduce airflow and increase noise level.

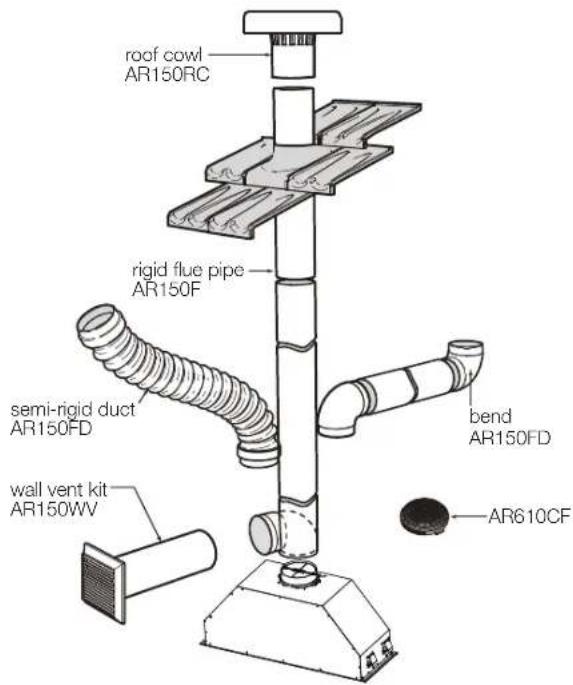

Ducting accessories

Accessories can be bought from your local appliance retailer, or in Australia at our online spare parts and accessories store: shop.electrolux.com.au

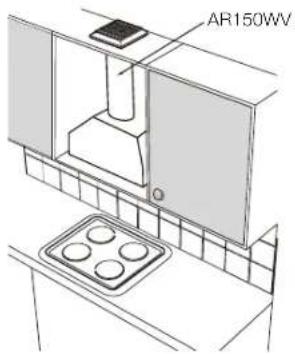

Ducted recirculating installation

Technical line drawing of a kitchen appliance with a tray holding four circular indentations and a door labeled AR150WV (no text or symbols on the diagram itself)

Optional carbon filters(AR610CF) diminish cooking odours in the recirculated air. Depending on the frequency of use and the type of cooking, the expected life of carbon filters is 3 months. Using carbon filters will reduce the airflow of the rangehood.

Please install the carbon filters as following picture shows. For WRI514BB, turn the carbon filters clockwise, For WRI814BB, turn the carbon filters anti-clockwise.

Technical line drawing of a washing machine with internal components and mounting holes (no text or symbols)

Turing on/off the lamp

Press button ⚙ to turn on the lamp, press ⚙ once again to turn off the lamp.

Speeds

Speed 1: light frying/boiling

Speed 2: frying/wok cooking/heavy boiling

Speed 3: grilling, intensive frying and wok cooking

Press any fan level button to turn on required fan level. Press once again to turn off the fan. Or press other fan level button to change the fan level.

Delay end

When the rangehood is working at any fan level, press buttortoactivate delay end function and button will begin to flash. After 5 min, The cooker hood will be switch off automatically. Press this button once again will deactivate delay end function.

NOTE: Delay end function is only for the fan motor. You need to turn off the lamp manually.

Filter check

When the motor on time reaches 50 hours, the lamp control button will flash when the cooker hood is on. press and hold lamp control button for 3 sec to stop the flashing and reset the time counter.

Maintenance

WARNING!

• Before maintenance or cleaning is carried out, the rangehood should be disconnected from the main power supply. Ensure that the rangehood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.

• Do not change the light bulb or carry out maintenance immediately after use as the bulb and the rangehood maybe hot. Allow it to cool first.

• Use both hands for removing and re-fitting the filter to avoid accidentally dropping the filter on to your cooktop or kitchen bench.

• Take care of sharp edges during installation, maintenance and cleaning. When the filters, light cover or fascia panel are removed, wear gloves for protection.

Cleaning steel surface

Clean stainless steel surfaces using non-abrasive cleaning products that are specifically for use on stainless steel.

To ensure best results also use an even pressure and follow the grain of the stainless steel. Use of a soft cloth reduces the risk of scratching. If the cloth is wet ensure that a dry soft cloth is used to wipe down the surface again reducing the risk of any surface rot appearing.

Cleaning grease filters

The filters must be cleaned at least once every month, more frequent cleaning may be required depending on cooking habits and styles.

Clean the filters using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. The openings must be placed downwards to let the water run out of the filters. The cleaning agents will make the aluminium filter turn dull, this is normal.

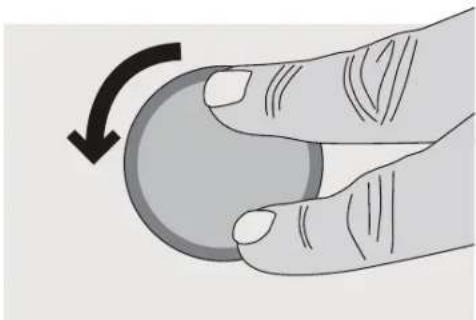

Replacing the lamp

Ensure lamp is cool before removing.

To remove the lamp, apply pressure to the lamp and turn anti-clockwise to unscrew and remove. Replace the lamp with one of similar type and voltage. Use only with self-shielded LED lamps.

Illustration of a finger pressing a button with a curved arrow indicating rotation (no text or symbols)

Suitable lamp for replacement

GU10 3.5W -> DBR-3.5-H-GU10-50/53

Picture of lamp:

Condensation on rangehood surfaces

In some applications customers using induction cooktops may experience condensation forming on surfaces of the rangehood. Some conditions may contribute to the formation of condensation such as;

• Room temperature and humidity
• Installation height of rangehood above the cooktop
• Size and type of cookware used.
• How the induction cooktop is used
- Incorrect flue diameter (i.e. too small), flue length too long, too many bends in flue.

Some methods to reduce the occurrence of condensation are;

1. Use the right speed according to the type of ooking;

a. Speed 1: light frying/boiling
b. Speed 2: frying/wok cooking/heavy boiling.
c. Speed 3: grilling, intensive frying and wok cooking

1. Before you start cooking, switch on the range hood at minimum speed, to control moisture and remove cooking odour;

2. Increase the range hood speed only when the amount of vapor makes it necessary; (i.e., increase fan speed as more steam is generated)

3. Use boost speed only when it is strictly necessary.

4. Use pot lid when boiling to control moisture.

5. If the cooking zones of the induction cooker allows, choose the smallest pot practicable for cooking.

6. Keep range hood filter(s) clean to optimize grease and odour efficiency.

NOTES

NOTES

NOTES

This document sets out the terms and conditions of the product warranties for Westinghouse Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) 'ACL' or 'Australian Consumer Law' means Schedule 2 to the Competition and Consumer Act 2010;
(b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;
(c) 'ASC' means Electrolux's authorised serviced centres;
(d) 'Westinghouse' is the brand controlled by Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(e) 'Warranty Period' means the period specified in clause 3 of this warranty;
(f) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.

2. Warranty Period: Subject to these terms and conditions, this warranty continues for in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.

3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

4. Travel and transportation costs: Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

5. Proof of purchase is required before you can make a claim under this warranty.

6. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

(a) light globes, batteries, filters or similar perishable parts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmetic damage which does not affect the operation of the Appliance;

(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced

1. How to claim under this warranty: To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

3. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

AUSTRALIA	FOR SERVICEor to find the address of your nearestauthorised service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call	FOR SPARE PARTSor to find the address of your nearestspare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call
NEW ZEALAND	FOR SERVICEor to find the address of your nearestauthorised service centre in New ZealandPLEASE CALL 0800 10 66 10	FOR SPARE PARTSor to find the address of your nearestspare parts centre in New ZealandPLEASE CALL 0800 10 66 20

For more information on all Westinghouse appliances, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website:

AUSTRALIA

phone: 13 1349

email: [e-mail]

web: westinghouse.com.au

NEW ZEALAND

phone: [phone]

email: [e-mail]

web: westinghouse.co.nz
