USER MANUAL WRJ903UK WESTINGHOUSE

Universal Cooker Hood Installation and Operation Manual

The instructions in this manual are for cooker hood models:

WRJ903U, WRJ600U, WRJ603U, WRJ611U, WRJ900U, WRJ911U, RHN6, RHN9, RFD602W, RFD602S, RFD902W, RFD902S

These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand

Standard AS/NZS 3350.2.31.

These appliances are intended to be used in household and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments

Farm Houses

-By clients in hotels, motels and other residential type environments

-Bed and breakfast type environments

Safety Warning

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
➢ Ensure the cooker hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
Do not flander the cooker hood.
This cooker hood is not recommended for barbeques.
The exhaust air from the cooker hood must not be discharged into any heating flue, which may carry combustion products from other sources.
Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
Always cover lit gas burners with pots or pans when the cooker hood is in use.
Always switch off gas burners before you remove pots or pans.
CAUTION: Accessible parts may become hot when used with cooking appliance.
Regulations concerning the discharge of air have to be fulfilled.

Cleaning

Wipe the cooker hood body and flue with a sponge or soft cloth soaked in warm soapy water. Do not use oven cleaners or other abrasive materials.

Electrical Connection

• Check that the mains voltage matches with the voltage on the data plate inside the cooker hood.
  Check that the installation complies with standards of local gas and electricity authorities.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Accessories

Use 125mm round exhaust ducting for best performance.
When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
Try to keep exhaust duct short and straight.
Keep bends in the exhaust duct to a minimum.
Do not reduce the size or restrict exhaust duct.

Ducting Accessories Roof cowl AR125RC Flue 1200mm length AR125F Flashing Not Supplied 90 bend AR125B Flue Flue joiner -plain AR125FJ -damper AR125FJD Alternative flue connection 1 metre flexible duct with joiners AR125FD Flue collar 1 supplied with hood Wall vent (includes 400mm of flue) AR125WV

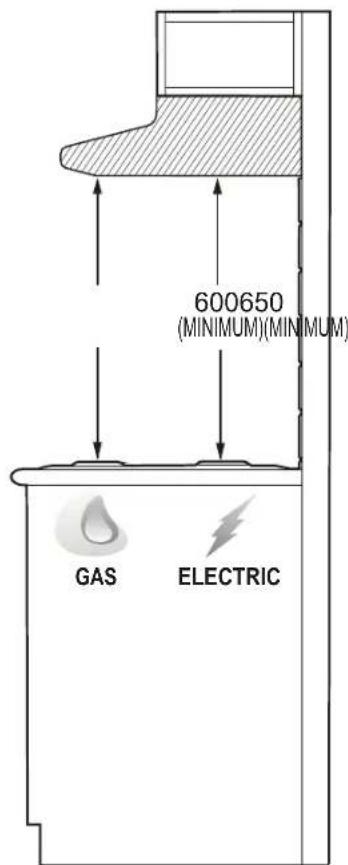

600650 (MINIMUM)(MINIMUM) GAS ELECTRIC

Stainless Steel Models

Before installing the cooker hood, remove all protective plastic covering from stainless steel surfaces.

Use at least 4 screws (not provided) and the mounting holes provided to securely mount the cooker hood. Make sure that the cooker hood is level and free from twist.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

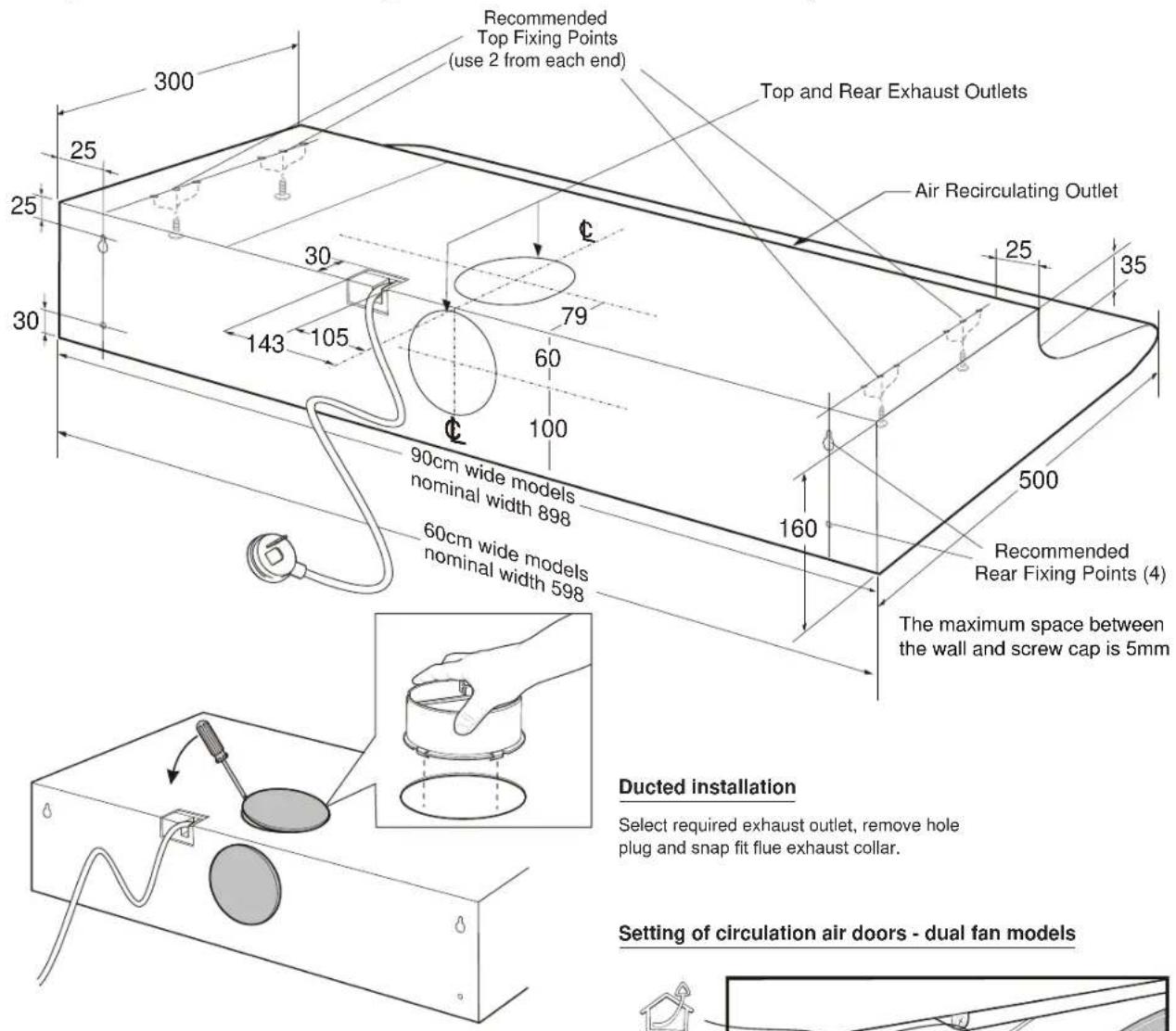

Recommended Top Fixing Points (use 2 from each end) Top and Rear Exhaust Outlets Air Recirculating Outlet 300 25 25 30 143 105 79 60 100 90cm wide models nominal width 898 60cm wide models nominal width 598 500 160 The maximum space between the wall and screw cap is 5mm Recommended Rear Fixing Points (4) Ducted installation Select required exhaust outlet, remove hole plug and snap fit flue exhaust collar. Setting of circulation air doors - dual fan models

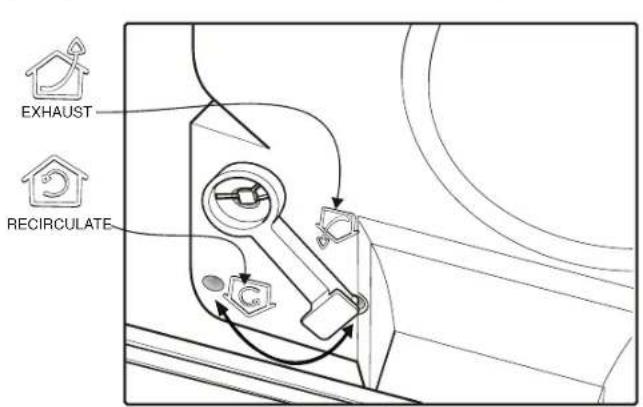

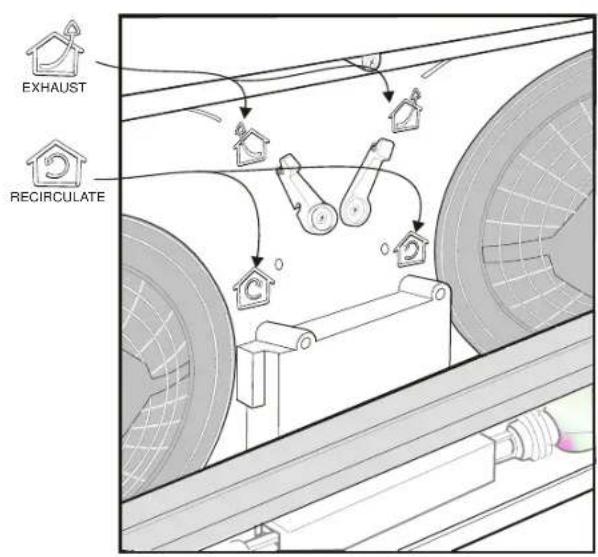

Setting of circulation air door - single fan models

EXHAUST RECIRCULATE

EXHAUST RECIRCULATE

IMPORTANT: SET CIRCULATING MODES BEFORE INSTALLING THE HOLE PLUGS.

Cooker Hood Operation

IMPORTANT: The Edison Screw lamps may have come loose during transportation. Ensure that lamps are tightened firmly into the socket before power is applied.

Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. It should be left on after cooking for about 15 minutes or until all odours have disappeared.

Line drawing of a computer rear panel with ventilation slots and two buttons (no text or symbols)

Line drawing of a portable electronic device with ventilation slots and control buttons (no text or symbols)

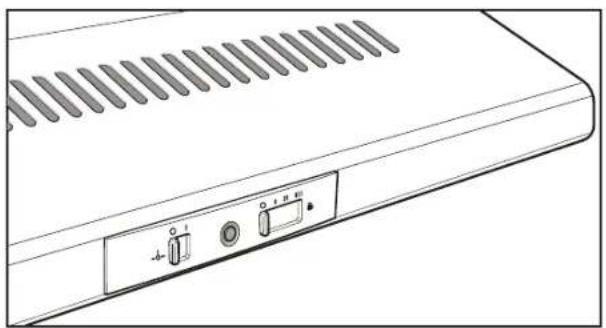

Slide switch controls Press button switch controls

Light switch: This switch is used to turn the light fitted in the hood on and off.

Extractor fan switch: Used to select fan speeds

Slide position I: Fan speed Lo.

Slide position II: Fan speed Med.

Slide position III: Fan speed High.

Light switch: Depress light button to turn light ON. Press light button to turn light OFF.

Extractor fan switch interlocked switching: Select a fan speed, depress button to turn fan ON. Press button (O) to turn fan OFF.

Replacing lamps:

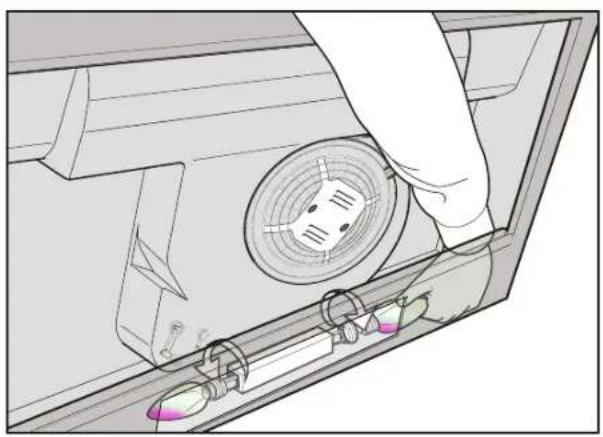

Ensure the appliance is switched off before carrying out maintenance, to avoid any possibility of electric shock. Remove grease filter to replace lamp. Replace with 40W (maximum) E14 candle lamp.

Illustration of a hand holding a circular component with internal components, no text or symbols visible

Maintenance:

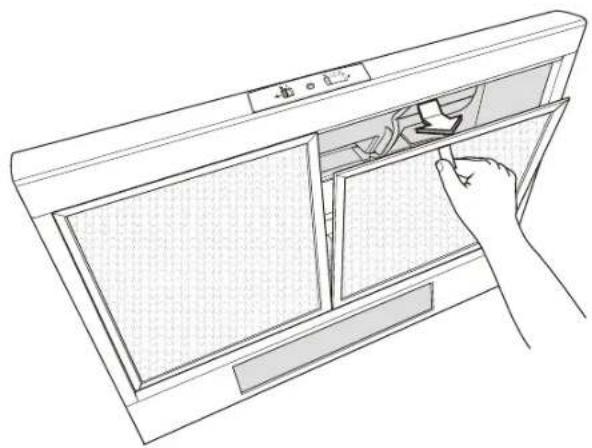

Clean grease filters every three to four weeks maximum. Greasy filters are a fire risk.

Remove the grease filters, soak and agitate in hot soapy water. Rinse, drain and shake well before replacing filters.

Do not use oven cleaners or other caustic materials.

Line drawing of a hand inserting a fan into a door panel (no text or symbols)

Diagram of a mechanical device showing two wheels and a central gear mechanism (no text or symbols)

Recirculating accessory:

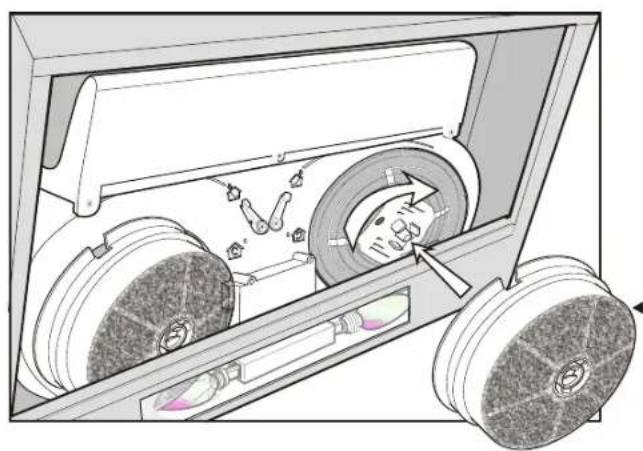

Optional carbon filter ARCFD for recirculating mode only.
