| Product Type | Clear Ice Machine (Built-In Undercounter) |
| Model | 3018CLR (Modular 3000 Series) |
| Dimensions (W x H x D) | 17.5" x 34" x 24" (444 mm x 864 mm x 610 mm) |
| Cutout Dimensions (W x H x D) | 17.5" x 34" x 24" (min) |
| Weight (approx.) | 80 lbs (36 kg) |
| Electrical Requirements | 115 VAC, 60 Hz, 15 A (grounded, polarized) |
| Water Supply | 1/4" compression fitting, cold water, 20-120 psi (138-827 kPa) |
| Drain Type | Gravity drain (or optional P60 drain pump for up to 10 ft lift) |
| Ice Type | Clear, crescent cubes (32 cubes per harvest) |
| Ice Production Rate | ~15-20 minutes per cycle (factory default thickness) |
| Ice Bin Storage | Approximately 25 lbs (11 kg) capacity |
| Control System | OLED display with U-Select® control, customer/service menu |
| Lighting | Adjustable LED (low/medium/high) |
| Operating Temperature Range | 50°F – 100°F (10°C – 38°C) |
| Installation Type | Built-in indoor only (not behind closed door) |
| Grille Type | Integrated/overlay compatible, adjustable height and depth |
| Door Swing | 115° (factory), optional 90° stop pin |
| Cleaning | Automatic clean cycle; use U-Line Ice Machine Cleaner (Part 37050) |
| Condenser Cleaning | Every 6 months (vacuum/soft brush) |
| Safety Features | Anti-tip bracket, electrical grounding, Sabbath mode, child entrapment prevention |
| Warranty | 1 year parts & labor (with optional 2nd year), 5 years sealed system |
Frequently Asked Questions - 3018CLR U-Line
User questions about 3018CLR U-Line
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ice cream maker in PDF format for free! Find your manual 3018CLR - U-Line and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 3018CLR by U-Line.
USER MANUAL 3018CLR U-Line
USER GUIDE & SERVICE MANUAL
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Modular 3000 Series • 3018CLR • 18" Clear Ice Machine
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Tip: Click on any section below to jump directly there
Contents
Intro
Cleaning Condenser
Extended Non-Use
Safety
Safety and Warning
Disposal and Recycling
Service
Troubleshooting
Warranty
Installation
Environmental Requirements
Electrical
Cutout Dimensions
Product Dimensions
Side by Side Installation
Water Hookup
Drain
Drain Pump
Anti-Tip Bracket
General Installation
Integrated Grille / Plinth Dimensions
Grille / Plinth Installation
Door Stop
Door Adjust
Service Extended
Wire Diagram
Product Liability
Warranty Claims
Parts
Ordering Replacement Parts
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Quick Guide
Thermistor
Defrost
Operating Instructions
First Use
Control Operation
Ice
Sabbath Mode
Airflow and Product Loading
Maintenance
Cleaning
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line's complete product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations and attention to even the smallest details. We are known and respected for our unwavering dedication to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over two decades and is proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following steps:
- U-Line Customer Care must be contacted immediately at +1.800.779.2547.
- Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
F: +1.414.354.7905
Email: sales@u-line.com
u-line.com
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.800.779.2547
F: +1.414.354.5696
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
CONNECT WITH US
Designed, engineered and assembled in WI, USA
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing, operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow these general precautions with those listed throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety statement will result in severe personal injury or death.
WARNING
Warning means that failure to follow this safety statement could result in serious personal injury or death.
CAUTION
Caution means that failure to follow this safety statement may result in minor or moderate personal injury, property or equipment damage.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Disposal and Recycling
DANGER
RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside.
If the unit is being removed from service for disposal, check and obey all federal, state and local regulations regarding the disposal and recycling of refrigeration appliances, and follow these steps completely:
- Remove all consumable contents from the unit.
- Unplug the electrical cord from its socket.
- Remove the door(s)/drawer(s).
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Environmental Requirements
This model is intended for indoor/interior applications only and is not to be used in installations that are open/exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit's ability to reach low temperatures and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct sunlight and away from heat generating equipment.
In climates where high humidity and dew points are present, condensation may appear on outside surfaces. This is considered normal. The condensation will evaporate when the humidity drops.
CAUTION
Damages caused by ambient temperatures of 40^ F ( 4^ C) or below are not covered by the warranty.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Electrical
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing power plug, or direct wiring can cause serious injury, fire, loss of property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and local codes. This unit requires connection to a grounded (three-prong), polarized receptacle that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A power supply (normal household current). An individual, properly grounded branch circuit or circuit breaker is recommended. A GFCI (ground fault circuit interrupter) is usually not required for fixed location appliances and is not recommended for your unit because it could be prone to nuisance tripping. However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle location.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed exclusively for a built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed.
The product is designed and manufactured for seamless integration in the specified cutout opening shown, which requires precise measurements. The opening must be square and plumb front to back. Although not required, you may choose to increase the overall cutout width for ease of installation.
The Modular 3000 Series units are engineered with a variety of adjustment features to help ensure a seamless installation. Adjustable doors, leveling legs and grille will assist in fine tuning the installation.
All 3000 Series models fully integrate into overlay/face frame, inset or European/frameless cabinet styles and install seamlessly into standard 24" (610 mm) depth cabinet base.
CAUTION
Unit can NOT be installed behind a closed cabinet door.

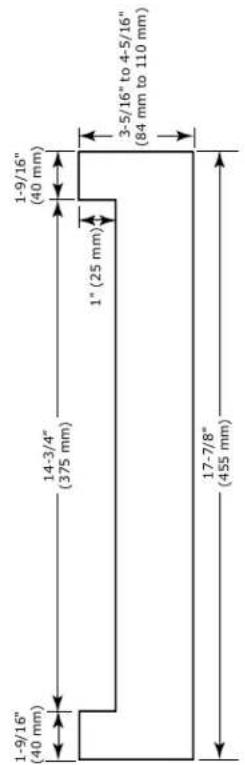

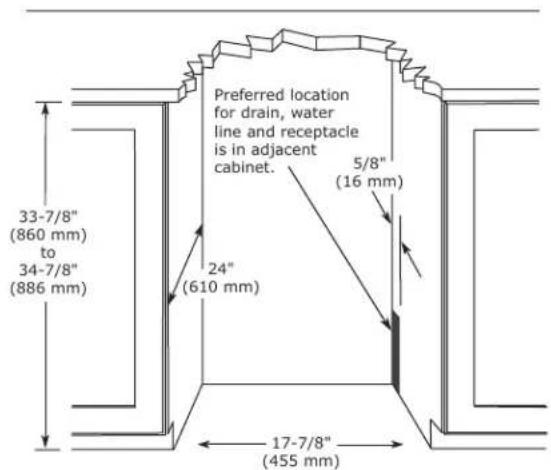

CUTOUT DIMENSIONS
Metric measurements rounded and optimized.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

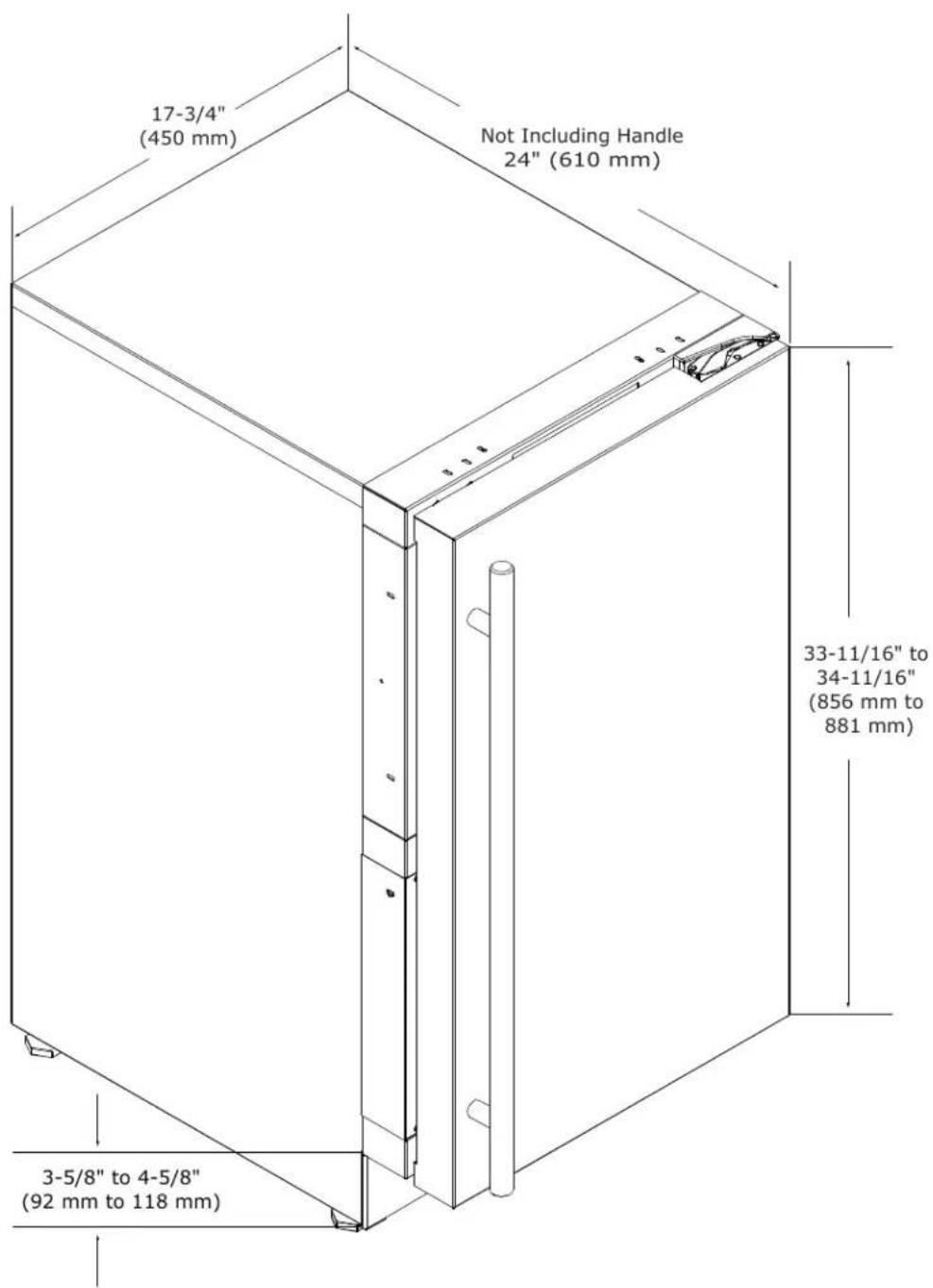

Product Dimensions
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded electrical receptacles placed according to each unit's electrical specifications requirements.

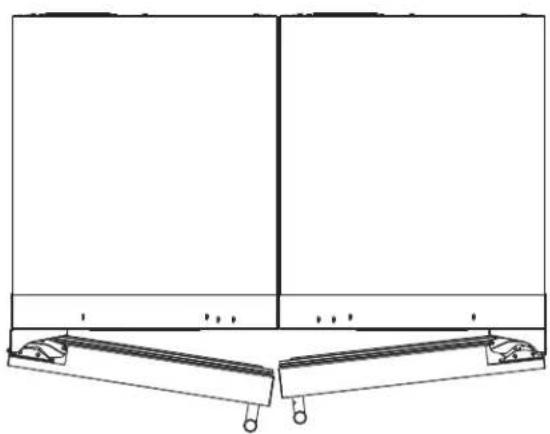

Cutout width for a side-by-side installation is the total of the widths listed under Cutout Dimensions in each unit's Installation Guide. Each door can be opened individually (one at a time) without interference.


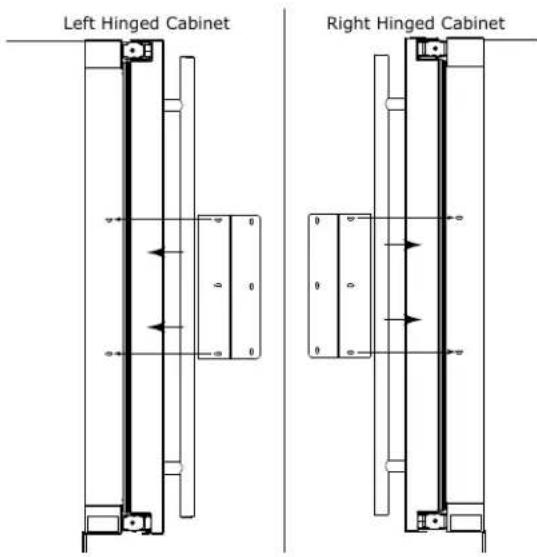

Pure technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)However, to ensure unobstructed door swing (opening both doors at the same time), 1/4" (6.4 mm) of space needs to be maintained between the units.
Hinge-by-Hinge Installation (Mullion)

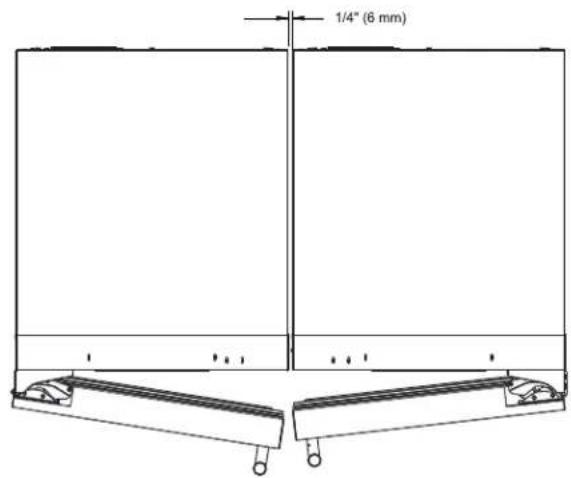

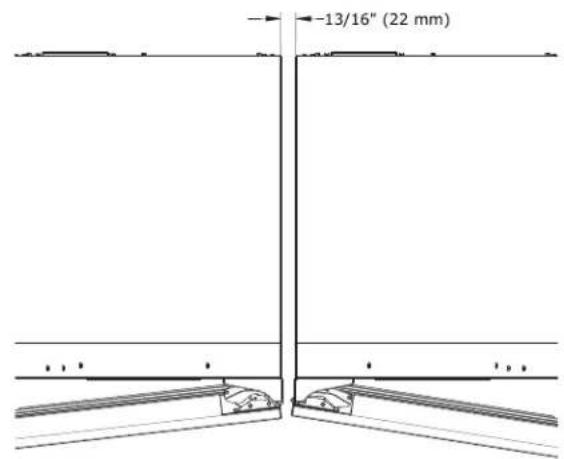

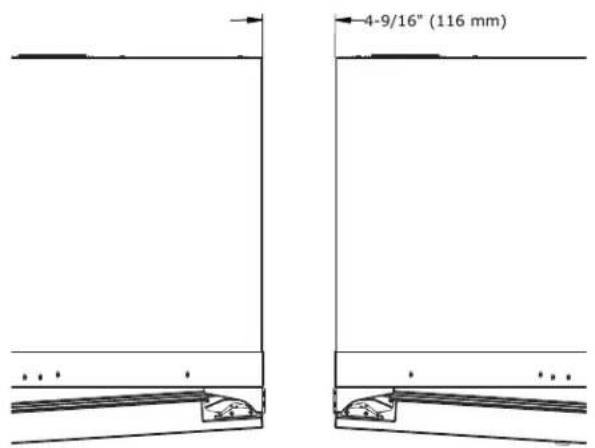

When installing two units hinge-by-hinge, 13/16" (22 mm) is required for integrated models. Additional space may be needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless handle will require 4-9/16" (116 mm) to allow both doors to open to 90° at the same time.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Water Hookup
PREPARE PLUMBING
The water valve uses a standard 1/4" (6.35 mm) compression fitting. A 10' (3 m) braided flexible water supply line is included with the unit.
WARNING
Prior to installation, determine if this product contains a gravity style drain or factory installed drain pump. Products without a drain pump may only use a gravity style drain. Failure to connect water supply or drain line connections properly may result in water leakage, personal injury, and/or property damage. Disconnect power and turn off water to the unit before attempting to alter these connections. These connections are the responsibility of the owner and must be connected per local plumbing code. If you are uncertain of how to safely and properly install this product, contact a licensed plumber.
Water Supply Connection
WARNING
Connect to potable water supply only.
CAUTION
Review, obey, and understand the local plumbing codes before you install your unit. Connect to the cold water supply. The water pressure should be between 20 and 120 psi (138 and 827 kPa). The water line MUST have a shut-off valve on the supply line.
CAUTION
Do not use any plastic water supply line. The line is under pressure at all times. Plastic may crack or rupture with age and cause damage to your home.
Do not use tape or joint compound when attaching a braided flexible water supply line that includes a rubber gasket. The gasket provides an adequate seal – other materials could cause blockage of the valve.
Failure to follow recommendations and instructions may result in damage and/or harm, flooding or void the product warranty.
CAUTION
Turn off water supply and disconnect electrical supply to unit prior to installation.
Use caution when handling back panel. The edges could be sharp.
-
Turn off water supply and disconnect electrical supply to product prior to attempting installation.
-
Remove the grille/access panel in the front and the back panel.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
- Locate water valve in the front of the unit and thread water supply line through.


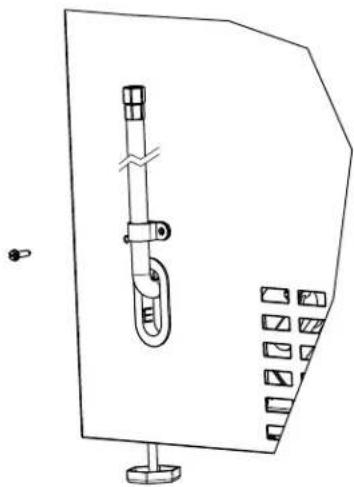

Technical line drawing of a mechanical device interior (no text or symbols)NOTICE
Route the water supply line through the unit so it does not come into contact with any internal components other than the solenoid valve. Normal operation creates some vibration. A water supply line contacting an internal component or cabinet wall can cause excessive noise during operation or damage to the line.
- On the back panel, break away filler feature in bushing with flat screwdriver.
- Thread water line through back panel hole (with bushing) and connect to cold water supply line.
Turn on water supply and check for leaks.
-
Reinstall back panel and grille/front access panel.
-
Install retaining clip.


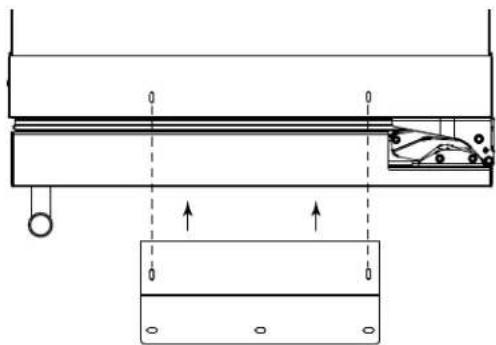

Technical line drawing of a mechanical clamp device with mounting base (no text or symbols)SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Drain
Model numbers including "-00" or "-07" do not include a factory installed drain pump.
Model numbers including "-40" or "-47" include a factory installed drain pump.
DRAIN CONNECTION
CAUTION
If your U-Line unit did not come with a factory installed drain pump you must use a gravity style drain connection. For assistance in determining if your unit has a pump please contact U-Line. The floor drain must be large enough to accommodate drainage from all attached drains. Follow these guidelines when installing drain lines to prevent water from flowing back into the ice maker storage bin and/or potentially flowing onto the floor, which may result in personal injury or property damage.
NOTICE
Drain can NOT be located directly below the unit. Unit has a solid base that will not allow the unit to drain below itself.
There is a possibility that hose connections may have loosened during shipment.
Verify all connections and fittings are free from leaks.
GRAVITY DRAIN
A gravity drain may be used if:
Drain line has at least a 1" drop per 48" (approximately 2 cm drop per 100 cm) of run.

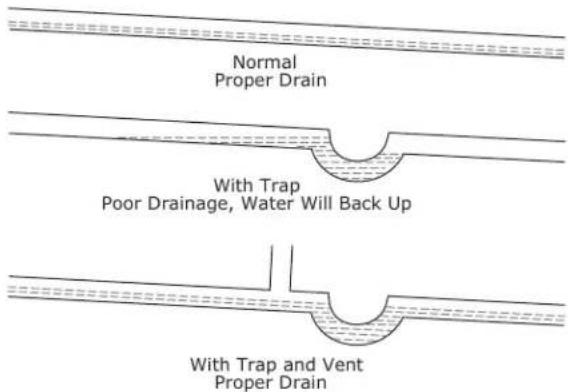

Drain line does not create traps and is vented per local code.
- Cut the pre-installed drain tube to length.
- Connect to your local plumbing per the local code.
- If necessary, insulate drain line to prevent condensation.
CAUTION
Failure to connect water supply or drain line connections properly can result in personal injury and property damage. Gravity drain connections must be routed downward from the rest of the unit at the rate of 1/4" per foot (1 cm per 50 cm).
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
FACTORY INSTALLED DRAIN PUMP
If your drain line will run up to a stand pipe, disposal or spigot assembly, or does not otherwise meet the requirements for a gravity drain, you may have ordered a pre-installed U-Line P60 drain pump.
If you need to install a P60 drain pump into your unit, see DRAIN PUMP section in the User Manual.

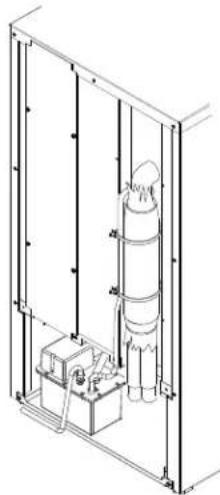

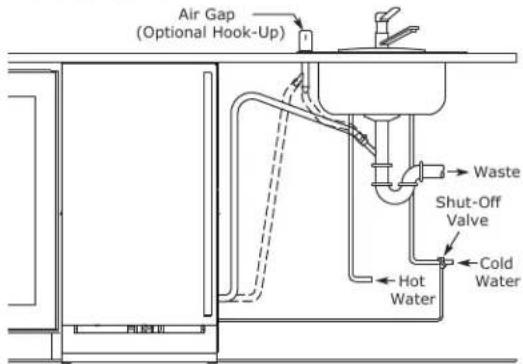

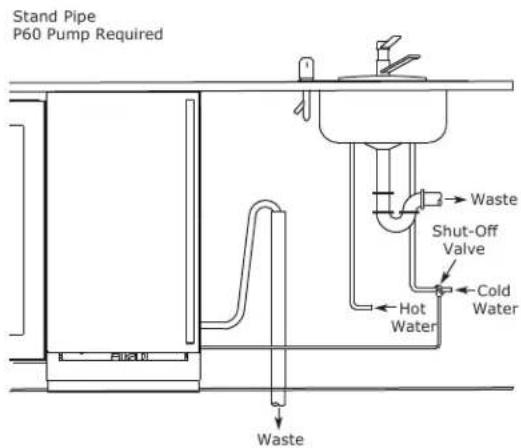

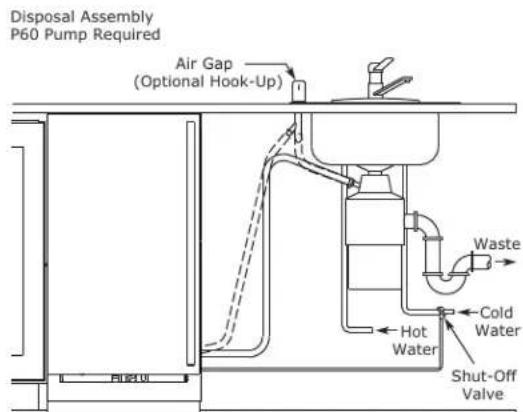

See below for typical installations requiring a drain pump.
Y-Branch Tailpiece P60 Pump Required
NOTICE
The maximum lift for the P60 drain pump is 10 feet. This must be done as close to the rear of the unit as possible.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Drain Pump
NOTICE
PLEASE READ this instruction completely before attempting to install or operate the unit. Improper hook-up can result in substantial property damage! If you are unsure of your ability to safely connect the drain pump to the unit, consult a licensed plumber for assistance. Use these instructions to install the U-Line P60-00 drain pump in the U-Line Clear Ice Machine (unit). The drain pump should be installed before installing the unit.

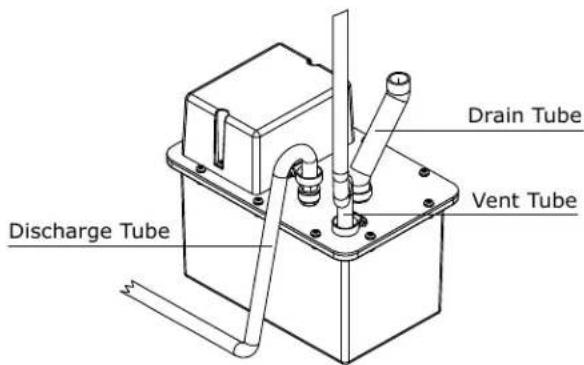

- The U-Line P60-00 drain pump is designed to be used exclusively on the U-Line Clear Ice Machine and is UL recognized only for use on the U-Line Clear Ice Machine.
- U-Line Corporation assumes no warranties or responsibility, whether express or implied, if the P60-00 drain pump is used on another ice machine or product for which it is not UL recognized or listed.
- Modification of the P60-00 drain pump will void all warranties.
NOTICE
Keep your proof of purchase for warranty purposes.

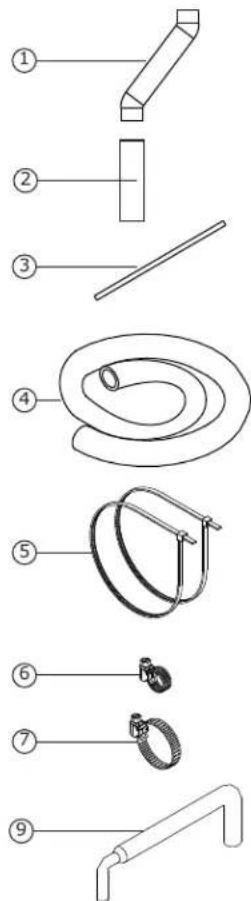

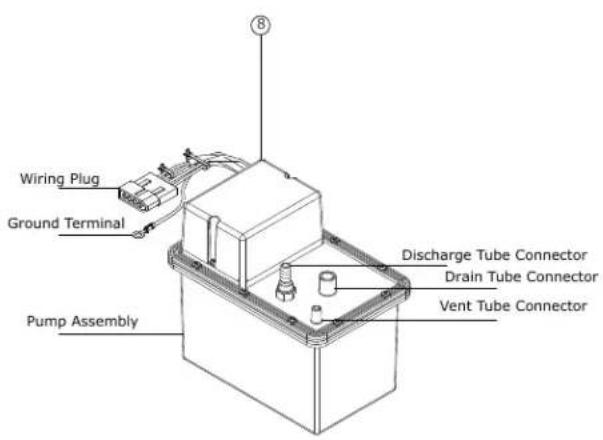

INCLUDED IN KIT:
- 1x S-shaped Drain Tube
- 1x Straight Drain Tube (Not used)
-
1x Vent Tube
-
1x Braided Discharge Tube (Not included in pump kit. Ice Machine ships with discharge tube installed.)
-
2x Vent tube Zip Ties
-
2x Small Worm Gear Clamps
-
1x Large Worm Gear Clamp
-
1x P60 Pump
-
1x Discharge Tub (Used on older models only)
TOOLS REQUIRED:
• 1/4" x 6" Blade Screwdriver
- Adjustable Pliers
- 1/4" Nut Drive
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
INSTALLATION PROCEDURE
WARNING
To prevent accidental electrocution, make certain that the floor surfaces surrounding the unit are dry whenever power/electricity is removed from, or applied to the unit.
- Disconnect your unit from its electrical outlet/socket.
- Using a screwdriver or 1/4" nut driver, remove the 9 screws from the back panel.
- Remove the drain line/pipe from the storage bin drain nipple. Save the clamp for pump installation.

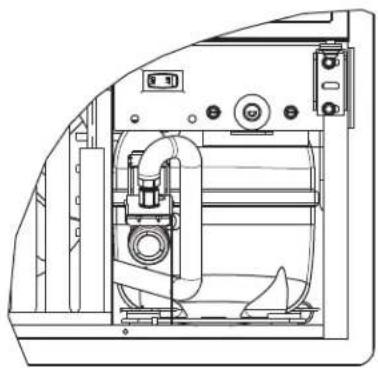

CAUTION
To prevent damage to the pump, leave sufficient space between leveling leg and pump.
- Install the 3 hoses and hose clamps to the pump assembly as shown below. Do not tighten clamps at this time.
-
Remove the protective paper from the adhesive strip and carefully set pump inside of unit.
-
Unplug jumper block from ice machine wiring harness (jumper block has a single pink wire). Discard jumper block.
- Connect pump wiring plug to the ice machine wiring harness connector, where the jumper block was removed. The connector is keyed and can only be inserted one way.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
CAUTION
When working with tools inside of unit, be careful so as not to nick or damage any refrigerant lines/pipes or wires.
WARNING
The back panel serves as a guard. Do not put your hands inside the ice machine cabinet or attempt to touch any components except the discharge tube during testing.
CAUTION
Failure to properly secure the vent tube will result in water damage to the unit and surrounding areas. Do not allow vent tube to kink, bend or be obstructed in any way.
CAUTION
Vent tube must be straight and parallel to insulated tubes. Do not over-tighten the plastic tie wraps. Over-tightening can pinch vent tube closed or cut into insulation.
-
Route the vent tube up the back of the unit, next to the insulated tubes. Secure vent tube vertical to the insulated tubes using plastic tie wraps.
-
Connect pump drain tube to storage bin drain nipple with clamp removed from step 3. Ensure that no kinks are present in the tube.
-
Tighten the clamps on the drain, discharge, and vent tubes with a screwdriver or 1/4" nut driver.
Note: The discharge tube will need to be trimmed. Cut back the tube (MAX of 1/4" on each end) so that no kinks are formed in drain tube.
Anti-Tip Bracket
CAUTION
The anti-tip bracket must be installed to prevent the unit from tipping when doors are fully opened or excess weight is placed on the front of the unit.
The anti-tip bracket has multiple mounting options. Mounting will depend on your particular cabinet configuration. Locate 3 #8x5/8" screws included with your unit.
TOP MOUNT
-
Completely slide the unit into its position in the cabinet. Be certain unit height is properly adjusted. (See GENERAL INSTALLATION).
-
Open door completely. Make certain door clears surrounding cabinetry.
-
Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes 5/8" (16 mm) deep into bottom of counter top. Use the anti-tip bracket as a template.
-
Install 3 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
SIDE MOUNT
Side mount position is used when you are unable to mount the bracket to the underside of your countertop.
-
Remove the pre-installed anti-tip bracket from the top mount position and align the bracket to the hinge side of the unit as shown above.
-
Reinstall the 2 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
-
Completely slide the unit into its position in the cabinet. Be certain unit height is properly adjusted. (See GENERAL INSTALLATION).
-
Open door completely. Make certain door clears surrounding cabinetry.
-
Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes 5/8" (16 mm) deep into cabinetry frame using the anti-tip bracket as a template.
-
Install 3 #8x5/8" screws into the plate using a #2 Phillips head screwdriver.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
General Installation

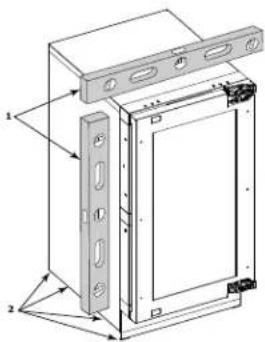

- Use a level to confirm the unit is level. Level should be placed along top edge and side edge as shown.

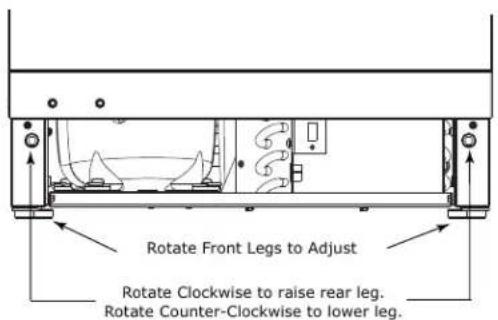

- If the unit is not level, remove grille and adjust legs as necessary. Use
included tool to adjust the height of the rear legs.
- Confirm the unit is level after each adjustment and repeat the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout opening, adjust the rear legs to achieve a total unit rear height of 1/8" (3 mm) less than the opening's rear height. Shorten the unit height in the front by adjusting the front legs. This allows the unit to be gently tipped into the opening. Adjust the front legs to level the unit after it is correctly positioned in the opening.
INSTALLATION
- Plug in the power/electrical cord.
- Gently push the unit into position. Be careful not to entangle the cord or water and drain lines.
- Re-check the leveling, from front to back and side to side. Make any necessary adjustments. The unit's top surface should be approximately 1/8" (3 mm) below the countertop.
- Install the anti-tip bracket.
- Remove the interior packing material and wipe out the inside of the unit with a clean, water-dampened cloth.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Grille - Plinth Dimensions
PREPARE AND INSTALL INTEGRATED GRILLE (PLINTH STRIP/BASE FASCIA)
- Use the dimensions provided in the diagram to cut and shape your integrated grille (plinth strip/base fascia) panel. Recommended panel thickness is between 1/4" (6 mm) and 3/8" (9 mm). Height will vary from 3-5/16" (84 mm) to 4-5/16" (110 mm) based on your grille (plinth strip/base fascia) height.
- Finish or stain your grille (plinth strip/base fascia) panel to match your surrounding furniture. Finish front, back and edges to prevent warping. Carefully follow the manufacturer's recommendations for finish application and cure times.
- Apply double sided tape to the backside of the integrated grill (plinth strip/base fascia). Use the diagram below for reference. U-Line recommends 3M ^TM VHB ^TM tape, a high strength bonding tape.
Apply Tape To Shaded Area
- Carefully align grille (plinth strip/base fascia) over integrated panel and press into position.
INTEGRATED GRILLE (PLINTH STRIP/BASE FASCIA) DIMENSIONS
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Grille - Plinth Installation
REMOVING AND INSTALLING GRILLE (PLINTH STRIP/BASE FASCIA)
WARNING
Disconnect electrical current to the unit before removing the grille (plinth strip/base fascia).
When using the unit, the grille (plinth strip/base fascia) must be installed.
Edges of sheet metal may be sharp.
Removing the grille (plinth strip/base fascia)
-
Disconnect electrical current to unit.
-

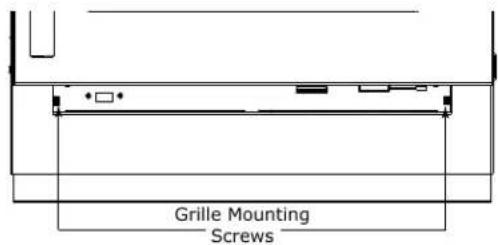

Using the included 7/64" Allen wrench, loosen (but do not remove) both grille (plinth strip/base fascia) lock screws. See below.
-
Gently pull grille (plinth strip/base fascia) away from unit until it stops.
-
Push grille (plinth strip/base fascia) rails towards the center of the unit to lift rails off lock screws.
- Pull grille (plinth strip/base fascia) free from unit.
Installing the grille (plinth strip/base fascia)
-
Align slots in grille (plinth strip/base fascia) rail with screw heads in base of unit
-
Push grille (plinth strip/base fascia) rails towards the center of the unit and set rails over screw head.
-
Slide grille (plinth strip/base fascia) into position. Using included 7/64" Allen wrench tighten grille (plinth strip/base fascia) lock screws.
The grille (plinth strip/base fascia) has an automatic vertical plane adjustment and can also be adjusted on its horizontal plane as well. To adjust your grille (plinth strip/base fascia) to match your surrounding furniture, follow the instructions below.
-
Loosen, but do not remove, the lock screws on the inside of the grille (plinth strip/base fascia) rails. Lock screws are located on the inside of each grille (plinth strip/base fascia) rail.
-
The grille (plinth strip/base fascia) can be extended horizontally by pulling out a maximum of 1-1/2" (38 mm). Do not exceed 1-1/2" (38 mm). Secure the lock screws after adjusting.
-
The grille (plinth strip/base fascia) skirt may be manually adjusted to the height of your floor. Simply raise or lower the skirt as needed.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Stop
Your U-Line unit was shipped to you with the optional 90° pin.
Your unit's door(s) will open 115° straight from the factory. If you would like the door stop at 90° follow these instructions.
NOTICE
If your unit is already undercounter, it will need to be moved out to access the hinge. With the 90° stop pin in place, you will not be able to replace the hinge cover.
- Open door approximately 90°.


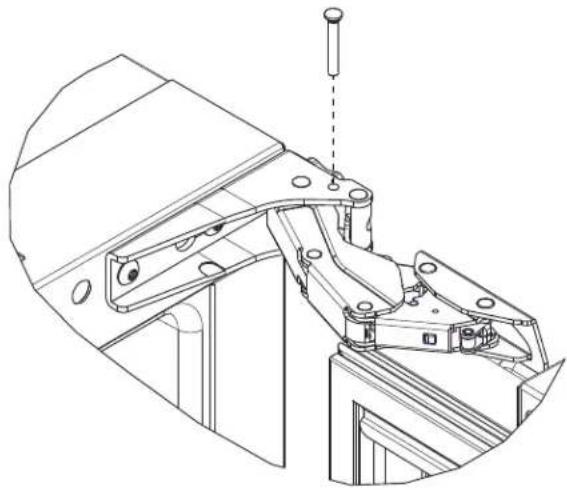

- Once cover is removed, slide hinge pin into hole as shown. Pin should slide into place, stopping the door at 90°; if the pin does not go into the hole shown, hold the door less than 90° open and try again.
- Carefully slide your unit back in place.
NOTICE
The pin can be removed to return the door swing back to its original 115° swing by tapping the pin out from the bottom of the hinge.
CLOSER

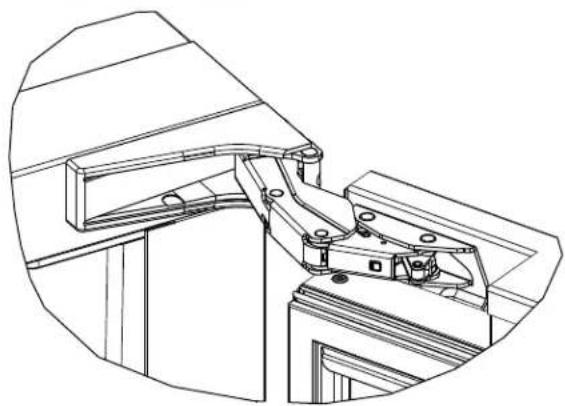

The door hinge has a self-closing feature that engages when the door is open approximately 6" (150 mm) (about 25°).
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing properly. If the door is not sealed, the unit may not cool properly, or excessive frost or condensation may form in the interior.
NOTICE
Properly aligned, the door's gasket should be firmly in contact with the cabinet all the way around the door (no gaps). Carefully examine the door's gasket to ensure that it is firmly in contact with the cabinet. Also make sure the door gasket is not pinched on the hinge side of the door.
CAUTION
Do not attempt to use the door to raise or pivot your unit. This would put excessive stress on the hinge system.
Alignment and Adjustment Procedure
- Open door and remove gasket near the hinges.

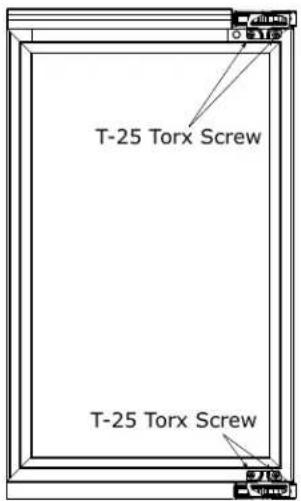

- Using a T-25 Torx Bit, loosen each pair of Torx head screws on both the upper and lower hinge plates.
- Square and align door as necessary.
- Tighten Torx head screws on hinge.
- Reinstall gasket into the channel starting at the corner.

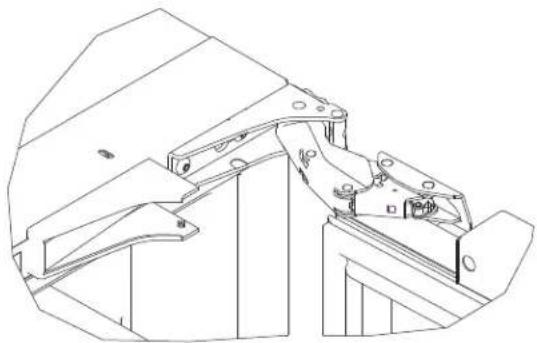

REVERSING THE DOOR
- Open door.
- Remove top hinge cover by lifting top and bottom flaps and slide inwards. Repeat on bottom hinge.


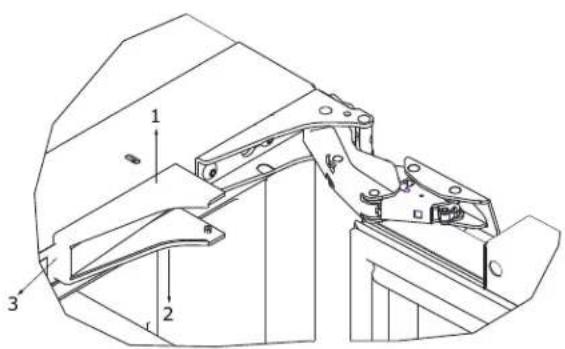

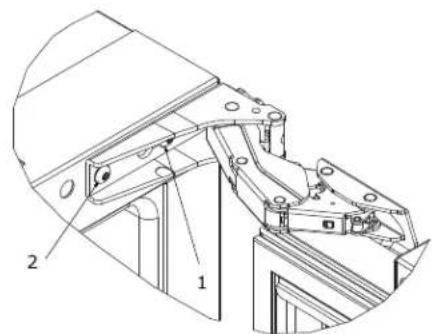

- Using T-25 Torx bit loosen screw #1 and remove screw #2 on top and bottom hinge. Slide and remove the door from unit. Completely remove screw #1 on top and bottom.
- Remove caps from screw heads on opposite side (2 on top and 2 on bottom). Using #2 Phillips bit remove the 4 underlying screws. Reinstall the screws and caps on the opposite side.
- Partially install screw #1 in the outer most holes on top and bottom. Rotate door 180°, align hinge over screw #1 and slide/seat into position. Reinstall screw #2 on top and bottom. Tighten both screws and install hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND ADJUSTMENT).
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
First Use
All U-Line controls are preset at the factory. Initial startup requires no adjustments.
NOTICE
U-Line recommends discarding the ice produced during the first two to three hours of operation to avoid possible dirt or scale that may dislodge from the water line.
When plugged in, the unit will begin operating under the factory default setting. Follow the on screen prompt for language selection and temperature units.
To turn the unit off, press ⏻ and hold for 5 seconds and release. The display will show a countdown to switching the unit off.
To power your unit on, simply press ⏻ and the unit will immediately switch on.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Control Operation
CONTROL FUNCTION GUIDE
| FUNCTION | COMMAND | DISPLAY/OPTIONS |
| OFF | Press ⏻ and hold | Display will count down from 5 to off. |
| ON | Press ⏻ and release | Unit will come on immediately. |
| Adjust lighting | Press ⏱ to adjust lighting | Press ⏱ or ⏲ to set low, medium or high. |
| Customer menu | Press ⏱ and hold for 5 seconds | Press ⏱ or ⏲ to scroll through menu. |

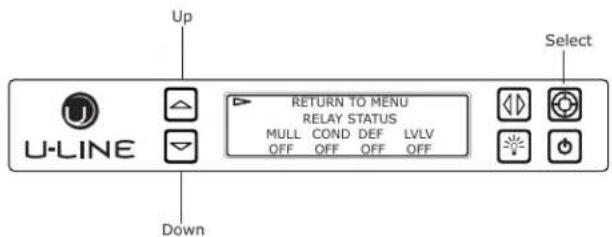

| Service menu | Press ⏱ or ⏲ and hold for 5 seconds | Press ⏱ or ⏲ to scroll through menu. |
U-SELECT® CONTROL
Digital Display
The 3000 Series units are controlled by a feature rich, advanced OLED display control unit. The control panel allows adjustment to temperature set point, access to Energy Saver Mode, internal temperature readings, and many other features.
U-Select Lighting
-

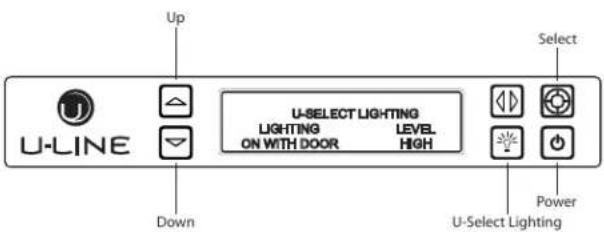

To begin, press 📋 to enter the lighting menu.
-
Press ☑ or ☑ to cycle through each available brightness setting (Low, Medium or High).
- Press ☐ to cycle through each available timer setting. Selections include "On With Door", "On 3 Hours", "On 6 Hours", or "On 24 Hours".
- To exit, press 📷 or simply wait for the menu to time out.
CUSTOMER MENU
The 3000 Series of U-Line undercounter refrigeration appliances contains a feature rich customer menu. The Customer Menu allows access to a series of advanced features including Energy Saver Mode, Sabbath Mode, actual temperature readings as well as a method to restore factory defaults.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
3000 Series - Customer Menu

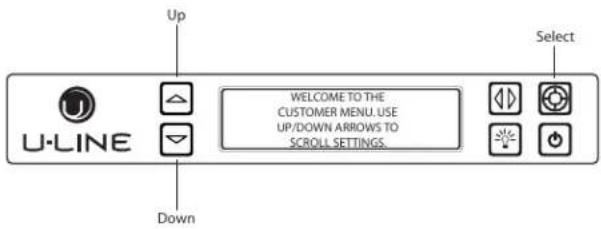

- To access the Customer Menu hold 📷 for 5 seconds.
- Press △ or ▽ to scroll through available selections.
- Press 🔒 to enter selected sub-menu.
- To exit Customer Menu, press ☑ to scroll to the bottom of the display and press 🔒 to select "Exit".
Actual Temps

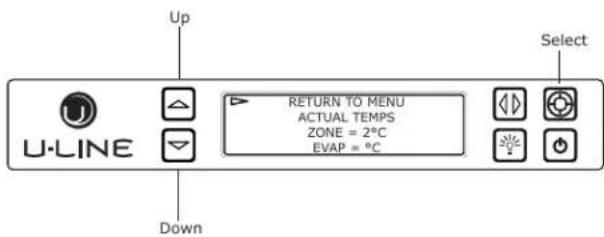

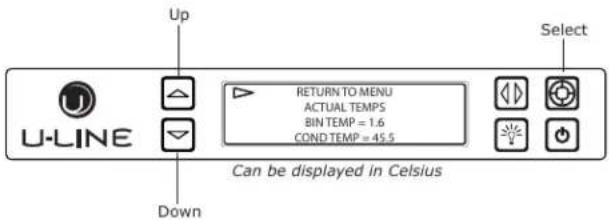

The Actual Temps option displays the actual temperature of the ice bin and condenser, as well as ambient temperature.
- To view actual temperature, press 🔒 and select "Actual Temps" from the Customer Menu.
- Press 🔒 or 📋 to scroll through available information.
- To return to the Customer Menu, press 🔒 and select "Return to Menu".
Energy Saver Mode

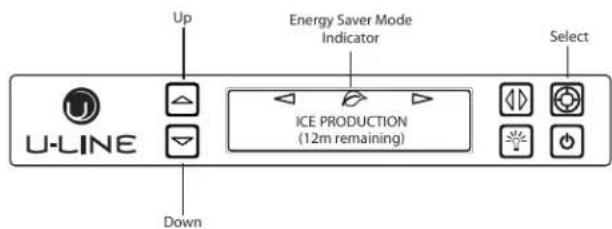

Energy Saver mode reduces overall energy consumption by reducing the amount of ice stored in the bin, along with decreasing the lighting.
- To enter Energy Saver Mode, first select Energy Saver from the Customer Menu.
- Press ☑ to select "Off" in the menu.
- Press
- Press ☑ or ☑ to change the selection from Off to On.
- Press 🔒 to confirm your selection.
- To return to the Customer Menu, press 🔒 and select "Return to Menu".
- To cancel Energy Saver Mode simply return to the Customer Menu, select Energy Saver and change "On" to "Off".
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Languages
The U-Line 3000 Series of models supports a number of display languages including English, Spanish, French, German and Italian.
- To change display language select Languages from the Customer Menu.
- Press ☑ to select "English".
- Press ☐. "English" will begin to flash.
- Press 🔒 or ☑ to cycle through the available languages.
- Press 📋 to confirm your choice.

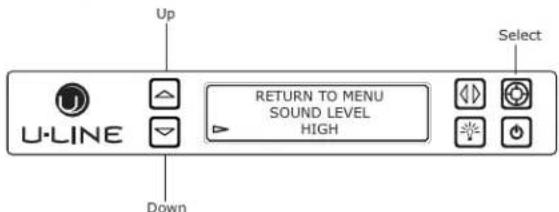

Sound Level
Audible alarms and alert tones support four different Sound Level settings, High, Medium, Low, and Off.
To select a new tone level, enter the Sound Level Menu from the Customer Menu.
-
Press ▲ or ▼ to select the current sound level.
-
Press 📋. The current setting will begin to flash.
- Press ☑ or ☑ to select a different level.
- Press 🔒 to confirm your choice.
- Press ☑ to select "Degrees".
- Press 📋. The selection will begin to flash.
- Press ☐ or ☑ to select between °F (Fahrenheit) or °C (Celsius).
- Press 📷 to confirm your choice.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Clean Cycle
A clean cycle can be initiated through this menu. Once the cleaning cycle starts, the cycle cannot be stopped until complete.

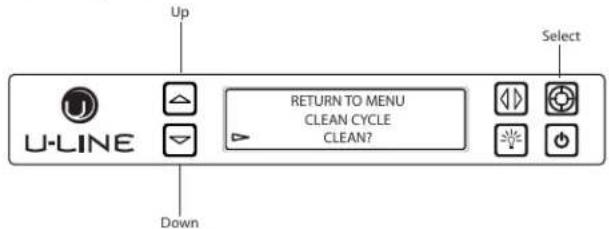

To initiate a clean cycle, select "Clean Cycle" from the Customer Menu. Please refer to CLEANING section regarding proper cleaning procedure.
- Press ☑ to select "Clean Cycle".
- Press 📋. The clean cycle will now begin.
- Refer to CLEANING section regarding proper cleaning procedure.
Silent Mode
Users can halt ice production for 3 hours with an option called "Silent Mode" in the Customer Menu. Silent Mode will begin once the current ice making cycle is complete. After 3 hours in Silent Mode, normal ice production will continue.
NOTE: Silent Mode will not silence any alerts.

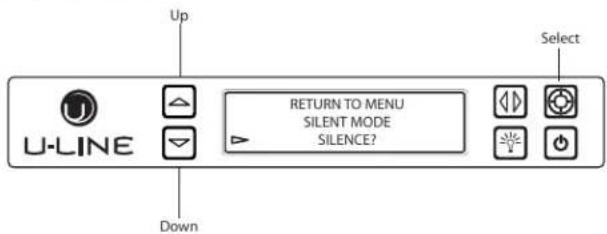

To initiate Silent Mode, enter Silent Mode Menu from within the Customer Menu.
To activate Silent Mode:
- Press ☑ to select "Silence?".
- Press 📋. Silent Mode will now begin.
To cancel Silent Mode:
- Press ☑ to select "Cancel?".
- Press 🔒. Silent Mode will end.

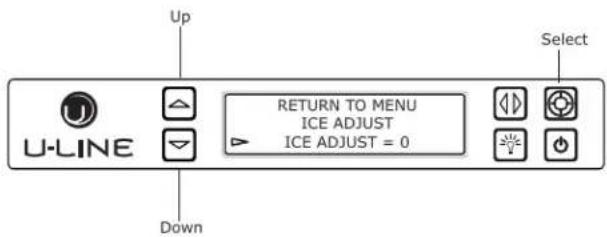

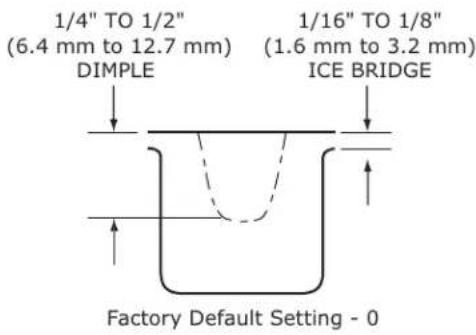

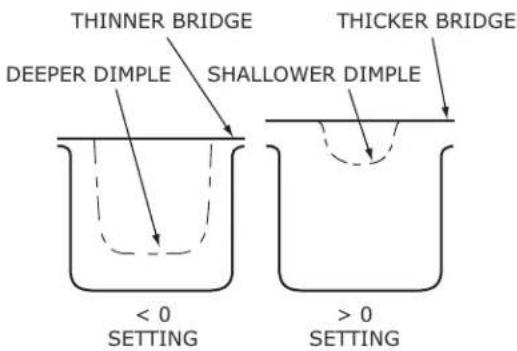

Ice Adjust

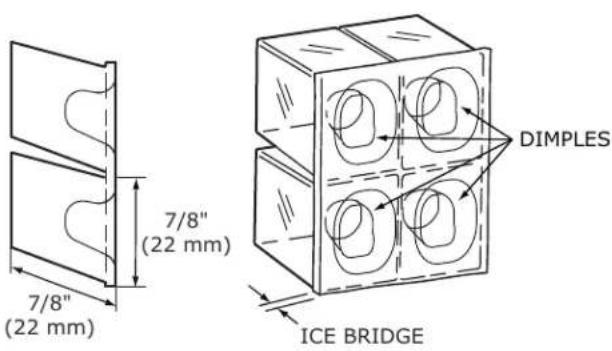

The Ice Adjust option adjusts ice thickness by adding or subtracting up to 5 minutes of ice production.

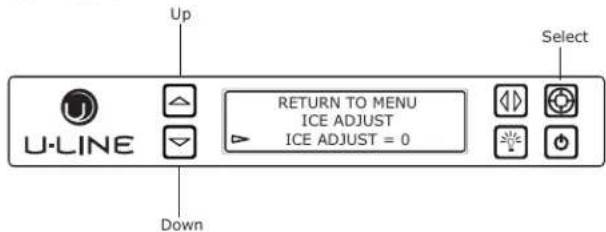

To change the ice thickness, enter the Ice Adjust Menu from within the Customer Menu.
To adjust thickness:
- Press ☑ to select "Ice Adjust".
- Press ☐. The selection will begin to flash.
- Press 🔒 to make the ice thicker or ☑ to make the ice thinner.
- Press 🔒 to confirm your choice.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Help
To access the Help Menu, select "Help" from the Customer Menu. Press 📁 or 📋 to scroll through available information.
To return to the Customer Menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Ice
ICE CUBE THICKNESS ADJUSTMENT
NOTICE
Ice thickness adjustment should only be made one increment at a time. Allow ice maker production to stabilize for 24 hours before rechecking ice thickness.
Ice is produced in layers resulting in a clear cube. Ice in bin may develop surface frost which disappears when cube is placed in liquid.
Ice cubes in any given batch will vary, so it is necessary to choose cubes from the sample area for comparison when making adjustments.
The ice cube thickness is factory set for best overall performance. The factory setting "0" is designed to maintain an ice bridge of approximately 1/16" to 1/8" (1.6 mm to 3.2 mm) under normal conditions, resulting in a dimple of approximately 1/4" to 1/2" (6.4 mm to 12.7 mm) in depth. A fuller cube with less of a dimple results in a thicker ice bridge. As the ice bridge thickens, the tendency for the cubes to stay together as a slab increases. A bridge thicker than 1/8" (3.2 mm) may cause cubes to overfill the ice bucket.
32 ice cubes are formed on a 4 x 8 slab during each cycle. Each cycle takes approximately 15-20 minutes at the default cube thickness (0).
Your clear ice machine is pre-set to produce ice between the optimal dimensions illustrated below:
Cube Details
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
ICE ADJUST
Adjust ice thickness as follows:
- Press △ and ⊙ and hold for 5 seconds to enter the Customer Menu.
- Press ☑ to select "Ice Adjust".
- Press 📋. The selection will begin to flash.
- Press 🔒 to make the ice thicker or ☑ to make the ice thinner. Press 🔒 to confirm your choice.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Sabbath Mode
U-Line Clear Ice Machine models are Star-K certified and can be used during the Sabbath. View a full list of Star-K certified U-Line units at www.star-k.org.
To prepare the unit for the Sabbath:
- Press ⏻ and hold the until the unit turns off.
- No new ice will form when the unit is off, but previously made ice will still be accessible/present for over 24 hours. Pump equipped models will continue to remove water as needed even if the unit is off.
Sabbath Mode remains active until ⏻ is pressed again and the unit turns on.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Airflow and Product Loading
NOTICE

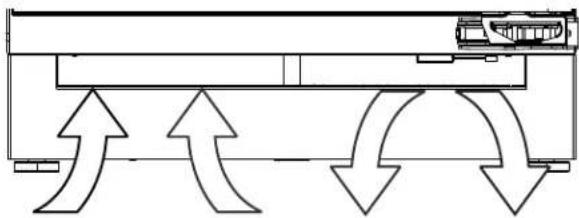

The unit requires proper airflow to perform at its highest efficiency. Do not block the front grille at any time, or the unit will not perform as expected. Do not install the unit behind a door.
Cleaning
EXTERIOR CLEANING
Stainless Models
Stainless door panels and handles can discolor when exposed to chlorine gas, pool chemicals, saltwater or cleaners with bleach.
Keep your stainless unit looking new by cleaning with a good quality all-in-one stainless steel cleaner and polish monthly. For best results use Claire® Stainless Steel Polish and Cleaner. Comparable products are acceptable. Frequent cleaning will remove surface contamination that could lead to rust. Some installations may require cleaning weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on any glass surfaces.
Clean any glass surfaces with a non-chlorine glass cleaner.
Do not use cleaners not specifically intended for stainless steel on stainless surfaces (this includes glass, tile and counter cleaners).
If any surface discoloring or rusting appears, clean it quickly with Bon-Ami ^® or Barkeepers Friend Cleanser ^® and a nonabrasive cloth. Always clean with the grain. Always finish with Claire ^® Stainless Steel Polish and Cleaner or comparable product to prevent further problems.
Using abrasive pads such as ScotchBrite™ will cause the graining in the stainless steel to become blurred.
Rust not cleaned up promptly can penetrate the surface of the stainless steel and complete removal of the rust may not be possible.
Integrated Models
To clean integrated panels, use household cleaner per the cabinet manufacturer's recommendations.
INTERIOR CLEANING
Disconnect electric current to the unit.
Clean the interior and all removed components using a mild nonabrasive detergent and warm water solution applied with a soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive
cleaners. These types of cleaners may transfer taste to the interior products and damage or discolor the lining.
CLEAR ICE MAKER CLEANING CYCLE
The 3000 series ice maker is equipped with an automatic clean alert function. Cleaning cycles should be run as notified. Otherwise, to maintain operational efficiency, the unit should be cleaned every three months. Depending on water conditions, more frequent cleaning may be necessary. If the ice maker requires more frequent cleaning, consult a plumber to test the water quality and recommend appropriate treatment.
CAUTION
Wear rubber gloves and safety goggles and/or face shield when handling Ice Machine Cleaner.
NOTICE
Discard all ice produced in the first harvest.
Should electricity to the unit be interrupted during the self-clean cycle, the complete cleaning cycle will repeat after electricity is restored.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Use only U-Line Ice Machine Cleaner (Part No. 37050), available from your dealer or direct from your local parts distributor. To locate a parts distributor near you, visit www.u-line.com. It is a violation of federal law to use this solution in a manner inconsistent with its labeling. Use of any other cleaner can ruin the finish of the evaporator and will void the warranty. Read and understand all labels printed on the package before use.
U-Line Ice Machine Cleaner is used to remove lime scale and other mineral deposits. Refer to the following steps to initiate the self-cleaning cycle.
CAUTION
Never use anything to force ice from the evaporator. Damage may result.
-
Switch the ice maker off and allow any ice to melt off of the evaporator.
-
Remove all ice from the storage bin.
-

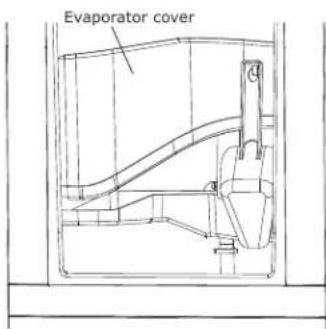

Remove evaporator cover.
-
Remove the standpipe by lifting it up while using a slight back and forth motion to loosen it from the drain hole. The water in the reservoir will flow down the drain.
- Re-install the standpipe into the water trough.
- Clean the Interior Bin as follows:
- Dilute one packet of CLR cleaner into two quarts of water.
- Using a sponge or cloth, clean interior of ice bin, tubing and door. This cleaner will remove all mineral deposits and other contaminants from the surfaces.

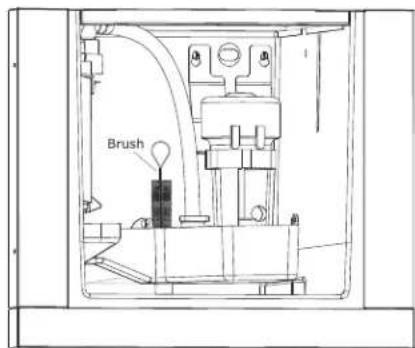

- Using a bottle brush, clean out the trough drain tube and pump tubing where needed.
-
Switch on unit on by pressing ⏻.
-
Place unit in cleaning mode. See CONTROL OPERATION for more detail.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
-
When water begins flowing over the evaporator (approximately 3 minutes), pour 1 packet of CLR cleaner into the water trough. The cleaning process will last approximately 45 minutes.
-
Dilute 1 tablespoon (15 ml) bleach in 1 gallon (3.8 liters) of warm water. Apply this solution to the entire inside of the storage area. Then rinse thoroughly with water.
The unit will resume operation approximately 15 minutes after the automated cleaning process is completed. The water fill valve will energize, fill the water reservoir, and shut-off after three minutes. The compressor begins to operate and water flows over the evaporator assembly (ice mold). Initially, the water flow may not be uniform, causing uneven sized cubes or water to spill into the ice storage bin. This is a normal situation that will correct itself within the first 24 hours of operation.
NOTICE
Discard all ice produced in the first harvest.
Should power to the unit be interrupted during the self-clean cycle, the complete cleaning cycle will repeat after power is restored.
REFRESH KIT
Due to variations in water quality or inadequate maintenance your unit may become excessively coated in lime scale or calcium. U-Line offers a cost effective refresh kit which replaces many interior components and will return your unit to like new condition. Refresh kits may be ordered from your local distributor and installed by your local service company. For information on your local distributor or service company please visit www.u-line.com.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cleaning Condenser
INTERVAL - EVERY SIX MONTHS
To maintain operational efficiency, keep the front grille (plinth strip/base fascia) free of dust and lint, and clean the condenser when necessary. Depending on environmental conditions, more or less frequent cleaning may be necessary.
WARNING
Disconnect electric current to the unit before cleaning the condenser.
NOTICE
DO NOT use any type of cleaner on the condenser unit. Condenser may be cleaned using a vacuum, soft brush or compressed air.

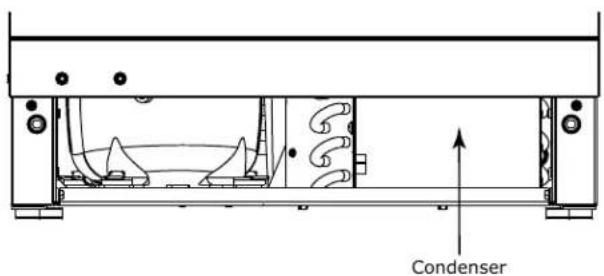

- Remove the grille (plinth strip/base fascia). (See GRILLE-PLINTH INSTALLATION).
- Clean the condenser coil using a soft brush or vacuum cleaner.
- Install the grille (plinth strip/base fascia).
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Extended Non-Use
VACATION/HOLIDAY, PROLONGED SHUTDOWN
The following steps are recommended for periods of extended non-use:
- Remove all consumable content from the unit.
- Disconnect the power cord from its outlet/socket and leave it disconnected until the unit is returned to service.
- Turn off the water supply.
- If ice is on the evaporator, allow ice to thaw naturally.
- Clean and dry the interior of the cabinet. Ensure all water has been removed from the unit.
- Disconnect the water and drain line (if applicable) making sure all water is removed from the lines.
- The door must remain open to prevent formation of mold and mildew. Open door a minimum of 2" (50 mm) to provide the necessary ventilation.
WINTERIZATION
If the unit will be exposed to temperatures of 40^ F ( 5^ C) or less, the steps above must be followed. In addition, P60 drain pumps in clear ice machines must be drained according to the following procedure:
- Remove the drain pump from the ice machine.
- Drain the water in the pump's reservoir by turning the pump upside down and allowing the water to drain through the pump's inlet and vent tube fittings.
- After water is drained, reinstall the drain pump and reattach all connections.
For questions regarding winterization, please call U-Line at +1.800.779.2547.
Damage caused by freezing temperatures is not covered by the warranty.
Do not put anti-freeze in your unit.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Troubleshooting
BEFORE CALLING FOR SERVICE
If you think your U-Line product is malfunctioning, read the CONTROL OPERATION section to clearly understand the function of the control.
If the problem persists, read the NORMAL OPERATING SOUNDS and TROUBLESHOOTING GUIDE sections below to help you quickly identify common problems and possible causes and remedies. Most often, this will resolve the problem without the need to call for service.
IF SERVICE IS REQUIRED
If you do not understand a troubleshooting remedy, or your product needs service, contact U-Line Corporation directly at +1.800.779.2547.
When you call, you will need your product Model and Serial Numbers. This information appears on the Model and Serial number plate located on the interior of your product or can be accessed through "Help" in the Customer Menu.
All models incorporate rigid foam insulated cabinets to provide high thermal efficiency and maximum sound reduction for its internal working components. Despite this technology, your model may make sounds that are unfamiliar.
Normal operating sounds may be more noticeable because of the unit's environment. Hard surfaces such as cabinets, wood, vinyl or tiled floors and paneled walls have a tendency to reflect normal appliance operating noises.
Listed below are common refrigeration components with a brief description of the normal operating sounds they make. NOTE: Your product may not contain all the components listed.
- Compressor: The compressor makes a hum or pulsing sound that may be heard when it operates.
- Evaporator: Refrigerant flowing through an evaporator may sound like boiling liquid.
- Condenser Fan: Air moving through a condenser may be heard.
- Solenoid Valves: An occasional clicking sound may be heard as solenoid valves are operated.
TROUBLESHOOTING GUIDE
DANGER
ELECTROCUTION HAZARD. Never attempt to repair or perform maintenance on the unit before disconnecting the main electrical power.
Troubleshooting - What to check when problems occur:
| Problem | Possible Cause and Remedy |
| Digital Display and Light Do Not Work. | Ensure power is connected to the unit.If the unit is cooling, it may be in Sabbath mode. |
| Interior Light Does Not Illuminate. | If the unit is cooling, it may be in Sabbath mode or manually set to off. |
| Light Remains on When Door Is Closed. | Lighting may be set to on; reset to with door. |
| Unit Develops Condensation on External Surfaces. | The unit is exposed to excessive humidity.Moisture will dissipate as humidity levels decrease. |
| Digital Display Functions, But Unit Does Not Produce Ice. | Ensure the unit is not in "Showroom Mode."Momentarily unplug or interrupt power supply to the unit. |
| Digital Display Shows an Error. | "Door" indicates the door may be opened too long. Ensure the door is closing properly. For other error codes contact U-Line Customer Service. |
| Ice Is Too Thick/Thin | Ice Adjust not set to user's preference. Adjust ice thickness via Customer Menu. |
| Poor Ice Quality | Unit may not be level. Check if unit is level.Ice maker may be dirty. Clean ice maker. |
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
| Problem | Possible Cause and Remedy |
| No Ice Production | Ensure water is being supplied to the unit. Verify the ice making unit is turned on. |
| Not Enough Ice | Ensure the condenser coil is clean and free of any dirt or lint buildup. |
| Water in Bin | Ensure the unit is plugged in. Check if the drain is restricted. Ensure drain is free of foreign debris and hose is not kinked or twisted. |
| Hear Running Water | During ice creation, the water running over the evaporator may be heard. |
| Hear Ice Falling | After each harvest, ice will fall into the bin. |

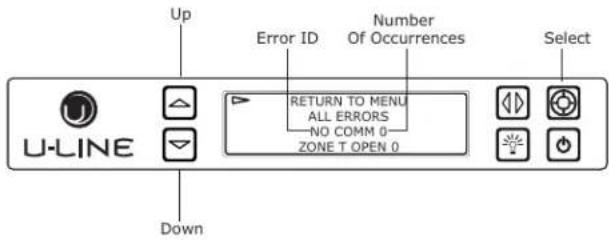

ERROR NOTIFICATION
The 3000 model series continuously monitors a series of inputs and parameters to ensure proper and efficient operation of your unit. Should the system detect a fault, an error notification will be displayed on the user interface. See below for a list of errors.
| ID | Description | Solution |
| No Comm | Unit lost communication to the display. | Disconnect and reconnect power to unit. Contact Customer Care if persistent. |
| Zone T Open | Left or right zone thermistor circuit open. | Contact Customer Care. |
| Amb Thrm Open | Ambient thermistor circuit open. | Contact Customer Care. |
| Zone T Short | Left or right zone thermistor circuit shorted. | Contact Customer Care. |
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this U-Line product warranty covers all parts and labor to repair or replace any part of the product that proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by U-Line factory authorized service, unless otherwise specified by U-Line. Service provided during normal business hours.
Available Second Year Limited Warranty
Beyond the standard one year warranty outlined above, U-Line offers an extension of the one year warranty coverage for an additional second year from the date of purchase, free of charge. To take advantage of this second year warranty, you must register your product with U-Line within two months from the date of purchase at u-line.com providing proof of purchase.
Five Year Sealed System Limited Warranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line under the above warranty must be performed by U-Line factory authorized service, unless otherwise specified by U-Line. Service provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and maintained in accordance with the U-Line User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- The warranties only apply to the original purchaser and are non-transferable.
• The second year and five year warranties cover products installed and used for normal residential or designated marine use only. - The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
- Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
- The start of U-Line's obligation is limited to four years after the shipment date from U-Line.
- In-home instruction on how to use your product is not covered by these warranties.
- Food, beverage, and medicine loss are not covered by these warranties.
- If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
- Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line: 8900 N. 55th Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.800.779.2547
Copyright © 2014/2017 U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 10/2017 Rev. L
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

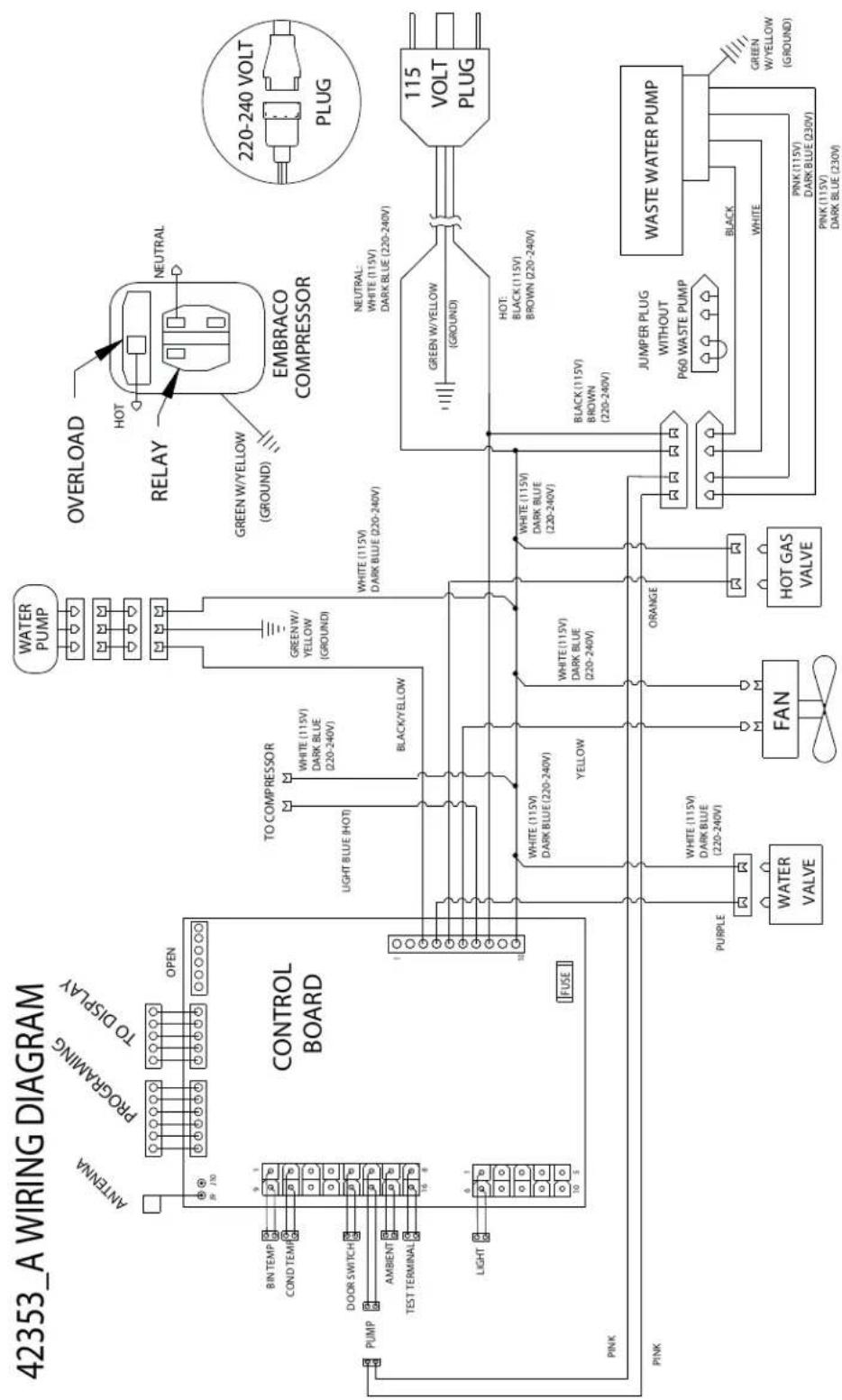

Wire Diagram
</details>
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="product-liability">Product Liability</h1>
Field service technicians are authorized to make an initial assessment in the event of reported damages. If there are any questions about the process involved, the technician should call U-Line for further explanation.
While inspecting for defects or installation issues, photos should be taken to document any damages or issues found.
During the assessment, if the service technician is able to find the source of the damage and it can be resolved by replacement of a part, the servicer is authorized to replace the part in question. The part that caused the damage must be returned to U-Line in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part.
If the service technician determines the damage is the result of installation issues (water connection/drain, etc.), the consumer would be notified and the issues shall be resolved at the direction of the consumer.
If damage is evident and the service technician is unable to find the source, U-Line must be contacted at 1-800-799-2547 for further direction
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="warranty-claims">Warranty Claims</h1>
The following information defines the parameters for filing a warranty claim:
- Valid serial number needed
- Valid model number needed
- Narda (or equivalent) form or submitted online at www.u-line.com
- 60 day submittal deadline from date of completed service
- Only one repair or unit per warranty claim
- Refrigerant should be labeled and included on the labor submittal
- Door and water level adjustments are covered 30 days from install date.
Serial Number Requirements:
<details>
<summary>text_image</summary>
14 30911 12 XXXX
/ /
Year Month
</details>
A typical serial number is shown above. The first two digits of the first segment, 14, represents the production year. The number between the dashes, 12, represents the production month. In most cases, warranty status can be verified by the production date information within the serial number.
• Alternatively, a Proof of Purchase (or equivalent) may submitted with the warranty claim to document
warranty status. We also accept the following information to verify warranty status:
• New Construction Occupancy Documents
- Closing Paperwork
• Final Billing - Remodel
Noting all of the following on the warranty claim will be considered proof of purchase, hard copy will not be required:
• Name of the selling Dealer
• Date of purchase/installation
• Order or Invoice number (if available)
• Description of document reviewed (i.e. store receipt, closing paperwork, etc)
Parts and labor claims are paid separately. Indicate part numbers and description for parts used in the warranty repair. Include the purchase invoice and name of the parts supplier used to procure the parts.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<details>
<summary>text_image</summary>
Parts
26 1
32 12
21
10
36
11
22
17
31
33
3
38
15
34 35
18
25
2
27
19 23 14 13
</details>
<details>
<summary>text_image</summary>
Technical diagram of an electronic device with numbered components for identification
</details>
<table><tr><td colspan="3">U-3018CLRS-00B</td></tr><tr><td>Item</td><td>Description</td><td>U-Line P/N</td></tr><tr><td>1</td><td>Anti tip brackets w/screws</td><td>80-54012-00</td></tr><tr><td>2</td><td>Back panel</td><td>80-54142-00</td></tr><tr><td>3</td><td>Circulation pump</td><td>80-54137-00</td></tr><tr><td>4</td><td>Cleaner</td><td>80-54081-00</td></tr><tr><td>5</td><td>Compressor electricals only</td><td>80-54140-00</td></tr><tr><td>6</td><td>Compressor w/electricals</td><td>80-54141-00</td></tr><tr><td>7</td><td>Condenser</td><td>80-54079-00</td></tr><tr><td>8</td><td>Condenser fan</td><td>80-54138-00</td></tr><tr><td>9</td><td>Condenser fan blade</td><td>80-54066-00</td></tr><tr><td>10</td><td>Cover pump, black</td><td>80-54073-00</td></tr><tr><td>11</td><td>Cover w/ hook, black</td><td>80-54072-00</td></tr><tr><td>12</td><td>Display module</td><td>80-54032-00</td></tr><tr><td>13</td><td>Door assembly w/o hinges</td><td>80-54146-00</td></tr><tr><td>14</td><td>Door gasket</td><td>80-54003-00</td></tr><tr><td>15</td><td>Drain tube, clear</td><td>80-54074-00</td></tr><tr><td>16</td><td>Drier</td><td>80-54055-00</td></tr><tr><td>17</td><td>Evaporator</td><td>80-54063-00</td></tr><tr><td>18</td><td>Gasket Horizontal</td><td>80-54061-00</td></tr><tr><td>19</td><td>Grille w/ screws</td><td>80-54031-00</td></tr><tr><td>20</td><td>Hi temp thermistor</td><td>80-54070-00</td></tr><tr><td>21</td><td>Hinge covers (2 pcs)</td><td>80-54001-00</td></tr><tr><td>22</td><td>Hinge mounting hole covers</td><td>80-54024-00</td></tr><tr><td>23</td><td>Hinges (2) w/screws and covers</td><td>80-54013-00</td></tr><tr><td>24</td><td>Hot gas valve and coil</td><td>80-54169-00</td></tr><tr><td>25</td><td>Ice scoop, clear</td><td>80-54080-00</td></tr><tr><td>26</td><td>LED light strip and cover assy</td><td>80-54000-00</td></tr><tr><td>27</td><td>Leg Levelers (4)</td><td>80-54019-00</td></tr><tr><td>28</td><td>Main board (no wires or case)</td><td>80-54008-00</td></tr><tr><td>29</td><td>Packaging</td><td>80-54145-00</td></tr><tr><td>30</td><td>Power cord</td><td>80-54144-00</td></tr><tr><td>31</td><td>Preformed dispersion tube</td><td>80-54128-00</td></tr><tr><td>32</td><td>Reed switch</td><td>80-54134-00</td></tr><tr><td>33</td><td>Stand pipe</td><td>80-54077-00</td></tr><tr><td>34</td><td>Thermistor (1 piece)</td><td>80-54006-00</td></tr><tr><td>35</td><td>Thermistor cover and pin</td><td>80-54023-00</td></tr><tr><td>36</td><td>Water dispersing receptacle</td><td>80-54078-00</td></tr><tr><td>37</td><td>Water line assembly</td><td>80-54068-00</td></tr><tr><td>38</td><td>Water trough, black</td><td>80-54075-00</td></tr><tr><td>39</td><td>Water valve assembly</td><td>80-54139-00</td></tr></table>
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="ordering-replacement-parts">Ordering Replacement Parts</h1>
If you have a purchasing account, please utilize our service website to order parts.
Orders may also be placed by Fax or phone. See our contact information below:
www.U-LineService.com (with service login)
FAX Number: +1.414.354.5696
Phone Number: +1.800.779.2547
<h1 id="notice-17">NOTICE</h1>
Use only genuine U-Line replacement parts. The use of non-U-Line parts can reduce speed of ice production, cause water to overflow from ice maker mold, damage the unit, and void the warranty.
Warranty parts will be shipped at no charge after U-Line confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information.
If U-Line requires the return of original parts, we will inform you when the parts order is taken. This requirement will be noted on your packing list. A prepaid shipping label will be included with the replacement part. Please enclose a copy of the parts packing list and any labor claims with your return. Please be sure the model and serial numbers are legible on the paperwork. Tag the part with the reported defect.
When ordering a non-warranty part, you will need an open account and tax exemption on file at U-Line. Another option would be to visit www.u-line.com to locate an authorized parts distributor in your area.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="system-diagnosis-guide">System Diagnosis Guide</h1>
REFRIGERATION SYSTEM DIAGNOSIS GUIDE
<table><tr><td>System Condition</td><td>Suction Pressure</td><td>Suction Line</td><td>Compressor Discharge</td><td>Condenser</td><td>Capillary Tube</td><td>Evaporator</td><td>Wattage</td></tr><tr><td>Normal</td><td>Normal</td><td>Slightly below room temperature</td><td>Very hot</td><td>Very hot</td><td>Warm</td><td>Cold</td><td>Normal</td></tr><tr><td>Overcharge</td><td>Higher than normal</td><td>Very cold may frost heavily</td><td>Slightly warm to hot</td><td>Hot to warm</td><td>Cool</td><td>Cold</td><td>Higher than normal</td></tr><tr><td>Undercharge</td><td>Lower than normal</td><td>Warm - near room temperature</td><td>Hot</td><td>Warm</td><td>Warm</td><td>Extremely cold near inlet - Outlet below room temperature</td><td>Lower than normal</td></tr><tr><td>Partial Restriction</td><td>Somewhat lower than normal vacuum</td><td>Warm - near room temperature</td><td>Very hot</td><td>Top passes warm - Lower passes cool (near room temperature) due to liquid</td><td>Room temperature (cool) or colder</td><td>Extremely cold near inlet - Outlet below room temperature backing up</td><td>Lower than normal</td></tr><tr><td>Complete Restriction</td><td>In deep vacuum</td><td>Room temperature (cool)</td><td>Room temperature (cool)</td><td>Room temperature (cool)</td><td>Room temperature (cool)</td><td>No refrigeration</td><td>Lower than normal</td></tr><tr><td>No Gas</td><td>0 PSIG to 25"</td><td>Room temperature (cool)</td><td>Cool to hot</td><td>Room temperature (cool)</td><td>Room temperature (cool)</td><td>No refrigeration</td><td>Lower than normal</td></tr></table>
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="compressor-specifications">Compressor Specifications</h1>
<h1 id="danger-4">DANGER</h1>
Electrocution can cause death or serious injury. Burns from hot or cold surfaces can cause serious injury. Take precautions when servicing this unit.
Disconnect the power source.
Do not stand in standing water when working around electrical appliances.
Make sure the surfaces you touch are not hot or frozen.
Do not touch a bare circuit board unless you are wearing an anti-static wrist strap that is grounded to an electrical ground or grounded water pipe.
Handle circuit boards carefully and avoid touching components.
To measure the start winding resistance, measure across the C and S pins.
To measure the run winding resistance, measure across the C and R pins.
Also check S to R and you should get the sum of the run and start windings.
To ensure the windings are not shorted, check the S and R to ground.
<details>
<summary>text_image</summary>
OVERLOAD PROTECTOR
RELAY COVER
STARTING RELAY
ULIN_0576_AV
</details>
<table><tr><td></td><td>EMU30HSC</td></tr><tr><td>Refrigerant</td><td>R134a</td></tr><tr><td>Voltage</td><td>115 VAC</td></tr><tr><td>Frequency</td><td>60 Hz</td></tr><tr><td>Run Cap</td><td>12μF/180 VAC</td></tr><tr><td>Start Winding</td><td>7.0 Ohm at 77°F</td></tr><tr><td>Run Winding</td><td>8.4 Ohm at 77°F</td></tr><tr><td>LRA</td><td>5.5 A</td></tr><tr><td>FLA</td><td>1.0 A</td></tr><tr><td>Starting Device</td><td>8EA14C</td></tr><tr><td>Overload</td><td>4TM197NFBYY-53</td></tr></table>
\* All resistance readings are ±10%
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="troubleshooting-extended">Troubleshooting - Extended</h1>
<h1 id="specific-errors-and-issues">SPECIFIC ERRORS AND ISSUES</h1>
The technically advanced diagnostic capabilities of the electronic controls utilized on the 3000 series units allows for easy and thorough trouble shooting.
Navigation of the control is the key and is explained in the CONTROL OPERATION section of the manual, along with control button layout, control function descriptions, a service mode menu and service menu selection explanations.
Verification of temperature and thermistor performance can be identified by directly viewing actual temperature readings in the service mode.
Component failure issues can be identified through service mode menu selection, "Relay Toggle" Individual components can be switched on and off to check for both proper function of a specific component and also delivery of supply voltage to the components through the relays and DC outputs located on the relay/power board.
Included in this section is some diagnostic tips and as always, if additional help is required please contact the U-Line Corp, "Customer Care Facility" at +1.800.779.2547 for assistance.
<h1 id="normal-operating-sounds-2">NORMAL OPERATING SOUNDS</h1>
All models incorporate rigid foam insulated cabinets to provide high thermal efficiency and maximum sound reduction for its internal working components. Despite this technology, your model may make sounds that are unfamiliar.
Normal operating sounds may be more noticeable because of the unit's environment. Hard surfaces such as cabinets, wood, vinyl or tiled floors and paneled walls have a tendency to reflect normal appliance operating noises.
Listed below are common refrigeration components with a brief description of the normal operating sounds they make. NOTE: Your product may not contain all the components listed.
- Compressor: The compressor makes a hum or pulsing sound that may be heard when it operates.
- Evaporator: Refrigerant flowing through an evaporator may sound like boiling liquid.
- Condenser Fan: Air moving through a condenser may be heard.
- Automatic Defrost Drain Pan: Water may be heard dripping or running into the drain pan when the unit is in the defrost cycle.
- Solenoid Valves: An occasional clicking sound may be heard as solenoid valves are operated.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
TROUBLESHOOTING GUIDE
<table><tr><td>Concern</td><td>Potential Causes</td><td>Suggested Remedy</td></tr><tr><td>No Display or Interior Lights</td><td>Unit may be in Sabbath mode</td><td>Hold for 5 seconds to turn off Sabbath mode, test the door switch circuit</td></tr><tr><td>No Interior Light</td><td>Light may be set to OFFCheck LED strip for powerDefective door switch</td><td>Use component testing in service mode and test light circuit, manually test door switch</td></tr><tr><td>Condensation on exterior of unit</td><td>Is unit exposed to high humidity or high ambient temps?</td><td>Moisture will dissipate as ambient temperature and humidity levels fall. Keep exterior of unit well polished to protect surface.</td></tr><tr><td>No Ice Production</td><td>Is unit level, is the unit getting water, is circulation pump working?</td><td>Monitor freeze cycle to assure proper water distribution over evaporator. Go to component testing and turn off fill valve, level unit if needed.</td></tr><tr><td>Low Ice Production</td><td>Dirty evaporator, dirty condenser, faulty bin thermistor</td><td>Clean the evaporator using U-Line cleaner, clean the condenser coil if needed, check bin thermistor reading in service mode.</td></tr><tr><td>Ice Does Not Fall Off During Harvest</td><td>Dirty evaporator, unit not level, faulty hot gas valve</td><td>Clean the evaporator if needed, level unit if needed, test function of hot gas bypass valve using relay toggle in service mode.</td></tr><tr><td>Error Message in Digital Display</td><td>Check error log</td><td>View errors in service mode, review error and take corrective action to resolve.</td></tr><tr><td>Ice is Too Thick/ Thin</td><td>Dirty evaporator, water starvation, faulty hot gas valve</td><td>Clean evaporator if needed, check water supply, test harvest mode, adjust ice thickness.</td></tr><tr><td>Standing Water in Ice Bin</td><td>Drain hose is restricted, debris in bin drain hole, failed drain pump</td><td>Make sure drain hose run is as straight as possible. Remove any kinks or tight bends, pour 1/2 gallon of water into bin to test drain.</td></tr><tr><td>Poor Ice Quality</td><td>Is unit level, is the evaporator dirty?</td><td>Monitor freeze mode to watch water distribution over evaporator, level unit if needed, clean evaporator if needed.</td></tr></table>
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
<h1 id="main-control">MAIN CONTROL</h1>
The main control board is very robust and is rarely the cause of system issues. It is important to fully diagnose the board for any suspected failures before attempting to remove the board for replacement or service. Follow the guidelines below to fully test and diagnose the main control.
<h1 id="power-fault">Power Fault</h1>
If the unit does not (or seems to not) power on, follow the flow chart below to help diagnose the issue. Before beginning it is important to first verify the unit is not simply set to sabbath mode.
<details>
<summary>flowchart</summary>
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

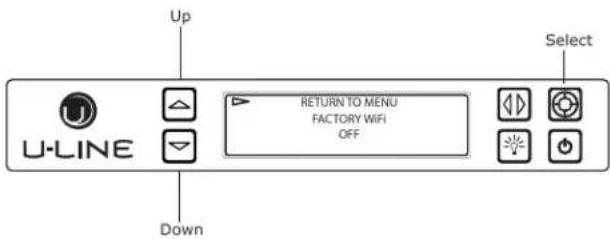

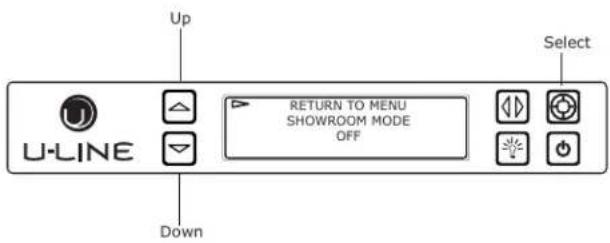

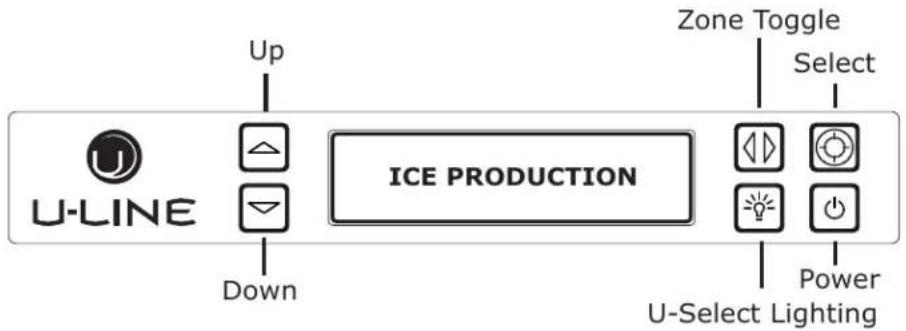

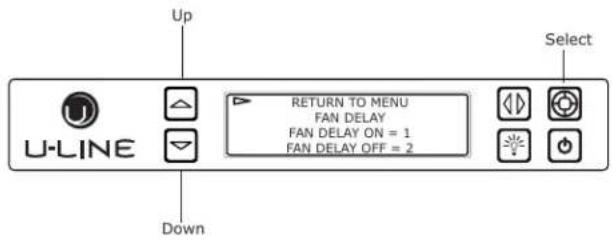

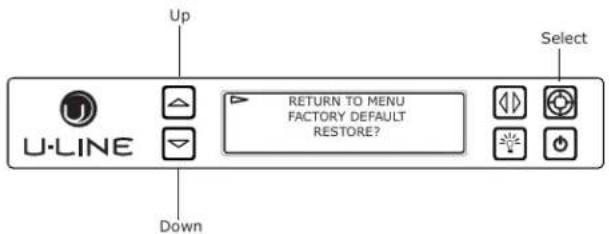

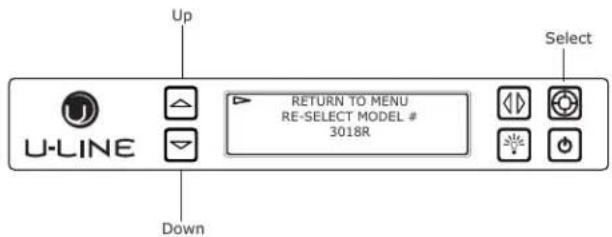

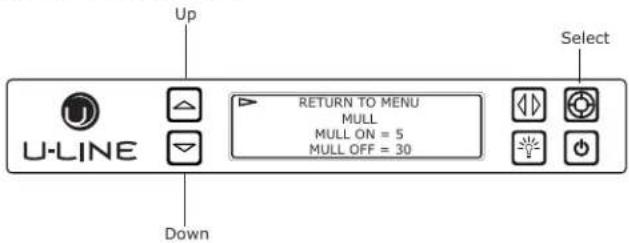

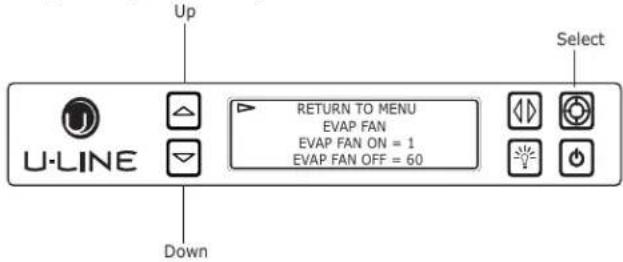

Control Operation - Service
TO ENTER THE MAIN SERVICE MENU
PRESS AND HOLD FOR 5 SECONDS
AND
TO GO TO NEXT SUB-MENU ITEM
YOU MUST ARROW UP TO "RETURN TO MENU"
TOUCH AND RELEASE
TO RETURN TO THE MAIN MENU
SCROLL
THROUGH
MENU
ENTER & EXIT
SUB-MENU IT
| ACTUAL TEMPS | SHOWS TEMPERATURES WITHOUT OFFSETS. EACH ZONE HAS AN EVAP AND AIR THERMISTOR. EACH UNIT HAS AN AMBIENT THERMISTOR | RETURN TO MENUACTUAL TEMPSLEFT ZONE = 52°LEFT EVAP = 52° |
| ALL ERRORS | DISPLAYS THE NUMBER OF TIMES AN ERROR HAS OCCURRED SCROLL TO THE END TO ERASE THE ERROR CODES | RETURN TO MENUALL ERRORSNO COMM 3L ZONE T OPEN 0 |
| RELAY STATUS | DISPLAYS THE CURRENT STATUS OF THE RELAYS ON THE BOARD (not all relays are used on all models) | RETURN TO MENU RELAY STATUSMULL COND DEF LVLVOFF OFF OFF ON |

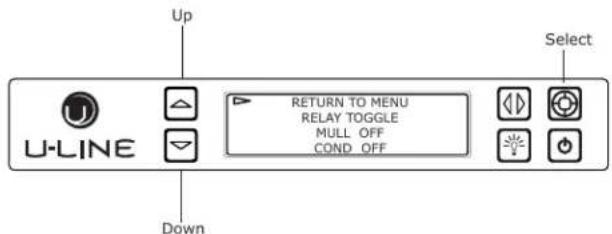

| RELAY TOGGLE | ALLOWS THE RELAYS TO BE TOGGLED ON/OFF TO CHECK RELAY & COMPONENT YOU CAN TURN ON MULTIPLE RELAYS TO CHECK A ZONE, (COMP FAN ETC) | RETURN TO MENU RELAY TOGGLEMULL OFFCOND OFF |
| INPUT STATUS | DISPLAYS DOOR SWITCH STATE, TEST INPUT, AND USB STATE | RETURN TO MENU INPUT STATUSLEFT DOOR CLOSEDRIGHT DOOR OPEN |

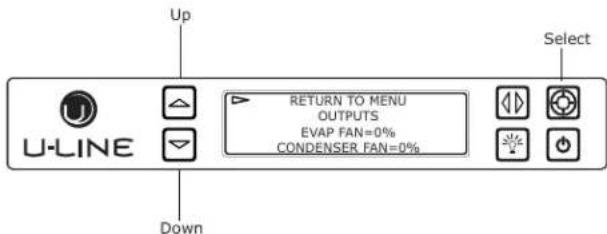

| OUTPUTS | MONITORS THE STATE OF DC OUTPUTS(evap & condenser fans 0 - 100% and lighting off - low - med - high) | RETURN TO MENU OUTPUTSL EVAP FAN = 0%R.EVAP FAN = 0% |

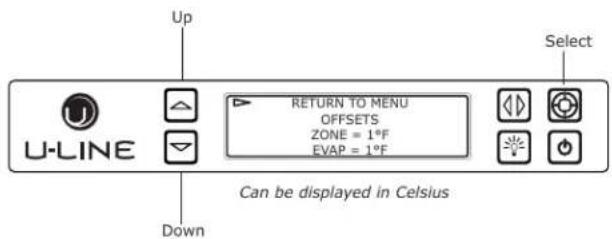

| OFFSETS | OFFSETS ARE USED TO ADJUST OR CORRECT THERMISTOR READINGSCORRECTED VALUES MAY BE VIEWED THROUGH THE CUSTOMER MENU | RETURN TO MENU OFFSETSRIGHT ZONE = -18°CRIGHT EVAP = -17°C |
| SELF TEST | SELF TEST IS USED TO DIAGNOSE THE BOARD IF NO ERRORS ARE PRESENT "NO ERRORS" WILL BE DISPLAYED, THE MAIN BOARD IS FUNCTIONING PROPERLY | RETURN TO MENU SELF TESTNO ERRORS |
| DIFFERENTIALS | DIFFERENTIALS ARE USED TO DETERMINE AT WHAT TEMPERATURE THE UNIT CYCLES. "O" SETTING IS +/- 2° DIFFERENTIAL | RETURN TO MENU DIFFERENTIALSLEFT = -16°CRIGHT = -16°C |
| EVAP FAN | THIS MENU IS USED TO SET THE DURATION THE EVAPORATOR FAN WILL RUN AFTER THE COMPRESSOR CYCLES OFF | RETURN TO MENU EVAP FANEVAP FAN ON = 1EVAP FAN OFF = 60 |
| MULLION | THIS MENU IS USED TO SET THE DURATION THE MULLION HEATER WILL BE ON AFTER THE COMPRESSOR CYCLES OFF | RETURN TO MENU MULLMULL ON=5MULL OFF=30 |
| FACTORY DEFAULT | FACTORY DEFAULT IS USED TO RESTORE ALL SETTINGS TO THE FACTORY DEFAULT FOR THE SELECTED MODEL | RETURN TO MENU FACTORY DEFAULTRESTORE? |
| RE-SELECT MODEL # | RE-SELECT MODEL IS USED TO MODIFY THE MODEL INFORMATION CHANGING THE MODEL COMPLETELY REPROGRAMS AVAILABLE ZONES | RETURN TO MENU RE-SELECT MODEL3090WCWC |
| FACTORY Wi Fi | THIS SETTING IS FOR FACTORY USE ONLY AND SHOULD REMAIN OFF | RETURN TO MENU FACTORY WIFIOFF |
| FAN DELAY | FAN DELAY ALLOWS MODIFICATION OF FAN RUN TIMES BOTH AT THE START OF A COOLING CYCLE AND AT THE END AFTER THE COMPRESSOR STOPS | RETURN TO MENU FAN DELAYFAN 1 DELAY OFF = 1FAN 2 DELAY ON = 2 |
| SHOWROOM MODE | RANDOMLY SCROLLS THROUGH ZONES, MODES, TEMPERATURES AND OTHER FEATURES. TOUCH AND HOLD ☐ TO EXIT SHOWROOM MODE | RETURN TO MENU SHOWROOM MODEOFF |
| EXIT | SCROLL DOWN TO "EXIT". TOUCH AND RELEASE ☐ TO EXIT SERVICE MODE | FAN DELAYUSB PORTSHOWROOM MODEEXIT |
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
SERVICE MENU
In addition to a feature rich customer menu, the 3000 series also offers a service menu with the ability to fine tune and monitor unit operation.
To initiate the Service menu hold both ▲ and ▼ for 5 seconds.
Actual Temps
The Actual Temp option in the service menu will display raw thermistor readings without calculating offsets.
-
Press ☑ to select "Actual Temps".
-
Press
-
Use ☑ and ☑ to scroll through available thermistor readings.
To exit the Actual Temps menu press 🔒 to select "Return to Menu" and press 🔒 to confirm.
All Errors
The All Errors option keeps record of any system errors. When an error occurs it is recorded to all errors. The number next to the error indicates the number of recorded instances. Errors in the log may not be currently active. The error log memory is non volatile and is persistent should power be lost and restored to the unit. See below for a list of logged errors and their respective descriptions.
| ID | Description | Solution |
| No Comm | Unit lost communication to the display. | Unplug the communication cable from the user interface. Check the black to red conductors looking for 5 VDC. If voltage is present replace the user interface. If no voltage is present check for 5 VDC at the main board where the communication cable plugs onto the pins for the red and black conductors. If 5 VDC is not present replace the main control board. If 5 VDC is present replace the communication cable. |
| Bin T Open | Bin thermistor circuit open. | Check thermistor connection to harness for moisture or corrosion. Also check connection where thermistor harness attaches to main board. If connections are valid replace the thermistor. |
| Condenser T Open | Evaporator thermistor circuit open. | |
| Bin T Short | Bin thermistor circuit shorted. | |
| Condenser T Short | Condenser thermistor circuit shorted. | |
| Temp Hi 6H+ | Not used. | Not used. |
| Temp Lo 6H+ | Not used. | Not used. |
| Temp Hi 12H+ | Not used. | Not used. |
| Temp Lo 12H+ | Not used. | Not used. |
| Time to Clean | Water circulation system requires cleaning. | Clean unit with 37050 cleaner. |
| Door Open 5M | Door switch open for more then 5 minutes. | Check door switch magnet reed switch alignment when door is in closed position. Check reed switch connection at the harness and the main board. |
| Drain Blocked | Drain pump has detected a problem. | Check drain hose for restriction or drain pump for correct operation. |
| WTD Reset | Software reset if communication is lost | No Action Required |
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
To access All Errors follow the steps below.
-
Press ☑ to select "All Errors".
-
Press
-
Press ▲ and ▼ to scroll through available information.
To clear the error log press ☑ to select "Clear Errors" and press ☑ to confirm.
To exit the Actual Temps menu press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Relay Status
Relay status displays the current state of each relay. While all available relays are displayed, only a portion are used.
| ID | Description | Availability |
| Mull | Mullion Heater | Not Used |
| Pump | Circulation Pump | Used |
| Wate | Water Valve | Used |
| Harv | Harvest | Used |
| Cond | Condenser Fan | Used |
| Comp | Compressor | Used |
NOTE: The Cond (Condenser Fan) will switch state with the compressor relay, however the condenser fan is actually powered through a DC output. Condenser fan status can be viewed through the "Output" service menu option.
To access Relay Status
-
Use ☑ to select "Relay Status".
-
Press 📋.
-
Press 🔒 and 🔑 to scroll through available information.
To exit the Relay Status simply press 🔒 to exit.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Relay Toggle
Relay toggle is used to manually switch the state of each relay to test for proper operation. In addition to the AC relays, DC switches may also be toggled. Relay toggle can also be used to force the unit into a particular state.
| ID | Description | Voltage |
| Mull | Not Used | AC |
| Pump | Circulation Pump | AC |
| Water | Water Valve | AC |
| Harvest | Harvest | AC |
| Cond | Condenser Fan | AC |
| Comp | Compressor | AC |
| Fan 1 | Not Used | N/A |
| Fan 2 | Not Used | N/A |
| Fan 3 | Not Used | N/A |
| Light 1 | Zone Lighting | DC |
| N/A | N/A | N/A |
To access Relay Toggle
- Press ☑ to select "Relay Toggle".
- Press
- Press ▲ and ▼ to scroll through each relay and DC output.
- Press 🔒 to toggle.
To exit the Relay Toggle menu press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Input Status
Input status displays the current state of each available input.
| ID | Description | State |
| Pump | Circulation Pump | Open - Closed |
To access Input Status
- Press ☑ to select "Input Status".
- Press
- Press ☑ and ☑ to scroll through available information.
To exit the Input Status menu press 🔒 to select "Return to Menu" and press 🔒 to confirm outputs.
Outputs
Outputs is used to monitor the state of DC outputs.
| ID | Description | Value |
| Light | Zone Lighting | Off - Low - Med - High |
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
To access Outputs
- Press ☑ to select "Outputs".
- Press
- Press △ and ▽ to scroll through available information.
To exit the Input Status menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Offsets
NOTICE
Do not make an adjustment to this without first contacting the tech line: (800) 779-2955.
Offsets are used to adjust or correct thermistor readings. Offset values are added to the current thermistor reading and are then used by the control board to determine cooling and defrost cycle times. Offsets have a range of +/- 10°F. Corrected values may be viewed through the customer "All Temps" menu.
To access Offsets
- Press ☑ to select "Offsets".
- Press
- Press ☑ and ☑ to scroll through available thermistors.
To change offsets
- Press 📷, the selected thermistor will begin to flash.
- Press 🔒 or 📋 to modify offset value.
- Press 🔒 to confirm setting.
To exit the Offset menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Self Test
Self test is used to initiate a self diagnostic report. Any system faults will be displayed under Self test. If no errors are present "no errors" will be displayed and the main control board is functioning properly. The main control board is extremely robust and should rarely require service. Most issues are external to the control. Reference troubleshooting for more information.
To access Self Test
- Press ☑ to select "Self Test".
- Press
- Press ☐ and ☑ to scroll through available information.
To exit the Self Test, Press 🔒 to select "Return to Menu" and press 🔒 to confirm.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

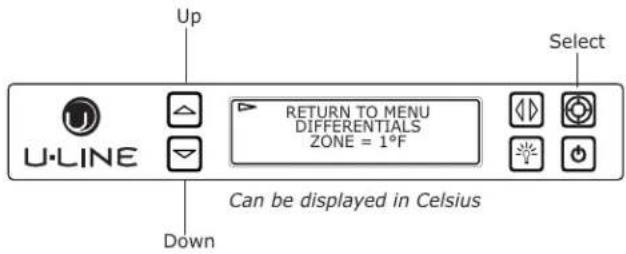

Differentials
(DO NOT MAKE AN ADJUSTMENT TO THIS WITHOUT CONTACTING TECH LINE: 800-779-2955)
Differentials are used to determine the maximum variation from set point and have a range of 0 through 10. The table below shows the effect of differentials on cooling cycles with a set point of 45^ F ( 7^ C).
NOTE: Air temperature does not reflect product temperatures.
| Differential | Cycle Start °F (°C) | Cycle End °F (°C) |
| 0 | 45^ ( 7^ ) | 43^ ( 6^ ) |
| 1 | 46^ ( 8^ ) | 43^ ( 6^ ) |
| 2 | 47^ ( 8^ ) | 41^ ( 5^ ) |
| 3 | 48^ ( 9^ ) | 41^ ( 5^ ) |
| 4 | 49^ ( 10^ ) | 39^ ( 4^ ) |
| 5 | 50^ ( 10^ ) | 37^ ( 3^ ) |
The graph below shows a unit's cooling cycle over time with various differentials.

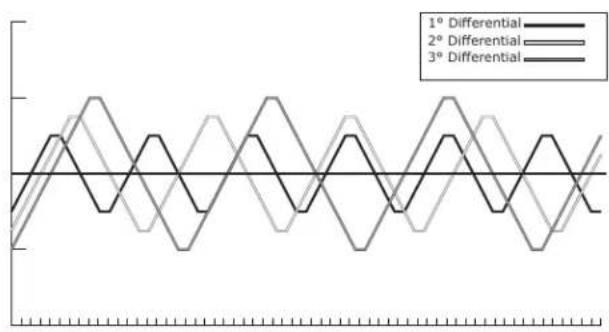

Evap Fan (Not Used)
The Evap Fan option in the service menu allows servicers to change the Evaporator Fan runtime (in minutes) from 0 to 98 and OFF cycle time 0 to 98.
To access Evap Fan
- Press 📋 to select "Evap Fan".
- Press
- Press △ and ▽ to scroll through available settings.
To exit the Evap Fan menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Mullion (Not Used)
The Mullion (MULL) option in the service menu allows servicers to change the ON/OFF time in minutes of the MULL heater (DWR only) from 0 to 98.
To access Mullion
- Press ☑ to select "MULL".
- Press
- Press ▲ and ▼ to scroll through available settings.
To exit the MULL menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Factory Default
Factory Default will restore all settings to their factory default.
To access Factory Default
-
Press ☑ to select "Factory Default".
-
Press
To restore settings to their factory default.
-
Press ☑ to select "Restore?" and press 🔒
-
"Restore?" will change to "Restoring..." while settings are restored. When restoration is complete, "Restoring..." will return to "Restore?".
To exit Factory Default, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Re-Select Model #
NOTICE
Before altering model selection U-Line customer service must be notified. Failure to notify customer service will result in voiding of the manufacturer warranty.
Re-Select Model allows the units model information to be modified. Changing the units model completely reprograms available zones, relay assignments, DC output assignments etc.
To access Re-Select Model #
-
Press ☑ to select "Re-Select Model".
-
Press
To change model setting
-
Press ☑ to select "Model=" and press 🔒. "Model" will begin to flash.
-
Press ▲ or ▼ to scroll through each available model.
-
Press 🔒 to confirm. While processing, the ▶ will momentarily change to *.
To exit Re-Select Model, press 🔒 to select "Return to Menu" and press 🔒 to confirm. (Power cycling unit is recommended after re-selecting model.)
Factory Wi Fi
The Factory Wi-Fi option is only used in manufacturing and should always be OFF.
-
Press ☑ to select "Factory Wi Fi".
-
Press
-
Press ☐ or ☑ select "OFF".
To exit the Factory Wi Fi menu press 🔑 to select "Return to Menu" and press 🔒 to confirm outputs.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Fan Delay
The Fan Delay menu option allows the modification of fan run times during and after a cooling cycle. In order to allow time for the evaporator to properly cool, the evaporator fan is delayed from starting with the cooling cycle for a given amount of time. In order to remove as much warmth as possible from the cabinet the evaporator fan will continue to run at the end of the cooling cycle for a given amount of time.
Fan Delay On=
"Fan Delay On" is the amount of time in minutes the fan will be delayed from starting from the beginning of a cooling cycle.
Fan Delay Off=
"Fan Delay Off" is the amount of time in minutes the fan will continue to run at the end of a cooling cycle.
To access Fan Delay
-
Press ☑ to select "Fan Delay".
-
Press
To change fan delay
-
Press ☑ to select either "Fan Delay On" or "Fan Delay Off" and press 🔒. The chosen option will begin to flash.
-
Press △ or ▽ to change settings.
-
Press 🔑 to confirm.
To exit Fan Delay, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
Showroom Mode
Showroom displays a number of features and allows the unit to be powered on without running the cooling system.
To toggle showroom mode
- Press ☑ to select "Showroom Mode".
- Press
- Press ☑ to select "Off" and press 🔒. "Off" will begin to flash.
- Press △ or ▽ to toggle between off and on.
- Press 🔒 to confirm.
If set to "on" showroom mode will begin immediately. To exit showroom mode press ⏻ and hold for 5 seconds and release. The display will show a countdown to switching the unit off. Press ⏻ again and the unit will immediately switch on retaining the presets from before it entered showroom mode.
To exit the showroom mode menu, press 🔒 to select "Return to Menu" and press 🔒 to confirm.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Thermistors
Thermistors are used for various temperature readings. Thermistors provide reliable temperature readings using a resistance which varies based on surrounding temperatures. If a faulty thermistor is suspected it may be tested using an accurate ohmmeter.
Thermistor connections must be kept clean. A thermistor connection that has become corroded can cause resistance values from the thermistor to change as they pass through a dirty connection to the board.
It is for that reason that we apply dielectric grease to all of our thermistor connections. Dielectric grease will help to keep thermistor connections clean and dry.
If you change a thermistor in the unit please re-apply dielectric grease to the connection. If you encounter a dirty thermistor connection, you should replace the thermistor and the thermistor harness.
This unit has three thermistors.
Thermistor one (Ice Bin):
Located along the right hand side wall of the ice bin. It is used to maintain the ice level in the bin.
Thermistor two (Condensor Line Out):
Located on the liquid line. It is used during freeze/harvest.
Thermistor three (Ambient):
Located in the base of the unit (secured to the condenser). It is used to monitor the ambient temperature within the base compartment. It is used for diagnostics.
This unit uses two different thermistors: Ice Bin and Ambient Thermistors; Condenser Line Out Thermistor.
The Ice Bin and Ambient Thermistors are both type 1 thermistors. If a thermistor is suspected of being defective the resistance can be verified. Place the thermistor in an ice water bath, the resistance should read 16.5k OHMs +/-5% on your meter.
Thermistor Resistance Data - Type 1
| Temp (F) | Temp (C) | Nominal Resistance (OHMS)* |
| -40 | -40 | 169157 |
| -31 | -35 | 121795 |
| -22 | -30 | 88766 |
| -13 | -25 | 65333 |
| -4 | -20 | 48614 |
| 5 | -15 | 36503 |
| 14 | -10 | 27681 |
| 23 | -5 | 21166 |
| 32 | 0 | 16330 |
| 41 | 5 | 12696 |
| 50 | 10 | 9951 |
| 59 | 15 | 7855 |
| 68 | 20 | 6246 |
| 77 | 25 | 5000 |
| 86 | 30 | 4029 |
| 95 | 35 | 3266 |
| 104 | 40 | 2665 |
| 113 | 45 | 2186 |
| 122 | 50 | 1803 |
| 131 | 55 | 1495 |
| 140 | 60 | 1247 |
| 149 | 65 | 1044 |
| 158 | 70 | 879 |
| 167 | 75 | 743 |
| 176 | 80 | 631 |
* (+/-5%)
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
The Condensor Line Out Thermistor is a type 2 thermistor. At 77° the resistance should read 10k OHMs +/-5%.
Thermistor Resistance Data - Type 2
| Temp (F) | Temp (C) | Nominal Resistance (OHMS)* |
| -22 | -30 | 177000 |
| -13 | -25 | 130370 |
| -4 | -20 | 97070 |
| 5 | -15 | 72929 |
| 14 | -10 | 55330 |
| 23 | -5 | 42315 |
| 32 | 0 | 32650 |
| 41 | 5 | 25388 |
| 50 | 10 | 19900 |
| 59 | 15 | 15708 |
| 68 | 20 | 12490 |
| 77 | 25 | 10000 |
| 86 | 30 | 8057 |
| 95 | 35 | 6531 |
| 104 | 40 | 5327 |
| 113 | 45 | 4369 |
| 122 | 50 | 3603 |
| 131 | 55 | 2986 |
| 140 | 60 | 2488 |
| 149 | 65 | 2083 |
| 158 | 70 | 1752 |
| 167 | 75 | 1481 |
| 176 | 80 | 1258 |
| 185 | 85 | 1072 |
| 194 | 90 | 9177 |
| 203 | 95 | 7885 |
| 212 | 100 | 6800 |
* (+/-5%)
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Defrost
These models have no defrost options.
- USER GUIDE & SERVICE MANUAL
- Contents
- Safety
- Service
- Installation
- Service Extended
- Operating Instructions
- Maintenance
- WELCOME TO U-LINE
- PRODUCT INFORMATION
- PROPERTY DAMAGE / INJURY CONCERNS
- GENERAL INQUIRIES
- SERVICE & PARTS ASSISTANCE
- CONNECT WITH US
- Safety and Warning
- NOTICE
- SAFETY ALERT DEFINITIONS
- DANGER
- WARNING
- CAUTION
- Disposal and Recycling
- Environmental Requirements
- Electrical
- Cutout Dimensions
- PREPARE SITE
- Side-by-Side Installation
- OTHER SITE REQUIREMENTS
- Hinge-by-Hinge Installation (Mullion)
- Water Hookup
- PREPARE PLUMBING
- Drain
- DRAIN CONNECTION
- A gravity drain may be used if:
- FACTORY INSTALLED DRAIN PUMP
- Drain Pump
- INCLUDED IN KIT:
- TOOLS REQUIRED:
- INSTALLATION PROCEDURE
- Anti-Tip Bracket
- General Installation
- INSTALLATION TIP
- Integrated Grille - Plinth Dimensions
- PREPARE AND INSTALL INTEGRATED GRILLE (PLINTH STRIP/BASE FASCIA)
- Grille - Plinth Installation
- REMOVING AND INSTALLING GRILLE (PLINTH STRIP/BASE FASCIA)
- Removing the grille (plinth strip/base fascia)
- Installing the grille (plinth strip/base fascia)
- ADJUSTING GRILLE (PLINTH STRIP/BASE FASCIA)
- Door Stop
- CLOSER
- Door Adjustments
- DOOR ALIGNMENT AND ADJUSTMENT
- Alignment and Adjustment Procedure
- REVERSING THE DOOR
- Align and adjust the door:
- First Use
- Control Operation
- CONTROL FUNCTION GUIDE
- U-SELECT® CONTROL
- Digital Display
- U-Select Lighting
- CUSTOMER MENU
- To activate Silent Mode:
- To cancel Silent Mode:
- To adjust thickness:
- Ice
- ICE CUBE THICKNESS ADJUSTMENT
- Sabbath Mode
- Airflow and Product Loading
- Cleaning
- EXTERIOR CLEANING
- Stainless Models
- Do not clean with steel wool pads.
- Do not use stainless steel cleaners or polishes on any glass surfaces.
- Do not use cleaners not specifically intended for stainless steel on stainless surfaces (this includes glass, tile and counter cleaners).
- Using abrasive pads such as ScotchBrite™ will cause the graining in the stainless steel to become blurred.
- Integrated Models
- INTERIOR CLEANING
- Do not use any solvent-based or abrasive
- CLEAR ICE MAKER CLEANING CYCLE
- Never use anything to force ice from the evaporator. Damage may result.
- REFRESH KIT
- Cleaning Condenser
- INTERVAL - EVERY SIX MONTHS
- Extended Non-Use
- VACATION/HOLIDAY, PROLONGED SHUTDOWN
- WINTERIZATION
- Troubleshooting
- BEFORE CALLING FOR SERVICE
- IF SERVICE IS REQUIRED
- TROUBLESHOOTING GUIDE
- ERROR NOTIFICATION
- U-Line Corporation (U-Line) Limited Warranty
- One Year Limited Warranty
- Available Second Year Limited Warranty
- Five Year Sealed System Limited Warranty
- Terms
- SERVICE MENU
- To access Relay Status
- To access Relay Toggle
- To access Input Status
- To access Outputs
- Offsets
- To access Offsets
- To change offsets
- Self Test
- To access Self Test
- To access Evap Fan
- To access Mullion
- To access Factory Default
- To restore settings to their factory default.
- To access Re-Select Model #
- To change model setting
- Fan Delay On=
- Fan Delay Off=
- To access Fan Delay
- To change fan delay
- To toggle showroom mode
- Thermistors
- Thermistor one (Ice Bin):
- Thermistor two (Condensor Line Out):
- Thermistor three (Ambient):
- Defrost
Brand : U-Line
Model : 3018CLR
Category : Ice cream maker
