Product Type	Patch Panel
Brand	APC
Model	NetShelter ACCS1005
Rack Size	19-inch
Height	1U (1.75 in / 44.45 mm)
Width	19 in (482.6 mm)
Depth	3.5 in (88.9 mm)
Weight	2.4 lbs (1.1 kg)
Material	Steel
Color	Black
Number of Ports	24
Connector Type	RJ45 (8P8C)
Termination	110-type IDC
Cable Management	Rear cable tie-down loops
Standard Compliance	TIA/EIA-568-C
Shielding	Unshielded (UTP)
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity Range	5% to 95% non-condensing
Maintenance	Wipe with a dry, lint-free cloth
Safety	Passive device; no electrical hazard
Spare Parts	Patch cords and cable ties sold separately

Frequently Asked Questions - NetShelter ACCS1005 APC

What is the APC NetShelter ACCS1005?

The APC NetShelter ACCS1005 is a patch panel designed for 19-inch racks, providing 24 RJ45 ports for network cable termination and organization.

What tools are required for installation?

You will need a punch-down tool with a 110-blade, a cable stripper, and a screwdriver to mount the panel in the rack.

Can this patch panel be used for Cat6 or Cat6a cables?

Yes, the ACCS1005 supports Cat5e, Cat6, and Cat6a cables when terminated properly. Ensure cables meet the standard for optimal performance.

Does the patch panel require power?

No, it is a passive device and does not require any electrical power to operate.

What is the recommended rack space for this panel?

The panel occupies 1U (1.75 inches) of vertical rack space in a standard 19-inch rack.

How do I clean the patch panel?

Wipe the surface with a dry, lint-free cloth. Do not use liquids or abrasive cleaners.

Is the patch panel shielded?

No, this model is unshielded (UTP). For shielded environments, use an APC shielded patch panel.

Can I mount it in a two-post rack?

Yes, the panel includes mounting brackets for both two-post and four-post rack configurations.

What is the maximum cable length supported?

Cable length is limited by Ethernet standards (100 meters for twisted pair). The patch panel itself does not limit length.

Are replacement parts available?

The panel has no user-serviceable parts. If damaged, replace the entire unit. Patch cords and cable ties are available separately from APC.

USER MANUAL NetShelter ACCS1005 APC

Rack Air Containment System (ACCS1000-ACCS1007)—Overview

Introduction

The Rack Air Containment System (RACS) is a mechanical ducting system that attaches to the front or rear of an enclosure to provide increased cooling capacity. The RACS is a modular system that works with APC ^® NetShelter ^® SX enclosures and InRow ^® cooling units to provide maximum cooling predictability, capacity, and efficiency. By attaching the RACS to the rear of the NetShelter SX, air expelled from IT equipment is forced to pass through the cooling unit, where it is conditioned. This ensures that warm exhaust air does not enter the air inlets of installed servers. Redundant configurations allow maximum availability. Optional front containment configurations reduce noise and provide additional control of air flow. The RACS components can be attached to a single enclosure or a group of enclosures. The RACS consists of eight components that can be installed separately or together, depending on your configuration.

• ACCS1000—Rear containment for InRow RC or SC cooling units
• ACCS1001—Rear containment for NetShelter SX and InRow RP cooling units
• ACCS1002—End caps for any rear- or front-containment configuration
• ACCS1003—Front containment for InRow RC or SC cooling units
• ACCS1004—Front containment for InRow RP cooling units
• ACCS1005—Front containment for NetShelter SX enclosures
• ACCS1006—Rear containment for NetShelter SX 750-mm enclosures
• ACCS1007—Front containment for NetShelter SX 750-mm enclosures

Features of the RACS

• Rear containment—Ensures server exhaust air is returned to the InRow cooling unit for maximum cooling predictability. Prevents recirculation of hot exhaust air.
• Front containment—Ensures cold supply air is not captured by neighboring equipment.
• Modular design—Compatible with standard NetShelter SX enclosures, providing maximum system flexibility and scalability.
• Redundant configurations—Provide N + 1 or 2N redundancy by including additional InRow cooling units.
• Clear polycarbonate door inserts—Provide required air containment while allowing visibility to installed IT equipment and a consistent appearance across enclosures.
• Lockable doors—Provide enclosure security.
• Noise reduction—Containment of both the front and rear of the enclosure reduces the level of noise generated by the installed equipment.

Compatibility

The RACS can be coupled with one or more NetShelter SX enclosures in the following configurations:

• A ducted return and flooded supply configuration
• A ducted return and ducted supply (recommended configuration for uncontrolled environments)

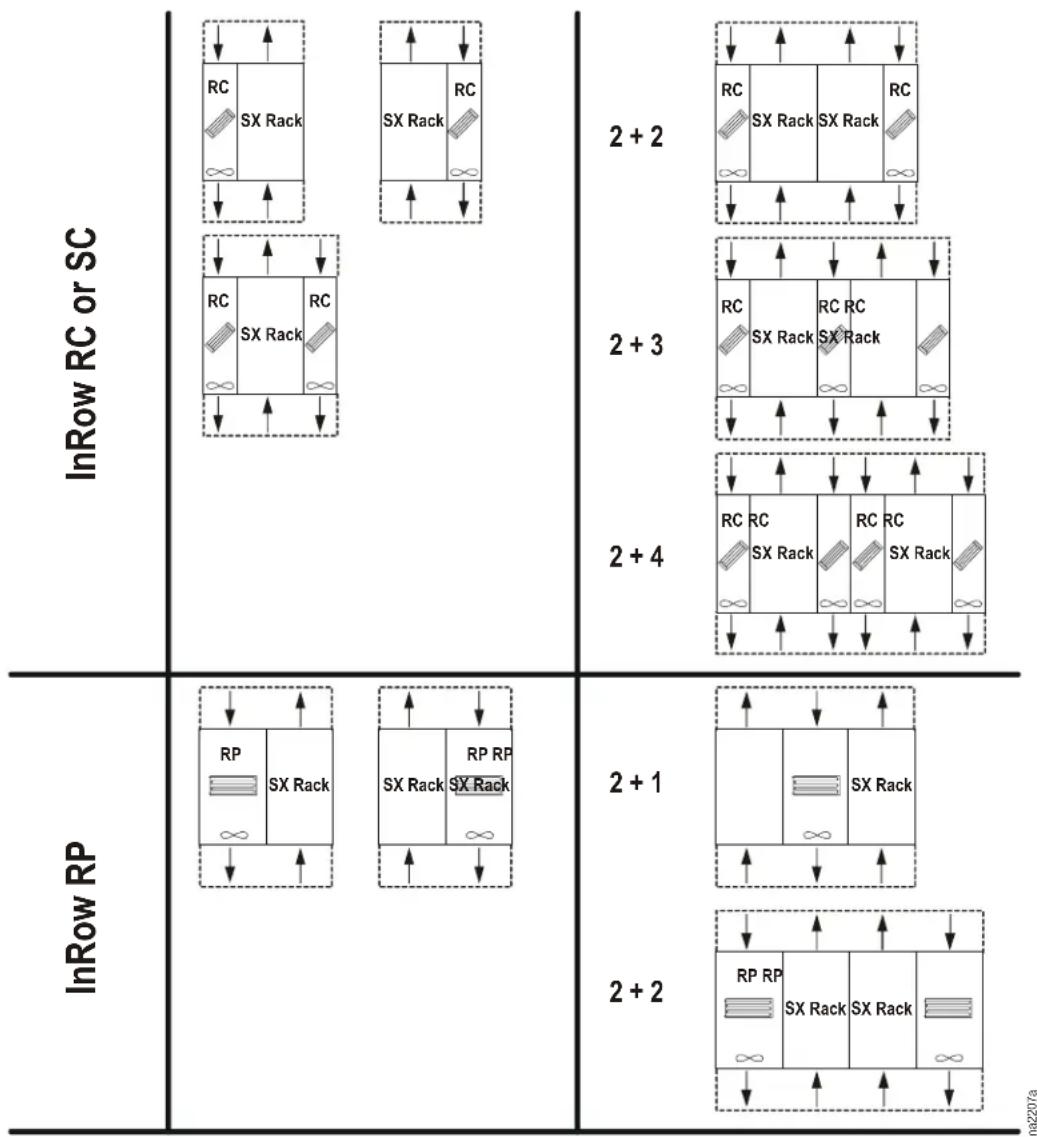

The configurations listed in the following table and shown in the following figure provide hot air retrieval and provide coupling for either redundancy or capacity.

Number of NetShelter SX Enclosures	Number of InRow RC or SC cooling units	Number of InRow RP cooling units
1	1	0
2 2, 3, or 4 1 or 2

r

Cross-reference symbols

If you need to remove and reinstall other equipment in order to install the RACS, see the documentation provided with that equipment for instructions.

When you see this symbol in the RACS installation instructions, see the installation manual of the unit for detailed instructions.

When you see this symbol in the RACS installation instructions, read the RACS System Overview ACCS1000-ACCS1007 sheet before continuing with the installation of the equipment. This brief document is packaged with the Rack Air Containment End Caps (ACCS1002) and is available at the APC Web site, www.apc.com.

Tools required

2 Phillips screwdriver T30 Torx

® screwdriver 10-mm wrench

Safety and handling

Note: The RACS is only intended for use with APC NetShelter SX enclosures.

Upon installation of this RACS, firmware reconfiguration of the cooling system is required. For configuration information, see the Operation manual for your cooling unit.

Caution: The air conditioners included in the system must have a capacity exceeding the load in the racks. Temperatures will exceed safe limits if the load exceeds the cooling capacity.

Caution: Do not install the RACS in ambient environments where the dew point (the temperature at which condensation begins) is expected to be greater than 18.3°C (65°F).

Maintenance

Cleaning the clear polycarbonate door inserts

1. Rinse the door insert with warm water. Wash the door insert gently with a soft cloth or sponge, warm water, and mild soap or detergent.

Caution: Do not scrub the polycarbonate door insert with brushes or squeegees.

1. Rinse the door insert again with warm water. Dry the door insert with a soft cloth or damp cellulose sponge to prevent water spotting.
2. To remove wet paint or grease, lightly rub the door insert with VM and P grade naphtha or isopropyl alcohol, then wash and rinse.

Compatible cleaning agents

• Aqueous solutions of soaps and detergents
  • Glass and light-duty hard surface cleaner

Caution: Do not use abrasive or highly alkaline cleaners. Never scrape the insert with razor blades or other sharp objects.

Never use acetone, benzene, carbon tetrachloride, or gasoline as a cleaner.

Two-Year Factory Warranty

This warranty applies only to the products you purchase for your use in accordance with this manual.

Terms of warranty

APC warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase. APC will repair or replace defective products covered by this warranty. This warranty does not apply to equipment that has been damaged by accident, negligence or misapplication or has been altered or modified in any way. Repair or replacement of a defective product or part thereof does not extend the original warranty period. Any parts furnished under this warranty may be new or factory-remanufactured.

Non-transferable warranty

This warranty extends only to the original purchaser who must have properly registered the product. The product may be registered at the APC Web site, www.apc.com.

Exclusions

APC shall not be liable under the warranty if its testing and examination disclose that the alleged defect in the product does not exist or was caused by end user's or any third person's misuse, negligence, improper installation or testing. Further, APC shall not be liable under the warranty for unauthorized attempts to repair or modify wrong or inadequate electrical voltage or connection, inappropriate on-site operation conditions, corrosive atmosphere, repair, installation, exposure to the elements, Acts of God, fire, theft, or installation contrary to APC recommendations or specifications or in any event if the APC serial number has been altered, defaced, or removed, or any other cause beyond the range of the intended use.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS AGREEMENT OR IN CONNECTION HEREWITH. APC DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTION AND FITNESS FOR A PARTICULAR PURPOSE. APC EXPRESS WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR AFFECTED BY AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF, APC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE APC'S SOLE LIABILITY AND PURCHASER'S EXCLUSIVE REMEDY FOR ANY BREACH OF SUCH WARRANTIES. APC WARRANTIES EXTEND ONLY TO PURCHASER AND ARE NOT EXTENDED TO ANY THIRD PARTIES.

IN NO EVENT SHALL APC, ITS OFFICERS, DIRECTORS, AFFILIATES OR EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, ARISING OUT OF THE USE, SERVICE OR INSTALLATION, OF THE PRODUCTS, WHETHER SUCH DAMAGES ARISE IN CONTRACT OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR STRICT LIABILITY OR WHETHER APC HAS BEEN ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES. SPECIFICALLY, APC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS OR REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT, LOSS OF SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD PARTIES, OR OTHERWISE.

NO SALESMAN, EMPLOYEE OR AGENT OF APC IS AUTHORIZED TO ADD TO OR VARY THE TERMS OF THIS WARRANTY. WARRANTY TERMS MAY BE MODIFIED, IF AT ALL, ONLY IN WRITING SIGNED BY AN APC OFFICER AND LEGAL DEPARTMENT.

Warranty claims

Customers with warranty claims issues may access the APC customer support network through the Support page of the APC Web site, www.apc.com/support. Select your country from the country selection pull-down menu at the top of the Web page. Select the Support tab to obtain contact information for customer support in your region.
