BRD1100DFPB - Oven BELLING - Free user manual and instructions

Product Type	Freestanding Oven
Brand	Belling
Model	BRD1100DFPB
Energy Type	Gas (oven) / Electric (grill)
Oven Capacity	113 liters
Width	89.5 cm
Height	85.0 cm
Depth	60.0 cm
Weight	67 kg
Power Supply	230 V / 50 Hz (electric), LPG/Natural Gas
Oven Functions	Conventional, Fan, Grill, Fan+Grill, Defrost
Temperature Range	50 - 250 °C
Cleaning Type	Enamel interior, easy-clean door
Number of Shelves	2
Safety Features	Flame failure device, cool-touch door handle
Spare Parts Availability	Yes, through Belling service centers
Repairability Index	7.5/10
Warranty	2 years parts and labor
User Manual	Available for free download

Frequently Asked Questions - BRD1100DFPB BELLING

How do I set the timer on my Belling oven?

Press the timer button, then use the +/- buttons to set the desired time. The oven will automatically turn off when the time elapses.

What type of gas does this oven use?

The oven is designed for Natural Gas (G20) but can be converted to LPG (G30/G31) using a conversion kit.

How do I clean the oven door?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. The inner glass can be removed for easier cleaning.

The oven is not heating. What should I check?

Check that the gas supply is turned on and the igniter is working. For electric grill, ensure the circuit breaker is not tripped.

Can I use aluminum foil in the oven?

Yes, but do not cover the oven floor or allow foil to touch the heating elements, as it can cause overheating.

What is the maximum weight for a turkey?

For even cooking, we recommend a turkey up to 12 kg. Use the lower shelf position for heavy items.

How do I replace the oven light bulb?

Turn off power supply, remove the glass cover, unscrew the old bulb and replace with a 40W oven bulb (E14).

The oven door is hard to close. How to fix?

Check the hinges for obstructions. If the door is misaligned, adjust the hinge screws located at the door bottom.

Can I use self-cleaning cycles on this model?

This model does not have a self-cleaning function. Clean manually with a non-abrasive cleaner.

Where can I find spare parts?

Authorized Belling parts distributors. Check the website or contact customer service with your model number.

USER MANUAL BRD1100DFPB BELLING

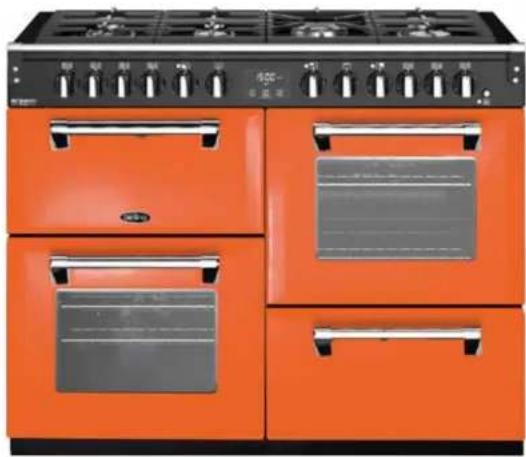

The Colour Boutique Deluxe with Quad Oven

Giving you 4 independent ovens in the one range cooker

224L TOTAL CAPACITY QUAD OVEN COOL TOUCH MADE IN BRITAIN 3 YEAR WARRANTY OF CHINA

Orange electric stove with dual doors and control knobs (no visible text or symbols)

Colours

Day's Break: BRD1100DFDB | Floral Burst: BRD1100DFFB | Peach Blush: BRD1100DFPB Rolling Countryside: BRD1100DFRC | Wild Berry: BRD1100DFWB

Features & Benefits

Huge 224L Capacity

Maximum capacity, endless results. Creating as much space as possible, our combined 224L capacity ovens give you the versatility of cooking the largest roast and baking desserts for the masses all at once.

Oven 1: 41L Compact Oven with Grill

Perfect for efficiently cooking small meals, the small oven combines a conventional oven with a multi-function grill.

Oven 2: 71L Multi-function Oven for Perfect Results

With 13 settings to choose from such as Fan and Conventional options, Pizza function, Grill settings and more, you can perfectly cook anything from pavlova to pastizzi with ease.

Oven 3: 71L Equiflow™ Oven

Features 5 essential settings: Equiflow™ Fan Forced Cooking, Slow Cook, Keep Warm, Bread Proving and Light.

Oven 4: 41L Slow Cook Oven

A dedicated Slow Cook Oven perfect for using your favourite cast iron dish to cook tender and tasty slow cooked meals. Also ideal to use as a plate warmer.

Gas Cooktop with Wok Burner

7 gas burners featuring a 14.4mJ wok burner and durable raised cast iron pan supports for stability. A flame safety device fitted to each burner cuts off the gas supply should the flame ever go out.

Additional Features

Includes removable double extending telescopic runners, a large easy to read white LED display and touch control screen, full width oven pans, premium knobs and rear wheels.

Functions

Top Left

Bottom Left

Clean Clean Rain Rain Defrost Imperative Moist Top Seal Dry Seal Skin Cream Skin Skin Skin Coat Puzzle Light Stuff Light Light

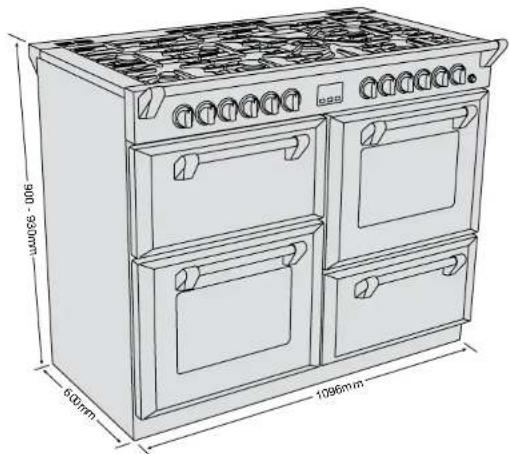

600mm 1096mm 450-600 200

If this appliance is installed near vinyl wrapped surfaces, we strongly recommend using an installation kit available from the vinyl-wrap supplier. Belling cannot accept any responsibility for damage caused due to installation into cabinets with low temperature tolerances.

COLOUR BOUTIQUE DELUXE BRD1100DF

COOKTOP
No. of burners	7
Fuel	Gas
GAS COOKTOP
Burner 1 (nul)	Small 3.6
Burner 2 (nul)	Medium 7.2
Burner 3 (nul)	Medium 7.2
Burner 4 (nul)	Small 3.6
Burner 5 (nul)	Wok 14.4
Burner 6 (nul)	Large 10.8
Burner 7 (nul)	Medium 7.2
Cast Iron pan supports	Yes
Automatic ignition	Yes
Plane safety device	Yes
Work credits	Yes
CAVITY 1
Position Top left
Function Conventional oven and grill
ELECTRIC OVEN / GRILL
Variable rate dual circuit electric grill	Yes
Conventional electric oven	Yes
CAVITY 1 FEATURES
Glass capacity (in rear 41)
Power (kW) Over (1.4) & Grill (2.7)
No. of shelves 1
No. of shelf positions 2
Full width oven pans with reversible level 1
Door opening Drop-down
Energy rating A
CAVITY 2
Position Bottom left
Function Multi-function oven
ELECTRIC OVEN
Variable rate electric grill	Yes
Conventional electric oven	Yes
Fanned electric oven Yes
Detroit	Yes
Intensive cake (top, bottom & fan)	Yes
Top heat only	Yes
Base heat only	Yes
Base heat with fan	Yes
Grill with fan	Yes
Slow cook	Yes
Pizza	Yes
Keep warm Yes
Bread growing Yes

CAVITY 2 FEATURES
Gross capacity (litres) 71
Power (kW) Oven (2.3) & Grill (1.7)
No. of shelves 2
No. of shelf positions 6
Full width oven pans with reversible inlet 1
Telescopic shelves 1 double extending, removable
Oven light Yes
Programmable timer Yes
Door opening Side opening
Energy rating A
CAVITY 3
Position Top right
Function Fan forced oven
ELECTRIC OVEN
Fanned electric oven Yes
Solve cook	Yes
Keep warm Yes
Bread opening Yes
CAVITY 3 FEATURES
Gross capacity (litres) 71
Power (kW) 2.0
No. of shelves 2
No. of shelf positions 6
Oven Light	Yes
Door opening Side opening
Energy rating A
CAVITY 4
Position Bottom right
Function Slave cook oven
Fuel	Electric
CAVITY 4 FEATURES
Gross capacity (litres) 41
Power (kW) 0.16
Door opening Drop-down
TIMER
Minute minder	Yes
Key lock features	Yes
INSTALLATION
Minimum gap required to fit appliance (mm)	1106
Gas type	NG/LPG (converter kit included)
Gas mist type	1/2" BSP "female"
Gas mist position	Rear right
Power supply 240V single phase/3 phase
Fuse size (mm)	32
Total electrical power load (kW)	8.15
Total gas power load (kW)	15
LPG converter kit included	Yes
DIMENSIONS (PRODUCT)
Height x Width x Depth (mm)	900 - 930 x 1256 x 600

Additional accessories available - please see belling.com.au for more information
