USER MANUAL 40MF430B MAGNAVOX

Thank you for choosing Magnavox.

Need help fast?

Read your Owner's manual first for quick tips that make using your Magnavox product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.magnavox.com/support or call 1-866-341-3738 while with your product (and Model / Serial number)

Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase.

Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/support to ensure:

\*Proof of Purchase

Returning the endorsed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

\* Product Safety Notification

By registering your product, you'll receive notification directly from the manufacturer - in the rare case of a product recall or safety defect.

\*Additional Benefits

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

MAGNAVOX

Congratulations on your purchase, and welcome to the "family!"

Dear MAGNAVOXproduct owner:

Thank you for your confidence in MAGNAVOX. You've selected one of the best-bul t,b est-backed products available today We'll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the MAGNAVOX "family," you're entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What's more, your purchase guarantees you'll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a MAGNAVOX product

P.S. To get the most from your MAGNAVOX purchase, be sure to complete and return your Product Registration Card at once or register online at:

www.magnavox.com/support

Know these safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This "bolt of lightning" indicates uninsulated material within your unit y cause an electrical shock. For the safety everyone in your household, please do not move product covering

The "exclamation point" calls attention to features for which you should read the closed literature closely to prevent operating and maintenance problems

WARNING : To reduce the risk of fire electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION :To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference

Modd No. ____

Serial No.

MAGNAVOX Visit our World Wide Web Site at www.magnavox.com/support

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings
4. Follow all instructions .
5. Do not use this apparatus near water.
6. Clean only with a dry cloth .
7. Do not block any of the ventilation openings Install in accordance with the manufacturer's instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized o grounding-type plug. A polarized plug has two blades with one wider than the other A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provider plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinde particularly at plugs, convenience receptades, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time
14. Refer all servicing to qualified service personnel. Servicing i required when the apparatus has b een damaged in any way such as power-supply cord or plugs damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or h as been dropped

15. Damage Requiring Service the appliance should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged B. Objects have fallen, or liquid has been spilled into the appliance;
    C. The appliance has been exposed to rain D. The appliance does not appear to operate normally or exhibits a marked change in performance E. The appliance has been dropped or the enclosure damaged.

16. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

17. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
    • Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such tems could unsuspectingly fall from the top of the set and cause product damage and/or personal injury
18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
19. PowerLines -A n outdoor antenna should be located away from power lines
20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below
21. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
22. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:
23. Install all batteries correctly, with + and - aligned as marked on the unit.
    • Do not mix batteries (old and new or carbon an alkaline, etc.).
24. Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

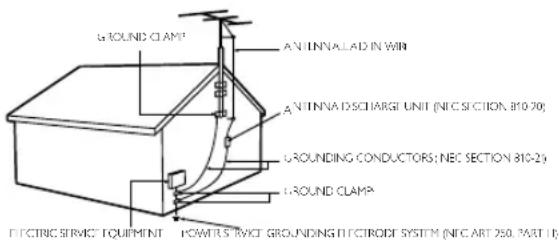

Example of Antenna Grounding as per NEC - National Electric Code

GROUND CLAMP ANTINNALAD IN WIR ANTINNA DISCHARGE UNIT (NIC SECTION 310-70) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT POWER'S TWIC GROUNDING ELECTROID SYSTEM (NIC ART 250, PART I)

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: MAGNAVOX

Model: 40MF430B

Responsible Party: HUNAI CORPORATION, Inc.

Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A. Telephone Number: 1-866-341-3738

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7/NTMR-7

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all Local, State an Federal laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

NOTE ABOUT RECYCLING

• This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit.
  • Make sure to hold the upper and bottom frames of the unit firmly as illustrated

Two silhouettes of two people holding a blank rectangular object (no text or symbols)

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the ACpower cord with wet hands.
- Do not pull on the AC power cord when disconnecting it from an AC outlet. Graspit by the plug.
• Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• Do not install the unit in direct sunlight, near strong magnetic fi elds, or in a place subject to dust or strong vibration
• Avoid a place with drastic temperature changes.
• install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and / σ sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

- Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction

- Be sure to unplug the AC power cord from the AC outlet before carrying the unit.

Trademark Information

- HDMI, the HDMI Logp, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DOLBY. DIGITAL

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  • The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

INTRODUCTION

Contents

Important Safety Instructions 3 Trademark Information 4

INTRODUCTION

Features 5 Supplied Accessories 6 Symbols Used in this Manual 6 Attaching the Base 6 Fixing the Unit on Your Furniture 6 Control Panel / Terminals / Remote Control Function 8 Installing the Battenes 8

PREPARATION

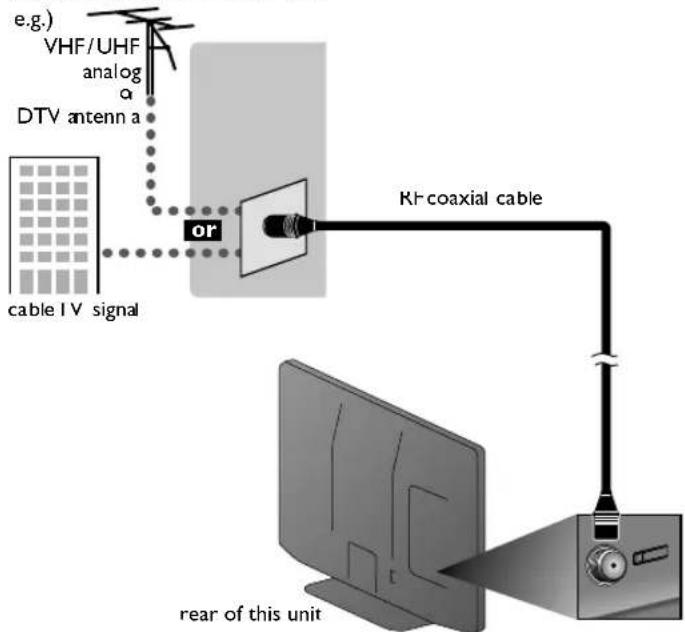

Antenna Connection 9

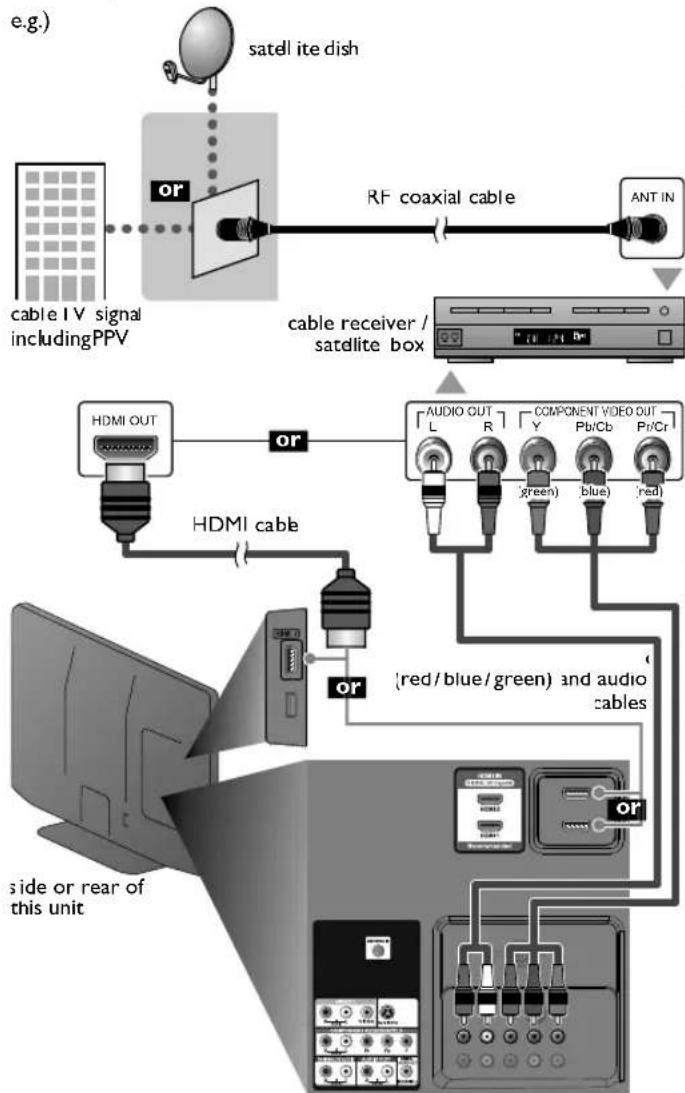

Connection to Cable Receiver or Satellite Box 9
External Device Connection 10

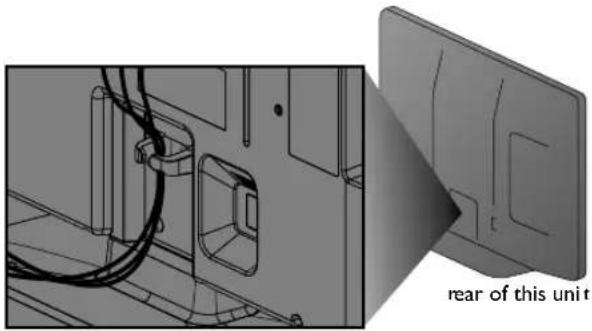

Cable Management 1 4

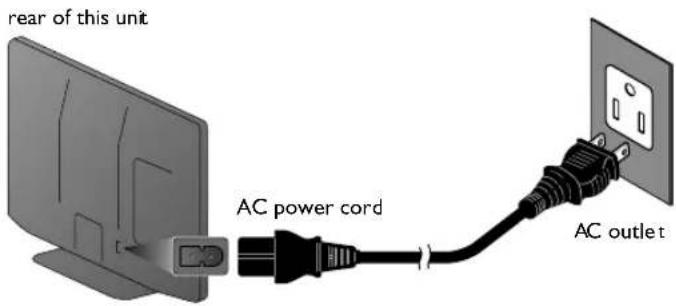

Plug In the AC Power Cord 1 4

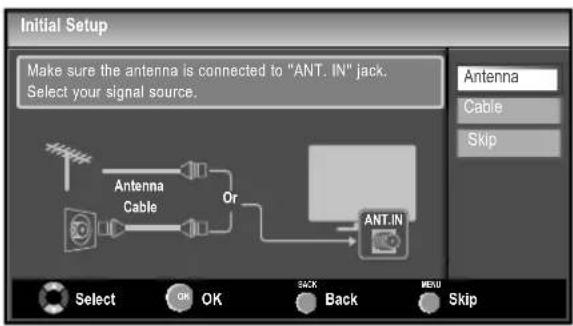

Initial Setup 15

WATCHING TV

Sleep Timer 16 Switching Each Input Mode 16 Freeze Mode 16 Channel Selection 16 TV Screen Display Mode 1 7 Sound Functions 1 7 TV Screen Information 18 Reducing the Brightness 18 Fun-Link Options 18

OPTIONAL SETTING

Main Menu 19

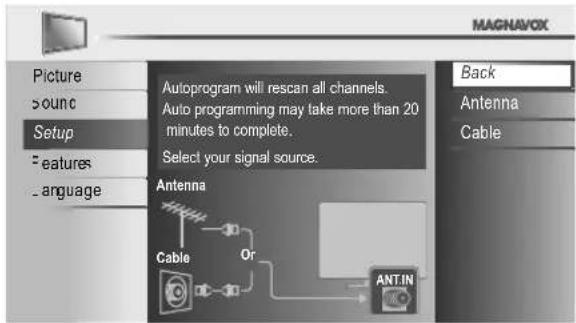

Autoprogram 19

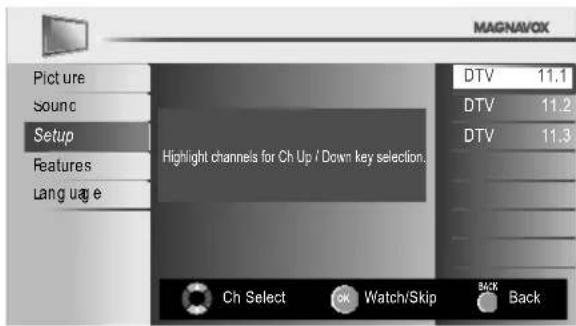

Channel List 20
Add Channels 20

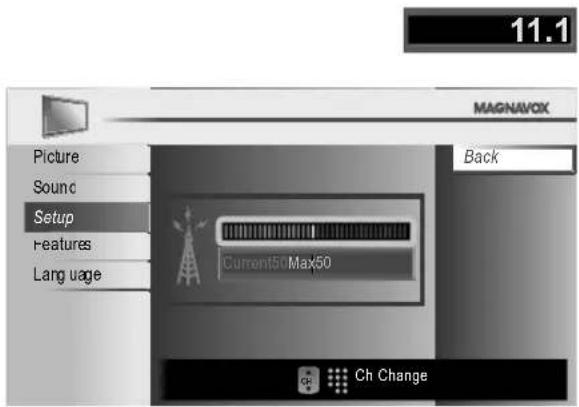

Antenna Confirmation 21
Language Selection 21

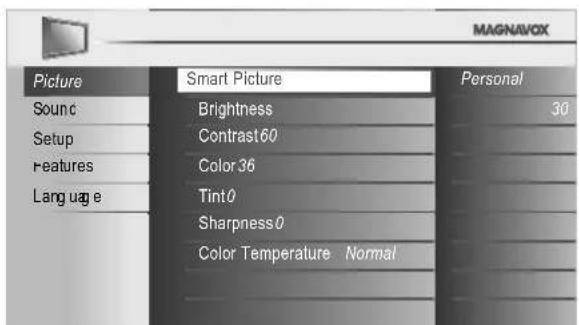

Picture Adjustment 22

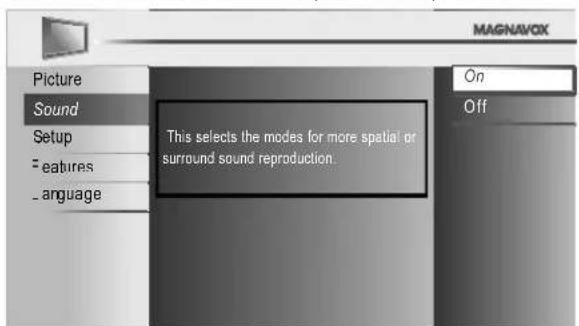

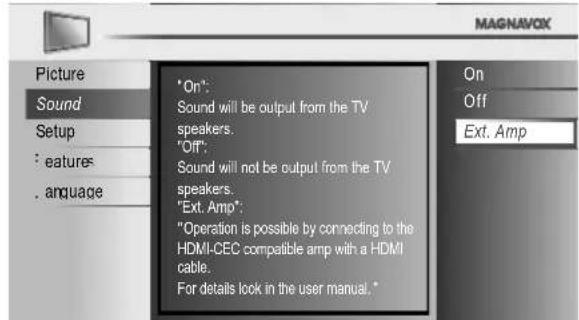

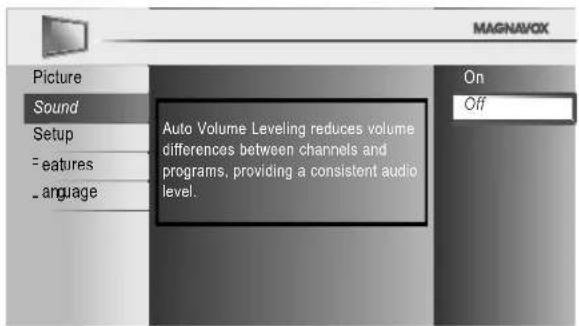

Sound Adjustment 22

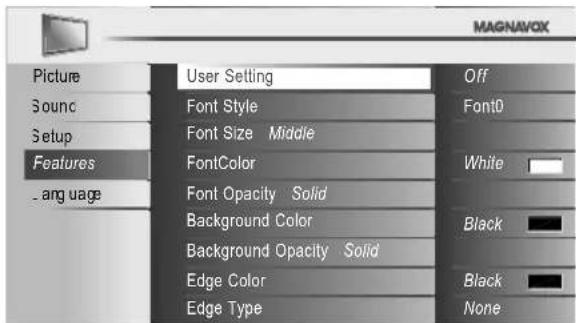

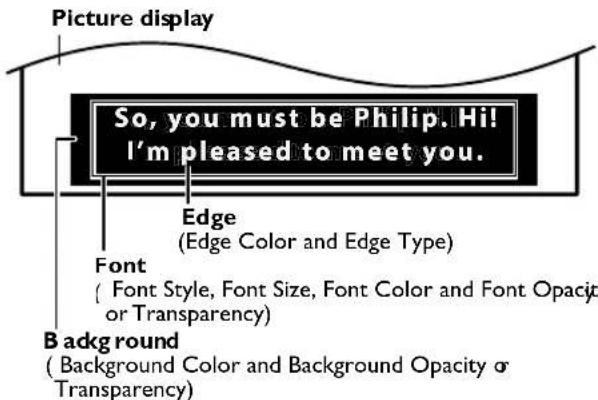

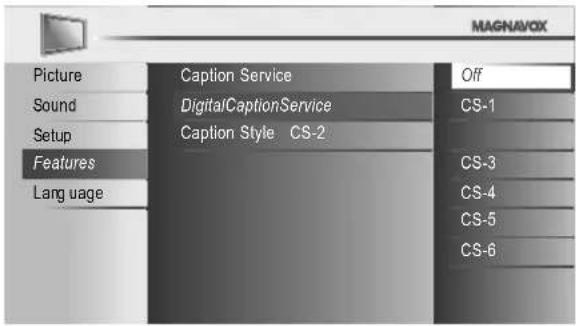

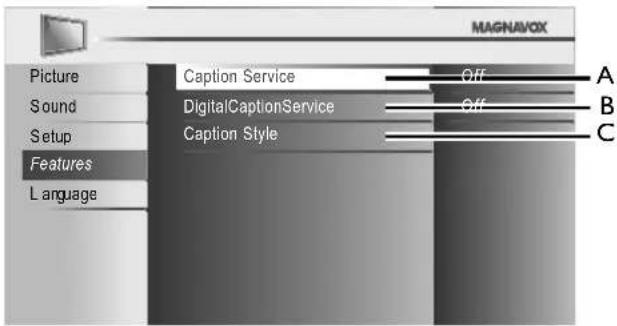

Closed Caption 24

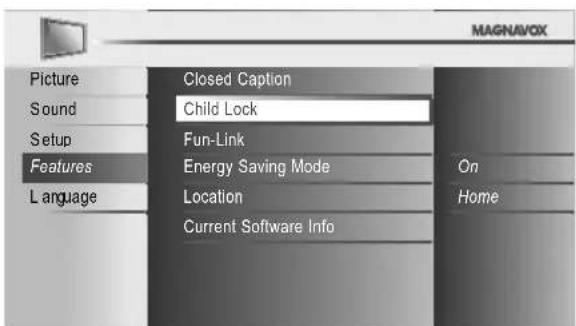

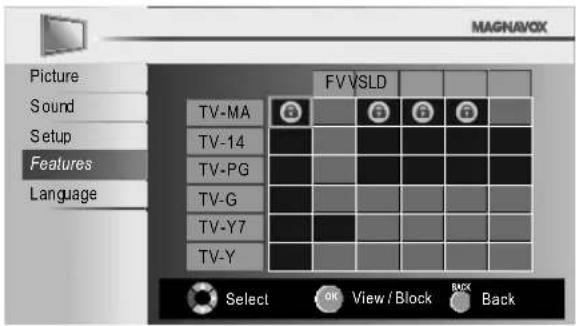

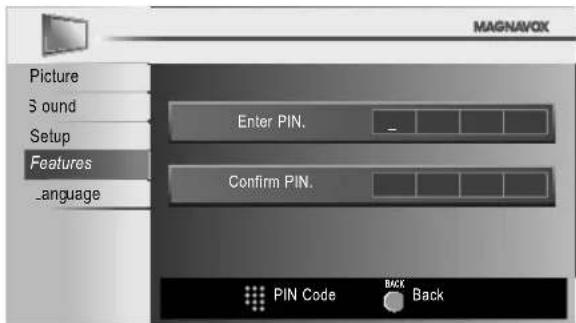

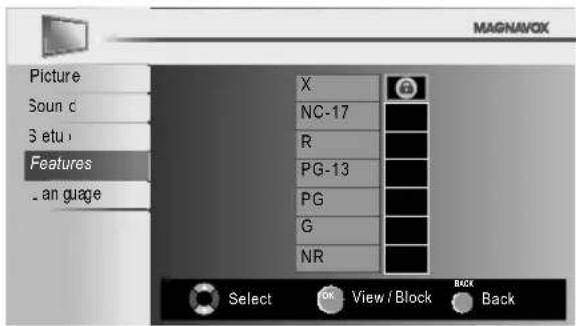

Child Lock 27
Fun-Link 29

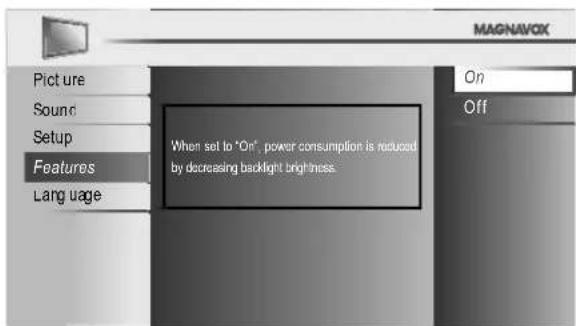

Energy Saving Mode 30

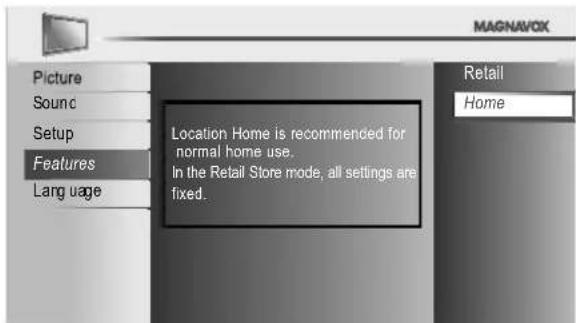

Location 30

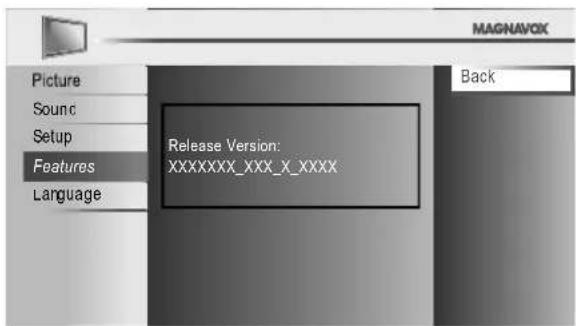

Current Software Info 30

TROUBLESHOOTING

FAQ 31 Troubleshooting Guide 32

INFORMATION

Glossary 34
Maintenance 34
General Specifications 35
Electrical Specification 35
Other Specifications 35
Limited Warranty 37

Features

•DTV/TV/CATV

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

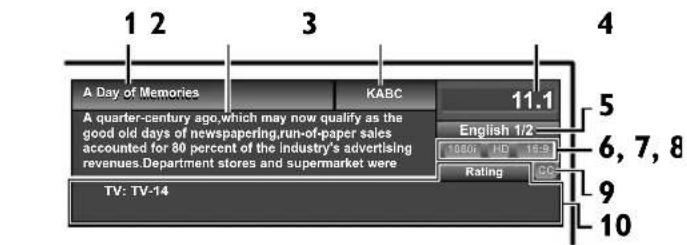

• Information Display (ATSC only)

You can display the title, contents and other information of the current D1V program on the IV screen.

- Autoprogram

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

- Child Lock

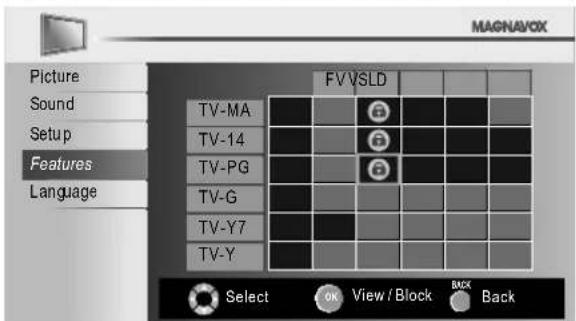

This feature allows you to block children's access to inappropriate programs

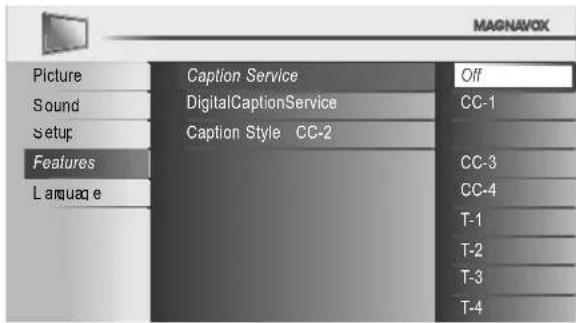

- Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption supported programs.

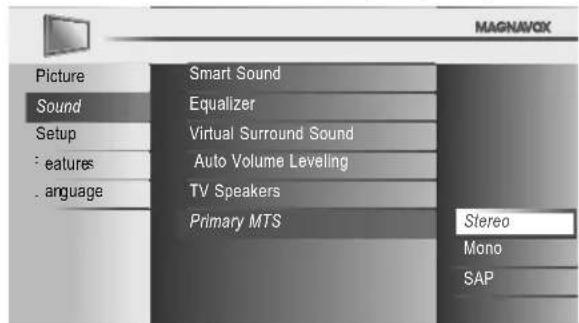

•MTS/SAP Tuner

Audio can be selected from the remote control.

• Auto Shut Off Function

If there is no input signal and no operation for 15 minutes the unit will turn off automatically.

- Sleep Timer

This feature will automatically turn off the power of the unit at a specific time.

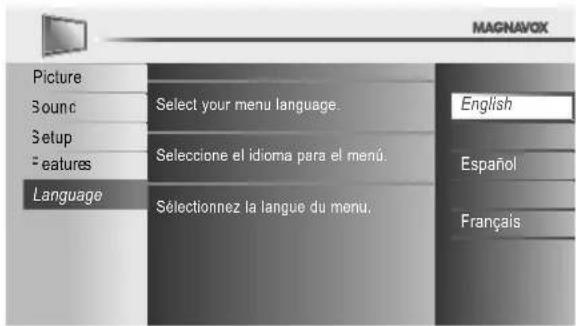

- Choices for On-screen Language

Select your on-screen language: English, Spanish or French

- Stereo Sound Function

• PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and deal point "•" buttons on the remote control.

• Various Adjustment for Picture and Sound

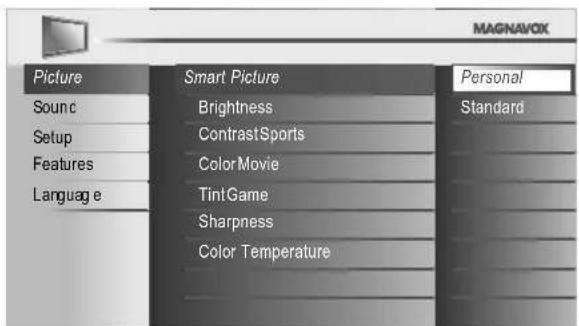

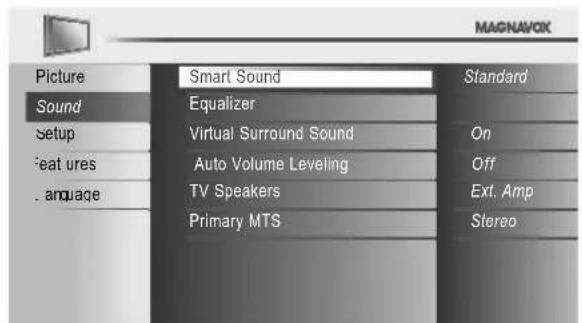

Customizes image quality suitable for your room and sets your sound preference.

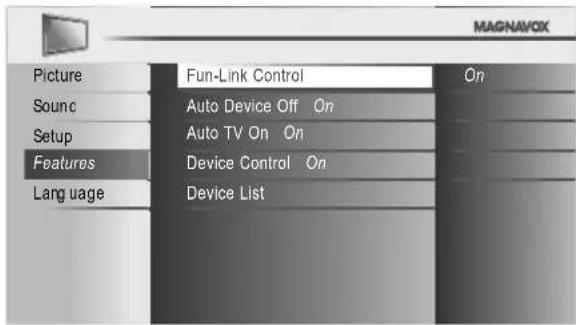

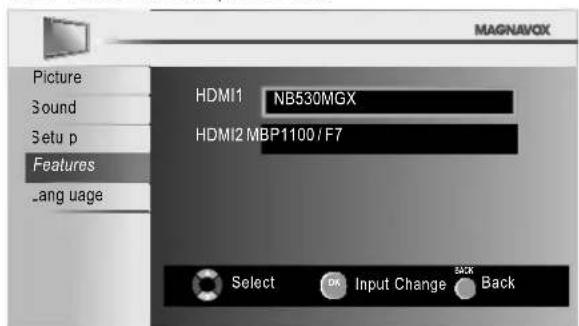

• Fun-Link via HDMI Link

(HDMI Cable not Included)

- un-Link allows your other HDMI link devices (such as Magnavox DVD) to be controlled by the HDMI cable connected to your IV.

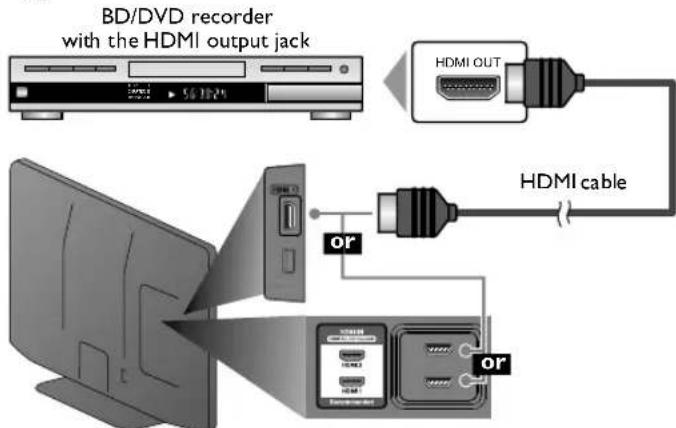

- HDMI Input

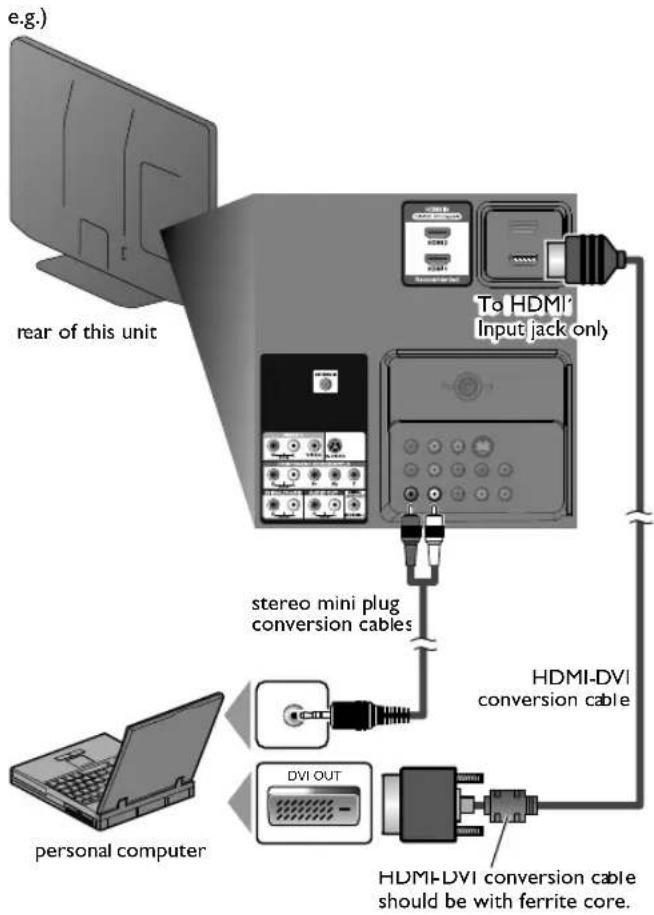

When using HDMI1 Input, you can enjoy this unit as a PC monitor if your PC has a DVI output terminal.

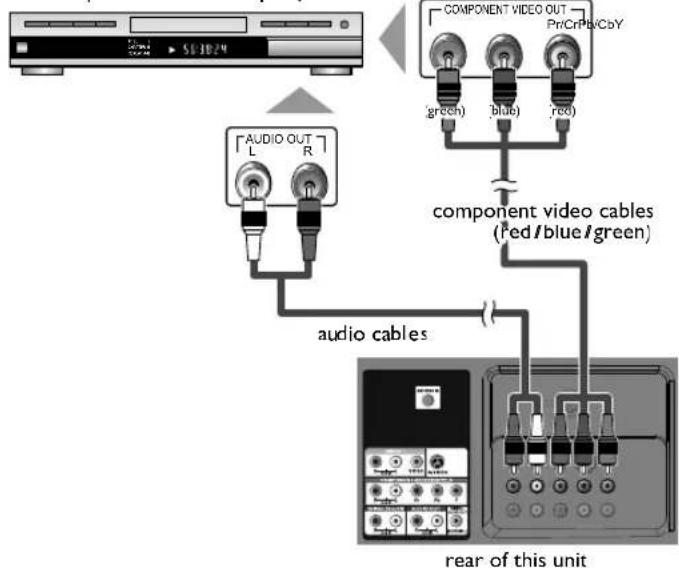

• Component Video Input

- S-Video Input

- AV Input

• Digital Audio Output

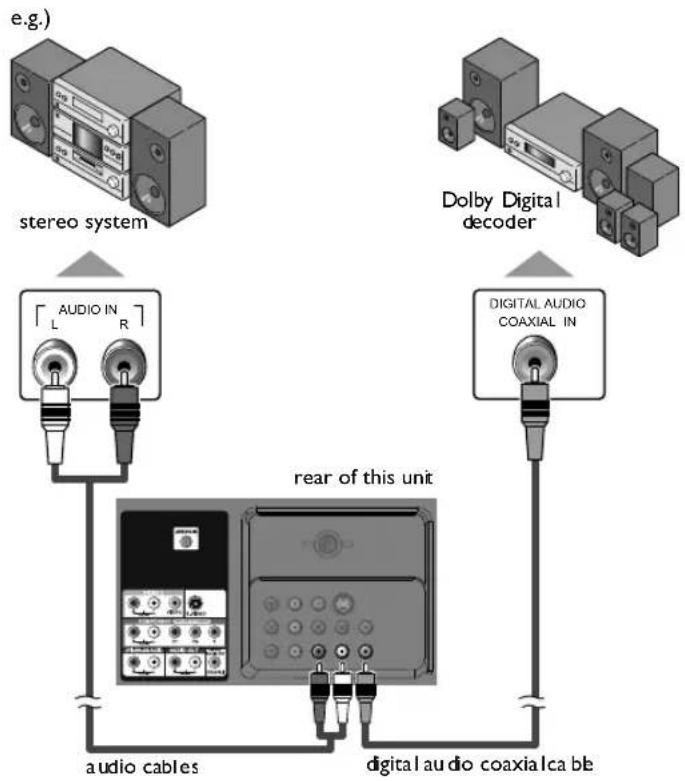

• Analog Audio Output

© 2010 Funai Electric Co., Ltd

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, down loaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes

FUNAI with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of trademarks or any other content in this manual is strictly prohibited by Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

Supplied Accessories

Owner's manual (1EMN 26742)

MAHAVOX

Remote control (N F804 UD)

Batteries (AAA, 1.5V × 2)

Quick Start (1EMN26359)

Simple 3D illustration of a blank rectangular panel with two horizontal cutouts (no text or symbols)

Registration card (1EMN24699)

AC power cord (WAV0162LW001) α (WAV0162LTE03) α (WAV152ZHN001)

Screw kit for attaching the base (1ESA23096)

- If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

Note

- If you lose the screws, please purchase M5×12 Phillips head screws at your ocal store.

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

ATSC

:Digital ITV operation

NTSC

: Analog/Cable TV operation

- If neither symbol appears, the operation is applicable to both

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction.

1 Spread a thick and soft cloth over a table as shown.

Place the main unit face up onto it. Make sure not to damage the screen. At least 2 people are required for this step

Illustration of a hand holding a rectangular electronic device with a clip, no text or symbols visible

2 Insert 2 hooks under the bottom of the main unit into base holes. (shown by arrow (1), then move the base in the direction as shown by arrow (2) until it stops and the 6 mounting holes are aligned.

Diagram of a device with two labeled components, one attached to a rectangular panel and the other inserted into a clip (no text or symbols present)

3 Drive Phillips pan screws into the 6 threaded holes at the bottom of the base until they are tight.

Illustration of a rectangular electronic device with wires attached to its side (no text or symbols)

To remove the base from this unit

- Jnscrew the Phillips pan screws on step 3. After the screws are removed, move the base in the opposite direction as shown by arrow ② on step 2, then pull the base up toward the front of the unit. Be careful not to drop the base when you remove it

Note

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in nures as well as damage to the unit.
• Make sure to use a table which can support the weight of this unit and is larger than this unit.
  • Make sure the table is in a stable location.
• When attaching the base, ensure that FRONT 1 written on the base is upward. If it's not upward, the 2 hooks don't fit in the base

Fixing the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown.

• Recommended screw dimension : 5.1 x 20 mm

clear of this unit screw holes

Note

- When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item

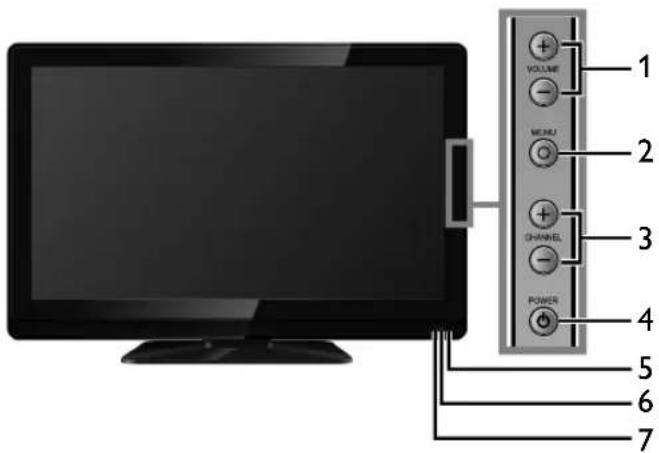

Control Panel

VOLUME MENU CHANNEL POWER 1 2 3 4 5 6 7

Terminals

Labeled diagram of a computer monitor showing internal components and ports, including front panel, rear panel, and control panels.

Note for service terminal

\* service terminal (service use only)

• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work)
• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

1 VOLUME+/- p.17 Press to adjust the volume or move right (+) / left (−) through the main menu items
2 MENU O p.19
3 CHANNEL+/- p.16

Press to select channels or move up (+)/down (-) through the main menu items.

4 POWER ⏻ p.15
5 Infrared sensor window Receives infrared rays transmitted from the remote control.
6 POWER indicator Lights up green when power is on.
7 STAND BY indicator Lights up red when power is off

Side Panel

8 HDMI 3 Input jack p.9,10
9 S-Video/Composite Video/Audio (L/R) Input jacks for VIDEO 2 p. 11, 12

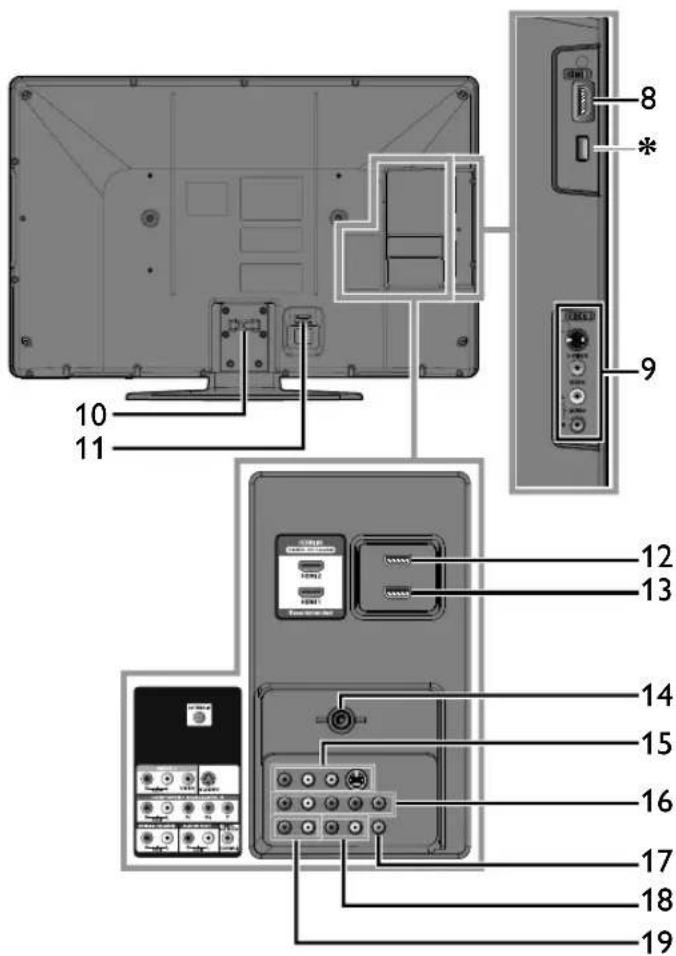

Rear Pane

10 Cable management p.14
11 AC power cord Inlet p.14
12 HDMI 2 Input jack p.9,10
13 HDMI 1 Input jack p. 9, 10, 13

HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

14 Antenna Input jack p.9
15 S-Video/Composite Video/Audio (L/R) Input jacks for VIDEO 1 p. 11, 12
16 Component Video and Audio (L/R) Input jacks p. 9, 11
17 Digital Audio Output jack p.12
18 Audio (L/R) Output jacks p.12
19 Audio (L/R) Input jacks for HDMI 1 p.10, 13

Audio cable connection from a DVI device. When you connect your PC that has a DVI terminal, use a stereo mini plug conversion cable as well. (For HDMI 1 Input jack only)

Remote Control Function

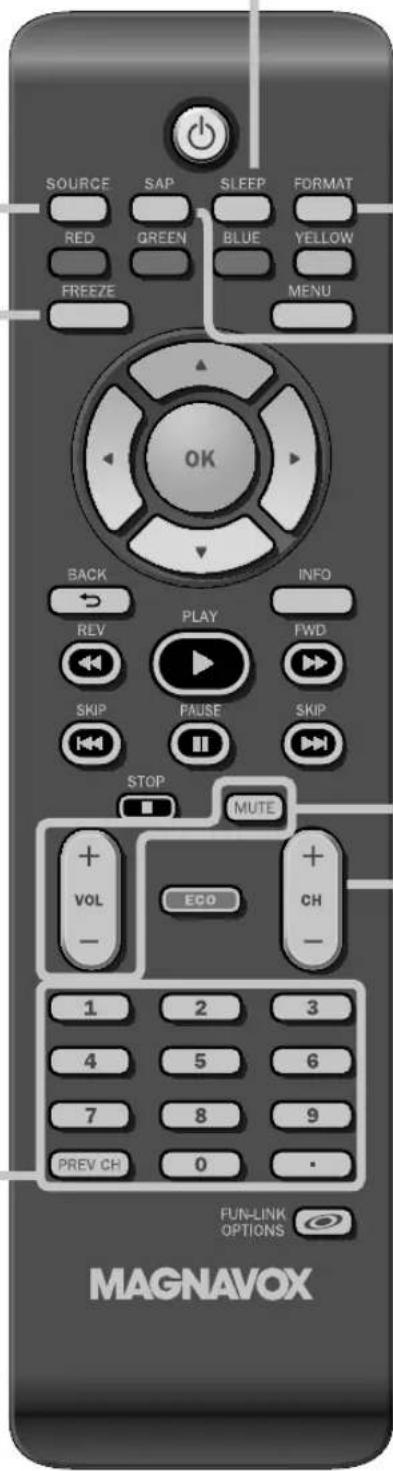

1 2 3 SOURCE SAP SLEEP FORMAT RED GREEN BLUE YELLOW FREEZE MENU 4 5 6 OK 7 BACK INFO REV PLAY FWD SKIP PAUSE SKIP STOP MUTE 8 VOL ECO CH - 9 PREV CH 0 - FUN-LINK OPTIONS MAGNAVOX 10 11 12 13 14 15 16 17 18 19 20

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details
  • We do not guarantee 100% interoperability with all universal remote controls

Note

• Buttons in gray background ( ) are not available unless you are connected to devices that are compatible with Fun-Link function
• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery opm partment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (eg. Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.

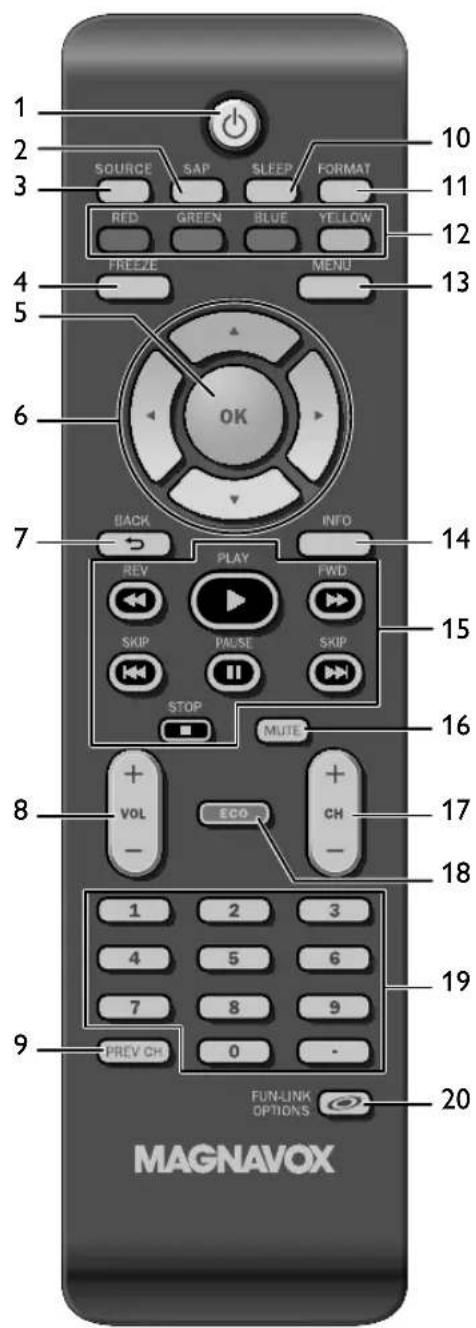

1 (power) p.15
2 SAP p.17
3 SOURCE p.16
4 FREEZE p.16
Press to freeze screen image
5 OK p.15
6 ▲/▼/◄/► (cursor) p.15
7 BACK ↻ p.18
Press to return to the previous menu operation.

8 VOL + / - p.17

9 PREV CH p.16

Press to return to previously viewed channel

10 SLEEP p.16

11 FORMAT p.17

Press to select aspect ratio available for the TV screen.

12 RED/GREEN/BLUE/YELLOW p.29

Functionally useful for Fun-Link.

13 MENU p.19

14 INFO p.18

15 REV ◀◀/FWD ▶▶ p.29

Press to search backward or forward through the disc.

PLAY ▶ p.29

Press to begin the disc playback.

SKIP I◀◀/SKIP▶▶I p.29

Press to skip backward or forward chapters, titles or tracks of the disc.

PAUSEII p.29

Press to pause the disc playback.

STOP ■ p.29

Press to stop the disc playback.

16 MUTE p.17

17 CH + / - p.16

18 ECO p.18

Press to reduce the brightness.

19 Number buttons p.16

• (dot)

Press to shift the subchannel from the main channel.

20 FUN-LINK OPTIONS p. 18, 29

Press to call up various menu from your Fun-link device connected through an HDMI cable.

Installing the Batteries

Install the batteries (AAA, 1.5V x 2) matching the polarity indicated inside battery compartment of the remote control.

Close-up of a black electronic device with a circular frame and a rectangular patch, no visible text or symbols.

Close-up of a black electronic component with metallic pins, enclosed in a circular frame (no visible text or symbols)

Diagram of a battery being inserted into a slot, enclosed in a circular frame (no text or symbols)

PREPARATION

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Before you connect:

Be sure your antenna or other device is connected properly before plugging in the AC power cord

Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.) VHF/UHF analog α DTV antenna a or cable IV signal Rf-coaxial cable rear of this unit

Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. [Initial Setup] → p.15

Note

• If you have any question about the DTV's antenna visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set top or inside antenna
• To switch your reception source easily between antenna and cable, install an antenna selector.
• If you are not receiving a signal from your cable service, contact the Cable provider;

Connection to Cable Receiver or Satellite Box

Use an HDMI or component video cables to connect the HDMI or the Component Video Input jacks of the unit to the HDMI or the component video output jacks of the cable receiver/satellite box

If you connect to the unit's Component Video Input jacks, connect audio cables to the Audio L/R Input jacks right beside the Component Video connector.

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video output jacks because they might have different output jacks.

Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider. For more information please contact your cable / satellite provide.

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

External Device Connection

HDMI Connection

HDMI connection offers the highest picture quality.

HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. e.g.)

BD/DVD recorder with the HDMI output jack HDMI OUT HDMI cable or or

side or rear of this unit

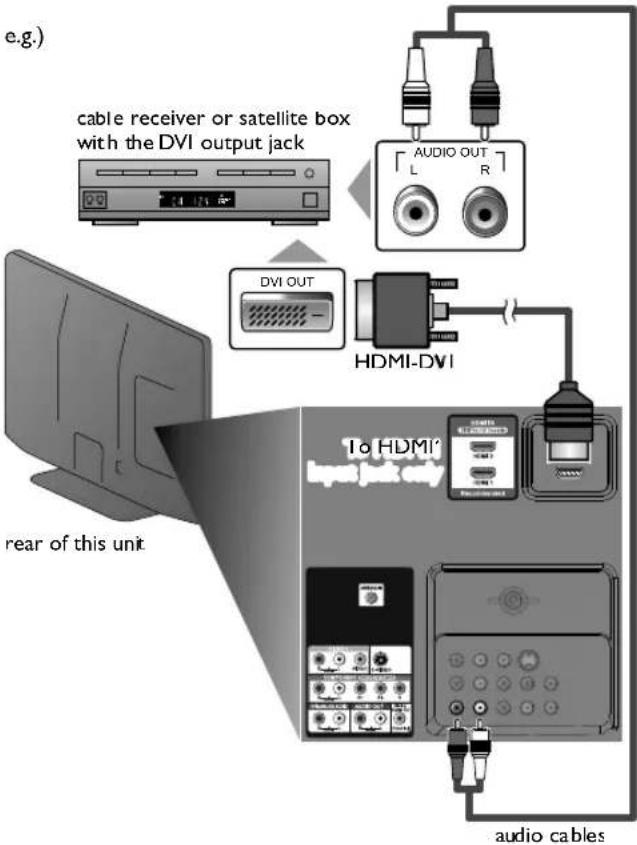

HDMI-DVI Connection

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.

e.g.) cable receiver or satellite box with the DVI output jack AUDIO OUT L R DVI OUT HDMI-DVI To HDMI' Input jack only rear of this unit audio cables

Note

For HDMI connection

• The unit accepts 480i, 480p, 720p, 1080 and 1080p 24/30/60Hz of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals
  • This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio of the device you connected or check the HDMI audio setting. There may be no audio output if you select "Bitstream", etc
  • This unit accepts only signals in compliance with ElA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p 108U and 1080p video signals.
- HDMI-DVI connection requires separate audio connections as well and the audio signals are converted from digital to analog
- DVI does not display 480i image which is not in compliance with EIA/LEA-861/861B.

Component Video Connection

Component Video connection offers better picture quality for video devices connected to the unit.

If you connect to the unit's Component Video Input jacks, connect audio cables to the Audio L/R Input jacks right beside the Component Video connector.

e.g.)

BD/DVD recorder with the component video output jack

COMPONENT VIDEO OUT Pr/Cr/Pb/CbY 'green) blue) red) AUDIO OUT L R component video cables (red/blue/green) audio cables rear of this unit

Note

- The unit accepts 180i/180p/720p and 1080i of video signals for this connection

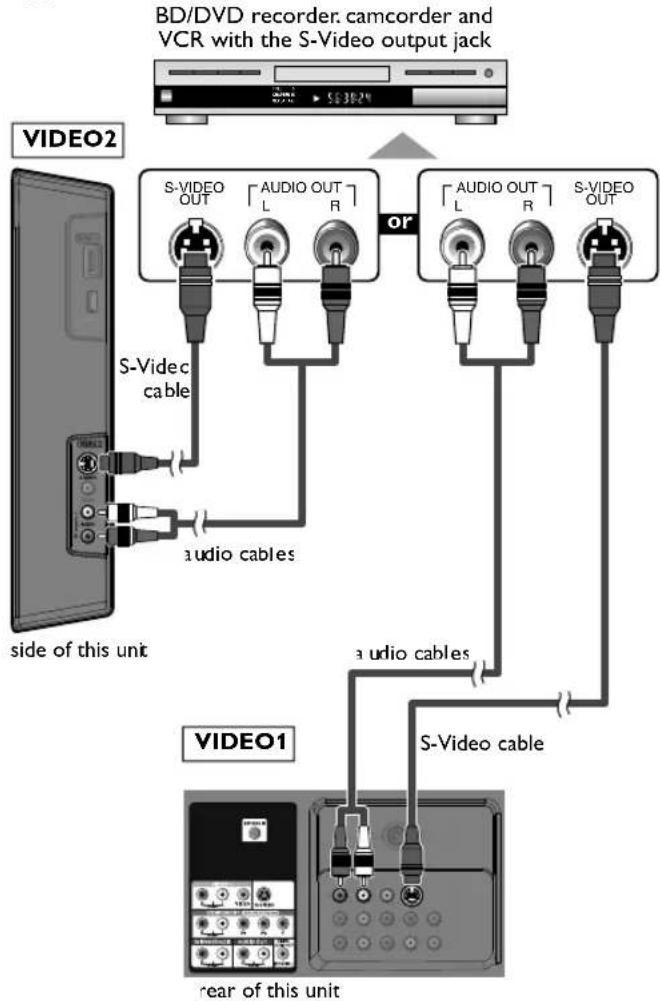

S-Video Connection

S-Video connection offers good picture quality for video devices connected to the unit. If you connect to the unit's S-Video Input jack, connect audio cables to the Audio LR Input jacks right beside the Composite Video connector. e.g.)

BD/DVD recorder. camcorder and VCR with the S-Video output jack VIDEO2 S-VIDEO OUT AUDIO OUT L R or AUDIO OUT L R S-VIDEO OUT S-Videc cable audio cables side of this unit 3 audio cables VIDEO1 S-Video cable rear of this unit

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store.

Composite Video Connection

Composite Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit's Composite Video Input jack, connect audio cables to the Audio L/R Input jacks right beside the Composite Video connector. When the audio jack of the video device is monaural, connect an audio cable to the Audio L Input jack

e.g.)

camcorder video game VCR

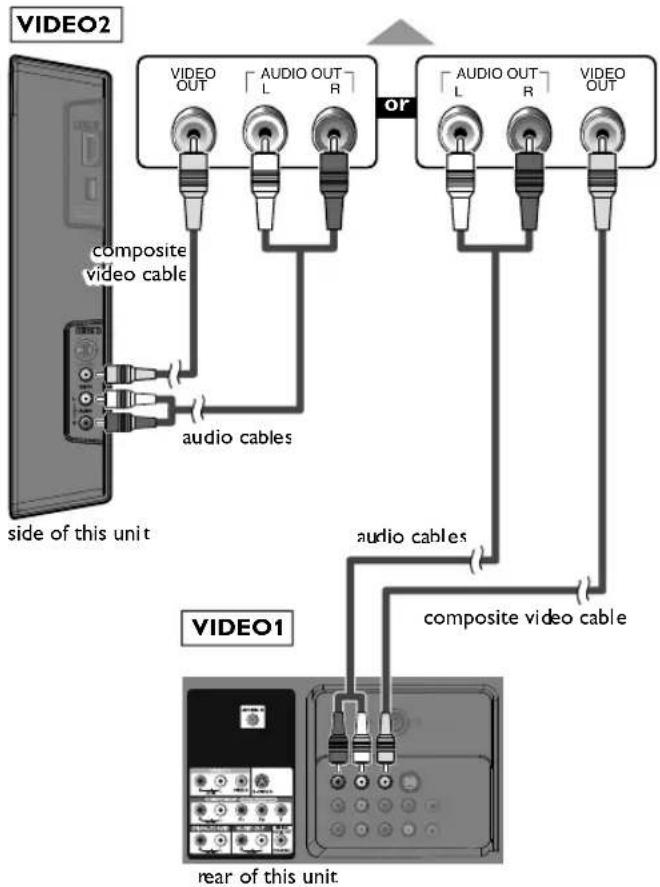

VIDEO2 VIDEO OUT AUDIO OUT L R or AUDIO OUT L R VIDEO OUT composite video cable audio cables side of this unit VIDEO1 audio cables composite video cable rear of this unit

Note

- If you connect to the S-Video Input jack and the Composite Video Input jack at the same time, the S-Video connection will have priority.

Audio Output Connection

\* Digital (for digital broadcasting only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound.

Use a digital audio coaxial cable to connect the unit to external digital audio devices

\* Analog (for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio

Use audio cables to connect the unit to external analog audio devices.

PC Connection

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug conversion cables as well. If you connect this unit to your PC, you can use this unit as a PC monitor:

The following video signals can be displayed:

Format	Resolution	Refresh rate
VGA	640 × 480	60Hz
SVGA	800 × 600
XGA	1,024 × 768
WXGA	1, 280× 768
	1, 360× 768
FHD	1, 920× 1, 080

○ther formats or non-standard signals will not be displayed correctly

Note

• Please purchase the HDMI-DVI conversion cable that has a ferrite core
• The following operations may reduce noise
- Attach a finite core to the AC power cord of your PC.
- Unplug the AC power cord and use the built-in battery of your PC.

Cable Management

Keep the cables through this holder to avoid tangling them

Technical illustration of a rear view of a device unit with cables and components (no text or symbols)

Use the following accessory with this connection:

- AC power cord x 1

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

rear of this unit AC power cord AC outlet

Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V).
  Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks

Note

- Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

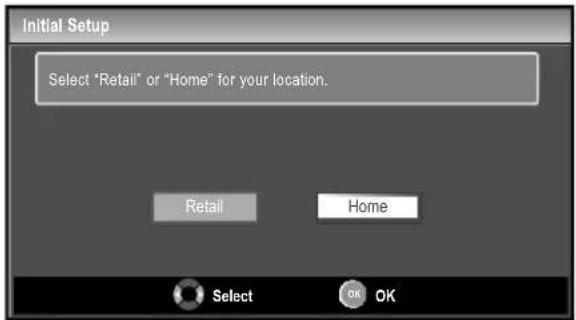

Initial Setup

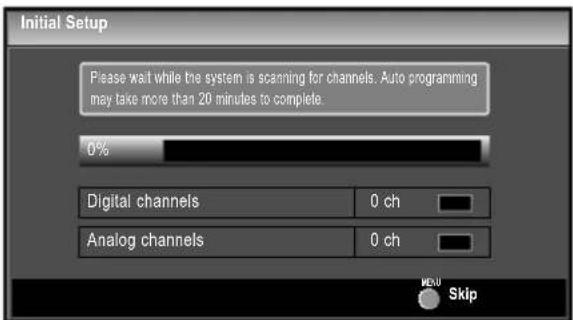

This section will guide you through the unit's initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections, press ⏻ to turn on the unit.

• It may take a few moments to turn on the unit for the first time.

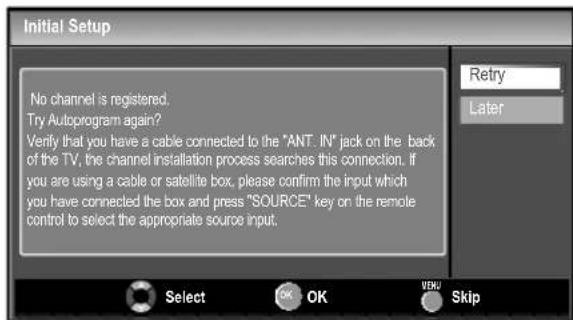

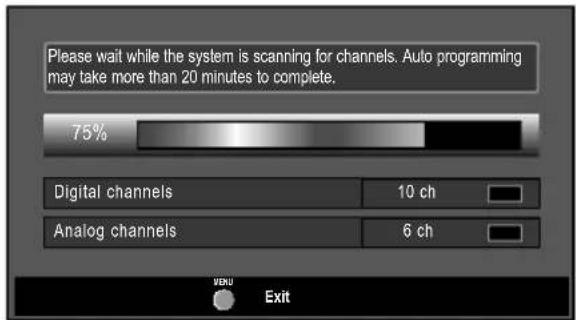

• 'Initial Setup' menu appears automatically after the unit is turned on.

2 Jse ▲/▼ to select the on-screen language from the choices (English/Espanol/Français) on the right side of the TV screen

3 Jse ▲/▼ to select [Antenna] for TV channels or [Cable] for CATV channels, then press OK.

• [Autoprogram] will begin.

Initial Setup Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete. 0% Digital channels 0 ch Analog channels 0 ch MENU Skip

4 Use ◀/▶ to sect the desired location setting, then press OK.

Initial Setup Select "Retail" or "Home" for your location. Retail Home Select OK OK

• Select [Retail] store, the unit will be set up with predefined setting for retail displays
• Select [Home], the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference
• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.
• If you press 📋 > r MENU during autoprogram, this setting will be canceled.
• The initial autoprogram function can be executed for either [Antenna] or [Cable] only once. When you change the connection (Antenna/Cable), set [Autoprogram again] p.19
• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, [Helpful Hints] appears. Follow the instructions listed on the TV screen

Initial Setup No channel is registered. Try Autoprogram again? Verify that you have a cable connected to the "ANT. IN" jack on the back of the TV, the channel installation process searches this connection. If you are using a cable or satellite box, please confirm the input which you have connected the box and press "SOURCE" key on the remote control to select the appropriate source input. Retry Later Select OK VENU Skip

- You must set [Home] in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.

After an initial setup is completed...

• If you want to scan the channels automatically again [Autoprogram] p.19
• You can add the desired cable and analog channels unmemorized by autoprogram.

[Add Channels] p.20

• If you want to change to another language [Language Selection] p.21
• If you want to change the location setting [Location] p.30

WATCHING TV

Sleep Timer can be set to automatically turn off the unit after an incremental period of time.

Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minute) until shut off.

Press SLEEP once to call up the display for checking the remaining time.

- Io cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is displayed.

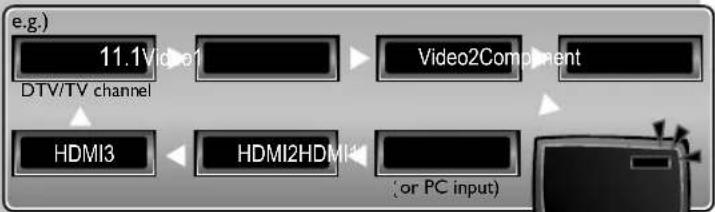

Switching Each Input Mode can easily switch with the remote control between TV (ATSC or NTSC) and external devices when they are connected to the unit.

Press SOURCE or CH + repeatedly to cycle through the input modes.

- Pressing CH - reverses the direction of the input modes.

Freeze Mode can freeze the image shown on the TV screen for 5 minutes

Press FREEZE to freeze the image.

• The sound output will not be paused.
• lo cancel freeze mode, press any buttons except ⏻

Channel Selection

Select channels by using CH +/- or the Number buttons.

• b select the memorized channels, use CH +/- rothe Number butto
• To select the non-memorize dc channels. use the Number buttons.

To use the Number buttons

ATSC

• When selecting digital channel 11. Be sure to press • before entering the sub channel number

NTSC

- When selecting cable or analog channel 1

Press P REV CH to return to the previously viewed channel.

Note

• [No Signal] will appear on the TV screen after the subchannel broadcast is over.
• [Audio only program] message will appear on the I V screen, when you receive only sound signal.

SOURCE SAP SLEEP FORMAT RED GREEN BLUE YELLOW FREEZE MENU OK BACK INFO REV PLAY PWD SKIP FAUSE SKIP STOP MUTE + VOL ECO + CH - 1 2 3 4 5 6 7 8 9 PREV CH 0 FUN-LINK OPTIONS MAGNAVOX

TV Screen Display Mode

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal

Press FORMAT repeatedly to switch the TV aspect ratio.

For 16:9 video signal

Normal

4:3

Movie Expand

Wide

Zoom

For 4:3 video signal

Normal

16:9

Movie Expand

Wide

Zoom

For PC input signal through HDMI1 Input mode

Normal

Ful

DotByDot

Normal displays a 16:9 picture at its original size.

4:3 displays a 16:9 picture at a 4:3 size; the picture & shortened horizontally. Sidebars appear on both edges of the screen

Movie Expand displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture.

Zoom displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Wide displays a horizontally stretched picture. This crops out the left and right sides of the picture

Normal displays a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

16:9 displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen

Movie Expand displays a 4:3 picture at a 16:9 size; the picture is stretched more vertically at the top of the screen. This crops out the top of the picture.

Zoom displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture.

Wide displays the picture with its center at the original size and the edges stretched horizontally to fill the screen

Normal displays a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full displays a picture that is stretched out of proportion horizontally to fill the screen

Dot By Do t displays a picture in its original size.

Sound Functions

describe how to change the audio or the audio language as well as the volume.

hush

Silence Mode

Press MUTE to turn off the sound temporarily

will be displayed for a few seconds.

- Press MUTE again or VOL +/- to recover the original volume

Switching Audio Mode

ATSC

Press SAP repeatedly to cycle through the available audio languages.

• Available languages differ depending on the road cast
- [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Volume Adjustment

Use VOL + / - to adjust the volume.

seconds when adjusting the volume.

Illustration of a computer monitor with musical notes floating above it, no text or symbols present.

will be displayed for a few

hi! salut! hola!

NTSC

Press SAP to display the currently selected audio mode.

While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel

e.g.) When all audio are available

STEREO : Outputs stereo-audio

SAP : Outputs second audio program

MONO : Outputs mono-audio

TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen. In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press INFO.

ATSC

1 2 3 4 A Day of Memories KABC 11.1 A quarter-century ago, which may now qualify as the good old days of newspapering, run-of-paper sales accounted for 80 percent of the Industry's advertising revenues. Department stores and supermarket were TV: TV-14 English 1/2 16:00 HD 16:5 Rating CC 5 6, 7, 8 9 10

NTSC

4 11 SAT / STEREO 480L SD 4.1 TV-PG DLSV C 5 6, 7, 8 9 10

1 program title

2 program guide (Thep rogram guide added to broadcasting information is displayed to a maximum of 4 lines.)

3 broadcast station

4 channel number

5 audio language (ATSC)/audio mode (NTSC) [Switching Audio Mode] p. 7

6 effective scanning lines and scan mode

7 TV format

8 program aspect ratio

9 CC (not available if closed caption is set to [Off])

10 child lock rating

- To dear the display, press INFO aga n. You can also press BACK ↩.

Note

• When the program guide consists of more than 4 lines, use ▲/▼ to scroll
• [No description provided.] is displayed when the program guide is not provided
• While the program guide is displayed, the closed caption function is interrupted
• In external input mode, the following screen is displayed e.g.) When an external device is connected to Video1 Input jack.

• The information display will automatically disappear in 1 minute.

Reducing the Brightness

Backlight brightness can be reduced which may save on power consumption more than you just set [On] in [Energy Saving Mode]. p.30

Press ECO once to reduce the brightness Press ECO again to increase the brightness

Note

• Even if this function is in effect, the brightness will be increased when you change 'Energy Saving Model' on or off due to the energy saving mode has priority.
• You must set [Home* in [Location]. ➡ p.30 O otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Fun-Link Options

If you have our brand products such as BD player or DVD recorder that are compatible with Fun-Link functions, connect them to this unit via an HDMI cable so you can simply operate various items from this unit's remote control.

Before you begin:

You must set [On] in [Device Control] and

[Fun-Link Control]. p.29

Otherwise, FUN-LINK OPTIONS does not work even if you connected our brand devices to this unit.

To enjoy Fun-Link, verified and recommended devices are as follows:

MAGNAVOX

NB530MGX

NB500MG1F

MBP1100/F7

SYLVANIA

NB530SLX

NB500SL1

1 Press FUN-LINK OPTIONS 🔒 to display [Fun-Link Options] menu.

Fun-Link Options

Device-menu

Device-contents

Device-favorite

Device-menu	This function allows you to control the menu of your connected Fun-Link device
Device-contents	This function allows you to control the top menu of your DVD or Blu-ray discs.
Device-favorite	This function allows you to control the pop-up menu of your Blu-ray discs

2 Use ▲/▼/◄/►/OK on this unit's remote control to operate the desired functions for your devices.

Note

• Some of Fun-Link functions may not be available depending on your Fun-Link devices or discs
• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

OPTIONAL SETTING

Main Menu

This section describes the overview of the main menu displayed when you press MENU. The main menu consists of the function setting items below

Press MENL.

Picture Sound Setup Features Language

Picture [Picture Adjustment] p.22

Sound [Sound Adjustment] p.22

Setup [Autoprogram] p.19

- You can automatically scan the viewable channels.

[Channel List] p.20

- The Channels that were autoprogrammed are in this Channel list, use H + 1 - to access them.

[Add Channels] p.20

- You can add TV channels that were not found by the autoprogram scan.

Features [Closed Caption] p.24

- You can change the display closed caption format which displays the dialogue of a TV program or other text information across the TV screen

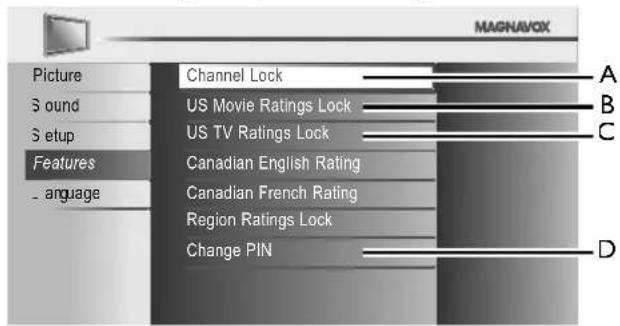

[Child Lock] p.27

- You can set viewing limitations

[Fun-Link] p.29

- You can set Fun-Link options

[Energy Saving Mode] p.30

[Location] p.30

- Switch setting from [Retail] to [Home] to allow the desired [Picture] and [Sound] mode to be kept in memory

[Current Software Info] p.30

Language [Language Selection] p.21

- Change the Main Menu language

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channels you deleted, it is recommended to use Autoprogram to perform a new channel search

Before you beg in:

Make sure the unit is connected to antenna or cable.

1 Press MENU to display the main menu.
2 Jse ▲/▼ to select [Setup], then press OK.
3 Jse ▲/▼ to select [Autoprogram], then press OK.
4 Use ▲/▼ to select an appropriate option, then press OK.

MAGNAVOX Picture >ounc Setup Features Language Autoprogram will rescan all channels. Auto programming may take more than 20 minutes to complete. Select your signal source. Antenna Cable Or ANT.IN Back Antenna Cable

• When connected to VHF / UHF antenna select [Antenna].
• When connected to CATVselect [Cable].
  • [Autoprogram] will begin.

Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete. 75% Digital channels 10 ch Analog channels 6 ch VENU Exit

- When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

Note

• After setting _Autoprogram_, using CH + / - ond remote control ski ps unavailable programs automatically.
• If you are not receiving a signal from your cable service, contact the Cable provider.
• If you pres ⏻ or MENU during autoprogram, the setting will be canceled.
• Even f 'Autoprogram' is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing
• The PIN code will be required once you set a PIN code in the [Child Lock] p.2/
• If you want to change your PIN code, follow the instruction of Change PIN. 28

Channel List

The channels selected here can be skipped when selecting the channels using CH +/−

Those channels can still be selected with the Number buttons.

1 Press MENU to display the main menu.
2 Use ▲/▼ to select [Setup], then press OK.
3 Use ▲/▼ to select [Channel List], then press OK.
4 Use ▲/▼ to select the channel you want to remove, then press OK.

MAGNA/OX Picture Sound Setup Features Language Highlight channels for Ch Up / Down key selection. DTV 11.1 DTV 11.2 DTV 11.3 Ch Select Watch/Skip Back

• The channel display for the removed channel darkens. You will not be able to select the channel again using CH + .
• To react vate a removed channel, use ▲/▼ and press OK The registered channels are highlighted.
• When you remove a main channel, its sub channels are remove das well.

5 Press MENU to exit.

Note

- The channel I with the [DTV] indicated on the display ATSC. Otherwise the channel is NTSC

Add Channels

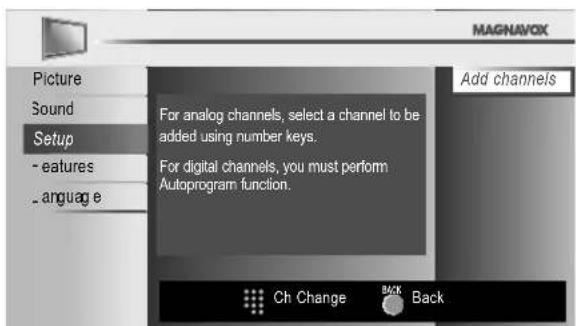

This function lets you add the channels that were not added by the autoprogram due to reception conditions at the initial setting.

1 Press MENU to display the main menu
2 Use ▲/▼ to select [Setup], then press OK.
3 Use ▲/▼ to select [A dd Channel], then press OK.
4 Use the Number buttons to enter the number of the channel you want to add, then press OK.

MAGNAVOX Picture Sound Setup - eatures - arguage For analog channels, select a channel to be added using number keys. For digital channels, you must perform Autoprogram function. Add channels Ch Change Back Back

5 Press MENU to exit.

Note

• If setup completes successfully Added to the channel list is displayed.
• If external input is used, it is not possible to register the channel and [Unavailable] will be displayed on the TV screen.
• By using CH + I - , you can select the memorized channels only

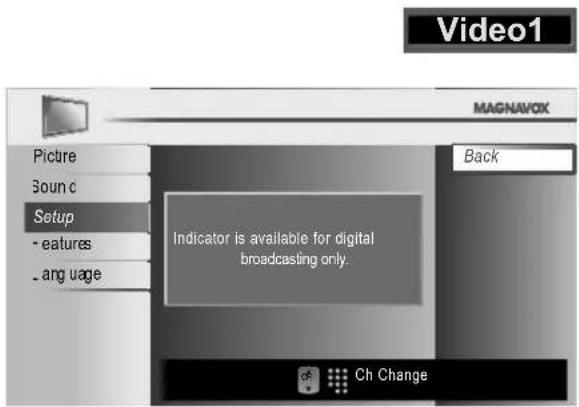

Antenna Confir rmation

ATSC

This function lets you check the digital signal strength of each channel.

1 Press MENU to display the main menu.
2 Use ▲/▼ to select [Setup], then press CK.
3 Use ▲/▼ to select [Antenna], then press OK.
4 Use the Number buttons or CH + / to select the channel for which you want to check the digital signal strength.

11.1 MAGNAVOX Picture Sound Setup Features Language Back Current50 Max50 Ch Change

- If the channel is set to analog (cable) channel or external input, you cannot confirm the antenna condition

Video1 MAGNAVOX Picture Sound Setup - eatures - ang uage Back Indicator is available for digital broadcasting only. Ch Change

5 Press MENU to ext.

Language Selection

You can choose English, Spanish, or French as your on-screen language.

1 Press MENU to display the main menu.
2 Jse ▲/▼ to select [Language], then press OK.
3 Jse ▲/▼ to select [English]. 'Español] or [Français] then press OK.

MAGNAVOX Picture Sound Setup - features Language Select your menu language. Selecione el idioma para el menú. Sélectionnez la langue du menu. English Español Français

4 press MENU to exit.

Note

- If you need the English menus instead of the Spanish or French menus, press MENU. Use ▲/▼ to select [Idioma' or Langue] then press OK. Use ▲/▼ to select [Eng lish], then press OK. Press MENU to exit the main menu

Picture Adjustment

You can adjust picture mode, or customize the picture quality as your preference.

Before you begin:

You must set [Home] in [Location]. → p.30

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

1 Press MENU to display the main menu
2 Use ▲/▼ to select [Picture], then press OK
3 Use ▲/▼ to select the item you want to adjust, then press OK

MAGNAVOX Picture Smart Picture Personal Sound Brightness 30 Setup Contrast60 Features Color 36 Language Tint0 Sharpness0 Color Temperature Normal

4 Adjust the following items.

Smart Picture

Use ▲/▼ to select the desired setting, then press OK ([Personal], [Standard], [Sports], [Movie], and [Game])

MAGNAVOX Picture Smart Picture Personal Sound Brightness Standard Setup ContrastSports Features ColorMovie Language TintGame Sharpness Color Temperature

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature

You can only adjust the following options when you set to [Personal] in [Smart Picture]. Use ▲/▼ to select the desired setting, then use ◀/▶ to adjust

Brightness	Press ▲ to decrease brightness	Press ▲ to increase brightness
Contrast	Press ▲ to decrease contrast	Press ▲ to increase contrast
Color	Press ▲ to decrease color intensity	Press ▲ to increase color intensity
Tint	Press ▲ to add rec	Press ▲ to add green

Sharp ness	Press ▲ to soften	Press ▲ to sharpen
Color Temperature	Press ▲ to add warm cobrs	Press ▲ to add cool cobrs

5 press MENU to exit.

Sound Adjustment

You can adjust the sound mode, equalizer and some other sound functions

Before you begin:

You must set [Home] in .Location]. ➔ p.30 ○ otherwise, the settings you adjusted will not be memorized after you turn off the unit.

1 press MENU to display the main menu.
2 J se ▲/▼ to select Sound, then press OK.
3 J se ▲/▼ to select the item you want to adjust, then press OK.

MAGNAVOX Picture Sound Setup feat ures . anguage Smart Sound Equalizer Virtual Surround Sound Auto Volume Leveling TV Speakers Primary MTS Standard On Off Ext. Amp Stereo

4 Adjust the following items.

Smart Sound

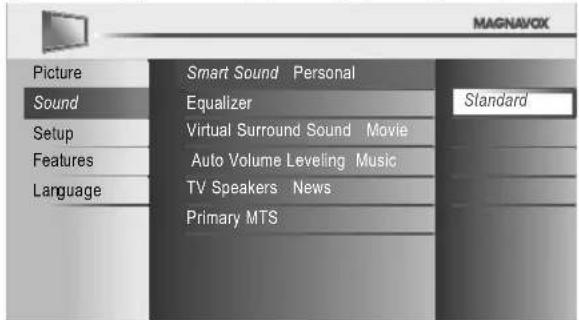

Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music], and [News])

MAGNAVOX Picture Sound Setup Features Language Smart Sound Personal Equalizer Virtual Surround Sound Movie Auto Volume Leveling Music TV Speakers News Primary MTS Standard

Equalizer

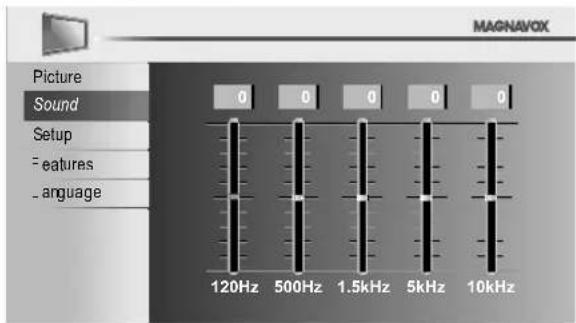

Adjust tonal quality for each frequencies. Use ◀/▶ to select the specific frequency and use ▲/▼ to adjust the evel, then press OK.

MAGNAVOX Picture Sound Setup - features - language 120Hz 500Hz 1.5kHz 5kHz 10kHz

Virtual Surround Sound

Virtual surround sound gives you the stereo phonic virtual space through your existing 2-channel stereo system. Use ▲/▼ to select the desired option, then press OK.

MAGNAVOX Picture Sound Setup - features - language On Off This selects the modes for more spatial or surround sound reproduction.

On Emphasized effect	.
Of	Natural effect.

Auto Volume Leveling

This function keeps a constant loudness differential between the TV commercials and the programs Jse ▲/▼ to select the desired option, then press OK.

MAGNAVOCX Picture Sound Setup - features - language Auto Volume Leveling reduces volume differences between channels and programs, providing a consistent audio level. On Off

On	Reduces volume differences between the TV commercials and the programs.
Off	Removes the auto volume levelling

TV Speakers

Select the audio output from the unit's speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control. Make sure [Fun-Link Control] s set to [On]. p.29

Jse ▲/▼ to select the desired option, then press OK.

MAGNAVOX Picture Sound Setup : features .anguage *On"; Sound will be output from the TV speakers. "Off"; Sound will not be output from the TV speakers. "Ext. Amp"; "Operation is possible by connecting to the HDMI-CEC compatible amp with a HDMI cable. For details look in the user manual. *

On	The sound will be output from the unit's speakers
Off	The sound will not be output from the unit's speakers
Ext.Amp	You can control audio output from your connected HDMI link devices by using this unit's remote control.

Note

- We do not guarantee 100% interoperability with other brands of HDMI Ink compliant devices.

Primary MTS

You can set the output mode as a default for the sound mode (NTSC only).

This setting is not interlocked when you change the output mode by pressing SAP. Sound Functions. p.7 Use ▲/▼ to select the desired option, then press OK.

MAGNAVOX Picture Sound Setup : features . language Smart Sound Equalizer Virtual Surround Sound Auto Volume Leveling TV Speakers Primary MTS Stereo Mono SAP

Stereo	○ utputs stereo-audio
Mono	○ utputs mono-audio.
SAP	○ utputs second audio program.

5 PressMENU to exit.

Closed Caption

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on-screen.

1 Press MENU to display the main menu
2 Use ▲/▼ to select [Features], then press OK.
3 Use ▲/▼ to select [Closed Caption], then press OK. See the following description for setting each item.

MAGNAVOX Picture Caption Service Off A Sound DigitalCaptionService Off B Setup Caption Style C Features Language

4 Use ▲/▼ to select [Caption Service], then press OK.
5 Use ▲/▼ to select the desired closed caption, then press OK.

MAGNAVOX Picture Caption Service Off Sound DigitalCaptionService CC-1 Setup Caption Style CC-2 Features Language CC-3 CC-4 T-1 T-2 T-3 T-4

CC-1 and T-1	The primary caption and text services. The captioning or text is displayed in the same language as the program's dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).
CC-3 and T-3	Serve as the preferred data channelsThe captioning or text is often a secondary language.
CC-2, CC-4T2 and T-4	Rarely available and broadcasters use them only in special conditions, such as when [CC-1] and [CC-3] or [T-1] and [T-3] are not available.

• There are 3 display modes according to programs:

Paint-on mode	Displays input characters on the TV screen immediately.
Pop-on mode	Once characters are stored in memory,they are displayed all at once.
Roll-up mode	Displays the characters continuously by scrolling (max. 4 lines)

6 Press MENU to exit.

ATSC

In addition to the basic closed caption, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

4 Use ▲/▼ to select [Digital Caption Service] then press OK.
5 Use ▲/▼ to select the desired digital caption service, then press OK.

MAGNAVOX Picture Caption Service Off Sound Digital/CaptionService CS-1 Setup Caption Style CS-2 Features CS-3 Language CS-4 CS-5 CS-6

of	Select if you do not want digital caption service.
CS-1 to CS-6	Select one of these before changing any other item in [Closed Caption] menu. Choose [CS-1] under normal circumstances.

6 Press MENU to exit.

Note

- Digital Caption Service] that you can switch differs depending on the broadcast description

ATSC

You can change the caption style such as font, color or size, etc.

4 Use ▲/▼ to select [Caption Style], then press OK.
5 Use ▲/▼ to select [User Setting], then press OK.

MAGNAVOX Picture User Setting Off Sound Font Style Font0 Setup Font Size Middle Features FontColor White Language Font Opacity Solid Black Background Color Background Opacity Solid Edge Color Black Edge Type None

6 Use ▲/▼ to select [On], then press OK.
7 Use ▲/▼ to select an item, then press OK. Then use ▲/▼ to select the desired setting and press OK.

Picture display So, you must be Philip. Hi! I'm pleased to meet you. Edge (Edge Color and Edge Type) Font ( Font Style, Font Size, Font Color and Font Opacity or Transparency ) Background ( Background Color and Background Opacity or Transparency )

• The setting description for each item is shown on the next page.
• Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).

Font Style

Closed Captioning font style can be changed as illustrated.

Font Size

Font size of the displayed caption can be switched as illustrated

Font Color

Font color of the displayed caption can be switched as illustrated

Font Opacity

Font opacity of the displayed caption can be switched as illustrated

Background Color

Background color of the displayed caption can be switched as illustrated.

Closed Caption Font0 Font1 Font2 Font3 Font4 Font5 Font6 Font7

Closed Caption Large Middle Small

Closed Caption White Black Red Green Blue Yellow Magenta Cyan

Closed Caption Solid Flash Translucent Transparent

Closed Caption White Black Red Green Blue Yellow Magenta Cyan

Background Opacity

Background opacity of the displayed caption can be switched as ill ustrated.

Edge Color

Edge color of the displayed caption can be switched as illustrated

EdgeType

Edge type of the displayed caption can be switched as illustrated

Closed Caption Solid Flash Translucent Transparent

Closed Caption White Black Red Green Blue Yellow Magenta Cyan

Closed Caption None Raised Depressed Uniform L. Shadow R.Shadow

8 Press MENL to exit.

Note

• Closed caption will not be displayed when you are using an HDMI connection.
• To show the close caption on your TV screen, broadcast signal must contain the closed caption data.
• Not all TV programs and commercials have the closed caption or all types of the closed caption.
• Captions and texts may not exactly match the TV voice
• Changing channels may delay the closed caption for a few seconds.
• Adjusting or muting the volume may delay the closed caption for a few seconds
• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep peace with the on-screen action. This is not a malfunction
• The caption or text characters will not be displayed while the main menu or functions display is shown
• If a black box appears on the TV screen, this means that the closed captions set to the text mode. To dear the box, select [CC-1], [CC-2', CC-3] [CC-4] or [Off].
• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:
• Automobile ignition noise
• Electric motor noise
• Weak signal reception
• Multiplex signal reception (hosts or screen flutter)
• Data dropout and Pixelation (for DTV only)
• The unit retains the closed caption setting if the power fails.
• When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a VCR's video output channel (ch3 or ch4), the unit may not display the correct caption or text.

Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible.

1 Press MENU to display the main menu
2 Use ▲/▼ to select [Features], then press OK
3 Use ▲/▼ to select [Child Lock], then press OK.

MAGNAVBOX Picture Closed Caption Sound Child Lock Setup Fun-Link Features Energy Saving Mode Language Location Current Software Info On Home

4 Use the Number buttons to enter the 4-digit numbers for your PIN code.

Features Language Enter PIN .

• When you have not set up your PIN code, enter 0,0,0,0.
• When the PIN code is correct [Child Lock] menu is displayed.

See the following description for setting each item

MAGNAVOX Picture Sound Setup Features Language Channel Lock US Movie Ratings Lock US TV Ratings Lock Canadian English Rating Canadian French Rating Region Ratings Lock Change PIN A B C D

Note

• When you select a rating and set it to [Block], the higher ratings will be blocked automatically. The lower ratings will be available for viewing.
• When you set the highest rating to [View] all ratings turn to [View] automatically
• to block any ma pprop rate programs, set your lim is in [US Movie Ratings Lock]. [US TV Ratings Lock] and [Region Ratings Lock].
• The child lock setting will be retained after a power failure (except the PIN code reverts to 0000)
  • If the rating is blocked a will appear.
• [Region Ratings Lock] will be available when the unit receives a digit to a broadcast using the new rating system.
• For the United States, the unit may download the Region Ratings Lock Table f required
• The Canadian ratingsystems on this unit are based on CEA-766-A and LRTC policy.

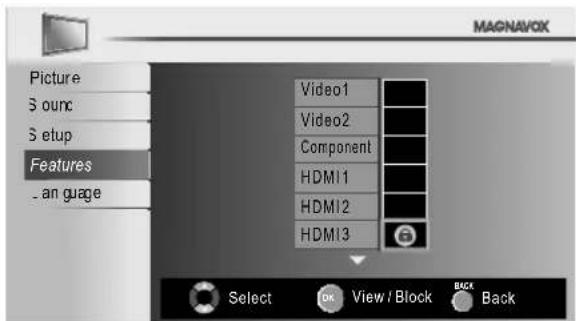

Particular channels or external input modes can be invisible in this function.

5 Jse ▲/▼ to select [Channel Lock], then press OK.
6 Jse ▲/▼ to select the desired rating, then press OK re peatedly to switch between [View] and [Block].

MAGNAVOX Picture Sound Setup Features _an guage Video1 Video2 Component HDMI1 HDMI2 HDMI3 Select View / Block Back

7 press MENU to ext.

JS Movie ratings lock is the rating system created by MPAA

5 Jse ▲/▼ to select [US Movie Ratings Lock], then press OK.
6 Jse ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

MAGNAVOX Picture Soun c Setu Features _an guage X NC-17 R PG-13 PG G NR Select OK View / Block BACK Back

Rating	C category
X	Mature audience only
NC-17	No one under 17 admittec
R	Restricted; under 17 requires accompanying parent or adult guardian
PG-13	J nsuitable for children under 13
PG	Parental guidance suggeste c
G	General audience
NR	No rating

7 press MENU to ext.

5 Use ▲/▼ to select [US TV Ratings Lock], then press OK.
6 Use ▲/▼/◀/▶ to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

MAGNAV/FOX Picture Sound Setup Features Language FV VSLD TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y Select OK View / Block BACK

Rating	Category
TV-MA	Mature audience only	higher
TV-14	Unsuitable for children under 14
TV-PG	Parental guidance suggestec
TV-G	General audience
TV-Y7	Appropriate for all children 7 and older
TV-Y	Appropriate for all children	lower

7 Press MENU to exit.

lo set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7pu can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

Use ▲/▼/◄/► to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

MAGNA/FOX Picture Sound Setup Features Language FV VSLD TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y Select View / Block Back

Sub Rating	Category	Rating
FV	Fantasy Vio lence	TV-Y7
V	Vid ence	TV-MAIV-14TV-PC
S	Sexual Situation
L	Coarse Language
D	Suggestive Dialogue	TV-14, TV-PG

Note

• blocked sub rating will appear beside the main rating category in [US TV Ratings Loc] menu
• You cannot block a sub rating (D, L, S or V) if the main rating is set to [View].
• Changing the category to [Block, or [View] automatically changes all its sub ratings to the same ([Block] or [View]).

Although the default PIN code (0000) is supplied with the unit, you can set your own PIN code.

5 Use ▲/▼ to select [Change PIN], then press OK.

6 Press the Number buttons to enter the new 4-digit PIN code.

- EnterPIN code again in [Confirm PIN.] entry field.

MAGNAVOX Picture Sound Setup Features Language Enter PIN. Confirm PIN. PIN Code Back Back

7 Press MENU to exit.

Note

• Make sure new PIN code and confirm PIN code must be exactly the same. If they are different, the space is cleared for reentering
• Your PIN code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN code, unplug the AC power cord while turning the unit on, wait for 10 seconds to plug the AC power cord again The unit will restore the PIN code to 0000 as the factory default.

Fun-Link

This function allows you to operate the linked functions between our brand devices with a Fun-Link feature and this unit connecting through an HDMI cable.

1 Press MENU to display the main menu
2 Use ▲/▼ to select [Features], then press OK.
3 Use ▲/▼ to select [Fun-Link], then press OK.

MAGNAVOCX Picture Sound Setup Features Language Fun-Link Control On Auto Device Off On Auto TV On On Device Control On Device List

4 Use ▲/▼ to select the desired setting, then press OK.
5 Adjust the following items.

Fun-Link Control

Set the Fun-Link [On] or [Off].

The following additional settings will be grayed out when you set to [Off].

Use ▲/▼ to select the desired setting, then press OK.

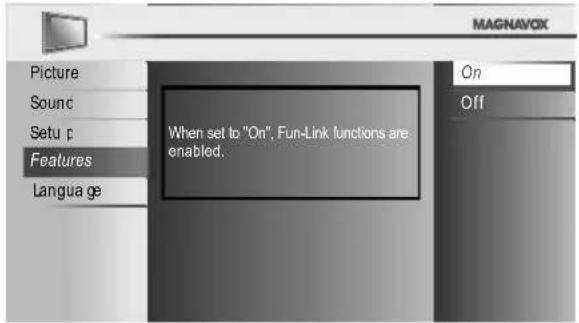

MAGNAVOX Picture Sound Setu p Features Langua ge On Off When set to "On", Fun-Link functions are enabled.

On	Selects if you have connected an external device that is compatible with the Fun-Link function.
Of	Disabl es all Fun-Link.

Auto Device Off

You can set your device to turn off by interlocking from this unit's power.

Use ▲/▼ to select the desired setting, then press OK

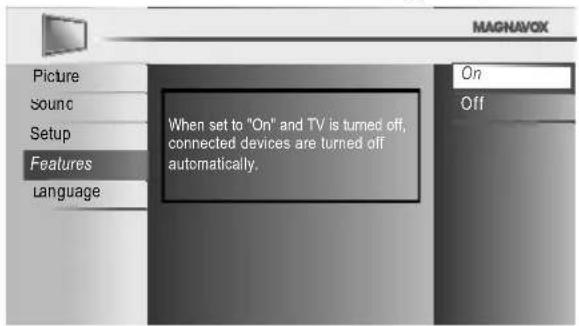

MAGNAVOX Picture Sound Setup Features Language When set to "On" and TV is turned off, connected devices are turned off automatically. On Off

On	Your connected Fun-Link device turns off automatically when you turn off the unit
Of	Your connected Fun-Link device stays on even if you turn off the unit.

Auto TV On

This unit will turn on detected when the power on signal is sent from your connected Fun-Link device

Use ▲/▼ to select the desired setting, then press OK.

MAGNAVOX Picture Sound Setup Features Language When set to "On", TV and connected device are turned on automatically. On Off

On	This unit turns on automatically when you turn on your connected Fun-Link device.
Off	This unit stays off even if you turn on your connected Fun-Link device.

Device Control

You can operate some functions such as disc playback or call up the menu of the connected devices, by using this unit's remote control.

Use ▲/▼ to select the desired setting, then press OK.

MAGNAVOX Picture Sound Setup p Features Language On Off When set to "On", the connected device is controlled using the remote control.

On	PLAY ▶/STOP ■/FWD ▶/REV ◀/SKIP ▶/1/SKIP ◀/PAUSE ▶/FUN-LINK OPTIONS ▶▲/▼; ◀/▶/OK/BACK ↻/th eNumb er buttons/RED/G REEN/BLUE/YELLOW can be used to control your connected-fun-Link devices by this unit's remote control.
Off	Disables the device control.

Device List

This function lets you see the product model number or name of connected devices

Jse ▲/▼ to select the desired HDMI device listed on the TV screen, then press OK.

MAGNAVOX Picture Sound Setu p Features Lang uage HDMI1 NB530MGX HDMI2 MBP1100/F7 Select OK Input Change BACK

6 PressMENU to exit

Energy Saving Mode

You can set whether the power consumption is saved or not.

1 Press MENU to display the main menu.
2 Use ▲/▼ to select [Features], then press OK.
3 Use ▲/▼ to select [Energy Saving Mode], then press OK.
4 Use ▲/▼ to select the desired mode, then press OK.

MAGNAVIX Picture Sound Setup Features Language When set to "On", power consumption is reduced by decreasing backlight brightness.

On	Reduces the power consumption
Off	Set the backlight brighter.

5 Press MENU to ext.

Current Software Info

This function shows what version of the software currently used

1 Press MENL to display the main menu.
2 Use ▲/▼ to select [Features], then press OK
3 Use ▲/▼ to select [Current Software Info], then press OK

4 Conf i rm the version of the software currently used

MAGNAVOCX Picture Sound Setup Features Language Back Release Version: XXXXXXXX_XXX_X_XXXX

5 Press MENL to exit.

Location

You must set [Home] in this setting. Otherwise, [Picture] and [Sound] settings you adjusted will not be memorized after you turn off the unit. Refer to page 22-23.

1 Press MENU to display the main menu.
2 Use ▲/▼ to select [Features], then press OK.
3 Use ▲/▼ to select [Location], then press OK.
4 Use ▲/▼ to select the desired location, then press OK.

MAGNAV/CX Picture Sound Setup Features Language Location Home is recommended for normal home use. In the Retail Store mode, all settings are fixed.

5 Press MENU to ext

FAQ

Question Answer
My remote control does not work.What should I do?	Check the antenna or cable connection to the main unitCheck the batteries of the remote control.Check if there is an obstacle between the infrared sensor window and the remote control.Iest the signal output. If OK, then possible infrared sensor trouble.[IR Signal Check] p.34Aim the remote control directly at the infrared sensor window on the front of the unit.Reduce the distance to the unit.Re-insert the batteries with their polarities (+/- signs) as indicatedWhen there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit.Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.
How come the Initial setup appears every time I turn on this unit?	Connect the RF coaxial cable to the unit directly and run the initial setupMake sure to complete the channel scan before turning off the unit.
Why I cannot watch some RF signal TV programs.	Make sure [Autoprogram] has been completed. p.19Autoprogram must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcastThe select d channel may not be broadcasting.When [Autoprogram] is interrupted and not completed, some channels will not be received. Make sure to complete p.19The selected channel cannot be viewed by the [Child Lock] setting. p.27The unit requires some kind of antenna input. An indoor antenna (VHF /UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.
How come there is no image from the connected external devices?	Check if the right input mode is selected by pressing SOURCE or using CH +/ .[Switching Each Input Mode] p.16Check the antenna or cable connection to the unit.When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit.
Whenever I entered channel number, it changes automatically.	Many digital channels have alternate channel numbersThe unit charges the numbers automatically to the ones sig nifying the broadcasting station channel number.These basic numbers used for previous analog broadcasts (e.g., input ch#30 auto change to ch#6.1)
Why are captions not displayed entirely?Or, captions are delayed behind the dialogue.	Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to nsure that the captions remain up-to date with the current TV screen dialogue.
How can I set the clock?	There is no clock function on this unit

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service.

Symptom Remedy
No power	Make sure the AC power cord is plugged in.Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that AC outlet operates normally.If a power failure occurs, upplug the AC power cord for 1 minute to allow the unit to reset itself.
Control button does not work	Press only one button at a time. Do NOT press more than one button at the same timeEnsure that no buttons on the remote are depressed and move freely .
Power is ON but no screen image.	Check whether the connection of the antenna, cable receiver or satellite box is connected correctlyCheck whether all the cables to the unit are connected to the correct output jack of your device like BD / DVD recordMake sure that the selected input mode is connected to the working input jackCheck if your computer is NOT in sleep mode when the input mode of this unit is in PC mode.Tap any key on the keyboard to wake up your computer.
No picture or sound	Check if the power is on.Check if the right input mode is selected.Check whether all the cables to the unit are connected to the correct output jack of your device like BD / DVD recordView other TV channels.The problem might be limited to the broadcasting station or weak signal strengthTurn off the unit and wait for about 1 minute, then turn on the unit again.Check whether the connection of the antenna, cable receiver or satellite box is connected correctlyMake sure that the selected input mode is connected to the working input jackCheck if your computer is NOT in sleep mode when the input mode of this unit is in PC mode.Tap any key on the keyboard to wake up your computerMake sure that the sound is not muted. Press MUTE so that the volume bar and current volume level will appear on the TV screen.Make sure that the volume is NOT set to [0] or [Mute]. If sq use VOL +/- to adjust the desired volume
No color	View other TV channels.The problem might be limited to the broadcasting station.Adjust [Color] in the main menu
Adjusted [Picture] or [Sound] settings are not effective every time the unit is turned on.	You must set [Home] in [Location]. p.30Otherwise, the settings you adjusted will not be memorized after you turn off the unit.
Sound OK, picture poor	Electrical interference from nearby appliances may affect picture quality.Adjust [Contrast] and [Brightness], in the main menuView other TV channels.The problem might be limited to the broadcasting station or weak signal strength.For the best picture quality, watch "High Definition" wide screen programs.If the HD content is not available , watch "Standard Definition" programs instead
Picture OK, sound poor	View other TV channels.The problem might be limited to the broadcasting station or weak signal strengthCheck if the audio cable is connected in correctly.
You see a distorted picture or near an unusual sound	You may be getting interference from electrical appliances, automobiles, motorcycles or fluorescent lightsTry moving the unit to another location to see if this is the cause of the problem.
Ghosts, lines or streaks in picture	Electrical interference from nearby appliances may affect picture quality.View other TV channels.The problem might be limited to the broadcasting station.
You see "noise" or 'trash' on the screen	When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash.
Different color marks on the TV screen	• View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation
You switch to a different input and the volume changes.	• This unit will memorize the volume level from the last time you adjusted it.• If the volume of the sound from another device is higher or lower, then the loudness will change.
You switch to a different input and the screen size changes.	• This unit will memorize the viewing mode from the last time you used the particular input modes.
The display image does not cover the entire screen.	• If you are watching TV or using the Composite Video, S-Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to switch various screen modes.
Captions are displayed as a white box.No caption is displayed in the Closed Caption-supported program	• Interference from buildings or weather conditions may cause captioning to be incomplete• Broadcasting station may shorten the program to insert advertisementThe closed caption decoder cannot read the information of the shortened program
Black box is displayed on the TV screen.	• The text mode is selected for caption. Select 'CC-1', [CC-2], [CC-3], 'CC-4] or [Off].

Note

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen.
  • Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations

Glossary

ATSC

Acron ym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. I here are several signal formats, including Y/Pb/Pr and Y/Cb/Cr.

Dolby Digital

The system developed by Dolby Laboratories to comp ress digital sound. It offers stereo sound (2ch) or multi-channel audio.

HDMI (High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio / video formats including set-top box, BD / DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of analog broadcasting standards. Off the air NTSC signals are no longer being sent by major broadcasting stations in the USA.

PIN cod e

A stored 4-digit number that allows access to parental control features

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality

S-Video

Offers higher quality images by delivering each signal, color(c) and luminance(y) independently of each other through a single cable

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry
• Never use a solvent or alcohol D o not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center.

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

Illustration of a remote control with signal waves and a camera displaying a sun icon (no text or symbols)

With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

General Specifications

TV format ATSC/NTSC-M TV standard

Closed caption system

§15.122/FCC (digital CC)

§15.119/FCC (analog CC)

Channel coverage (ATSC /NTSC)

Terrestrial DTV (ATSC)

VHF 2\~13

UHF 14\~51 each channel has e.g.)

2.1\~2.9, 3.1\~3.9, etc.

Terrestrial Analog (NTSC)

VHF 2\~13

UHF 14\~69

CATV

2\~13, A\~W,

W+1\~W+94 (analog W+1\~W+84),

A-5\~A-1, 5A

Tuning system

Channel frequency synthesized tuning system

Channel access

Direct access keyboard,

Prog rammable scan, and up / down

Electrical Specification

Audio Output

10W, 8Ω×2

• Designs and specifications are subject to change without notice and without our legal obligation.
• If there is a discrepancy between languages, the default language will be English

Other Specifications

Terminals

Antenna Input VHF/UHF/CATV 75 Ω unbalanced (F-type)

Audio Input RCA jack (L/R) × 8 500mV rm s

Composite Video Input

RCA jack × 2 1 V p-p (75 Ω)

S-Video Input Mini DIN 4pin jack x 2 Y 1 V p-p (75 Ω)

C 286 mV p-p (75 Ω)

Component Video Input

RCA jack × 3 Y 1V p-p (75 Ω)

Pb/Cb 700 mV p-p (75Ω)

Pr/Cr 700 mV p-p (75Ω)

HDMI Input HDMI 19 pin x 3

Coaxial Digital Audio Output

RCA jack x 1 500 mV p-p (75 Ω)

Audio Output RCA jack (L/R) × 2 500 mV rms

Remote contrd

Digital encoded infrared light system

Operating temperature

41°F (5°C) to 104°F (40°C)

Power requirements

120V\~ AC +/− 10 %, 60 Hz +/− 0.5%

Power consumption (maximum)

205 W

40 inches full HD pane I

Dimensions

Width 39.2 inches (995.2 mm) 39.2 inch (995.2 mm)

Height 25.1 inches (637.0 mm) 27. 3 inch (691.7 mm)

Depth 4.3 inches (107.5 mm) 10.3 inch (260.0 mm)

Weight 35.94 lbs (16.30 kg) 41.2 3 lbs. (18.70 kg)

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

WARRANTY COVERAGE:

This warranty obligation is limited to the terms asset forth below.

WHO IS COVERED:

Thisproductwarrantyisissuedtotheoriginalpurchaserorthe personreceivingtheproductasagiftagainstdefectsinmaterials andworkmanshipasedonthedateoforiginalpurchase ("WarrantyPeriod")fromanAuthorizedDealer. Theoriginal salesreceiptshowingtheproductnameandthepurchasedate fromanauthorizedretailerisconsideredsuchproof.

WHAT IS COVERED:

Thiswarrantycoversnewproductsifadefectinmaterialor workmanshipoccursandavalidclaimisreceivedwithinthe WarrantyPeriod.Atitsoption,thecompanywilleither(1) repairtheproductatnocharge,usingneworrefurbished replacementparts,or(2)exchangetheproductwithaproduct thatisneworwhichhasbeenmanufacturedfromnew,orserviceableusedpartsandisatleastfunctionallyequivalentormost comparabletotheoriginalproductincurrentinventory,or(3) refundtheoriginalpurchasepriceoftheproduct. Replacementproductsorpartsprovidedunderthiswarrantyare coveredagainstdefectsinmaterialsandworkmanshipfromthe dateofthereplacementorrepairforninety(90)daysorforthe remainingportionoftheoriginalproduct'swarranty,whichever provideslongercoverageforyou.Whenaproductorpartis exchanged,anyreplacementitembecomesyourpropertyandthe replaceditembecomescompanyproperty.Whenarefundis given,yourproductbecomescompanyproperty.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

This Limited Warranty applies only tonew company manufac- tured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply toanyhardwareproductoranysoftware, even if packagedor sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own product package with the bundled product.

The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product part not covered by this warranty. Recovery or installation of programs, data or other information is not covered under this Limited Warranty.

Thiswarrantydoesnotapply(a)todamagecausedbyaccident, abuse,misuse,neglect,misapplication,ornon-suppliedproduct, (b)todamagecausedbyserviceperformedbyanyoneotherthan companyapprovedAuthorizedServiceLocation,(c)toaproduct

or a part that has been modified without written company permission, or (d) if any serial number has been removed defaced, or (e) product, accessories or consumable sold "ASIS" without warranty of any kind by including refurbished products sold "AS IS" by someretailers.

This Limited Warranty does not cover:

• Shippingchargestoreturndefectiveproduct.
- Laborchargesforinstallationorsetupoftheproduct,adjustmentofcustomercontrolsontheproduct,andinstallationor repairofantenna/signalsourcesystemsoutsideoftheproduct.
- Productrepairand/orpartreplacementbecauseofimproper installationormaintenance,connectionstoimpropervoltage supply,powerlinesurge,lightningdamage,retainedimagesor screen markings resulting from viewing fixed stationary contentforextendedperiods,productcosmeticappearanceitems duetonormalwearandtear,unauthorizedrepairorother causenotwithinthecontrolofthecompany.
- Damageorclaimsforproductsnotbeingavailableforuse,or forlostdataorlostsoftware.
- Damagefrommishandledshipmentsortransitaccidentswhen returningproduct.
- A product that requires modification or adaptation to enable ittooperateinanycountryotherthanthecountryforwhich itwasdesigned,manufactured,approvedand/orauthorized,or repair of products damaged by these modifications.
- Aproductusedforcommercialorinstitutionalpurposes (includingbutnotlimitedtorentalpurposes).
- Product lost in shipment and no signature verification receipt can be provided.
•FailuretooperateperOwner'sManual.

TO OBTAIN ASSISTANCE...

ContacttheCustomerCareCenterat: 1-866-341-3738

REPAIRORREPLACEMENTASPROVIDEDUNDERTHIS WARRANTYISTHEEXCLUSIVEREMEDYFORTHECONSUMER, WITHTHEISSUINGCOMPANYNOTLIABLEFOR ANYINCIDENTALORCONSEQUENTIALDAMAGESFOR BREACHOFANYEXPRESSORIMPLIEDWARRANTYON THISPRODUCT.EXCEPTTOTHEEXTENTPROHIBITEDBY APPLICABLELAW, ANYIMPLIEDWARRANTYOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE ONTHISPRODUCTISLIMITEDINDURATIONTOTHE DURATIONOFTHISWARRANTY.

Somestatesdonotallowtheexclusionsorlimitationofincidentalorconsequentialdamages,orallowlimitationsonhowlonganimpliedwarrantylasts,sotheabovelimitationsorexclusionsmaynotapplytoyou.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501
