CAUTION

Consult an audiologist or physician if you have excessive ear wax, difficulty inserting the eartips, or discomfort after prolonged use.

In rare instances an eartip may come off in the ear canal when removing the earphone. If this should occur and the eartip cannot be easily removed, it is recommended that you promptly contact an audiologist or other medical professional. A professional can use blunt tweezers to remove the eartip.

Etymotic earphones exclude most external sounds. Use caution if using in-ear earphones while operating a motorized vehicle, operating machinery, bicycling or jogging, because you may not be alerted to potential danger.

Do not listen at excessively loud levels. Research confirms that earphones that seal the ear canal allow listeners to listen at safer levels. Noise-induced hearing loss is a function of exposure time, the average sound level and the peak output of very loud sounds. A sealed eartip and lower listening levels allow for longer periods of safe listening.

IN THE BOX

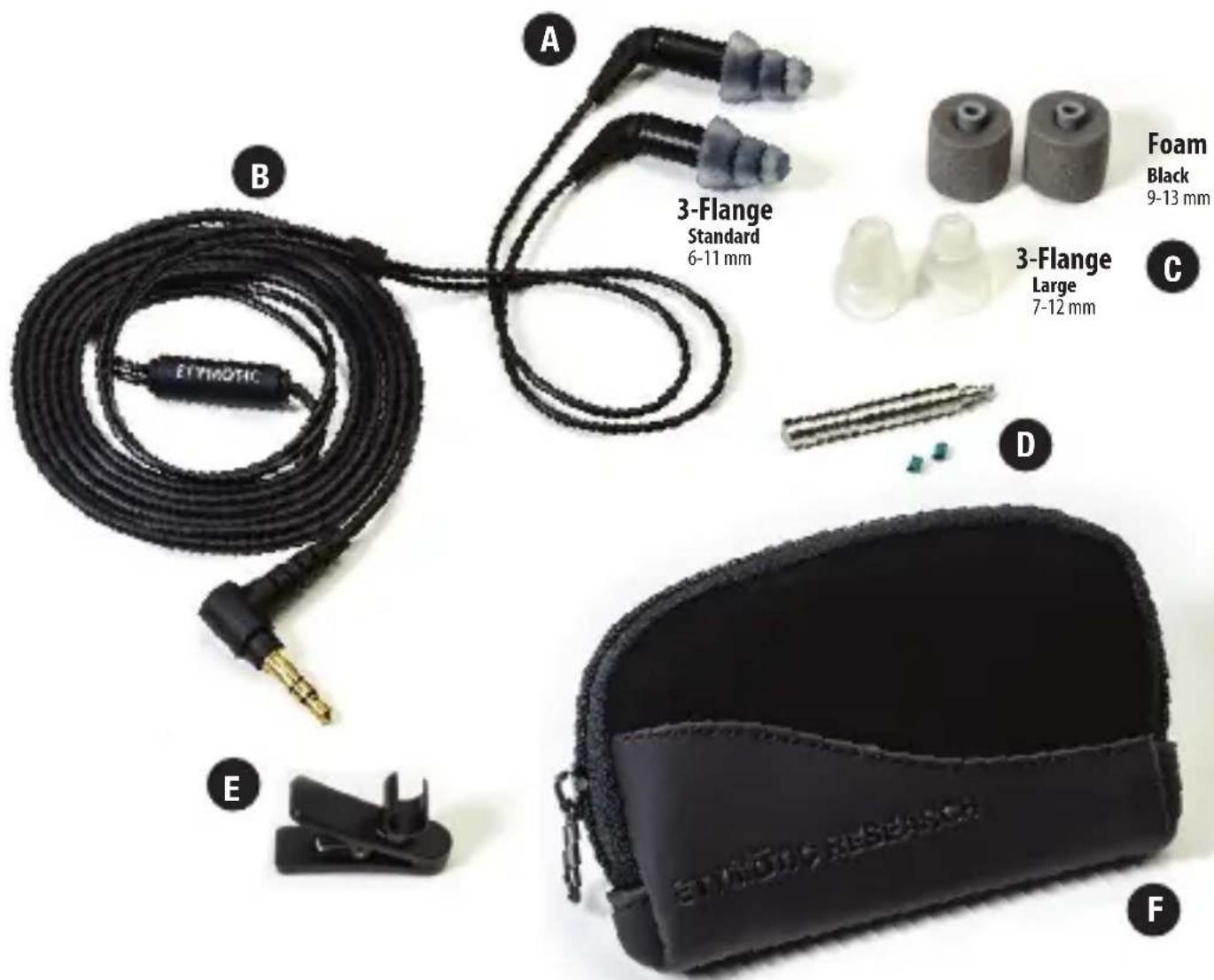

A B 3-Flange Standard 6-11 mm C Foam Black 9-13 mm 3-Flange Large 7-12 mm D E SYMBOL RESERANCE F

A. Earphones
B. Detachable, 4 ft cord with 3.5 mm gold plated stereo plug
C. Assortment of eartips

D. Filter removal tool and replacement filters
E. Shirt clip
F. Zippered storage case

Accessories are available at www.etymotic.com

IDENTIFICATION

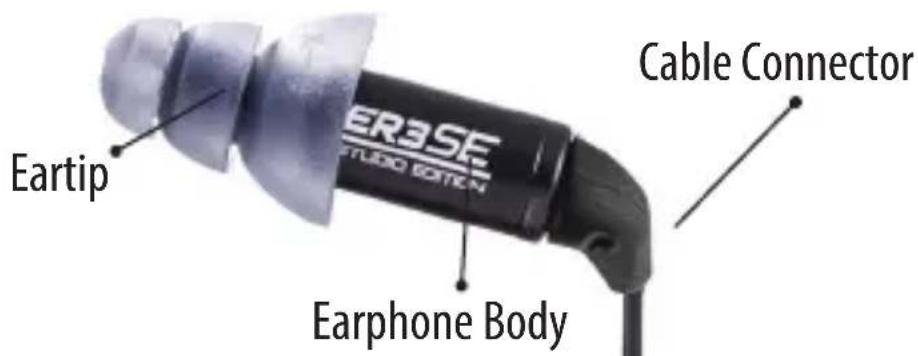

Cable Connector ER3SE TURBO EDITION Earip Earphone Body

Cable Connector unsnaps from Earphone Body

2345 Notch Keytab

Splitter Cable

Splitter Cable ETYMOTIC

Gold Plate Stereo designed Smartph

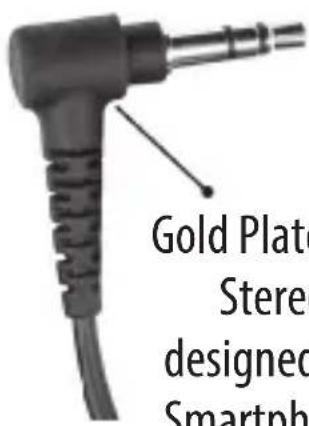

Gold Plated 3.5mm Stereo Plug designed for most Smartphone cases

SELECTING AN EARTIP

Close-up of a transparent, rounded object with no visible text or symbols

Large
3-flange
7-12 mm

3D rendered mechanical component with three curved surfaces (no text or symbols)

Standard
3-flange

6-11 mm

Close-up of a cylindrical mechanical part with a central hole (no visible text or symbols)

Large
Foam
9-13 mm

The eartips that are most comfortable are the best choice, but they should seal well in the ears for best noise isolation and sound quality.

When changing eartips make sure the eartip fits securely on the stem of the earphone.

Close-up of a white spherical object with a black handle, resembling a stylized lamp or mechanical component (no text or symbols visible)

correct incorrect

NOTE: Hold the earphone body—not the cable connector—when removing the eartips to avoid accidentally detaching the cable.

PROPER INSERTION

Important: Sound quality, full bass response and noise isolation all depend on a good eartip seal in the ear canal. See a video demonstration of how to get a proper fit at www.etymotic.com.

• While pulling up and out on the back of the ear, carefully insert the earphone.
• Twist the earphone into the ear canal while inserting, until outside noise is blocked out.
• 3-flange eartips: Moistening eartip eases insertion.

- Foameartips: Roll down or compress foam eartip before inserting. Hold the eartip in place for about 5 seconds while the foam expands to create a tight seal in the ear canal.

Illustration of hands holding a small object with a pointed tip, no text or symbols present

REMOVAL

Remove earphones slowly with a twisting motion to gradually break the seal. Do not pull on the cable to remove the earphones.

SHIRT CLIP

Attaching the Clip

Shirt clip attaches to the cable splitter.

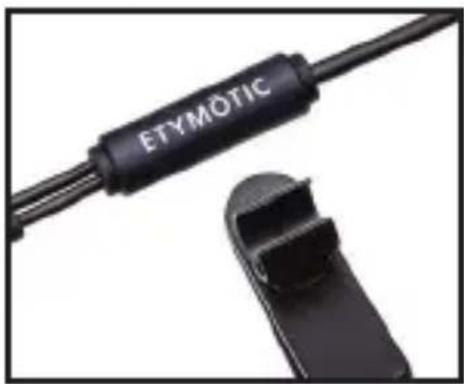

Close-up of a black ETYMÖTIC cable connector with a separate clamped clip (no text or symbols visible)

Close-up of a black ETYMOTIC cable connector with attached clip (no text or symbols visible on the device itself)

Note: Securing cable splitter to clothing helps reduce cable noise.

CORD SLIDER

Using the Slider

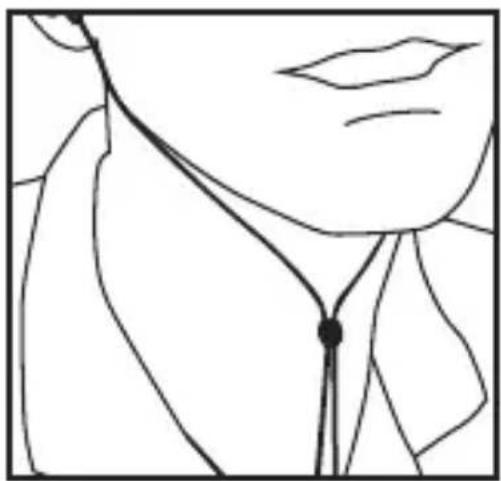

Slider is used to snug the cable under the chin to help secure the earphones.

ETYMÖTIC

Line drawing of a person's face and upper torso with a tie (no text or symbols)

DETACHABLE CABLES

Detaching Cables

Abstract line drawing of a curved mechanical or architectural component (no text or symbols)

1. Hold the body of the earphone securely with one hand.

Diagram showing a device being inserted into a housing (no text or symbols present)

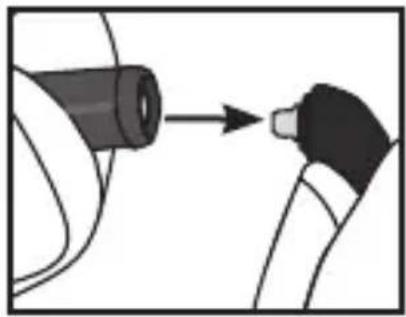

1. Pull the cable connector away from the earphone body. Do not twist. Pull straight out to prevent damage to the key tab.
   Note: Do not pull or twist from the cable connector. It's important to pull straight out.

Attaching Cables

Diagram showing a device being inserted into a plug, with an arrow indicating the insertion direction (no text or symbols present)

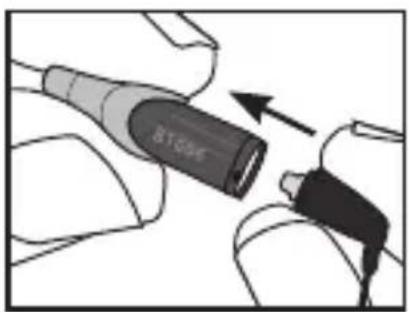

1. Align the key tab with the notch in the body of the earphone and cable connector.

Illustration of a hairpin with a black body and white tip, emitting sound waves (no text or symbols)

1. Press together until you feel it snap in.

Note: If the key tab is not aligned with the notch, snap will not engage.

Notch Z1 Key Tab

CHANGING FILTERS

Etymotic earphones have special filters that smooth the frequency response and prevent earwax from entering the earphones. A filter is located at the end of the earphone and is visible when the eartip is removed. If a filter becomes clogged, it should be replaced. A dirty filter will reduce earphone output. The filter should be changed if loudness decreases or the sound quality declines. Note: Filters are not reusable.

Filter Removal Use the tool to remove the filter.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

1. Remove eartip. 2. Insert filter tool into the filter.

Diagram of a mechanical tool interacting with a cylindrical component (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating motion or force direction (no text or symbols)

1. Remove filter.

Filter Replacement Do not use the tool to replace the filter.

Illustration of a hand holding a pen or stylus, with no visible text or symbols

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1. Press gently against a hard surface to secure it in place.

Close-up of hands holding a curved object with an arrow indicating motion (no text or symbols)

1. Re-attach eartip.1. Insert a new filter.

CLEANING AND REPLACING EARTIPS

Over time eartips may lose their elasticity. For best performance and retention, replace 3-flange eartips every 60–90 days. Replace foam eartips when they become soiled.

To clean 3-flange eartips:

1. Remove the eartip from the earphone.
2. Clean with water and mild soap.
3. Dry the eartip before placing it back on the earphone.

Foam eartips are disposable and should not be cleaned.

IMPORTANT

• Do not expose the earphones to extreme temperatures.
• Avoid dropping and strong impact.
• Leave eartips on the earphones for shock protection.
• Do not pull on the cord to remove the earphone from the audio device or the ear.
• Clean or replace eartips prior to use by others.
• For best performance and retention in the ear, replace 3-flange eartips every 60–90 days.
• Replace foam eartips frequently.

WARRANTY

Etymotic Research, Inc. warrants this product against defects in material or workmanship for a period of two years from the date of original purchase from an authorized Etymotic distributor or reseller.

Etymotic will repair or replace the defective product at its option if returned within the warranty period to our service facility. This warranty is in lieu of all other warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose.
