Product Type LCD Television
Brand Mitsubishi
Model LT-37131
Screen Size 37 inches (94 cm diagonal)
Resolution 1366 x 768 pixels (HD Ready)
Aspect Ratio 16:9
Dimensions (W x H x D) without stand Approx. 34.6 x 22.4 x 4.5 inches (880 x 570 x 115 mm)
Weight without stand Approx. 41.9 lbs (19 kg)
Power Consumption 180 W (typical)
Inputs HDMI, Component, Composite, VGA, RF antenna
Outputs Audio out (RCA), Headphone jack
Remote Control Included (IR)
Wall Mount VESA 400 x 400 mm (compatible)
Energy Class B (EU energy label)
Tuner ATSC / NTSC (analog and digital)
Audio Stereo 20W (10W x 2)

Frequently Asked Questions - LT-37131 MITSUBISHI

How do I set up the TV for the first time?
Connect the power cord, antenna or cable, and press the power button. Follow the on-screen setup wizard to select language, scan channels, and adjust picture settings.
What remote control codes work with this TV?
The remote uses standard Mitsubishi codes. For universal remotes, try code 1097 or search for Mitsubishi TV codes.
How to clean the LCD screen?
Use a soft, dry microfiber cloth. Do not spray liquid directly. For smudges, slightly dampen the cloth with distilled water or a specialized screen cleaner. Avoid ammonia or alcohol.
Can I mount this TV on a wall?
Yes, it supports VESA 400 x 400 mm mounting. Use appropriate bolts (M6, length 12-16 mm) and ensure the wall can support at least 30 kg.
Why is there no sound from the TV?
Check if the volume is muted or low. Ensure audio cables are correctly connected. Try a different source to rule out input issues. If using external speakers, verify they are powered.
How to perform a factory reset?
Press Menu, go to Settings > System > Factory Reset. Confirm and the TV will restart to default settings. All channels and preferences will be erased.
What should I do if the TV won't turn on?
Unplug the TV for 60 seconds, then plug it back. Check the power cord and outlet. If the standby light is off, it may be a power board issue; contact support.
How to connect a gaming console?
Use an HDMI cable for best quality. Connect to any HDMI port on the TV, then select the corresponding input using the Source button on the remote.
Where can I find the user manual?
The manual is available for free download on notice-facile.com as a PDF. You can also request a translated version by email.
How to adjust the picture settings?
Press Menu, then go to Picture to adjust brightness, contrast, color, tint, and sharpness. Use preset modes like Standard, Movie, or Game for optimal viewing.

User questions about LT-37131 MITSUBISHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Television in PDF format for free! Find your manual LT-37131 - MITSUBISHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LT-37131 by MITSUBISHI.

USER MANUAL LT-37131 MITSUBISHI

  • Call Consumer Relations at 800-332-2119.
  • E-mail us at MDEAservice@mdea.com.
  • Visit our website at www.mitsubishi-tv.com.

- For information on Demo Mode and System Reset, please see the back cover.

• To order additional remote controls or Owner's Guides, call 800-553-7278.
• Guidelines for setting up and using your new widescreen TV start on page 13.

MITSUBISHI LT-37131 - 1

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

MITSUBISHI LT-37131 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 1

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

MITSUBISHI LT-37131 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 2

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock.

MITSUBISHI LT-37131 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 3

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FCC Declaration of Conformity

Product: LCD HDTV Display

Models: LT-37131, LT-46131

Responsible Party: Mitsubishi Digital Electronics America, Inc.

9351 Jeronimo Road

Irvine, CA 92618-1904

Telephone: 800-332-2119

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could cause harmful interference and would void the user's authority to operate this equipment.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.

Our Thanks...

Thank you for choosing Mitsubishi as your premier Home Entertainment provider.

This Owner's Guide describes the features and functions of your Mitsubishi widescreen, high definition TV. We urge you to examine this Owner's Guide to become familiar with the innovative features and operations this unique television offers.

The very core of our corporate philosophy is to provide our customers with the very best. Our development team at Mitsubishi has worked to provide you with a television that defines “state-of-the-art,” with the capability to meet your needs now and in the future.

Whether this is your first Mitsubishi electronic product, or an addition to your Mitsubishi collection, we believe you and your family will continue to enjoy your Mitsubishi home theater for many years.

Thank you,

Mitsubishi Digital Electronics America, Inc.

For Your Records

Record the model number, serial number, and purchase date of your TV. The model and serial numbers are on the back of the TV. Refer to this page when requesting assistance with this TV.

MODEL NUMBER (check one):

LT-37131

LT-46131

SERIAL NUMBER ____

PURCHASE DATE ____

Retailer Information

RETAILER NAME

LOCATION

Contents

Important Information About Your TV

General Warnings and Cautions, Notes on Installation and Operation 6

Cleaning Recommendations 7

Important Safeguards 8

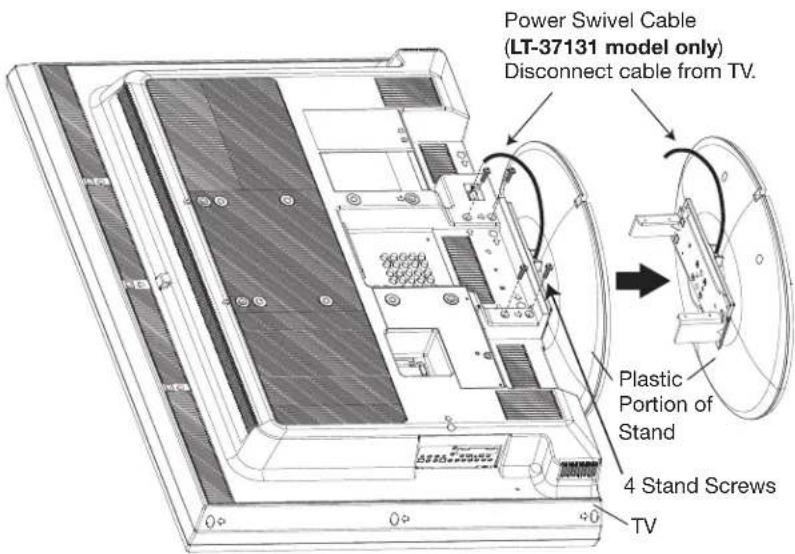

Stand Removal Instructions 10

Chapter 1: Television Overview

Package Contents.... 12

Special Features of Your TV 12

Guidelines for Setting Up and Using Your New Widescreen TV.... 13

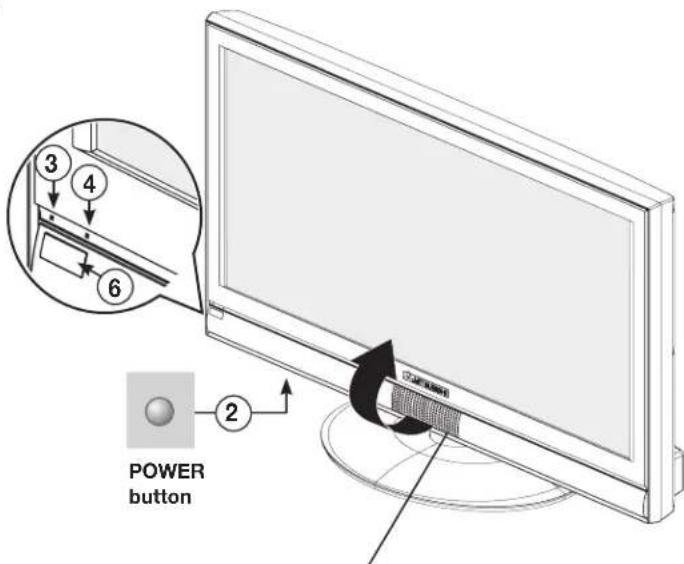

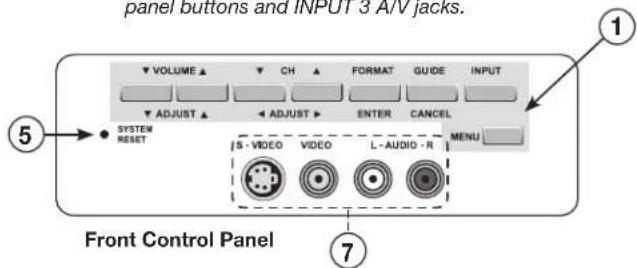

TV Front Panel, Power Button and Indicators

Control Panel 15

System Reset Button 15

A/V Reset 15

Input 3 Jacks 15

TV Indicators 16

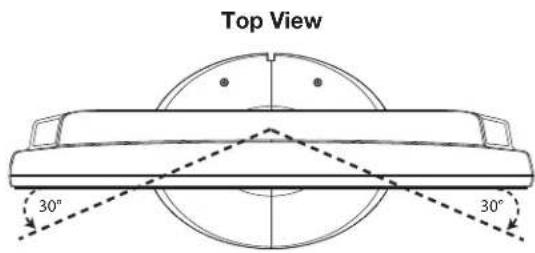

Manual and Power Swivel.... 16

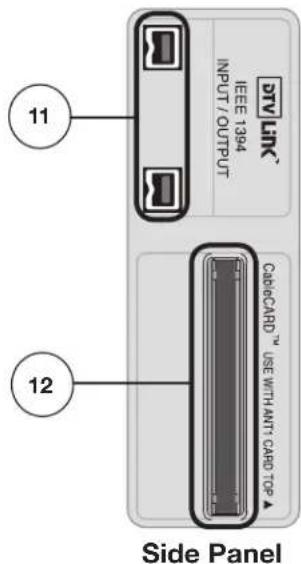

CableCARD™ Technology 17

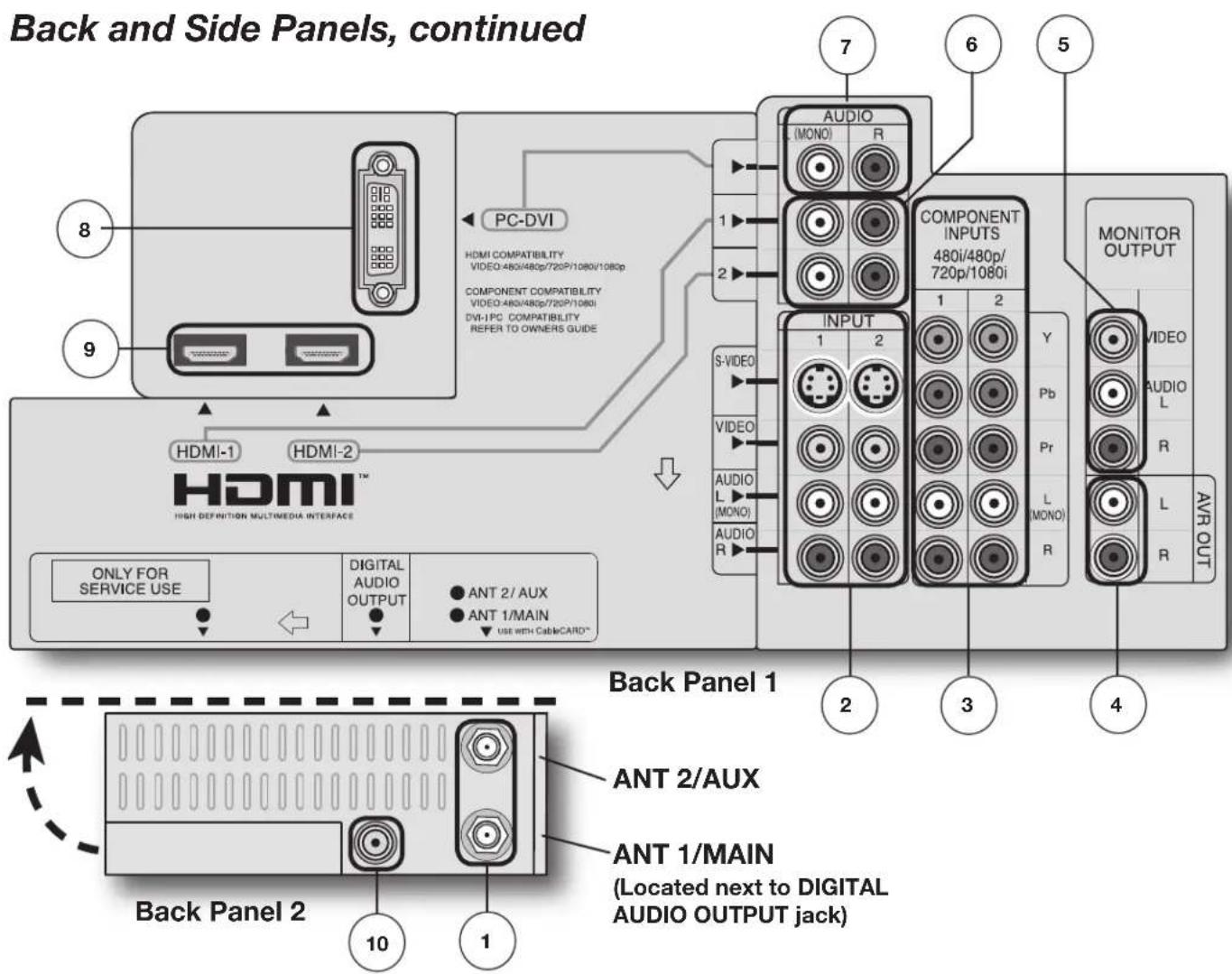

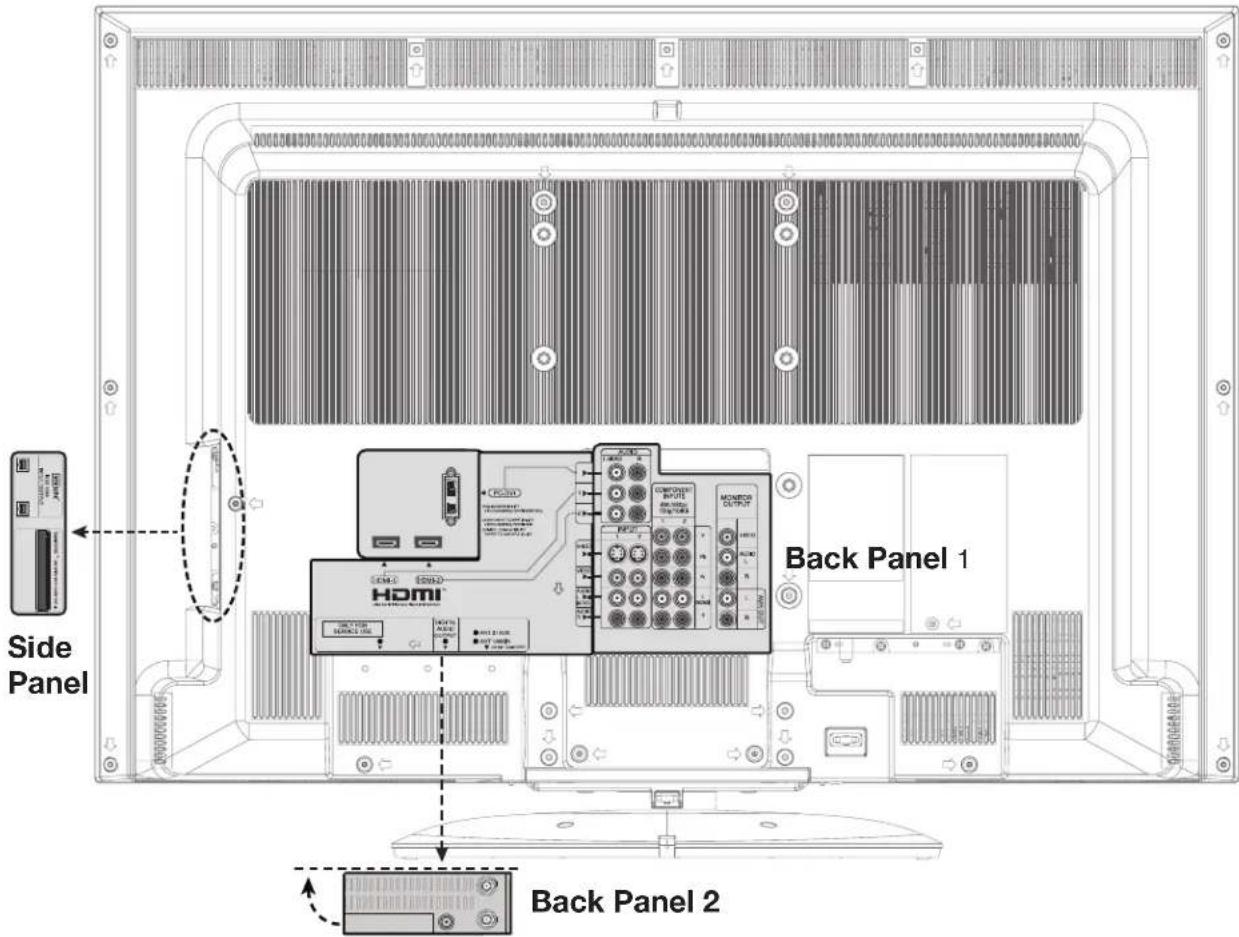

Back and Side Panels.... 18

Chapter 2: TV Connections

Before You Begin

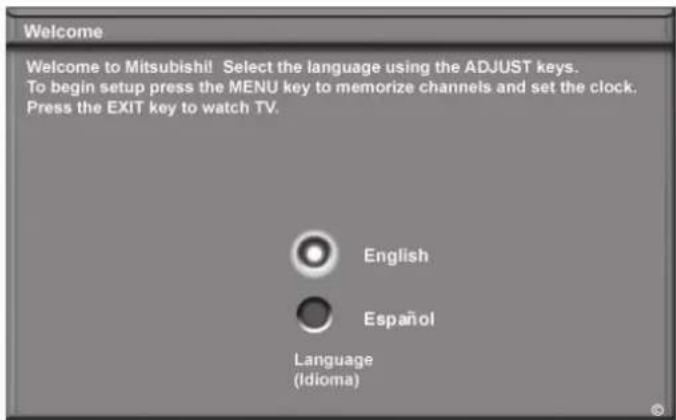

Choosing a Language for Menus 22

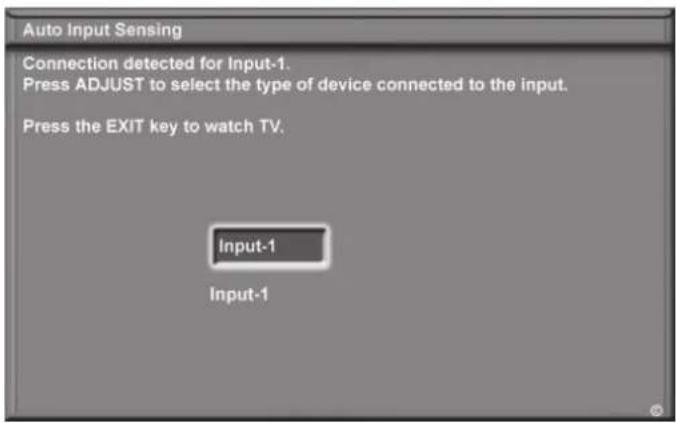

ClearThought® Easy Connect Auto Input Sensing. 22

Digital Video and Home Recording 23

Connection Types.... 24

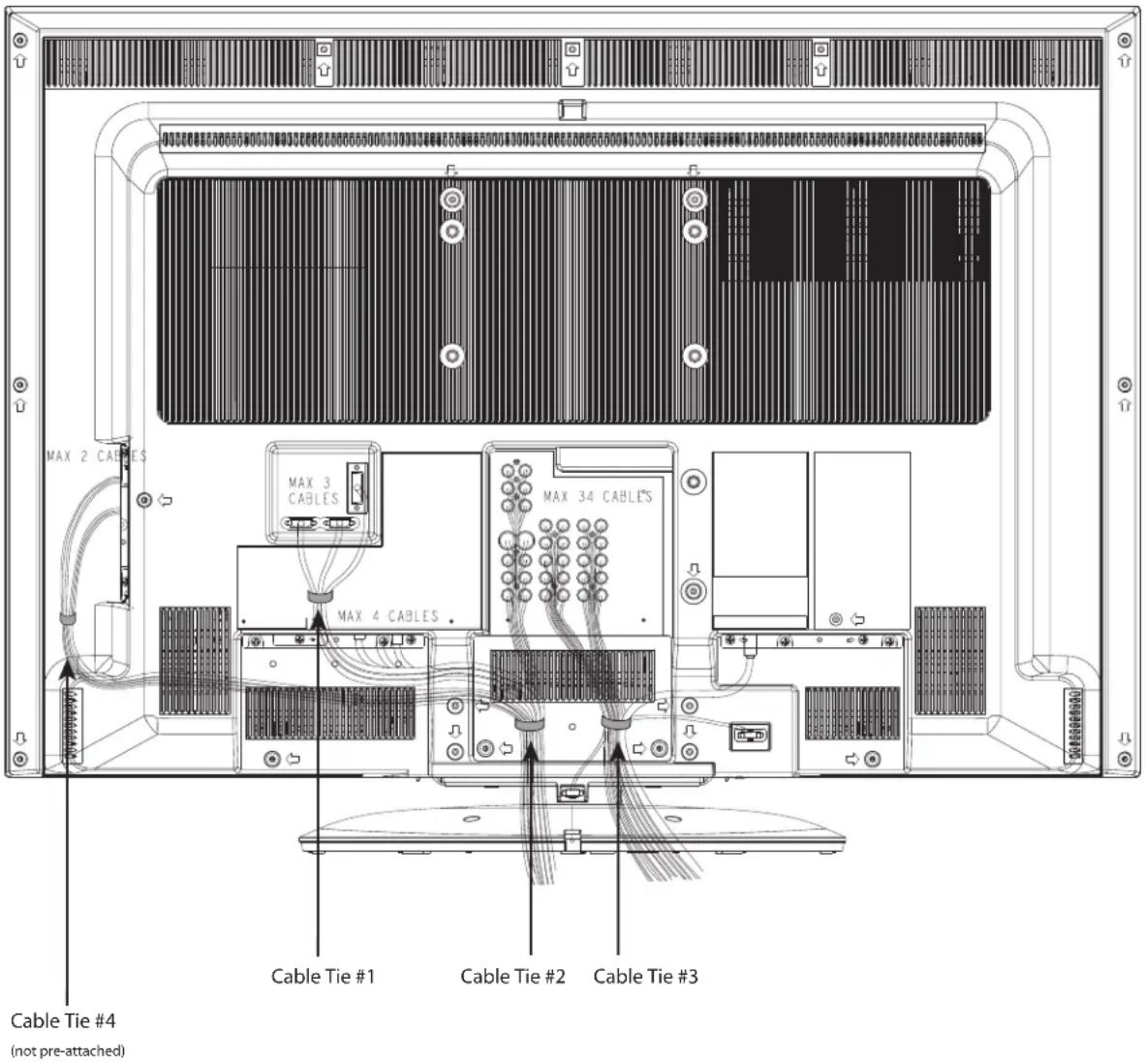

Cable Management 25

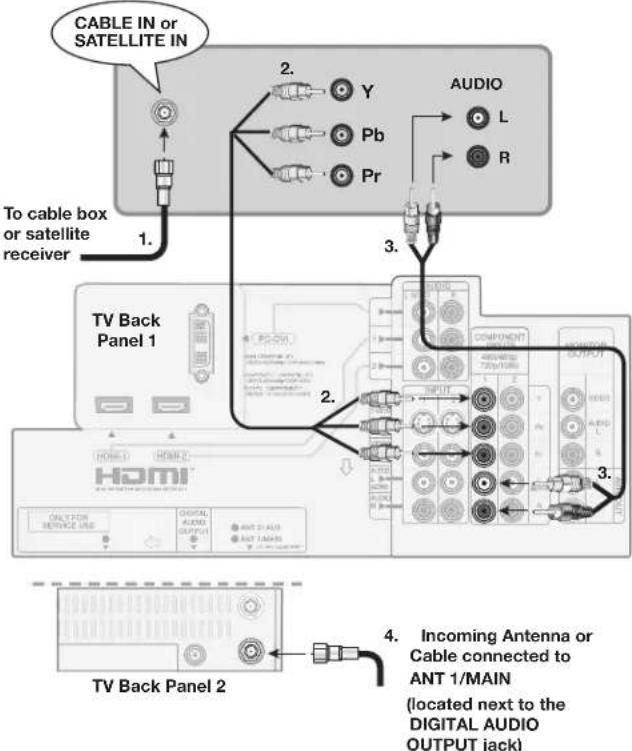

HDTV Cable Box or Satellite Receiver with Component Video 26

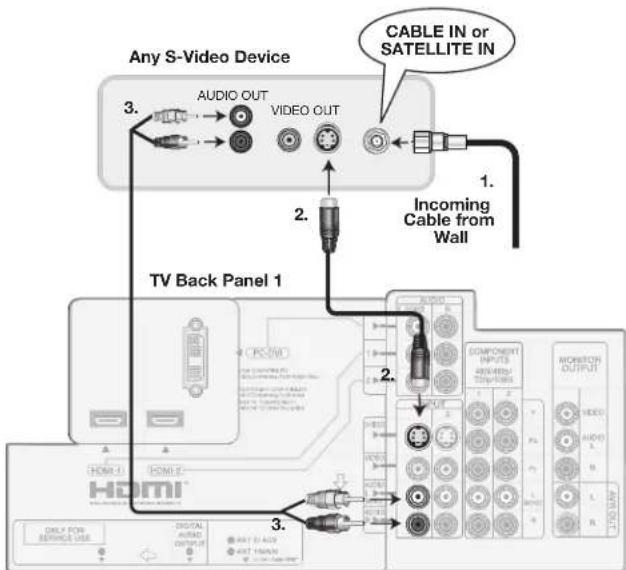

Standard Cable Box, Satellite Receiver, or Other Device with S-Video 26

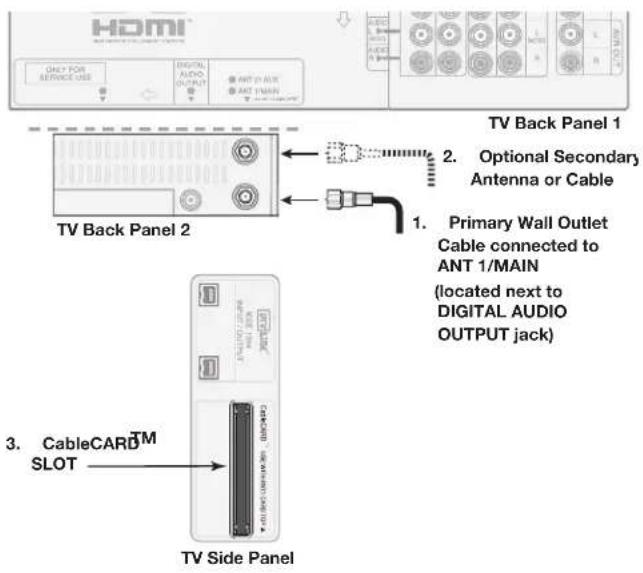

Wall Outlet Cable (no cable box) 27

Antenna with a Single Lead 28

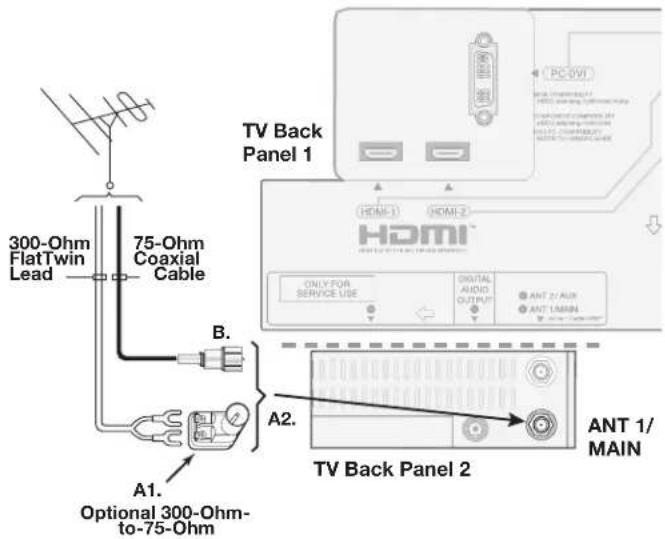

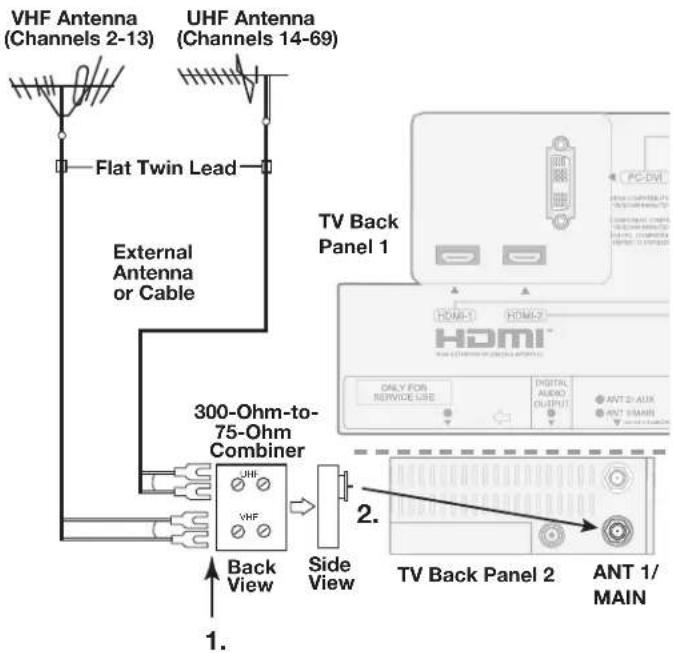

Antennas with Separate UHF and VHF Leads 28

VCR to an Antenna or Wall Outlet Cable 29

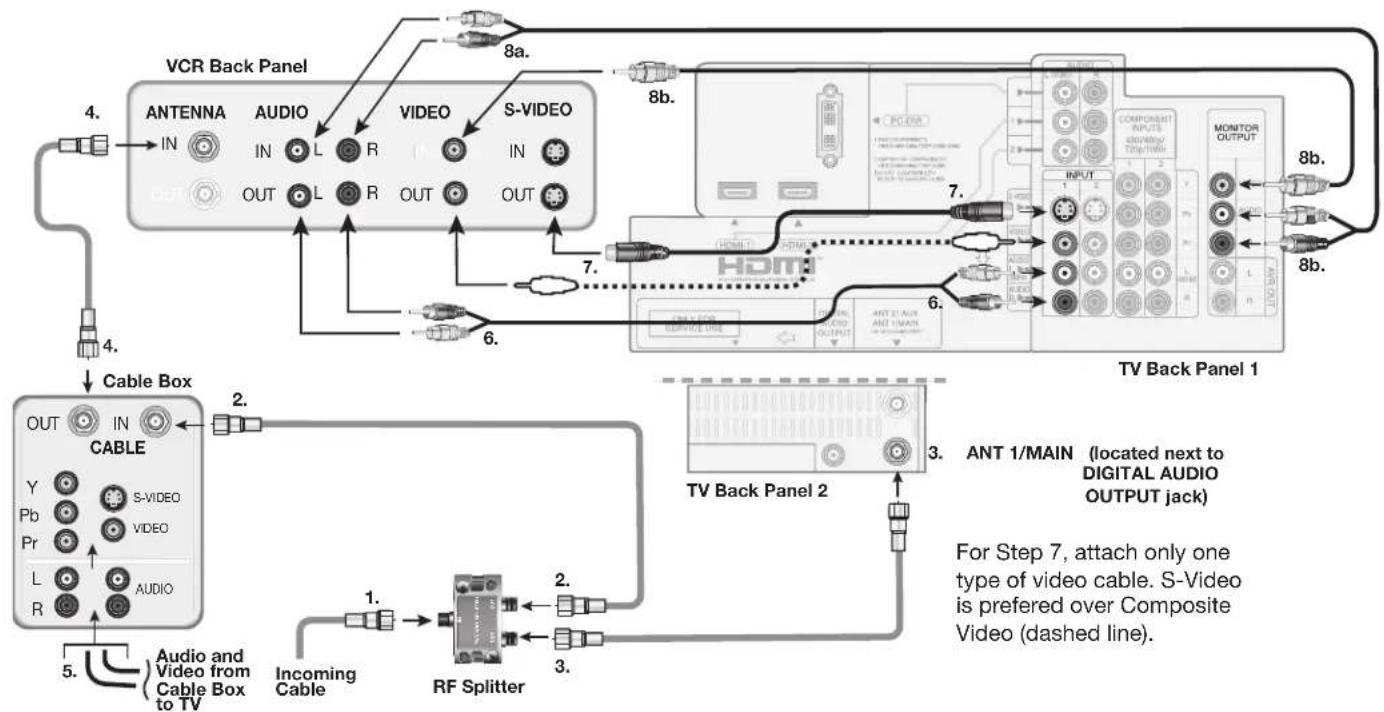

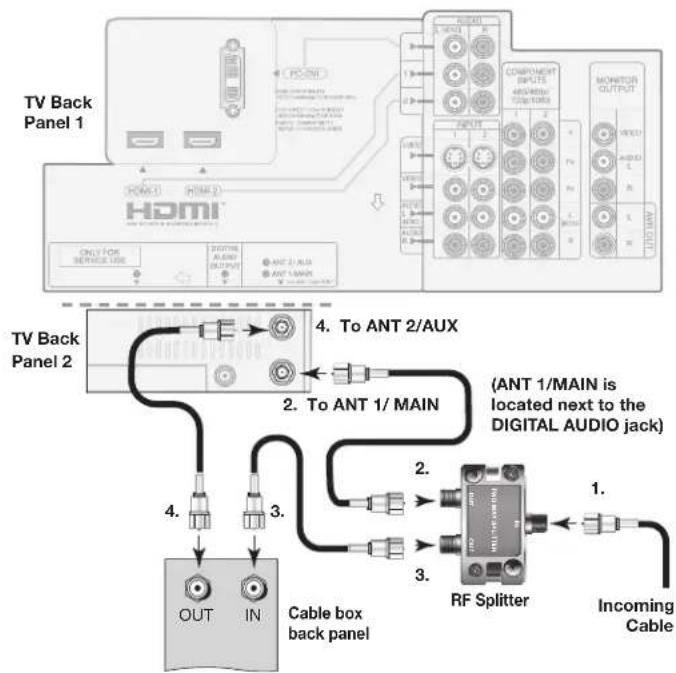

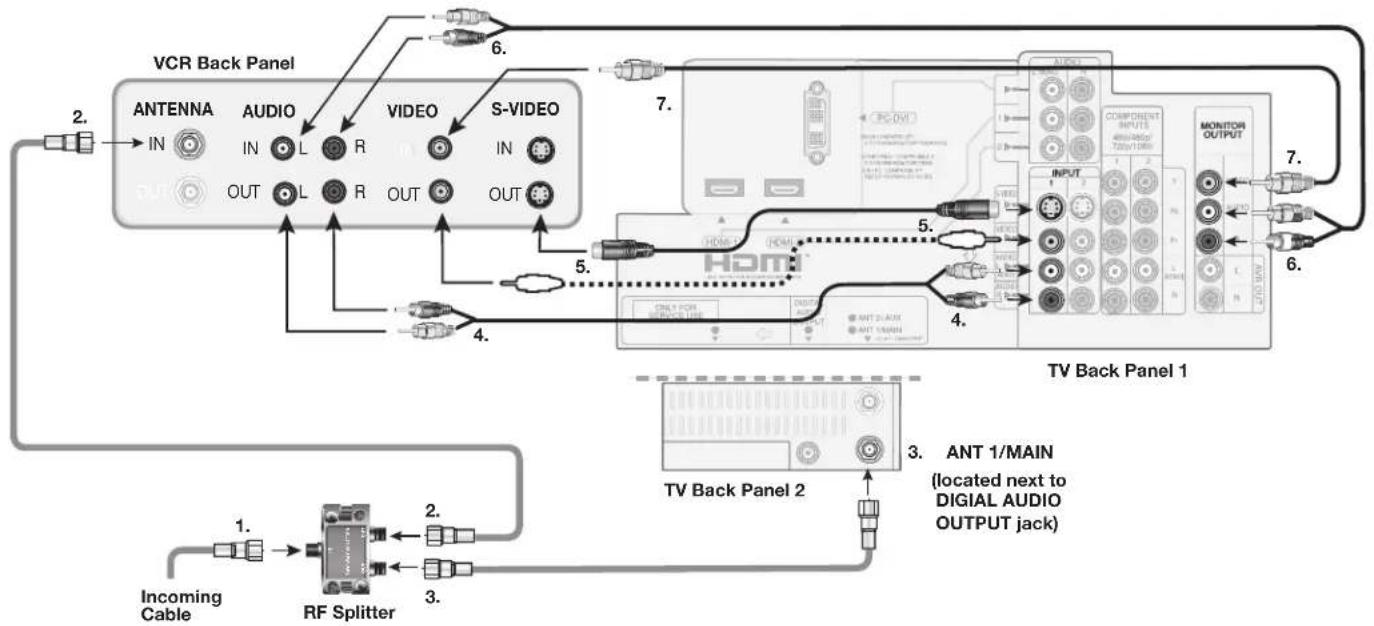

VCR to a Cable Box (Audio & Video) 30

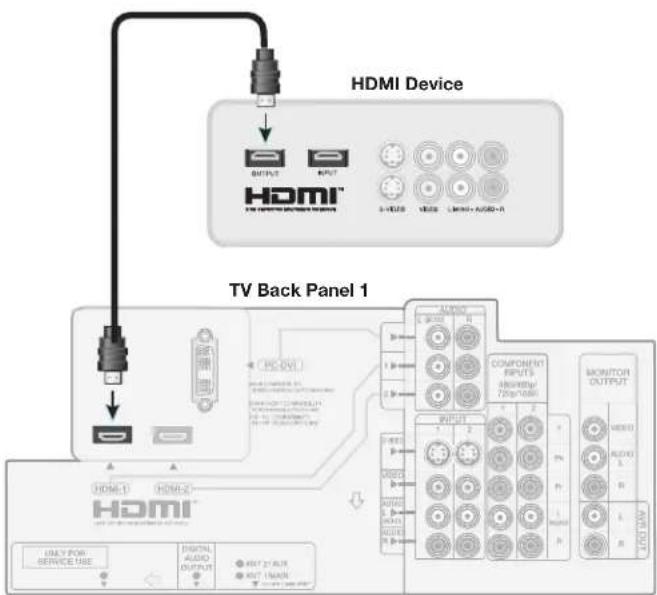

HDMI Device (Cable Box, Satellite Receiver, DVD Player, or Other Device) 31

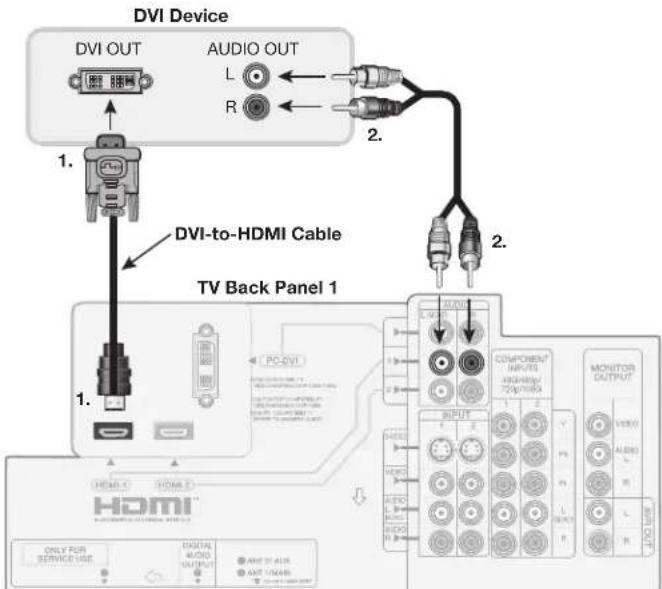

DVI Video Device (Cable Box, Satellite Receiver, DVD Player, or Other Device) 31

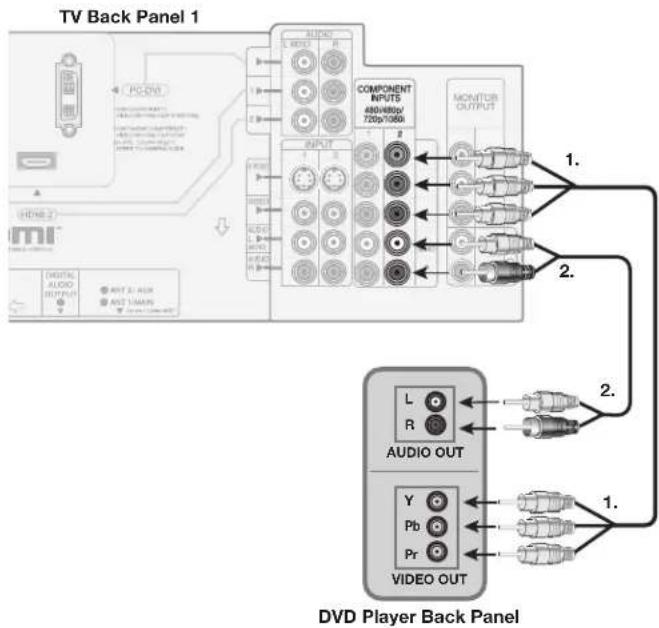

DVD Player with Component Video 32

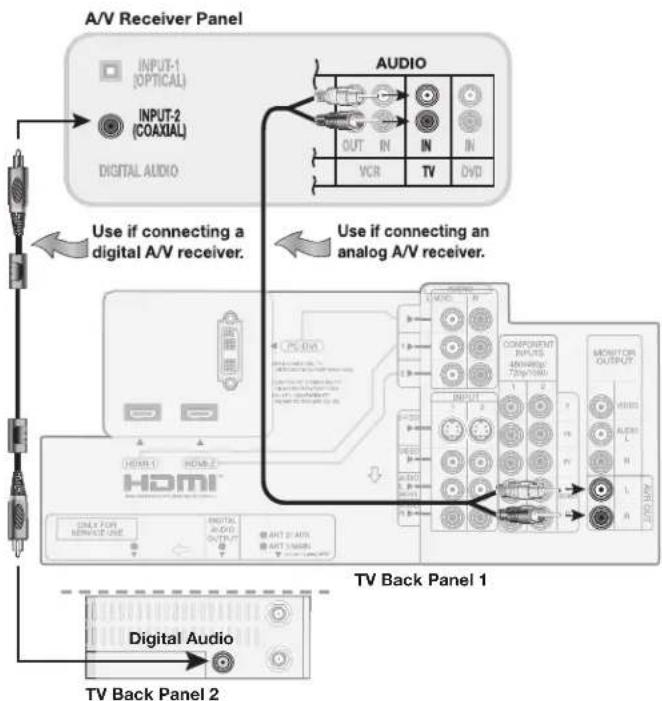

A/V Receiver (Stereo System) 32

Older Cable Box 33

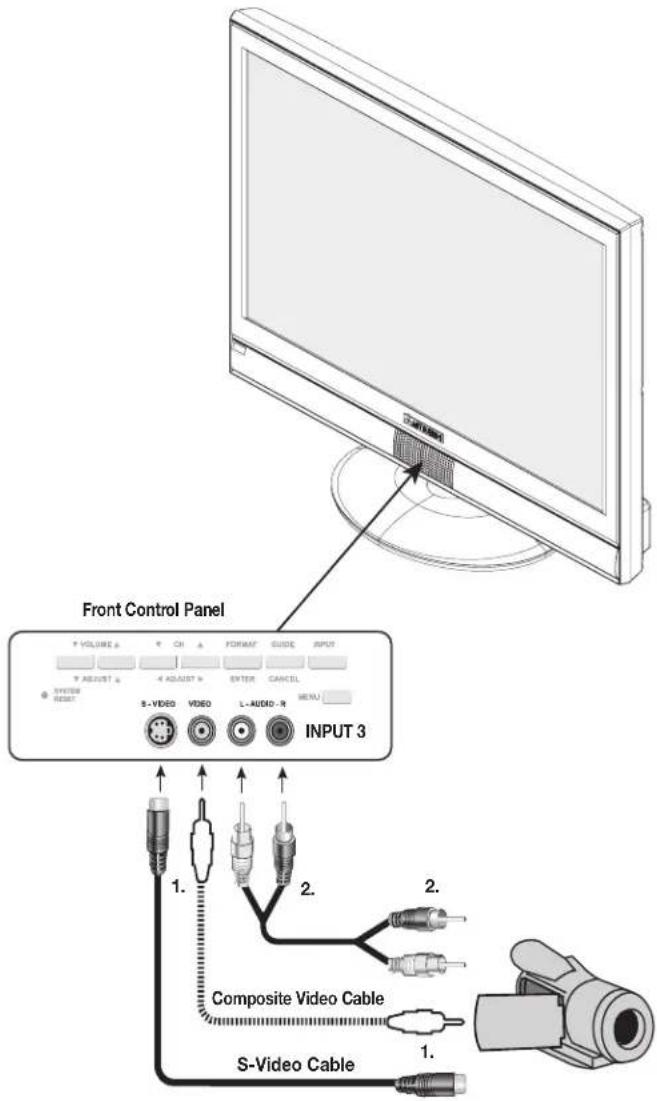

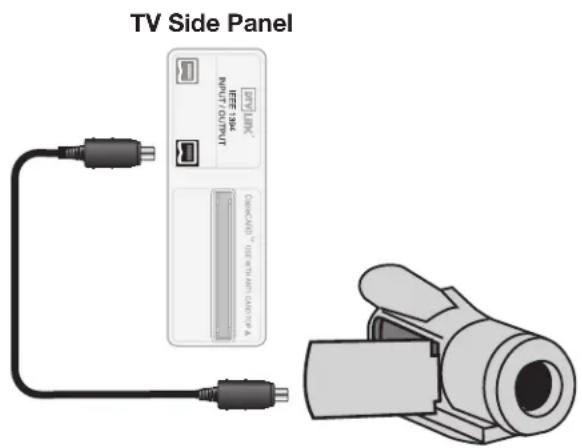

Camcorder 33

Chapter 3: TV Operation

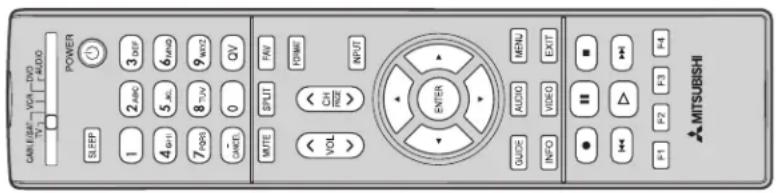

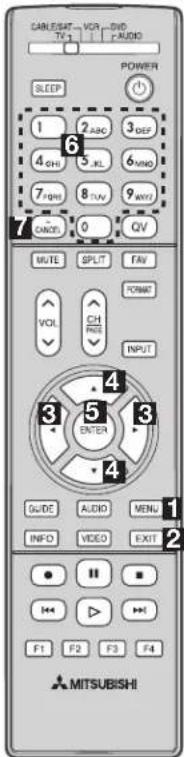

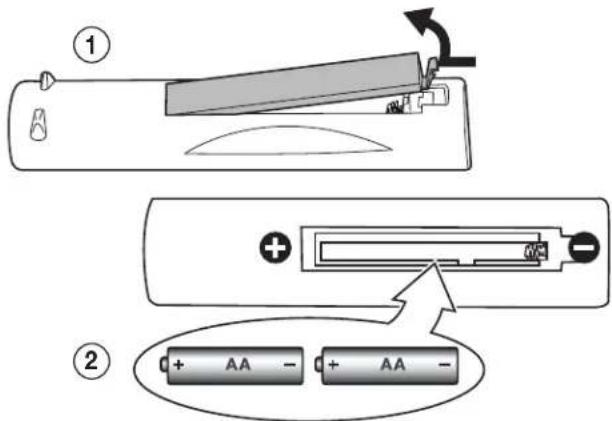

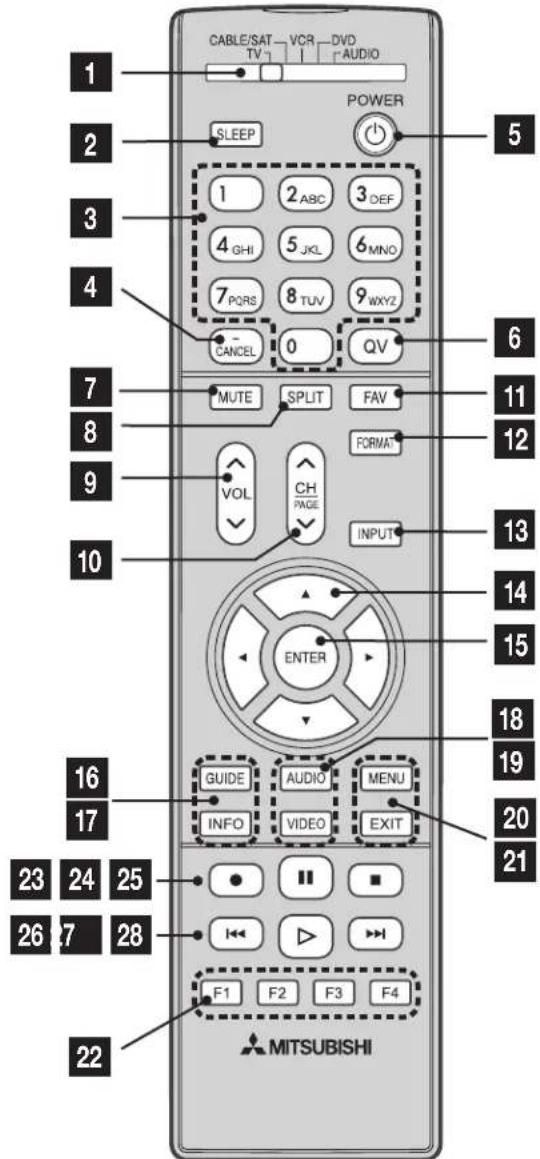

Remote Control 36

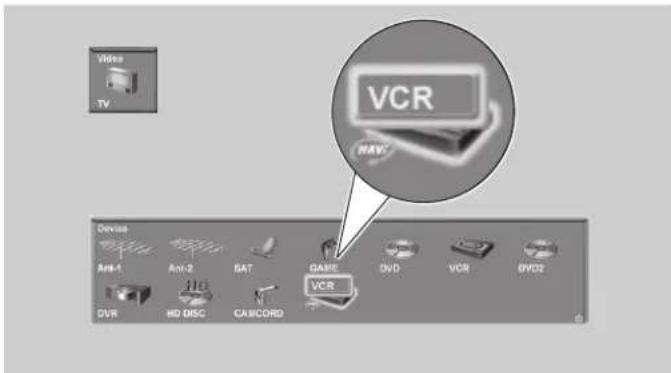

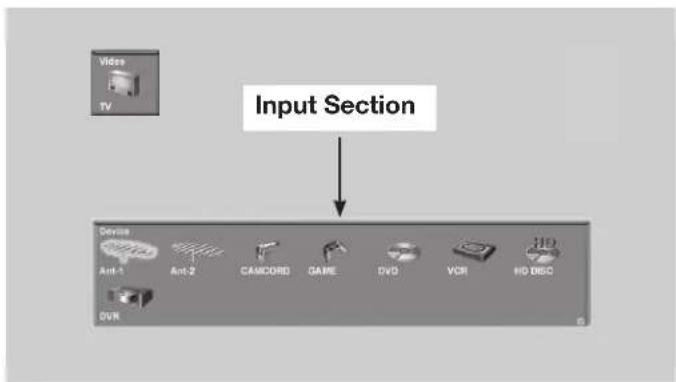

Choosing a Program Source 38

ChannelView™ Channel Listings 38

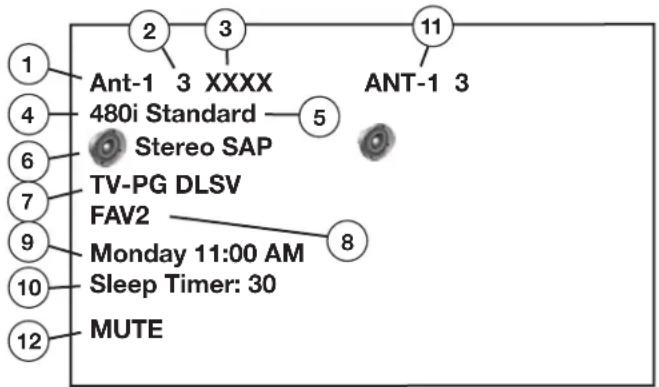

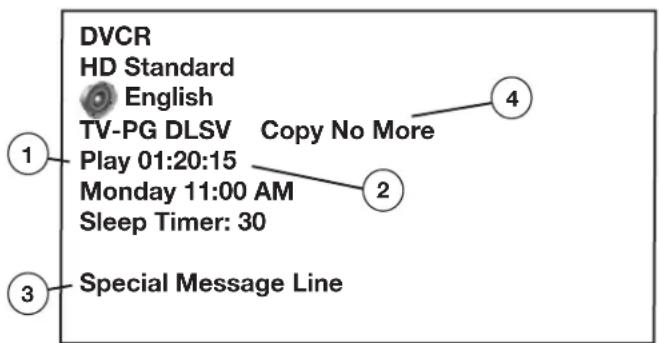

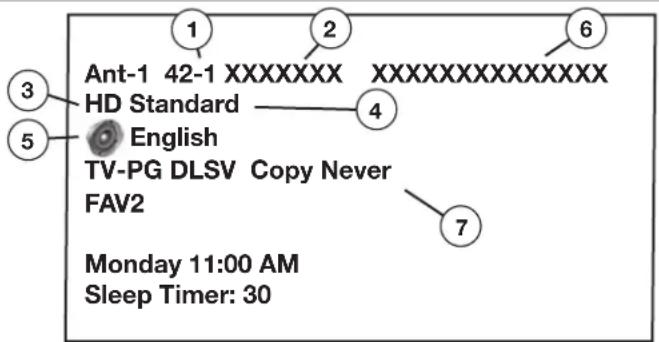

Status Display 39

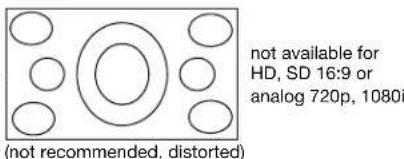

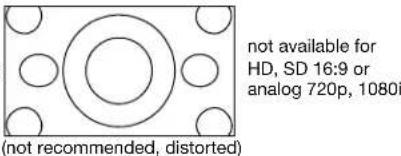

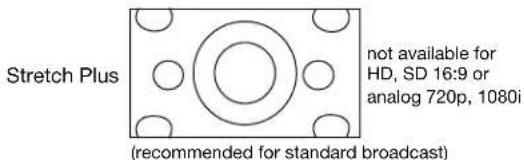

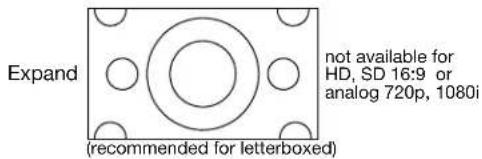

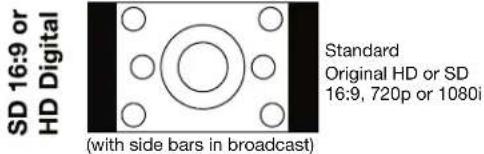

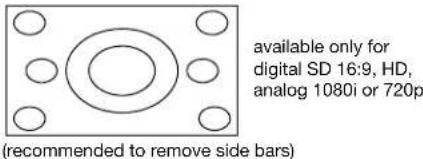

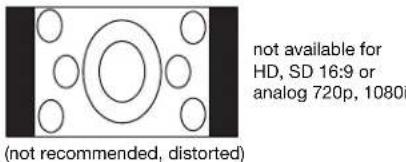

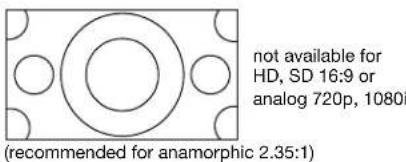

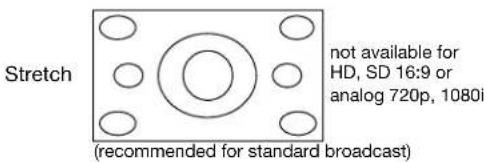

TV Signals and Display Formats 40

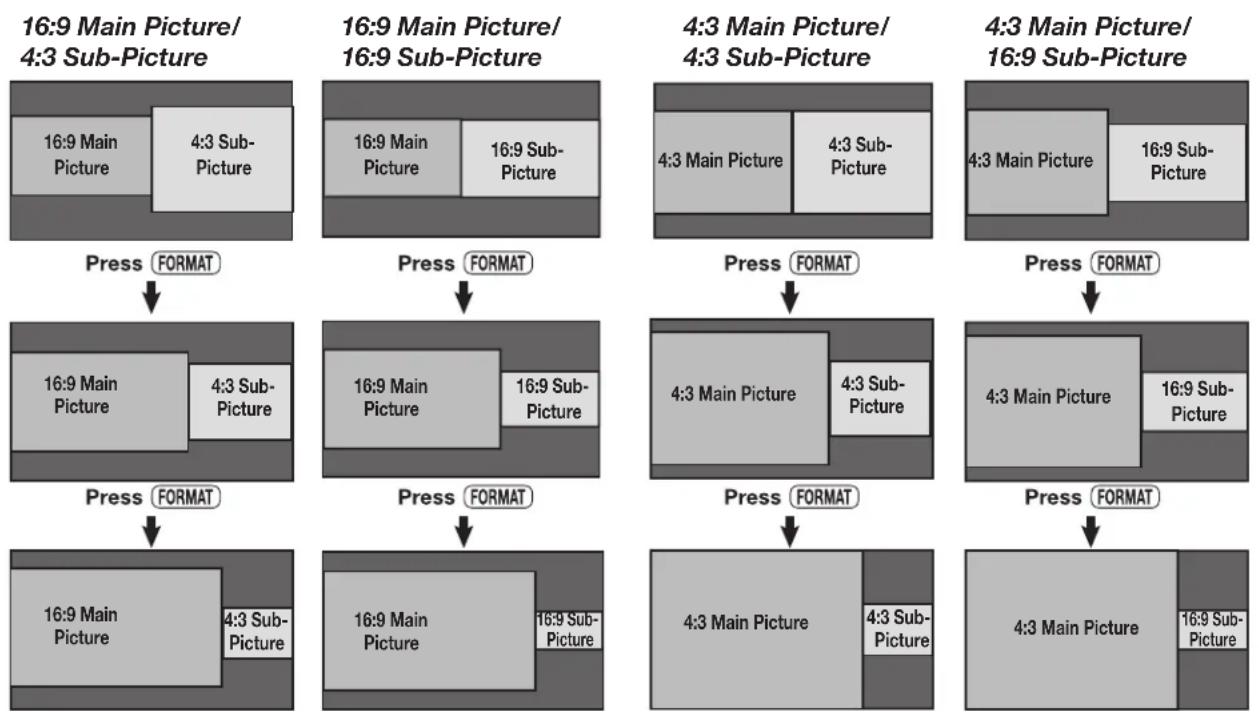

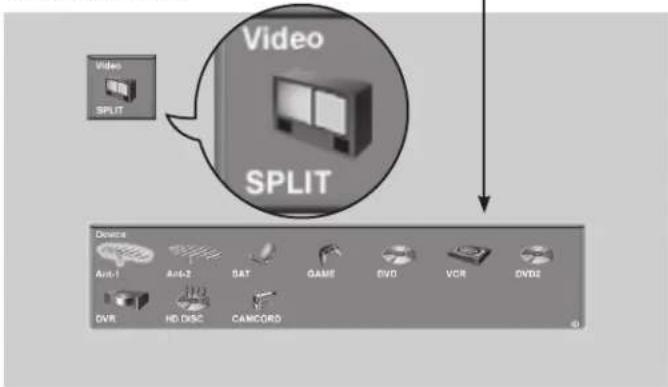

Split Screen 42

Chapter 4: TV Menu Settings

3D Graphical ▶ViewPoint® Menu System 46

Main Menu.... 47

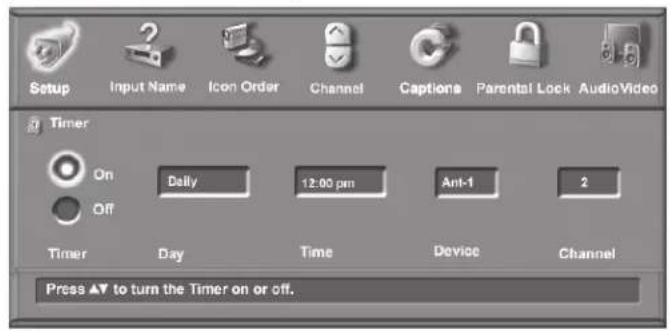

Setup Menu 48

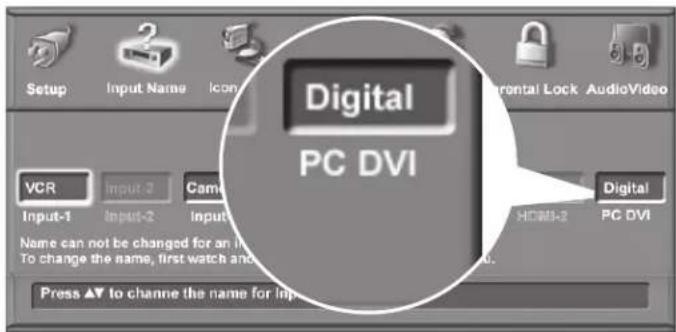

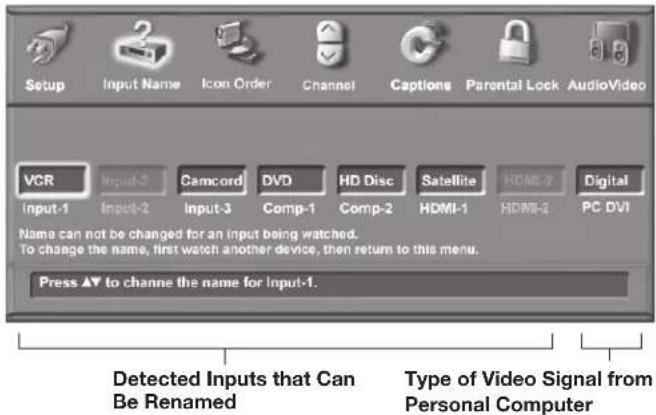

Input Name Menu 50

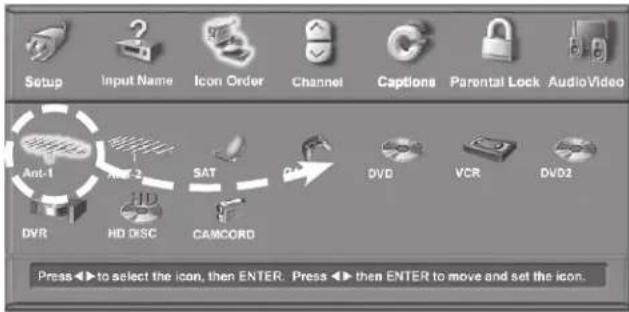

Icon Order Menu 50

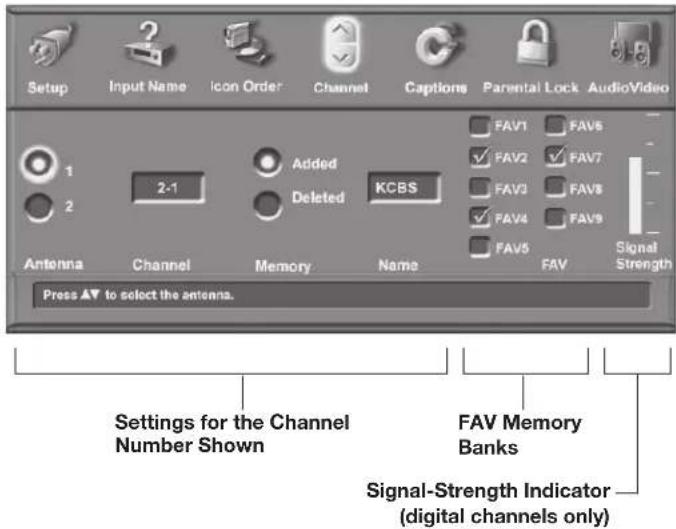

Channel Menu 51

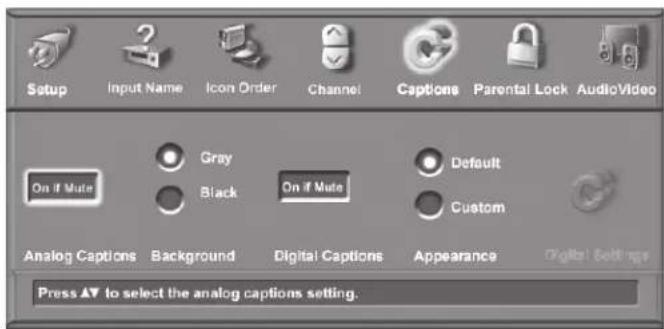

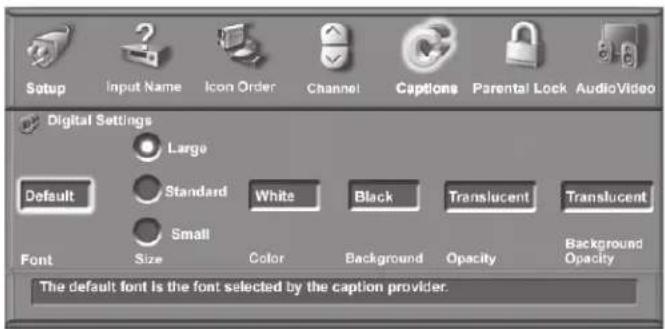

Captions Menu 53

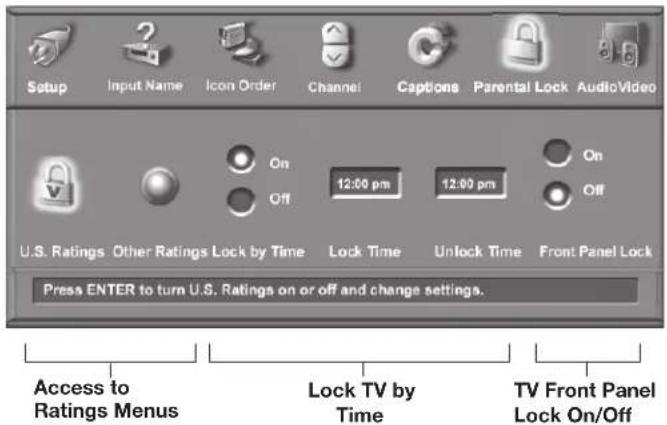

Parental Lock Menu 55

Setting a Pass Code....55

Lock TV by Time and Front-Panel Lock 55

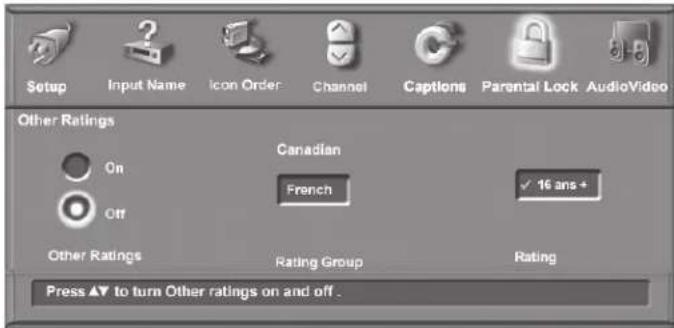

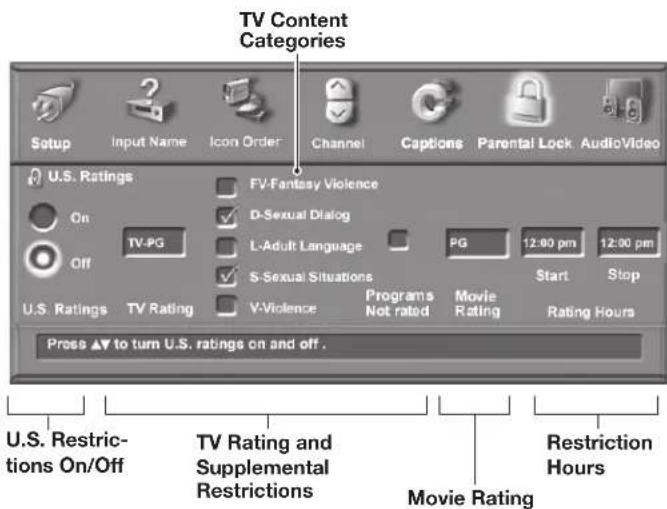

Rating Menus 55

Bypassing the Ratings Lock and Lock by Time 57

V-Chip Signal Information

TV Ratings. 58

Movie Ratings 58

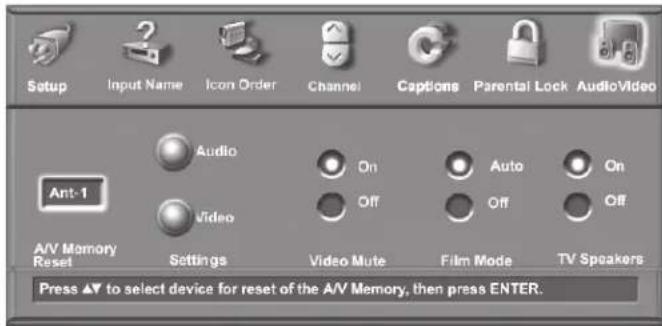

Audio/Video Menu 59

Audio Settings 60

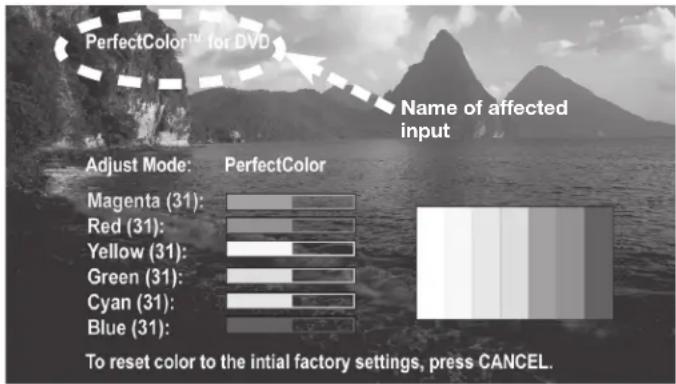

Video Settings....61

Chapter 5: Operating Other Devices with the Remote Control

Functions Available for Other A/V Devices 64

Programming the Remote Control 65

Programming Codes 66

Chapter 6: Using the TV with a Personal Computer

Setup 76

Video Adjustments 76

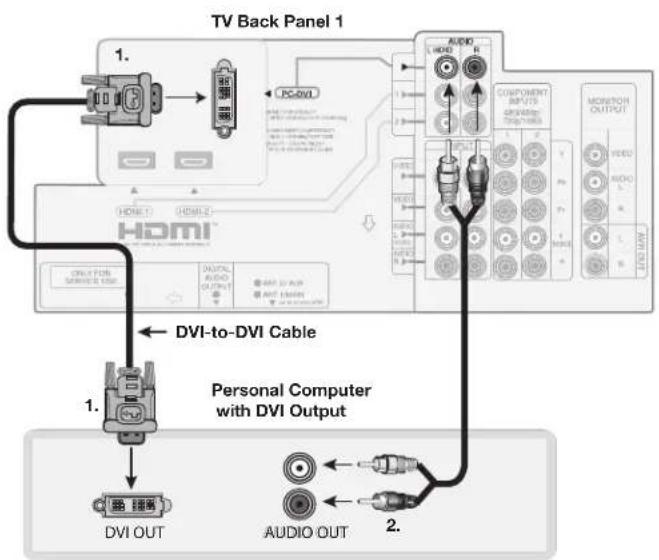

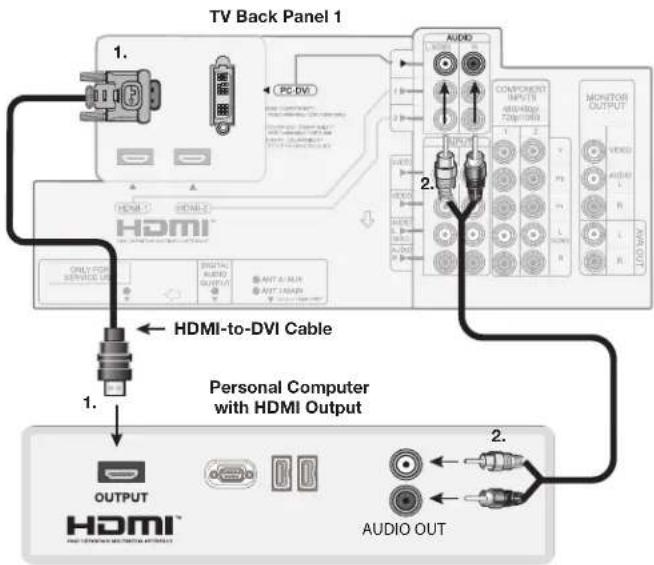

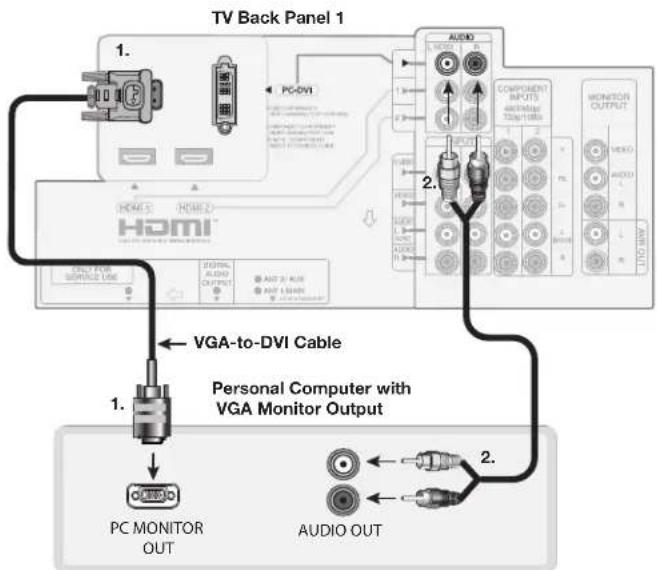

Connecting a Computer to the TV 77

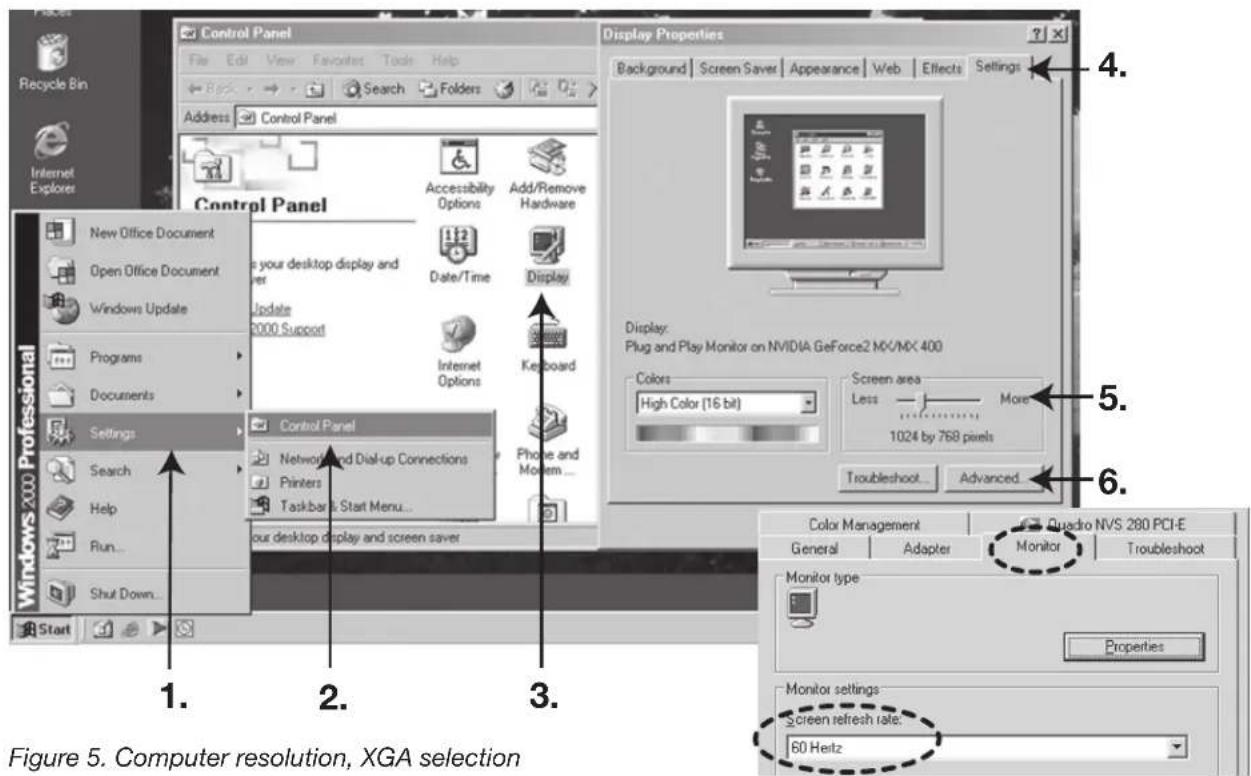

Adjusting Image Resolution 79

Computer Display Formats 80

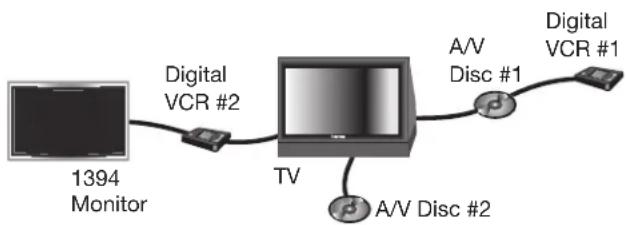

Chapter 7: Using IEEE 1394 Devices

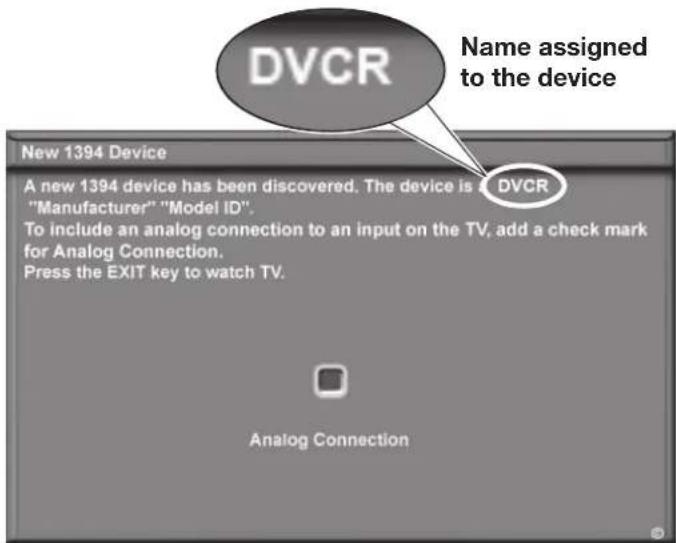

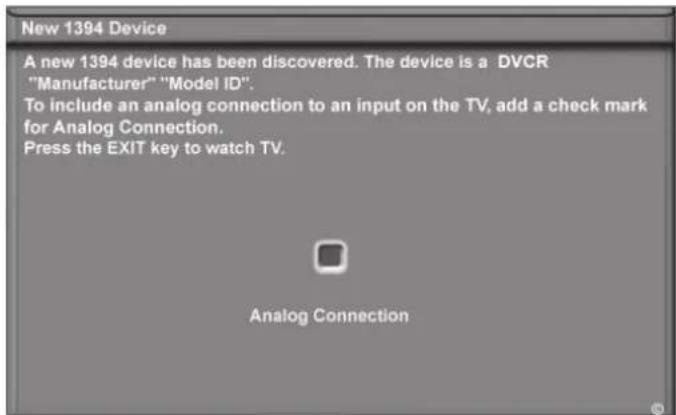

Overview 82

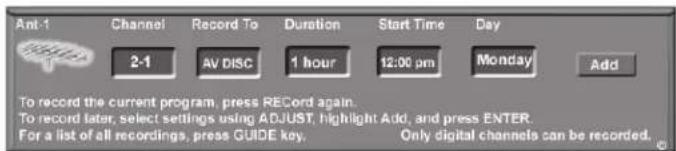

Recording to IEEE 1394 Recordable Devices 84

The TV Remote Control and IEEE 1394 Devices....86

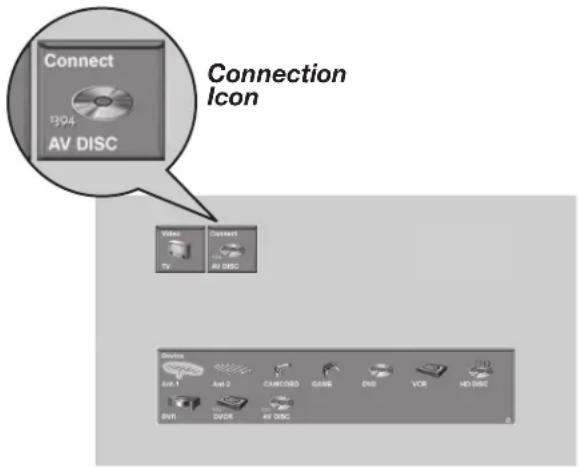

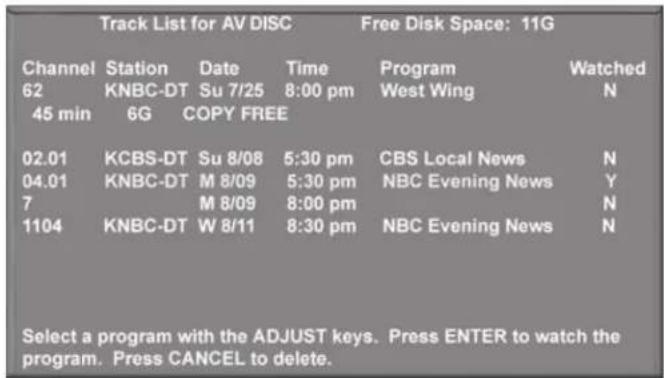

A/V Discs. 87

Switching Between Analog and Digital IEEE 1394 Outputs 88

Appendices

Appendix A: Bypassing the Parental Lock 91

Appendix B: Specifications 93

Appendix C: Troubleshooting 95

Trademark and License Information 102

Mitsubishi TV Software 103

Index 105

Important Information About Your TV

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

TV WEIGHT: This TV is heavy! Exercise extreme care when lifting or moving it. Lift or move the TV with a minimum of two adults. To prevent damage to the TV, avoid jarring or moving it while it is turned on. Always power off your TV before moving it.

Stand Requirement

CAUTION: The attached TV stand needs to be used or other authorized optional mounting hardware.

For wall-mounting, the authorized hardware is:

Wall Mount Kit # PSM-2031 manufactured by Chief Manufacturing, Inc. See page 10 for more information.

Use with other than the authorized accessories may result in making the TV unstable which can cause damage to the product or possible injury.

Custom cabinet installation must allow for proper air circulation around the television.

NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

Operating Notes

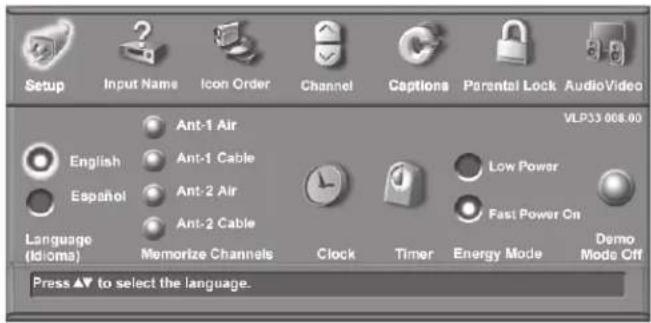

Demo Mode

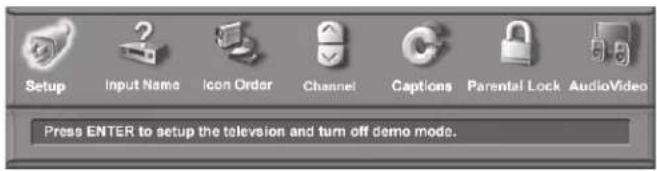

This TV has a demo mode for use in retail stores. To turn off demo mode:

  1. Press MENU.
  2. When the Main menu appears with Setup highlighted, press ENTER.
  3. When the Setup menu opens, press ▶ highlight the on-screen Demo Mode Off button.
  4. Press ENTER.

If Your TV Gets Damaged

Crystaline liquid may leak from the LCD panel and broken glass may be scattered.

CAUTION: The crystaline liquid is toxic. Avoid contact with your skin, eyes, or mouth.

  • DO NOT touch the broken glass or crystaline liquid with bare hands, as cuts, poisoning, and/or skin irritation may occur.
  • DO NOT let glass fragments or crystaline liquid get into your eyes or mouth.
  • Should either contact your eyes or mouth, rinse the contacted area thoroughly with water and consult your doctor.

Disposal of Your TV

The LCD panel contains a small amount of crystalline liquid and the fluorescent tube in the panel contains mercury. Both are toxic and should not be touched.

  • DO NOT dispose of the TV with general household waste.
  • Follow your local laws and regulations for legal and safe disposal of your TV.
  • For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance at www.eiae.org.

Cleaning Recommendations

Normally, light dusting with a dry, non-scratching duster will keep your TV clean. If cleaning beyond this is needed, please use the following guidelines:

First, turn off the TV and unplug the power cord from the power outlet.

Top and Sides of the TV

  • Gently wipe down your TV with a soft, non-abrasive cloth such as cotton flannel or a clean cloth diaper, lightly moistened with water. Dry with a second dry, soft, non-abrasive cloth.
  • For oily dirt, add a few drops of mild liquid detergent, such as dishwashing detergent, to the water used to moisten the cloth. Rinse with a second cloth moistened only with water. Dry with a third dry, soft, non-abrasive cloth.

LCD Screen Cleaning

  • Only use a soft, dry cloth to clean the screen. Do not use any liquids.
  • Wipe the screen gently with an up and down motion.
  • Clean the entire screen evenly, not just sections of the screen.

General Cleaning Warnings

- DO NOT use any liquid to clean the screen. Only use a dry, soft cloth.

For cleaning TV surfaces other than the screen:

  • DO NOT allow liquid to enter the TV through the ventilation slots or any crevice.
  • DO NOT use any strong or abrasive cleaners, as these can scratch the surfaces.
  • DO NOT use any cleaners containing ammonia, bleach, alcohol, benzene, or thinner, as these can dull the surfaces.
  • DO NOT spray liquids or cleaners directly on the TV's surfaces.
  • DO NOT scrub or rub the TV harshly. Wipe all surfaces gently.

TV Software

Unauthorized Software

Do not attempt to update the software of this TV with software or cards that are not provided by or authorized by Mitsubishi Digital Electronics America, Inc. Non-authorized software may damage the TV and will not be covered by the warranty.

IMPORTANT

DO NOT apply any type of liquid to the surface of the TV screen.

Important Safeguards

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

1. Read, Retain and Follow All Instructions

Read all safety and operating instructions before operating the TV. Retain the safety and operating instructions for future reference. Follow all operating and use instructions.

2. Heed Warnings

Adhere to all warnings on the appliance and in the operating instructions.

3. Cleaning

Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a lightly dampened cloth for cleaning.

4. Attachments and Equipment

Never add any attachments and/or equipment without approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and Moisture

Do not use the TV where contact with or immersion in water is possible. Do not use near bath tubs, wash bowls, kitchen sinks, laundry tubs, swimming pools, etc.

6. Accessories

MITSUBISHI LT-37131 - Accessories - 1

Do not place the TV on an unstable cart, stand, tripod, or table. The TV may fall, causing serious injury to a child or adult and serious damage to the TV. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the TV. Any mounting of the TV should follow the manufacturer's instructions, and should use mounting accessories recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

7. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating. Do not block these openings or allow them to be obstructed by placing the TV on a bed, sofa, rug, or other similar surface. Nor should it be placed over a radiator or heat register. If the TV is to be placed in a rack or bookcase, ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.

8. Power Source

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.

9. Grounding or Polarization

This TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

10. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the TV.

11. Lightning

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

Important Safeguards, continued

12. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

13. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

14. Object and Liquid Entry

Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill liquid of any kind on or into the TV.

15. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electric Code, ANSI/NFPA No. 70-2002, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

E X AMP LE OF ANT ENNA GROUNDING G R O U N D C L A M P E L E C T R I C S E R V I C E E Q U I P M E N A ANT E NNA LE AD IN W I R E A N T E N N A D I S C H A R G E U N I T (N E C A R T I C L E 810-20) G R O U N D I N G C O N D U C T O R S (N E C A R T I C L E 810-21) G R O U N D C L A M P S P O W E R S E R V I C E G R E L E C T R O D E S Y S T E M N E C — N A T I O N A L E L E C T R I C A L (N D (B A R T 250, P A R T H)

16. Servicing

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17. Damage Requiring Service

Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

(a) When the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV.
(c) If the TV has been exposed to rain or water.
(d) If the TV does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
(e) If the TV has been dropped or the cabinet has been damaged.
(f) When the TV exhibits a distinct change in performance - this indicates a need for service.

18. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

19. Safety Check

Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.

20. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

Stand Removal Instructions

CAUTION

  • A minimum of TWO PEOPLE are needed to safely remove the stand.
    • One person needs to hold the TV, while the other person removes the stand.
  • Failure to follow these recommendations may result in personal injury as well as damage to the product.

  • Before starting to remove the stand, make sure to disconnect the AC power cord from the AC power outlet.

  • Spread the protective sheet that was wrapped around the TV on a flat, even surface (such as a sturdy table). The protective sheet will help prevent the display from being damaged.
    IMPORTANT: To avoid damaging the screen, make sure there are no foriegn objects under or on top of the protective sheet.
  • With two people firmly grasping the left and right sides of the TV, gently place the TV face down on the protective sheet with the display stand hanging over the edge of the table. See the illustration to the right.

  • LT-37131 model: Disconnect the Power Swivel Cable from the TV only.

LT-46131 model: Skip Step 4. This model does not include the Power Swivel feature.

Both TV models can be swiveled manually thirty degrees left and right.

  1. Use a Philips screwdriver to remove the four (4) stand screws. See the illustration to the right.

  2. While one person holds on to the TV with both hands, the other person grasps the plastic portion of the stand (see illustration to the right) and removes the stand by pulling it away from the TV in the direction of the large arrow shown in both illustrations.

Place the stand and screws in a safe place for future use.

  1. The TV is now ready for mounting. Refer to the instructions provided with the Wall Mount Kit (purchased separately).

Wall Mount Kit

To order a Wall Mount Kit (Part # PSM-2031):

Please call the Mitsubishi Parts Department at (800) 553-7278, or call Chief Manufacturing, Inc. at (800) 582-6480.

Note: Complete wall-mounting instructions are included with the wall mount kit.

Protective sheet TV Stand Table

Power Swivel Cable (LT-37131 model only) Disconnect cable from TV. Plastic Portion of Stand 4 Stand Screws TV

IMPORTANT

Before attaching the wall mount kit to the TV, b e sure to connect all necessary cables to jacks on the back of the TV. After wall-mounting, these jacks will not be accessible.

If you plan to connect a PC to the TV, before wall-mounting be sure to connect a DVI cable (or a DVI/VGA adapter cable) to the PC-DVI video input on the back of the TV. For PC audio, connect an RCA cable to the PC-DVI right/left audio inputs.

1

Television Overview

Package Contents ...... 12

Special Features of Your TV 12

Guidelines for Setting Up and Using Your New Widescreen TV ... 13

TV Front Panel, Power Button and Indicators

Control Panel 15

TV Indicators 16

Manual and Power Swivel 16

CableCARD™ Technology 17

Back and Side Panels 18

Package Contents

Please take a moment to review the following list of items to ensure that you have received everything.

CAN LIME TV AUDIO POWER SLEEP 1 2 MHz 3 DIF 4 GHz 5 MHz 6 MWD 7 POPS 8 3V 9 MHz 0 VD NOTE SPLIT TWO POME INPUT VOL CH INZ ENTER MENU AUDIO VIDEO EXIT MITSUBISHI FPT P2 P3 P4

  1. Remote Control
  2. Two AA Batteries

MITSUBISHI LT-37131 - Package Contents - 2

  1. Cable Tie (see Cable Mangament, in Chapter 2)
  2. Product registration card (not pictured)
  3. Owner's Guide (not pictured)
  4. Quick Reference Guide (not pictured)

Special Features of Your TV

Your new high-definition widescreen 1080p LCD television has many special features that make it the perfect center of your home entertainment system, including:

16:9 Widescreen Picture Format

Enjoy a full theatrical experience in the comfort of your home. View pictures as film directors intended them. Digital TV broadcasts, DVDs and newer video game consoles support this widescreen format.

Integrated HDTV Tuner

Your widescreen Mitsubishi HDTV has an internal HDTV tuner able to receive both over-the-air HDTV broadcasts (received via an antenna) and non-scrambled digital cable broadcasts, including non-scrambled HDTV cable programming.

High-Definition Video Inputs

  • Two Component Video Inputs, also called Y/Pb/Pr inputs. These inputs receive standard analog video formats of 480i, 480p, 720p and 1080i high-definition signals. This provides a high level of flexibility when connecting DVD players/recorders, cable boxes, and satellite receivers.
  • Two HDMI Inputs that accept digital 480i, 480p, 720p, 1080 and 1080p video signals plus PCM digital stereo signals. Used with an adapter, these inputs also accept compatible DVI video signals. HDMI inputs provide additional high-performance, high-definition connections for maximum flexibility in your choice of home theater products. The HDMI inputs are HDCP copy-protection compatible.
  • Two IEEE 1394 Digital Interfaces that receive and send compressed digital signals, including high-definition signals, along with digital audio and control signals between devices such as the TV, digital cable boxes, and D-VHS digital video recorders.

ClearThought® Easy Connect Auto Input Sensing

ClearThought® automatically recognizes when you plug in an input and prompts you to assign a name to it. The TV ignores any unused inputs, so the result is an uncluttered Input Selection menu where you can easily find and select connected devices by name.

Full Spectrum Color™

(LT-46131 Model only)

Mitsubishi's Full Spectrum Color™ results in 25% more color than standard LCD. Reds and yellows become more vivid and there are more available shades of Green, Cyan and Blue. The result is a more vivid and more realistic image.

Manual and Power Swivel

Both TV models (LT-37131 and LT-46131) allow you to swivel the TV manually up to 30 degrees from left to right. In addition, the LT-37131 model has the Power Swivel feature, which automatically swivels the TV left or right when you press ◀ or ▶ on the remote control. Note: Power Swivel is not available while the TV is in Split Screen mode.

PC Connectivity

The display has a PC (DVI) video connector that supports VGA, SVGA, XGA, or SXGA signals. Please see Appendix B for signal compatibility. Stereo audio inputs are also provided.

Digital Cable Ready (CableCARD™)

Your widescreen Mitsubishi HDTV is “Plug-and-Play” digital cable ready. It can descramble a cable provider’s one-way digital signals with the use of a CableCARD security module. The CableCARD is used in place of a traditional cable box to access digital cable programming (including high definition). Contact your local cable provider for availability information and service details.

Guidelines for Setting Up and Using Your New Widescreen TV

Getting Started

  1. Read the section entitled "Important Information About Your TV" starting on page 5.
  2. Choose a location for your TV.

  3. Allow at least four inches of space on all sides of the TV help prevent overheating.

  4. Avoid locations where light may reflect off the screen.
  5. See the stand requirements under "Important Information About Your TV."

  6. Install the batteries in the remote control. See chapter 3, "TV Operation," for information on use and care of the remote control.

  7. Plug your TV into a power outlet. The POWER indicator on the front of the TV will start blinking rapidly. After the POWER indicator stops blinking, press the POWER key to power on the TV.

  8. When the Welcome screen appears the first time you power on the TV, select a language for TV menus. You can later change the language through the Setup menu.
  9. Some TVs are shipped from the factory with demo mode active for use in retail stores. If demo mode is active when you first turn on the TV:

a. Press MENU.
b. When the Main menu appears with Setup highlighted, press ENTER.
c. When the Setup menu opens, press ▶ highlight the on-screen Demo Mode Off button.
d. Press ENTER.

  1. Connect your other A/V devices to the TV and assign device names to the TV inputs when prompted. See chapter 2, "TV Connections," for connection diagrams. You can reassign device names later if needed. See "Input Name Menu" in chapter 4, "TV Menu Settings."

  2. Memorize channels if you plan to watch over-the-air channels or programming over direct cable. Channel memorization may take up to 15 minutes to complete. See "Setup Menu" in chapter 4, "TV Menu Settings."

  3. You can now start watching TV or you can perform additional setup and customization through the TV menus.

Additional TV Setup

  1. To program the remote control to operate your other A/V devices, see chapter 5, "Operating Other Devices with the Remote Control."
  2. Review chapter 4, "TV Menu Settings," to customize TV operation. Press the MENU key to enter the menu system. Some examples of settings you may wish to change include:

  3. Energy Mode. For faster power-on, keep the Energy Mode set to Fast Power On. For lower power consumption while the TV is off, use the Low Power setting. See “Setup Menu.”

  4. Input Name. Change the device names that appear in the Input Selection menu. See "Input Name Menu."
  5. Icon Order. Rearrange the device icons in the Input Selection menu to put frequently used icons near the front. See “Icon Order Menu.”
  6. FAV. Create lists of your favorite channels so you can find them quickly. See "Channel Menu."
  7. Clock. If you wish to schedule future recordings or use the Timer feature to have the TV come on automatically, you must first set the TV clock to the correct time. See "Setup Menu."
  8. Parental Lock. You can restrict TV viewing by program rating or by time of day. You can also disable the front-panel buttons—useful if you have small children. See “Parental Lock Menu.”
  9. Video Settings. Change the video adjustments to get the best picture for your viewing conditions. See "Audio/Video Menu."

Guidelines for Setting Up and Using Your New Widescreen TV, continued

You may wish to change the Picture Mode from the default Brilliant to either Bright or Natural, which are suitable for most home viewing environments.

  1. If you have IEEE 1394 A/V devices, see chapter 7, "Using IEEE 1394 Devices," for details on operating such devices and using the TV to control recording.

TV Operation

Review chapter 3, "TV Operation," for TV features including:

  • Input Selection (viewing source). Select a connected program source to watch, such as a VCR, DVD player, or antenna. Press INPUT on the remote control to select from icons for the TV inputs. See "Input Selection Menu."
  • Channel Listings. Press GUIDE to view ChannelView™ channel listings. See "ChannelView™ Channel Guide."

  • Picture Formats. Press FORMAT to cycle through the available picture sizes and shapes to find the one best suited to the program you're watching. See "TV Signals and Display Formats."

  • SPLIT. Press SPLIT to view two programs at the same time. See "Split Screen Mode."

Assistance

If you need assistance with this TV:

  • For troubleshooting, service, and product support, see Appendix D.
  • For warranty information, see the TV warranty in the back of this book.

TV Tips

Turning the TV On or Off

To turn the TV on or off, point the remote control at the front of the TV and press the POWER button. Alternatively, press the POWER button on the front panel of the TV.

Controlling Sound Volume

Press VOL ↗ to adjust the sound level.

Changing Channels

To change channels:

- Enter the channel number using the number keys on the remote control and press ENTER. For a two-part digital channel, such as 3-1, press 3 -/CANCEL 1 to enter a dash (separator).

  • Press CH ↗ to change channels one channel at a time.
  • Press and hold CH ↗ to move quickly through channels.
  • Press QV (QuickView) to switch back to the previously tuned channel.
  • Use the FAV (Favorites) feature to set up lists of favorite channels and tune to them with the FAV key. See “Channel Menu” in chapter 4.

NOTE: Memorize channels to make finding channels easier. See "Setup Menu" in chapter 4, "TV Menu Settings."

TV Front Panel, Power Button and Indicators

Front Control Panel

To access the front control panel, gently press on the panel door located below the Mitsubishi logo on the front of the TV. The shaded buttons on the front control panel and the power button duplicate keys on the remote control.

See "Remote Control Overview" in chapter 3, "TV Operation," for further details on the functions of these buttons.

These numbered items refer to the illustration on the right:

① Front Control Panel buttons (except for SYSTEM RESET) duplicate keys on the remote control.
② The POWER button duplicates the POWER key on the remote control. It is located underneath the front of the TV below the "POWER" label.
③ POWER/TIMER indicator (lit during normal operation; flashing when auto-on TV Timer is set)
④ STATUS indicator (off during normal TV operation)
⑤ SYSTEM RESET (see description on this page)
⑥ REMOTE CONTROL SENSOR
⑦ INPUT 3 JACKS

System Reset Button

If the TV does not respond to the remote control, front panel controls, or will not power on/off, press the SYSTEM RESET button on the front panel with a pointed object, such as the point of a pencil or end tip of a paperclip. The green LED will flash quickly for about one minute. When the green LED stops flashing, you may turn on the TV. The changes you made most recently, before using SYSTEM RESET, may be lost. Changes you made previously, however, are not lost.

A/ V Reset

If you wish to reset the A/V (Audio/Video) settings back to the factory defaults:

  • To reset all settings at once, press GUIDE and FORMAT on the front panel at the same time.
  • To reset the defaults for individual devices, use the A/V Memory Reset selection on the Audio/Video menu.

POWER button

Front Control Panel Cover
Lift the cover to access the front control panel buttons and INPUT 3 A/V jacks.

panel buttons and INPUT 3 A/V jacks. VOLUME ▲ CH ▲ FORMAT GUIDE INPUT ADJUST ▲ ADJUST ▲ ENTER CANCEL SYSTEM RESET S - VIDEO VIDEO L -AUDIO - R MENU Front Control Panel ⑤ ⑦

Input 3 A/V Jacks

INPUT 3 provides an easily accessible set of standard audio/video jacks. These jacks allow for convenient connection of a camcorder or other audio/video device. Note that if you connect to the S-VIDEO jack, the VIDEO jack is deactivated.

TV Indicators

○ Off Steady On Slow Blinking Fast Blinking

POWER/TIMER Indicator

LED Color TV Condition Additional Information
None ○TV is powered off.Normal operation.
Blue ●TV is powered on.Normal operation.
Blue Ⓞ1. TV just plugged into AC outlet.Wait until blinking stops before turning on (approximately 1 minute). Normal operation.
2. AC just restored after power failure.
3. TV Rebooting after System Reset used.
4. TV Rebooting after power fluctuation or receiving abnormal digital signals from digital channel, CableCARDTM, or digital device.
5. You have begun the procedure to update software from an authorized flash memory device.For detailed information, see the instructions that accompany the authorized software update. Important: Do not use unauthorized software at any time.
Blue ⓄTV powered off and auto-on timer is set.Normal operation. TV can be turned on at any time.

STATUS Indicator

LED Color TV Condition Additional Information
NoneNormal TV on or standby condition.
RedTV may require service. Turn off the TV and unplug the set from the AC power source.Wait one minute and then plug the set back in.If the LED is still on, contact your dealer or a Mitsubishi Authorized Service Center. See www.mitsubishi-tv.com or call 1-800-332-2119 to receive Authorized Service Center information.

CableCARD™ Technology

CableCARD is a nationwide system standard that allows your local cable TV provider to supply you with an access card customized to your account. This card allows your TV to receive, decode, and unscramble the premium digital channels included in your cable TV subscription without the use of a cable box. When you move to a new cable provider's area, return the CableCARD to the original cable provider and get a new card from your new provider.

Please note that CableCARD is a relatively new technology and your local cable provider may not currently be offering this service. As time passes, this system will become broadly supported by most cable providers.

The CableCARD system is unidirectional, meaning your cable provider can send updates to the TV, but the TV cannot send signals back. As a result, certain advanced and interactive digital cable services, such as requests for video-on-demand and pay-per-view programs, a cable operator's enhanced program guide, and data-enhanced television services may require use of a set-top box instead. For more information, call your local cable operator.

Digital cable channels authorized by the CableCARD are available on the Firewire® IEEE 1394 network and can be shared by other products on the network. You may be unable to record or copy some digital programs, however, because of copy restrictions set by the content or copyright owners.

Using a CableCARD™

Power on the TV and insert the CableCARD into the CableCARD slot with the top of the card oriented as indicated by CARD TOP ▲ When the initial screen displays, write down the information that appears and have it ready when calling your cable provider.

In order to start cable

service for this device, please contact

your cable provider

1-800-xxx-xxxx

CableCARD(tm): xxx-xxx-xxx-xxx-xxx-x

Host: xxx-xxx-xxx-xxx-x

Data: xxx-xxx-xxx-xx

UnitAddress: xx-xxxxx-xxxxx-xxx

Press EXIT to exit.

Sample CableCARD initial screen. Record the information before contacting your cable provider.

To review the information later, press MENU and when the Main menu appears, press 999 to re-display the screen.

Note: CableCARD™ requires the TV's Fast Power On setting. If you insert a CableCARD™, the TV will automatically override a Low Power setting and change to the Fast Power On setting.

CableCARD™ Menu

CableCARD menu

Network Setup

CableCARD(tm) Status

CableCARD(tm) Pairing

Conditional Access

Press ENTER to select an application. Press EXIT key to exit.

Sample CableCARD menu

To display the CableCARD menu with links to applications from your cable provider:

  1. While watching CableCARD, press INPUT to open the Input Selection menu.
  2. With the CableCARD icon highlighted, press MENU to open the CableCARD menu.
  3. Press ▲to highlight a link (blue text), then press ENTER to access the linked page.
  4. To redisplay the CableCARD menu, repeat steps 1 and 2.
  5. Press EXIT to return to TV viewing.

If there are technical problems with the CableCARD, an error screen automatically displays with information that may be needed by your cable provider when you call them for assistance.

Moving Through Other CableCARD Screens

In addition to CableCARD menus, other CableCARD application screens may display and require you to make additional selections. When using these screens on your Mitsubishi television:

  • Blue text denotes a link to another screen. Press ENTER to move to the next application. Screens without blue text contain no links.
  • You cannot move backward through the links. To exit the CableCARD system, press EXIT. The CANCEL key may not work with some CableCARD screens.

All information on these application screens is provided by your local cable company. Contact your cable provider if you have any problems with the application screen displays.

IMPORTANT

Most CableCARD screens show only status or diagnostic information and do not allow you to make changes. These screens are meaningful only to your local cable provider.

IMPORTANT

To use a CableCARD, connect the primary incoming cable to ANT 1/MAIN on the TV.

Back and Side Panels

Side Panel Back Panel 1 Back Panel 2

1. ANT 1/MAIN, ANT 2/AUX (Antenna)

If you are connecting an antenna, direct cable without a cable box, or are using cable with a CableCARD™, connect the main antenna or cable source to ANT 1/MAIN.

ANT 1/MAIN and ANT 2/AUX can each receive both digital and analog over-the-air channels from a VHF/UHF antenna or non-scrambled digital/analog cable source.

ANT 1/MAIN and CableCARD™

Use ANT 1/MAIN to receive premium subscription cable TV service authorized by the CableCARD™ access card. The CableCARD access card is provided by your local cable company. ANT 2/AUX can continue to receive over-the-air or non-scrambled cable signals when ANT 1 is used for CableCARD™ service.

2. INPUT 1 and 2 Inputs

(Audio and Video)

INPUT 1 and 2 can be used to connect a VCR, Super VHS (S-VHS) VCR, DVD player, standard satellite receiver, or other A/V device to the TV. INPUT 3 is a third set of jacks located in the front of the TV for convenience. Please note that if S-VIDEO and VIDEO are both available, you must choose to connect only one.

3. COMPONENT 1 and 2 Inputs

(Audio and Video)

Y Pb Pr (480i/480p/720p/1080i)

Use these jacks to connect devices with component video outputs, such as DVD players, external HDTV receivers, or compatible video game systems. Please see Appendix B for signal compatibility.

Back and Side Panels, continued 8 9 PC-DVI HDMI-1 HDMI-2 HDMI™ HIGH DEFINITION MULTIMEDIA INTERFACE ONLY FOR SERVICE USE DIGITAL AUDIO OUTPUT ● ANT 2/AUX ● ANT 1/MAIN ▼ use with CableCARD* COMPONENT COMPATIBILITY VIDEO:480i/480p/720p/1080i/1080p DVI-IPC COMPATIBILITY REFER TO OWNERS GUIDE S-VIDEO VIDEO AUDIO L (MONO) AUDIO R COMPONENT INPUTS 480i/480p/ 720p/1080i 1 2 Y Pb Pr L (MONO) R MONITOR OUTPUT VIDEO AUDIO L R AVR OUT Back Panel 1 2 3 4 Back Panel 2 10 1 ANT 2/AUX ANT 1/MAIN (Located next to DIGITAL AUDIO OUTPUT jack)

4. AVR OUT

(Audio only)

AVR OUT (AUDIO/ViDEO RECEIVER OUT) L/R jacks send analog audio of the program currently shown on the screen to an A/V surround sound receiver or stereo system. Digital audio from digital channels, FireWire® (DTVLink/IEEE 1394) devices and HDMI devices is converted to analog audio by the TV. If using an analog A/V receiver or stereo system, this is the only audio connection needed between it and the TV.

5. MONITOR OUTPUT

Use these composite video and left/right audio jacks to send analog video and audio signals to an external recording device such as a VCR. The signals from these jacks are from the program currently being viewed on the TV screen. To make recordings from this output, the TV must be in normal full-screen mode rather than in Split-Screen mode.

  • From this output you can record audio and video signals from ANT 1, ANT 2, INPUT 1-3, and IEEE 1394 devices.
  • Digital signals from ANT 1, ANT 2, and IEEE 1394 devices are converted to analog video and audio signals.
  • Some signals cannot be recorded because of copy-protection flags in the content.
    • Video signals from devices connected to COMPONENT 1 & 2, HDMI 1 & 2 or PC DVI are not available from these MONITOR OUTPUT jacks.

6. HDMI/DVI AUDIO

Audio for HDMI 1 & 2: Use these analog audio inputs when connecting DVI devices to the TV's HDMI jacks. Unlike HDMI, DVI does not carry audio information on the same cable. For analog audio from a personal computer, use the PC-DVI AUDIO jacks instead.

Back and Side Panels, continued

11 IEEE 1394 INPUT / OUTPUT 12 Side Panel CableCARD™ USE WITH ANTI CARD TOP ▲

7. PC-DVI AUDIO

Use the PC-DVI AUDIO jacks in conjunction with the PC-DVI video input from a personal computer. These jacks allow you to send left and right analog audio from your computer to the TV.

8. PC-DVI

PC-DVI is a DVI-I input compatible with both DVI-A (analog) and DVI-D (digital) inputs. Connect your personal computer's HDMI, DVI, or VGA video output to this jack. An adapter or converter cable may be required. Please see Appendix B for signal compatibility. To hear audio from the computer, connect analog audio cables from the computer to the PC-DVI AUDIO jacks.

The PC-DVI input is not intended for standard video from cable boxes, satellite receivers, or DVD players.

9. HDMI™ 1 and 2

The HDMI (High Definition Multimedia Interface) supports uncompressed standard and high-definition digital video formats and PCM digital audio format. For PC video, use the PC-DVI input instead.

Do not connect a computer to either TV HDMI jack.

Use these inputs to connect to EIA/CEA-861 compliant devices such as a high-definition receiver or DVD player. These inputs support 480i, 480p, 720p, 1080i, and 1080p video formats.

These inputs can also accept DVI video inputs. To connect a DVI input, use an HDMI-to-DVI adapter or cable plus analog audio cables. Connect the analog audio cables to the HDMI/DVI AUDIO inputs on the TV to receive left and right stereo audio from your DVI device.

These inputs are HDCP (High-Bandwidth Digital Copy Protection) compliant.

These inputs are SimplayHD ^TM certified for proper interoperability with other products certified by Simplay ^TM .

10. DIGITAL AUDIO OUT

This output sends Dolby Digital or PCM digital audio to your digital A/V surround sound receiver. Analog audio from analog channels and devices is converted by the TV to PCM digital audio. If you have a digital A/V receiver, in most cases this is the only audio connection needed between the TV and your A/V receiver.

11. DTVLINK™/IEEE 1394

These jacks allow the TV to connect to external IEEE 1394 digital products by means of a single cable. See chapter 7, "Using IEEE 1394 Devices" for detailed information regarding IEEE 1394 connections and recording.

12. CableCARD™ Slot

The CableCARD access card from your cable TV service provider is inserted into this slot. When inserting, ensure that the top of the card faces in the direction indicated by CARD TOP ▲.

If your cable company is not currently offering CableCARD access cards, use the cable box provided and authorized by your local cable company to view scrambled channels.

2

TV Connections

Before You Begin

Choosing a Language for Menus 22

ClearThought® Easy Connect Auto Input Sensing 22

Digital Video and Home Recording 23

Connection Types 24

Cable Management 25

HDTV Cable Box or Satellite Receiver with Component Video .... 26

Standard Cable Box, Satellite Receiver, or Other Device with S-Video 26

Wall Outlet Cable (no cable box) 27

Antenna with a Single Lead 28

Antennas with Separate UHF and VHF Leads 28

VCR to an Antenna or Wall Outlet Cable 29

VCR to a Cable Box (Audio & Video) 30

HDMI Device (Cable Box, Satellite Receiver, DVD Player, or Other Device) 31

DVI Video Device (Cable Box, Satellite Receiver, DVD Player, or Other Device) 31

DVD Player with Component Video 32

A/V Receiver (Stereo System) 32

Older Cable Box 33

Camcorder.... 33

Before You Begin

Choosing a Language for Menus

When you power on the TV for the first time, you can select either English or Spanish for all menus. You can later change the language through the Setup menu.

Welcome Welcome to Mitsubishi! Select the language using the ADJUST keys. To begin setup press the MENU key to memorize channels and set the clock. Press the EXIT key to watch TV. English Español Language (Idioma)

Figure 1. The Welcome screen lets you change the menu language when you first power on the TV.

ClearThought® Easy Connect Auto Input Sensing

This TV's ClearThought® auto input sensing feature allows it to detect most connections automatically. The first time you connect each device you will be prompted to identify it by selecting from a pre-set list of device names. The table below defines how connections on each TV jack are handled.

Auto Detection Active No A
INPUT 1, 2, 3 video jacks
COMPONENT video jacks
HDMI*
PC-DVI*
IEEE 1394
to Detection
ANT 1/ANT 2
MONITOR OUTPUT(all jacks)
All AUDIO jacks

* If the device is powered off when connected, detection occurs when the device is next powered on.
1. Connect your devices to the TV, making note of which TV input you have used for each device.

The TV and the devices can be either on or off when connecting. If the TV is powered off, the detection process will occur the next time you turn on the TV.

  1. For most devices, the Auto Input Sensing screen opens (see figure 2). With the text box highlighted, press ▲ to select a name for the device from the following list of names:

Cablebox

Camcorder

DVD

DVD2

DVR (digital video recorder, recordable DVD)

Game

HD Disc (high-definition disc)

Satellite

VCR

The name you assign here will appear in the Input Selection menu and can be changed later through the Input Name menu.

  1. Press EXIT to close the screen. If you connected several devices at the same time, the screen for the next connection will open.

Auto Input Sensing Connection detected for Input-1. Press ADJUST to select the type of device connected to the input. Press the EXIT key to watch TV. Input-1 Input-1

Figure 2. The Auto Input Sensing screen appears when a device is first detected. Select a name for the connected device in this screen.

More About Auto Input Sensing

  • You can change the input name at a later time using the Input Name menu.
  • If you disconnect a device and then later connect a different device to the unused jack, open the Input Name menu to update the device name.
  • Antenna inputs ( ANT 1/ANT 2) and TV outputs are never auto-detected.
  • Be careful to choose different names for each input.

IEEE 1394 Connections

The screen in figure 3 appears when you make an IEEE 1394 connection,

IEEE 1394 Device with an Analog Connection.

Some IEEE 1394 devices have both digital and analog outputs to the TV. If you have such a device, place a check mark in the Analog Connection check box to:

- Allow a cable box with both analog and digital outputs to switch automatically between them.

Before You Begin, continued

- Allow you to use a TV menu to select either the analog or digital output from the device.

For instructions on switching between analog and digital outputs, see chapter 7, "Using IEEE 1394 Devices."

DVCR Name assigned to the device New 1394 Device A new 1394 device has been discovered. The device is DVCR "Manufacturer" "Model ID". To include an analog connection to an input on the TV, add a check mark for Analog Connection. Press the EXIT key to watch TV. Analog Connection

Figure 3. The ClearThought Auto Input Sensing screen for IEEE 1394 devices includes a check box for an associated analog connection.

If your IEEE 1394 device has an analog connection to the TV, follow the instructions below.

  1. Connect the device to the TV with an IEEE 1394 cable first.
  2. When the New 1394 Device screen appears with the Analog Connection check box highlighted, press ENTER to enter a check mark. See figure 3, New 1394 Device screen.

Note: It is important to check mark the box when this screen appears upon first connecting the device, as later changes can only be made after returning all TV settings to their defaults.

  1. In the New 1394 Device screen, note the name assigned to the device, as you will need to use the same name in a later step. See figure 3.
  2. Connect the device to the TV with the supplemental analog cables.
  3. The next screen is the Auto Input Sensing screen (see figure 2) in which you can select a name for the device. Select the same name you noted in the New 1394 Device screen (see figure 3).
  4. If you select the wrong name for the device, you will be unable to switch between the analog and digital inputs to the TV.
  5. If you connect an IEEE 1394 cable box and it is detected as CABLE in the New 1394 Device screen, be sure to select the name CABLE as the name for the analog input and not cablebox.
  1. Disconnect the IEEE 1394 device from the TV.
  2. Reset all TV settings to their defaults using the TV Reset service menu as follows:
    a. Press MENU to display the Main menu.
    b. Press 123 to open the Reset service menu.
    c. Press ENTER.
  3. Reconnect the IEEE 1394 device to the TV.
  4. When the TV recognizes the device, place a check in the Analog Connection check box.
  5. Press EXIT.

Digital Video and Home Recording

The table below will help you decide which type of connection to use for digital video. Digital video comes to your home in a compressed state, whether received on recorded media (e.g., disc) or broadcast over the air, over cable, or via satellite. Some compressed digital video is available for recording as noted in the table.

Connection Type into the TVEffect on Home Recording
HDMI or DVICompressed video is converted to uncompressed form by an external device such as a cable box, satellite receiver, or DVD player before it is sent to the TV on an HDMI or DVI cable.You cannot record the resultant uncompressed video sent to the TV via HDMI or DVI.
IEEE 1394 (FireWire®) ConnectionsYour TV can receive and decode digital channels, MPEG2 compressed digital video, and Dolby Digital audio.You can record compressed digital video eitheron compatible digital recorders as digital signalsas standard-definition composite video from the MONITOR OUTPUT jack converted to analog signalsYou may be unable to record some programming because of copy restrictions added by the content owners.

Before You Begin, continued

Connection Types

Video and Combined Audio/Video Connections

These descriptions apply to TV video only and do not cover signals from personal computers.

Picture Quality (most sources)Name Signal TypeFigures (not to scale)Additional Information
Best (carry high-definition video when available)HDMIDigital audio and videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 1MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 2Carries digital audio and uncompressed digital video on a single one-way cable.
DVIDigital videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 3MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 4Carries uncompressed digital video alone on a single one-way cable; requires separate audio connections.
Component VideoAnalog videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 5MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 6Carries analog high-definition and standard-definition signals. Y Pb Pr RCA-style connectors are colored green, blue, and red.
Good S -VideoAnalog videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 7MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 8Carries analog standard-definition signals. Provides better quality video than composite or RF coaxial video.
Fair Composite VideoAnalog videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 9MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 10Carries analog standard-definition signals. RCA-style connector, usually colored yellow
Fair to Best (depending on source; carry all qualities of signals)IEEE 1394 (FireWire®)Digital audio and videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 11MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 12Carries compressed digital video and audio as well as device control signals on a single two-way cable.
RF Coaxial VideoAnalog and digital audio and videoMITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 13MITSUBISHI LT-37131 - Video and Combined Audio/Video Connections - 14Carries audio and video on a single cable.

Note: Only some TV signals are high-definition signals. To view high-definition programming from your cable or satellite provider, you must subscribe to the provider's high-defi nition service. Some over-the-air broadcasts are in high-defi nition and can be received with a high-quality antenna suited to your location.

Audio-Only Connections

There are two types of audio connections used on this TV. Refer to the table below.

Audio ConnectionFigures (not to scale)Additional Information
Left/Right Analog Stereo AudioMITSUBISHI LT-37131 - Audio-Only Connections - 1MITSUBISHI LT-37131 - Audio-Only Connections - 2RCA-style connectors usually colored white for left and red for right stereo audio. For monaural sound (all speakers playing the same sound), use only the white connector.
Digital Audio (Coaxial)MITSUBISHI LT-37131 - Audio-Only Connections - 3MITSUBISHI LT-37131 - Audio-Only Connections - 4RCA-style connector usually colored orange. Use to send digital audio from the TV to your digital A/V receiver for surround-sound effects. Usually the only audio connection required between the TV and the A/V receiver.

Before You Begin, continued

Cable Management

Both TV models provide cable ties that help keep cables properly organized and connected, especially important when the swivel feature is used. For more information about the swivel feature, see Manual and Power Swivel in Chapter 1.

Cable ties #1-3 come attached to the back of the TV, and cable tie #4 is provided with the accessories and must be attached by TV owner. The number of cables that are connected to the TV will determine the number of cable ties that will be needed.

MAX 2 CABLES MAX 3 CABLES MAX 4 CABLES MAX 34 CABLES Cable Tie #1 Cable Tie #2 Cable Tie #3 Cable Tie #4 (not pre-attached)

H DTV Cable Box or Satellite Receiver with Component Video

If your cable box or satellite receiver has HDMI or DVI outputs, use the connections for HDMI or DVI video devices described later in this chapter.

Required: RCA component video cables, left/right analog audio cables.

A coaxial splitter, available at most electronic supply stores, may be required to complete this installation.

  1. Connect the cable from the outside cable or satellite service to CABLE IN or SATELLITE IN on the cable box or satellite receiver. See your device's owner's guide for instructions and cable compatibility.

CABLE IN or SATELLITE IN To cable box or satellite receiver 1. 2. Y Pb Pr AUDIO L R 3. TV Back Panel 1 COMPONENT OUTPUT HDMI HAR2 HDMI CONTROL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL

Figure 4. Connecting an external HDTV receiver with component video connections

  1. Connect RCA-type cables from the Y Pb Pr outputs on the HDTV cable box or satellite receiver to COMPONENT on the TV back panel, matching the red, green and blue-colored connections.
  2. Connect left (white) and right (red) audio cables from the HDTV cable box or satellite receiver to COMPONENT /AUDIO LEFT and AUDIO RIGHT on the TV back panel.

  3. Optional: To allow use of the Split Screen feature with channels from ANT 1 and the cable box or satellite receiver, connect the incoming terrestrial antenna or cable service (not satellite) to ANT 1/MAIN on the TV back panel. A coaxial splitter, available at most electronics supply stores, may be required to complete this installation.

Note: To receive the benefits of digital surround sound, connect the digital audio output from your cable box or satellite receiver directly to your digital A/V receiver.

Standard Cable Box, Satellite Receiver, or Other Device with S-Video

Required: S-Video cable and left/right analog stereo audio cables.

  1. Connect the cable from the outside cable or satellite service to CABLE IN or SATELLITE IN on the cable box or satellite receiver.
  2. Connect an S-Video cable from VIDEO OUT on the cable box or satellite receiver back panel to INPUT S-VIDEO on the TV back panel.
  3. Connect left (white) and right (red) audio cables from AUDIO OUT on the cable box or satellite receiver to INPUT/AUDIO LEFT and AUDIO RIGHT on the TV back panel.

Note: Refer to the cable box or satellite receiver Owner's Guide for cable or dish antenna connections to the receiver.

Any S-Video Device AUDIO OUT VIDEO OUT CABLE IN or SATELLITE IN 1. Incoming Cable from Wall 2. TV Back Panel 1 COMPONENT INPUTS OUTPUT HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI

Figure 5. Connecting a device with S-Video

Wall Outlet Cable (no cable box)

(can be used with a CableCARD™)

It is very important to connect the incoming cable for your primary viewing source to ANT 1/MAIN, especially for CableCARD™ use.

  1. Connect the primary incoming coaxial lead cable to ANT 1/MAIN on the TV back panel.
  2. For an optional secondary antenna source, connect an antenna (or cable) to ANT 2/AUX.
  3. If you have subscribed to a CableCARD™ service, Insert the CableCARD into the CableCARD slot. The top of the card must face in the direction indicated by the CARD TOP arrow.

See chapter 1, "Television Overview," for additional CableCARD information.

HDMI ONLY FOR SERVICE USE DIGITAL AUDIO OUTPUT ANT 21/24/25 ANT 16/04/25 TV Back Panel 1 TV Back Panel 2 2. Optional Secondary Antenna or Cable 1. Primary Wall Outlet Cable connected to ANT 1/MAIN (located next to DIGITAL AUDIO OUTPUT jack) 3. CableCARD SLOT TV Side Panel

Figure 6. Wall Outlet Cable

Note: ANT 1 is located behind ANT2 when you are facing the back of the TV.

Antenna with a Single Lead

A. For an antenna with flat twin leads

A 300-ohm-to-75-ohm transformer is required. This is not included with the TV, but is available at most electronics stores.

A1. For an antenna with flat twin leads, connect the 300-ohm twin leads to the 300-ohm-to-75-ohm transformer.
A2. Push the 75-ohm side of the transformer onto ANT 1 on the TV back panel.

B. For cable or antenna with coaxial lead

Connect the coaxial lead directly to ANT 1 on the TV back panel.

300-Ohm FlatTwin Lead 75-Ohm Coaxial Cable B. A1. Optional 300-Ohm-to-75-Ohm TV Back Panel 1 HVMI HVMI2 HDMI ONLY FOR SERVICE USE DIGITAL AUDIO OUTPUT ANT 2/AUX ANT LMAIN TV Back Panel 2 ANT 1/ MAIN

Figure 7. Connecting a Single Antenna

Note: ANT 1 is located behind ANT 2 when you are facing the back of the TV.

Antennas with Separate UHF and VHF Leads

Required: UHF/VHF combiner

This is not included with the TV, but is available at most electronics stores.

  1. Connect the UHF and VHF antenna leads to the UHF/VHF combiner.
  2. Push the combiner onto ANT 1/MAIN on the TV back panel.

VHF Antenna (Channels 2-13) UHF Antenna (Channels 14-69) Flat Twin Lead External Antenna or Cable 300-Ohm-to- 75-Ohm Combiner VHF Back View Side View TV Back Panel 1 HDMI HDMI® ONLY FOR SERVICE LINE DIGITAL AUDIO OUTPUT ANT 1/MAIN 2. TV Back Panel 2 ANT 1/ MAIN

Figure 8. Connecting separate UHF and VHF Antennas

Note: ANT 1 is located behind ANT 2 when you are facing the back of the TV.

Mitsubishi strongly recommends you avoid using antennas with flat twin leads. Flat twin lead antenna wires are subject to interference which may adversely affect the performance of the TV. We recommend using coaxial antenna cable.

VCR to an Antenna or Wall Outlet Cable

Required: Two-way RF splitter, 3 coaxial cables, right and left analog audio cables, either S-video or video cable. These are not included with the TV but are available at most electronics stores.

  1. Connect the incoming cable or antenna to IN on the RF splitter.
  2. Connect one coaxial cable from OUT on the RF splitter to ANTENNA IN on the VCR back panel.
  3. Connect one coaxial cable from OUT on the RF splitter to ANT 1/MAIN on the TV back panel.
  4. To use the TV speakers with the VCR, connect left (white) and right (red) audio cables from AUDIO OUT on the VCR to INPUT/AUDIO LEFT and AUDIO RIGHT on the TV back panel. If your VCR is mono (non-stereo), connect only the white (left) cable.

  5. Connect either an S-Video or composite video cable from VIDEO OUT on the VCR back panel to INPUT/VIDEO or S-VIDEO on the TV back panel. Connect only one type of video cable; S-Video is recommended, if available.

Optional

To record high-definition digital channels converted to analog standard-definition video and analog stereo audio, perform these two additional steps.

  1. Connect left (white) and right (red) audio cables from AUDIO IN on the VCR to MONITOR OUTPUT LEFT/RIGHT on the TV back panel. If your VCR is mono (non-stereo), connect only the white (left) cable.

  2. Connect a composite video cable from VIDEO IN on the VCR back panel to MONITOR OUTPUT/VIDEO on the TV back panel.

MITSUBISHI LT-37131 - Optional - 1

Figure 9. Connecting a VCR to an Antenna or Wall Outlet Cable

Note: ANT 1 is next to the DIGITAL AUDIO OUTPUT jack.

VCR to a Cable Box (Audio & Video)

Required: Two-way RF splitter, 4 coaxial cables, right and left audio cables, S-Video or composite video cable, plus component or S-Video cables and audio cables required to connect the TV to the cable box.

  1. Connect the incoming cable to IN on the RF splitter.
  2. Connect one coaxial cable from OUT on the RF splitter to CABLE IN on the cable box.
  3. Connect one coaxial cable from OUT on the RF splitter to ANT 1/MAIN on the TV back panel.
  4. Connect one coaxial cable from OUT on the cable box to ANTENNA IN on the VCR back panel.
  5. Connect the cable box outputs to the TV as shown in either figure 4 or figure 5, earlier in this chapter. This connection allows the TV to receive the best available signal directly from the cable box.

Figure 4: Component video output to the TV's COMPONENT Y Pb Pr jacks; analog stereo audio to the associated AUDIO jacks.

Figure 5: S-Video output to the TV's INPUT/S-VIDEO jack; analog stereo audio to the associated AUDIO jacks.

  1. To use the TV speakers with the VCR, connect left (white) and right (red) audio cables from AUDIO

OUT on the VCR back panel to INPUT/AUDIO LEFT and AUDIO RIGHT on the TV back panel. If your VCR is mono (non-stereo), connect only the white (left) cable.

  1. Connect either an S-Video or composite video cable from VIDEO OUT on the VCR back panel to INPUT/VIDEO or INPUT/S-VIDEO on the TV back panel. Connect only one type of video cable. S-Video is recommended, if available.

Optional

  1. To allow recording from the TV to the VCR:

a. Connect left (white) and right (red) audio cables from AUDIO IN on the VCR back panel to MONITOR OUTPUT/LEFT and RIGHT on the TV back panel.

b. Connect a video cable from VIDEO IN on the VCR back panel to MONITOR OUTPUT/VIDEO on the TV back panel.

Note: When using this connection configuration with the connections used in step 5, it is possible to view live cable programs through the VCR Device. For best picture quality always view live cable programs directly from the cable box device.

MITSUBISHI LT-37131 - Optional - 1

Figure 10. Connecting a VCR to a cable box

Note: ANT 1 is next to the DIGITAL AUDIO OUTPUT jack.

HDMI Device (Cable Box, Satellite

Receiver, DVD Player, or Other Device)

Required: HDMI-to-HDMI cable. This is not included with the TV.

Connect an HDMI cable from the TV back panel to the HDMI device output. HDMI devices provide video and audio through this cable, so no other connection is required. You can connect two HDMI devices to the TV back panel through the HDMI connections.

MITSUBISHI LT-37131 - Receiver, DVD Player, or Other Device) - 1

Figure 11. Connecting an HDMI device.

Note: HDMI inputs are Simplified for proper interoperability with other products certified by Sim-play™.

IMPORTANT

To connect a personal computer to the TV, see chapter 6, "Using the TV with a Personal Computer."

The HDMI input processes signals as standard motion video and is not designed to process computer resolutions.

DVI Video Device (Cable Box, Satellite Receiver, DVD Player, or Other Device)

Analog stereo audio cables and a DVI-to-HDMI cable or DVI/HDMI adapter and HDMI cable are required. These are not included with the TV. They may be available at your local electronics retailer.

  1. Connect the DVI-to-HDMI cable (recommended) or HDMI cable with DVI/HDMI adapter from the DVI device's back panel to the TV back panel.

NOTE: If you are using a DVI/HDMI adapter, it is important to connect the adapter to the DVI device for best performance.

  1. Connect a set of audio cables from AUDIO OUT on the DVI device back panel to the HDMI/DVI AUDIO on the TV back panel. Connect the red cable to the RIGHT jack and the white cable to the LEFT jack.

NOTE: The HDMI connection supports copy protection (HDCP).

Some devices require connecting to an analog input fi rst, in order to view on-screen menus and to select DVI as the output. Please review your equipment instructions for DVI connectivity and compatibility.

DVI Device DVI OUT AUDIO OUT L R 1. 2. DVI-to-HDMI Cable TV Back Panel 1 1. 2. COMPONENT INPUTS 400V/30V/50V HDMI HDMI HDMI OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT AUTI-ALUX AUTI-UNAB ONLY RUN SERVICE USE

Figure 12. Connecting a DVI device

DVD Player with Component Video

Component video cables and analog audio cables are required. These are not included with the TV.

  1. Connect the component video cables from Y PB PR VIDEO OUT on the back of the DVD player to the COMPONENT jacks on the TV back panel, matching the red, green, and blue colored connections.
  2. Connect left (white) and right (red) stereo audio cables from AUDIO OUT on the back of the DVD player to COMPONENT/AUDIO LEFT and RIGHT on the TV back panel.

MITSUBISHI LT-37131 - DVD Player with Component Video - 1

Figure 13. Connecting a DVD player with component video
DVD Player Back Panel

A/V Receiver (Stereo System)

Most setups require either a digital audio cable or analog stereo audio cables.

The TV makes all audio available in digital and analog formats. Analog audio coming into the TV is available in digital format on the DIGITAL AUDIO OUT jack. Digital incoming audio is available in analog format on the AUDIO OUT LEFT/RIGHT jacks. Usually, only one of the following connections is required:

• To connect an analog A/V receiver

Connect left (white) and right (red) audio cables from AVR OUT/LEFT and RIGHT on the TV back panel to the TV AUDIO INPUT on the A/V receiver.

• To connect a digital A/V receiver with Dolby Digital surround sound and PCM audio support

Connect one end of the digital audio cable to DIGITAL AUDIO OUT on the back of the TV. Connect the other end to the COAXIAL DIGITAL INPUT on the back of the A/V receiver.

MITSUBISHI LT-37131 - A/V Receiver (Stereo System) - 1

Figure 14. Connecting audio from the TV to an A/V receiver

Note:

  • On rare occasions, an HDMI signal may be copy-restricted and cannot be output from the TV as a digital signal. To hear these copy-protected signals through the A/V receiver, use connections for analog A/V receivers.
  • Check the A/V receiver's Owner's Guide for information concerning use of the digital input and switching between digital sound and analog stereo sound from the TV.

IMPORTANT

See Appendix B for component video signal compatibility information.

For digital audio connections to your A/V receiver, see your DVD player and A/V receiver Owner's Guides.

Older Cable Box

Required: 3 coaxial cables, one two-way RF splitter. These are not included with the TV.

When this setup is complete, you can use the TV remote control, when programmed, to change channels on the cable box.

Note: This connection is not recommended. The other connections described in this chapter provide better quality audio and video to the TV.

  1. Connect the incoming cable to IN on the RF splitter.
  2. Connect one coaxial cable from OUT on the RF splitter to ANT 1/MAIN on the TV back panel.
  3. Connect one coaxial cable from OUT on the RF splitter to IN on the standard cable box.
  4. Connect one coaxial cable from OUT on the cable box to ANT 2/AUX on the TV back panel.

TV Back Panel 1 HDMI COMPONENT OUTPUT 400/400/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/720/73 MONITOR OUTPUT ONLY FOR SERVICE USE DIGITAL AUX OUTPUT ANT 2/AUX ANT 1/AUX TV Back Panel 2 To ANT 2/AUX 2. To ANT 1/MAIN (ANT 1/MAIN is located next to the DIGITAL AUDIO jack) 4. TO ANT 1/ OUT IN Cable box back panel RF Splitter Incoming Cable

Figure 15. Connecting an older cable box

Note: ANT 1 is located behind ANT 2 when you are facing the back of the TV.

Camcorder

Required: Analog stereo audio cables and either an S-Video or composite video cable.

NOTE: For IEEE 1394 camcorders, see also chapter 7, "Using IEEE 1394 Devices."

  1. Connect either an S-Video or composite video cable from VIDEO OUT on the camcorder to INPUT 3/VIDEO or S-VIDEO on the TV. Connect only one type of video cable; S-Video is recommended, if available.
  2. Connect left (white) and right (red) audio cables from AUDIO OUT on the camcorder to INPUT 3/AUDIO L and AUDIO R on the TV.

Front Control Panel INPUT 3 1. 2. Composite Video Cable S-Video Cable 1.

Figure 16. Analog connections for a camcorder

MITSUBISHI LT-37131 - Camcorder - 2

TV Operation

Remote Control 36

Choosing a Program Source 38

ChannelView™ Channel Listings 38

Status Display 39

TV Signals and Display Formats 40

Split Screen 42

Remote Control

Overview

See Figure 1, next page

  1. Slide Switch: Selects the A/V device to be controlled by the remote control. Set the slide switch to TV for operation of the TV and IEEE 1394 devices. Control of other device types requires programing (see chapter 3, "TV Operation").
  2. SLEEP: Sets the TV to turn off within 2 hours. See the next page for instructions.
  3. Digits/Letters: Allow you to tune to a channel by entering channel numbers; press ENTER for faster tuning. Use numbers and the CANCEL key to enter digital sub-channels. Also use for entering information into menus.

To select letters when naming channels, repeatedly press the associated number key. The following special characters are available with the 1 and 0 keys:

1! & blank space
0/ * -
  1. -/CANCEL (SUB-CHANNEL/CANCEL): When entering digital channel numbers, adds a separator between main and sub-channel numbers. Clears FAV and some menu entries.
  2. POWER: Turns TV power on and off.
  3. QV (QuickView™): Switches between the current channel and the last channel viewed. This only applies to channels received from ANT 1 and ANT 2 jacks.
  4. MUTE: Turns TV sound off or on.
  5. SPLIT: Turns Split Screen mode on and off.
  6. VOL × (Volume Up/Down): Changes sound level.
  7. CH/PAGE ✗ (Channel or Page Up/Down): Scans up or down through memorized channels. Pages up and down through screens when used with ChannelView™.
    11 FAV (Favorites): Scans through memorized lists of favorite channels. See “Channel Menu” in chapter 4, “TV Menu Settings,” for more information.
  8. FORMAT: Changes the shape and size of the main TV picture. When in Split Screen mode, changes the size of the split images while maintaining their aspect ratios.
  9. INPUT: Displays the Input Selection menu from which you can select an input source to view, such as an antenna input (ANT 1/2) or a connected device.

Note: To operate other audio/video devices:

  • See chapter 5, "Programming the Remote Control" for instructions on programming.
  • For control of IEEE 1394 devices, see chapter 7.

  • ▲▼ (Adjust Up/down/Left/Right): Navigate menus and change settings.

◀▶(Power) Swivel — LT-37131 model only: With no menu or slider displayed, swivels the TV thirty degrees left or right. Swivel is not available in Split Screen mode.

  1. ENTER: Selects a channel number or menu item.
  2. GUIDE: Displays or removes ChannelView™ on-screen channel listing for ANT 1 and ANT 2.
  3. INFO: Displays an on-screen summary of the current device in use and any broadcast information available, including current V-Chip information. See chapter 3, "TV Operation," for details.
  4. AUDIO: Selects individual audio settings for adjustment.
  5. VIDEO: Selects individual video settings for adjustment, including Swivel (LT-37131 only; see item #14.)
  6. MENU: Displays the main TV menu using the ▶ViewPoint on-screen menu system. When a sub-menu is open, backs up one level.
  7. EXIT: Closes all TV on-screen menus and displays and returns to normal TV viewing.
  8. F1-F4: When programmed, work like the A, B, C, D buttons on some cable boxes and satellite receivers. Program the remote control for your equipment and test the keys. See chapter 5, "Operating Other A/V Devices with the Remote Control."
  9. (PAUSE): Freezes a broadcast TV picture when no Split Screen image is displayed. When Split Screen is displayed, freezes the sub-picture. See below for use with recordable media.

Record/Playback Keys

To enable the recording and playback functions, program the remote for your VCR or DVD player/recorder and set the slide switch to VCR or DVD. See chapter 5 for instructions on programming the remote. If you have an IEEE 1394 device, see chapter 7 on IEEE 1394 devices.

  1. (RECORD): Records with a VCR, DVR, or DVD recorder.
  2. (PAUSE): Pauses a VCR, DVR or DVD. See above for use during TV viewing.
  3. ■ (STOP): Stops play of a VCR, DVR, or DVD.
  4. (REVERSE): Rewinds a VCR. Reverse scans a DVR or DVD.
  5. (PLAY): Plays a VCR, DVR, or DVD.
  6. (FAST FORWARD): Fast forwards a VCR. Forward scans a DVD or DVR.

Remote Control, continued
CABLE/SAT VCR DVD TV AUDIO POWER SLEEP 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9WXYZ CANCEL 0 QV MUTE SPLIT FAV FORMAT VOL CH PAGE INPUT ENTER GUIDE AUDIO MENU INFO VIDEO EXIT F1 F2 F3 F4 23 24 25 26 27 28 22 MITSUBISHI

Figure 1. Remote Control Overview

Battery Installation

  1. Remove the remote control's back cover by gently pressing in the tab and lifting off the cover (Figure 2).
  2. Load the batteries, making sure the (+) and (-) polarities are correct. For best results, insert the negative (-) end first.
  3. Snap the cover back in place.

Low Battery Indicator

If the POWER button blinks five times after you have pressed any button, the remote control batteries are low and should be replaced.

Diagram showing battery charging process with labeled components and charge states

Figure 2. The remote control requires two AA alkaline batteries.

Sleep Timer

Setting the Sleep Timer

  1. Press SLEEP on the remote control.
  2. Press SLEEP additional times to increase the time in 30-minute increments up to the maximum of 120 minutes.
  3. Press EXIT or wait five seconds without pressing any buttons for the message to disappear.
  4. Press SLEEP to view the time remaining before the sleep timer turns off the TV.

Cancelling the Sleep Timer

  1. Press SLEEP to display the on-screen message.
  2. Press SLEEP repeatedly until OFF is displayed.

Note: After five seconds of inactivity, the message box will disappear.

Care

For Best Results from the Remote Control:

  • Use only alkaline batteries.
  • Be within 20 feet of the equipment.
  • Do not press two or more buttons at the same time unless instructed to do so.
  • Do not allow unit to get wet or become heated.
  • Avoid dropping on hard surfaces.
  • Do not use harsh chemicals to clean. Use only a soft, lightly moistened cloth.
  • Do not mix old and new batteries.
  • Do not heat, take apart, or throw batteries into fire.

Resetting the Remote Control

If the slide switch is set to TV and the TV does not respond properly, do the following to reset the remote control.

  1. Press and hold POWER for several seconds until the button blinks twice and goes off.
  2. Release the POWER button.
  3. Press keys 0 0 9 3 5. The POWER button will blink twice when you finish entering the code.

Choosing a Program Source

NOTE: If your only viewing sources are connected to the ANT 1 and ANT 2 antenna jacks, you can switch inputs without the Input Selection menu. Press INPUT to switch between ANT 1 and ANT 2. To verify which is the current source while watching TV, pressINFO to see the on-screen status display.

Selecting from Multiple Sources: The Input Selection Menu

The Input Selection menu allows you to select an input to watch on the TV. The current input appears as a gold-colored icon.

  1. Press INPUT on the TV's remote control to display the Input Selection menu (Figure 2).
  2. To select a different input, press ▲▼on the TV's remote control to move the highlight through icons in the input section.
  3. Press ENTER to switch to the device and close the menu.

More About the Input Selection Menu

  • To assign meaningful labels to the icons, such as "VCR" or "DVD," see the "Input Name" section of chapter 4, "TV Menu Settings."
  • To rearrange the icons, see the "Icon Order" section of chapter 4, "TV Menu Settings."
  • To use with IEEE 1394 devices, see additional information in chapter 7, "Using IEEE 1394 Devices."

Input Section Device Ant-1 Ant-2 CAMCORN GAME DVD VCR HD DISC OVR

Figure 2. Input Selection menu

IMPORTANT

To receive ChannelView updates: Set the Energy Mode to Fast Power On and leave the TV powered off for a while each day. If the TV loses power, program listings will be lost until the next update.

ChannelView™ Channel Listings

ChannelView provides program information only when provided by the broadcaster for memorized digital channels on ANT 1 or ANT 2. Digital channels are indicated with a "D" and analog channels with an "A."

Digital channels are shown with the major channel and sub-channels (or bitstreams). Analog channel names are shown only if they are named in the channel menu.

Note: If limited data is shown or no program data appears, it is because the broadcaster is not sending the information. This is not a defect of your TV.

Using ChannelView

Feature Instructions
View listings while viewing ANT 1 or ANT 2.Press GUIDE.
Scan through memorized channels one by one.Press ▲ or ▼
Scan quickly through memo- rized channels.Press PAGE ↗ . √
View future program informa- tion for digital channels.Press ▲ or ▼ to highlight a channel and press ▶
Return to viewing basic list- ings informationPress ◀.
CHANNEL VIEW™ ChannelView™ 5:47 pm, Friday, 4/28/06
2CBSA Ant-1
2-1KCBS-DTD Ant-1CBS Local News
4A Ant-1
4-1KNBC-DTD Ant-1NBC Evening News
7ABCA Ant-1
7-1KABC-DTD Ant-1ABC World News
28PBSA Ant-1
28-1KCET-DTD Ant-1The 2005 Rose Parade
28-2KCET-DTD Ant-1Nightly Business Report
30A Ant-1
62-101D Ant-1
62-102D Ant-1
128CNNA Ant-1
1104KNBC-DTD Ant-1NBC Evening News

Figure 3. ChannelView screen, current programs. Use ▶ to exchange displays for current and future programs.

ChannelView™Programs for KCET Digital Int..
2CBSA Ant-15:30 PMNightly Business Report
2-1KCBS-DTD Ant-16:00 PMNewsHour with Jim Leh...
4A Ant-17:00 PMLife and Times
4-1KMBC-DTD Ant-17:30 PMCalifornia's Gold
7ABCA Ant-18:00 PMWashington Week
7-1KABC-DTD Ant-18:30 PMWall Street Week with F...
20PBSA Ant-19:00 PMNow with Bill Moyers
28-1KCET-DTD Ant-110:00 PMCulture of Hate: Who ar...
28-2KCET-DTD Ant-111:00 PMLife and Times
30A Ant-111:30 PMCharlie Rose
52-101D Ant-112:20 PMClassic Arts Show
62-102D Ant-1
125CNNA Ant-1
1104KMBC-DTD Ant-1

Figure 4. ChannelView screen, future programs on the selected channel (digital channels only)

Status Display

The on-screen status display appears when you turn on the TV, change inputs, change channels, or press the INFO button on the remote control.

The most common displays are shown below. Seldom or never do all the status indicators appear at the same time.

Analog Program

  1. Source Antenna or Input
  2. Analog Channel being received (If an antenna source)
  3. Channel Name (if named in the Channel menu)
  4. Signal Type Being Received. Possible: From ANT-1, ANT-2, or INPUT jacks: 480i From COMPONENT jacks: 480i, 480p, 720p, 1080i
  5. Screen Format in use Possible: Analog 480i /480p signals: Standard, Expand, Zoom, Stretch, Stretch Plus, Narrow 720p/1080i signals: Standard, Wide Expand
  6. Stereo and/or SAP being broadcast. In Split Screen mode, the speaker icon is on either the left or right to indicate the sound source.
  7. V-Chip Ratings
  8. Channel is in current FAV bank (FAV bank 2)
  9. Day and Time

1 2 3 11 Ant-1 3 XXXX 480i Standard Stereo SAP 5 ANT-1 3 7 TV-PG DLSV FAV2 Monday 11:00 AM 8 9 10 Sleep Timer: 30 12 MUTE

  1. Sleep Timer remaining time
  2. Split Screen picture source and channel
  3. Audio Mute on

Digital Program

  1. Digital Major and Sub-Channel Number
  2. Digital Channel Name (only if broadcast)
  3. Signal Type Being Received Possible: SD 4:3, SD 16:9, HD
  4. Screen Format in Use Possible: SD 4:3: Standard, Expand, Zoom, Stretch, Stretch Plus, Narrow SD 16:9 or HD: Standard, Wide Expand
  5. Language(s) being broadcast
  6. Program Name (if broadcast)
  7. Copy- Protection Status. Possible: Copy Once: Program can be recorded Copy Never: Program can never be recorded.

Ant-1 42-1 XXXXXXX XXXXXXXXXXXXXXX HD Standard English TV-PG DLSV Copy Never FAV2 Monday 11:00 AM Sleep Timer: 30

Digital IEEE 1394 Device

  1. Status of D-VHS VCR or IEEE 1394 device
  2. Counter of D-VHS VCR
  3. Special message line (shows only when a special message is needed; may be seen with analog signals)
  4. Copy- Protection Status. Possible: Copy Once: Program can be recorded Copy No More: Program can no longer be recorded; program may be moveable. Copy Never: Program can never be recorded.

DVCR HD Standard English TV-PG DLSV Copy No More Play 01:20:15 Monday 11:00 AM Sleep Timer: 30 Special Message Line

TV Signals and Picture Formats

This is a widescreen TV, also known as a 16:9 TV. This shape reflects the new types of picture formats available from HDTV and many DVDs. There are still many older style narrow-screen picture formats (for example, 4:3 aspect ratio) you will encounter. While there is no perfect solution for displaying a squarish, narrower image on a wide screen, Mitsubishi offers several picture formats from which you can choose.

Note: "Picture format" refers to the aspect ratio or the relative size/shape of the picture, such as 16:9 or 4:3.

Press FORMAT on the TV remote control to cycle through the available picture formats. The last-used format for each device is used when you return to that device.

Note: In Split Screen mode, the FORMAT key changes the picture size on both sides of the screen, but the aspect ratio (relative height and width) of both pictures remains the same.

DVD Definitions

Anamorphic (or Enhanced for WideScreen TV)

These DVDs are recorded in a special way to properly show widescreen pictures on 16:9 TV sets using the Standard format mode. This is the recommended viewing choice.

Non-Anamorphic (or 4:3, 1:33:1, Letter Box, or Full Screen)

These DVDs are recorded for use with traditionally shaped, squarish TVs. They may be full screen (4:3 or 1:33:1) which crops movies to fit the narrow TV, or letter box, which adds black top and bottom bars.

This information may be listed on the DVD case. Some DVDs support both types of recordings.

Signal Definitions

480i Signals: Traditional analog interlaced signals from or through ANT-1 and 2, INPUT 1–3, COMPONENT 1 and 2, HDMI 1 and 2.

480p Signals: Progressive-scan DVD signals on COMPONENT inputs and HDMI 1 and 2.

720p and 1080i Signals: High-definition signals received through COMPONENT inputs and HDMI 1 and 2. These signals are always 16:9 (widescreen).

1080p Signals: High-definition signals received through HDMI 1 and 2.

SD 4:3: Standard-definition narrow-screen format signals from digital channels and IEEE 1394 devices.

SD 16:9: Standard-definition widescreen format signals from digital channels and IEEE 1394 devices.

HD: High-definition wide-screen format signals from digital channels and IEEE-1394 devices. These signals are always 16:9 (widescreen).

TV Picture Format Definitions

Standard: This is the full-screen format. HDTV signals use this format. This format is useful for displaying Anamorphic DVDs that have 1.78:1 or 1.85:1 aspect ratios. Anamorphic DVDs that have a 2.35:1 aspect ratio are displayed with black bars at the top and bottom, but show the entire picture correctly. Narrow (4:3) pictures are stretched evenly from side to side. Available for all signals.

Expand: This enlarges the picture to fill the screen, cropping off some of the image at the top and bottom. This is useful for reducing the letter box top and bottom bars of non-anamorphic DVD images. Available for 480i, 480p, and digital SD 4:3 signals only.

Zoom: This enlarges the picture, cropping off some of the image at each side and top and bottom. This is useful for removing or reducing the black top and bottom bars on anamorphic DVDs with a 2.35:1 aspect ratio. Available for 480i and 480p and SD 4:3 signals only.

Stretch: This format stretches a narrow (4:3) picture across the screen; there is less stretch in the center than at the sides, however. This allows the entire narrow image to be displayed across the screen with less distortion than is seen in the Standard format. Available for 480i and 480p and SD 4:3 signals only.

Stretch Plus: Similar to stretch mode, but to minimize distortions on the side, the picture is expanded to crop off portions of the top and bottom. Except when displaying menus, press ▲to adjust the position of the picture vertically. Available for 480i and 480p and SD 4:3 signals only.

Narrow: This format displays narrow (4:3) pictures in their original shape, and adds stationary black side bars to fill the screen. Available for 480i, 480p and SD 4:3 signals only.

Wide Expand: Enlarges the picture, cropping some of the image on both sides. This Expand format is useful to remove or reduce black side bars added to narrow pictures that are converted to 16:9 signals for digital broadcast. Available for 1080i, 720p, digital SD 16:9 and digital HD signals.

Note: All high-definition channels send widescreen (16:9) signals, but not all programming sent on these channels was created for this format. As a result, the broadcaster must convert such programming for broadcast, and may stretch the picture or add side bars to fill the widescreen area.

TV Picture Formats

See descriptions on the preceding page.

ORIGINAL SIGNAL Non-anamorphic or SD 4:3
MITSUBISHI LT-37131 - TV Picture Formats - 1

ORIGINAL SIGNAL Anamorphic DVD
MITSUBISHI LT-37131 - TV Picture Formats - 2

TV Display
Standard (not recommended, distorted)

TV Display
Standard (recommended)

Expand (not available for HD, SD 16:9 or analog 720p, 1080i (recommended for letterboxed)

Expand
MITSUBISHI LT-37131 - TV Picture Formats - 6
not available for HD, SD 16:9 or analog 720p, 1080i

Zoom (not recommended, distorted) not available for HD, SD 16:9 or analog 720p, 1080i

Zoom
not available for HD, SD 16:9 or analog 720p, 1080i (recommended for anamorphic 2.35:1)

Stretch (not available for HD, SD 16:9 or analog 720p, 1080i (recommended for standard broadcast)

Stretch
(not recommended, distorted) not available for HD, SD 16:9 or analog 720p, 1080i

Stretch Plus (not available for HD, SD 16:9 or analog 720p, 1080i (recommended for standard broadcast)

Stretch Plus
not available for HD, SD 16:9 or analog 720p, 1080i (not recommended, distorted)

Narrow

Narrow
not available for HD, SD 16:9 or analog 720p, 1080i (not recommended, distorted)

SD 16:9 or HD Digital (with side bars in broadcast) Standard Original HD or SD 16:9, 720p or 1080i

Wide Expand
available only for digital SD 16:9, HD, analog 1080i or 720p (recommended to remove side bars)

Split Screen

Split Screen allows you to view pictures from two different sources at the same time. Split Screen is available when you have video sources connected to the TV in addition to any connections to ANT 1 and ANT 2.

Operation

Split Screen Operations Instructions
Turn Split Screen on or off PressSPLIT.
Switch the sound source between main and sub-pictures.The speaker icon appears briefly over the active picture (main or sub-picture). The side that is active will be controlled by the remote control. MITSUBISHI LT-37131 - Split Screen - 1Press ▶or ▶switch between main and sub-picture sides.
Check which picture is the sound source.Press INFO. The speaker icon appears in the information display to indicate the sound source.
Change the source of the sub-picture.1. Press ▶to make the sub-picture the sound source.2. Press INPUT and move the highlight to the icon for the input you wish to view as the sub-picture (see figure 5).3. Press ENTER to make the change.Grayed-out input icons are unavailable as Split Screen sources or with the current source.
Change channels (when the input source is ANT 1 or ANT 2).• Press CH ∧ . √• With the main picture as the sound source, enter the channel number and press ENTER.
Freeze or unfreeze the sub-picture.Press Ⓗ (PAUSE). Press Ⓗ again to return to normal moving video.
Change the size of the main and sub-pictures.Repeatedly press FORMAT to cycle through picture sizes. See the following page for sample displays.
Make the sub picture fill the screen.1. Press ▶to make the sub-picture the sound source.2. Press SPLIT to close Split Screen mode.

"SPLIT" appears under the Video icon to distinguish this menu from the Input Selection menu.
Choice of Split Screen sub-Picture Sources
Video SPLIT Video SPLIT Devices Auto-1 Auto2 SAT GAME DVD VCR DVD2 DVR HD.DISC CAMCORD

Figure 5. Change the source of the sub-picture with the Split Screen Input Selection menu.

IMPORTANT Split Screen is not available if your only inputs are ANT 1 and ANT 2.

IMPORTANT PCs and HDMI 1080p devices cannot display in the Split Screen sub-picture.

Split Screen Displays
MITSUBISHI LT-37131 - Split Screen - 3

Display choices. Press the FORMAT key repeatedly while in Split Screen mode to view different displays.
Note: When PC or HDMI 1080p is the signal source for the Main picture, only one size combination is available. Pressing the Format button will not change the size of the images.

TV Inputs for Split Screen

The available Split Screen picture sources are listed below.

Available as either main picture or sub-pictureAnalog channelsDevices onVIDEO/S-VIDEOinputsDevices onCOMPONENTinputsDevices on eitherHDMI 1or2inputs. Note: The main and sub-picture can not both have HDMI inputs.
Available as main picture onlyDigital channels received from HDMI 1080pPC

Combinations of picture sources you can view with Split Screen. Check marks indicate available combinations.

Main Picture\Sub-PictureANT 1 ANT 2 INPUTCOMPONENTHDMI 1 (no 1080p)HDMI 2 (no 1080p)IEEE 1394
ANT 1
ANT 2
INPUT ^*
COMPONENT ^**
HDMI 1 & 2
IEEE 1394
PC-DVI

* Only when main picture and sub-picture are from different INPUT jacks

** Only when main picture and sub-picture are from different COMPONENT jacks

Manual and Power Swivel

Both TV models allow you to swivel the TV manually up to 30 degrees from left to right. In addition, the LT-37131 model has the Power Swivel feature, which automatically swivels the TV left or right when you press the ◀or ▶buttons on the remote control.

To use the Power Swivel feature for LT-37131:

  1. Be sure no menu or slider (such as the Volume slider) is displayed.
  2. Press the ◄ or ▶ buttons to swivel the TV thirty degrees left or right.
    Note: Power Swivel is not available while the TV is in Split Screen mode.

Top View 30° 30°

4

TV Menu Settings

3D Graphical ▶ WavePoint® System 46

Main Menu 47

Setup Menu 48

Input Name Menu 50

Icon Order Menu 50

Channel Menu 51

Captions Menu 53

Parental Lock Menu 55

Setting a Pass Code 55

Lock TV by Time and Front-Panel Lock 55

Rating Menus 55

Bypassing the Ratings Lock and Lock by Time 57

V-Chip Signal Information

TV Ratings 58

Movie Ratings 58

Audio/Video Menu 59

Audio Settings 60

Video Settings 61

3D Graphical▶ViewPoint® System

Your TV has Mitsubishi's exclusive 3D Graphical ▶ viewersen operating system, which provides on-screen information for menu choices and changes using the TV's remote control.

▶ViewPoint® Menu Screens

MITSUBISHI LT-37131 - ▶ViewPoint® Menu Screens - 1

A picture (icon) is highlighted on the menu screen when selected with the directional arrows ▲▼◀You may then make changes within the menu or access sub-menus, if available.

MITSUBISHI LT-37131 - ▶ViewPoint® Menu Screens - 2

You can also open sub-menus from a button. Sometimes when you select a button, an automatic function begins.

The ▶ViewPoint® system includes the following special features:

  • The currently selected icon or button is highlighted with a yellow outline; the text color is yellow.
  • On-screen instructions, shown in the message line at the bottom of the menu, provide feature selection and adjustment information.
  • Some on-screen menu options must be set before other options are available.

CABLESAT - VCR - SWDS TV 1 - AUDIO POWER SLEEP 1 2 ABC 3 DEF 4 CHI 5 JL 6 VND 7 RPM 8 VIN 9 VXY CANCEL 0 QV MUTE SPLIT F/V VOL CH RISE INPUT 4 3 5 3 ENTER 4 GUIDE AUDIO MENU INFO VIDEO EXIT ● H I I I K I P A H I F1 F2 F3 F4 MITSUBISHI

▶ViewPoint® Remote Control Buttons

The following buttons on the remote control help you navigate within the

▶ViewPoint® system:

Key Function
1 MENUDisplay or close the Main menu or move back one menu screen at a time.
2 EXITClose all menus and return to TV viewing.
3 ◀▶(Adjust Left/Right Keys)◀▶to select a menu item to change.
4 ▲▼(Adjust Up/Down Keys)• to change the settings.• to scroll through pre-set text-box entries.
5 ENTEROpen a menu, start an automatic function, or select a check box.
6 Numbers, LettersEnter custom names in some text boxes.
7 CANCELClear a setting or stop an automatic function.

Press MENU on the remote control to open the Main menu, figure 1. See below for an overview of the options available through the Main menu.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Press ENTER to setup the television and turn off demo mode.

Figure 1. Main menu.

MITSUBISHI LT-37131 - Main Menu - 2

Setup

  • Select English or Spanish for menus and on-screen displays.
  • Memorize the available channels for the antenna or cable service connected to the ANT 1 and ANT 2 jacks.
  • Set the TV's internal clock either manually or have the TV set the clock automatically.
  • Set the TV Timer to turn on the TV automatically at a designated time.
  • Set the energy mode for power consumption when the TV is powered off.
  • Turn off Demo Mode.
  • View the TV's software version.

MITSUBISHI LT-37131 - Setup - 1

Input Name

  • Assign useful names to TV inputs so that you can easily find them in the Input Selection menu.
  • Select analog or digital PC DVI signal types.

MITSUBISHI LT-37131 - Input Name - 1

Icon Order

Rearrange icons in the Input Selection menu to put frequently used icons first.

MITSUBISHI LT-37131 - Icon Order - 1

Channel

  • Edit channels for the inputs. ANT 1 and ANT 2
  • Manually add or delete channels from memory, name analog channels, or add your favorite channels to a FAV (Favorites) list.
  • View signal strength of a currently tuned digital channel.

MITSUBISHI LT-37131 - Channel - 1

Captions

◆ Display closed captions (if sent by the broadcaster).
- Select settings for analog or digital cap- tions.

MITSUBISHI LT-37131 - Captions - 1

Parental Lock

◆ Block or allow programming based on rating signals sent by the broadcast station.
- Lock the TV by time.
- Lock the front-panel buttons.

MITSUBISHI LT-37131 - Parental Lock - 1

Audio/Video

  • Reset a selected device's A/V memory to the original factory settings.
  • Customize individual audio and video settings.
    ◆ Display a blue screen when viewing a device with no video signal or a poor video signal.
  • Enable/disable Film Mode.
  • Turn the TV speakers on or off.

Setup Menu

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo VLP33 008.00 Ant-1 Air Ant-1 Cable Low Power English Espanol Ant-2 Air Fast Power On Language (Idioms) Memorize Channels Clock Timer Energy Mode Demo Mode Off Press ▲▼ to select the language.

Figure 2. Setup menu

Language (Setup Menu)

Choose to display the on-screen menus in either English or Spanish (Español).

To listen to audio in other languages (when available), see the "Audio Settings" section in this chapter and refer to "SAP" (analog signal) or "Language" (digital signal).

Memorize Channels (Setup Menu)

For ANT 1/MAIN and ANT 2/AUX

The memorization process performs two scans of all possible channels on the selected ANT input. Analog channels are scanned first, then the process is repeated for digital channels. Channel memorization may take up to 15 minutes to complete.

To start channel memorization

  1. Highlight an input selection based on your connections:
Input Condition
Ant 1 Air,Ant 2 AirWhen connected to an indoor/outdoor antenna
Ant 1 Cable,Ant 2 CableWhen connected to direct cable (no cable box)
  1. Press ENTER to start automatic channel memorization.

To stop channel memorization before completion

Press CANCEL.

Channels memorized before you pressed CANCEL are retained in memory. If you restart memorization, all previously memorized channels for the selected antenna input are erased and the process starts over from the beginning.

After channel memorization, press CH ↗ to tune to memorized channels. Select the Channel menu for further channel editing, such as adding and deleting channels from memory, naming channels, and saving favorite channels in custom memory banks.

Note: If using a CableCARD™, the complete list of available channels is provided through the CableCARD and the ANT 1 option is grayed out.

Clock (Setup Menu)

Set the clock if you wish to use the TV's Timer function or schedule delayed recordings. You can use either the manual or auto method to set the clock.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Clock Manual 12:00 PM 5/01/06 Eastern Applies Auto Ignore Clock Setting Time Date Time Zone Daylight Savings For manual time, enter the actual time and date.

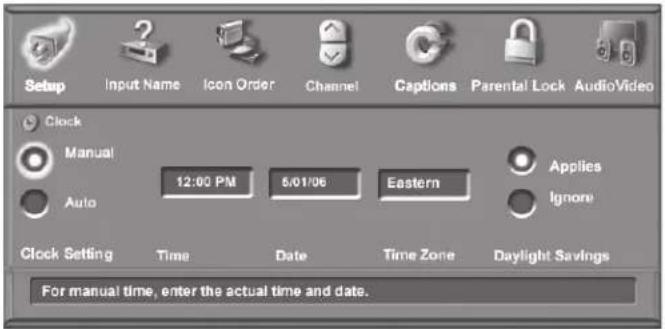

Figure 3. Clock submenu

Setting the Clock Manually

Time

With the hour highlighted in yellow characters, press ▲▼ repeatedly to slowly increment the hour and associated AM/PM indicator or press and hold to quickly increment the hour. Press ENTER to highlight the minutes in yellow. Press ▲▼ set the minutes.

Date

With the month highlighted in yellow characters, press ▲▼ to select the correct month. Press ENTER to highlight the day. Press ▲▼ to select the correct day. Press ENTER to highlight the year. Press ▲▼ to select the current year.

Time Zone

Select your correct time zone. Press ▲ or ▶ select the time zone for your area (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii). Press ▶ to move to the Daylight Savings option.

Daylight Savings

Press ▲ or ▶ select either Applies or Ignore, depending on whether or not daylight savings time is used in your area.

Note: If Clock Setting is set to Manual, each time the time change occurs, you must open this menu and set the TV's clock ahead or back.

If you have selected Auto for Clock Setting, the TV's clock adjusts automatically to daylight savings time.

Setting the Clock Automatically

Select the Time Zone and the Daylight Savings (DST) options for your state. Press ▲ to select Applies or Ignore. You may then tune to a channel on ANT 1 or ANT 2 that uses Extended Data Service (XDS) time data,

Setup Menu, continued

typically a PBS channel. With Auto selected, the TV automatically retrieves the correct time and date information from this channel.

Be aware that if a channel displays incorrect time information, it is because of information sent from the broadcaster and is not a defect of the TV.

Note: You may find that some channels send the incorrect time and the TV clock is reset every time you tune to those channels. To prevent unwanted clock resets, first use the Auto method to set the clock from a channel sending the correct time, then change the method to Manual.

Timer (Setup Menu)
Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Timer On Daily 12:00 pm Ant-1 2 Off Timer Day Time Device Channel Press ▲ to turn the Timer on or off.

Figure 4. Timer submenu

The Timer feature allows you to set a day and time for the TV to turn on automatically and the device and channel to display when it switches on. If the TV is already on at the requested time, the TV automatically tunes to the channel you designated in the Timer menu.

When the Timer turns on the TV, the following message is displayed: "Press a button for the TV to stay on." Press any button on the remote control within five minutes if you wish the TV to remain on.

Note: The TV clock must be set before you can use the Timer feature (see preceding page to set the clock).

On/Off

Press ▲▼ enable or disable the Timer.

Set Day

Select the day or days that the TV will turn on automatically. Press ▲ or ▼ to select Daily, Mon-Fri (Monday through Friday), or individual days of the week.

Set Time

With the hour highlighted in yellow characters, press ▲▼ repeatedly to slowly increment the hour and associated AM/PM indicator or press and hold to quickly increment the hour. Press ENTER to highlight the minutes. Press ▲▼ to set the minutes.

Device

Press ▲ or ▼ select the device to use when the Timer turns on the TV. If the TV is already on at the selected time, the Timer will switch the TV to this device.

Channel

When the selected device is an antenna, you can select a channel for the TV to tune to when it comes on. Highlight the Channel box and

  • press CH ∧ or t▲choose from memorized channels.
  • Enter a channel number from the remote control. You can also enter sub-channel numbers for digital channels.

Energy Mode (Setup Menu)

The Energy Mode option lets you select the TV's level of power consumption while the TV is turned off. Choose either Low Power or Fast Power On. The Low Power setting uses less energy, but TV power-on takes longer. The default is Fast Power On. Keep this setting at Fast Power On if you:

  • Need faster power on.
  • Wish to turn off the TV while recording to an IEEE 1394 device.
  • Wish to schedule future IEEE 1394 recordings for a time when the TV will be off.
  • Expect to use the TV Timer function to turn on the TV at a preselected time.
  • Need the TV Clock to remain accurate for the TV Timer and for scheduling recordings. With the Low Power setting, you must reset the TV Clock if the TV is left turned off for over 48 hours.
  • Wish to receive updates to the ChannelView™ channel listings.

Note: CableCARD™ requires the Fast Power On setting. If you insert a CableCARD™, the TV will automatically override a Low Power setting and change to the Fast Power On setting.

Demo Mode Off (Setup Menu)

Some TVs are shipped from the factory with Demo Mode active for use in retail stores. If Demo Mode is active, highlight the Demo Mode Off button and press ENTER.

Software Version (Setup Menu)

For servicing purposes it may be necessary to know the software version in your TV. This information is displayed at the right side of the Setup menu screen.

Input Name Menu

Use the Input Name menu to assign useful labels to the TV inputs that appear in the Input Selection menu. Unused inputs appear grayed out and unselectable.

Use the PC DVI option to specify the type of video signal coming from your computer, either Analog or Digital. For more about this option, see chapter 6, "Using the TV with a Personal Computer."

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo VCR Input-1 Input-2 Camcord Input-3 DVD Comp-1 HD Disc Comp-2 Satellite HDMI-1 HDMI-2 Digital HDMI-3 PC DVI Name can not be changed for an input being watched. To change the name, first watch another device, then return to this menu. Press ▼ to channel the name for Input-1. Detected Inputs that Can Be Renamed Type of Video Signal from Personal Computer

Figure 5. Input Name menu

To rename an input

  1. If you are currently watching the input you wish to rename, change to another input. To do so, press INPUT to open the Input Selection menu, highlight a different input, and press ENTER.
  2. With the Input Name menu displayed, press ▶to move the highlight to the box for the input you wish to rename.
  3. Press ▲▼ select from the following list.

Cable Box Game

Camcorder HD Disc

DVD Satellite

DVD2 VCR

DVR (digital video recorder, recordable DVD)

Only one VCR label is available, so if you have a second VCR connected, leave the name as the default name.

IMPORTANT

It is possible to use the same name for more than one input. To avoid confusion, be sure to use different names for each input.

To Remove the Icon for an HDMI Device

When you disconnect an HDMI device, the icon remains in the Input Selection menu until you choose to remove it.

  1. In the Input Name menu (see figure 5), highlight the box for the disconnected HDMI input.
  2. Press ▲▼o select Off.
  3. Press EXIT to close all menus.

Icon Order Menu

The Icon Order menu allows you to rearrange the device icons that appear in the Input Selection menu. Change the sequence to put frequently used icons at the start of the list.

To change the icon order

  1. Press ▲▼to highlight the icon to be moved and then press ENTER.
  2. Press ▲▼ to drag the icon to the desired position. Press ENTER to set the new position.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Ant-1 DV4 HD DISC CAMCORD SAT DVD VCR DVD2 Press◀▶to select the icon, then ENTER. Press◀▶then ENTER to move and set the icon.

Figure 6. Icon Order menu

Channel Menu

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo 1 2 2-1 Added Deleted KCBS FAV1 FAV5 FAV2 FAV7 FAV3 FAV8 FAV4 FAV9 FAV5 FAV Signal Strength Antenna Channel Memory Name Press ▼ to select the antenna. Settings for the Channel Number Shown FAV Memory Banks Signal-Strength Indicator (digital channels only)

Figure 7. Channel menu

Antenna (Channel Menu)

Select either 1 (ANT 1 MAIN) or 2 (ANT 2 AUX) as the antenna source for the channels you wish to edit.

Channel (Channel Menu)

Select the affected channel number (shown in the Channel box) in any of three ways:

  • Press CH / to select from channels already in memory. If you also wish to tune to the channel, press ENTER.
  • With the channel box highlighted, press ▲ move through all channel numbers, one at a time. If you also wish to tune to the channel, press ENTER.
  • With the channel box highlighted, enter the number directly and press ENTER. Note that with this method, you must press ENTER for the screen to display settings for the selected channel.

Channel numbers can be one part, analog or digital (up to the number 16383), or two part for digital channels. For a two-part digital channel, press CANCEL on the remote to enter a separator after the first, second, or third number, depending on the broadcaster's channel information.

For digital channels, when the broadcaster has sent a virtual channel number, the virtual channel number is shown in the text box and the original physical digital channel is shown below on screen as a reference. One original channel number can be associated with several different virtual channels.

Memory (Channel Menu)

After the available channels have been memorized with Memorize Channels on the Setup menu, you can add weaker channels or delete unwanted channels using this option. For example, if you wish to see only digital channels listed, use this menu to delete analog channels from memory.

Press CH ✗ to review the channels in memory. Press ▲▼ to select Added or Deleted for the channel shown in the Channel box.

Name

Analog channels from ANT 1 and ANT 2 can be named with up to four characters. The name you enter here will appear on the TV screen as part of the on-screen status display. Digital channels may already be named if the broadcaster sends the information.

  1. Press a number key repeatedly to cycle through the characters associated with the key. You can also use ▲▼to change a highlighted character.
  2. Press ENTER to set the letter and move to the next letter position. Press CANCEL to move back one position.

Signal Strength (Channel Menu)

Displays the approximate signal strength of the currently tuned digital channel. Use this indicator to help you adjust the antenna direction for best signal reception. The taller the bar, the stronger the signal. This indicator applies only to digital channels.

To view the effects of antenna adjustments on digital channels, tune to the digital channel you wish to measure while remaining in this menu. To tune to a channel, either:

  • Highlight the channel box, press CH X or t▲▼ display the desired channel number, and press ENTER.
  • Enter the channel number on the remote control and press ENTER.

Terminology

Virtual Channel Number

A channel number used by a local broadcaster to help you identify their digital channel. Usually this is associated with their traditional analog channel number.

Physical Digital Channel Number

The channel number officially assigned to the actual broadcast frequency.

Channel Menu, continued

FAV (Channel Menu)

The FAV feature lets you store groups of favorite channels in up to nine different FAV memory banks. For example, each household member can store favorite channels in their own bank or you can store groups of channels by content, e.g., news, sports, children's programming, etc. You can store the same channel in multiple FAV banks.

Once you have added a channel to FAV memory, FAV and the memory bank number appear under the tuned channel number on the TV screen. You can access the FAV feature through the Channel menu or you can bypass the menu and use only the remote control.

FAV Setup Using the Channel Menu
Initial Setup of a FAV Bank and Adding FAV Channels Using the Menu1. With the Channel menu displayed, select a channel using one of the methods described on the preceding page, for example, press CH ∧ √ for a memorized channel.2. Highlight the desired bank (FAV1 -FAV9) and press ENTER to check mark the selected FAV memory bank. The channel number displayed has now been added to the checked FAV bank.3. With the FAV bank still highlighted, press CH ∧ √ display the next channel you wish to add to the FAV bank.4. Press ENTER to add a check mark next to the highlighted FAV bank.5. Repeat steps 2–4 for additional channels and FAV banks.
Removing FAV Channels Using the Menu1. With the Channel menu displayed, press CH ∧ √ display the memo- rized channel you wish to remove.2. Highlight the desired FAV memory bank (FAV1 -FAV9).3. Press ENTER to remove the check mark.
Using FAV Channels
Viewing FAV Banks1. Press the FAV key. Wait for the TV to tune to a channel in the current FAV bank.2. Press the e FAV key repeatedly to cycle through the channels available in the current FAV bank.
Changing FAV Banks1. Press the FAV key. Wait for the TV to tune to a channel in the current FAV bank.2. When tuning is complete and while the TV status display is still visible on screen, press the number key for the desired bank.Note:Wait for the channel change to finish before pressing the number key. Otherwise, the TV may ignore the FAV number.
If No FAV Banks Are Set Up TheFAV key switches to the previously tuned channel; works like the QV key.
FAV Setup Using Only the Remote Control
Adding FAV Channels1. While watching TV, tune to the channel you want to add to the current FAV memory bank. See the instructions above if you need to first change to a different FAV bank.2. Press and hold the FAV button for about 2 seconds. When FAV and the memory bank number appear under the channel number, the channel has been successfully added.
Removing FAV ChannelsThis procedure removes the channel only from the selected bank and leaves the other banks unchanged.1. While watching TV, press the FAV button2. While the TV status display is still visible on screen, press the number key for the memory bank.2. Press the FAV button repeatedly until you see the desired channel.3. While the channel number and FAV indicator (with correct bank number) are still displayed on the screen, press CANCEL. You must press CANCEL before the On-Screen Display (OSD) disappears. When the FAV indicator disappears while the OSD is visible, the channel has been successfully removed.

Captions Menu

For analog channels, broadcasters can send either standard closed captions or text service. Standard closed captions follow the dialogue of the characters on screen and display in a small section of the screen. Text-service closed captions often contain information such as weather or news and cover a large portion of the screen.

For digital channels, broadcasters can send up to six different captioning selections or can send analog captions that are the same as those sent by the analog station. Each TV station may broadcast only one or two types of captions or none at all. The TV cannot decode closed captions received on component or HDMI inputs.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo On If Mute Gray Black On If Mute Default Custom Analog Captions Background Digital Captions Appearance Digital Settings Press AV to select the analog captions setting.

Figure 8. Captions menu

Analog Captions

The TV can display one of the following captions for analog sources:

  • CC1, CC2, CC3, or CC4: standard closed-caption signals
  • Text1, Text2, Text3, or Text4: Text-service signals
  • On if mute: Closed captions appear when audio is muted. When selected, press MUTE on the TV remote control to turn on/off the standard closed-caption signal CC1.
  • Off: No closed captions.

Background

To make the analog closed captions easier to read, you can choose to display the background color as either black or gray behind the text.

IMPORTANT

When analog text closed captioning is selected, a large black or gray box appears on your TV screen if no signal is broadcast.

Digital Captions

The following display options are available for digital sources:

  • Captions 1-6: Sent by broadcaster.
  • On if Mute: Closed captions are displayed when audio is muted. When selected, press MUTE on the TV remote control to turn captioning on/off (Caption 1).
  • Off: No closed captions.

Note: For digital programs, if the broadcaster is sending only analog captions converted to digital format, then the analog caption settings apply.

Appearance

The closed-captions provider selects the default options when sending digital closed captions. Select Custom to override defaults and customize the appearance of closed captions. These settings do not apply to analog closed captioning converted to digital.

Digital Settings

The Digital Settings menu allows you to customize the appearance of the closed captions sent by the broadcaster. Digital settings do not apply to analog closed captions converted to digital.

To open the Digital Settings menu, select Custom for the Appearance option. Move the highlight to the Digital Settings icon and press ENTER.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Digital Settings Large Default Standard White Black Translucent Translucent Small Font Size Color Background Opacity Background Opacity The default font is the font selected by the caption provider.

Figure 9. Closed Captions, Digital Settings sub-menu

Font

The available font options are as follows:

  • Default: Selected by the closed-captions provider
  • Font 1: Monospaced font with serifs
  • Font 2: Proportionally spaced font with serifs
    • Font 3: Monospaced font without serifs
  • Font 4: Proportionally spaced without serifs

Captions Menu, continued

  • Font 5: Casual font
    • Font 6: Cursive font
    • Font 7: Small capitals

Size

Select the desired font size. Large is the recommended font size.

Color

The available font colors are listed below. Text and background cannot be set to the same color.

White Yellow

Black Green

Magenta Cyan

Red Blue

Background

You can change the background color to make the digital closed captions easier to read. The available background colors are listed below. Text and background cannot be set to the same color.

White Yellow

Black Green

Magenta Cyan

Red Blue

Opacity (Font)

You can customize the visibility of your fonts using the following settings:

• Translucent: TV program is dimmed behind the text
- Transparent: Invisible text reveals the TV program behind.
- Opaque: Solid text blocks view of the TV program
- Flashing: Text flashes at intervals

Background Opacity

You can customize the background for digital captions using the following settings:

  • Translucent: TV program is dimmed behind the background
  • Transparent: No visible background
  • Opaque: Solid background covers TV program
  • Flashing: Background flashes at intervals

IMPORTANT

Mitsubishi recommends you use contrasting colors for captions and background.

Black translucent background combined with a white font makes an easy-to-read combination.

Use care when selecting custom colors. Your choice may affect the readability of captions.

IMPORTANT

The content of captions is determined by the broadcaster. If your captions show strange characters, misspellings, or odd grammar, it is not a malfunction of the TV.

Parental Lock Menu

The Parental Lock menu gives you control over three different types of parental controls. You must use a pass code to open this menu to enable/disable the lock options. The three parental controls available are:

• Ratings (U.S. Ratings/Other Ratings)

V-Chip technology lets you restrict access to programming based on program-rating signals sent by the broadcaster. For U.S. ratings, you can also set the time of day for these restrictions to be in effect.

- Lock by Time

Lets you restrict TV use by time of day.

- Front Panel Lock

Lets you disable the controls on the front of the TV. Use this option if there are small children near the TV who may be tempted to press the buttons.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo On Off 12:00 pm 12:00 pm On Off U.S. Ratings Other Ratings Lock by Time Lock Time Unlock Time Front Panel Lock Press ENTER to turn U.S. Ratings on or off and change settings. Access to Ratings Menus Lock TV by Time TV Front Panel Lock On/Off

Figure 10. Parental Lock menu

Setting a Pass Code

You are prompted to enter a pass code whenever you select Parental Lock on the Main menu. To set a pass code for the first time:

  1. Press MENU, highlight Parental Lock, then press ENTER. A screen prompting you for a pass code will display.

  2. Input a four-digit pass code using the number keys on the remote control.

- Press CANCEL to delete a number and move back one space.

- Press MENU or EXIT to close the menu without setting a pass code.

  1. Press ENTER to set the pass code just input.

To reset the pass code, see the procedure in Appendix A.

IMPORTANT

If you forget your four-digit pass code, see Appendix A.

Lock TV by Time and Front-Panel Lock

Lock by Time (Parental Lock Menu)

Lock by Time allows you to block all use of the TV during specified hours. During the lock time, you must use your pass code to view the TV. To lock the TV by time:

  1. Press ▲▼to select On or Off for Lock by Time.

  2. Press ▶ to move to the Lock Time box.

a. With the hour number highlighted in yellow, press ▲ repeatedly to change the hour and associated AM/PM indicator. You can also just press and hold to change the hour.

b. Press ENTER to move the highlight to the minutes.

c. With the minutes number highlighted in yellow, press ▲▼ repeatedly to change the minutes. Just press and hold to move quickly through the numbers.

d. Press ▶ to move to the Unlock Time and set the time as described above.

NOTE: To make Lock by Time active 24 hours a day, set Lock and Unlock to the same time.

Front Panel Lock (Parental Lock Menu)

Front Panel Lock lets you disable controls on the front panel to prevent inadvertent changes to TV settings. Select On to disable the buttons and select Off to restore their operation.

To release the front button lock without using the remote control:

- When Energy Mode is set to Fast Power On, press and hold the MENU button on the front panel for over eight seconds. If the TV is on, a message will display confirming release of the Front Panel Lock.

- When Energy Mode is set to Low Power, press POWER on the front panel to turn on the TV. Press and hold the MENU button on the front panel for over eight seconds.

Rating Menus

The rating menus allow you to:

- Turn rating restrictions on or off

- Change the permitted rating level

- Set the time of day to enforce rating restrictions (U.S. ratings only)

The TV comes from the factory with pre-set U.S. V-Chip ratings and with the rating locks turned off. The pre-set ratings are TV rating TV-PG and movie rating PG. If you turn on V-Chip blocking, these presets allow only programs rated TV-PG/PG or lower until you change the rating level.

After changing the channel or device, there may be a delay of up to five seconds before the rating restrictions take effect.

Parental Lock Menu, continued

U.S. Ratings Menu

Use this menu to turn U.S. rating restrictions on or off and to change the permitted rating levels.

TV Content Categories Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo U.S. Ratings FV-Fantasy Violence On TV-PG D-Sexual Dialog Off S-Sexual Situations PG 12:00 pm 12:00 pm U.S. Ratings TV Rating V-Violence Programs Movie Not rated Rating Rating Hours Press ▲ to turn U.S. ratings on and off . U.S. Restrictions On/Off TV Rating and Supplemental Restrictions Movie Rating Restriction Hours

Figure 11. U.S. Ratings menu

  1. Highlight the U.S. Ratings icon 📋 on the Parental Lock menu (figure 10) and press ENTER to open the U.S. Ratings menu (figure 11).
  2. Press ▲to▼select On or Off.
  3. If you selected On, press ▶ move to the TV Rating box.
  4. Press ▲to select the TV rating level you want to allow.
  5. Press to move to the TV content categories. This section allows you to specify content blocking in addition to that blocked by the TV rating. See the section on V-Chip ratings for an explanation of TV content categories.

  6. Press ▲o move the highlight among the categories.

  7. Press ENTER to add a check mark to each TV content category you want to block.

  8. Press to move to the Programs Not Rated box. Press ENTER to add or remove a check mark to allow or block programs that are not rated.

Note: Use care when choosing to block unrated programming. News programs and emergency bulletins carry the "None" or "NR" (Not Rated) V-Chip signal, and they are blocked with this option active.

  1. Press ▶ to move to the Movie Rating box. Press ▲▼ to select the movie rating level you want to allow. Detailed information on rating guidelines follows this discussion of the Parental Lock menu.

  2. To set the time of day for these restrictions to be in effect, press ▶ to move to the Start box. To make the rating restrictions active twenty-four hours a day, set Start and Stop to the same time. To set the time:

a. With the hour number highlighted in yellow, press ▲ repeatedly to change the hour. You can also just press and hold to change the hour.
b. Press ENTER to move the highlight to the minutes.
c. With the minutes number highlighted in yellow, press ▲ Repeatedly to change the minutes. Just press and hold to move quickly through the numbers.
d. Repeat these steps for the Stop time.

  1. Press MENU to return to the Parental Lock menu or press EXIT to close all menus.

Other Ratings Menu

This TV can recognize new rating systems that may come into effect in the future. The Other Ratings menu allows you to block digital programming based on such alternate rating systems. The alternate rating systems will apply to digital programming only.

Note: The Other Ratings button remains inaccessible until the TV receives signals for an alternate rating system.

The first time you tune to a channel broadcasting an alternate rating system, the TV defaults to the most restrictive setting. Use this menu to change the allowed rating if you are unable to watch a program broadcast with an alternate system.

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Other Ratings On Canadian French ✓ 16 ans + Off Other Ratings Rating Group Rating Press ▲ to turn Other ratings on and off .

Figure 12. The Other Ratings menu is available only if the TV receives broadcast signals carrying an alternate rating system.

IMPORTANT

New rating systems recognizable by the TV may be new U.S.-based systems not included in the original V-Chip rating system. The use of “Canadian” in the sample screen is just one possibility.

Parental Lock Menu, continued

  1. Highlight the button labelled Other Ratings on the Parental Lock menu (figure 10) and press ENTER to open the Other Ratings menu (figure 12).
  2. Press ▲to▼select On or Off.
  3. If you selected On, press to move to the Rating Group box.

Note that you can change settings only for the rating system available on the currently tuned channel. In the figure above, for example, the Canadian rating system is in effect. To change settings at a later time for the Canadian rating system, you must again tune to a channel broadcasting the Canadian system.

  1. Press ▲to select from the subgroups available for the rating system—English or French in this example.
  2. Press to move to the Rating box.
  3. Press ▲to select the program rating level you want to block.
  4. Press ENTER to add a check mark to indicate blocking is in effect for the rating. When a rating shows a check mark, press ENTER to remove the check mark and allow programs with this rating.
  5. Repeat steps 3 through 7 for each additional rating system you would like to set up.
  6. Press MENU to return to the Parental Lock menu or press EXIT to close all menus.

Bypassing the Ratings Lock and Lock by Time

If you try to watch blocked programming, a notice appears prompting you for a pass code. To use the TV:

  • Input your four-digit pass code and press ENTER.
  • Change to a channel airing an allowed program or change to another device.

If you try to use the TV when it is locked by time, a similar screen appears, prompting you for your pass code.

To reactivate the rating lock or TV Lock by Time after using the pass code, power the TV off and then on.

V-Chip Signal Information

When provided by the broadcaster or program source, V-Chip ratings let you control the types of programming that can be viewed on the TV. When V-Chip ratings are supplied, they are displayed when you change the channel or press INFO on the remote control.

TV Ratings

TV ratings apply to TV programs and made-for-TV movies. You can apply supplemental blocking to TV ratings based on the TV content categories described below. TV ratings are:

TV-Y Youth. For children under the age of 7.

TV-Y7 Youth 7 and older.

TV-G General Audience. For the entire family to view.

TV-PG Parental Guidance. Parental Guidance is recommended; may not be suitable for some children.

TV-14 Adolescent 14 and older. Not recommended for children under the age of 14.

TV-MA Mature Audience. For adults only.

TV Content Categories

Used in association with the TV ratings above, TV content categories allow you to apply supplemental blocking. Apply supplemental blocking using the U.S. Ratings menu.

FV Fantasy Violence. Applies to TV-Y7 only.

D Sexual Dialog. Applies in different degrees to TV-PG and TV-14.

L Adult Language. Applies in differing degrees to TV-PG, TV-14, and TV-MA.

S Sexual Situations. Applies in differing degrees to TV-PG, TV-14, and TV-MA

V Violence (graphic or realistic). Applies in differing degrees to TV-PG, TV-14, and TV-MA.

TV RatingFVDLSV
TV-YNot Applicable
TV-Y7X
TV-PGNot Appli-cableXXXX
TV-14XXXX
TV-MAXXX

TV content categories. Boxes marked with an "X" indicate supplemental blocking you can apply to each rating level.

The TV rating you select is for the least-restrictive program level allowed. For example, if you select TV-PG, pro-grams rated TV-Y, TV-Y7, and TV-PG can be viewed, but programs rated TV-14 and TV-MA are blocked.

When you select a TV content category to block, all TV programs with the same content category listing are blocked. For example, if you select to block V (Violence) at the TV-14 level, any programs with the V category listing rated TV-PG are also blocked.

V-CHIP EXCEPTIONS

  • V-Chip blocking is ineffective for programs viewed on devices connected to component or HDMI inputs. Many of these devices, however, have their own parental-control systems.
  • Videotapes, laser discs, and DVDs may not contain V-Chip rating signals. V-Chip cannot block playback of recordings without V-Chip rating signals.
  • Broadcasters are not currently required to include V-Chip rating signals. V-Chip cannot block programming broadcast without the V-Chip rating signal.

Movie Ratings

Movie ratings are the MPAA ratings used for theater-released and direct-to-video movies. Movie ratings are:

G General Audience. Designed for the entire family to view.

PG Parental Guidance. Parental Guidance is recommended, may not be suitable for some children.

PG-13 Parental Guidance, 13 and Older. Not recommended for children under the age of 13.

R Restricted. Restricted in theaters to 17 years old and older unless accompanied by an adult.

NC-17 No Children 17 or Under. Restricted in theaters to 18 years old and older.

X Adult. Designed for and restricted in theaters to adult audiences only.

The movie rating you select is for the least-restrictive program level that can be viewed. For example, if you select the PG-13 rating, movies rated G, PG and PG-13 can be watched, but movies rated R, NC-17, and X are blocked.

Programs Not Rated: This refers to programs that carry no rating, such as news, sports, weather, emergency bulletins, or movies prior to or without MPAA ratings. This does not include programs without V-Chip signals.

IMPORTANT

If you enable blocking with the Programs Not Rated option, you may block news or emergency bulletins carrying the "None" or "NR" Not Rated V-Chip rating. Use care when blocking programming that is not rated.

Audio/Video Menu

Setup Input Name Icon Order Channel Captions Parental Lock AudioVideo Ant-1 Audio On Auto On Video Off Off Off A/V Memory Reset Settings Video Mute Film Mode TV Speakers Press ▲ to select device for reset of the A/V Memory, then press ENTER.

Figure 13. Audio/Video Menu

A/V Memory Reset

A/V Memory Reset allows you to reset a specific input's A/V settings to the original factory settings. Highlight the box and press ▲to select the input name. Next press ENTER.

The audio settings of Balance, Listen to, and Language are general TV settings unaffected by A/V Memory Reset.

To reset all A/V settings at once, including the three general settings, perform an A/V Reset by pressing the front-panel buttons GUIDE and FORMAT simultaneously.

Settings (Audio and Video)

Each input or device has its own A/V memory. Press ▲▼ to select the input or device in the A/V Memory Reset box, then select Audio or Video to adjust individual settings. Press ENTER to close the menu and display the individual settings.

Use ▲ to cycle through the individual settings. Use ◀ to change the setting values. Press EXIT to return to normal TV viewing. For descriptions of the individual A/V settings, see the following pages.

Video Mute

The default is On, which displays a blue background when no signal is being received on the INPUT, COMPONENT, or HDMI jacks.

Film Mode (480i signals only)

Auto is the default setting. With Auto selected, the TV automatically detects and applies film-decoding correction for images that originated on 24-frame-per-second film cameras and were converted to 30-frame-per-second video for broadcast (3:2 pulldown conversion). Try the Off setting if the TV adds noticeable jagged edges to the images.

When the original video was filmed on 30-frame-per-second cameras, the Auto setting automatically applies video decoding, the same as used with the Off setting.

Film Mode is not effective for high-definition signals.

TV Speakers

This selection turns the TV's internal speakers on or off. Select Off when sending the sound through a separate stereo system or surround sound A/V receiver.

Note: To prevent damage from a sudden increase in volume, turn the TV volume down low before changing this option to On.

Audio/Video Settings and the Remote Control

To adjust individual audio or video settings directly with the remote control:

  1. Press AUDIO or VIDEO repeatedly to cycle through the available settings.
  2. Press ◀t▶ adjust the setting. The setting display will disappear after five seconds of inactivity.

Audio/Video Menu, continued

Audio Settings

Analog and Digital Audio Settings

Enter the audio adjustment mode using either the Audio/Video menu or the AUDIO key. Press AUDIO repeatedly until you highlight the desired audio control, then use ▶ change the setting, which has a corresponding numeric value shown on screen. Values can be adjusted from 0 to 63, with 31 as the midpoint.

Note: The effects of the audio settings of Bass, Treble, Balance, and Surround affect only the sound heard through the TV speakers.

◇ Bass

Enhances or reduces low-pitched sound.

Treble

Enhances or reduces high-pitched sound.

Balance

Adjusts the level of sound between the left and right TV speakers.

◇ Surround

Creates simulated stereo and surround effects through the TV speakers. Your choices are:

- Off: No surround effects (default).

- Simulated Stereo: The TV creates a simulated stereo effect when watching a non-stereo program.

- Surround Sound: The TV creates a simulated surround effect when watching a stereo program.

◇ Level Sound

When on, automatically equalizes the volume level when there are significant sound-level differences between program segments, such as between regular programming and commercials.

- To receive the best fidelity with music programs, change this setting to Off.

- When connecting to an A/V receiver, set Level Sound to Off and turn off the TV speakers to send full dynamics to the A/V receiver.

Analog-Only Audio Settings

You can set analog-only audio settings while viewing either analog or digital sources, but the settings affect only broadcast analog content.

Listen To

Determines how your TV receives a broadcast audio signal and plays the sound you hear.

Your choices are:

- Stereo: Default setting. The TV plays stereo broadcasts in stereo and mono broadcasts in mono. The word Stereo is displayed when you tune to a channel broadcasting in stereo.

- SAP (Second Audio Program): Additional monaural sound track that you cannot hear during normal TV viewing. The SAP signal might be related to the program you are watching, (such as a sound track in a foreign language), or it might be unrelated (such as a weather report). If an SAP signal is broadcast, the letters SAP are displayed when you tune to the channel.

- Mono: Reduces background noise. Use when receiving a weak stereo audio signal. All audio is played mono with this setting.

Listen To is not available for digital channels, 1394 devices or devices connected to the INPUT, COMPONENT and HDMI jacks.

Digital-Only Audio Settings

You can set digital-only audio settings while viewing either analog or digital sources, but the settings affect only broadcast digital content.

Language

Determines what possible language you can hear. Your choices are:

English Portuguese

French Spanish

German Other

Italian

IEEE 1394 Amplifier Settings

Available settings for some MPEG2 amplifiers:

Balance

Adjusts the level of sound between the left and right speakers. The slider range is 0–254, with 127 as the midpoint.

◇ Loudness

When on, makes the audio level more uniform.

◇ Preset

Select the mode that matches the audio source. Your choices are:

Off Classical Music

Jazz Movie

Rock Speech

Equalizer

Equalizes the sound.

Audio/Video Menu, continued

Video Settings

Enter the video adjustment mode using either the Audio/Video menu or the VIDEO key. Press the VIDEO key repeatedly to cycle through the video options to the one you want to change. Use ◀ to change settings.

Note: A slider displays on screen for some settings. When the slider is displayed, it represents numeric values, with 63 as the maximum, 31 as the mid-point, and 0 as the minimum.

◇ (Power) Swivel: For LT-37131 model only. Swivels the TV up to thirty degrees left or right. When a menu or slider is displayed, Power Swivel can not be accessed using ◀▶.

Note: Power Swivel is not available while the TV is i n Split Screen mode.

Picture Mode: Set the Picture Mode first before adjusting other settings, as each Picture Mode stores its own values for Contrast, Brightness, and Color Temperature. Picture Modes allow you to optimize the image for different lighting conditions. The Picture Modes are:

• Bright: Suited for most daytime viewing.
• Natural: Suited for most nighttime viewing.
- Brilliant: The default setting. For use under strong light.

◇ Contrast (Bright/Natural/Brilliant): Provides a slider to adjust the white-to-black level. Low contrast shows a variety of shades in darker images, while high contrast shows darker images more uniformly black and makes colors appear more vibrant. In most home lighting situations, a medium contrast looks best. High contrast is good for brightly lit environments.
◇ Brightness (Bright/Natural/Brilliant): Provides a slider to adjust the overall brightness of the picture.
◇ Color: Provides a slider to adjust color intensity.
◇ Tint: Provides a slider to adjust the red-to-green ratio.
◇ Sharpness: Provides a slider to adjust the detail and clarity.
◇ Color Temperature (Bright/Natural/Brilliant): Allows you to adjust how white is displayed.

- Low: White images have a warm cast. This adjustment is an average and can vary due to ambient room lighting, video scene brightness, and the TV's age. Natural/Color Temp at the low setting displays video at the 6500K industry standard for NTSC pictures.

- High: White images have a cool cast. This setting may provide the most realistic picture under bright lighting.

◇ PerfectColor™: Lets you adjust the intensity of any or all of six colors (Magenta, Red, Yellow, Green, Cyan and Blue) to create color balance for the current image source. PerfectColor settings are memorized for each TV input or device. Select the PerfectColor option and press ENTER to open the adjustment screen. Individual sliders for each color are displayed. Highlighted text shows which slider you are adjusting. Press CANCEL while in the PerfectColor screen to reset all colors to the default settings.

PerfectColor™ for DVD Name of affected input Adjust Mode: PerfectColor Magenta (31): Red (31): Yellow (31): Green (31): Cyan (31): Blue (31): To reset color to the initial factory settings, press CANCEL.

Figure 14. Set PerfectColor adjustments independently for each TV input.

Video Noise: Reduces minor noise (graininess) in the picture. Use the Low setting with good-quality signals. Use Medium or High with poor-quality signals. Turn off to leave the picture unaltered.
Back Light: Lets you adjust the TV's back light peak brightness settings for optimal viewing in different room lighting conditions. A higher setting looks more vibrant in brightly lit rooms; a lower setting may look more natural when viewing in a darkened room.

Personal Computer Video Settings

Video settings available for images from a personal computer are:

◇ Contrast
◇ Brightness
PerfectColor™. The adjustment screen displays without the vertical color bars when used for a computer image,
Auto Position: Press ENTER to automatically center the position of PC video.
◇ HorizPosition (Horizontal Position): Manually adjust the horizontal position of PC video. This selection overrides the Auto Position selection.
◇ VertPosition (Vertical Position): Manually adjust the vertical position of PC video. This selection overrides the Auto Position selection.
◇ Fine Detail: Manually adjust the picture quality of PC video, analog signals only. This selection overrides the Auto Position selection.

5

Operating Other Devices with the Remote Control

Functions Available for Other A/V Devices. 64

Programming the Remote Control 65

Programming Codes 66

Functions Available for Other A/V Devices

The TV's remote control can be programmed to operate other types and brands of A/V products. To use the remote when programmed, set the slide switch to the position labelled for the product type. The functions performed in each switch position can vary depending on the product. Not all functions work for all models. The most common functions available are listed on this page.

CABLE/SAT VCR DVD TV AUDIO Set the remote control's slide switch to the type of device you wish to program for or control.

IMPORTANT

Some manufacturers may change their products or they may use more than one remote control system. The TV's remote control may be unable to operate your A/V equipment in these cases.

VCRs and DVRs

CH ∧ ∨POWERSLEEP(▶FAST FORWARD)(■ PAUSE)▶(PLAY)(● RECORD)(◀ REVERSE)(■ STOP)GUIDE (on DVRs)MENU (on DVRs)0-9 Number Buttons

Mitsubishi VCRs are compatible with some additional buttons.

Cable Boxes and Satellite Receivers

AUDIO (page up)CANCEL (on some models)CH ∧ √ENTER (on some models)GUIDE (on some models)POWER▲ ▼ (on some models)VIDEO (page down)QV (ENTER; for channels on some models)0-9 Number Buttons (on some models)F1-F4 (A, B, C, D keys on some models)The record/playback keys (on some models):▶▶ (FAST FORWARD)(■ PAUSE)▶ (PLAY)(● RECORD)(◀ REVERSE)(■ STOP)

A/V Receivers

MUTEPOWERSLEEPVOLUME0-9 Number ButtonsDirect Input Selection buttons: numbers,FAV and QV (on some Mitsubishi models)

CD Players

(not all functions for all models)
SLEEPFAST FORWARD)PAUSE)(PLAY)(REVERSE)(STOP)0-9 Number Buttons

DVD and Laser Disc Players

(not all functions for all models)
CANCEL (on some models)CH ∧ (on some models)ENTERMENUPOWERSLEEP▲ ▼ (on some models)(▶ FAST FORWARD)(■ PAUSE)(PLAY)(● RECORD)(◀ REVERSE)(■ STOP)0-9 Number Buttons (on some models)

Programming the Remote Control

Method 1: Code Entry

  1. Move the slide switch at the top of the remote to the position for the product you want to control. Refer to the table below. Only one of each device type can be controlled in each slide-switch position.
Switch Position Affected Device
CABLE/SATCable BoxDTV ReceiverSatellite Receiver
VCRVCRDVRLaser Disc PlayerDVD Player/Recorder
DVDDVD Player/RecorderDVRLaser Disc PlayerVCR
AUDIOA/V ReceiverAudio AmplifierCD Player
  1. Press and hold POWER on the remote control for several seconds until the button blinks twice and goes off.
  2. Release the POWER button.
  3. Enter the first five-digit code listed for your equipment.

  4. The POWER button blinks twice when you start to enter the code and then once for each additional keypress.

  5. The POWER button blinks twice when you finish entering a valid code.
  6. Move the slide switch to another position if you need to start over or wish to exit programming mode.

  7. Point the remote control at the equipment and press POWER. If the product has no power on/off function, press a different key, such as ▶ (PLAY), ☐ STOP), VOL ↑ or MUTE.

  8. If the equipment responds, the remote control is properly programmed to operate the equipment.

  9. If the equipment does not respond, repeat steps 2–4 with the next five-digit code listed for your equipment.

IMPORTANT

You may need to reprogram the remote control after changing the batteries.

  1. Once you have found the correct code, write it in the space below for future reference.
Switch PositionDevice Type Code
CABLE/SAT
VCR
DVD
AUDIO

In this method of programming, you step through the remote control's internal code library to find the correct code for your A/V product.

  1. Move the slide switch at the top of the remote control to the correct position for the product. See the table under "Method 1."
  2. Press and hold POWER on the remote control for several seconds until the button blinks twice and goes off.
  3. Press keys 991
  4. Press the number 1, 2, or 3 depending on the slide-switch position and the table below.
Switch Position Number
CABLE/SAT1
DVD, VCR2
AUDIO3
  1. Press CH^ and POWER repeatedly until the product responds by powering on or off. You can press CH^ to move backward through the code library if needed.
    NOTE: If the product has no power on/off function, check for a response using a different function. Press ▶ (PLAY), □ STOP), VOL, or MUTE and then repeatedly press CH ∧ √ to check for a response.
  2. When the product responds, press ENTER to set the code.

Code Verification

To determine the code programmed for any position of the slide switch:

  1. Move the slide switch to the position you wish to verify.
  2. Press and hold POWER on the remote control for several seconds until the button blinks twice and goes off.
  3. Press keys 9 9 0
  4. Press 1 and count the blinks of the power button. Write down the number of blinks as the first digit of the code.
  5. Repeat step 4 for the second, third, fourth, and fifth digits of the code.

Audio Lock: Universal A/V Receiver Control

With Audio Lock active, the remote control operates the volume and mute functions of the A/V receiver in all positions of the slide switch. Activate Audio Lock if you normally use an A/V receiver with your TV and other A/V equipment.

  1. Program the AUDIO position for your A/V receiver as described earlier in this section.
  2. Move the slide switch to the AUDIO position.
  3. Press and hold POWER on the remote control for several seconds until the button blinks twice and goes off.
  4. Press keys 9 9 3 ENTER
    The POWER button will blink twice to indicate Audio Lock is active.

To Reset the Remote Control to Operate Volume and Mute for the TV Speakers

  1. Press and hold POWER for several seconds until the button blinks twice and goes off.
  2. Press keys 9 9 3 VOL^.
    The POWER button will blink four times to indicate Audio Lock has cleared.

Programming Codes

Audio Amplifiers
Brand Code
Acurus 30765
Adcom 31100, 30577
Altec Lansing 31742
Aragon 30765
Bel Canto Design 31583
Bose 30674
Carver 30892
Classe 31462, 31461
Curtis Mathes 30300
Durabrand 31561
Elan30647
GE30078
Harman/Kardon30892
JVC30331
Klipsch30765
Left Coast30892
Lenoxx31561
Lexicon31802
Logitech31408
Marantz30892
Mark Levinson31483
McIntosh30251
Mondial30765
Optimus30823, 30395, 30300
Philips30892
Pioneer30823, 30300, 30257, 30013
Polk Audio 30892
RCA30823, 30300
Realistic30395
Sharp30226
Sony 30815
Soundesign30078
Technics30374, 30372
Toshiba30353
Victor30331
Wards 30078, 30013
Yamaha30354
A/V Receivers
Brand Code
ADC30531
Adcom 31617, 31616
Aiwa31641, 31405, 31388, 31347, 31321, 31243, 30189, 30121
Akai31255
Alco31390
AMC31077
Amplifier Technologies31584
Anam31609, 31074
Apex Digital31774, 31430, 31257
Arcam31189
Atlantic Technology31487
Audiophase31387
Audiotronic 31189
Audiovox 31627, 31390
B & K 30840, 30820, 30701
Bel Canto Design 31584
BK 30702
Bose 31253, 31229, 30639
Brix 31602
Cambridge Soundworks31477
Capetronic 30531
Carver 31289, 31189, 30189, 30121
Coby31263
Curtis30797
Delphi 31414
Denon31360, 31311, 31142, 30121,
Fisher31801, 31409
Fosgate31487
Glory Horse 31263
GPX31299
Harman/Kardon31306, 31304, 31289, 30891, 30189, 30110
Hitachi31801, 31273
Integra31320, 31298, 30135
JBL 31306, 30110
JVC31811, 31643, 31495, 31374, 31282, 31263, 31058
Kenwood31570, 31569, 31313
KLH31428, 31390
Koss31497, 31366
Linn30189
Liquid Video31497
Magnavox31514, 31269, 31189, 30531, 30189
Marantz31289, 31269, 31189, 30200, 30189,
McIntosh 31289
Micromega31189
Mitsubishi31957, 31922, 31921, 31920, 31393, 30176
Myryad31189
Nakamichi31555, 31313, 30097
Onkyo31320, 31298, 30842, 30135
Optimus31074, 31023, 30849, 30797, 30670, 30531
Oritron31497, 31366
Outlaw31487
Panasonic31764, 31763, 31633, 31548, 31518, 31509, 31363, 31350, 31316, 31308, 31288, 30309
Philips31368, 31365, 31283, 31269, 31268, 31266, 31189, 30189
Pioneer31384, 31343, 31023, 30630, 30531, 30150, 30014
Polk Audio31414, 31289, 30189
Proscan31254
RadioShack31263
A/V Receivers
Brand Code
RCA31609, 31511, 31390, 31254, 31074, 31023, 30531
Rio31869
Samsung31500, 31295
Sansui31189, 30189
Sanyo31801
Sharp31386, 31361
Sharper Image31416, 31411, 31410, 31409, 31385, 31263, 30797
Sherwood31077
Sirius31811, 31627, 31602
Sonic Blue31869
Sony 31858, 31759, 31758, 31658, 31622, 31558, 31529, 31503, 31458, 31441, 31406, 31382, 31371, 31367, 31258, 31131, 31058
Soundesign30670
Stereophonics31023
Sunfire31313
Sylvania30797
Teac31528, 31390, 31267, 31074
Technics31633, 31518, 31308, 30309
Thorens31189
Toshiba30135
Venturer31390, 30849
Wards 30189, 30014
XM31414, 31406
Yamaha31375, 31331, 31276, 31176, 30176
CD Players
Brand Code
Aiwa30157
Akai30156
Arcam30157
Audio-Technica30170
Burmester30420
California Audio Labs30303, 30029
Carver 30437, 30299, 30179, 30157
Classic31297
Denon30873, 30034, 30003
DKK30000
DMX Electronics30157
Emerson30305
Fisher31325, 30179, 30174
Garrard30420, 30393
Gemini30625
Genexxa30305, 30032
GPX31296
Harman/Kardon31202, 30173, 30157, 30083
Hitachi30032
Integra30101
JVC31294, 30072
Kenwood30826, 30681, 30626, 30190, 30037, 30028,
KLH 31711, 31373, 31372, 31318
Koss31317
Krell30157
LG31208
Linn30157
LXI30305
Magnavox30305, 30157, 30038
Marantz30626, 30435, 30180, 30157, 30038, 30029
Mark Levinson31484
McIntosh30660, 30290, 30256
MCS30029
MGA30083
Miro30000
Mission30157
Mitsubishi 30098, 30083
MTC30625, 30420
NAD 30299, 30019
Nikko30625, 30174, 30170
NSM30157
Onkyo 31327, 30868, 30102, 30101
Optimus31075, 31063, 30468, 30437, 30420, 30305, 30179, 30145, 30087, 30037, 30032, 30000
Panasonic30752, 30388, 30303, 30029
Parasound30420
Philips 30626, 30274, 30157
Pioneer31087, 31063, 31062, 30551, 30468, 30305, 30032
Polk Audio30157
Proceed30420
Proton30157
QED 30157
Quad30157
Quasar30029
RadioShack 31075
RCA 31062, 30764, 30468, 30420, 30305, 30179, 30053, 30032
Realistic30420, 30180, 30179
Rotel30420, 30157
SAE30157
Sansui30305, 30157
Sanyo30179, 30087
Scott30305
Sears30305
Sharp30861, 30265, 30180, 30037
Sherwood 31067, 30180
Sonic Frontiers30157
Sony31364, 30673, 30605, 30604, 30490, 30185, 30100, 30000
Soundesign30145
Sugden30157
CD Players
Brand Code
Symphonic30305
TAG McLaren30157
Tascam30420
TDK 31208
Teac30420, 30393, 30378, 30180, 30174
Technics30303, 30029
Tivoli Audio31553
Toshiba30299, 30019
Victor30072
Wards 30157, 30053
Yamaha31292, 30888, 30490, 30261, 30187, 30170, 30036,
YBA30625
Yorx 30461
Cable Boxes
Brand Code
ABC 10017, 10014, 10013, 10011, 10008, 10007, 10003, 10001
Allegro 10315, 10153
Americast 10899
Antronix 10207, 10022
Archer 10797, 10207, 10153, 10022
BBT 10267
Belcor 10056
Bell & Howell 10014
Bell South 10899
Cable Star 10056
Cabletenna10022
Cableview 10022
Century10153
Citizen10315, 10153
Clearmaster 10883
ClearMax10883
Colour Voice10031, 10025
Comtronics10040
Contec10019
Coolmax10883
Digeo11187
Digi10637
Director10476
Dumont10637
Eastern10002
Emerson10797
Everquest10040, 10015
Focus10400
Garrard10153
GC Electronics10207, 10056
Gemini10797, 10015
General Instrument10810, 10476, 10276, 10011, 10003
GoldStar10144, 10040
Goodmind 10797
Hamlin 10273, 10259, 10034, 10020, 10009
Hitachi 10011
Hytex10007
i3 Micro11602
Jasco10315, 10153, 10015
Jerrold 10810, 10476, 10276, 10024, 10015, 10014, 10012, 10011, 10003
Linsay10440
Magnavox10027
Memorex10000
Motorola11376, 11254, 11187, 11106, 10810, 10476, 10276, 10014
Movie Time10156, 10063
Multitech10883
Myrio11602
Novaplex10618
NSC10156, 10063
Oak10019, 10007
Optimus10021
Pace11877, 10237, 10008
Panasonic10107, 10021, 10000
Panther10637
Paragon10000
Philips11305, 10317, 10153, 10031, 10027, 10025
Pioneer11877, 10877, 10533, 10144, 10023
Popular Mechanics10400
Pulsar10000
Quasar10000
RadioShack 10883, 10797, 10315, 10015
RCA11256, 10021
Realistic10207
Recoton10400
Regal10279, 10273, 10259, 10020
Regency10002
Rembrandt10011
Runco10000
Samsung10144, 10040
Scientific Atlanta11877, 10877, 10477, 10017, 10008,
Seam10510
Sejin 11602
Signal10040, 10015
Signature10011
SL Marx10040
Sony11006
Sprucer10021
Starcom10015, 10003
Stargate10797, 10040, 10015
Starquest10015
StarSight10422
Supercable10276
Supermax10883
Cable Boxes
Brand Code
Sylvania10001
Tandy10258
TeleCaption10221
Teleview10040
Texscan10001
TFC10310
Thomson11256
Timeless10418, 10040
Tocom10013, 10012
Torx 10003
Toshiba10000
Tristar10883
Tusa10015
TV8610063
Unika10207, 10153, 10022
United Artists10007
Universal10207, 10191, 10153, 10056, 10022,
V210883
Viewmaster10883
Viewstar10258, 10063, 10027
Vision10883
Vortex View10883
Zenith10899, 10525, 10054, 10000
Zentek10400
DVD Players/Recorders
Brand Code
Adcom 21094
Aiwa 20641
Akai 21089, 20770
Alco 20790
Allegro 20869
Amphion Media Works20872
AMW 20872
Apex Digital 21100, 21061, 21056, 21020, 21004, 20797, 20796, 20794, 20755, 20717, 20672
Aspire Digital 21407, 21168
Audiologic 20736
Audiovox21072, 21041, 20790
Axion21072
B & K20662, 20655
Bel Canto Design21571
Blaupunkt20717
Blue Parade20571
Broksonic20695
California Audio Labs20490
CAVS21057
Cinea20831
CineVision20876, 20869, 20833
Citizen21277
Coby21351, 21177, 21165, 21107, 21086, 20852, 20778
Craig20831
Curtis Mathes21087
CyberHome 21129, 21117, 21024, 21023, 20874, 20816
Daewoo21242, 21234, 21172, 21169, 20869, 20833, 20784, 20705
Daytek20872
Denon20634, 20490
Desay21407
Disney21270, 20675
Dual21085, 21068
Durabrand21127
DVD2000 20521
Emerson21268, 20675, 20591
Enterprise20591
Fisher20670
Funai21334, 21268, 20675
Gateway 21158, 21077, GE21073 20815, 20717, 20522
Go Video 21730, 2130421158, 21144, 21099, 21075,21044, 20869, 20833, 20783, 20744, 20741, 20715
Go Vision21072
GoldStar20741
GPX20769, 20699
Gradiente20490
Greenhill20717
Grundig20539
Harman/Kardon20702, 20582
Hitachi20664, 20573
Hiteker20672
iLo21348
Initial20717
Integra20627, 20571
Jaton21078
JBL20702
JSI21423
JVC21275, 21164, 20867, 20623, 20558
jWin21051, 21049
Kawasaki20790
Kenwood 20737, 2068220534, 20490
KLH21149, 21020, 20790, 20717
Konka 20721, 20711
Koss21423, 20896, 20651
Landel20826
Lasonic21173, 20798
Lecson21533
Lenoxx21127
LG20869, 20801, 20741, 20591
LiteOn21440, 21416, 21158, 21058
Loewe20511
Magnavox20675, 20646, 20539, 20503
Malata21159, 20782
Marantz20539
DVD Players/Recorders
Brand Code
McIntosh 21533, 21273
Memorex 21270, 20831, 20695
Microsoft 20522
Mintek 20839, 20717
Mitsubishi 21521, 20521
Momitsu 21082
Myryad 20894
NAD 20741, 20692, 20591
Nakamichi 21222
NEC 20785
Nesa 20717
Next Base20826
NexxTech21402
Norcent21265, 21107, 21003, 20872
Onkyo20792, 20627, 20503
OptoMedia Electronics20896
Oritron20651
Panasonic21762, 20703, 20632, 20503, 20490
Philips21354, 21267, 20675, 20646, 20539, 20503,
PianoDisc21024
Pioneer21571, 20632, 20631, 20571, 20525
Polaroid21086, 21061, 21020
Polk Audio20539
Portland20770
Princeton20674
Proceed20672
Proscan20522
ProVision 20778
Qwestar20651
RCA 20822, 20790, 20717, 20571, 20522
Rio20869
RJTech 21360
Rotel 21178, 20623
Rowa20823
Sampo20752, 20698
Samsung 21075, 21044, 20820, 20744, 20573, 20490
Sansui20695
Sanyo20873, 20695, 20670
Sensory Science21158
Sharp21256, 20752, 20675, 20630
Sharper Image21117
Sherwood 21077, 21043, 20770, 20633
Shinsonic20839, 20533
Sigma Designs20674
Sonic Blue21099, 20869
Sony21533, 21431, 21033, 20864, 20533
Sungale21074
SVA21105, 20860
Sylvania21268, 20675
Symphonic21268, 20675
TAG McLaren20894
Teac20809, 20790
Technics20703, 20490
Technosonic20730
Techwood 20692
Terapin21031
Theta Digital20571
Toshiba21154, 20695, 20503
Tredex20804, 20803, 20800, 20799
Urban Concepts20503
US Logic20839
Venturer20790
Vizio21226, 21064
Vocopro21027
Xbox20522
Xwave 21001
Yamaha20545, 20539, 20490
Yamakawa20872
Zenith20869, 20741, 20591, 20503
Zoece21265
Laser Disc Players
Brand Code
Aiwa 20203
Carver 20323, 20194, 20064
Denon 20243, 20241, 20172, 20059
Disco Vision 20023
Funai 20203
Harman/Kardon 20194
Hitachi 20023
Kenwood 20258
Magnavox 20243, 20241, 20217, 20194
Marantz20194, 20064
Mitsubishi20059
NAD20059
Optimus20059
Panasonic20204
Philips 20194,20064
Pioneer20059, 20023
Polk Audio20194
Quasar20204
Realistic20203
Samsung 20323
Sega20023
Sony20270, 20201, 20193
Technics20204
Theta Digital20194
Yamaha20451, 20217
Satellite Receivers
Brand Code
AlphaStar10772
Chaparral10216
Crossdigital11109
Satellite Receivers
Brand Code
DirecTV11856, 11749, 11640, 11639, 11609, 11444, 11443, 11442, 11414, 11392, 11377, 11142, 11109, 11108, 11076, 10819, 10749, 10724, 10639, 10566, 10392, 10247, 10099
Dish Network System11775, 11505, 11170, 11005, 10775,
Dishpro11775, 11505, 11005, 10775
Echostar11775, 11505, 11170, 11005, 10775
Expressvu11775, 10775
GE10566, 10392
General Instrument10869
GOI11775, 10775
Goodmans11246
Hisense11535
Hitachi 11250, 10819
HTS11775, 10775
Hughes Network Systems11749, 11444, 11443, 11442, 11142, 10749
iLo11535
Jerrold 10869
JVC11775, 11170, 10775
LG11414, 11226
Magnavox 10724, 10722
Memorex 10724
Mitsubishi10749
Motorola10869, 10856
NEC11270
Next Level10869
Panasonic10701, 10247
Paysat10724
Philips11749, 11442, 11142, 11076, 10819, 10749, 10724, 10722, 10099
Pioneer11442
Proscan10566, 10392
Proton 11535
RadioShack10869
RCA11392, 10855, 10566, 10392, 10143,
Samsung 11609, 11442, 11377, 11276, 11142, 11109, 11108
Sanyo11219
Sony11640, 11639, 10639
Star Choice10869
Tivo11444, 11443, 11442, 11142
Toshiba11749, 11285, 10819, 10790, 10749
UltimateTV11640, 11392
Uniden10724, 10722
US Digital11535
USDTV11535
Voom10869
Zenith11856
VCRs and DVRs
Brand Code
ABS21972
Admiral20479, 20209, 20048
Adventura20000
Aiko20278
Aiwa 20307, 20124, 20037, 20000
Akai20242, 20175, 20106, 20061, 20041
Alienware21972
America Action20278
American High20035
Asha20240
Audiovox20278, 20037
Beaumark20240
Bell & Howell20104
Broksonic20479, 20295, 20209, 20184, 20121, 20002
Calix20037
Canon20035
Capehart20020
Carver20081
CCE20278, 20072
Citizen20278, 20037
Colt20072
Craig20271, 20240, 20072, 20047, 20037
Curtis Mathes20760, 20162, 20060, 20041, 20035
Cybernex20240
CyberPower21972
Daewoo20637, 20561, 20278, 20045, 20020
Daytron20020
Dell21972
Denon20042
DirecTV20739
Durabrand20039, 20038
Dynatech20000
Electrohome20043, 20037
Electrophonic20037
Emerex20032
Emerson21593, 20637, 20593, 20561, 20479, 20295, 20278, 20212, 20209, 20208, 20184, 20121, 20068, 20061, 20043, 20037, 20036, 20002, 20000
Fisher20104, 20066, 20054, 20047
Fuji20035, 20033
Funai21593, 20593, 20000
Garrard20000
Gateway21972
GE 20761, 20760, 20240, 20202, 20060, 20035
Go Video20643, 20526, 20432, 20240
GoldStar20038, 20037
Gradiente20000
VCRs and DVRs
Brand Code
Harley Davidson 20000
Harman/Kardon 20081,20075, 20038
Harwood 20072, 20068
Headquarter 20046
Hewlett Packard 21972
HI-Q 20047
Hitachi 20105, 20089,20042, 20041,20000
Howard Computers 21972
HP 21972
Hughes Network Systems20739, 20042
Humax 20739
Hush21972
iBUYPOWER21972
Jensen 20041
JVC21162, 20067, 20041, 20008
KEC20278, 20037
Kenwood20067, 20041, 20038
KLH20072
Kodak 20037, 20035
LG21037
Linksys21972
Lloyd's 20208, 20000
Logik20072
LXI20037
Magnasonic20593
Magnavox20593, 20563, 20149, 20110,20081, 20039, 20035, 20000
Magnin20240
Marantz20081, 20035
Marta20037
Matsushita21162, 20162, 20035
Media Center PC21972
MEI20035
Memorex21262, 21162, 21037, 20479,20307, 20240, 20209, 20162,20104, 20048, 20047, 20046,20039, 20037, 20035, 20000
MGA20240, 20061, 20043
MGN Technology20240
Microsoft21972
Mind21972
Minolta20105, 20042
Mitsubishi20443, 20242, 20214, 20173,20075, 20067, 20061, 20043
Motorola20048, 20035
MTC 20240, 20000
Multitech 20072, 20000
NEC20104, 20067, 20041, 20040,20038
Nikko20037
Nikon20034
Niveus Media21972
Noblex 20240
Northgate21972
Olympus20035
Onkyo20222
Optimus 21262, 21162,21062, 21048,20593, 20432, 20162, 20104,20048, 20037
Optonica 20062
Orion 20479, 20295, 20209, 20184,20002
Panasonic 21262, 21162,21062, 20616,20225, 20162, 20077, 20035
Penney 20240, 20054,20042, 20040,20038, 20037, 20035
Pentax 20105, 20042
Philco 20035
Philips 21181, 21081, 2020739, 20618,20110, 20081, 20062, 20035
Pilot20037
Pioneer20067
Polk Audio20081
Portland 20020
Profitronic20240
Proscan20761, 20760, 20202, 20060
Protec 20072
Pulsar20039
Quarter20046
Quartz20046
Quasar21162, 20162, 20077, 20035
RadioShack21037, 20000
Radix20037
Randex20037
RCA20880, 20761, 20760, 20240,20202, 20149, 20106, 20105,20077, 20060, 20042
Realistic 20104, 20066,20062, 20048,20047, 20046, 20037, 20035,20000
ReplayTV20616, 20614
Ricavision21972
Ricoh20034
Runco20039
Salora 20075
Samsung20739, 20240, 20045
Samtron 20643
Sanky20048, 20039
Sansui20479, 20271, 20209, 20067,20041, 20000
Sanyo20240, 20159, 20104, 20047,20046
Scott20212, 20210, 20184, 20121,20045, 20043
Sears20105, 20104, 20066, 20054,20047, 20046, 20042, 20037,20035, 20000
Sharp20848, 20062, 20048
Shintom20072
Shogun20240
VCRs and DVRs
Brand Code
Singer20072
Sonic Blue20616, 20614
Sony21972, 21032, 20636, 20035, 20034, 20033, 20032, 20000
Stack 921972
STS20042
Sylvania21593, 20593, 20110, 20081, 20043, 20035, 20000
Symphonic21593, 20593, 20000
Systemax21972
Tagar Systems21972
Tatung20041
Teac20041, 20000
Technics20162, 20035
Teknika20037, 20035, 20000
Thomas20000
Tivo21503, 20739, 20636, 20618
TMK20240, 20208, 20036
Toshiba21972, 21503, 21008, 20212, 20210, 20209, 20066, 20045, 20043
Totevision20240, 20037
Touch21972
Unitech20240
Vector20045
Vector Research20040, 20038
Video Concepts20061, 20045, 20040
Videomagic20037
Videosonic20240
Viewsonic21972
Villain20000
Voodoo21972
Wards20760, 20240, 20212, 20149, 20081, 20072, 20062, 20060, 20048, 20047, 20042, 20035, 20000
White Westinghouse20637, 20209, 20072
XR-1000 20072, 2003520000
Yamaha20038
Zenith21139, 20637, 20479, 20209, 20039, 20034, 20033, 20000
ZT Group21972

MITSUBISHI LT-37131 - To Reset the Remote Control to Operate Volume and Mute for the TV Speakers - 1

Using the TV with a Personal Computer

Setup 76

Video Adjustments 76

Connecting a Computer to the TV 77

Adjusting Image Resolution 79

Computer Display Formats 80

Setup

  1. See the TV specifications in Appendix B to confirm that your computer video signal is compatible with the TV.
  2. Note whether the computer supplies a digital or analog video signal. You will need this information during the setup procedure.

- Digital video signal: Comes from the computer's DVI or HDMI output.

- Analog video signal: Comes from the computer's VGA 15-pin output and requires a VGA-to-DVI cable or a VGA cable and VGA/DVI adapter.

  1. Power on the TV.

IMPORTANT

In the next step, select the correct video signal type (analog or digital) in the Input Name menu. Otherwise, the TV will be unable to display a picture from the computer.

  1. Press MENU to open the Main menu, highlight the Input Name icon and press ENTER.
  2. Highlight the PC-DVI text box and press ▼ change the setting to match your computer's video signal type, either Digital or Analog.

Setup Input Name Icon Frontal Lock AudioVideo Digital PC DVI VCR Input-2 Cam Input-1 Input-2 Input- Name can not be changed for an in To change the name, first watch and Press ▲ to channel the name for Input- Digital HDMI-2 PC DVI

Figure 1. Specify your computer's video signal type (analog or digital) in the Input Name menu.

  1. Press EXIT to close all menus.
  2. Connect the computer's video output to the TV's PC-DVI jack. See the connection diagrams in this chapter to find the method best suited to your equipment.
  3. Connect the computer's audio output using one of these options:

  4. Connect analog left/right audio to the TV's PC -DVI AUDIO jack.

  5. If your computer offers digital audio output, connect it to a digital A/V receiver instead.

IMPORTANT

See Appendix B for signal compatibility.

Video Adjustments

  1. Power on the computer if it is not already on.
  2. Select PC from the Input Selection menu. To do this, press INPUT to open the Input Selection menu, move the highlight to the PC icon, and press ENTER.
  3. Change the resolution of the computer image. The goal is to maximize the computer resolution while maintaining a suitable aspect ratio for the image. See the explanation later in this chapter.
  4. Perform TV video adjustments. Press VIDEO repeatedly to cycle through the video-adjustment options. The following additional adjustments are available for computer video:

Auto Position. Press ENTER to automatically center the position of the PC video.

HorizPosition (Horizontal Position). Manually adjust the horizontal position of the PC. This selection overrides the Auto Position selection.

VertPosition (Vertical Position). Manually adjust the vertical position of the PC. This selection overrides the Auto Position selection.

Fine Detail (analog DVI-A signals only). Manually adjust the picture quality of the PC. This selection overrides the Auto Position selection.

  1. Change the TV picture format to suit the image. Press FORMAT to cycle through the available picture formats. See the chart later in this chapter showing how various computer resolutions are displayed on the TV.

To Remove the Computer Icon from the Input Selection Menu

When you disconnect an analog video connection from a personal computer, the computer icon remains in the Input Selection menu until you remove it.

  1. In the Input Name menu, highlight the PC DVI Input box.
  2. Press to select Digital.
  3. Press EXIT to close all menus.

The next time you open the Input Selection menu, the computer icon will no longer appear.

Note

  • The PC-DVI input on the TV can accept either analog (DVI-A) or digital (DVI-D) signals.
  • You must specify the PC-DVI setting in the Input Name menu as either Analog or Digital, depending on the signal type sent by your computer.
  • If your computer offers digital audio output, you can connect your computer's digital audio out to a digital input on a digital A/V receiver.

Connecting a Computer to the TV

Computer with DVI Monitor Output

Required: DVI-to-DVI cable, stereo audio cables

If the computer's audio output is a single mini jack, a mini audio-to-RCA-male "Y" adapter cable is also required.

  1. Connect the DVI-to-DVI cable from the computer DVI output to the PC-DVI jack on the TV back panel.
  2. Connect the left (white) and right (red) audio cables from AUDIO OUT on the PC back panel to PC-DVI AUDIO on the TV back panel.

MITSUBISHI LT-37131 - Computer with DVI Monitor Output - 1

Figure 2. Connecting a personal computer with DVI Monitor Output

Computer with HDMI Monitor Output

Required: HDMI-to-DVI cable or an HDMI cable with an HDMI/DVI adapter, stereo audio cables

If the computer's audio output is a single mini jack, a mini audio-to-RCA-male "Y" adapter cable is also required.

  1. Connect the computer's HDMI output to the TV's PC-DVI jack. Use either an HDMI-to-DVI cable or an HDMI cable with an HDMI/DVI adapter.
  2. Connect the left (white) and right (red) audio cables from the computer's AUDIO OUT to PC-DVI AUDIO on the TV back panel.

TV Back Panel 1 1. PC-DVI HDMI HDMI HDMI COMPUTER NPS/PI 40Hz/8Hz 72pV/9Hz MONITOR OUTPUT HDMI-to-DVI Cable HDMI HDMI HDMI OUTPUT HDMI AUDIO OUT 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. HDMI-to-DVI Cable Personal Computer with HDMI Output OUTPUT AUDIO OUT

Figure 3. Connecting a personal computer with an HDMI monitor output

Connecting a Computer to the TV, continued

Computer with VGA 15-Pin Monitor Output (Analog Video)

Required: 15-pin computer VGA-to-DVI cable or a VGA computer cable and a DVI/VGA adapter, stereo audio cable.

If the computer's audio output is a single mini jack, a mini audio-to-RCA-male "Y" adapter cable is also required.

IMPORTANT

To use this connection, you must first select the Analog setting in the PC DVI box of the Input Name menu. See the "Setup" section for more.

  1. Connect the computer's PC MONITOR OUT to PC-DVI on the TV back panel. Use either a VGA-to-DVI monitor cable or a VGA computer cable with a VGA/DVI adapter.
  2. Connect the left (white) and right (red) audio cables from the computer's analog audio output to PC-DVI AUDIO on the TV back panel.

TV Back Panel 1 PC-DVI HOMI HOMI AudiO COMPONENTS INPUTS 400V/100V 725V/100V MONITOR OUTPUT HEAD HOOD L L L L VGA-to-DVI Cable Personal Computer with VGA Monitor Output PC MONITOR OUT AUDIO OUT

Figure 4. Connecting a computer with a VGA 15-pin monitor output.

Adjusting Image Resolution

Your Mitsubishi TV can display resolutions from standard VGA (640 x 480) through 1920 x 1080 signals at a refresh rate of 60 Hz. Note that 1280 x 1024 and 1920 x 1080 signals are supported only for digital computer signals, and 1920 x 1080 at 24, 30, and 60 Hz. See Appendix B in this book for more on compatible screen resolutions.

In most cases, the computer will select the best resolution match to display on the TV. You can override this setting if you wish. The instructions below are for setting the resolution on most personal computers.

  1. In the PC's Start menu, select Settings.
  2. Select Control Panel.
  3. Select Display.
  4. Choose the Settings tab.
  5. Change the resolution to the highest resolution with the aspect ratio best suited for the image. See the table on the next page showing possible PC formats. Depending on your computer's operating system, adjust the resolution with either:
    • the Screen area slider.
    • the Screen Resolution slider

  6. To change the refresh rate, click on the Advanced button.

  7. On the Monitor tab, select a setting from the Screen refresh rate drop-down list. The resolution of 1920 x 1080 is supported at 24, 30, and 60 Hz; other resolutions are supported at 60 Hz.

You may need to restart the computer for this change to take effect.

NOTE: Whenever the TV is powered on, the lamp is in use, even if the TV screen appears dark. As a reminder that the TV is powered on and that time is being added to the lamp's elapsed hours, set the computer's screen saver to a pattern that will display after several minutes of inactivity.

Control Panel File Edit View Favorites Tools Help Back Forward Search Folders Address Control Panel New Office Document Open Office Document Windows Update Programs Documents Settings Search Help Run... Shut Down... 1. 2. 3. Display Properties Background Screen Saver Appearance Web Effects Settings Accessibility Options Add/Remove Hardware New desktop display and user Update 2000 Support Date/Time Display Internet Options Keyboard Control Panel Network and Dial-up Connections Printers Taskbar Start Menu... Our desktop display and screen saver Display: Plug and Play Monitor on NVIDIA GeForce2 MX/MX 400 Colors High Color (16 bit) Screen area Less More 1024 by 768 pixels Troubleshoot Advanced... Color Management Quadro NVS 280 PCI-E General Adapter Monitor Troubleshoot Monitor type Properties Monitor settings screen refresh rate: 60 Hertz Figure 5. Computer resolution, XGA selection

Computer Display Formats

Repeatedly press the FORMAT key to cycle through the TV displays available for your computer's video signal.

Computer Signal As Displayed on TV Screen
Format 16 X 9 Standard 4 X 3 Standard Zoom
VGA640 X 480MITSUBISHI LT-37131 - Computer Display Formats - 1MITSUBISHI LT-37131 - Computer Display Formats - 2MITSUBISHI LT-37131 - Computer Display Formats - 3MITSUBISHI LT-37131 - Computer Display Formats - 4
WVG/848 X 4MITSUBISHI LT-37131 - Computer Display Formats - 5MITSUBISHI LT-37131 - Computer Display Formats - 6MITSUBISHI LT-37131 - Computer Display Formats - 7MITSUBISHI LT-37131 - Computer Display Formats - 8
SVGA800 X 600MITSUBISHI LT-37131 - Computer Display Formats - 9MITSUBISHI LT-37131 - Computer Display Formats - 10MITSUBISHI LT-37131 - Computer Display Formats - 11MITSUBISHI LT-37131 - Computer Display Formats - 12
WSVGA1064 X 600MITSUBISHI LT-37131 - Computer Display Formats - 13MITSUBISHI LT-37131 - Computer Display Formats - 14MITSUBISHI LT-37131 - Computer Display Formats - 15MITSUBISHI LT-37131 - Computer Display Formats - 16
XGA1024 X 768MITSUBISHI LT-37131 - Computer Display Formats - 17MITSUBISHI LT-37131 - Computer Display Formats - 18MITSUBISHI LT-37131 - Computer Display Formats - 19
PC 720p1280 X 720MITSUBISHI LT-37131 - Computer Display Formats - 20MITSUBISHI LT-37131 - Computer Display Formats - 21MITSUBISHI LT-37131 - Computer Display Formats - 22
WXGA1365 X 768MITSUBISHI LT-37131 - Computer Display Formats - 23MITSUBISHI LT-37131 - Computer Display Formats - 24MITSUBISHI LT-37131 - Computer Display Formats - 25
SXGA1280 X 1024(DVI-D signals only)MITSUBISHI LT-37131 - Computer Display Formats - 26MITSUBISHI LT-37131 - Computer Display Formats - 27MITSUBISHI LT-37131 - Computer Display Formats - 28

Format Reduced Standard

PC 1080p1920 X 1080(DVI-D signals only)MITSUBISHI LT-37131 - Computer Display Formats - 29MITSUBISHI LT-37131 - Computer Display Formats - 30MITSUBISHI LT-37131 - Computer Display Formats - 31

MITSUBISHI LT-37131 - Computer Display Formats - 32

Using IEEE 1394 Devices

Overview....82

Recording to IEEE 1394 Recordable Devices ....84

The TV Remote Control and IEEE 1394 Devices 86

A/V Discs. 87

Switching Between Analog and Digital IEEE 1394 Outputs .....88

Overview

Compatible IEEE 1394 Devices

Compatible A/V devices include some, but not all, cable boxes, D-VHS VCRs, A/V discs, and future products. Some devices may have IEEE 1394 connectors but are not compatible with the TV. Areas of compatibility to consider are:

1. Digital Video Signals

The TV can decode MPEG2 video as provided by cable boxes and some camcorders. Many camcorders provide DV video, which the TV cannot decode. Connect a DV camcorder to the TV using analog audio plus composite video, S-video, or component video, or use HDMI audio/video. Other types of digital video, such as PC video provided by some computers, must be decoded by the source device and sent to the TV as analog video, S-video, or DVI/HDMI video.

2. Digital Audio Signals

When received with video signals, the TV can decode Dolby Digital signals and MPEG audio signals. Other types of digital audio as provided by some digital recording devices, such as DTS audio, cannot be decoded by the TV when received over IEEE 1394 connections.

The TV may not be able to pass incompatible digital audio signals on the coaxial digital audio output. These signals may pass to other devices, however, on the IEEE 1394 cable.

3. Digital Control Signal

The TV can serve as the control center for IEEE 1394 audio/video devices, such as VCRs, A/V Discs, tuners, cable boxes, and amplifiers that are compatible with the following IEEE 1394 control standards.

  • EIA-775. Designed for tuning devices such as cable boxes, allowing the device to send simple graphics. This standard does not, however, allow the TV to control the cable box by IEEE 1394.
  • AV/C (Audio Video Control). Designed to provide basic controls such as play, stop, channel selection, and volume, as appropriate for the device.

Four-Pin and 6-Pin Connections

There are two different types of connectors used for IEEE 1394 terminals and cables: a 4-pin and a 6-pin type. Both types send the same digital audio, video, and control signals, but the 6-pin connectors can also supply low-voltage electrical power to connected devices. This TV uses only 4-pin type connectors.

A 6-pin connector cannot be connected directly to a 4-pin jack, and vice versa. To connect a 6-pin device to a 4-pin device, use a 6-pin-to-4-pin adapter or adapter cable. These cables are available from electronics and computer stores.

MITSUBISHI LT-37131 - Four-Pin and 6-Pin Connections - 1

natural_image Four different types of USB connectors shown in black, gray, and white (no text or symbols visible)

4-pin connector 6-pin connector
6-pin-to-4-pin adapter

If you wish to connect a 6-pin device to the TV (such as a camcorder), and the device is designed to receive electrical power from another 6-pin device, there are several ways to provide electrical power to the device:

  • Connect the camcorder directly to the household AC.
  • Use the camcorder's battery for power.
  • Connect the camcorder directly to another 6-pin device in the network that can provide power.

Connection Methods

There are two connection methods for IEEE 1394 devices. Use the method that fits your network of audio/video products.

Direct Device-To-Device Method

The IEEE 1394 interface allows you to chain devices, unlike audio and video connections that require you to connect each individual device directly to the TV. For example, you can connect your D-VHS to your 1394 A/V disc and then connect the 1394 A/V disc to the TV. The resulting IEEE 1394 chain allows you to add more devices to the chain. You will see an icon for each device in the TV's Input Selection menu and can also send information from any IEEE 1394 device to other compatible devices.

TV A/V Disc Digital VCR

Hub Connection Method

The IEEE 1394 standard allows you to use the TV as a hub within the audio/video network. Each device can send information, which may include audio and video, to any other device in the network.

MITSUBISHI LT-37131 - Hub Connection Method - 1

Overview, continued

Tips for Connecting IEEE 1394 Devices

TV Digital DVD Digital VCR

  • Do not loop the last device in the chain back to the TV. When the device chain is looped, the TV may not be able to work with the other devices.
  • Place devices that have only a mechanical (two-position) power switch at the end of the chain or leave the power switch in the on position. When turned off, IEEE 1394 signals may not be able to pass through the device to other devices.
  • Place devices with the slowest communication speed at the end of the chain. Sometimes the communication speed is marked near the IEEE 1394 connector with an "S" number. The higher the number, the faster the communication speed. This TV has a communication speed of s400. Devices with slow communication speeds can interfere with IEEE 1394 signals from faster devices. When setting up a digital recording between a faster device and a slower device, make the slower device the source and make the faster device the recorder.
  • Use IEEE 1394 cables 15 feet or less in length between devices.
  • This TV is an IEEE 1394a device. It can be used with an IEEE 1394b system when an IEEE-1394a-to-1394b convertor is used. 1394b systems are capable of greater distances and multi-room applications.
  • The TV can recognize a maximum of seven IEEE 1394 devices.

IEEE 1394 Devices and the Input Selection Menu

Select an IEEE 1394 device to watch from the Input Selection menu just as you would any other device. See figure 3, Input Selection menu.

When you connect an IEEE 1394 device to the TV network and power it on, the new device is automatically detected. Some non-audio/video or incompatible IEEE 1394 devices, such as personal computers (PCs), may not be detected by the TV and do not appear in the Input Selection menu. Such devices can, however, coexist and are still available to other devices on the IEEE 1394 network that are compatible with these non-audio/video devices.

Some devices may be a combination of two or more types of devices, such as a recording device that is also a tuning device. Each portion of the device is called a sub-unit. When you select a device on the Input Selection menu

that has sub-units, a pop-up menu will appear to allow you to select the sub-unit you wish to use.

IEEE 1394 Amplifiers

You can use the TV to control switching between the TV speakers and speakers connected to your IEEE 1394 amplifier.

  1. Press INPUT to open the Input Selection menu. The screen will show an icon for a connected IEEE 1394 amplifier. If an IEEE 1394 amplifier has been connected, AVR and TV speaker icons will display.
  2. Press AUDIO to move the highlight to the audio section.
  3. Press ◀▶ to select either the TV speakers or the IEEE 1394 amplifier.
  4. Press ENTER to select and hear the new audio source.

IEEE 1394 Camcorders

  • Control Functions. Connect the camcorder to the TV's IEEE 1394 jack on the rear of the TV and test using the TV's remote control to operate the camcorder. If your model does not operate properly, use the camcorder's control buttons instead.
  • MPEG Camcorder. If you are unable to play back over the IEEE 1394 interface, use the analog audio/video connections described in chapter 2, "TV Connections."
  • DV Camcorder. Connect the camcorder using the analog audio and video connections described in chapter 2, "TV Connections."

You can connect an IEEE 1394 camcorder with an IEEE 1394 cable or with analog audio/video cables. In either case, test using the TV's remote control to operate the camcorder over the IEEE 1394 cable.

TV Side Panel IEEE 15M INPUT OUTPUT CANADA™ USB/INT Media/4

Recording to IEEE 1394 Recordable Devices

You can use the TV to control recording to IEEE 1394 devices. While recording, you can view a program on a different input or power off the TV. The following table lets you see what signals can be recorded to an IEEE 1394 digital VCR or A/V disc.

Recording AvailabilitySignal Type TV Input
Can be recordedDigital channels, including high-definition channelsANT 1, ANT 2
Digital signals, including high-definition signalsIEEE 1394 devices
Cannot be recordedAnalog channelsANT 1, ANT 2
Analog signalsINPUT 1-3, COMPONENT 1 and 2
Digital signalsHDMI 1 and 2, PC-DVI

Summary of signal inputs and recording to an IEEE 1394 digital VCR or A/V disc.

There are two ways to record digital content to an IEEE 1394 recordable A/V disc or DVCR:

• From the TV's Recording Setup menu
- From the TV's ChannelView™ channel guide

Immediate Recording from the Recording Setup Menu

Recording Now from the Menu

  1. Press (● RECORD) to open the Recording Setup menu.

Ant-1 Channel Record To Duration Start Time Day 2-1 AV DISC 1 hour 12:00 pm Monday Add To record the current program, press RECORD again. To record later, select settings using ADJUST, highlight Add, and press ENTER. For a list of all recordings, press GUIDE key. Only digital channels can be recorded.

Figure 1. The Recording Setup menu

  1. Review the recording setup information. Move the highlight to each box you need to change.

  2. With the leftmost icon highlighted (the source), press ▲ to change the source input if needed.

  3. Channel. If the source is an antenna, select a memorized digital channel using ▲▼, CH ↗, or enter the channel number from the remote control.
  4. Record To. If you have more than one recordable IEEE 1394 device connected, use ▲ to select it from the list in the Record To box.

- Duration. Use ▲o▼select a recording duration of from 30 minutes to six hours in 30-minute increments. The default is one hour.

  1. Press ● a second time to start recording.

Time-Delayed Recording from the Menu

  1. Ensure that TV Energy Mode is set to Fast Power On and the TV clock is set to the correct time and day. See "Setup Menu" to make changes.
  2. Press (RECORD) to open the Recording Setup menu.
  3. Review the recording setup information. To change the source, recording device, or duration, follow the steps described above under "Recording Now."

  4. Specify when to start the recording.

  5. Start Time
    a. With the hour highlighted in gold characters, press ▲▼ select the hour, including AM or PM. Press ENTER to move the highlight to the minutes.
    b. With the minutes highlighted, press ▲to select the minutes.

• Day. Use ▲to select a day of the week.

  1. Select Add and press ENTER to add the recording to the Record List. A confirmation message will be displayed if your selection is successful. If you pick overlapping times, day(s), or destination devices, you will see a message stating there is a conflict.
  2. While the Recording Setup menu is displayed, press GUIDE to view a list of scheduled recordings and verify the addition of the recording to the Record List, figure 2.
  3. From the Record List you can:

- Press GUIDE to return to the Recording Setup menu.

- Press EXIT to return to TV viewing,

MITSUBISHI LT-37131 - Time-Delayed Recording from the Menu - 1

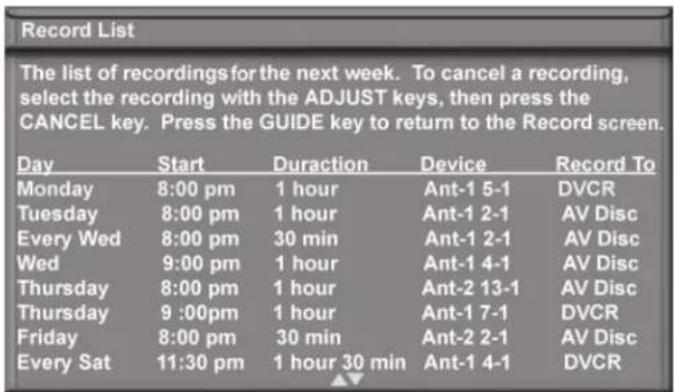

Figure 2. Record List screen. From the Record menu, press GUIDE to open the Record List to review or cancel scheduled recordings.

Recording to IEEE 1394 Recordable Devices, continued

Recording from the ChannelView™ Channel Guide

ChannelView provides program listings, as sent by the broadcasters, for memorized channels on ANT 1 and ANT 2. Press the GUIDE key while watching ANT 1 or ANT 2 to view ChannelView listings and to set up immediate or future recordings as described here.

Immediate Recording from ChannelView

  1. Press INPUT to open the Input Selection menu. Highlight an ANT 1 or ANT 2 program source and press ENTER.
  2. Press GUIDE to open the ChannelView channel guide for the current input.
  3. Use ▲to highlight the digital channel and program you wish to record from the list of channels.
  4. Press (●) RECORD). A red "R" temporarily displays next to the program listing to indicate the program will be recorded.
  5. Press EXIT to return to TV viewing.

Time-Delayed Recording from ChannelView Set Up the Recording

  1. Ensure that TV Energy Mode is set to Fast Power On and the TV clock is set to the correct time and day. See "Setup Menu" in chapter 4, "TV Menu Settings."
  2. Perform steps 1 and 2 described above.
    3 Press ▲ highlight the source channel you wish to record from.
  3. Press to view a list of future programs on that channel.
  4. Press ▲to highlight a future program.
  5. Press (●) RECORD). A red "R" temporarily displays next to the program listing to indicate the program will be recorded. You can schedule a maximum of 32 recordings.
  6. Press EXIT to close the menu.

Confirm the Recording Setup

  1. Press ☐ (RECORD) to open the Record menu.
  2. Press GUIDE to open the Record List (figure 2, on the previous page) and view all scheduled recordings. Press CH ↗ to page quickly through the list.
  3. Verify that the program you wish to record appears in the list.
  4. Press EXIT to close the menu.

Cancelling Recordings

To Cancel a Recording in Progress

  1. Press INPUT to open the Input Selection menu.
  2. Move the highlight to the source input icon. There is no need to press ENTER.
    The Input Selection menu displays an icon for an active recording connection to a recordable IEEE 1394 device. See the IEEE 1394 connection icon in figure 3.
  3. Press CANCEL. The connection icon will disappear to indicate termination of the recording connection.
  4. Press EXIT to return to TV viewing.

Connect 1394 AV DISC Connection Icon Video Connect TV AV DISC Device AV 1 AV 2 CAMERID GAME DVD VCR HD DISC DVR DVOR AV DISC

Figure 3. The Input Selection menu displays specialized icons for IEEE 1394 devices.

The audio icons are displayed (in the upper right corner) only when an IEEE 1394 amplifier is connected.

To Cancel a Scheduled Recording

  1. Press (● RECORD) to open the Record menu.
  2. Press GUIDE to open the Record List (figure 2) and view all scheduled recordings. Press CH ↗ page quickly through the list.
  3. Highlight the program you wish to remove from the Record List and press CANCEL.
  4. Press EXIT to close the menu.

The TV Remote Control and IEEE 1394 Devices

If the 1394 cable box or satellite receiver provides guide information for 1394 content:

  • For compatible satellite receivers and some cable boxes, the TV remote control GUIDE key displays the on-screen programming guide for the receiver or cable box. Press ▲▼◀n▲ ENTER to navigate the displayed program guide.
  • For satellite receivers, you may also be able to use the numbers or other additional buttons.
  • For an IEEE 1394 cable box or satellite receiver, you can also try using the CABLE/SAT position of the TV remote control to see if it can operate the device. If not, use the remote control that came with the device.

To Power On or Off a Compatible IEEE 1394 Device

  1. Press INPUT to open the Input Selection menu.
  2. Move the highlight to the icon for the device. There is no need to press ENTER.
  3. Press POWER.
  4. Press EXIT to return to TV viewing.

Or: press ENTER to switch to the highlighted device.

Operation of IEEE 1394 Devices with the TV's Remote Control
(slide switch set to TV position)

Device →CABLE/SAT A/VDISC DVCRAMPLIFIER(some MPEG2 models only)
Remote Control Key
POWERPower the device on/off when highlighted in the Input selection menu. See the instructions above.
CH ∧ √Channel up/downPage up/down(when track list is displayed)Index search forward/reverse(if supported by DVCR)
VOL ∧ √Volume Up/Down
MUTEMute On/Off
0-9 (DIGITS)Number functionsSearch by time(when followed by ENTER)
QVLast Channel Recall
EXITExit menus/displaysExit menus/displays Exit menus/displays
ENTEREnter or select Enter or selectEnter or select
CANCELCancel functionDelete recording from Track ListCancel function or counter reset
GUIDEDigital-channel guide(may need to press twice)Display Track List.
▲▼◀▶Up/down/left/rightSkip Forward 30 seconds during playbackSkip Backwards 12 seconds during playbackSkip to end or beginning of program Up/down in track listUp/down/left/right
playPlayPlay
STOPStopStop
● RECORDRecordRecord
REVReverse picture scan or Slow PlayReverse or Slow Play
FFWDFast picture scan or Fast PlayFast Play
II PAUSEPausePause

A/V Discs

A/V Disc Track List Screen

When viewing an A/V Disc:

  • Press GUIDE to display its Track List (see figure below).
  • Press ▲ or ▼ to navigate through the Track List.
    • To play a track, select it on the list, then press ENTER.
  • Press INFO to view details for a highlighted track.
    • To move through listings quickly, press PAGE ✗ √
  • To delete a track, highlight it and press CANCEL.

Track List for AV DISC Free Disk Space: 11G Channel Station Date Time Program Watched 62 KNBC-DT Su 7/25 8:00 pm West Wing N 45 min 6G COPY FREE 02.01 KCBS-DT Su 8/08 5:30 pm CBS Local News N 04.01 KNBC-DT M 8/09 5:30 pm NBC Evening News Y 7 M 8/09 8:00 pm N 1104 KNBC-DT W 8/11 8:30 pm NBC Evening News N Select a program with the ADJUST keys. Press ENTER to watch the program. Press CANCEL to delete.

Figure 4. A/V Disc Track List screen

A/V Disc Search by Time

While playing an IEEE 1394 A/V disc you can search to a specific time in the recording.

  1. Start playing the desired track on the A/V disc.
  2. Use the number buttons to enter the time code position of hours followed by minutes. For example, to enter one hour and twenty-two minutes (1:22) into the track, enter 1, 2, 2.
  3. Press ENTER to skip to the time code position. To cancel the request or to start over, press CANCEL instead of ENTER.

Copying or Moving A/V Disc Recordings

Tracks you record to disc may have copy restrictions assigned to them. To learn a track's copy status, highlight the track in the Track List and press INFO. Tracks are assigned one of these ratings:

Copy Free(or no status shown)No copy restrictions apply.
Copy Never The track cannot be transferred to another recording device. Tracks of this type may have an assigned retention period. See below for more information.
Copy Never, MovableYou can transfer the track to a different recording device. The track on disc is deleted as it is moved.
Copy No More Nomore recordings are allowed.You have already recorded from another source.

Retention Period

Some COPY NEVER tracks have a retention period assigned by the content provider. The retention period is the length of time you can keep and view the recording. The initial retention period, if any, is shown next to the copy status in the Track List INFO display (see figure 4). To check how much time remains of the retention period, start viewing the recording and press INFO.

Note: The retention period for all tracks on the disc expires if there is any loss of power to the TV, even momentary. For example, expiration of the retention period will occur if you:

  • Unplug the TV from the AC power source.
  • Experience a power outage or power fluctuation.

Remember that you can safely turn off TV power using the POWER button without affecting the retention period.

To Copy or Move a Track to Another IEEE 1394 Device

  1. Press INPUT on the remote control and press ▲▼◀▶ to select the source A/V disc. Press ENTER to open the Track List.
  2. Press ▲ to select a track. Then press ENTER to start playback.
  3. Press ☐ (PAUSE) to pause playback.
  4. Press (RECORD) on the TV remote. The Record menu will display.
  5. In the Record To section, review the destination device (A/V Disc, DVCR). Change if necessary. If moving, leave the other settings unchanged.
  6. Set the duration to the length of the original track or longer.
  7. Press ☐ a second time to start recording.

Switching Between Analog and Digital IEEE 1394 Outputs for the Same Device

To enable switching between analog and digital outputs for the same device, you must have check-marked the Analog Connection box when the New 1394 Device screen displayed when you first connected the device. See the section "Before You Begin" in chapter 2, "TV Connections."

New 1394 Device A new 1394 device has been discovered. The device is a DVCR "Manufacturer" "Model ID". To include an analog connection to an input on the TV, add a check mark for Analog Connection. Press the EXIT key to watch TV. Analog Connection

Figure 5. The ClearThought Auto Input sensing screen for IEEE 1394 devices. Place a check in the Analog Connection box if your device has both analog and digital outputs.

  1. Press INPUT to display the Input Selection menu.
  2. Highlight the icon for the IEEE 1394 device and press ENTER.
  3. Press ▲to switch between icons representing the analog and digital outputs of the device. See figure 6.

Video TV VCR NAV Device Ant-1 Anti-2 SAT GAME DVD VCR GVD2 DVR HD DISC CA/RCORD VCR

Figure 6. The Input Selection menu shows icons for the analog and digital outputs of the IEEE 1394 device.

  1. Press ENTER to select the device output.

Appendices

Appendix A: Bypassing the Parental Lock 91

Appendix B: Specifications 93

Appendix C: Troubleshooting 95

Appendix A: Bypassing the Parental Lock

Lock Bypass Instructions Have Been Filed for Future Reference

IMPORTANT

Cut along the dotted line and file bypass instructions in a safe place for future reference.

Bypassing the Parental Lock

After you set the lock, you must use your pass code to view a locked program, view the locked TV, cancel the lock, or enter the Parental Lock menus.

If you forget your pass code, you can view the locked TV without entering your pass code. When you are prompted for your pass code, press the number 9 and QV buttons on the TV remote control at the same time. This process temporarily unlocks the TV

When entering the Parental Lock menu, this process deletes your old pass code and prompts you to enter a new pass code.

  • You can either enter a new pass code to open the Parental Lock menu and make changes or press EXIT to close the menu.
  • If any of the locks are turned on and you exit the menus when prompted for a new code, the old code and all lock settings are retained.
  • If all locks are turned off and you exit the menus when prompted for a new code, then the previous code is erased.

IMPORTANT

When changing or deleting your pass code, you must use the remote control included with this TV. You cannot use a Mitsubishi remote control from another component or a "universal" remote.

This page intentionally left blank

Appendix B: Specifications

Picture Technology
LCD ScreenColor active matrix LCD 1920 x 1080 dots
BacklightLT-37131: Direct Type 18 CCFTs; LT-46131: Direct Type 24 CCFTs
Reception
Channel Frequency ReceptionOver-the-Air: VHF 2–13, UHF 14–69Analog Cable: 1–125Digital Cable: 1–135
Channel Type*Over the Air:Analog NTSC, Digital ATSC with sub-channels(all 18 video formats)
Cable:Analog NTSC (non-scrambled)Digital QAM 64 and 256 with sub-channels (non-scrambled)
CableCARDTM:(LT-37131, LT-46131)Authorized scrambled and non-scrambled digital channels
* Note for Digital Channels: The channel numbers displayed on screen are determined by the broadcaster or cable company and can vary from the standard frequency number. If there is no channel-number information provided by the broadcaster or cable company, the TV creates a channel number. The created channel number uses the frequency number as the main channel number and the program number as the sub-channel number. When using an authorized CableCARD, the channel numbers are determined by the cable company.
Inputs
Description Qty. Signal Type Input Specifications
Antenna/Cable input 2 RF F connector, 75-ohm
HDMI (digital video/audio)2HDMI EIA-861B standard for digital audio and videoHDMI standard connectorVideo: 60 Hz: 480i, 480p, 720p, 1080i24 Hz, 30 Hz, 60 Hz: 1080pAudio: PCM stereoNote: Not for use with personal computers.
Video/S-Video(one front, two rear)3 NTSC 480i onlyVideo: RCA Pin Plug, 1.0 V p-p, 75 ohmS-Video: Four-Pin DIN PlugY: 1.0 Vp-p 75-ohmC: 0.286 Vp-p (burst signal), 75-ohm
Component Video (Y/Pr/Pb)2EIA-770.1 & EIA 770.2480i, 480p, EIA 770.3720p and 1080i (video standards)RCA Pin Plug (EIA-770.3 Standard Levels and Timing)Y: 1.0 Vp-p (includes sync), 75-ohmPr: 700 mV p-p, 75-ohmPb: 700 mV p-p, 75-ohm
Audio Inputs8 pairsanalog left and right audioRCA Pin Plug 500 mV (full scale), 43-k ohm
PC DVI-I Input1 analog and digital video VGA (640 x 480, 60 Hz)W-VGA (848 x 480, 60 Hz)SVGA (800 x 600, 60 Hz)W-SVGA (1064 x 600, 60 Hz)XGA (1024 x 768, 60 Hz)1280 x 720, 60 Hz

Appendix B: Specifications, continued

Outputs
Description Qty. Output Specifications
Video 1Video: RCA Pin Plug 1.0 Vp-p, 75-ohmSignal Type: NTSC 480i only
Audio (Signal)2 pairsRCA Pin Plug, 500 mV rms ± 200 mV (full scale) for analog sources, 1.5 Vrms ± 0.5 Vrms (full scale) for digital sources.
Audio (Speakers)2 Woofers, 5.5" x 2.2"
Digital Interfaces
Digital Audio Output 1 RCA Pin Plug, Signal Type, Dolby Digital, PCM
IEEE 1394 (input/output)(2 rear)2 IEEE 1394 Four-Pin-Type Terminal, S400
Physical Characteristics and Power Consumption
ModelDimensions (inches)WeightPower Consumption
Height Width Depth
LT-3713126.836.013.3558.8 lbs.250 w
LT-4613131.744.615.5989.0 lbs.350 w
Environmental Conditions
ModelOperating Temperature
LT-371314 F ~ 95° F (5°C ~ 35°C)
LT-461314 F ~ 95° F (5°C ~ 35°C)

IEEE 1394 System Compatibility

  • This television is designed to conform to IEEE 1394 AV/C Software standards in effect at the time of development. This networking and control technology is designed to provide high-performance digital connections and product control, making the product easier to use.
  • Mitsubishi D-VHS VCRs are fully compatible with this TV in audio, video, and control.
  • As other manufacturers distribute products that use the IEEE 1394 AV/C standards, they will be responsible for developing products that meet the standards of the technology, as well as compatibility testing with other products. Mitsubishi cannot be responsible for their efforts, and therefore cannot promise compatibility with these other products. Any compatibility problems with other manufacturers' products should be brought to the attention of those manufacturers.

HDMI

The HDMI input is compliant with EIA-861B standards for standard, extended, and high-definition video; digital audio, and HDCP copy protection. The HDMI inputs on this TV are not intended for use with personal computers or devices outputting video signals with computer resolutions.

Appendix C: Troubleshooting

TV Reset Functions

You can resolve many common TV problems using the reset functions described in the following table. See also the additional troubleshooting suggestions later in this appendix.

IMPORTANT

Before you change sound or picture settings: If picture or sound settings seem wrong for a broadcast

channel (a channel from ANT 1, ANT 2, a cable box, or satellite receiver), first check other channels from the same input before changing settings. If most other channels from the same input seem correct, there is likely a problem with the broadcast rather than with the TV. Use care in this case, as changes you make to fix problems on individual channels also affect all other channels on the same input.

Reset Name When to Use How to Use Resulting Action
Demo Mode Turn-OffTo turn off the retail demo mode slide show.1. While viewing the TV, press MENU to display the TV Main menu with the Setup icon highlighted.2. Press ENTER to display the Setup menu.3. When the Setup menu is displayed, use ▶ to highlight the Demo Mode Off button and press ENTER.The demo mode will be turned off. The Demo Mode Off button in the setup menu will turn gray and be unselectable. The demo mode slide show cannot be turned on again.
Format When the picture shape seems incorrect, use FORMAT to change the shape of the picture.Press the FORMAT key to cycle through the available formats to find the best format for the current picture.The last-used format for a signal type is memorized for each input. The next time the same input and the same signal type is viewed, the last-used format will be recalled.
PerfectColorTM (for the single input currently being watched)When the color intensities seem out of balance, use PerfectColor resets to reset the color balances to the original factory settings.1. While viewing the input to be reset, press VIDEO repeatedly to cycle to the PerfectColorTM option.2. Press ENTER to display the PerfectColor menu.3. Press CANCEL to reset the colors.All PerfectColor sliders are reset to the original center position. The PefectColor settings for other inputs remain unchanged.
A/V Memory Reset (for the single input currently being watched)When audio and/or video settings for a single input seem incorrect, use A/V Memory Reset to return the input to the original factory settings.1. While viewing the input to be reset, press MENU to display the TV Main menu.2. Use ▶ highlight the Audio/Video icon and press ENTER.3. When the Audio/Video menu is displayed with the AV Memory Reset text box highlighted, press ENTER to reset.4. Press EXIT to exit the menu.All Audio and Video settings for the individual input are reset except for the Listen To, Language, Audio Balance, and Closed Caption settings.
A/V Reset (for all inputs)To reset audio and video adjustments for all inputs to the original factory settings.While viewing the TV, press the front panel buttons GUIDE and FORMAT at the same time.All Audio and Video settings are returned to the original factory settings, including Listen To and Language, plus Closed Captions settings and Format settings .
Channel MemorizationTo erase and re-memorize channels on ANT 1 or ANT 2.1. While viewing the TV, press MENU to display the TV Main menu with the Setup icon highlighted.2. Press ENTER to display the Setup menu.3. When the Setup menu is displayed, use ▲▼▲to highlight the antenna and reception mode button and press ENTER to start memorization.All previously memorized channels for the selected antenna input are erased and a new set of memorized channels is created. To add or delete individual channels, see the Channel Menu instructions in chapter 4, “TV Menu Settings.”

Appendix C: Troubleshooting, continued

Reset Name When to Use How to Use Resulting Action
Parental Lock Pass CodeTo change your Parental Lock Pass CodeThis information is listed on the cutout page in Appendix A. Please refer to that page.Allows a new code to be established.
Front-Panel Lock ReleaseTo re-enable the front-panel controls after activation of the Front-Panel LockWhen Energy Mode is set to Fast Power On, press and hold the MENU button on the front panel for over eight seconds.When Energy Mode is set to Low Power, press POWER on the front panel to turn on the TV. Press and hold the MENU button on the front panel for over eight seconds.Allows the front panel to be unlocked if the remote control is misplaced.
System Reset If theTV does not turn on or off, does not respond to the remote control or front panel buttons, or has audio but no video.Press the SYSTEM RESET button on the front panel with a pointed object such as the point of pencil or end tip of a paperclip.The TV will turn off and the green LED will flash quickly for about one minute. When the blue LED stops flashing, you may turn on the TV. The changes you made most recently, before using SYSTEM RESET, may be lost. Changes you made previously, however, are not lost.
TV Reset IMPORTANT:Use this reset only if all other resets have been unsuccessful.To reset all consumer-accessible settings and all memories to the original factory defaults.CAUTION: All owner-performed setups and adjustments will be erased.While viewing the TV, press MENU to display the TV Main menu.With the Main menu displayed, press number keys 1 2 3 to display the Reset Menu.READ THE ON SCREEN WARNING AND INSTRUCTIONS.If you do not wish to use this reset, press EXIT or MENU to back out.If you do wish to use the reset, press ENTER to erase all memories and settings.The TV will start the initialization process. The TV will then turn off and the front blue LED will start flashing. When the LED stops flashing, you can turn the TV on again. The Parental Lock Access code will remain unaffected, but all other memories and settings outlined in this Owner's Guide will need to be set again.

Service and Support

Service

If you are unable to correct a problem with your TV, consult your Mitsubishi dealer or Mitsubishi Consumer Relations at (800) 332-2119.

  • DO NOT adjust any controls other than those described in this Owner's Guide.
  • DO NOT remove the protective back cover of your TV.

Support

  • To order replacement or additional remote controls or Owner's Guides, visit our website at www.mitsu-parts.com or call (800) 553-7278.
  • For questions:

• Call Consumer Relations at 800-332-2119.
◆ E-mail: MDEAservice@mdea.com
Website: www.mitsubishi-tv.com

Appendix C: Troubleshooting, continued

General TV Operation
Symptom Remarks
1. The TV remote control does not work. • Check that the batteries are installed correctly.• Check that the slide switch is set to TV.• Be no more than 20 feet from the TV when using the remote control.• Program the remote control to operate the TV or other device (see chapter 5).
2. TV does not respond to the remote control or to front panel control and TV will not power on or off.Use the System Reset button.
3. When a device is selected from the Input Selection menu, the screen is blue (no signal source).• Make sure the selected device is turned on.• Begin play of the VCR.
4. Devices are grayed out in the Input Selection menu or the Split Screen Input Selection menu.• A recording is in progress. Cancel the recording to select the device.• PCs and HDMI 1080p devices cannot display in the Split Screen sub-picture.
5.You have forgotten your Parental Lock pass code.See Appendix A, Bypassing the Parental Lock.
6. Rating restrictions are not working. Open the Parental Lock menu and:• Verify that the U.S. Ratings or Other Ratings setting is On.• Check the Lock Time/Unlock Time to check if rating restrictions are disabled.• Rating restrictions apply only to content on ANT 1 and ANT 2, INPUT 1-3, and IEEE 1394 inputs.
7. On-screen displays appear each time you change a function.Normal TV operation.
8. Cable provider needs information to start CableCARDTM service.On the remote control, press MENU and then enter the numbers 999 to display the Host ID and CableCARDTM ID information.
9.The TV remote POWER button blinks five times.Batteries in the remote control are low and should be replaced.
TV Channels
Symptom Remarks
1. The TV takes several seconds to respond to channel changes.It is normal for digital channels to take longer to tune in.Press ENTER after a channel number to avoid delays.Use a 4-digit number for an over-the-air digital channel.Use a 6-digit number for digital cable channels if your cable service is able to recognize 6-digit channel numbers.
2. You cannot access a channel.Use number keys instead of CH ∧ ∧Be sure the channel you want to view is in memory. See “Channel Menu” in chapter 4, “TV Menu Settings.”Check that the TV is turned to the correct device or antenna for that channel by pressing the INPUT button.Make sure the Parental Lock is off.If you cannot tune to a virtual digital channel even though the TV has already memorized digital channels, tune to the actual (physical) channel number used by the broadcaster. The virtual channel will then be automatically added to memory.
3. Name options are not available for some channels.Only memorized analog channels can be named.
4. When ChannelViewTM list is displayed, information appears incompleteAvailable information is sent from the broadcaster or cable provider. No other data is available.

Appendix C: Troubleshooting, continued

TV Power On/Off
Symptom Remarks
1. TVV takes an excessively long time to power on.When switched on, the TV needs time to boot up, just as a computer does.TV Energy Mode is set to Low Power. To change TV Energy Mode to Fast Power On: Press MENU, open the Setup menu, highlight the Fast Power On radio button, press ENTER.
2. Youcannot program the TV to turn on automatically (Timer function)The TV may be locked.The clock may not be set.A time-delayed recording may have started.TV Energy Mode is set to Low Power. Change to Fast Power On in Setup menu.
3. The TV will not turn on after being plugged in.If blue light on front panel is blinking, wait for at least one minute for the light to turn off, then press POWER again.
4. TVturned itself off and the light on the front panel started to blink.Momentary power fluctuation caused the TV to turn off to prevent damage. Wait for the blue light to stop flashing and turn on again.If the TV does not stay turned on, use the System Reset button on the front panel. If this happens frequently, obtain an AC line power conditioner/surge protector.An unusual digital signal may have been received, triggering a protection circuit. Wait for the light to stop flashing and turn TV on.
5 TVwill not power off. Use the System Reset button.
Symptom Remarks
1. Picture does not look like a high-definition picture.Not all signals are high-definition signals. To receive high-definition programming from your cable or satellite provider, you must subscribe to the provider's high-definition service. Some over-the-air broadcasts are in high-definition and can be received with a high-quality antenna suited to your location.
2. Split Screen does not display a sub-picture. • Make sure the Parental Lock is off.• Not all inputs can be displayed as a sub-picture.
3. CableCARD channel is not shown as Split Screen sub-picture when CableCARD channel is the main image.CableCARD allows only one channel at a time to be used.
4. There is a large black or gray rectangle on the screen.The TV's analog closed captioning has been set to “text” mode in the Captions menu. Turn off because there is no text information being broadcast.
5. You cannot view a picture when playing a VHS tape.Check your VCR's owner's guide for further troubleshooting.
6. When viewing a stopped VCR, white lines are rolling on the screen.Turn off video mute for the VCR.Begin playing the tape.Change the VCR input to the antenna input.

Appendix C: Troubleshooting, continued

Symptom Remarks
9.DVCR analog/digital problems.If the tape is currently playing but no picture displays, there may be a mismatch of the media with the display. Press INPUT to display the Input Selection menu. Press ENTER for the DVCR device. If digital is selected, try analog, or if analog is selected, try digital.
Indicators
Symptom Remarks
Status indicator light is a steady/flashing red.Service is required. Contact your dealer or a Mitsubishi Authorized Service Center to arrange for a service evaluation. Listings of Mitsubishi Authorized Service locations can be obtained from our web site, www.mitsubishi-tv.com or by calling 1-800-332-2119.
Sound
Symptom Remarks
1.There is no sound even when the volume is turned up.Check if the MUTE button is on.The TV’s “Listen to:” setting may be set to SAP.Check that the TV Speakers setting is On in the Audio/Video menu.If using an IEEE 1394 amplifier, check audio source in Input Selection menu.Perform System Reset.
2.The sound does not match the screen picture.The TV’s Listen to: setting may be set to SAP.If using stereo or A/V receiver speakers, check their input selection.If using stereo or A/V receiver, check that AUDIO OUTPUT LEFT/RIGHT or DIGITAL AUDIO OUTPUT on TV’s back panel is connected to the A/V receiver.
IEEE 1394 Recording
Symptom Remarks
1. Program to be recorded was correctly selected from ChannelView, however, incorrect program was recorded.The broadcaster supplied program information that was incorrect and/or was changed after a recording was added to the Record List.
2. Incomplete ChannelView program recorded. Recording device may lack sufficient blank space to make a full recording.
3. ChannelView program recording failed. • Connection and compatibility issues with IEEE 1394 (FireWire®) digital devices. This may include too many Firewire devices in use at one time, or the recording device not understanding the record command.• Television lost power long enough to lose current clock time.• TV energy Mode was set to Low Power. Change TV Energy mode to Fast Power On. Press MENU, open the Setup menu, highlight the Fast Power On radio button, press ENTER.

Appendix C: Troubleshooting, continued

IEEE 1394 Recording
Symptom Remarks
4.Cannot record to or from the IEEE 1394 device, including dubbed recordings.To initiate a recording to IEEE 1394 device, press the (RECORD) key. The Record menu displays allowing setup of the recording.The source device for the recording is not powered on.When dubbing, the destination device for the recording is not powered on.The program is copy protected.The program has already been recorded once and the copy protection only allows one recording.Unapproved source device for copy protected material.The recording device can not decode the copyright signal included in the signal source (try another device if available).The playing device (for dubbing) does not support copy-righted material.Source for recording is copyrightedToo many IEEE 1394 devices in network. Insufficient bandwidth available. Disconnect unused devices.Source Device has higher speed (S 400) than record device. If possible, reverse devices, play in the slower device and record in the faster device.
IEEE 1394 Devices
Symptom Remarks
1. Excessive digital artifacts appear when viewing an IEEE 1394 device.The IEEE 1394 cable is too long; 15 feet between devices is the maximum.There may be a slow device in the middle of the IEEE 1394 network. Move the slow devices to the end so that connec-tions for faster devices do not pass through them.
2. D-VHS recordings for digital cable have drop-outs (loss of picture or sound), or no playback.Digital cable signals on IEEE 1394 can exceed the data rate stan-dards supported by DVCR.
3. There is no audio and video from the IEEE 1394 device.The device is not turned on. Turn the device power on.No media (tape or disc) is inserted into the device.The media is blank (has no recording).The play command failed - Try pressing play again on the device's remote control or front panel.The device is already in use (for example, the device is currently recording).The source is copy-protected or violates copy protection.The device's digital video signal is not supported by the TV, as may be the case with an IEEE 1394 signal from a computer. Use analog connections instead, if available.The device is not an audio/video device.Too many other devices are already communicating over IEEE 1394. Remove or stop some devices and try again.
4. The IEEE 1394 Device is no longer listed in the Input Selection menu.The IEEE 1394 plug is disconnected or loose.The IEEE 1394 device has not been powered on. Turn on.The device has not been discovered.The device is not an audio/video device
5.The IEEE 1394 device cannot be selected (is grayed out).The device may be busy with a recording. Cancel the recording.
6.When the Input Selection Menu is displayed, a menu does not display when I press the MENU button.The IEEE 1394 device does not provide a menu.The TV cannot support IEEE 1394 menus.
7.All IEEE 1394 devices disappear. • The connected devices must not be in a loop that returns to the TV. Make sure a device is connected at the end.Disconnect all the cables and devices from the TV. Replace them one by one to locate the problem device or cable.Use System Reset (front control panel).
8.Cannot rediscover a deleted IEEE 1394 device.The device has been disconnected. Plug it in.
9.An IEEE 1394 device has been plugged in but does not appear in the Input Selection menu (not discovered).The IEEE 1394 connection to the TV or another device is not secure or is loose.The IEEE 1394 device is not powered on.A device in the IEEE 1394 chain is not powered on. Turn on all the devices.The device discovery can take as long as a minute to initiate.IEEE 1394 cable is too long (maximum of 15 feet between devices).The IEEE 1394 device uses an incompatible protocol and will not be discovered.The TV can not decode DV video.
10.Cannot view video from an IEEE 1394 DV camcorder.Use analog connections for video and audio. You can still use the IEEE 1394 connection for control functions, however.
11.An IEEE 1394 device is not responding properly.Unplug the device's power cord. Wait at least ten seconds and plug it in again.Some IEEE 1394 devices are not supported by the TV because of incompatible standards.

Trademark and License Information

LICENSOR'S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY, ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH SUPPLIERS, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

CableCARD™ is a trademark of Cable Television Laboratories, Inc.

DCR ^™ Certification Logo is a trademark of the Consumer Electronics Association.

Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories.

DTVLink™ Certification Logo is a trademark of the Consumer Electronics Association.

HDMI™ the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited pay-per-view uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly prohibited.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

The Simplay™ the words "Simplay™" and "Simplay HD™," are the trademarks of silicon Image, Inc.

ChannelView™, ClearThought®, Diamond Shield™, MediaCommand™, NetCommand®, MonitorLink™, PerfectColor™, QuickView™, ViewPoint® are trademarks of Mitsubishi Digital Electronics America, Inc.

Mitsubishi TV Software

END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE

IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television (“Software”). By utilizing this television and Software, you agree to be bound by the terms of this License Agreement.

The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws and treaties. The Software is licensed, not sold.

  1. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software only with the Mitsubishi television model that included this owner's guide and owned by you.

2. RIGHTS AND LIMITATIONS.

Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that Software has been pre installed.

Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law.

Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more than one TV.

No Rental. You may not rent, lease, lend, or sublicense the Software.

Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA.

  1. VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License, may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys' fees in connection with any violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any provision of this License.
  2. COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images, photographs, animations, video, audio, music, text, and "applets" incorporated into the Software), and any accompanying printed materials are owned by or licensed to MDEA. All title and intellectual property rights in and to the content which may be accessed through use of the Software is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and treaties. This License Agreement grants you no rights to use such content, except that you own the media on which the Software is recorded, but MDEA and its licensors retain ownership of the Software itself. All rights not expressly granted are reserved by MDEA.
  3. EXPORT RESTRICTIONS. MDEA is licensing the Software for use within the United States. You agree that you will not export or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the U.S. has embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Iraq, Libya, North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development, or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the BXA nor any other U.S. federal agency has suspended, revoked, or denied your export privileges.
  4. DISCLAIMER OF WARRANTY. EXCEPT AS OTHERWISE PROVIDED IN THIS LICENSE OR IN THE LIMITED WARRANTY APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SOFTWARE AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED BY MDEA. IN NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, IN TORT OR OTHERWISE, FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
  5. LIMITATION OF LIABILITY. MDEA SHALL NOT, UNDER ANY CIRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WILL OR EXPENDITURES MADE OR COMMITTED FOR IN RELIANCE ON THE CONTINUATION OF THIS LICENSE. YOU AGREE THAT NEITHER MDEA'S BREACH OF THIS LICENSE NOR ITS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL CONSTITUTE A FAILURE OF THE ESSENTIAL PURPOSE OF THIS LICENSE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. MDEA's liability to you for direct damages for any cause whatsoever and regardless of the form of the action, will be limited to the money paid by you for the TV (based on fair market value of the TV) that caused the damages.
  6. GENERAL. This License Agreement will be governed by the laws of the State of California.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.

MITSUBISHI LCD FLAT PANEL HDTV LIMITED WARRANTY

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. ("MDEA") warrants to the original purchaser of this LCD Flat Panel HDTV that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or material:

a. Parts. All parts (except any software incorporated into this HDTV are warranted for a period of one year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replacement are warranted for the remainder of the original warranty period.
b. Embedded Software. MDEA warrants that all software incorporated into this HDTV (the "Embedded Software") will perform in accordance with the functional description of Embedded Software in all material respects, but MDEA does not warrant that the Embedded Software is error-free. MDEA also does not warrant that the Embedded Software will be compatible under IEEE 1394 AV/C and HAVi software standards with products produced by any other manufacturer. The warranty contained in this section shall continue for a period of one year, from the date of the original purchase from the dealer. If, after prompt notice within the warranty period, MDEA determines that the Embedded Software has failed to perform in accordance with such functional description in all material respects and if such failure is not due to accident, misuse, modification or misapplication of the Embedded Software, then MDEA shall modify or replace the nonconforming Embedded Software at no charge to you, which at MDEA's sole discretion may be fulfilled by means of modification or replacement software contained on a replacement memory card for Customer installation. The foregoing shall be MDEA's sole obligation to you under this limited warranty. All rights under this limited warranty on the Embedded Software also subject to your compliance with the terms of the Software License Agreement applicable to this HDTV, and this limited warranty on the Embedded Software shall be null and void if the Embedded Software is modified or changed in any manner except as specifically authorized by MDEA.
c. Labor. For certain items that are designed to be replaced by the consumer, including (but not limited to) some Embedded Software, the consumer is solely responsible for any replacement labor. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date of purchase at retail.
d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable warranty time period.

BEFORE REQUESTING SERVICE, please review the TV owner's guide to insure proper installation and correct customer control adjustment. If the problem persists, please arrange for warranty service.

1. TO OBTAIN WARRANTY SERVICE:

a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your MITSUBISHI dealer, by writing to the address provided below, calling MDEA at 800-332-2119, or using the support feature of our website at www.Mitsubishi-tv.com.
b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and from you home. Actual service labor will be provided without charge.
c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.

2. THIS LIMITED WARRANTY DOES NOT COVER:

a. Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).
b. Cosmetic damage or any other damage where such damage is caused by unauthorized modification, alteration, repairs to or service of the product by anyone other than an authorized

MITSUBISHI service center; physical abuse to or misuse of the product (or any product damaged by excessive physical or electrical stress); any products that have had a serial number or any part thereof altered, defaced or removed; product use in any manner contrary to the Owner's Guide; freight damage; or any damage caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage caused by electrical system or damages caused by use of third party mounting brackets or stands. This limited warranty also excludes service calls where no defect in the product covered under this warranty is found, service calls related to unsatisfactory audio or visual reception or signal unless caused by a defect in the product that is covered under this limited warranty, all costs, expenses or any other damages arising from product installation, removal from or re-installation into custom installations or on wall mountings, or set-ups, any adjustments of user controls (including contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection with any external audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner's Guide furnished with the product for information regarding user controls.

  1. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.
  2. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE.
  3. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special, or consequential damages, so the above limitations or exclusions may not apply to you.
  4. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

In no event shall Mitsubishi have any liability, including without limitation, for general, consequential, incidental, or special damages for loss, destruction, damage or corruption of recorded data, media or software resulting from use of this television, or cost of recovery of lost data, media or software therefore.

MITSUBISHI MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. 9351 Jeronimo Road Irvine, CA 92618-1904

Index

A

A/V Discs 87

A/V Memory Reset. See Reset

A/V Receiver

Connecting 32

A/V Reset. See Reset

Adjust Keys (Up/Down/Left/Right) 36, 46

Anamorphic Picture Format DVD Definitions 40

Antenna

Adjusting and the Signal Strength Meter 51

Connecting 28

Antenna Inputs (ANT 1/MAIN, ANT 2/AUX) 18

Audio/Video Menu 47, 59

Audio Settings 60

Auto Input Sensing 22

B

Back Panels 19

Batteries. See Remote Control

C

CableCARD™ 13, 17, 20, 48

Cable Box

and the Remote Control 36, 64, 86

Connecting 26, 30, 33

IEEE 1394 82

Cable Management 25

Camcorder

Connecting (Analog) 33

DV (Digital Video) 83, 101

IEEE 1394 Camcorders 83

Power 82

Captions Menu 47, 53

Channels. See also FAV and TV Timer 49

Changing 14

Digital Channel Numbers 93

Memorizing 48

Naming 51

Status Display 39

ChannelView™ Channel Listings 38

Channel Menu 47, 51

Cleaning 7

LCD Screen 7

ClearThought® Auto Input Sensing 22

ClearThought Auto Input Sensing 12

Clock, Set Date and Time 48

Closed Captions. See Captions Menu

Color Adjustments 61

Component Inputs (Y Pb Pr) 18

Computer. See Personal Computer

Computer Icon, Removing the 76

Connection Types 23

Copy Restrictions 87 and Status Display 39

D

Date. See Clock

Daylight Savings Time 48

Demo Mode, turning off 95

Digital Audio Out 20

Dolby Digital 20, 32, 94 and IEEE 1394 82

DTVLink™ 20

DV 83

DVDs

and the Remote Control 36, 64 and V-Chip Ratings 58

DVD Player with Component Video, Connecting 32

DVI Device, Connecting 31

DVI Jack (for Personal Computer) 20

E

Energy Mode 49

F

Fast Power On (Energy Mode) 49

FAV 52

Film Mode 59

FireWire®. See IEEE 1394

Freeze Picture. See Pause

Front Panel 15

Front Panel Lock 55

Full Spectrum Color 12

G

Personal Computer with HDMI Output 77

HDTV Receiver with Component Video, Connecting 26

HD (High-Definition Signal) 40

|

Icon Order Menu 47, 50

IEEE 1394 Devices

Amplifier Settings 60

and Analog Outputs 22, 88

and Recording 84

and Status Display 39

Compatible IEEE 1394 Devices 82

Connecting IEEE 1394 Devices 83

Inputs on TV 20

TV Connection Speed 83

Important Information About Your TV 6

INFO Key Status Display 39

Input Jacks on TV (Standard Audio/Video) 18

Input Name Menu 47, 50

Input Selection Menu

Remove the Computer Icon from the Input Selection Menu 76

L

Language

Audio Setting (Digital Channels) 60

for TV Menus 48

LED Indicator Lights

POWER/TIMER Indicator 16

STATUS Indicator 16

Lock by Time 55

Lock TV. See Parental Lock

Low Power (Energy Mode) 49

M

Memorizing Channels 48

MONITOR OUT Jacks 19

Mute

Audio

and Closed Captions 53

and status Display 39

MUTE key 36

Video Mute 59

N

Noise Reduction (Video) 61

P

Parental Lock

Bypassing 91

Front Panel Lock 55

V-Chip Ratings 58

Pass Code

Resetting 91

Setting 55

PAUSE Key 36

PC Icon, Removing the. See Computer Icon

PerfectColor 61

Personal Computer 83

Connecting 77

Remove the Computer Icon 76

Setup 76

Picture Formats, TV 40

Picture Format Definitions 40

Picture Quality

and Connection Types 24

and Film Mode 59

Troubleshooting 98

Power Consumption 49, 94

Power On/Off 98

Power Swivel. See Swivel, Manual and Power

Q

QV (QuickView™) 36

R

Recording

and MONITOR OUT Jacks 19

Cancelling Recordings

IEEE 1394 devices 85

Recording Setup Menu

and IEEE 1394 Devices 84

RECORD Button 100

Record List

and IEEE 1394 Devices 84

Signals Available for Recording 23

Remote Control

Batteries 37

Keys and Functions 36

Low Battery Indicator 37

Programming Codes (reference chart) 66

Programming Instructions 65

Reset 37

Reset

A/V (all settings) 15

A/V Memory (for individual devices) 59

DVCR Counter 86

Pass Code 91

PerfectColor 61

Remote Control 37

System Reset Button 95

Reset Functions, TV 95

S

S-Video

Connecting 26

Connector Illustration 24

Safeguards 8

SAP (Second Audio Program) 60

Satellite Receiver

and the Remote Control 64

Connecting 26

IEEE 1394 86

SD (Standard-Definition Signal) 40

Search A/V Disc. See A/V Discs

Service and Support 96

Setup Menu 47, 48

Side Panel 20

Signals

1080p 40

480i 40

480p 40

720p and 1080i 40

Signal Definitions 40

Sleep Timer 37

Speakers, Turning TV Speakers On or Off 59

Specifications, TV 93

Split Screen

Description 42

Standard-Definition Signal 40

Stand Removal Instructions 10

Stand Requirement 6

Status Display 39

STATUS Indicator. See LED Indicator Lights

Stereo System. See A/V Receiver

Swivel, Manual and Power 12, 36, 44

System Reset 15, 96

T

3:2 pulldown 59

Time. See Clock

Timer (TV Timer) 49

Time Zone. See Clock

Troubleshooting 95

V

VCR

Connecting 18, 29, 30

IEEE 1394 82

Troubleshooting 98

Video Noise Reduction 61

Video Settings 61

Viewing Device. See Input Selection

Menu

W

Wall Outlet Cable 27

Website: www.mitsubishi-tv.com

E-mail: MDEAservice@mdea.com

For questions, call Consumer Relations at 800-332-2119

To order replacement or additional remote controls or Owner's Guides:

visit www.mitsuparts.com or call 800-553-7278

Demo Mode

This TV has a demo mode for use in retail stores. Demo mode causes the TV to display a series of screens outlining the TV's features.

To turn off demo mode:

  1. Press MENU.
  2. When the Main menu appears with Setup highlighted, press ENTER.
  3. When the Setup menu opens, press to highlight the on-screen Demo Mode Off button.
  4. Press ENTER.

System Reset

If the TV does not respond to the remote control, front panel controls, or will not power on/off, press the SYSTEM RESET button on the front panel with a pointed object, such as the point of a pencil or end tip of a paperclip.

The green LED will flash quickly for about one minute. When the green LED stops flashing, you may turn on the TV.

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MITSUBISHI

Model : LT-37131

Category : Television
