Product Type	Outdoor Bullet Security Camera
Model	TV-IP672P
Brand	TRENDnet
Image Sensor	1/2.8" Progressive CMOS
Resolution	2 Megapixels (1920 x 1080)
Lens	3.6mm fixed lens
Field of View	80° horizontal
Night Vision	Up to 30m with IR LEDs
Video Compression	H.265, H.264, MJPEG
Power Input	PoE (802.3af) or 12V DC
Power Consumption	4.5W typical
Dimensions	180 x 70 x 70 mm
Weight	350 g
Weatherproof Rating	IP66
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 60°C
Network Interface	10/100 Mbps Ethernet
Supported Protocols	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, ONVIF
Motion Detection	Yes, with sensitivity adjustment
Audio	Built-in microphone and speaker
Memory Slot	MicroSD up to 128 GB (not included)
Mounting Bracket	Included for wall/ceiling mount
Certifications	CE, FCC, RoHS
Warranty	3 years limited

Frequently Asked Questions - TV-IP672P TRENDNET

What is the resolution of the TRENDnet TV-IP672P camera?

The camera has a 2 Megapixel resolution, providing 1920 x 1080 Full HD video.

Does the TV-IP672P support PoE (Power over Ethernet)?

Yes, it supports IEEE 802.3af PoE for both data and power over a single Ethernet cable.

What is the night vision range?

The integrated IR LEDs provide night vision up to 30 meters (98 feet) in complete darkness.

Is the camera weatherproof?

Yes, it has an IP66 rating, making it suitable for outdoor use in rain and dust.

Can I use a microSD card for local recording?

Yes, it has a microSD card slot supporting cards up to 128 GB for local storage.

What video compression formats are supported?

It supports H.265, H.264, and MJPEG compression for efficient bandwidth usage.

Does the camera have audio capabilities?

Yes, it includes a built-in microphone and speaker for two-way audio communication.

How do I reset the camera to factory defaults?

Press and hold the reset button (located near the Ethernet port) for 10 seconds using a paperclip.

Is the TV-IP672P compatible with ONVIF?

Yes, it is ONVIF compliant, allowing integration with many third-party NVRs and software.

What is the field of view?

The camera has an 80° horizontal field of view with its 3.6mm fixed lens.

USER MANUAL TV-IP672P TRENDNET

White industrial camera with control panel and rotary buttons (no visible text or symbols)

White remote control camera with a circular head and adjustment knobs (no visible text or symbols)

Megapixel PoE PTZ Internet Camera

Megapixel PoE Day/Night PTZ Internet Camera

TV-IP672P/ TV-IP672PI

TRENDnet User's Guide

Table of Contents

Contents

Product Overview ....1

Package Contents .... 1

Features 1

Product Hardware Features....2

Installaon....3

Wired Connecon 3

Wall mount installaon....3

Starng the Setup Wizard ....4

Conguraon....7

Main Interface 7

Setup Wizard 9

System 12

Network....14

Dynamic DNS 15

Video and Audio 15

Video and Audio 16

Day/Night Mode....17

Audio Setup 17

Image Setup 17

Acon....18

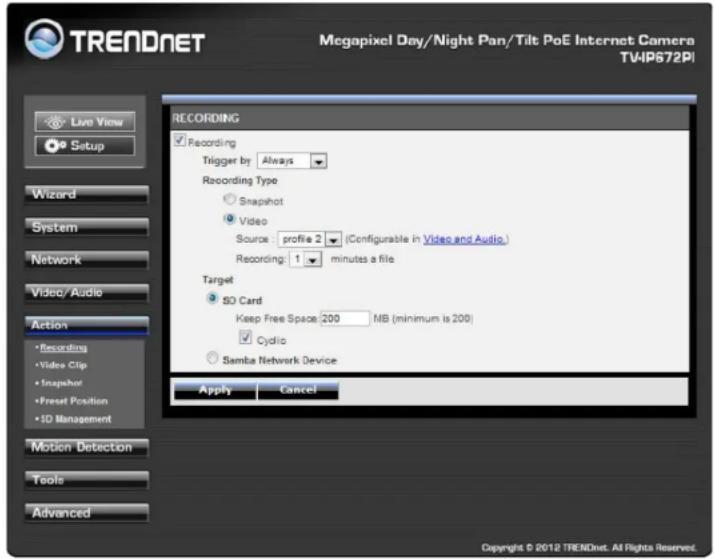

Recording 18

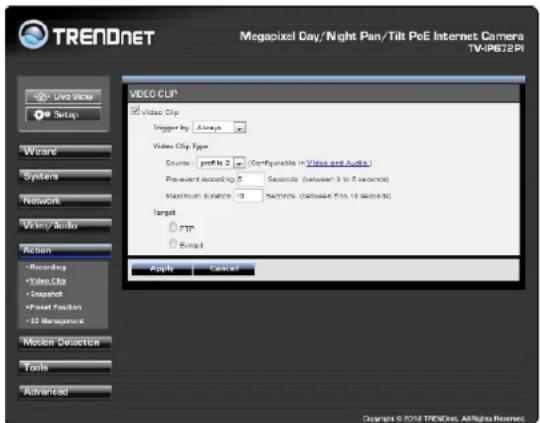

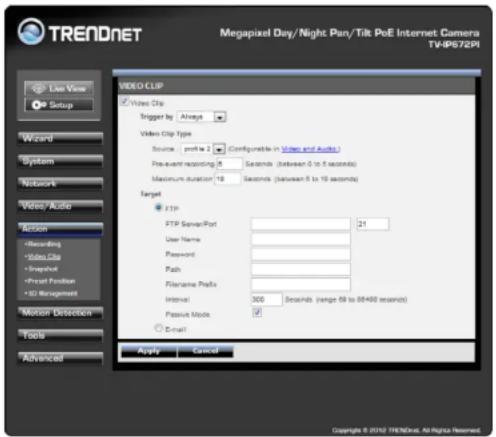

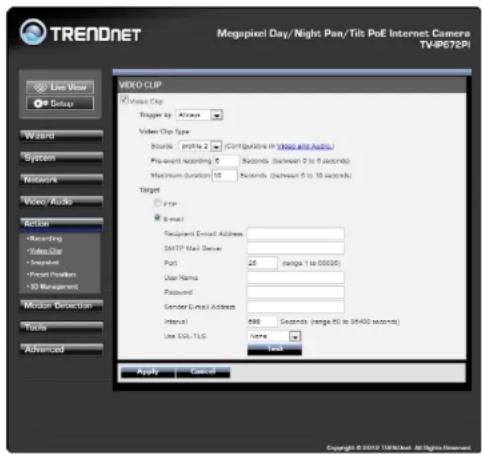

Video Clip 19

Snapshot 21

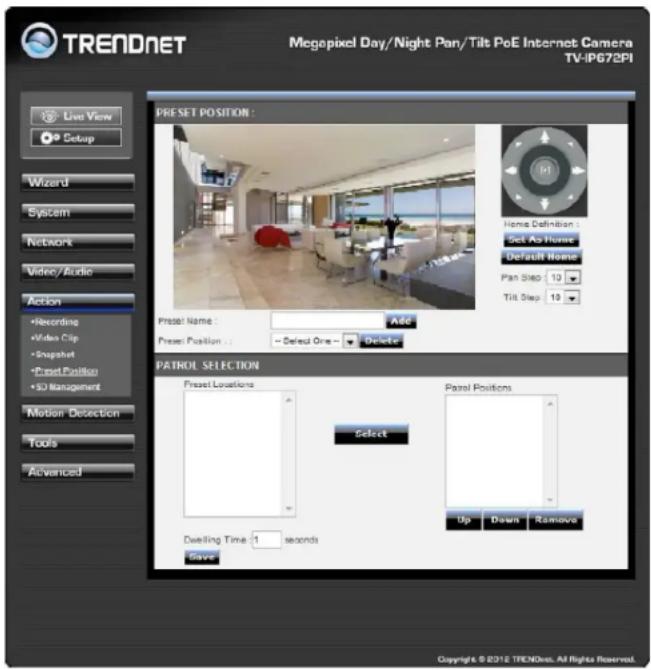

Preset Posion 21

SD Management....23

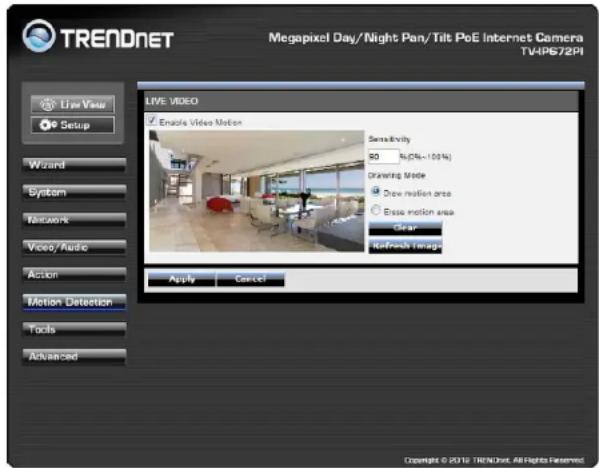

Moon Detecon 23

Tools 24

System 24

Firmware Upgrade 24

Advanced 25

Device Info 25

Log 25

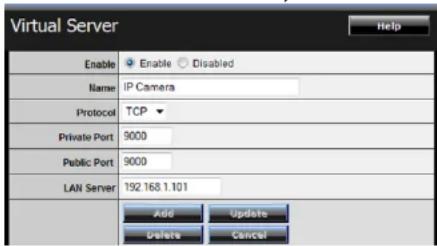

How to setup/access the camera remotely....26

Technical Specicaons 29

Troubleshoong 33

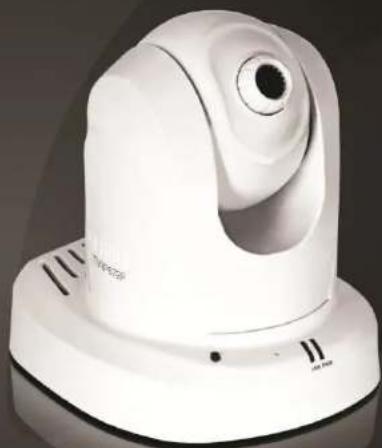

Product Overview

Two white industrial camera modules with circular headsets and control knobs, shown from different angles (no text or symbols visible)

TV-IP672P
TV-IP672PI

Package Contents

In addition to your camera, the package includes:

• Multi-Language Quick Installaon Guide
• CD-ROM (Utility & User's Guide)
• Network cable (1.5m / 5)
• Power adapter (12V DC, 1.25A)

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor that the item was purchased.

Features

TV-IP672P

The Megapixel PoE PTZ Internet Camera, model TV- IP672P, provides security over a large area. Pan the camera side-to-side a remarkable 340 degrees and lt up-and-down 115 degrees from any Internet conncon.

No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video proles to record HD video while streaming low resoluon video to a compatible smart phone at the same me. Manage up to 32 TRENDnet cameras with the included complimentary camera management soware. Advanced features include adjustable moon detecos recording areas, email alerts, scheduled recording sessions, pan/lt Auto-Patrol, H.264/MPEG-4/MIPEG image compression, date-and-me overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four mes digital zoom. A wall/ceiling moung kit is included and the camera's o white housing blends into most environments.

TV-IP672PI

The Megapixel PoE Day/Night PTZ Internet Camera, model TV-IP672PI, provides day and night security over a large area. Pan the camera side-to-side a remarkable 340 degrees and lt up-and-down 115 degrees from any Internet conncon.

Record indoor video in complete darkness for distances of up to 7.5 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video proles to record HD video while streaming low resoluon video to a compatible smart phone at the same me. Manage up to 32 TRENDnet cameras with the included complimentary camera management soware. Advanced features include adjustable moon detecos recording areas, email alerts, scheduled recording sessions, pan/lt Auto-Patrol, H.264/MPEG-4/MIPEG image compression, date-and-me overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four mes digital zoom. A wall/ceiling moung kit is included and the camera's o white housing blends into most environments.

Product Hardware Features

Rear Panel View

• LAN Port – Connect Ethernet cables to your wired network devices.

- Power Port – Connect the included power adapter from your camera to an available power outlet.

Note: Use only the adapter that came with your camera.

- Reset Buon – Use an item such as a paperclip to push and hold this buon for 3 seconds and release to reset your camera to its factory defaults.

• Line Out – Connect speaker to enable audio out

- Micro SD Lot – Insert a Micro-SD card to store camera video les.

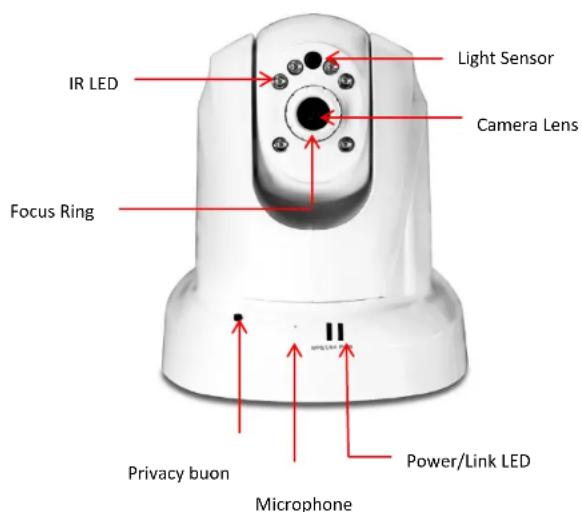

Front Panel View

- IR LED – Built-in 6 IR LED for night vision uses. (for TV-IP672PI)

• Light Sensor – Detects the light source to turn IR on or o.

- Focus Ring – Turn to adjust the focus of the camera.

- Microphone – Built-in microphone for audio can be turn on or o.

- Privacy buon – Turns the camera on/o when necessary.

- Power - This LED indicator is solid blue when your camera is powered on. Otherwise if this LED indicator is o, there is no power to your camera.

- Link – This LED indicator is blinking orange when there is conneccon/data to your camera.

Installaon

Wired Connecon

1. Connect the Ethernet Cable

If you intend to use the network camera as a wired device, connect one end of the included Ethernet cable into the Ethernet port on the rear panel of the camera and connect the other end to an available port on your network. If you prefer to use the camera on a wireless network, see below for instrucons on connecting the power adapter.

Line drawing of a hand holding a device connected to a mounted device (no text or symbols visible)

2. Aach the Power Supply

Aach the included power supply to the DC 12V 1.25A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicang that the camera has power.

Line drawing of a hand using a screwdriver to adjust or install a device (no text or symbols visible)

Wall mount installaon

To each the metal plates carry out the following:

• Remove the two rubber pads under the base of the Camera.
• Slide the metal plate onto the base of the camera, making sure that the two holes on the base of the camera align with the two screw holes on the base of the camera.
• Secure the metal plate to the base of the Camera with the two screws provided.
• The camera can now be mounted to the ceiling or a wall. See the diagram below for more informaon.

Starng the Setup Wizard

Insert the included CD-ROM into your CD/DVD drive. The Install Wizard program will run automacally.

Note: If the Install Wizard does not run, you may have autorun disabled on your machine. In this case, browse to the CD drive and run InstallWizard.exe to begin the installaon wizard.

Begin by selecng Setup Wizard and follow the on-screen steps to connue the installaon.

When the installaon of the Setup Wizard is complete, run the Setup Wizard:

1. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The TRENDnet Setup Wizard appears.

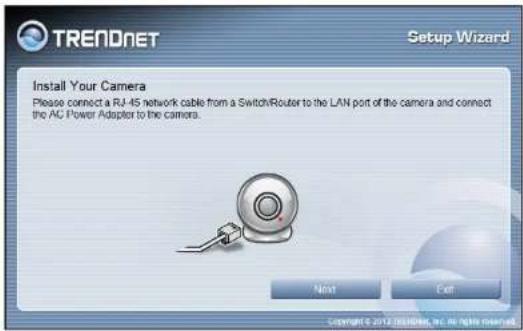

2. Connect an RJ-45 cable from a switch/router to the Ethernet port on the back of the camera and connect the AC power adapter to the camera. Click Next to proceed.

1. From the list of cameras that appears, select the camera you wish to conjure and click Next to connue. If your camera is not listed, ensure that it is connected to both power and the network and click to re-scan the network for your camera.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

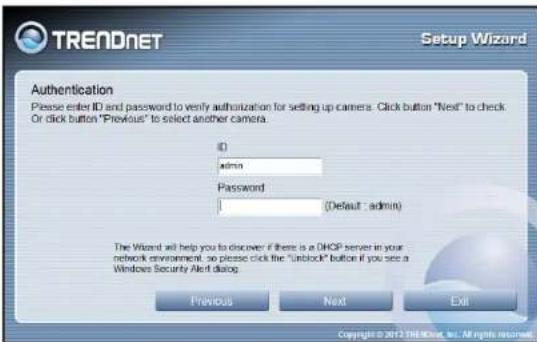

1. Login to your camera by entering the ID and Password. By default, both the ID and Password are set to admin. Click Next to connue.

1. Enter a name for the camera in the Camera Name eld. The name will be used to identify your camera on the network. Enter the correct me for the camera for the me zone it is in. If your camera is in the same me zone as the computer you are using, click the icon to copy the local me to the camera. Click Next to connue.

1. It is strongly recommended that you change your password to secure the camera from being accessed by others. Check the Change Password box and enter the new password in both password elds to conrm the new password. Click Next to connue.

1. Select a conncon opon: (example uses DHCP conncon type) PPPoE: Select this opon if your camera is directly connected to a DSL modem and your ISP requires a PPPoE authencaon to the Internet. DHCP: Select this opon if your camera is connected to a router and DHCP is enabled. Fixed IP: Select this opon if your camera is directly connected to a DSL modem and your ISP has supplied you with a xed IP for your Internet conncon.

Select the radio buon for your conneccon type and click Next to connue.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

1. A summary screen of the sengs you have chosen appears. Click Next to connue.

1. Aer the Setup Wizard congures the camera, the wizard starts to setup process.

1. When the Setup Wizard has nished, the conguraon is complete and the following screen appears:

You are now ready to use your camera.

Click the IP address link or the link buon to access the camera's advanced conguraon page.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Conguraon

Aer compleng the Setup Wizard, you are ready to use your camera. The camera's built-in Web conguraon ulity is designed to allow you to easily access and conjure your TV-IP672P or TV-IP672PI camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera. To log in, use the User name admin and the password you created in the Setup Wizard. If you did not create a password, the default password is admin. Aer entering your password, click OK.

The home page for the TV-IP672P or TV-IP672PI appears.

Main Interface

COMPONENT	DESCRIPTION
1. Live View	This is the Main Screen. This shows whatever the camera is pointed at.
2. Setup	Setup provides all of the conguraon opons on the TV-IP672W/WI
3. Moon Trigger	Click this buon to acvate moon
4. Record	Click this buon to enable recording
5. Direconal Controller	Control the direcon of the camera, zoom in or out, and soware Pan & Tilt funcons.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

6. Pan	This buon pans the camera to the desired posion from start to Pan.
7. Patrol	This buon funcons from start to auto patrol.
8. Stop	This buon stops the Pan & Patrol moon.
9. Go to	This drop-down list gives you the opon to select the camera you want to conjure.
10. Pan Speed	Select the speed of the Pan moon from 1-10. 1 is the lowest as 10 is the highest.
11. Tilt Speed	Select the speed of the Tilt moon from 1-10. 1 is the slowest as 10 is the fastest.
12. Live View	This screen shows the current view from the camera
13. Control Navigaonal Menu	It contains a list of funcons.

COMPONENT	DESCRIPTION
Passive Prole	This prole, in grey, is inacve.
Acve Prole	This prole, in yellow, is acve.
Full Screen Mode	The viewable screen is expanded to full screen
Snapshot	Click this buon to take a snapshot of your current viewing angle.

Record	Start recording the current video stream.
Storage Folder	Select this icon to select the folder where you want to store video feeds.
Audio	Click this buon to toggle between sound and mute.
Microphone	Click this buon to use the microphone on the camera and listen to your viewing angle's surrounding area.
Zoom	There are dierent zoom opons under Zoom in/out. The viewing angle can be zoomed in from 1 mes, 2 mes, and 4 mes.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Setup Wizard

To view the Setup Wizard sengs:

1. Login to the camera as described in the secon Using the web-based conguraon interface.Click on the Setup tab on the le panel.
2. Click Wizard. The Welcome to Internet Connecon Setup Wizard screen appears.

From the menu on the right side of the screen, click Next to start the Setup Wizard.

Step 1: LAN Sengs

This screen provides two conncon opons: DHCP Connecon and Stac IP Address. In DHCP Connecon all elds are non-existent cause your router selects an IP address for you. Under Stac IP address eld to enter the IP address details yourself according to what your network provider gave you. Select the appropriate opon and click Next to connue.

Step 2: Internet Sengs

This screen provides PPPoE sengs and allows the camera to be connected directly to your ADSL modem. Click the Enable checkbox to setup PPPoE. Enter a username and password. If your internet conncon doesn't call for PPPoE deselect the Enable checkbox and click Next

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Step 3: DDNS Sengs

This screen provides DDNS sengs. Click the Enable checkbox to setup DDNS. Once you have clicked Enable, select your DDNS Server and enter your Server Address. Enter a Host Name, User Name, and Password. Verify the password by entering your details again and then enter the Timeout sengs in hours. Click Next to connue. If you do not want to use the DDNS sengs uncheck the Enable checkbox and click Next.

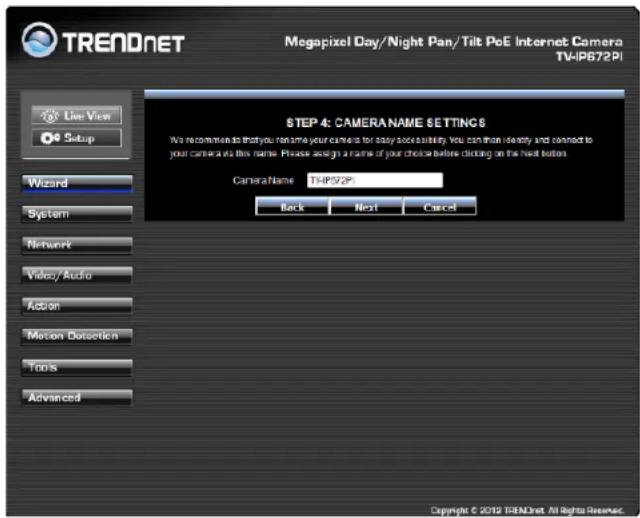

Step 4: Camera Name Sengs

This screen provides Camera Name seings. In the Camera Name eld type the name you wish to assign to the camera and click Next to connue.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

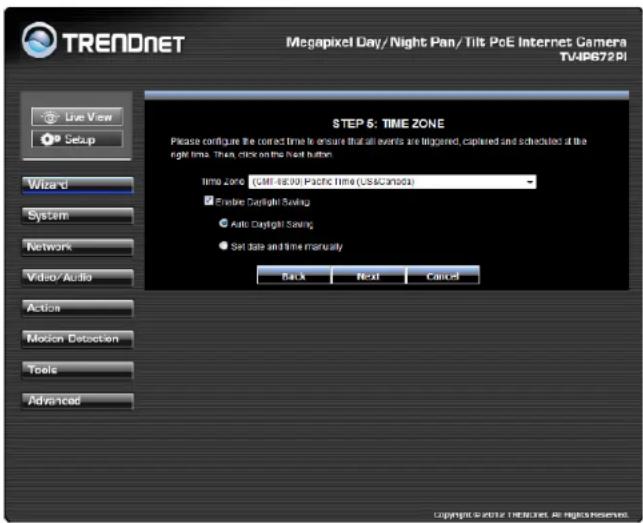

Step 5: Time Zone Sengs

This screen provides Time Zone sengs. From the Time Zone drop-down list, select your me zone. Click Enable Daylight Saving if you are going to use that me method and select either Auto Daylight Saving or Set date and me manually. Click Next to connue.

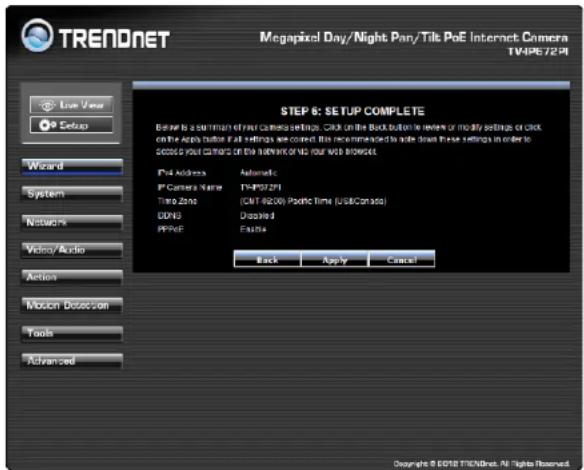

Step 6: Setup Complete

This screen provides Conguraon Sengs. The nal screen shows the informaon you have just congured. Click Back to make changes, Apply to set the changes and Cancel to exit without saving the sengs.

The camera will gather and reboot the camera to its new sengs

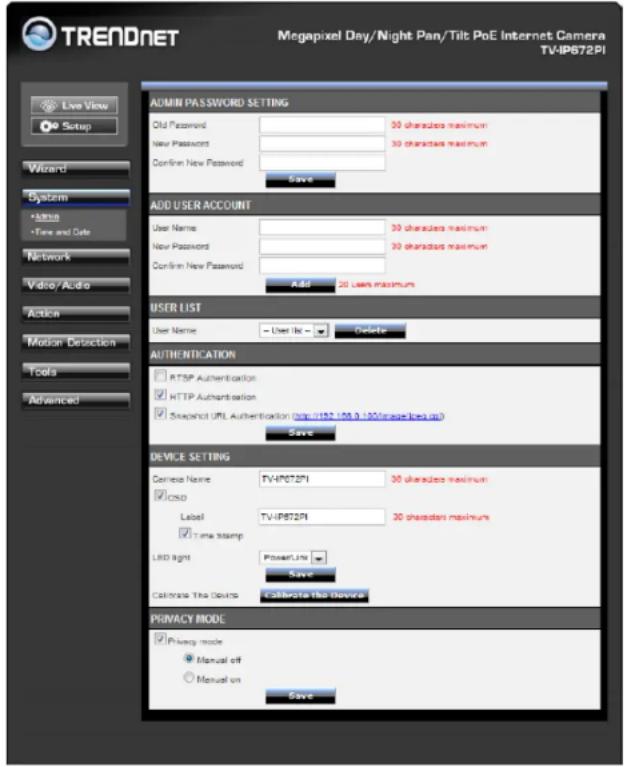

System

System is divided into two main seconds – Admin and Time & Date. The Admin secon is where all Device Management conguraons are handled.

Device Management consists of Admin Password Sengs:

Admin Password Sengs: Here you can change the administrator password sengs. Enter the Old Password, New Password, and Conrm New Password in their respective elds. Click Save to connue.

Add User Account: Here you can add users who want to view images on the W/WI Enter a User Name, Password, and Verify the New Password. Click Add to connue.

User List: Here you can select a user and click the Delete buon to remove the user from your list.

Authencaon: Here you have three opons to authenticate. RTSP Authencaon, HTTP Authencaon, and Snapshot. Click the checkbox to enable each authencaon process or leave them blank. Click Save to connue.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

The camera allows users to access the video directly

For Internet Explorer, hp://camera ip/directview/tvaview.cgi

For Non Internet Explorer, hp://camera_ip/directview/tvjview.cgi

When HTTP Authencaon is enabled, user name and password are required to access the direct view page.

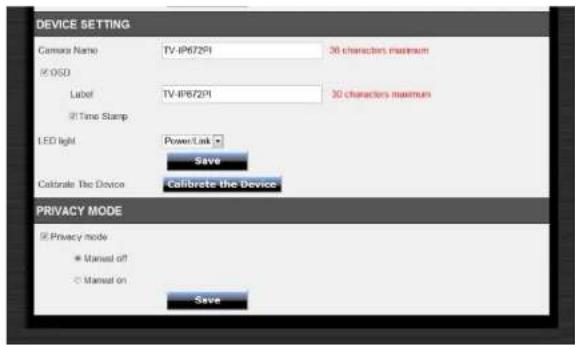

Device Sengs: Here you can change the Camera Name, click OSD to enable the Label Name and check Time Stamp to singe mes into your images. The LED light has three opons from the drop-down list: Power/Link, O, or Flicker. The opons are self-explanatory. Click Save to connue.

Privacy Sengs: Here you can enable/disable the Privacy buon funcon.

The next congorable secon under System is Time and Date. If you didn't set the me and date sengs in the Setup Wizard, you can change them here.

Under Time Conguraon, select a Time Zone from the drop-down list. Click the checkbox next to Enable Daylight Saving to enable this funcon and choose either Auto Daylight Saving or Set DST Manually. Click Apply to connue.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Under Automac Time Conguraon, click the Synchronize with NTP Server checkbox if you wish to sync your W/WI with your NTP server. Click Apply to connue.

☐ Synchronize with NTP Server

Under Set Date and Time Manually, click the Setup Date and Time Manually checkbox if you wish to set the me by yourself. From the drop-down list on all sengs, select your me and click Apply to connue or click Copy Your Computer's Time Sengs.

SET DATE AND TIME MANUALLY

√ Setup Date and Time Manually

Year

Hour

2011

16

Month

Minute

11

4

Day

Second

10

39

Copy Your Computer's Time Settings

Network

This screen shows the LAN Sengs. If you didn't set your LAN sengs in the Setup Wizard, you can set them up here.

Under LAN Sengs, select either DHCP Connecon or Stac IP Address. If you want to setup PPPoE, click the PPPoE checkbox and enter the Username, Password, conrm the Password and click Apply. The Status will change from Disabled to Enabled.

Under Port Sengs, select the HTTP Port (80 is the default) and also select the RTSP Port (554). Under UPnP, click the UPnP checkbox if you want to enable this funcon. Click the UPnP Port Forwarding checkbox if you want to enable to set the ports. Select the External HTTP port and select the RTSP port. If you are using a MAC check the Bonjour checkbox to enable this funcon. Click Apply to set the changes.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

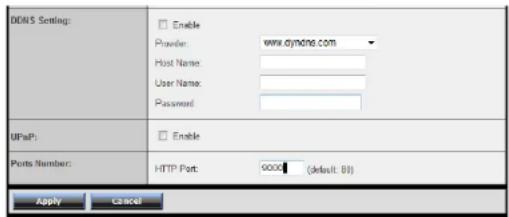

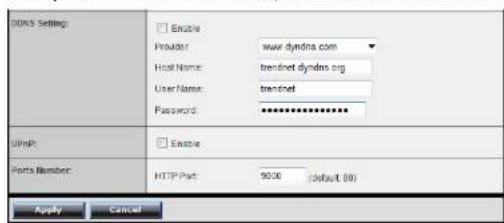

Dynamic DNS

Also under Network Sengs is Dynamic DNS. If you have not enabled this funcon in the Setup Wizard click the DDNS checkbox to enable Dynamic DDNS. Select your DDNS server from the drop-down list and ll in the parameters from these elds: Host Name, User Name, Password, Conrm Password, and Timeout. Click Apply to set these changes and connue.

Video and Audio

This screen shows dierent video proles where you can setup dierent funcons for the camera. The audio sengs also allow for dierent sengs. Each prole coincides with the prole icons in Live View. Seng up each prole individually gives the user beer choice.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Video and Audio

Under each prole sengs there are six main funcons, Encoder Type, Resoluon, Frames per Second, Encode Method, bps, and RTSP URL sengs.

Encode Type: This sets the le format and le quality.

Resoluon: This is the size of your image.

Frames Per Second: This is the speed at which each frame is captured

bps: Is the transmission speed of your data (4Mbps-64Kbps)

Encode Method: Is your Constant Bit Rate

BPS: Is the transmission speed of your data (4Mbps-64Kbps)

RTSP URL: is the RTSP URL where video streaming is accessed.

Each Prole oers dierent specicaons. Select the specicaons that best suite you.

Video Prole One - Opons:

• Encode Type – H.264 & MPEG4
  ● Resoluon – 1280x800/640X400/320X192/160X96
• FPS - 30/15/10/5/3/2/1
• Encode Method – CBR/Quality
  Bps -

4Mbps/3Mbps/2Mbps/1.5Mbps/1Mbps/768Kbps/512Kbps/384Kbps/256Kbps/128Kbps/64Kbps

- RTSP URL – play1.sdp

VIDEO PROFILE 1
Encode Type	Resolution	FPS	Encode Method	bps	RTSP URL
H.264	640X400	30	CBR	4 Mbps	play1.sdp

Video Prole Two - Opons:

• Encode Type – H.264 & MPEG4
  ● Resoluon -640x400/320x192/160x96
• FPS - 30/15/10/5/3/2/1
• Encode Method – CBR/Quality
  Bps -

4Mbps/3Mbps/2Mbps/1.5Mbps/1Mbps/768Kbps/512Kbps/384Kbps/256Kbps/128Kbps/64Kbps

- RTSP URL – play2.sdp

VIDEO PROFILE 2
Encode Type	Resolution	FPS	Encode Method	bps	RTSP URL
H.264	640X400	10	CBR	1 Mbps	play2.sdp

Video Prole Three - Opons:

• Encode Type – JPEG
  ● Resoluon -1280x800/640X400/320X192/160X96
• FPS - 30/15/10/5/3/2/1
• Encode Method –Quality
  ● Quality – Low/Fair/Standard/Good/Excellent
• RTSP URL – play3.sdp

VIDEO PROFILE 3
Encode Type	Resolution	FPS	Encode Method	Quality	RTSP URL
JPEG	840X400	10	Quality	Good	play3.sdp

Video Prole Four for Mobile Devices Only - Opons:

• Encode Type – H.264 & MPEG4
• Resoluon – 640X400/320X192/160X96
  ● FPS - 30/15/10/5/3/2/1
• Encode Method – CBR/Quality

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Bps-

4Mbps/3Mbps/2Mbps/1.5Mbps/1Mbps/768Kbps/512Kbps/384Kbps/256Kbps/128Kbps/64Kbps

- RTSP URL – 3gpp

VIDEO PROFILE 4 FOR MOBILE DEVICE ONLY

Encode Type	Resolution	FPS	Encode Method	bps	RTSP URL
MPEG4	320X192	5	CBR	384 Kbps	3gpp

Day/Night Mode

The TV-IP672WI allows users to record data in day and night mode. The TV-IP672WI have LED's for night mode. This secon provides day and night opons. You can select it to run automacally, manually, in constant day mode or constant night mode.

Audio Setup

The TV-IP672W/TV-IP672WI allows users to record and broadcast audio. Click the Speaker checkbox to change the volume sengs on the camera's speaker. Click the Microphone checkbox and select your preference from the volume drop-down list. Click Apply to connue.

Image Setup

Just like any camera, you are able to make changes to the image sengs. With the W/WI, you can change the Brightness, Contrast, color scheme to Black/White, Flip the image, and change the Frequency, Shuer Speed, Saturaon, Hue, Mirror, Auto Exposure and White Balancing. The sengs can be viewed "live" through the LIVE VIDEO display in the forefront image.

If you wish to discard the changes you made click the Reset to Default

Reset to Default

buon.

Acon

Recording

This screen shows the SD Card parameters. You are able to set the recording opons on this page. Click the Recording checkbox to enable camera recording. All data is stored on the removable SD card.

There are three main seconds:

Trigger By: Always, Moon, Schedule,

Recording: Congure the recording opons

SD Card: Recording les size

Trigger By - Always

This opon allows you to record constantly. If you select Always bear in mind that the Recording Type should be Video and that the source usually comes from Proles 1, 2 or 4 under Source. Make sure the SD Card sengs are setup to accommodate the huge storage space required for Always connnecons. Click Apply to complete the conguraon.

Trigger By – Schedule

This opon allows you to record according to the schedule you setup. If you select Schedule a calendar of the days of the week appear. Here you can select from each day's checkbox which days you want to setup and you can create a start and end me. Click Apply to complete the conguraon.

Trigger By – Moon

This opon allows you to record according to the moon parameters you setup. If you select Moon, click the Onlyduring checkbox. Then a calendar of the days of the week appears. Here you can click one of the day's checkboxes and you can create a start and end me. The Recording Type changes to pre-record or pre-event sengs. This means

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

the camera will start recording before the alloed me schedule. These mes can only be set in seconds. Click Apply to complete the conguraon.

RECORDING

Recording Type

The two main seconds here are Snapshot and Video. Snapshot takes a picture from your recorded data and only works with Prole 3. Video captures source data from Proles 1, 2, and 4. and is congorable in Video/Audio sengs.

Target - SD Card

These sengs depend on the size of your SD card. The larger your SD card the more storage space you have to record data. Recording data can be recorded in increments of 1-6 minutes. Cyclic sengs can also be checked.

Target - Samba Network Device

The Samba Network Device requires a NAS server or a Linux server to operate. Under Server, enter the server address. Click the Anonymous radio buon to allow anonymous users to send les to the Samba server. Then enter the Share Folder, Sub Folder (if needed) and enter the disk space needed.

If you click the Account radio buon then enter a Username and Password. This will authenticate the user every me they log on to the samba server.

Video Clip

Click the Video Clip checkbox to acvate video recording events.

There are three main seconds:

Trigger By: Always, Moon, Schedule,

Video Clip Type: Congure the recording opons

Target: The targets available are FTP and E-mail. If you want to record data to an FTP server, click FTP. If you want to record data to an E-mail account click E-mail.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

The Trigger by and Video Clip sengs are similar to the opons under Recording. Please see the above descripon for details.

Target

Target oers two variables, FTP or Email. You cannot select both. If you select FTP enter the details as laid out in the FTP eld.

FTP Server – this is your default FTP server address

Port – this is the default FTP Port (21) address

Username – the username your FTP administrator provided

Password – the password your FTP administrator assigned you

Path – the directory

Filename Prex – the lename you are using to access the data or save the data to

Interval – The default interval range is 60-86400. the me the server interacts with your camera

Passive Mode – Server/client iniaon access to bypass proxies.

For Email

Recipient E-mail Address – the email address you want to send informaon to

SMTP Mail Server – the mail server domain details

Port - the default Port number (25)

Username – the username sengs provided by your email administrator

Password - the password sengs provided by your email administrator

Sender Email Address – the email address of the sender

Send next email aer – the alert email interval mes

Use SSL-TLS – this is a secure method (please consult your administrator before using this seng). There are two opons, SSL-TLS or STARTTLS.

Click the Test is a test, with a test. This will authenticate the email details with your email server.

If the authencaon is positive the test will be complete. If the test is a failure, the result will not be successful.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Snapshot

These sengs control SNAPSHOT sengs for your camera. The Trigger by sengs is similar to sengs above, so please view the sengs above. The Snapshot Type provides for a Single snapshot or 6 snapshots at 1-2 second intervals. The Target FTP and Email sengs are similar to sengs explained above. Please read the conguraon in the above explanaon.

Preset Posion

Preset Posion

This screen shows the soware Pan/Tilt funcons. You can set preset posions for fast authencaon. Most of the screen is taken up by the camera image. On the right of the main screen is the Pan & Tilt dial

Circular diagram with directional arrows and a central plus sign, no text or symbols present

1. Under Preset Posion – Enter a name in the eld provided to give a name a posion.
2. Click Add.
3. To set a new Preset Posion – Use the Pan & Tilt dial to select your Pan & Tilt speeds, and select the posion.
4. Use the Set As Home buon to choose it as your home screen.
5. Click the Default Home buon if you wish to use this conguraon as your default home viewing area.
6. Preset Posion – From the Preset Posion drop-down menu, you can select the preset you created and delete it.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

The Pre-programmed Preset Posions is a list of presets you have setup under Preset Posion. This list is populated with dierent camera views and angles.

Patrol Selecon

This area is where you setup the movement of the Pan/Tilt during a parcalar me frame. This Patrol Posion can be setup with dierent Pan/Patrol Speeds and Dwelling me(s) in seconds. The Dwelling Time is the duraon the camera takes to span a parcalar area.

1. Setup the Preset Posion – Once you have setup the Preset in the previous conguraon list, select it from the Pre-programmed Preset Posions.
2. Click the Select buon to transfer this preset to the Patrol Posion.
3. Set the posion of your Preset. This depends on the priority of Patrol Posion – which item you want to make your priority.
4. For each Patrol Posion you can adjust the Pan/Patrol Speed (1-3 with 1 being the slowest), and Dwelling Time (in seconds). This indicates the me needed to span an area covered by the camera.
5. Click Apply to connue and nish the process.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

SD Management

These sengs control the management of data on the SD card installed on the camera. Set the les per page - 5-100 les. To delete a le, select the le and click the Delete checkbox to delete the le. If you wish to format your SC card at any me, click the

Format SD Card Format SD Card

Set Micro-SD card format to FAT32, it is recommended for managing the SD card to make sure the SD card is compatible with the camera. (Please backup all data on the SD card to other locaons prior to this procedure)

Moon Detecon

These sengs control the moon detecon sengs on the camera. Moon detecon allows you to designate an area in the cameras viewing angle to capture moon within that area. All other areas will not be recorded. This is useful if you want to limit your recording to a parcular size.

Click the Enable Video Moon checkbox to acvate moon detecon. There are two main elds: Sensitivity and Drawing Mode. Sensitivity is based on the strength of the moon in the designated area. 0% means the strength is low and the system moves up incrementally to 100% full sensitive strength.

Drawing Mode provides two opons. Once you select Draw moon area, take your mouse and draw a rectangular area where you want the camera to detect the moon. If you want to remove the moon detecon area select Erase moon area and the red

blocked area will disappear. If you click the Clear Clear also

remove the moon detecon area. If you click the Refresh Image buon it will do as said. This is useful when the camera is out of focus and comes back into focus at a later stage. Once you have set all seng opons click Apply.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Tools

System

These sengs allow you to save the recorded data to your local hard drive or retrieve it from the drive. When you click the Save Conguraon

Save Configuration

buon it saves a database le to your local system.

When you want to access recorded data from your hard drive, click the Browse buon, locate the le on your hard drive and to display the data click Load Conguraon

Load Configuration

When you want to reset the camera to system default, click the Restore Factory

Defaults Restore Factory Defaults

is not working properly for any reason, you can reboot the system by clicking the

Reboot Device

Reboot Device

Firmware Upgrade

These sengs display the Current Firmware Version and the Current Firmware Build Number.

To do the Firmware Upgrade, locate the path of your upgrade le by clicking the browse buon and click the Upload upload to upgrade the rmware.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Advanced

Device Info

These sengs display the Device informaon to you. It comprises of all the important details regarding the phones network sengs. The descripon is laid out in the picture below.

Log

These sengs display the Current Log of the device. Click the Clear

buon to reset the log or click the Download le in txt format.

For more monitoring features, please refer to SecurView Pro soware user's guide for details.

How to setup/access the camera remotely

You can either setup the Dynamic DNS conncon via camera itself or your home router. An account from any of the listed DDNS providers is required prior to this operaon.

Congure DDNS on your Camera

1. Go to Camera's DDNS Seng page; click Enable to acvate the feature. Then select a DDNS provider from the list.

1. Enter your DDNS's the Host Name, User Name and Password.

1. In the Port Number secon, assign an HTTP port of the camera. The default HTTP Port on the camera is 80. The example shows above is using port number 9000.
2. Open another web browser and go to your Router's Web Conguraon page. (In the example, TRENDnet's TEW-651BR Wireless N router is used)

1. Go to Virtual Server* secon and create a new entry.

Enable: Click Enable

Name: Enter the applicaon name (eg. CameraName)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

Then click Add to add the applicaon.

* Please refer to your router's user's manual for detail Virtual Server seng. Some router might use Port Forwarding or Special applications for this funcon. The setup steps should be very similar.

	Name	Protocol	LAN Server
	Virtual Server FTP	TCP 21/21	0.0.0.0
	Virtual Server HTTP	TCP 80/80	0.0.0.0
	Virtual Server HTTPS	TCP 443/443	0.0.0.0
	Virtual Server DNS	UDP 53/53	0.0.0.0
	Virtual Server SMTP	TCP 25/25	0.0.0.0
	Virtual Server POP3	TCP 110/110	0.0.0.0
	Virtual Server Telnet	TCP 23/23	0.0.0.0
	PPTP	TCP 1723/1723	0.0.0.0
	NetBanking	TCP 1729/1729	0.0.0.0
✓	IP Camera	TCP 9999/9999	192,199,1,191

1. Open another web browser and enter your DDNS domain and camera's port number. hp://yourDomainName:PortNumber

1. Camera's login page will appear.

Congure DDNS on your router

1. Go to Camera's DDNS → Ports Number secon, assign a HTTP port for your camera and click Apply.

1. Login to your router's web conguraon page. Find the Dynamic DNS conguraon secon.

1. Enable DDNS, II out the following informaon and then click Apply.

TRENDnet User's Guide

TV-IP672P / TV-IP672PI

1. Go to Virtual Server* secon and create a new entry.

Enable: Click Enable

Name: Enter the applicaon name (eg. Camera Name)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

Click Add to add the applicaon.

* Please refer to your router's user's manual for detail Virtual Server seng. Some router might use Port Forwarding or Special applications for this funcon. The setup steps should be very similar.

1. Open another web browser and enter your DDNS domain and camera's port number.

hp://yourDomainName:PortNumber

1. The camera login page will appear.

Technical Specicaons
TV-IP672P

Camera
General	Sensor: 1/4" CMOS SensorBoard LensFocal Length: 4mmF/No: 1.5Minimum Illuminaon: 1 luxFocus Depth: 20 cm ~ innityView:Horizontal: 51.8 degreesVercal: 33.8 degreesDiagonal: 59.6 degreesDigital Zoom: 4x
Audio	Built-in omnl-dlreconal microphoneSensitivity: -40dB +/- 3dB (5 meters max.)Frequency: 100~20000HzS/N: >60dBFormat: PCM/ADPCMExternal speaker output (speaker sold separately)Two-way audio with echo canceling
Pan & Tilt	Pan: -170° ~ +170°Tilt: up 90° and down 25°Auto-Patrol preset posions: 10
Hardware
Network	IEEE 802.3u 10/100Mbps Auto-MDIX Fast EthernetIEEE 802.3af Power over Ethernet (PoE)
LED	Power, Link/Act
Reset Buon	Reset to factory default
Privacy Buon	Privacy mode on/o

Power Consumpon	Max. 9 was
Power	Input: 100~240V, 50/60Hz 0.5AOutput: 12V, 1.25A external power adapter
Dimension	113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)
Weight	495 g (1.1 lb.)
Temperature	Operang: 0°C ~ 40°C (32°F ~ 104°F)Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Humidity	Max. 90% (non-condensing)
Cercaons	CE, FCC
Requirement
Management Interface	Internet Explorer 7.0 or aboveFirefox, Safari, and Chrome
To Run soware	Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)Windows Server 2003, 2008
SecurView Pro Soware	Channel: supports up to 32 camerasRecord/Playback/Moon Detecon/Audio
Network Protocols	IPv4, ARP, TCP, UDP, ICMPDHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP ClientHTTPSamba ClientPPPoEUPnPLLTDRTP (Real Time Protocol)RTCP (Real Time Control Protocol)RTSP (Real Time Streaming Protocol)3GPP (video only)
Management
System	Web based administraon
Access	Up to 20 user accounts

TRENDnet User's Guide

TV-IP672W / TV-IP672WI

Backup / Restore	Save/retrieve conguraon les
Log	System log up to 500 entries
Micro SD	View, download, delete lesFormat and remove Micro SD card
Sengs
Image	Brightness, contrast, saturaon, sharpness, white balance, ip, mirror (horizontal/vercal), black & white, indoor, outdoor, schedule modeShuer: 1/3.25s, 1/7.5s, 1/10s, and 1/15s
Video Seng	Prole 1: H.264/ MPEG-4- Resoluon: 1280 x 800, 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fpsProle 2: H.264/ MPEG-4- Resoluon: 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fpsProle 3: MJPEG- Resoluon: 1280 x 800, 640 x 400, 320 x 192, 160 x 96- Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps- JPEG quality: Low, Fair, Standard, Good, ExcellentProle 4: H.264/MPEG-4- Resoluon: 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fps- RTSP: hp://ipcamera_ip/3gpp____
3GPP	Audio format/AMRVideo format/MPEG4Protocols/RTSP, RTP, RTCP
Recording	Resoluon: Dene individual resoluon for up to 4 prolesRequired storage: 32MB (minimum per prole)Recording type: event based (moon detecon and digital input trigger), connuous, and scheduled
Event Acon	Trigger event: moon detecon or digital input signalAcon: send real-me snapshot or video recording to FTP or email
Port Sengs	HTTP port: 80 (default)RTSP port: 554 (default)

Time	Synchronize with NTP server or set me / date manually

TV-IP672PI

Camera
General	Sensor: 1/4" CMOS SensorBoard LensFocal Length: 4mmF/No: 1.5Minimum illuminaon: 0 luxFocus Depth: 20 cm ~ innityView:Horizontal: 51.8 degreesVercal: 33.8 degreesDiagonal: 59.6 degreesDigital Zoom: 4x
Audio	Built-in omni-direconal microphoneSensitivity: -40dB +/- 3dB (5 meters max.)Frequency: 100~20000HzS/N: >60dBFormat: PCM/ADPCMExternal speaker output (speaker sold separately)Two-way audio with echo canceling
Pan & Tilt	Pan: -170° ~ +170°Tilt: up 90°and down 25°Auto-Patrol preset poslons: 10
Day/Night	Built-In ICRNigh vision (IR) supports up to 7.5 meters
Hardware
Network	IEEE 802.3u 10/100Mbps Auto-MDIX Fast EthernetIEEE 802.3af Power over Ethernet (PoE)

TRENDnet User's Guide

TV-IP672W / TV-IP672WI

LED	Power, Link/Act
Reset Buon	Reset to factory default
Privacy Buon	Privacy mode on/o
Power Consumpon	Max. 9 was
Power	Input: 100~240V, 50/60Hz 0.5AOutput: 12V, 1.25A external power adapter
Dimension	113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)
Weight	500 g (1.1 lb.)
Temperature	Operang: 0°C ~ 40°C (32°F ~ 104°F)Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Humidity	Max. 90% (non-condensing)
Cercaons	CE, FCC
Requirement
Management Interface	Internet Explorer 7.0 or aboveFirefox, Safari, and Chrome
To Run sware	Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)Windows Server 2003, 2008
SecurView Pro Sware	Channel: supports up to 32 camerasRecord/Playback/Moon Detecon/Audio
Network Protocols	IPv4, ARP, TCP, UDP, ICMPDHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP ClientHTTPSamba ClientPPPoEUPnPLLTDRTP (Real Time Protocol)RTCP (Real Time Control Protocol)RTSP (Real Time Streaming Protocol)3GPP (video only)

Management
System	Web based administraon
Access	Up to 20 user accounts
Backup / Restore	Save/retrieve conguraon les
Log	System log up to 500 entries
Micro SD	View, download, delete lesFormat and remove Micro SD card
Sengs
Image	Brightness, contrast, saturaon, sharpness, white balance, Ip, mirror (horizontal/vercal), black & white, indoor, outdoor, schedule modeShuer: 1/3.25s, 1/7.5s, 1/10s, and 1/15s
Video Seng	Prole 1: H.264/ MPEG-4- Resoluon: 1280 x 800, 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fpsProle 2: H.264/ MPEG-4- Resoluon: 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fpsProle 3: MJPEG- Resoluon: 1280 x 800, 640 x 400, 320 x 192, 160 x 96- Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps- JPEG quality: Low, Fair, Standard, Good, ExcellentProle 4: H.264/MPEG-4- Resoluon: 640 x 400, 320 x 192, 160 x 96- Max frame rate: 30fps- RTSP: hp://ipcamera_ip/3gpp_
3GPP	Audio format/AMRVideo format/MPEG4Protocols/RTSP, RTP, RTCP
Recording	Resoluon: Dene individual resoluon for up to 4 prolesRequired storage: 32MB (minimum per prole)Recording type: event based (moon detecon and digital input trigger), connuous, and scheduled

TRENDnet User's Guide

TV-IP672W / TV-IP672WI

Event Acon	Trigger event: moon detecon or digital input signalAcon: send real-me snapshot or video recording to FTP or email
Port Sengs	HTTP port: 80 (default)RTSP port: 554 (default)
Time	Synchronize with NTP server or set me / date manually

Troubleshoong

1. The Power LED and Ethernet Acvity LED do not light up.

The power supply or camera might be faulty. Check that the conneccon to both the power source and the terminal on the back of the camera are secure and that you are using the provided power supply. If the camera is otherwise functioning correctly, the LEDs might have been disabled in the conguraon. See the secon of this guide on Conguraon of System sengs.

2. The camera can't be accessed or access is slow

There might be a problem with the network cable. To conrm that the cables are working, ping the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (...bytes = 32 me = 2 ms).

Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not funconing properly. Please conrm the power for the devices are well connected and funconing properly.

3. The camera can be accessed locally but not remotely

This might be caused by a rewall. Check the Internet rewall with your system administrator. The rewall may need to have some sengs changed in order for the Network Camera to be accessible outside your local LAN. For more informaon, please refer to the secon about installing your camera behind a router.

Make sure that the Network Camera isn't conicng with any Web server you may have running on your network.

The default router seng might be a possible reason. Check that the conguraon of the router sengs allow the Network Camera to be accessed outside your local LAN.

4. White vercal lines appear on the image from the camera

It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital format so your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to bright lights such as direct exposure

to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately as prolonged exposure to bright lights will damage the CMOS sensor.

5. The camera images are 'noisy'

Oen if the camera is in a low-light environment, the images can contain a lot of noise. Try enabling Night mode and see if that improves the image quality. Otherwise, try to use the camera in a locaon where there is a bit more light.

6. The camera images are of poor quality.

Make sure that your computer's display properes are set to at least 16-bit color. Using 16 or 256 colors on your computer will produce dithering artifacts in the image, making the image look as if it is of poor quality.

Try also adjusng the brightness, contrast, saturaon, light frequency and anicker controls on the Video Sengs under the Conguraon menu. You may also consider adjusng the resolution of the camera and the compression rate to improve the image.

7. Video can't be viewed through the web browser interface.

AcveX might be disabled. If you are viewing the images from Internet Explorer make sure AcveX has been enabled in the Internet Opons menu. You may also need to change the security sengs on your browser to allow the AcveX plug-in to be installed.

If you are using Internet Explorer with a version number lower than 6, then you will need to upgrade your Web browser soware in order to view the streaming video transmied by the Network Camera. Try also viewing the video using Java. Ensure that you have the latest version of Java installed before you do. Go to www.java.com for more informaon.

TRENDnet User's Guide

TV-IP672W / TV-IP672WI

Federal Communicaon Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separaon between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon.

Europe – EU Declaraon of Conformity

This device complies with the essenal requirements of the R&TTE Direcve 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essenal requirements of the R&TTE Direcve 1999/5/EC:

EN 60950-1: 2006 +A11:2009

Safety of Informaon Technology Equipment

EN 301 489-1 V1.8.1: (2008-04)

Electromagnec compatibility and Radio Spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

EN 301 489-17 V2.1.1 (2009-05)

Electromagnec compatibility and Radio spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the naonal spectrum authorities in order to obtain authorizaon to use the device for seng up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for seng up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed informaon the end-user should contact the naonal spectrum authority in France.

TRENDnet User's Guide

TV-IP672W / TV-IP672WI

csČesky [Czech]	TRENDnet mto prohlašuje, že tento TV-IP672P / TV-IP672PI je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
daDansk [Danish]	Undertegnede TRENDnet erklærer herved, at følgende udstyr TV-TV-IP672P / TV-IP672PI overholder de væsentlige krav og øvrige relevante krav i direkv 1999/5/EF.
deDeutsch [German]	Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP672P / TV-IP672PI in Übereinsmmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Besmmungen der Richtlinie 1999/5/EG bendet.
etEes [Estonian]	Käesolevaga kinnitab TRENDnet seadme TV-IP672P / TV-IP672PI vastavust direkivi 1999/5/EÜ pôhinõuetele ja nimetatud direkivist tulenevatele teistele asjakohastele sätetele.
enEnglish	Hereby, TRENDnet, declares that this TV-IP672P / TV-IP672PI is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/EC.
esEspañol [Spanish]	Por medio de la presente TRENDnet declara que el TV-IP672P / TV-IP672PI cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Direcva 1999/5/CE.
elEλληνική [Greek]	ME THN ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TV-IP672P / TV-IP672PI ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
frFrançais [French]	Par la présente TRENDnet déclare que l'appareil TV-IP672P / TV-IP672PI est conforme aux exigences essenelles et aux autres disposions permentes de la direcve 1999/5/CE.
itItaliano [Italian]	Con la presente TRENDnet dichiara che questo TV-IP672P / TV-IP672PI è conforme ai requisi essenziali ed alle altre disposizioni pernen stabilite dalla direva 1999/5/CE.
lvLatviski [Latvian]	Ar šo TRENDnet deklarē, ka TV-IP672P / TV-IP672PI atbilst Direkvas 1999/5/EK būskajām prasībām un ciem ar to

	saistajiem noteikumiem.
lt Lietuvių [Lithuanian]	Šiuo TRENDnet deklarujoja, kad šis TV-IP672P / TV-IP672PI anka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nlNederlands [Dutch]	Hierbij verklaart TRENDnet dat het toestel TV-IP672P / TV-IP672PI in overeenstemming is met de essenėle eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
nt Mal [Maltese]	Hawnhekk, TRENDnet, jiddikjara li dan TV-IP672P / TV-IP672PI jikkonforma mal-ħgijiet essenzjali u ma provvedimen oħrajn relevan li hemm d-Dirreva 1999/5/EC.
hu Magyar [Hungarian]	Alulíro, TRENDnet nyilatkozom, hogy a TV-IP672P / TV-IP672PI megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
pl Polski [Polish]	Niniejszym TRENDnet oświadcza, že TV-IP672P / TV-IP672PI jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
pt Português [Portuguese]	TRENDnet declara que este TV-IP672P / TV-IP672PI está conforme com os requisitos essenciais e outras disposições da Direcva 1999/5/CE.
zl Slovensko [Slovenian]	TRENDnet izjavlja, da je ta TV-IP672P / TV-IP672PI v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direkve 1999/5/ES.
ek Slovensky [Slovak]	TRENDnet týmto vyhlasuje, že TV-IP672P / TV-IP672PI spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fi Suomi [Finnish]	TRENDnet vakuuaa täten eä TV-IP672P / TV-IP672PI tyyppinen laite on direkivin 1999/5/EY oleellisten vaamusten ja sitä koskevien direkivin muiden ehtojen mukainen.
sv Svenska [Swedish]	Härmed intygar TRENDnet a denna TV-IP672P / TV-IP672PI står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direkv 1999/5/EG.

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of me from the date of purchase.

TV-IP672P / TV-IP672PI - 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty connues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any soware, rmware, informaon, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or aempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.

Warranty service may be obtained by contacng TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentaon a Return Material Authorizaon (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

Some TRENDnet products include soware code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").

Go to http://www.trendnet.com/gpl_or hp://www.trendnet.com Download secon and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt_or hp://www.gnu.org/licenses/lgpl.txt_for specific terms of each license.

V1.0R / 5.2.2012

TRENDNET®

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA

Copyright ©2012. All Rights Reserved. TRENDnet.
