Product Type	5-Channel Car Audio Amplifier
Model	LC-5.1300
Brand	AudioControl
Total RMS Power	1300 Watts
RMS Power (4 channels)	4 x 75W @ 4 ohms
RMS Power (subwoofer channel)	1 x 400W @ 2 ohms
Peak Power	2600 Watts
Frequency Response	20 Hz - 20 kHz (±0.5 dB)
Total Harmonic Distortion (THD)	< 0.05%
Signal-to-Noise Ratio	> 100 dB
Damping Factor	> 200
Input Sensitivity	200 mV - 5 V
Fuse Rating	80A (AGU or MAXI)
Dimensions (W x H x D)	12.2 x 2.1 x 7.5 inches
Weight	6.8 lbs (3.1 kg)
Power Supply Voltage	11-14.4 VDC
Low-Pass Filter	50-250 Hz (variable)
High-Pass Filter	50-250 Hz (variable)
Subsonic Filter	15-40 Hz (variable)
Bass Boost	0-12 dB @ 45 Hz
Remote Control	Optional (remote level control included)
Protection Features	Thermal, overcurrent, DC offset, short circuit
Cooling	Convection (heatsink)
Recommended Speaker Impedance	4-8 ohms (full-range), 2-8 ohms (sub)

Frequently Asked Questions - LC-5.1300 AudioControl

What size fuse does the LC-5.1300 require?

The amplifier requires an 80A fuse (AGU or MAXI type). Use proper gauge power wire (4 AWG recommended).

Can I bridge channels on this amplifier?

Bridging is not recommended on this model. The 5-channel design allows you to run fronts, rears, and a subwoofer directly. For more power, use higher impedance speakers.

What is the recommended speaker impedance for the subwoofer channel?

The subwoofer channel is stable down to 2 ohms (mono). For full-range channels, use 4-8 ohms.

How do I adjust the gain correctly?

Set all filters and bass boost to flat. Turn the gain to minimum. Play a clean 50Hz tone (or 1kHz for full-range) at 3/4 volume on the head unit. Increase gain until you hear distortion, then back off slightly. Use an oscilloscope or distortion detector for best results.

What are the dimensions of the LC-5.1300?

The amplifier measures approximately 12.2 x 2.1 x 7.5 inches (WxHxD). Ensure adequate space for ventilation.

Does it have a remote wire power-on feature?

Yes, the amplifier uses a remote turn-on wire (typically blue) that connects to the head unit's remote output. It requires 12V to power on.

What size power wire should I use?

For the 80A fuse, use 4 AWG power and ground wire for runs up to 20 feet. Ensure proper grounding to bare metal chassis.

Can I use this amplifier with a factory head unit?

Yes, the LC-5.1300 has high-level inputs (speaker wire inputs) that accept factory speaker outputs up to 40V peak. Use the included harness or optional line output converters.

What kind of protection does the amplifier have?

The amplifier includes thermal, overcurrent, DC offset, and short circuit protection. It will shut down temporarily if conditions exceed safe limits.

How do I set the subsonic filter?

Set the subsonic filter to 15-20 Hz for ported enclosures to prevent over-excursion. For sealed enclosures, you can set it lower (15 Hz) or bypass it.

USER MANUAL LC-5.1300 AudioControl

AudioControl®

Making Good Sound Great™

Features

• 5 Channel Amplifier with AccuBASS® Processing
• Configurable as 3 or 5 channels
• 4 x 100 W @ 4 Ohms + 1 x 300 W @ 4 Ohms
  • 4 x 200 W @ 2 Ohms + 1 x 500 W @ 2 Ohms
  • High Current Design
• 6 RCA Line Inputs
  • 8 Summable Speaker-Level Inputs for OEM integration
• MILC™ Level Matching Technology (Patent pending)
  • GTO ^TM Signal Sense (Great Turn On)
  • Independent 12 dB Linkwitz-Riley Crossovers
• Optional ACR-1 Dash Remote
  • Non-GMO, Grade AA goodness

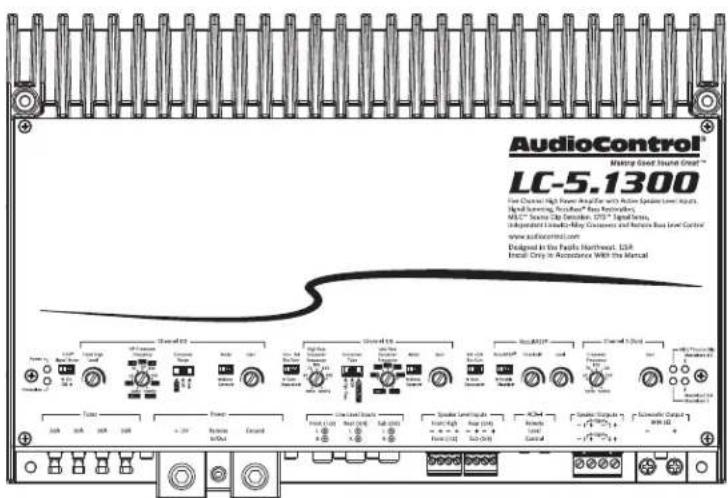

LC-5.1300

High Power Five Channel Amplifier

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as mufflers, silencers, exhaust pipes, or other apparatus (including amplifiers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death. Installation of the apparatus must be done with great care by qualified personnel, to prevent damage to fuel lines, power, and other electrical wiring, hydraulic brake lines, and other systems, that might compromise vehicle safety.
10. Provide +12V and Ground insulated wiring of 4 to 0 AWG to ensure adequate current to the amplifier.
11. Use rubber grommets to protect wiring whenever passing wires through metal openings or bulkheads.
12. Only use attachments/accessories specified by the manufacturer.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power input terminals are damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

LC-5.1300

1. This apparatus shall not be exposed to dripping or splashing, and no object filled with liquids, shall be placed on the apparatus.
2. Fuses shall be replaced only with the correct type and fuse value, and only when the apparatus is powered off.
3. Exposure to high sound pressure levels may lead to permanent hearing loss. Take every precaution to protect your hearing.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Caution: to reduce the risk of electric shock, do not disassemble the apparatus, other than to remove the top panel to access the controls.

There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Recycling notice: If the time comes and this apparatus has fulfilled its destiny, do not throw it out into the trash. It has to be carefully recycled for the good of mankind, by a facility specially equipped for the safe recycling of electronic apparatii. Please contact your local or state recycling leaders for assistance in locating a suitable nearby recycling facility. Or, contact us and we might be able to repair it for you.

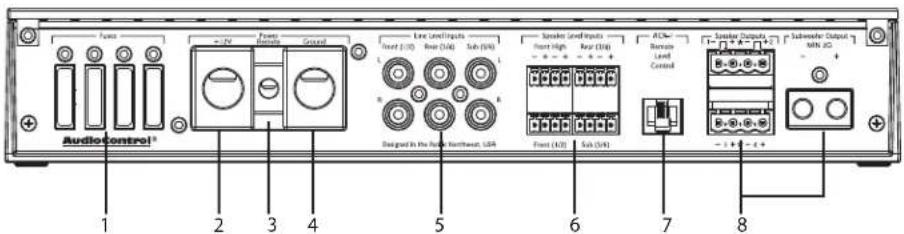

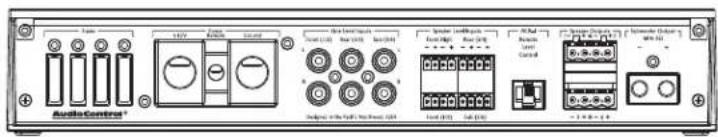

Connection Panel Features

1. Fuses 30A – Replace these fuses only with the exact same style and Ampere rating. Disconnect 12V power before changing or inspecting the fuses.

2. Power Input Terminal +12V - This screw terminal connects to the +12V battery binding post of the vehicle. Use quality insulated wire, 4 to 0 AWG.

3. Remote Power Input Terminal – This screw terminal connects to the 12V remote trigger output of some head units. When the head unit is turned on, then the LC-5.1300 will turn on. Alternatively, this terminal will output +12V if the LC-5.1300 turns on using GTO signal sensing. This can be used to remotely turn-on power amplifiers when the LC-5.1300 is awoken by the GTO.

4. Power Input Terminal Ground – This screw terminal connects to a good ground connection on the vehicle. Use quality insulated wire, gauge 4 to 0 AWG.

5. RCA Analog Line-Level Inputs – The line-level output from the head unit or factory-installed radios can connect here, so the LC-5.1300 amplifier will receive the line-level audio signals. Do not use these inputs if you are using the speaker-level inputs.

6. Speaker-Level Inputs – The speaker-level output from amplifiers and factory installed radios can connect here. Do not use these inputs if you are using the RCA line-level inputs.

7. Remote Control Connector – This connects to the ACR-1 remote level control.

8. Speaker-Level Output Terminals – These screw terminals connect with speaker wire to your loudspeakers Make sure that the average combined speaker impedance does not dip below 2 Ohms, or 4 Ohms in bridged mono mode.

AudioControl® Making Good Sound Great™

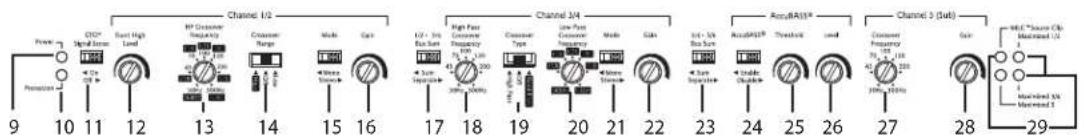

Control Panel Features

LC-5.1300

    I["9"] --> J["10"]
    J --> K["11"]
    K --> L["12"]
    L --> M["13"]
    M --> N["14"]
    N --> O["15"]
    O --> P["16"]

    Q["17"] --> R["High Fast Capacitor 100V"]
    R --> S["Capacitor Type"]
    S --> T["Low Fast Capacitor 200V"]
    T --> U["Capacitor Range"]
    U --> V["Mode"]
    V --> W["Gate"]

    X["18"] --> Y["High Fast Capacitor 100V"]
    Y --> Z["Capacitor Type"]
    Z --> AA["Low Fast Capacitor 200V"]
    AA --> AB["Capacitor Range"]
    AB --> AC["Mode"]
    AC --> AD["Gate"]

    AE["19"] --> AF["ACuABATP"]
    AF --> AG["Capacitor Type"]
    AG --> AH["Low Fast Capacitor 200V"]
    AH --> AI["Capacitor Range"]
    AI --> AJ["Mode"]
    AJ --> AK["Gate"]

    AL["20"] --> AM["ACuABATP"]
    AM --> AN["Capacitor Type"]
    AN --> AO["Low Fast Capacitor 200V"]
    AO --> AP["Capacitor Range"]
    AP --> AQ["Mode"]
    AQ --> AR["Gate"]

    AS["21"] --> AT["ACuABATP"]
    AT --> AU["Capacitor Type"]
    AU --> AV["Low Fast Capacitor 200V"]
    AV --> AW["Capacitor Range"]
    AW --> AX["Mode"]
    AX --> AY["Gate"]

    AZ["22"] --> BA["ACuABATP"]
    BA --> BB["Capacitor Type"]
    BB --> BC["Low Fast Capacitor 200V"]
    BC --> BD["Capacitor Range"]
    BD --> BE["Mode"]
    BE --> BF["Gate"]

    BG["23"] --> BH["AccuABATP"]
    BH --> BI["Capacitor Type"]
    BI --> BJ["Low Fast Capacitor 200V"]
    BJ --> BK["Capacitor Range"]
    BK --> BL["Mode"]
    BL --> BM["Gate"]

    BN["24"] --> BO["AccuABATP"]
    BO --> BP["Capacitor Type"]
    BP --> BQ["Low Fast Capacitor 200V"]
    BQ --> BR["Capacitor Range"]
    BR --> BS["Mode"]
    BS --> BT["Gate"]

    BU["25"] --> BV["AccuABATP"]
    BV --> BW["Capacitor Type"]
    BW --> BX["Low Fast Capacitor 200V"]
    BX --> BY["Capacitor Range"]
    BY --> BZ["Mode"]
    BZ --> CA["Gate"]

    CB["MCC Source CIs: Max/Max Low Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Max Power / Max/Min"]
    CA["Mccaded 3A"] --> CB
    CB --> CB

Quick Start Guide

1. Power LED – If you have connected your battery power, vehicle ground, and turn-on lead (or GTO signal sensing) correctly, then this light should be green to indicate the power is ON.
2. Protection LED – The amplifier has built-in diagnostic codes to tell you exactly what is going wrong should the amplifier detect a problem. See page 15 for a list of diagnostic codes.
3. GTO Signal Sense – In the ON position, the LC-5.1300 amplifier will turn on gracefully when it detects an incoming audio signal on inputs 1 and 2, and it will turn off after a period of time when the audio signal fades away to silence. Turn this OFF if using the remote power terminal (see item 3 above) turn on method.
4. Front High Level – Adjusts the Front High speaker-level input levels, to achieve a nice balance in levels.
5. HP Crossover Frequency – Selects the HP crossover point to match your speakers and system. Channel 1 and 2 outputs will receive the frequency range above the frequency selected. Use the crossover range switch (16) to select the range from 30 to 300 Hz, or from 500 Hz to 5 kHz. The crossover for channels 1/2 is high-pass only.
6. Crossover Range – Use this switch to select the range of the HP crossover frequency control (15) from 30 to 300 Hz, or from 500 Hz to 5 kHz.
7. Mono/Stereo - Amplifiers 1 and 2 can be joined in mono to power a single more powerful speaker (4 Ohm minimum).

8. Gain Control - Adjusts the overall 1 and 2 output levels.

9. 1/2 and 3/4 Bus Sum – This sums the 1/2 and 3/4 inputs together. So two inputs (L/R) can feed four outputs (2L/2R).

10. HP Crossover Frequency – Selects the HP crossover point to match your speakers and system (if the crossover switch (24) is set to HP). The channel 3/4 outputs will receive the frequency range above the frequency selected. If the crossover switch is set to bandpass, then this selects the top frequency of the band.
11. Crossover Type HP/Bandpass – The crossover of channels 3/4 can be selected as a high-pass or bandpass type. For example, bandpass is super for bi-amping your speakers, with channels 1/2 high pass for tweeters, and channels 3/4 bandpass for mid-range.
12. LP Crossover Frequency – Selects the lower frequency of the band to match your speakers and system (only if the crossover type switch (24) is set to bandpass). The channel 3/4 outputs will receive the frequency range selected by the HP and LP controls.
13. Mono/Stereo - Amplifiers 1 and 2 can be joined in mono to power a single more powerful speaker (4 Ohm minimum).
14. Gain Control - Adjusts the overall 3 and 4 output levels.
15. 3/4 and 5/6 Bus Sum – This sums the 3/4 and 5/6 inputs together. So two inputs (L/R) can feed four outputs (2L/2R).
16. AccuBASS ^® – Enables/disables the AccuBASS ^® circuit for output 5. The AccuBASS ^® has its own controls to work wonders on the lower bass of the output.

AudioControl®

Making Good Sound Great™

1. AccuBASS ^® Threshold – Selects the level at which the AccuBASS ^® will begin to work.
2. AccuBASS ^® Level – Adjusts the level of the AccuBASS ^® .
3. Crossover Frequency – Selects the LP crossover point to match your speakers and system. The channel 5 output will receive the frequency range below the frequency selected.
4. Gain Control - Adjusts the overall 5 output levels.
5. LEDs:

MILC™ Source Clip LED – The MILC™ (Maximum Input Level Control) patent-pending level-setting circuit prevents clipping and damaging distortion. It calculates when the waveform of an incoming audio signal on input 1 and 2 is clipping, and if it is, this LED will fulfill its prime objective and shine forth.

With this advanced feature, you are able to optimize the level of the incoming audio signals until the Source Clip LED is just-prior to lighting. If the LED comes on during normal operation, you should adjust the level of the audio signals before they reach the LC-5.1300.

Gain Maximized LEDs - These LEDs indicate when the LC-5.1300 amplifier gain for channels 1/2, 3/4 , and 5 has been maximized for optimum performance.

AccuBASS® and ACR-1 Notes

AccuBASS®

The AccuBASS is applied to the input signal that feeds the output of Channel 5. When set to Sum, the input signal for Channel 5 will be whatever is being received as the Channels 3/4 input. Which, if that is set to Sum, then the input signal will be 1/2.

ACR-1 remote

The ACR-1 remote level control affects the level of the signal after the AccuBASS circuit, and the ACR-1 effects Channel 5 output.

The long-awaited moment when "plethora" is used in a manual

The plethora of LC-5.1300 controls allows for a wide variety of installation possibilities. This quick start guide gives a few examples of system diagrams, and includes a few notes about the control settings for each one.

Note: The technical writer reserves the right to be wrong about things, due to the cold medicine being the night-time sleepy stuff, and not the usual day-time strength.

Quick Start

Here are a few general steps to get your LC-5.1300 amplifier up and running:

1. Undo the +12V and Ground connections to the car battery before making any connections to the amplifier.
2. Pick a mounting location that will provide access to the controls and connections, provide adequate ventilation, and also protect the amplifier from heat, moisture, and dirt. Make sure the ventilation slots on the sides are not blocked, and that the heatsink fins are not covered.

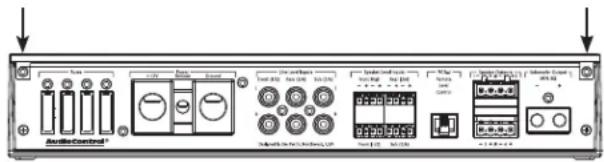

3. The LC-5.1300 amplifier needs to be securely mounted using the four mounting holes located in each corner.
4. Before drilling any holes, take every precaution to prevent any damage to fuel lines, power and other electrical wiring, hydraulic brake lines, and other systems, that might compromise vehicle safety.
5. When making connections, designate red RCA plugs as right, and designate white, black, or grey plugs as left. This is a good idea for consistency.
6. Use quality interconnect cables.

7. Connect the +12V input terminal of the unit to the +12V terminal of the vehicle battery, using 4 to 0 AWG.

8. Connect the Ground terminal of the unit to the chassis of the vehicle, using the same wire gauge as the +12V power wire.

9. Connect the remote power terminal of the unit to the remote turn-on switch of your source unit. Alternatively, you can skip this connection and use the GTO Signal sensing.
10. Connect your audio inputs to the unit – either speaker-level or line-level RCA... not both.
11. Run the ACR-1 remote to the front of the vehicle to adjust the level on the fly.
12. Connect your loudspeakers (2 Ohm stereo, 4 Ohm Bridged minimum load).
13. When all connections are made, reconnect the vehicle battery.
14. Adjust your input source gain using the MILC Source Clip LED. This will indicate if the incoming audio signals are clipping.
15. Set the LC-5.1300 crossovers to the frequency recommended by the loudspeaker manufacturer.
16. Adjust the LC-5.1300 CH 5 AccuBass controls to suit. The ACR-1 adjusts the overall output level.
17. Enjoy the drive!

AudioControl®

Making Good Sound Great™

Power Connections

LC-5.1300

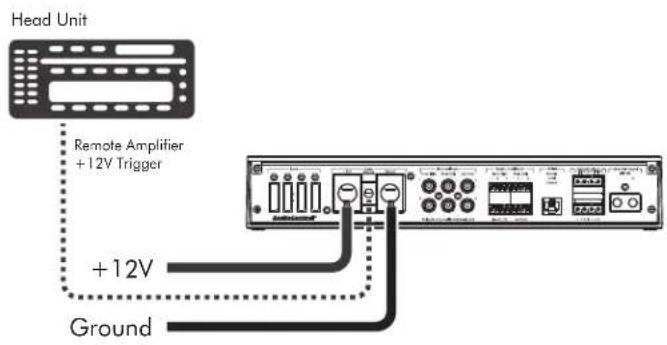

In this example, the head unit has a +12V trigger output that is connected to the LC-5.1300's remote input terminal. When the head unit is turned on, it will turn on the LC-5.1300 amplifier.

Use 4 to 0 AWG insulated wire for the +12V and Ground connections.

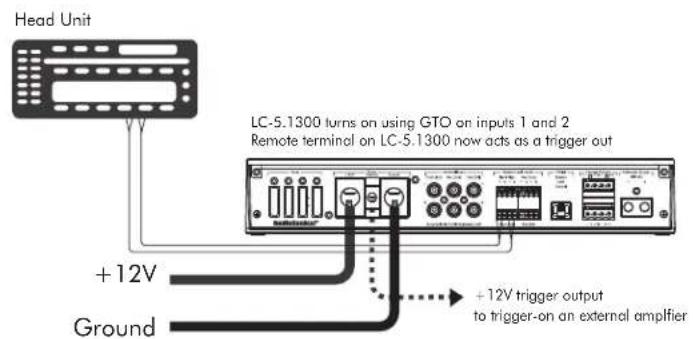

In this example, the GTO signal sense feature can be used to gently turn on the LC-5.1300 amplifier when an audio input signal is detected on inputs 1 and 2. In this case, the LC-5.1300's remote input terminal becomes a +12V trigger out to remotely turn on a power amplifier for example.

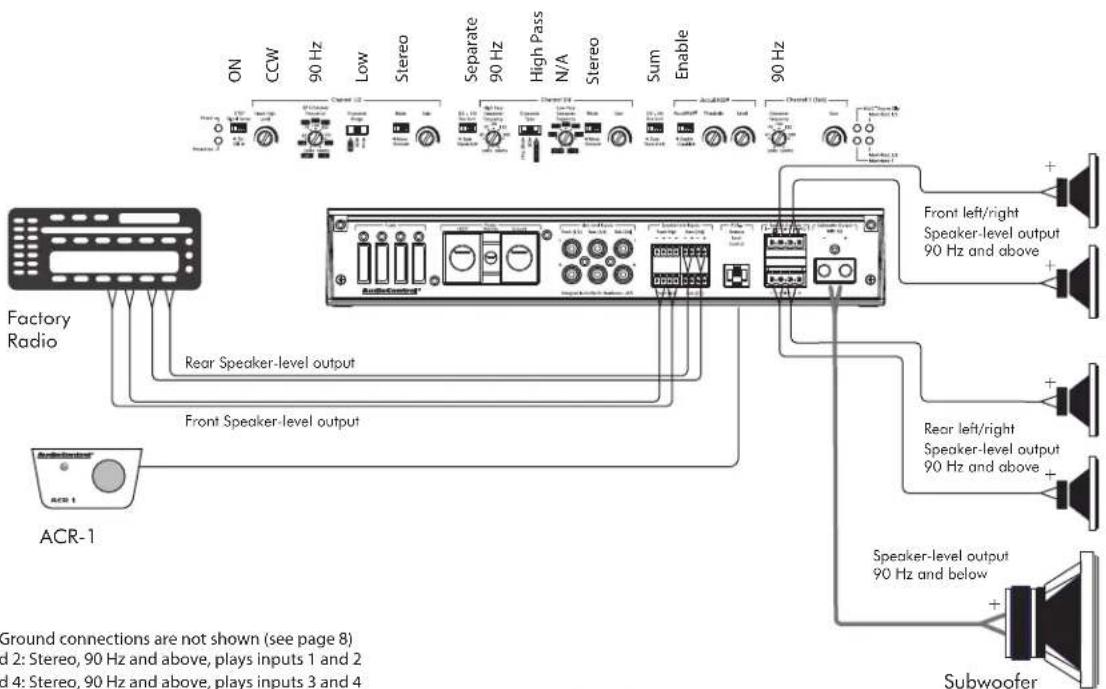

System #1: Using speaker-level inputs

Notes:
The +12V Power and Ground connections are not shown (see page 8)
Speaker outputs 1 and 2: Stereo, 90 Hz and above, plays inputs 1 and 2
Speaker outputs 3 and 4: Stereo, 90 Hz and above, plays inputs 3 and 4
Speaker outputs 5: Mono, 90 Hz and below, plays inputs 3 and 4 with AccuBASS on), use ACR-1 to adjust sub level.
Gain adjustments are usually unique to system design and are not specified accordingly, likewise with AccuBASS Threshold and Level.

Making Good Sound Great™

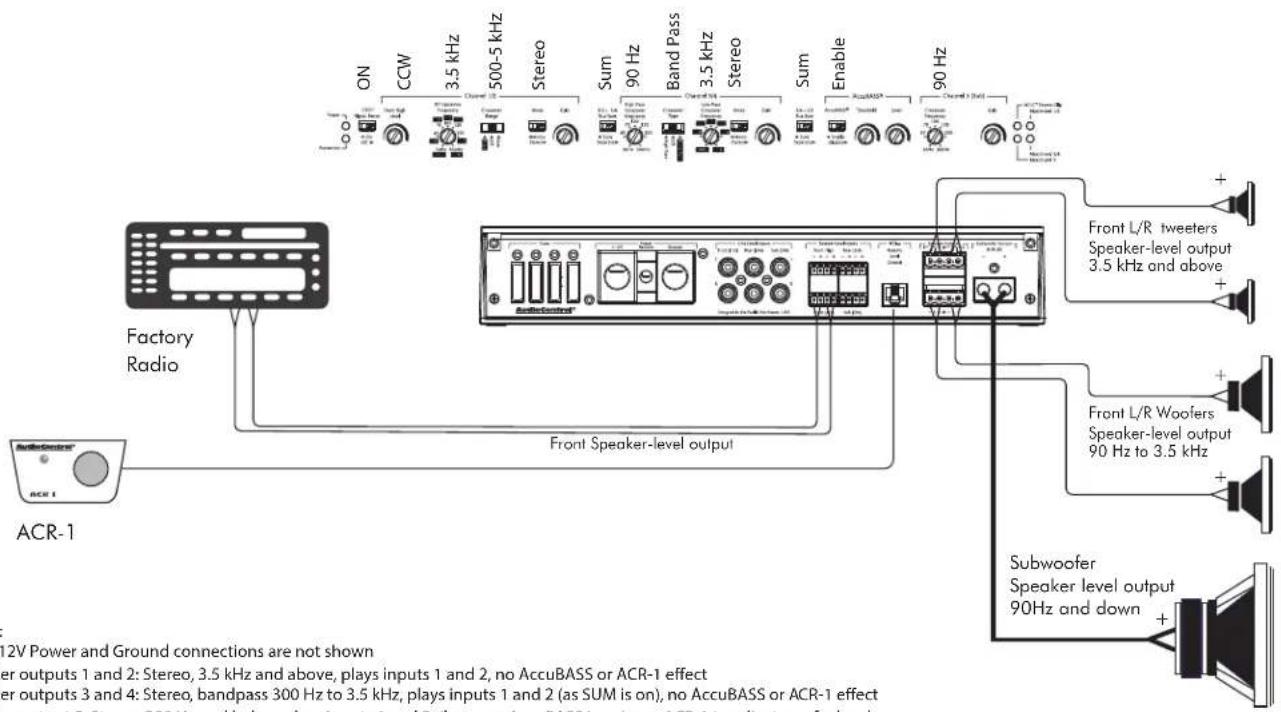

System #2: Tri-amping

LC-5.1300

Notes:
The +12V Power and Ground connections are not shown
Speaker outputs 1 and 2: Stereo, 3.5 kHz and above, plays inputs 1 and 2, no AccuBASS or ACR-1 effect
Speaker outputs 3 and 4: Stereo, bandpass 300 Hz to 3.5 kHz, plays inputs 1 and 2 (as SUM is on), no AccuBASS or ACR-1 effect
Speaker output 5: Stereo, 300 Hz and below, plays inputs 1 and 2, (because AccuBASS is on), use ACR-1 to adjust woofer level

Quick Start Guide

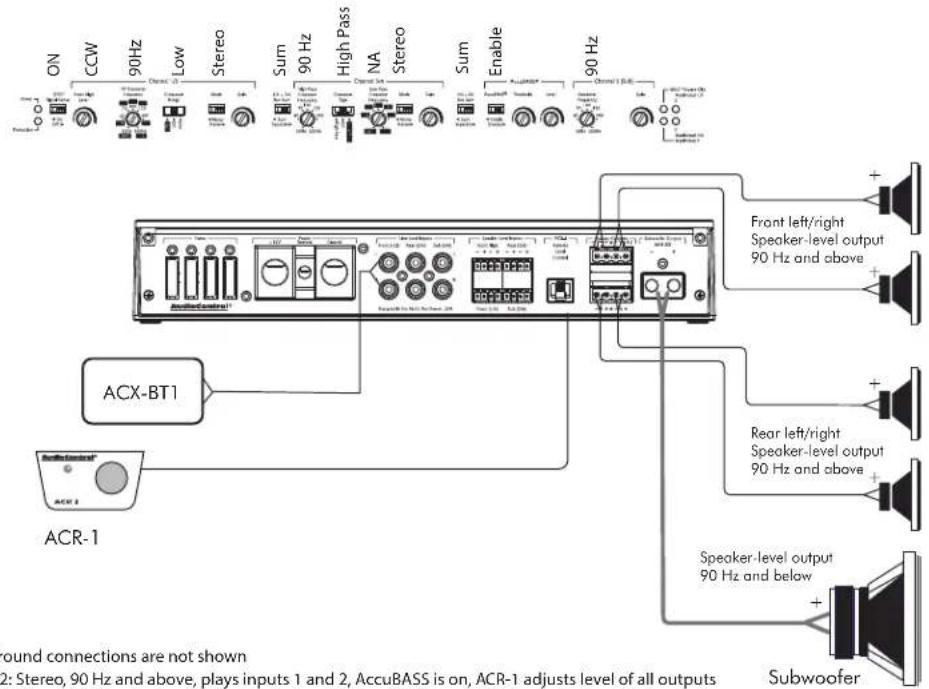

System #3: Using optional ACX-BT1 Bluetooth receiver

Notes:
The +12V Power and Ground connections are not shown
Speaker outputs 1 and 2: Stereo, 90 Hz and above, plays inputs 1 and 2, AccuBASS is on, ACR-1 adjusts level of all outputs
Speaker outputs 3 and 4: Stereo, 90 Hz and above, plays inputs 1 and 2, AccuBASS is on, ACR-1 adjusts level of all outputs
Speaker output 5: Mono, 90 Hz and below, plays inputs 1 and 2, AccuBASS is on, ACR-1 adjusts level of all outputs

AudioControl®

Making Good Sound Great™

ACR-1 Dash Control Installation

The AudioControl ACR-1 dash control is a remote level for your LC-5.1300 amplifier. It may be mounted under the dash using its own enclosure, or through a custom hole in the dash. The knob should be within reach of the driver, and in a spot where the LED is plainly visible. Disconnect the vehicle battery +12V and Ground connections before installation.

Dash Bracket Installation: The dash control mounts with four screws, which attach to the underside of the dashboard. Slide under the dash and place the dash control in its mounting position, mark the best mounting holes, carefully drill pilot holes, and secure with screws.

Custom Installation: For that custom, finished look, the dash control can be flush-mounted directly on the dashboard (or anywhere else). Disassemble the ACR-1 from its enclosure.

LC-5.1300

Top Lid Removal

The top lid must be removed to gain access to the controls, and then put back on again to protect the controls from dust bunnies.

Removal Procedure

1. Locate the two screws that hold the straight edge of the lid onto the connector side of the amplifier.

1. Use the supplied hex key to loosen both screws just enough until this edge of the lid can lift freely up just a little. (There is no need to remove the screws all the way, in case you lose them.)
2. Slide the lid toward the heatsink fins just a tad, before further lifting the straight edge of the lid about 2", then disengage the remaining two points of contact (under the wavy edge).
3. Place the lid in a safe and handy place, ready for the time when you have finished adjusting the controls to your immense satisfaction, and just before Chivers brings tea and sandwiches.

Specifications

All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifications, like our Pacific Northwest weather, although we are working on a surround-sound umbrella as well.

LC-5.1300 Multi-Channel Amplifier

Power Output....4 x 100 Watts @ 4 Ohm

1 x 300 Watts @ 4 Ohm

4 x 200 Watts @ 2 Ohm

1 x 500 Watts @ 2 Ohm

Frequency Response....20 Hz - 22 kHz

S/N Ratio 102 dBA, ref 200 Watts @ 2 Ohm

THD+N .... < 0.1%

Bass Processing....AccuBASS® Restoration

AccuBASS® Patent # 9,225,305

Power / Ground Wire Gauge.....between 4 and 0 AWG

Fuse Rating 4 x 30 amps

Crossover....

Channel 1/2....High Pass Linkwitz-Riley

adjustable from 30 Hz - 300 Hz or 500 Hz - 5 kHz

Channel 3/4....High Pass/ Bandpass Linkwitz-Riley

...... High Pass adjustable from 30 Hz - 300 Hz

Low Pass adjustable from 500 Hz - 5 kHz

Channel 5 ....Low Pass Linkwitz- Riley

adjustable from 30 Hz - 300 Hz

Speaker-Level Inputs.... 8 x, summable, 40 V max

Line-Level Inputs....6 x, balanced RCA, 6 V max

Weight 7.2 lbs

Dimensions....12.00"W x 7.95"D x 2.10"H

©2020 AudioControl. All rights reserved.

For more information about this fine product, and for details of the limited

warranty, and repair services, please visit our website at

www.audiocontrol.com

All specifications are subject to being covered in honey without notice.

LC-5.1300 Amplifier Codes:

Power (Blue) Codes (Blue LEDs inside the unit)
Power Up
Reset Boot
Protection Activated
Protection (Red) Codes (Protection LED)
1 Short
2 Repeated Short
3 Under Voltage
4 Over Voltage
5 DC Offset
6 Thermal Heatsink
7 Thermal Transformer

AudioControl

22410 70th Avenue West, Mountlake Terrace, WA 98043 USA,

Phone [phone], FAX [phone]

email: [e-mail]

AudioControl®

Making Good Sound Great™

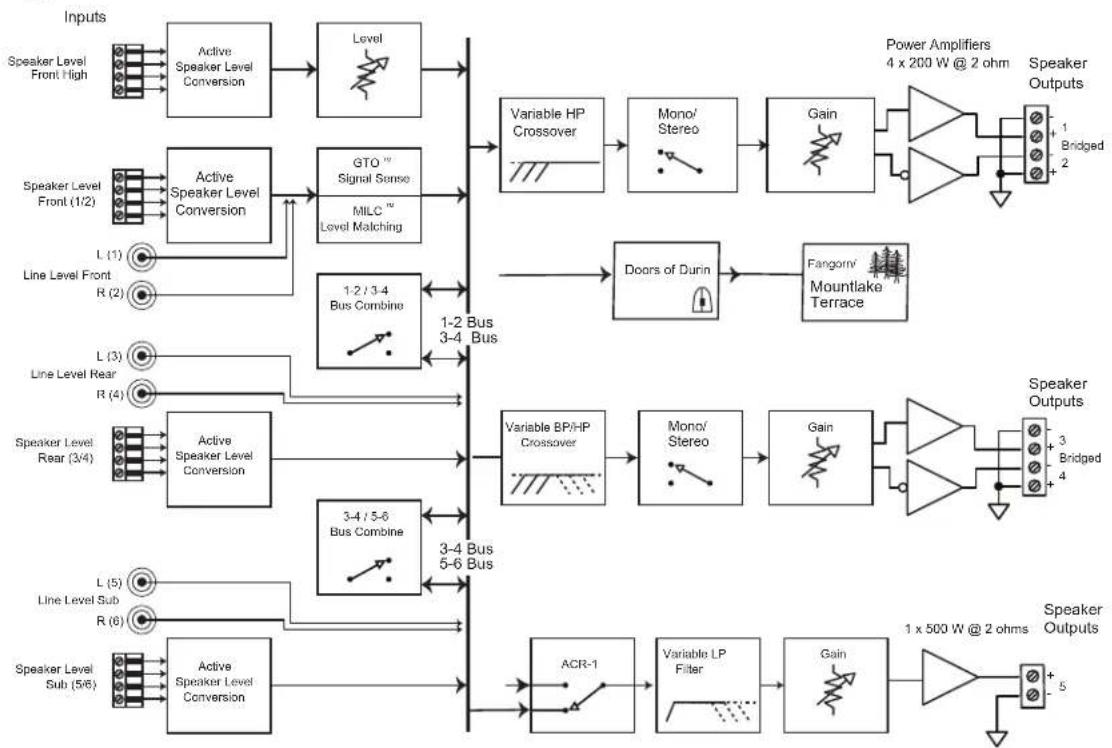

Block Diagram

LC-5.1300

Quick Start Guide PN 915-024-0 Rev E
