Product Type	24-inch LED TV & DVD Combo
Model	KALED24EH6100DVA
Brand	Kogan
Screen Size	24 inches
Resolution	1366 x 768 (HD)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Contrast Ratio	3000:1
Response Time	8.5 ms
Viewing Angle	178°/178°
Brightness	180 ± 20 cd/m²
Built-in DVD Player	Yes
USB Media Playback	Yes (supports .mpg, .avi, .ts, .mov, .mkv, .dat, .mp4, .vob, .mp3, .m4a/.aac, .jpg/.jpeg, .bmp, .png, .srt, .ssa/.ass, .smi, .sub, .txt)
PVR Function	Yes (via USB)
Digital Tuner	DVB-T/T2, DVB-S/S2
Connectivity	1 x HDMI 2.0 (with ARC & CEC), 1 x USB 2.0, AV input, YPbPr, VGA, PC Audio, ANT 75, Earphone output
Speakers	2 x 3W
Power Consumption (Average)	36W
Energy Rating	6 Star
Dimensions (Without Stand)	556.5 x 333.4 x 75.4 mm
Dimensions (With Stand)	556.5 x 366.6 x 165 mm
Weight (Gross)	3.4 kg
VESA Wall Mount Pattern	100 x 100 mm
Distance Between Legs	487 mm
Operating Temperature	5°C to 45°C
Storage Temperature	-15°C to 45°C

Frequently Asked Questions - KALED24EH6100DVA Kogan

How do I assemble the stand for my Kogan KALED24EH6100DVA TV?

Lay the TV on a flat cushioned surface. Attach the two stands to the base of the TV and secure each with two 12mm screws (supplied) using a Phillips head screwdriver (not supplied).

How do I connect an antenna to this TV?

Connect an antenna cable (not supplied) to the 'ANT' input port at the back of the TV. Ensure the other end is connected to a working antenna wall socket or directly to an antenna.

How do I set up the remote control?

Open the battery compartment on the back of the remote. Insert two AAA 1.5V batteries matching the polarity (+/-) as shown in the compartment. Replace the cover. Point the remote at the sensor on the front of the TV.

What should I do if my TV has no picture or sound?

First, try another channel. Press the TV/AV button to check the input source. Ensure the TV is plugged in and the antenna is connected. If still no picture, perform a power cycle: unplug the TV for 10-15 minutes, hold the power button on the TV for 5 seconds, then plug it back in.

How can I access the setup wizard for the first time?

When turning on the TV for the first time, the Setup Wizard will appear automatically. Use the ▲, ▼, and OK buttons on the remote to select your language and country.

How do I change the picture mode?

Press the P. MODE button on the remote to cycle through picture modes. Alternatively, go to Menu > Picture > Picture Mode and select from options like Standard, Cool, or Warm.

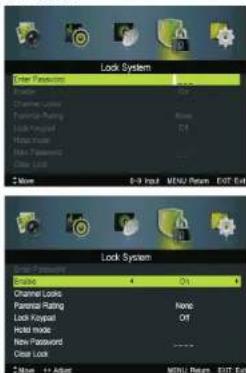

What is the default password for the lock system?

The default password is 0000. You can change it in the Lock System menu under New Password. If you forget your password, contact the service center.

How do I play a DVD on this TV combo?

Insert a disc into the DVD slot. Press the 'D Setup' button on the remote to access DVD settings. Use the directional buttons to navigate menus. For playback, press Play on the remote (usually the same as OK button).

Can I mount this TV on a wall?

Yes, the TV supports VESA 100x100 mm wall mount pattern. Use a wall mount recommended by the manufacturer. Ensure the TV is not overhanging and is securely anchored.

How do I clean the TV screen?

Unplug the TV before cleaning. Use a soft, damp cloth with a mixture of lukewarm water and a little fabric softener or dish detergent. Wring the cloth until almost dry, then gently wipe the screen. Let it air-dry before turning on. For the casing, use a soft, dry, lint-free cloth.

USER MANUAL KALED24EH6100DVA Kogan

Safety and warnings 02

Components 04

Product overview 05

Inputs 05

Assembly and installation....06

Stand assembly 06

Connect to antenna 06

Using remote / power button .....07

Remote control overview 08

First time setup 09

TV Buttons 09

TV Menu 10-14

DVD 15

Specifications 16

Troubleshooting 17

THIS USER GUIDE COVERS THE FOLLOWING MODELS

Kogan 24" LED TV & DVD COMBO (Series 6 EH6100)

SAFETY AND WARNINGS

Thank you for buying this Kogan product. Please read all safety instructions before using your TV.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, (for example, vases), shall be placed on the apparatus.
- When discarding used batteries, always be mindful of the environment. Ensure you follow any guidelines for recycling and safe disposal of batteries that apply in your local area. Don't throw used batteries in rubbish bin.
- When installing your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
• The openings/slots on the back of the apparatus have been provided for necessary ventilation. Ventilation should not be impeded by blocking these openings in any way (for example, newspapers, table-cloths, curtains, etc.)
- No naked flame sources, such as lit candles, should be placed on the apparatus. To prevent the spread of fire, keep candles or other open flames away from this product at all times.
• The device may malfunction when under electrostatic discharge. It can be manually resumed by switching power off completely (at wall outlet), then switching power on again.
• To avoid any injury caused by overturn of the product when installed with base stands, please always ensure the whole product is placed horizontally within the supporting surface and that the television is not overhanging the edge of the supporting furniture.
- If not using with base stands, use only a wall or ceiling mount which has been recommended by the manufacturer of the television.

SAFETY AND WARNINGS cont'd

- Keep small accessories out of reach of children so they are not mistakenly swallowed.

CAUTION: Connecting the power cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if appearance indicates damage or deterioration, immediately discontinue use of the appliance until the cord is replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

The MAINS plug is used as the disconnect device, and the disconnect device shall remain readily operable.

Operating Temperature: 5°C to 45°C

Storage Temperature: -15°C to 45°C

Operating Humidity: ≤80%

Storage Humidity: ≤90%

CAUTION

Do not attempt to modify this product in any way without written authorization from supplier. Unauthorized modification could void the user's authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Refer to the table below as a guide to the symbols and warnings which may be on your TV.

CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN	CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
	The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

COMPONENTS

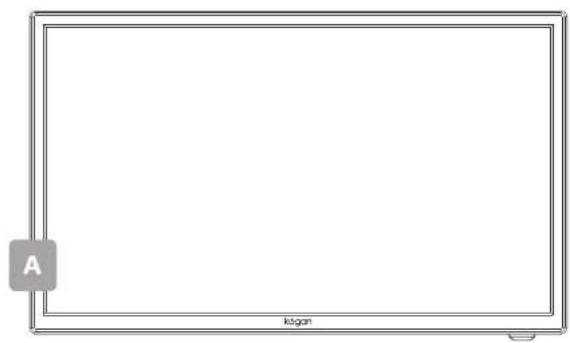

A Kogan LED TV & DVD COMBO
B Remote control
C Stand (x2)
D BB4x12mm screw (x4)

E AAA battery (x2)
F Quick-start guide
G Warranty card

NOT INCLUDED

Phillips head screwdriver, antenna cable, broadband internet connection.

PRODUCT OVERVIEW

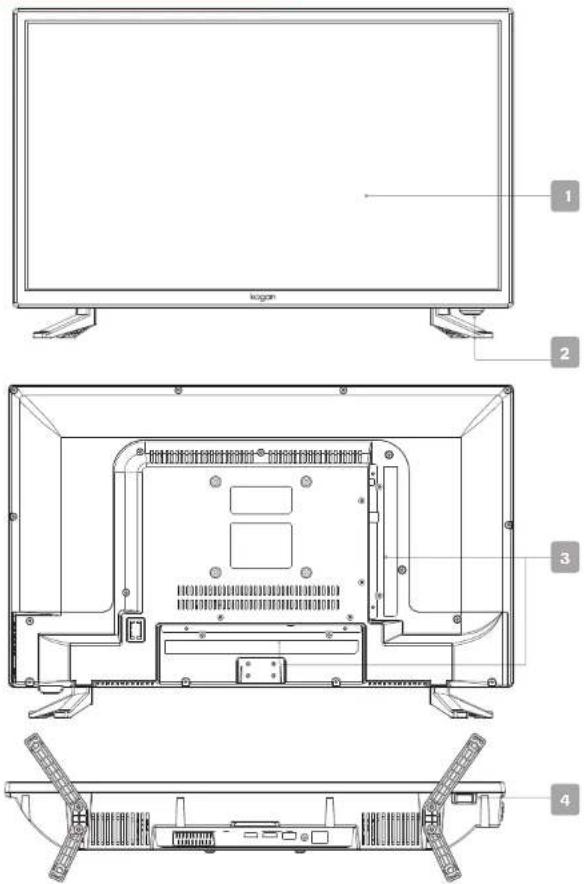

1 Kogan LED TV & DVD COMBO PANEL 3 Inputs/Ports
2 Remote sensor / Standby light 4 Power button

Inputs

	AV inputExternal AV Signal Input AndRelevant Right/Left Sound Channel
	USB inputConnect a USB device here to playits media files or to recordprogramsvia the PVR function.
	Y Pb Pr inputConnect to the composite terminal ofyour DVD/VCR(Some models without this interface)
	HDMI inputDigital signal input from HDMI videoconnector,
	ANT 75Connect the antennal/cadle tv input(75/VHF/UHF)
	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGAinput
	EARPHONE outputWhen earphones are plugged in,speakers are disabled

This is a general guide to inputs and ports, your TV may not feature all of the above.

ASSEMBLY AND INSTALLATION

BEFORE YOU GET STARTED

Spread cushioning flat to lay the TV on. This will help to prevent damage.

1. Stand assembly

a. Attach stands to base of TV.
b. Insert two 12 mm screws for each stand and use Phillips head screwdriver (not supplied) to tighten.

Technical line drawing of a device interior with labeled components and mounting points (no text or symbols)

2. Connect to antenna

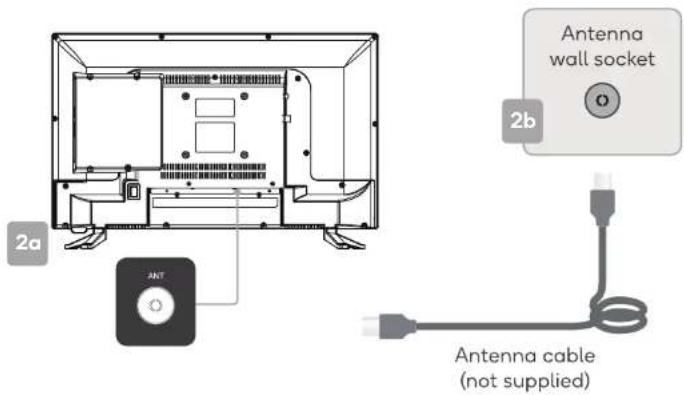

a. Connect an antenna cable (not supplied) via the 'ANT' input port at the back of the TV.
b. Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly.

USING REMOTE CONTROL / POWER BUTTON

3. Remote control assembly

a. Open the battery compartment cover on the back side.
b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings (+ / -) of the batteries with the diagram inside the compartment.
c. Replace battery compartment cover.

• One loading of batteries will last for 1 year under normal use.
- If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
• Do not use old and new batteries together.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat such as sunshine, fire or the like.

4. Using remote control

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

TIPS

Do not block the path between the sensor and the remote control.

5. Turning TV on

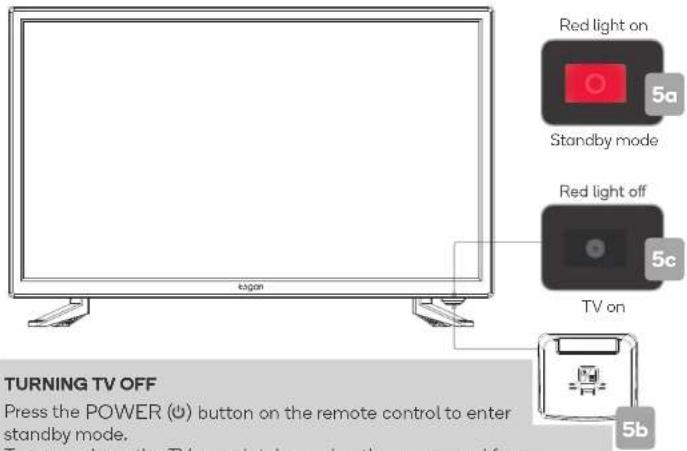

a. Plug the power cord into a suitable power outlet. The standby will display a light, showing that the TV is receiving power.
b. Press the POWER (☐) button (on your remote or at the bottom of the TV) to turn the TV on.
c. The standby light will turn off when the TV is on.

To power down the TV completely, unplug the power cord from the power outlet.

Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from both the power outlet and aerial.

REMOTE CONTROL OVERVIEW

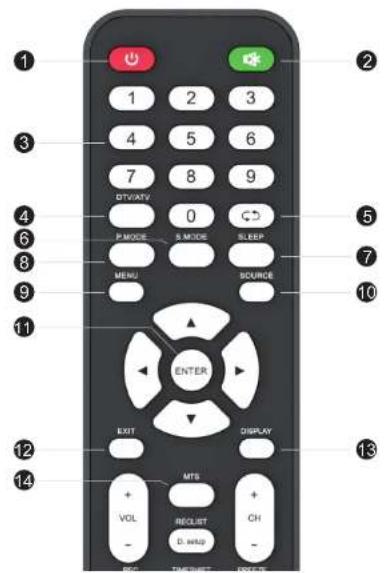

1 POWER: Set your TV to power on or standby mode.
2 MUTE: Toggle sound on/off.
3 0-9: Press 0-9 to select a TV Channel directly while watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.
4 DTV/ATV: Switch between Analog and Digital TV.
5: Return to the previous viewed program.
6 S.MODE: Press to cycle through the different sound settings.
7 SLEEP: Select amount of time before TV turn itself off automatically.

8 P. MODE: Press to cycle through the different picture settings.
9 MENU: Allow you to navigate the on-screen menus.
10 SOURCE: Open the main menu, press to list the sources.
11 ▲▼◀▶ ENTER: Allow you to navigate the on-screen menus and adjust the system settings to your reference.
12 EXIT: Exit from the menu or sub-menu and cancel the function in process (if possible).
13 DISPLAY: Press to display the source and channel's info.
14 MTS: Press to search the NICAM modes.

15 VOL+/VOL-: Press to increase/decrease the sound level.
16 CH+/CH-: Press to scan through channels.
17 RECLIST: Show the recorded list.

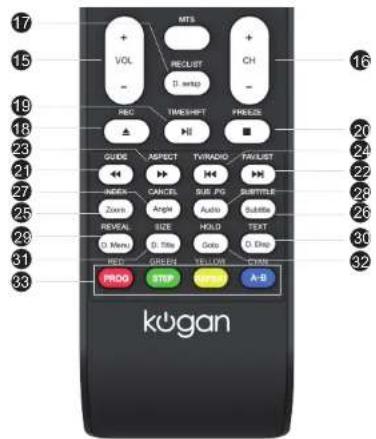

18. REC: Record begin in PVR mode.
19 TIME SHIFT:1. DTV channel time shift Function.
2. Play on PVR or Media Player mode.
20 FREEZE: Press to freeze the picture.
21 GUIDE: 1. Launches the EPG(Electronic Program Guide)
2. Fast reverse in PVR or Media Player mode.
22 FAV/LIST: Press to open the favorite list. Then you can select the favorite channel.
23 ASPECT: 1. Select picture scale. 2. Fast forward in PVR or Media Player mode.
24 TV/RADIO: When watching channel, allows you to switch between TV and Radio modes.
25 INDEX: 1. Request the Index page in Teletext mode. 2. Exit the playing function in PVR or Media Player mode.

26 SUBTITLE: To show and set the language of current DTV.
27 CANCEL: 1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL Key will return to the TV Mode. When the required page is found, the page number will appear at the top of the TV Picture, press the CANCEL Key to return to the mode of text for you to browse this page. 2. Previous chapter in PVR or Media Player mode.
28 SUB.PG:1. Press to access sub page. 2. Next chapter in PVR or Media Player mode.
29 REVEAL: Reveal or Hide the hidden words. 30 TEXT: Switch the teletext on and off.
31 SIZE: Change the size of display in Teletext mode.
32 HOLD: HOLD on or Off for current page display.
33 COLOUR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB MENU.

FIRST TIME SETUP

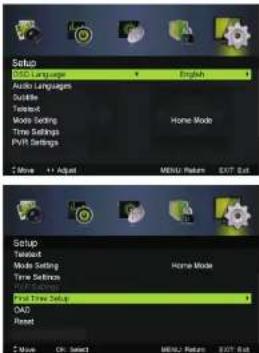

When turning the TV on for the first time, the Setup Wizard screen will appear. Use the ▲, ▼ and OK buttons to navigate the following options.

Language

Select your menu language.

Country

Select your country.

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

+

(1):Turn ON/OFF Power.

S OUR C E :External Signal Input Selection.

ME NU:Display Main MENU And Confirm MENU Item Selection.

C H+/-:Selecting Channel.

VOL +/-:Adjusting Volume.

TV Menu

Input Source

Note: The above is for reference only, to prevail any kind

Press INPUT button to display the input source list,

Press ▼ / ▲ or INPUT button to select the input source you want to,

Press ENTER button to enter the input source.

Press EXIT button to quit.

Picture Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button select: PICTURE in the main menu, then press ENTER / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.

2. Press Enter/◄ / ► button to adjust.

3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Picture MODE

Press ▼ / ▲ button to select Picture Mode, then press ◀ / ▶ button to select.

TIPS: You can press PMODE button to change the Picture Mode directly. Brightness/Contrast/Sharpness/Saturation/Hue

Press ◀ / ▶ button to select option, then press ◀ / ▶ button to adjust.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Sharpness Adjust the peaking in the detail of the picture.

Saturation Adjust the saturation of the color based on your own like.

Hue Use in compensating color changed with the transmission in the NTSC code.

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temp, then press ◀ / ▶ button to select Standard/Cool/Warm.

Standard Produces a vivid image.

Cool Produces a gentle blue-hued image. Warm Produces a red-hued image.

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press ◀ / ▶ button to select.

Auto Automatically adjust Aspect Ratio based on TV size and TV program.

Full/4:3 /Zoom1/Zoom2 To select the available display format.

PC Setting

Press INPUT to select PC source.

Press MENU to enter the main menu, then press ◀ / ▶ button to select PICTURE menu.

Press ENTER/ ▼ ▼ enter and press to select PC Setting.

Advanced Settings

Adjust advanced video features to fine tune the picture.

Press ▼ / ▲ button to select Advanced Settings, then press Enter / ▶ button to enter sub-menu.

TV Menu

SOUND MENU

Press MENU button to display the main menu.

Press ◀/▶ button select SOUND in the main menu, then press ENTER /▼

to enter

1. Press ▼ / ▲ button to select the option that you want to adjust in the

SOUND menu.

1. Press Enter: ◀ / ▶ button to adjust

2. After finishing your adjustment, Press MENU button to save and return

back to the previous menu.

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then press ▶ / ▶

button to select

Treble/Bass/Balance

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust

Treble Adjust the treble effect increases or decreases

high-pitched sounds.

Bass

Adjust the bass effect. Increases or decreases

[Non-Text]

lower-pitched sounds

Balance

Adjust the balance between left and right speakers

to adapt to your listening position.

Surround Sound

Press ▼ / ▲ button to select Surround Sound, then press ◀ / ▶

button to select On or Off.

EO Setting

Adjust the curve of 7 bands equalizer.

Press ▼ / ▲ button to select EQ Setting . then press Enter / ▶

button to enter sub-menu.

AVI

Set the auto volume control

Press ▼ / ▲ button to select AVL, then press ◀ / ▶ button to

select On or Off

SPDIF

Press ◀/▶ button to select SPDIF, then press◀/▶ button

to select Off / Auto / PCM

Audio Description

Press ▼! ▲ button to select Audio Description, then press Enter (▶)

button In units a b-meru

5.17

Stock type

Press ▼ / ▲ half-to-shield sound type, then press ▼ / ▶ half-to-shield.

(Avalable Sound Type. Stered, Dual (Dual II, Mixed).

Channel Menu

Press MENU button to display the main menu.

Press ◀ /▶ button to select CHANNEL in the main menu, then press

ENTER /▼ to enter.

1. Press ▼! ▲ button to select the option that you want to select in the

CHANNEL menu.

1. Press Enterbullon to enter sub-menu.

2. Press MENU button to return back to the previous menu

Auto Scan

Press ▼ / ▲ button to select Auto Scan, then press Enter / ▶ button to

enter sub-menu.

Manual \$ can

Press ▼ /▲ button to select Manual Scan . then press Enter | ▶ button

to enter sub-menu

Digital Manual Scan

Press ▼ / ▲ button to select Digital Manual Scan, then press

Enter / ▶ button to enter sub-menu.

TV Menu

Analog Manual Scan

Press ▼ button to select Analog Manual Scan, then press

Enter / ▶ button lo enter sub-menu.

Analog Scan

Press ◀/▶ button to select Analog Scan.

5.1

Press ◀/▶ button to select Color System:Auto.PAL or SECAM.

Sound System

Press ◀/▶ button to select Sound System :Auto,DK,BG,I or L.

Modulation

Press ◀/▶ button to select Modulation: Auto, 160AM, 320AM.

640AM,1280AM,2560AM.

AFC

Automatic Fine tuning.

press ◀/▶ button to select On or Off.

Start

Press Enter / ▶ button to start the channel searching

Channel Edit

Press ▼ / ▲button to select Channel Edit, then press Enter / ▶ button to enter sub-menu.

The three colored key is the shortcut key for tunnel.

First press ▼ /▲to highlight the channel you want to delete or move or skip, then;

Press the Button to delete the channel.

Press the button to skip the select channel.

Your TV set will skip the channel automatically when using

CH+/- to view the channels.)

Press the Button to to set the channel to moving state.

then press ▼ / ▲to move it to the position you want to put

Signal Information

Press ▼ / ▲button to select Signal Information, then press the

Enter button to see the detail information about the signal. Only

available under DTV mode.

TV Menu

Lock System Menu

Press MENU button to display the main menu.

Press ◀/▶ button select Lock System in the main menu, then press

ENTER /▼ to enter

1. Press ▼ / ▲ button to select the option that you want to adjust in the

Lock System menu.

1. Press Enter/◄ /► button to adjust.

2. After finishing your adjustment, Press MENU button to save and return

back to the previous menu.

Default password is 0000, and if forget what you sel. please

call the service center

Press ▼! ▲ button to select Enable then press ◀/▶ button

to select On or Off

Channel Locks, Parental Rating, and Lock Keypad are

available when Enable is On.

Channal Lorks

Press ▼ / ▲ button to select Channel Locks, then press

Enter / ▶ button to enter sub-menu

Parental Rating

Press ▼ / ▲ button to select Parental Rating . then press

button to select

▶ button to select.

Lock Keypad

Set to prevent if from being used by young children, or other

unexpected usage.

Press ▼ / ▲ button to select Lock Keypad, then press ◀ / ▶

button to select On or Off

Hotel mode

Braer ▼ / Abulnplassart Holzmode

New Password

NEW PASSWORD

Press ▼ / ▲ button to select New Password, theme

4-digital number you want to sell twice.

C. Invarious

Press ▼ / ▲button to select ClearLock.

SETUP MENU

Press MENU button to display the main menu.

Press ◀/▶ button select SETUP in the main menu, then press ENTER /▼

la nmer

1. Press ▼ / ▲ button to select the option that you want to adjust in

the SETUP menu

1. Press Enter/ ◀ / ▶ button to adjust

2. After finishing your adjustment. Press MENU button to save and

return back to the previous menu.

OSD Language

Press ▼ / ▲ button to select OSD Language, then press ◀ / ▶ button to select.

Audio Languages

Press ▼; ▲ button to select Audio Languages, then press Enter button to enter

SUB-METAL

Press ▼/▲/◄/► button In select the Audio Primary Language and Audio

Secondary Language.

Subtitle

Press ▼ / ▲ button to select Subtile, then press Enter button to enter sub-menu

Telecom

Adjust Teletext settings. Only available under DTV and ATV source.

Press ▼ / ▲ button to select Teletext . then press Enter / ▶ button

to enter sub-menu.

Mode Setting

Press ▼ / ▲ button to select Move Setting

Time Settings

Press ▼ / ▲ button to select Time Settings , then press

Enter! ▶ button to enter sub-menu.

DVD Settions

FVR Settings Press ▼ (▲ button to select FVR Settings, then press Enter

button to enter sub-meau

It will check line USE.

OAD

Press ▼ / ▲ button to select OAD, then press Enter button to enter sub-menu.

Reset

Press ▼ / ▲ button to select Reset, then press Enter button to enter sub-menu.

Note: Before operating USB menu, Plug in USB device, then press INPUT button to set the Input Source to USB.

Press Button to select USB in the Source menu, then press Enter button to enter.

Press Button to select the option you want to adjust in the main USB menu, then press Enter button to enter.

DVD

Press the "D Setup" button to enter the DVD settings menu, use the ▶▼▲▼ buttons to select the desired menu page (General / Audio / Dolby / Video / Preferences), and use "▼▲▼" buttons to select the items in each menu, then use "▶▼" button to enter the selected item. If you then change any setting, press "ENTER" button to confirm the value you changed. Press the ▶▼" button to return to the left submenu; to go back up to one of the main DVD menu pages, press "EXIT" button.

1. General Setup Page

Osd Language: Set the language of the setup menu and screen display. Screen saver: Set the screen protection.

Last Memory: Remember and resume from the position of the previous playback.

2.Speaker Setup Page

Downmix: This is DVD L/R and stereo output, default as stereo output.

3. Dolby Digital Setup

Dynamic: Adjust sound dynamic range

4. Video Setup Page

Sharpness: adjust the sharpness of the image. Brightness: adjust the brightness of the image. contrast: adjust the contrast of the image.

5. Preference Page (Note: This menu page will pop up before put the disc into DVD.)

TV Type: Select the local TV system (PAL TV/Multi/NTSC TV)

Audio: Disc audio language selection (disc dependent) Subtitle: Disc subtitle language selection (disc dependent)

Subtitle: Disc subtitle language selection (disc dependent) Disc Menu: Disc Menu language selection (disc dependent)

Parental: Set the maximum disc rating (Kid Safe/G/Pg/Pg 13/Pgr/R/Nc 17/Adult) that can be viewed without a password

(default password is 0000)

Password: Change the password Default: Choose this to restore the original default Preference settings

SPECIFICATIONS

Audio

Speakers 2 x 3W

Connectivity

HDMI 2.0

HDMI-ARC Yes | HDMI 1

HDMI-CEC Yes | HDMI 1

USB 1 x USB 2.0

Dimensions

Distance Between Legs 487mm

Without Stand 556.5 x 333.4 x 75.4mm

With Stand 556.5 x 366.6 x 165mm

VESA Wall Mount Pattern 100 x 100

GW 3.4kg

Display

Brightness 180 ± 20 cd/m^2

Computer Supported Resolutions 640x480@60Hz, 720x400@70Hz, 800x600@56/60Hz

1280x720@60Hz, 1366x768@60Hz

Contrast Ratio 3000:1

Native Aspect Ratio 16:9

Panel Manufacturer INX

Refresh Rate 60Hz

Resolution 1366 x 768

Response Time 8.5ms

Size 24"

Viewing Angle 178°/178°

Features

EPG Yes

TV Resolution HD

USB Media Playback Yes

USB Media Playback Formats .mpg.avi.ts.mov.mkv.dat.mp4.vob.mp3.m4a/

.aac.jpg/.jpeg.bmp .png.srt .ssa/.ass.smi.sub.txt

Power

Average Consumption 36W

Energy Consumption 68kWh per year

Energy Rating 6 Star

Tuning And Signal

Tuner Type DVB-T/T2, DVB-S/S2

Note:

- Design and specifications are subject to change without notice.

• Weight and dimension shown are approximate.

TROUBLESHOOTING

Common fixes

Many minor issues can be resolved by hard resetting, or power cycling the unit or upgrading the firmware.

To perform a hard reset, or power cycle, please use the following steps.

• Unplug it from the main power socket and leave it for 10-15 minutes.
• Press and hold the power button on the TV for 5 seconds.
• Connect the TV back to the power and turn it on.

Poor picture and sound quality

• Try a different channel
- Adjust the antenna
- Check all connections

No picture or sound in TV status

• Try another channel
• Press the TV/AV button
  • Make sure TV is plugged in
• Check the antenna connection

No sound or sound is too low at maximum volume

• Check the volume settings on any external speakers connected to your television
• Adjust the TV volume accordingly
• Check another channel or input
• Check that MUTE hasn't been turned on

Picture rolls vertically

- Check all connections

No colour, wrong colour or tints

• Make sure the program itself is broadcast in colour
- Select the picture menu, then adjust the colour and tint submenus

Blurred or snowy picture, distorted sound

• Check direction, location and connections to your antenna
• Issues may be caused by the use of an indoor antenna (poor signal)

Remote control malfunctions

• Replace remote control batteries
• Check battery terminals
• Remote is out of range, move closer to TV
• Remove any obstructions between remote and IR sensor of TV
  • Make sure the power cord to your TV is plugged in and turned on

Image is not centred on the screen

- Adjust the horizontal and vertical position

"No Signal" on HDMI source

• Test the device with a different HDMI cable
  • Plug the device into another HDMI port
• Try a different device connected to the same cable and port
  • Perform a factory reset on your TV

Care & maintenance

Unplug the television from the power supply before cleaning. Do not use any liquid cleaners or harsh chemicals. Always use a soft, damp cloth.

Cleaning the screen

Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the casing

To remove dirt or dust, wipe the TV casing with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

For our full TV troubleshooting guide, head online to help.kogan.com
