USER MANUAL WRJ600UW WESTINGHOUSE

Universal Cooker Hood Installation and Operation Manual

The instructions in this manual are for cooker hood models:

WRJ600U, WRJ603U, WRJ611U, WRJ900U, WRJ903U, WRJ911U, RHN6, RHN9, RFD602, RFD609.

These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 3350.2.31.

Safety Warnings

• Young children should be supervised to ensure they do not play with the cooker hood.
• The cooker hood is not intended for use by young children or infirm persons without supervision.
• Ensure the cooker hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
• Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
• Do not flamb e under the cooker hood.
• This cooker hood is not recommended for barbeques
- The exhaust air from the cooker hood must not be discharged into any heating flue, which may carry combustion products from other sources.
• Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
• Always cover lit gas burners with pots or pans when the cooker hood is in use.
• Always switch off gas burners before you remove pots or pans.

Cleaning

Wipe the cooker hood body and flue with a sponge or soft cloth soaked in warm soapy waterse oven cleaners or other abrasive materials.

Electrical Connection

• Check that the mains voltage matches with the voltage on the data plate inside the cooker hood.
• Check that the installation complies with standards of local gas and electricity authorities.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
  • Try to keep exhaust duct short and straight.
• Keep bends in the exhaust duct to a minimum.
  • Do not reduce the size or restrict exhaust duct.

Alternative flue connection

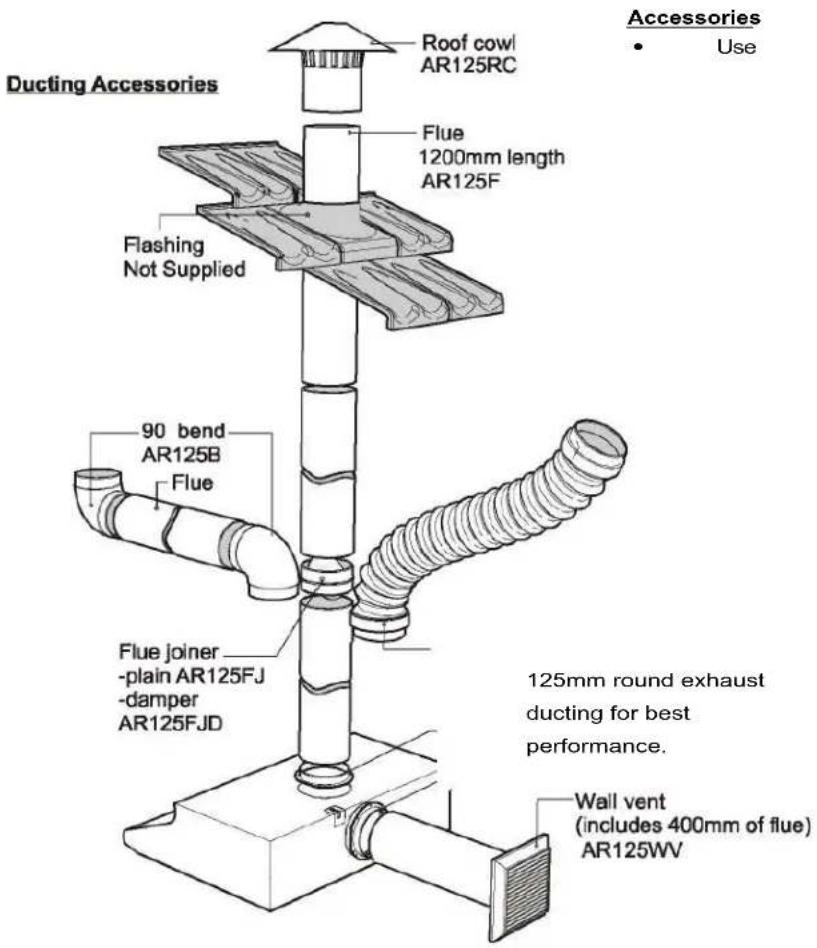

1 metre flexible duct with joiners AR125FD

Flue collar 1 supplied with hood

Stainless Steel Models

Before installing the cooker hood, remove all protective plastic covering from stainless steel surfaces.

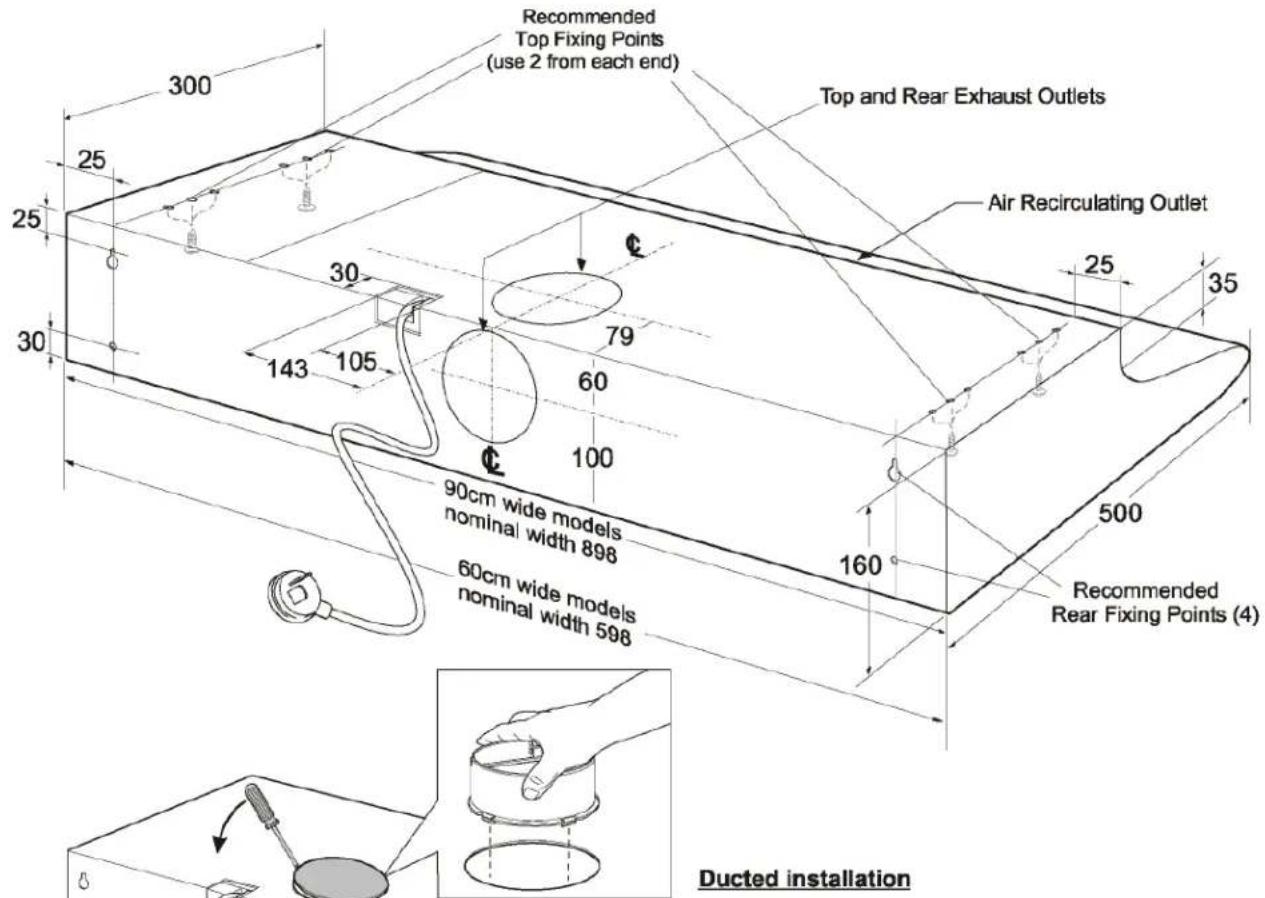

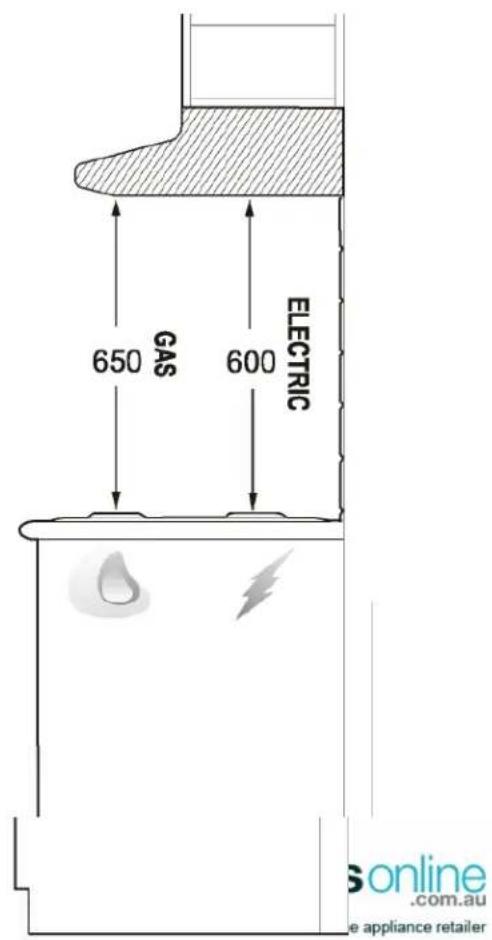

Use at least 4 screws (not provided) and the mounting holes provided to securely mount the cooker hood. Make sure that the cooker hood is level and free from twist.

Select required exhaust outlet, remove hole plug and snap fit flue exhaust collar.

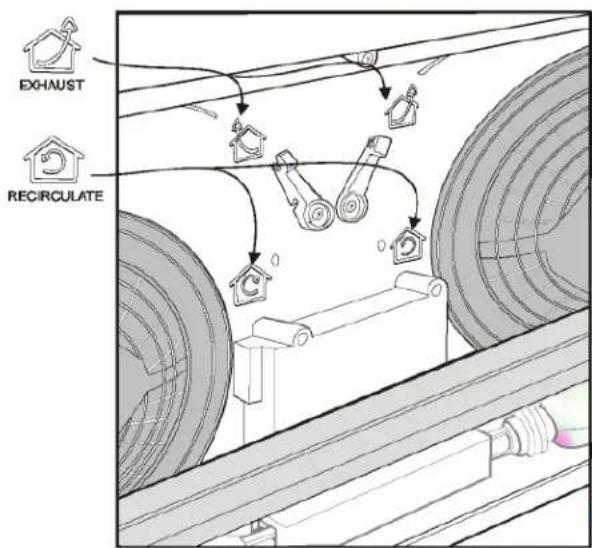

Setting of circulation air door - single fan models

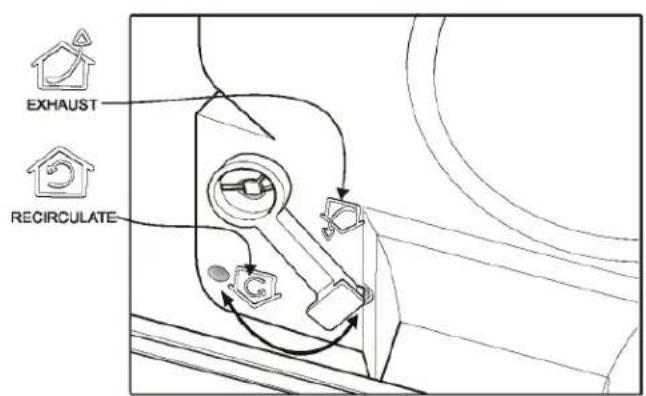

Setting of circulation air doors - dual fan models

Australia's largest online appliance retailer

Cooker Hood Operation

Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. It should be left on after cooking for about 15 minutes or until all odours have disappeared.

Line drawing of a kitchen fan base with ventilation slots and control buttons (no text or symbols)

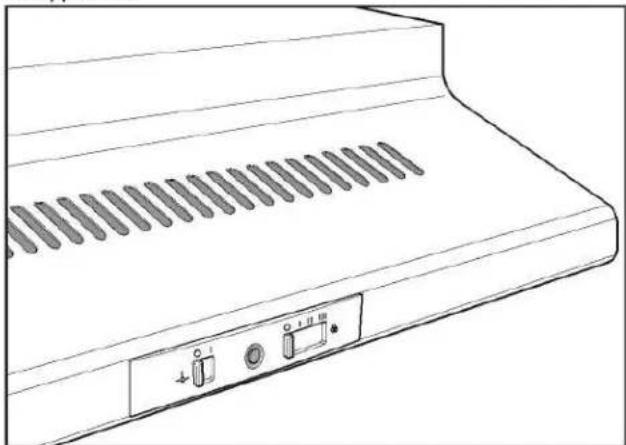

Slide switch controls

Light switch:

This switch is used to turn the light fitted in the hood on and off.

Line drawing of a kitchen air conditioner unit with ventilation slots and control buttons (no text or symbols)

Press button switch controls

Light switch: Depress light button to turn light ON. Press light button to turn light OFF.

Extractor fan switch interlocked switching: Select a fan speed, depress button to turn fan On. Press button (O) to turn fan OFF.

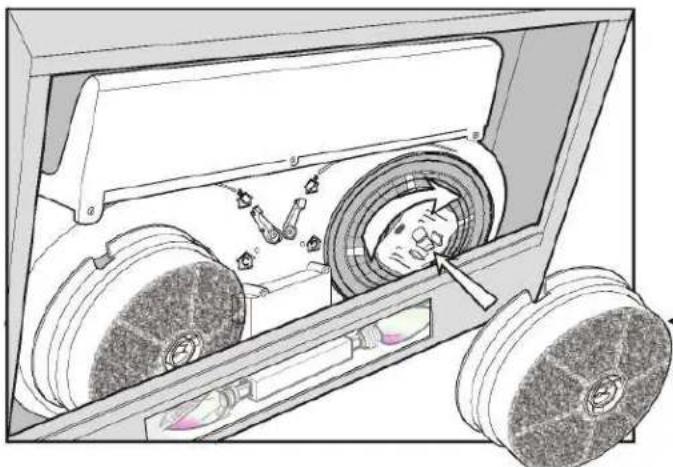

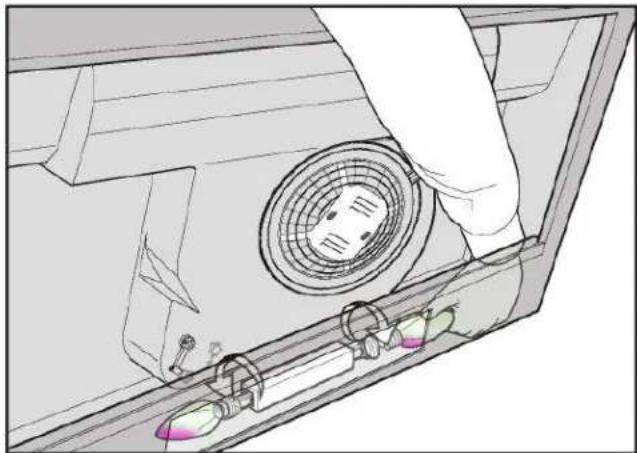

Replacing lamps:

Ensure the appliance is switched off before carrying out maintenance, to avoid any possibility of electric shock. Remove grease filter to replace lamp. Replace with 40W (maximum) E14 candle lamp.

Illustration of a hand inserting a component into a device casing, showing internal components and wiring (no text or symbols)

Technical illustration of a mechanical device showing internal components and parts (no text or symbols)

Maintenance:

Clean grease filters every three to four weeks maximum. Greasy filters are a fire risk.

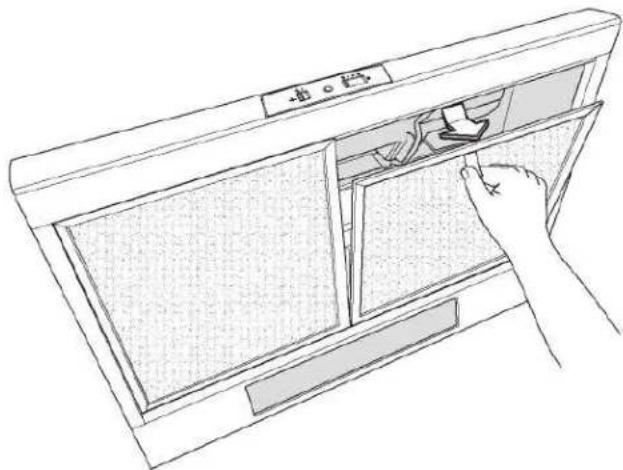

Remove the grease filters, soak and agitate in hot soapy water. Rinse, drain and shake well before replacing filters.

Do not use oven cleaners or other caustic materials.

Recirculating accessory:

Optional carbon filter ARCFD for recirculating mode only.
