Product Type	LCD TV
Model	KLV-37U300A
Screen Size	37 inches (94 cm)
Resolution	1366 x 768 (HD Ready)
Display Technology	LCD with CCFL backlight
Aspect Ratio	16:9
Dimensions (with stand)	930 x 640 x 255 mm
Weight (with stand)	22.5 kg
Power Consumption	180 W (typical)
Standby Power	Less than 1 W
Inputs	HDMI (1), Component (YPbPr), Composite, S-Video, VGA (PC)
Audio Output	2 x 10 W speakers, headphone jack
Remote Control	RM-YD005 included
Wall Mount Compatible	VESA 200 x 200 mm
Tuner	Analog only (no digital tuner)
Cleaning Instructions	Use soft dry cloth; avoid solvents
Safety	Do not place near heat sources; ensure ventilation
Spare Parts	Remote and power cord available from Sony service centers
Repairability	Serviceable by qualified technicians only
Manual Type	User manual (PDF, 92 pages)

Frequently Asked Questions - Bravia KLV-37U300A SONY

How do I connect external devices like a DVD player?

Use the HDMI port for best quality, or connect via component (Y/Pb/Pr) or composite (yellow video) inputs. Refer to the connection guide in the manual.

Can I mount this TV on the wall?

Yes, it supports VESA 200 x 200 mm wall mounts. Ensure the wall can support at least 25 kg and use appropriate screws.

How do I clean the screen?

Use a soft, dry microfiber cloth. Do not use any liquids or chemical cleaners, as they may damage the screen coating.

Why is there no picture when I turn on the TV?

Check that the power cord is plugged in and the TV is switched on. Verify the correct input source is selected using the remote. If still no picture, try a different device.

Does this TV have a digital tuner?

No, the KLV-37U300A only has an analog tuner. To receive digital broadcasts, you will need an external digital set-top box.

How do I adjust the picture settings?

Press the 'Picture' button on the remote (or navigate to 'Picture' in the menu). You can adjust brightness, contrast, color, and sharpness to your preference.

What should I do if the remote control stops working?

First, replace the batteries (AA type). Ensure there are no obstacles between the remote and the TV sensor. If it still doesn't work, the remote may need replacement (model RM-YD005).

Can I use headphones with this TV?

Yes, there is a headphone jack on the side or back of the TV. Plugging in headphones will mute the internal speakers.

How do I set up the TV for the first time?

Connect the antenna or cable, plug in the power, and turn on the TV. The initial setup menu will guide you through language selection and channel tuning.

What is the warranty period for this TV?

Standard Sony warranty is 1 year from date of purchase. Check your local Sony support for specific terms and conditions.

USER MANUAL Bravia KLV-37U300A SONY

Operating Instructions

GB

Before operating the TV, please read the "Safety information" section of this manual. Retain this manual for future reference.

操作手册

CT

• To prevent the risk of electric shock, if the AC power cord or plug is damaged, do not insert the plug into the AC power outlet. This plug cannot be used and should be destroyed.
• To prevent the risk of fire or electric shock, do not expose the TV set to rain or moisture.
• Dangerously high voltages are present inside the TV set. Do not open the cabinet. Refer servicing to qualified personnel only.

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
• “BRAVIA” and BRAVIA are trademarks of Sony Corporation.
  • CineMotion is a registered trademark of Sony Corporation.

Table of Contents

Start-up Guide 4

Safety information 7

Precautions 9

Overview of the remote 10

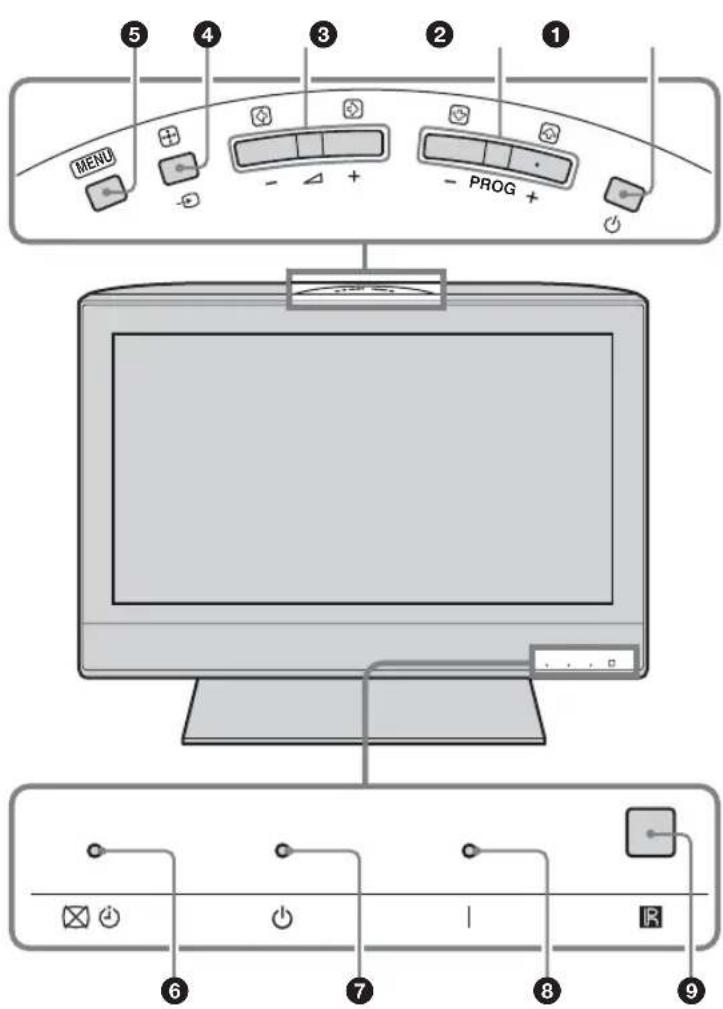

Overview of the TV buttons and indicators ....11

Watching TV

Watching TV....12

Using Optional Equipment

Connecting optional equipment....14

Using MENU Functions

Navigating through menus 16

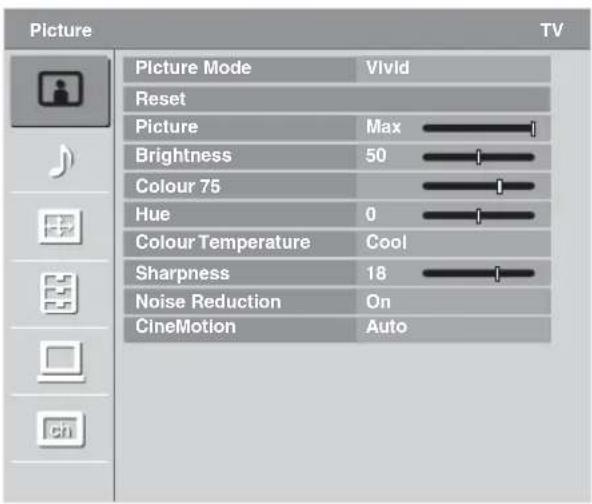

Picture menu....16

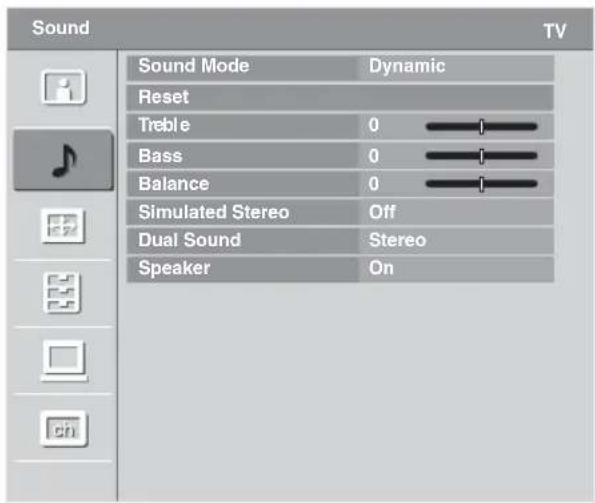

Sound menu....18

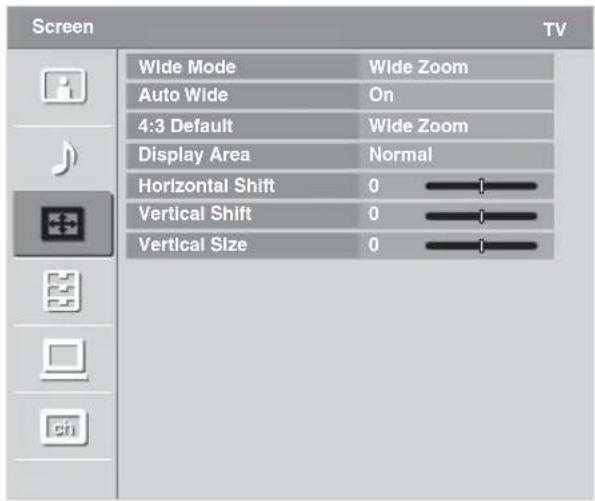

Screen menu....20

Set-up menu....21

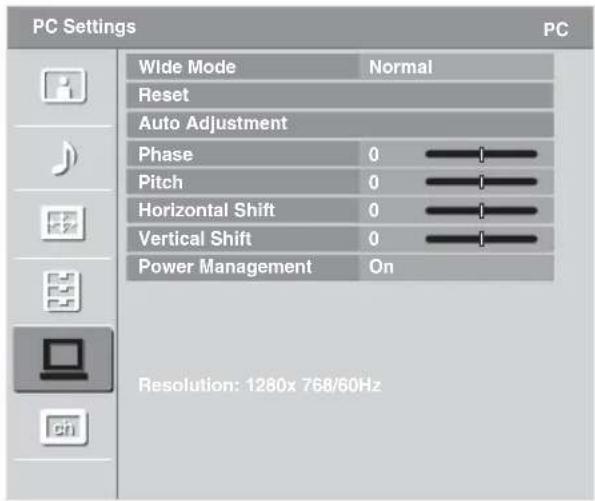

PC Settings menu 23

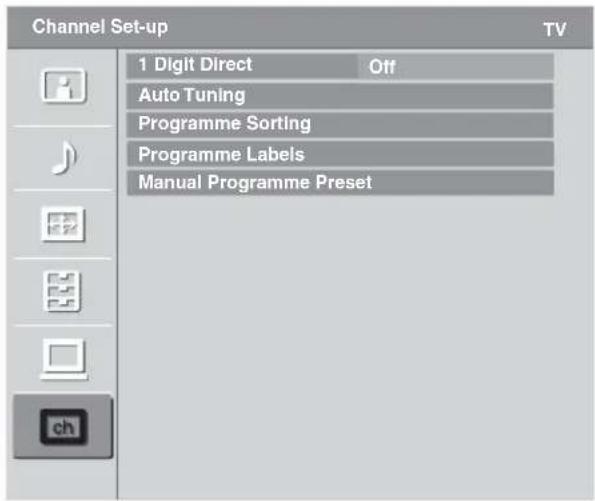

Channel Set-up menu 24

Additional Information

Preparation for Wall Mounting....26

Specifications....27

Troubleshooting 29

Index 31

1: Inserting batteries into the remote

Diagram of a mobile phone showing battery charging mechanism with a lightning bolt (no text or symbols)

Notes

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

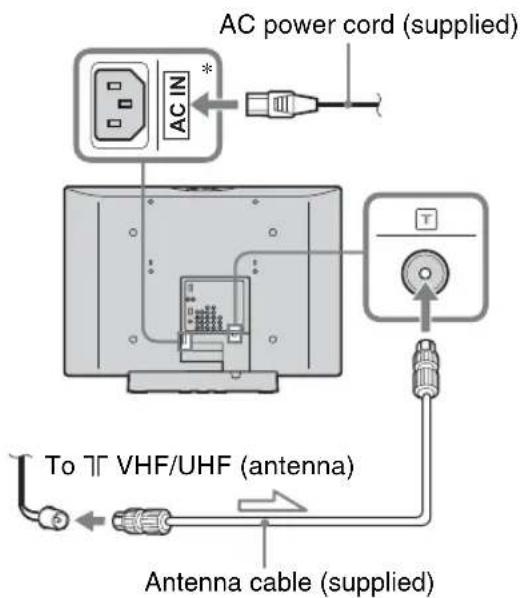

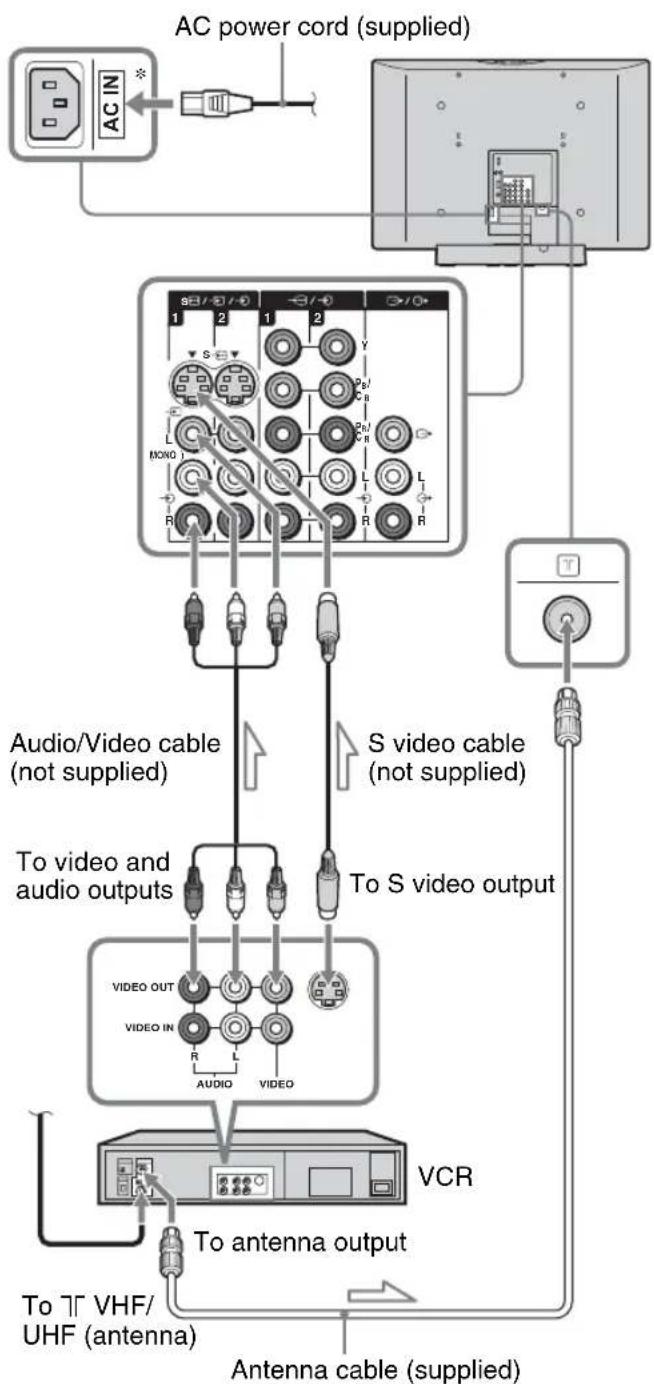

2: Connecting an antenna/VCR

Connecting an antenna only

Connecting an antenna and VCR

→: Signal flow
* The position and the direction of AC IN jack vary, depending on the TV size.

Note

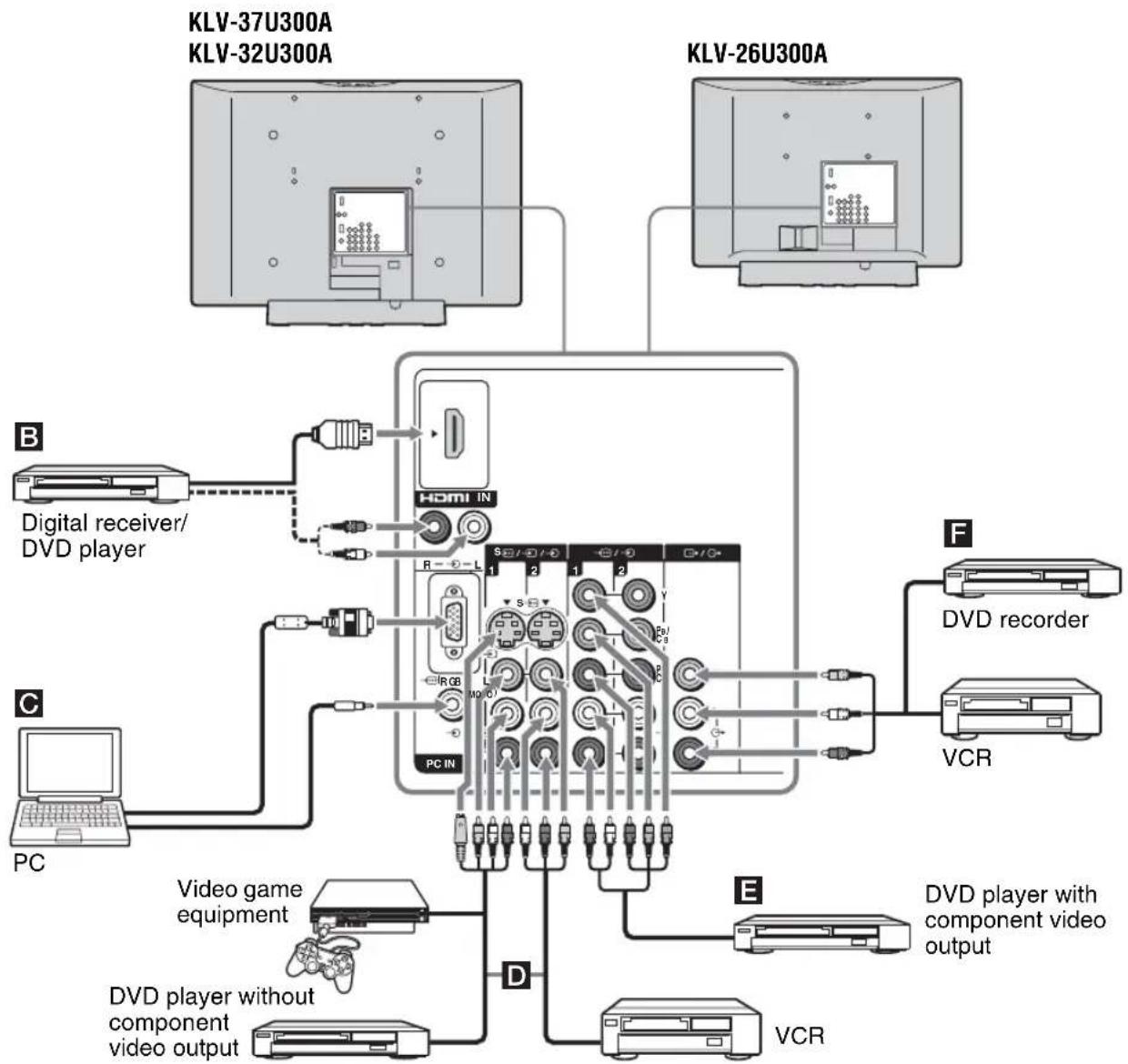

For details about Connecting optional equipment to your TV, see page 14.

3: Preventing the TV from toppling over

Notes

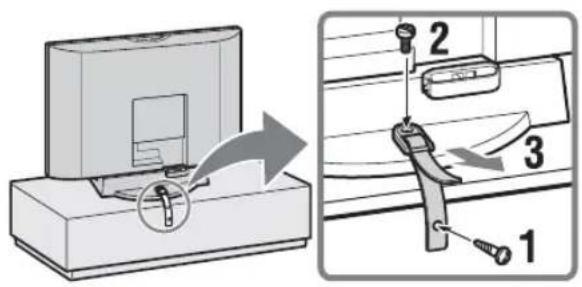

• Be sure to take measures to prevent the TV from toppling over and causing injury.
• The supplied wood screw may not be used depending on the type of TV stand. In this case, or when the securing strength is not enough, prepare commercial screws to fit to the TV stand. Use commercial screws of 3 to 4 mm diameter. Consult your dealer about the types of screw.

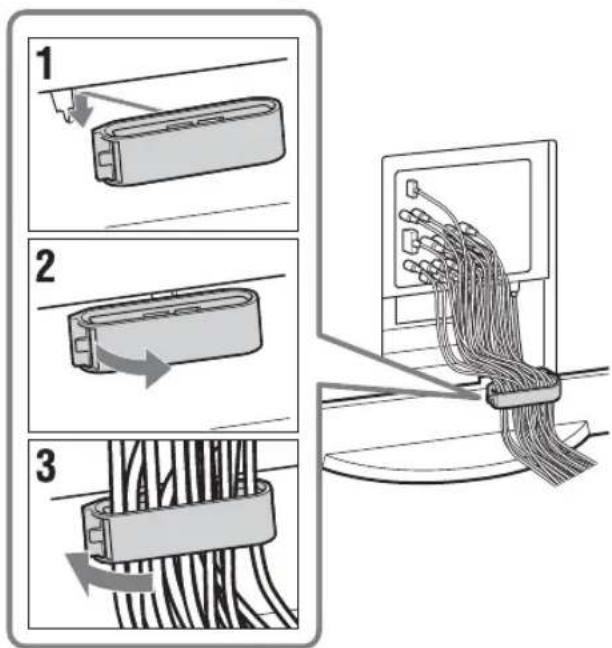

4: Bundling the cables

Tip

The hook of the cable holder can be opened from either side depending on the attaching position.

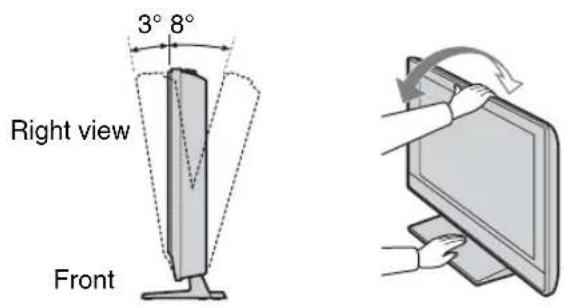

5: Adjusting the viewing angle of the TV (KLV-26U300A only)

This TV can be adjusted within the angles shown below.

Adjust the angle back and forth (tilt)

6: Selecting the language

1 Connect the TV to the AC power outlet (110-240V AC, 50/60Hz).

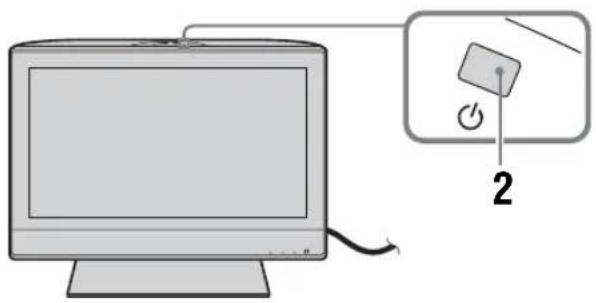

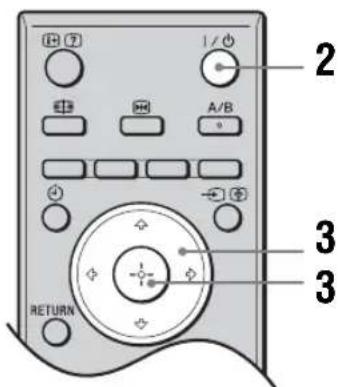

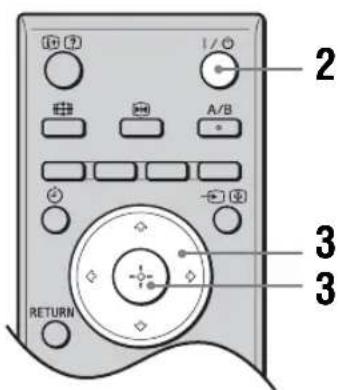

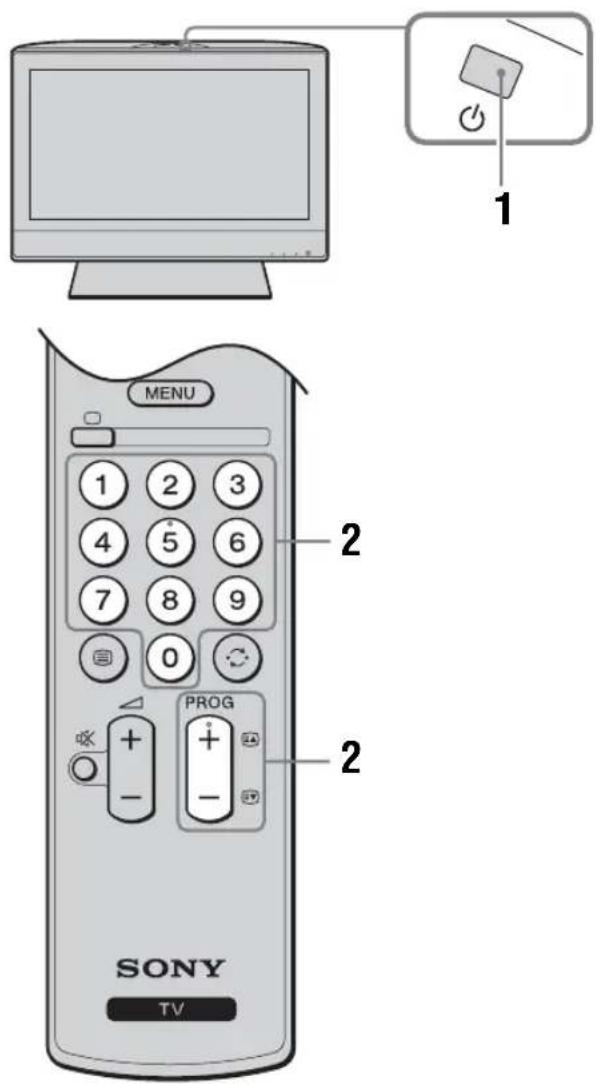

2 Press ⏻ on the TV (top). When you switch on the TV for the first time, the Language menu appears on the screen. When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⌘/💡 on the remote to switch on the TV.

Continued

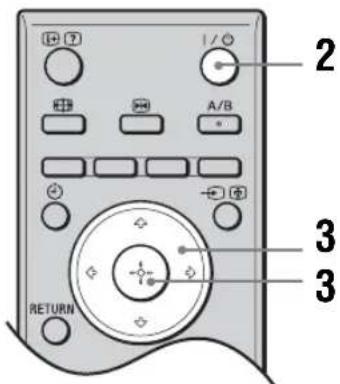

3 Press ⏻/↓ to select the language displayed on the menu screens, then press ⊕

The message confirming the TV start Auto Tuning appears on the screen, then go to "7: Auto Tuning the TV".

7: Auto Tuning the TV

After selecting the language, a message confirming the TV start Auto Tuning appears on the screen. You must tune the TV to receive channels (TV broadcasts). Do the following to search and store all available channels.

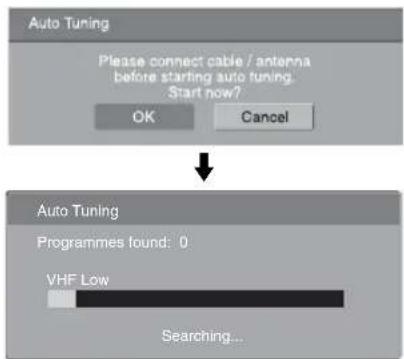

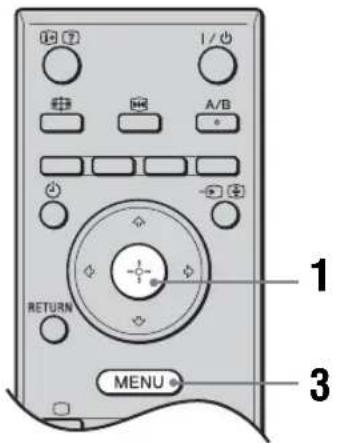

1 Select "OK" and press ⊕

The TV starts searching for all available channels. This may take some time, please be patient and do not press any buttons on the TV or remote.

Once all available channels have been stored, the TV returns to normal operation, displaying the channel stored on channel number 1.

When a message appears for you to confirm the antenna connections

No programmes are found. Check all the antenna connections and press ⓣ to start Auto Tuning again.

2 The Programmes Sorting menu appears on the screen.
3 Press MENU to exit. The TV has now tuned in all the available channels.

To change the order in which the channels are stored on the TV

See page 24.

4 To allow this menu to appear again when you turn on the TV, press ⓣ to select "OK".

Safety information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet.
• Place the TV set on a stable, level surface.

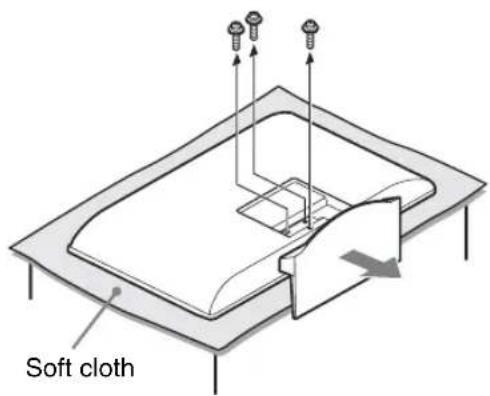

• Only qualified service personnel should carry out wall installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:

- KLV-26U300A:

Wall-mount bracket SU-WL100

- KLV-32U300A/KLV-37U300A:

Wall-mount bracket SU-WL500

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.

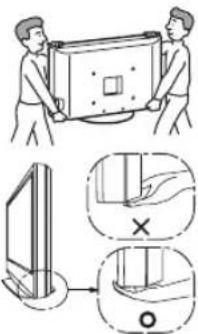

• When transporting the TV set by hand, hold it as shown on the right. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.
• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

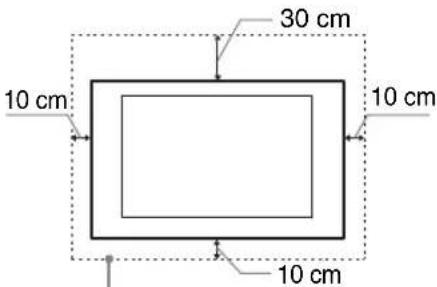

• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.

Installed on the wall

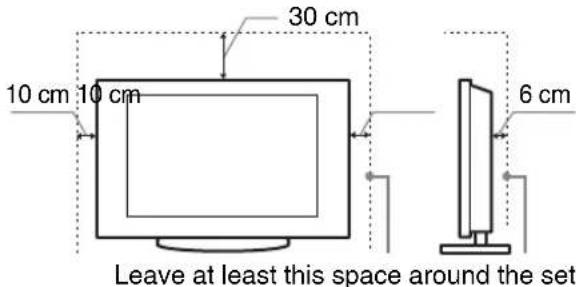

Leave at least this space around the set.

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:

• Do not lay the TV set flat, install upside down, backwards, or sideways.
• Do not place the TV set on a shelf, rug, bed or in a closet.
• Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
• Do not install the TV set as shown below.

Air circulation is blocked.

Air circulation is blocked.

Technical line drawing of a mechanical assembly or clamping mechanism (no text or symbols)

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

• The shape of AC power plug, which is supplied with the TV set, varies depending on the regions. Be sure to connect the appropriate supplied AC power cord with the plug that fits into the AC power outlet.
• Connect the TV set using a three-wire grounding type AC power plug to a AC power outlet with a protective earthing connection.
• Use only Sony supplied AC power cords, not those of other brands.
• Insert the plug fully into the AC power outlet.
• Operate the TV set on a 110-240 V AC supply only.
• When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.
• Disconnect the AC power cord from the AC power outlet before working on or moving the TV set.
• Keep the AC power cord away from heat sources.
• Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Continued

Notes

• Do not use the supplied AC power cord on any other equipment.
• Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord.
• Do not put anything heavy on the AC power cord.
• Do not pull on the AC power cord itself when disconnecting the AC power cord.
• Do not connect too many appliances to the same AC power outlet.
• Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, near flammable objects (candles, etc).

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration; unstable locations; near water, rain, moisture or smoke.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.
• As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

• AC power cord is damaged.
  – Poor fitting of AC power outlet.
• TV set is damaged by being dropped, hit or having something thrown at it.
  – Any liquid or solid object falls through openings in the cabinet.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

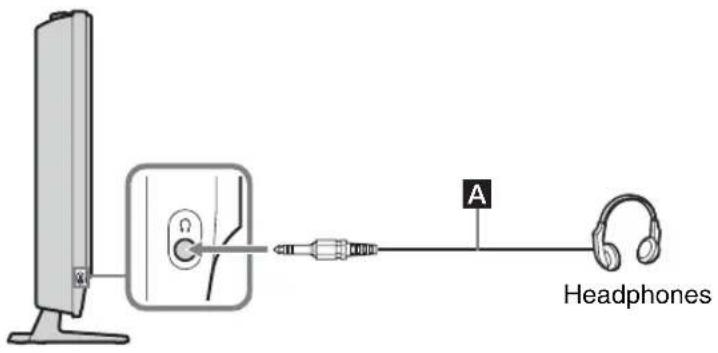

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal and mercury. The fluorescent tubes used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set from AC power outlet before cleaning. To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol is on the remote control.

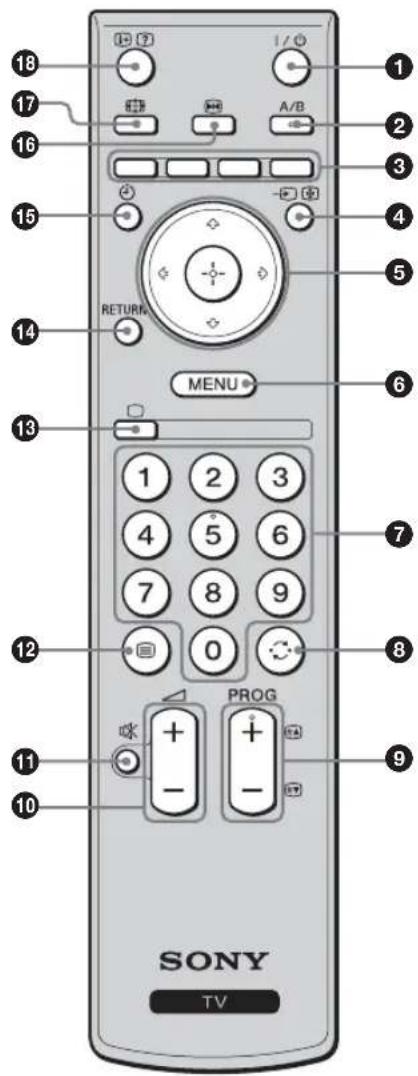

Overview of the remote

①I/⏻ - TV standby

Switches off the TV temporarily. The ⏻ (standby) indicator on the front of the TV lights up. Press again to switch on the TV from the standby mode.

②A/B – Dual Sound (page 19)

③ Coloured buttons

In Text mode (page 12): Used for Fastext.

④ -Input select / Text hold

• In TV mode (page 15): Selects the input source from equipment connected to the TV jacks.
  • In Text mode (page 12): Holds the current page.

⑤ ↗/↓/↔/→/⊕ (page 16)

⑥MENU (page 16)

⑦Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit within two seconds (available only if "1 Digit Direct" is set to "Off").
• In Text mode: Enters the three digits page number to select the page.

8 - Previous channel

Returns to the previous channel watched (for more than five seconds).

⑨PROG +/- (page 12)

• In TV mode: Selects the next (+) or previous (-) channel.
• In Text mode: Selects the next (+) or previous (-) page.

10 △ +/- - Volume

11 ☐ - Mute (page 12)

12 - Text (page 12)

⑬ -TV mode (page 15)

Switches to a TV display when displaying external input.

14RETURN

Returns to the previous screen of any displayed menu.

⑮ - Sleep Timer (page 21)

16 →Picture freeze (page 13)

Freezes the TV picture.

⑰ -Wide Mode (page 13)

18 +Info/ Text reveal

• In TV mode: Displays information such as current channel number and screen mode.
• In Text mode (page 12): Reveals hidden information (e.g., answers to a quiz).

Tip

The A/B, PROG + and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

Overview of the TV buttons and indicators

① ⏻ - Power

Switches the TV on or off.

②PROG +/- /

• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up (or down ().

③ ∠ +/ - / /

• Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options left ( ) or right ( ).

④/→Input select/OK

• In TV mode (page 15): Selects the input source from equipment connected to the TV jacks.
• In TV menu: Selects the menu or option, and confirm the setting.

⑤MENU (page 16)

6 Picture Off/Timer indicator

• Lights up in green when the picture is switched off (page 21).
• Lights up in orange when the timer is set (page 21).

⑦ - Standby indicator

Lights up in red when the TV is in standby mode.

⑧ I – Power indicator

Lights up in green when the TV is switched on.

9 Remote control sensor

Note

Make sure that the TV is completely turned off before unplugging the AC power cord. Unplugging the AC power cord while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

Watching TV

Watching TV

1 Press ⏻ on the TV (top) to switch on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⚠/⏻ on the remote to switch on the TV.

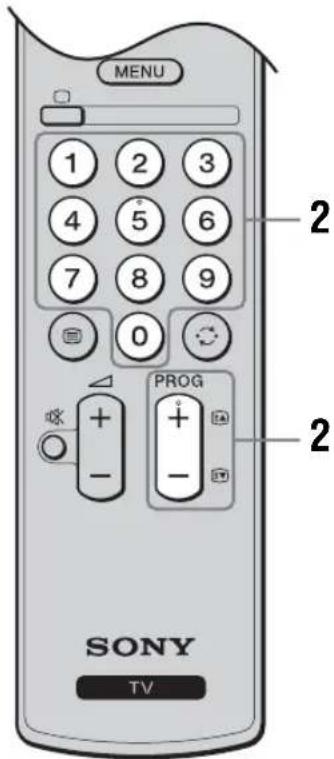

2 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second digit within two seconds (available only if "1 Digit Direct" is set to "Off").

Additional operations

To Do this

Turn off the TV temporarily(Standby mode)	Press I/⏻.
Turn off the TV completely	Press ⏻ on the TV (top).
Adjust the volume Press + (increase)/- (decrease).

Mute the sound Press ☐. Press again to restore.

Return to the previous channel watched (for more than five seconds)

Press ⬇.

Note

Even if you press the ⏻ on the TV (top) to turn it off, a small amount of current continues to flow. Pull the AC plug out of the wall jack to turn the TV off completely.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press →

To reveal hidden information, press ⓘ+ ?

Note

Text language displays can be either English, Persian or French depending on your broadcast signal.

Tips

• Ensure that the TV is receiving a good signal, or some text errors may occur.
• Some TV channels broadcast a Text service. For information on the use of the service, select the index page (usually Text page 100).
• When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

Picture Freeze

Freezes the TV picture (e.g. to make a note of a telephone number or recipe).

1 Press on the remote control.
2 Press ↩/▽/↔/→ to adjust the position of the window.
3 Press to remove the window.
4 Press again to return to normal TV mode.

Note

With Freeze function active, some functions are unavailable, such as MENU.

To change the Wide Mode

Press repeatedly to select wide mode.

For TV, Video, COMPONENT or HDMI (other than PC Input)

Wide Zoom\*

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Enlarges the centre portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen.

Normal

Geometric diagram with a central circle surrounded by five smaller circles, enclosed in a rectangle (no text or symbols)

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.

Full

Simple diagram with five white ovals arranged around a central oval, no text or symbols present.

Stretches the 4:3 picture horizontally, to fill the 16:9 screen.

Zoom\*

Geometric diagram with a central circle surrounded by smaller semicircles on a gray background (no text or symbols)

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

* Parts of the top and bottom of the picture may be cut off.

For PC Input

Normal

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a square frame (no text or symbols)

Displays the picture in its original pixel size. Bars are shown at the top, bottom, and both sides for small picture.

Full 1

Geometric diagram with a central circle surrounded by five smaller circles, enclosed in a rectangle (no text or symbols)

Stretches the original picture to fill the screen vertically.

Full 2

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

Stretches the Full 1 picture horizontally to fill the 16:9 screen.

Tip

Alternatively, you can set "Auto Wide" to "On". The TV will automatically select the best mode to suit the broadcast (page 20).

Note

You can select "Wide Zoom" or "Normal" only when input signals are 480i/480p/576i/576p.

Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV.

Connecting to the TV (side)

Connecting to the TV (rear)

Jacks Input symbol on screen		Description
A (Headphones)		Connect to the jack to listen to sound from the TV on headphones.
B HDMI IN HDMI Connect to the HDMI IN jack if the equipment has an HDMI jack. The digital video and audio signals are input from the equipment. In addition, when an HDMI control compatible equipment is connected, you can perform interlocked operations with connected equipment. If the equipment has a DVI jack, connect the DVI jack to the HDMI IN jack through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out jacks to the audio in the HDMI IN jacks.NotesThe HDMI jacks only support the following video inputs: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. To connect a PC, please use the PC input jack.Be sure to use only an HDMI cable that bears the HDMI logo.
C PC IN PC Connect to the PC IN jack (RGB) using the HD15-HD15 cable (supplied), and the audio jack
D or 2,1 or 2,and 1 or 2(S VIDEO 1 or 2,VIDEO IN 1 or 2,AUDIO)	Video 1 or Video 2	Connect to the S video jack or 2 or the video jack1 or 2, and the audio jacks 2 or 2. To avoid picture noise, do not connect the camcorder to the video jack 2 or 2 and the S video jack or 2 at the same time. If you connect mono equipment, connect to the L(MONO) jack 1 or 2.
E /1 or 2isCOMPONENT IN 1 or 2)	Component 1 or Component 2	Connect to the component jacks and the audio jacks /1 or 2. For better picture quality, component connection is recommended if your DVD player has a component video output.
F\rightarrow / \rightarrow$ (VIDEO OUT/AUDIO OUT)		Connect to the video output jack to record the image from the TV. Connect to the audio output jacks to record the sound from the TV on DVD recorder or VCR. To turn off the sound of the TV speakers, set “Speaker” to “Off” (page 19).

Notes

• Switch on the connected equipment, then press → ✕ to display Inputs. The Inputs Feature lets you select the TV and the connected equipment. You can also assign a label using Video Labels in the Set-up settings (see page 21).
  •, \$ and 2 are equipped with S VIDEO. S VIDEO is selected primarily when both composite video jack and S VIDEO jack are connected.
  • To return to normal TV operation, press .

Using MENU Functions

Navigating through menus

“MENU” allows you to enjoy various convenient features of this TV. Also, settings for your TV can be changed easily using “MENU”.

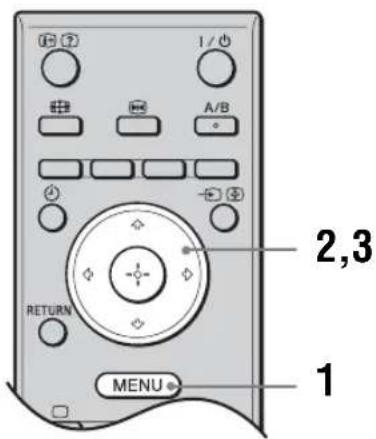

1 Press MENU to display the menu.
2 Press ↩/▽ to select an option.
3 Press to confirm a selected option. To exit the menu, press MENU.

Picture menu

You can select the options listed below on the Picture menu.

Picture ModeCustomized picture viewing	Selects the picture mode.“Vivid”: For enhanced picture contrast and sharpness.“Standard”: For standard picture. Recommended for home entertainment.“Custom”: Allows you to store your preferred settings.
Reset	Resets all picture settings except “Picture Mode” to the default settings.
Picture	Increases or decreases picture contrast.
Brightness	Brightens or darkens the picture.
Colour	Increases or decreases colour intensity.
Hue	Increases or decreases the green tones.Tip“Hue” can only be adjusted for a NTSC colour system (e.g., U.S.A. video tapes).
Colour TemperatureWhite adjustment	Adjusts the whiteness of the picture.“Cool”: Gives the white colour a blue tint.“Neutral”: Gives the white colour a neutral tint.“Warm”: Gives the white colour a red tint.
Sharpness	Sharpens or softens the picture.
Noise Reduction	Reduces the picture noise (snowy picture) in a weak broadcast signal.“On”: Turns on the Noise Reduction feature.“Off”: Turns off the Noise Reduction feature.
CineMotion®	Provides an optimized display by automatically detecting film content and applying a reverse 3:2 pull-down process. Moving pictures will appear clearer and more natural-looking.

Sound menu

You can select the options listed below on the Sound menu.

Sound ModeCustomized sound listening	Selects the sound mode. Also allows you to store your preferred settings.“Dynamic”: Enhances treble and bass.“Standard”: For standard sound. Recommended for home entertainment.“Custom”: Flat response.
Reset	Resets all the sound settings except “Sound Mode” to the default settings.
Treble	Adjusts higher-pitched sounds.
Bass	Adjusts lower-pitched sounds.
Balance	Emphasizes left or right speaker balance.
Simulated Stereo	Selects the surround mode.“On”: Adds a surround-like effect to mono programmes.“Off”: For normal stereo or mono reception.
Dual Sound	Selects the sound from the speaker for a stereo or bilingual broadcast. The selection varies, depending on the Broadcasting.
	Broadcasting Selection
	NICAM stereo Stereo (stereo sound)Mono (regular sound)
	NICAM bilingual Main (main sound)Sub (sub sound)Mono (regular sound)
	NICAM monaural Main (main sound)Mono (regular sound)
	A2 (German) stereo Stereo (stereo sound)Mono (regular sound)
	A2 (German) bilingual Main (main sound)Sub (sub sound)
	NotesIf the signal is very weak, the sound becomes monaural automatically.If the stereo sound is noisy when receiving a NICAM programme, select “Mono”. The sound becomes monaural, but the noise is reduced.The “Mono” setting is memorized for each programme position.You cannot receive a stereo broadcast signal when “Mono” is selected for the programme position.You cannot receive stereo or dual sound when “Low” or “High” is selected in “Audio Filter” (page 25).TipsNICAM is receivable in following countries/regions. Hong Kong, Singapore, New Zealand, Malaysia, Thailand, etc.A2 (German) is receivable in following countries/regions. Australia, Malaysia, Thailand, etc.If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “Main” or “Sub”.
Speaker	Switches on/off the TV’s internal speakers.“On”: The TV speakers are turned on in order to listen to the TV’s sound through TV’s speakers.“Off”: The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output jacks.

Screen menu

You can select the options listed below on the Screen menu.

Wide Mode	Selects the wide screen mode of the picture from “Wide Zoom”, “Normal”, “Full” or “Zoom”. For details, see “To change the Wide Mode” (page 13).
Auto Wide	Automatically changes the screen format according to the broadcast signal. To keep your setting, select “Off”.TipEven if you have selected “On” or “Off” in “Auto Wide”, you can always modify the format of the screen by pressing approximately.Note“Auto Wide” is not available when TV or component video (YPBPR) is 720p or 1080i format.
4:3 Default	Selects the default screen mode for use with 4:3 broadcasts.“Wide Zoom”: Displays conventional 4:3 broadcasts with an imitation wide screen effect.“Normal”: Displays conventional 4:3 broadcasts in the correct proportions.“Off”: Keeps the current “Wide Mode” setting when the channel or input is changed.TipThis option is available only if “Auto Wide” is set to “On”.
Display Area	Adjusts the screen area displaying the picture.“Normal”: Displays the picture in the original size.“-1”/“-2”: Enlarges the picture to hide the edge of the picture.
Horizontal Shift	Adjusts the horizontal position of the picture when the “Wide Mode” is set to “Zoom” or “Wide Zoom”.
Vertical Shift	Adjusts the vertical position of the picture when the “Wide Mode” is set to “Zoom” or “Wide Zoom”.
Vertical Size	Adjusts the vertical size of the picture when the “Wide Mode” is set to “Zoom” or “Wide Zoom”.

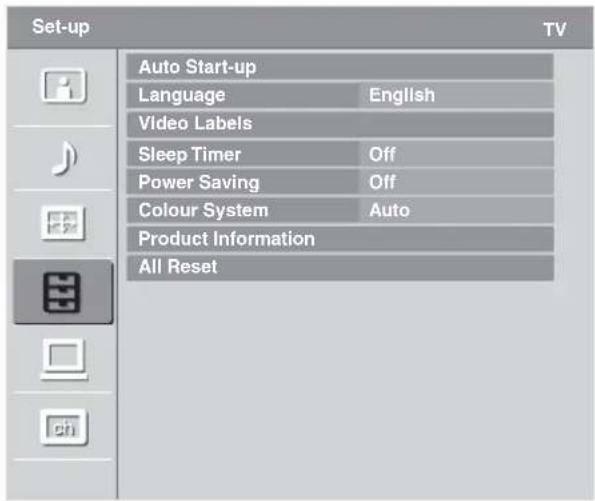

Set-up menu

You can select the options listed below on the Set-up menu.

Auto Start-up	Starts the “first time operation menu” to tune in all the available channels. Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 5, 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Language	Selects the language in which the menus are displayed.
Video Labels	Assigns a name to any equipment connected to the rear jacks. The name will be displayed briefly on the screen when the equipment is selected. You can skip an input source that is not connected to any equipment.1 Press ⬤/▽ to select the desired input source, then press ⊕.2 Press ⬤/▽ to select the desired option below, then press ⊕.Equipment labels: Uses one of the preset labels to assign a name to connected equipment.“Edit:”: Creates your own label. Follow steps 2 to 4 of “Programme Labels” (page 24).“Skip”: Skips an input source that is not connected to any equipment when you press ➔ ≈ to select the input source.Notes“Edit:” allows you to create a custom five character label.If you select “Skip”, your TV skips this input when you press the INPUT button.The “Skip” label is useful for inputs to which no equipment is connected.
Sleep Timer	Sets a period of time (“Off”, “15 min”, “30 min”, “45 min”, “60 min”, “90 min”, or “120 min”) after which the TV automatically switches itself into standby mode.When the “Sleep Timer” is activated, the □Timer) indicator on the TV (front) lights up in orange.TipsIf you switch off the TV and switch it on again, “Sleep Timer” is reset to “Off”.“TV will turn off soon by Sleep Timer” appears on the screen one minute before the TV switches to standby mode.
Power Saving	Select to reduce the power consumption by adjusting the backlight brightness. This also enhances the black level. Select from “Off”, “Low”, “High” and “Picture Off”.

Continued

Colour System	Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTS3.58”, “NTSC4.43”, or “PAL60”) according to the input signal from the input source.
Product Information	Displays your TV’s product information.
All Reset	Resets user settings to the default settings except “Language”, “Video Labels” and the Channel Set-up settings other than “1 Digit Direct”.

PC Settings menu

You can select the options listed below on the PC Settings menu.

Wide Mode	Selects a screen mode for displaying input from your PC.“Normal”: Displays the picture in its original size.“Full1”: Enlarges the picture to fill the display area, keeping its original horizontal-to-vertical aspect ratio.“Full2”: Enlarges the picture to fill the display area.
Reset	Resets all the PC settings to its default setting.
Auto Adjustment	Automatically adjusts the display position and phase of the picture when the TV receives an input signal from the connected PC.TipAuto Adjustment may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.
Phase	Adjusts the phase when the screen flickers.
Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.
Horizontal Shift	Adjusts the horizontal position of the picture for each screen format.
Vertical Shift	Adjusts the vertical position of the picture for each screen format.
Power Management	Switches the TV to standby mode if no signal is received for 30 seconds.

Channel Set-up menu

You can change/set the Channel settings using the Channel Set-up menu.

1 Digit Direct	When “1 Digit Direct” is set to “On”, you can select a channel using one preset number button (0 - 9) on the remote.NoteWhen “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.
Auto Tuning	Tunes in all the available channels.Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 5, 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Programme Sorting	Changes the order in which the channels are stored on the TV.1 Press ⇧/⇨ to select the channel you want to move to a new position, then press ⊕2 Press ⇧/⇨ to select the new position for the channel, then press ⊕.
Programme Labels	Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected.1 Press ⇧/⇨ to select the channel you want to name, then press ⊕.2 Press ⇧/⇨ to select the desired letter or number (“_” for a blank space), then press ➔.If you input a wrong characterPress ⇧/⇨ to select the wrong character. Then, press ⇧/⇨ to select the correct character.To delete all the charactersSelect “Reset”, then press ⊕3 Repeat the procedure in step 2 until the name is complete.4 Select “OK”, then press . ⊕

Manual Programme Preset

Before selecting “Label”, “AFT”, “Audio Filter”, “Skip”, press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip.

Programme, TV System, VHF Low, VHF High or UHF

Presets programme channels manually.

1 Select "Programme", then press . ⊕

2 Press ↑/↓ to select the programme number you want to manually tune (if tuning a VCR, select channel 00), then press ⊕

3 Press ↑/↓ to select "TV System", then press ⊕

4 Press ↩/▽ to select the best received TV broadcast systems, then press ⊕.

5 Press 介/↓ to select either "VHF Low", "VHF High" or "UHF", then press ⊕.

Note

The frequency range indication (“VHF Low”, “VHF High” or “UHF”) switches automatically.

6 Tune the channels as follows:

Press ⇔/⇒ to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press ⇔/⇒.

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. To input characters, follow steps 2 to 4 of “Programme Labels” (page 24).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programme.

If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.

Note

You cannot receive stereo or dual sound when "Low" or "High" is selected.

Skip

Skips unused channels when you press PROG +/- to select channels (you can still select a skipped channel using the number buttons).

Additional Information

Preparation for Wall Mounting

This TV can be installed on a wall by using the Wall-Mount Bracket SU-WL500 (sold separately) for KLV-37U300A and KLV-32U300A, SU-WL100 (sold separately) for KLV-26U300A. Before mounting the TV on a wall, the Table-Top Stand must be removed from the TV.

Note

Do not remove the Table-Top Stand for any reason other than to wall-mount the TV.

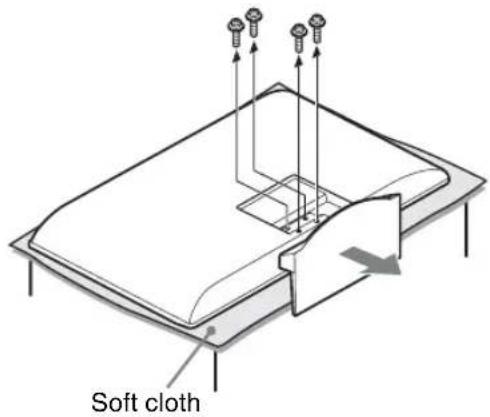

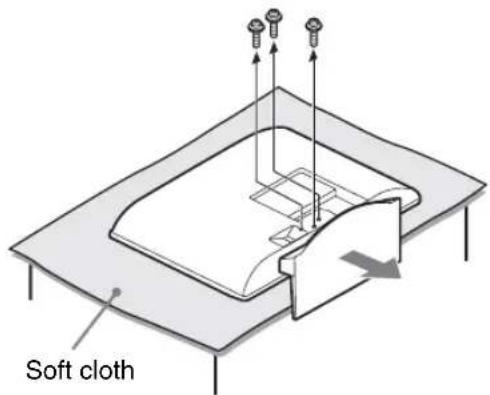

Follow the simple steps below to remove the Table-Top Stand:

1 Disconnect all the cables from the TV.

2 Cover a level and stable surface with a thick and soft cloth.

3 Gently lay the TV, face down, onto the cloth. Make sure the Table-Top Stand is hanging over the edge.

Note

Do not remove any other screws from the TV.

4 Detach the Table-Top Stand from the TV.

For bracket installation, refer to the instruction guide provided by the Wall-Mount Bracket model for your TV. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight. For product protection and safety reasons, Sony strongly recommends that you use the Wall-Mount Bracket model designed for your TV and the wall-mounting of your TV should be performed by Sony dealers or licensed contractors.

Note

Be sure to store the removed screws and Table-Top Stand in a safe place until you are ready to reattach the Table-Top Stand. Keep the screws away from small children.

Model: KLV-37U300A

Model: KLV-32U300A

Model: KLV-26U300A

Specifications

Model name KLV-37U300A KLV-32U300A KLV-26U300A
System
Panel System LCD (Liquid Crystal Display) Panel
TV System B/G, I, D/K, M
Colour System PAL, PAL60 (only Vidco In), SECAM		NTSC4.43 (only Vidco In), NTSC3.58
Channel Coverage B/G: VHF: E2 to E12/ UHF: E21 to		E69/ CATV: S01 to S03, S1 to S41VHF: 0 to 12, 5A, 9A/ UHF: 28 to 69/ CATV: S01 to S03, S1 to S44(Australia only)VHF: 1 to 11/ UHF: 21 to 69/ CATV: S01 to S03, S1 to S41 (New Zealand only)I: UHF: B21 to B69/ CATV: S01 to S03, S1 to S41D/K: VHF: C1 to C12, R1 to R12/ UHF: C13 to C57, R21 to R60/CATV: S01 to S03, S1 to S41, Z1 to Z39M: VHF: A2 to A13/ UHF: A14 to A79/ CATV: A-8 to A-2, A to W+4, W+6 to W+84
Sound Output 10 W + 10 W
Input/Output jacks
Antenna		75 ohm external terminal
S→1, 2		S video input (4-pin mini DIN)Y: 1.0 Vp-p, 75 ohms unbalanced/C: 0.286 Vp-p (Burst signal), 75 ohms
→1, 2		Video input (phono jacks): 1 Vp-p, 75 ohms unbalanced, sync negative
→1, 2		Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms
→1, 2		Component input (phone jacks)Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iY: 1 Vp-p, 75 ohms, 0.3V sync negative/Pb/Cb: 0.7 Vp-p, 75 ohms/Pr/CR: 0.7 Vp-p, 75 ohms
→1, 2		Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms
G→		Video output (phono jack): 1 Vp-p, 75 ohms unbalanced, sync negative
G→		Audio output (phono jacks): 500 mVrms (100% modulation)
HDMI IN		Video: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iAudio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bitsAnalogue audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms
PC IN→(RGB)		PC Input (D-sub 15-pin) (see page 28)G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-p
PC IN→		PC audio input (minijack): 500 mVrms, Impedance: 47 kilohms
Ω		Headphones jack
Power and others
Power Requirements		110–240 V AC, 50/60 Hz
Screen Size (inches)		37	32	26
Display Resolution		1,366 pixels (horizontal) × 768 lines (vertical)
Power Consumption		Indicated on the rear of the TV.
Dimensions(w × h × d)*	with stand (mm)	918 × 656 × 264	796 × 591 × 214	662 × 515 × 214
	without stand (mm)	918 × 609 × 108	796 × 544 × 99	662 × 468 × 95
Mass*	with stand (kg)	21.5	17.0	13.5
	without stand (kg)	18.5	14.5	11.5
Optional Accessories		SU-WL500 (for KLV-37U300A/KLV-32U300A)SU-WL100 (for KLV-26U300A)

* Dimensions and mass are approximate values.
Design and specifications are subject to change without notice.

Continued

PC input signal Reference chart

Signals	Horizontal (Pixel)	Vertical (Line)	Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
VGA 640 480 31.5 60 VGA
	640 480 37.5 75 VESA
	720 400 31.5 70 VGA-T
SVGA 800 600 37.9 60 VESA Guidelines
	800 600 46.9 75 VESA
XGA 1024 768 48.4 60 VESA Guidelines
	1024 768 56.5 70 VESA
	1024 768	60	75 VESA
WXGA	1280 768 47.4 60 VESA
	1280 768 47.8 60 VESA
	1360 768 47.7 60 VESA

• This TV's PC input does not support Sync on Green or Composite Sync.
• This TV's PC input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60Hz vertical frequency from a personal computer. In plug and play, signals with a 60Hz vertical frequency will be selected automatically.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many ⏻ (standby) indicator flashes between each two second break. For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc.
2 Press ⏻ on the top edge of the TV to turn it off, disconnect the AC power cord, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items in the tables below.

2 If the problem still persists, have your TV serviced by qualified service personnel.


No picture (screen is dark) and no sound

• Check the antenna/cable connection.
• Connect the TV to the AC power outlet, and press ⏻ on the top edge of the TV.
• If the ⏻ (standby) indicator lights up in red, press ⚠/⏻ on the remote.

No picture or no menu information from equipment connected to the video input jack

• Press to display the connected equipment list, then select the desired input.
• Check the connection between the optional equipment and the TV.

Double images or ghosting

• Check the antenna/cable connection.
• Check the antenna location and direction.

Only snow and noise appear on the screen

• Check if the antenna is broken or bent.
• Check if the antenna has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.
• When installing optional equipment, leave some space between the optional equipment and the TV.
• Make sure that the antenna/cable is connected using the supplied antenna cable.
• Keep the antenna cable away from other connecting cables.
• Broadcast signals are too strong. Turn off or disconnect the booster if it is in use.

Picture or sound noise when viewing a TV channel

• Select “Manual Programme Preset” in the “Channel Setup” menu and adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 25).
• Select “Noise Reduction” in the “Picture” menu to reduce the noise in the picture (page 17).

Good picture, but noisy sound

• The TV system setting is inappropriate.
- If the sound of all the channels are noisy, perform “Auto Tuning” in the “Channel Set-up” menu to preset the channel again (page 24).
- If the sound of some channels is noisy, select the channel, then perform “Manual Programme Preset” in the “Channel Set-up” menu, and select the appropriate TV system (“TV System”) (page 25).

Some tiny black points and/or bright points appear on the screen

- The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.

No colour on programmes

- Select “Reset” in the “Picture” menu to return to the factory settings (page 16).

No colour or irregular colour when viewing a signal from the Y, P_B/C_B , P_R/C_R jacks of 1 or 2

• Check the connection of the Y, PB/CB, PR/CR jacks of 1 or 2.
• Make sure that the Y, P B/CB, PR/CR jacks of 1 or 2 are firmly seated in their respective jacks.

Picture flashes initially when changing to HDMI mode or switching on the TV with HDMI mode

- This is probably caused by the authentication process between HDMI equipment and the TV. It does not indicate a malfunction.

Sound

No sound, but good picture

• Press + / - or ※ (Mute).
• Check if the “Speaker” is set to “On” in “Sound” menu (page 19).

Stereo broadcast sound switches on and off, or is distorted; The sound switches between stereo and monaural frequently

• The antenna connection is loose or the antenna cable is damaged. Check the cable and connection on the TV, VCR, and on the wall (page 4).
• Adjust the antenna direction for the minimum interference. Contact a Sony dealer for advice.
• Signal transmission is low. Try using a booster. Otherwise, use the fine tuning (“AFT”) function (page 25).

Continued

General

The TV turns off automatically (the TV enters standby mode)

- Check if the "Sleep Timer" is activated (page 21).

Some input sources cannot be selected

- Select "Video Labels" in the "Set-up" menu and cancel "Skip" of the input source (page 21).

The remote does not function

- Replace the batteries.

The wide screen mode changes spontaneously when "Auto Wide" is "On"

• During a transition between two programmes, the TV detects the optimum wide screen mode. During this period, an irregular wide screen mode may appear.
• The wide mode is switched automatically according to the revised signal with a Wide ID signal.
• The “Auto Wide” feature stops working temporarily when you press and resumes after a while. To fix in the manually selected wide screen mode, set “Auto Wide” to “Off” in the “Screen” menu (page 20).

Text display is incomplete or garbled

• Your area may not be able to receive Text. Text is displayed only in the area that is covered by Text services.
• The antenna connection is loose or the antenna cable is damaged. Check the cable and connection on the TV, VCR, and on the wall (page 4).
• Adjust the antenna direction. Contact a Sony dealer for advice.
• Signal transmission is too low. Try using a booster.
• Using the fine tuning (“AFT”) function may improve the picture (page 25).

Cannot play shooting games

- Some shooting games which involve pointing a light beam at the TV screen with an electronic gun or rifle cannot be used with your TV. For details, see the instruction manual supplied with the video game software.

The TV cabinet creaks

- Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

Static discharge is felt when touching the TV cabinet

- This is the same static discharge that is felt when touching metal door handles or car doors especially when the air is dry, for example in winter. This does not indicate a malfunction.

Index

Numerics

1 Digit Direct 24

4:3 Default 20

A

A/B button 10

AFT 25

All Reset 22

Antenna, connecting 4

Audio Filter 25

Auto Adjustment 23

Auto Start-up 21

Auto Tuning 6, 24

Auto Wide 20

B

Balance 18

Bass 18

Batteries, inserting into the remote 4

Brightness 16

C

Channel Set-up menu 24

Channels

auto-tuning 6

selecting 12

Skip 25

CineMotion 17

Colour 17

Colour System 22

Colour Temperature 17

Connecting an antenna/VCR 4 optional equipment 14

D

Display Area 20

Dual Sound 19

E

Equipment labels 21

F

Fastext 12

Full 13

Full 1 13

Full 2 13

H

Headphones 15

Horizontal Shift 20, 23

Hue 17

|

Installing the TV on a wall 26

L

Label 25

Language 5, 21

M

Manual Programme Preset 25

MENU 16

N

Noise Reduction 17

Normal 13

P

PC Settings menu 23

Phase 23

Picture 16

Picture Freeze 13

Picture menu 16

Picture Mode 16

Picture Off (1) indicator 11

Pitch 23

Power (I) indicator 11

Power ( 1 ) switch 11

Power Management 23

Power Saving 21

Preparation 26

Product Information22

Programme 25

Programme Labels 24

Programme Sorting 24

R

Remote control inserting batteries 4 overview 10 sensor 11

Reset

PC settings 23

picture 16

sound 18

s

Screen menu 20

Set-up menu 21

Sharpness 17

Simulated Stereo 18

Skip 21, 25

Sleep Timer21

Sound menu 18

Sound Mode 18

Speaker 19

Specifications 27

Standby (⏻) indicator 11

T

Text 12

Tilt 5

Timer (Indicator 11

Treble 18

TV System 25

U

UHF 25

V

VCR

connecting 4

Vertical Shift 20, 23

Vertical Size 20

VHF High 25

VHF Low 25

Video Labels 21

W

Wide Mode 13, 20, 23

Wide Zoom 13

Z

Zoom 13

警告 介紹

Diagram of a mobile phone casing with two batteries and a downward arrow indicating battery discharge (no text or symbols)

注意

注意

秘訣

通風

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Geometric diagram with a central circle surrounded by five smaller circles, enclosed in a rectangle (no text or symbols)

Simple diagram with a central oval and four surrounding empty circles, no text or symbols present.

Geometric diagram with a central circle surrounded by smaller semicircles on a gray background (no text or symbols)

Geometric diagram of a square with five smaller circles arranged in a circle around the center (no text or symbols)

Geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

拉長原始影像以垂直方向填滿螢幕。

全螢幕

模式 2

Simple diagram with five white ovals arranged around a central oval, no text or symbols present.

Diagram of a battery holder with two batteries and a downward arrow indicating rotation (no text or symbols)

หมายเหตุ

หมายเหตุ

คำแนะนำ

การระบายอากาศ

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Geometric diagram with a central circle surrounded by four smaller circles, divided into two rectangular sections (no text or symbols)

Simple diagram with a central oval and four surrounding empty ovals, no text or symbols present.

Geometric diagram with a central circle surrounded by smaller semicircles and shaded regions (no text or symbols)

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a square frame (no text or symbols)

Geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Simple diagram with five white ovals arranged around a central blank oval, no text or symbols present.
