Product Type	Range Hood
Brand	Everdure
Model	RBES91
Width	90 cm
Installation Type	Wall-mounted
Extraction Rate (max)	600 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Control Type	Electronic push buttons
Lighting	2 x 20W halogen lamps
Filter Type	Aluminum grease filter, washable
Ducting	150 mm diameter, top or rear outlet
Power Supply	220-240 V, 50 Hz
Rated Power	250 W
Energy Class	A
Weight	15 kg
Dimensions (HxWxD)	680 x 900 x 500 mm
Grease Filter Cleaning	Monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months (if recirculating)
Safety Features	Thermal overload protection, auto shut-off
Warranty	2 years
Spare Parts Available	Yes, including filters and lamps

Frequently Asked Questions - RBES91 Everdure

How do I clean the grease filter?

The grease filter is washable. Remove it by pulling the handle downwards and clean it in warm soapy water or in the dishwasher. Dry thoroughly before reinstalling.

How often should I replace the charcoal filter?

If using recirculation mode, replace the charcoal filter every 3-6 months depending on usage. It cannot be washed.

What is the recommended installation height?

For optimal performance, install the range hood 65-75 cm above the cooking surface for electric hobs and 75-85 cm for gas hobs.

How do I switch the hood to recirculation mode?

Remove the exhaust duct cover and install a charcoal filter (not included) into the motor housing. Then seal the duct outlet with the cap provided.

My remote control is not working. What can I do?

Check the batteries first. If still not working, ensure there are no obstacles between the remote and the receiver. Reset by disconnecting power for 10 seconds.

What is the maximum extraction rate?

The RBES91 model has a maximum extraction rate of 600 m³/h.

How do I adjust the speed?

Use the control panel buttons: press once for low speed, twice for medium, and three times for high. An indicator light shows the selected speed.

Can I install the hood without ducting?

Yes, you can use recirculation mode by installing a charcoal filter. The air will be filtered and released back into the kitchen.

What type of light bulbs does the hood use?

The hood uses 20W halogen bulbs with a G4 base. Ensure the hood is disconnected before replacing.

Why is the hood making excessive noise?

Check if the filter is clogged or if there is an obstruction in the duct. Also ensure the hood is securely mounted and not vibrating against the wall.

USER MANUAL RBES91 Everdure

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

FOR EVERDURE RANGE HOOD

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

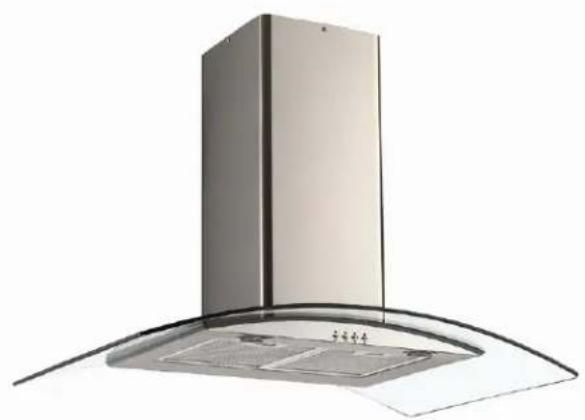

Exterior view of a stainless steel kitchen range hood with curved glass cover (no text or symbols visible)

Models Included:

RBES63

RBES91

RBES92

everdure

DESIGNED TO PERFECTION

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE RANGE HOOD RBES63, RBES91, RBES92

CONTENTS

SECTION

PAGE

NO.

Important Safety Instructions.... 3

Appliance Details 4

General Information 4

What Is Supplied 4

What May Be Needed For Installation ... 4

Installation Instructions 4-6

Operating Instructions 7-8

Cleaning

Troubleshooting 10

9

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT:

Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton.

1. In certain circumstances electrical appliances may be a danger hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to insure that they do not play with the appliance.
3. Do not check the status of the filters while the cooker hood is operating.
4. Do not touch the light bulbs after appliance use.
5. Do not disconnect the appliance with wet hands and do not disconnect the power cord with extreme force.
6. Do not flambé underneath range hood.
7. Avoid free flame, as it may cause damage to the filters and be a fire hazard.
8. If frying food, ensure to check regularly to avoid the oil overheating and becoming a fire hazard.
9. Unplug the appliance before carrying out maintenance or replacing lamps.
10. If the power cord is damaged, it must be replaced the manufacturer, an authorized service centre or similarly qualified persons to avoid a hazard.
11. Indoor use only.
12. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
13. It is recommended to operate the range hood prior to cooking.
14. It is recommended to leave the range hood in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.
15. Turn off the range hood when not in use.
16. Don't use or stop use if the range hood is damaged especially the supply cord and the case.
17. Don't immerse the range hood in liquid.
18. The exhaust air must not be discharge into a flue which is used for exhausting fumes from appliance burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
19. Regulations concerning the discharge of air have to be fulfilled. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas of other fuels.
20. Clean the surface of the cooker hood regularly using cloth moistened with denatured alcohol of non abrasive liquid detergent.
21. There is a fire risk if cleaning is not carried out in accordance with the instruction.
22. The 600mm unit is intended for use above hobs with four elements and the 900mm units are intended for use above hobs units with five elements.
23. If the instruction for the minimum distance between the supporting surface of the cooking vessels on the hob and the lowest part of the range hood are specified by hob instructions, these instructions should be taken into account.

DO NOT
OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET

APPLIANCE DETAILS

Voltage: 220-240V
Frequency: 50Hz
Lamp Max: 2x20W G4	halogen lamps
Rated Input Power: 230W

GENERAL INFORMATION

Before installing and operating the range hood, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed to exhaust cooking fumes externally. Before installation, please ensure that the following have been supplied and that the tools listed below are readily available.

WHAT IS SUPPLIED

Range hood (including one way valve for flue x 1) x 1

Installation kit x 1 - RBES63 & RBES91: Short bolts x 10, long screws x 7, plastic plugs x 7

Installation kit x 1 - RBES92: Short bolts x 8, Medium bolts x 4, long screws x 7, plastic plugs x 7

Mounting brackets x 3

Instruction booklet x 1

WHAT MAY BE NEEDED FOR INSTALLATION

Electric Drill Duct Tape
Tape Measure Jig Saw
Spirit Level Ladder
Screwdrivers Torch (If natural lighting is minimal)

INSTALLATION INSTRUCTIONS

Please ensure that before installing the range hood, all power is switched off.

Installation must be in accordance to the local electrical authority and codes.

This range hood must be earthed at all times for the operators' safety.

The G.P.O. for the range hood should be positioned to enable the user to turn the power off, to enable cleaning and any maintenance required.

The G.P.O. should be installed within 600mm from the rear of the unit.

Ensure that when installing the range hood, that it is protected from any possible damage from tools etc.

Ducting for this unit must be installed in accordance to the local authority.

Ensure that the fixings used for this range hood are suitable.

Check the area where the range hood is to be fitted, to ensure that it is structurally sound.

The Everdure RBES63, RBES91 & RBES92 range hoods are intended to be installed directly onto a wall.

INSTALLATION OF THE EVERDURE RBES63 & RBES91 RANGE HOODS DIRECTLY TO A WALL

Ensure that the wall is structurally sound, and is capable of carrying the weight of the range hood. The range hood can be placed at a minimum of 600mm away from an electric cooktop, or 650mm minimum from a gas cooktop. The unit is held to a wall via 3 brackets (supplied with the unit):

1. Hook Bracket.
2. Centre Bracket (flat).
3. Top Bracket (U-shaped).

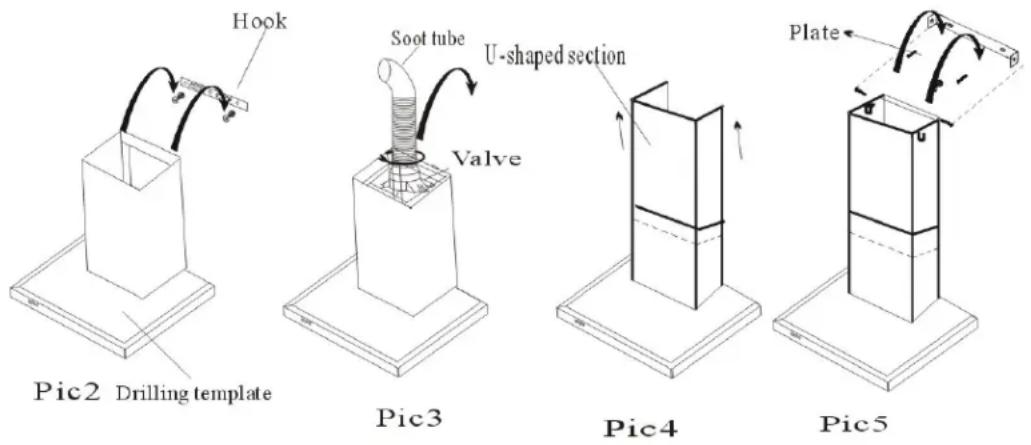

Place the hood main unit (no u-shaped section) against the wall at the correct position and mark off the top of the unit. Remove the unit and measure up 22mm to get the top level for the hook bracket. Place the hook bracket (hooks up) under the mark and mark in the 3 screw holes. Remove the bracket and drill three (3) ∅8mm holes 100mm apart. Insert plastic plugs into the holes and fix the hook bracket onto the wall. Place the hood main unit onto the hooks. See pic2.

Screw the centre bracket onto the back of the u-shaped section using the supplied short screws (this helps keep the width at the back even with the front). Place the u-shaped section onto the main unit and fix in place with 2 short screws.

Add the soot tube to the one way valve, and vent it outside. See pic3.

Calculate the final height of the u-shaped section and pull out the inside u-shaped section to a suitable height (see pic4) to check. Mark the 2 sides near the top and push the inner section out of the way. Place the top bracket (slots to the bottom) centred between the 2 marks, mark the 2 screw holes. Remove the bracket and drill two (2) ∅8mm holes at the marks. Insert plastic plugs into the holes and fix the hook bracket onto the wall (slightly loose). Note: The top edge of the u-shaped bracket matches the top edge of the u-shaped section – adjust according to your own needs.

Pull up the inside u-section to allocate the top bracket correctly, and tighten the screws. Pull the u-section over the bracket completely and fix into place with 2 screws at the sides (see pic5).

For timber framed houses, special care should be taken that all brackets are attached to areas that will support the weight of the range hood.

INSTALLATION OF THE EVERDURE RBES92 RANGE HOOD DIRECTLY TO A WALL

Ensure that the wall is structurally sound, and is capable of carrying the weight of the range hood. The range hood can be placed at a minimum of 600mm away from an electric cooktop, or 650mm minimum from a gas cooktop. The unit is held to a wall via 3 brackets (supplied with the unit):

1. Hook Bracket.
2. Centre Bracket (flat).
3. Top Bracket (U-shaped).

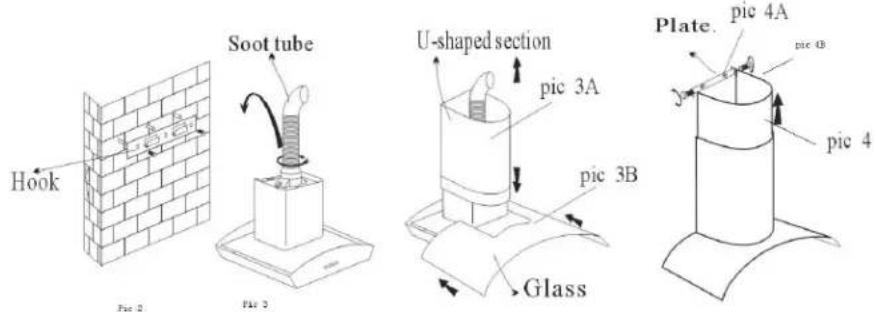

Place the hood main unit (no u-shaped section) against the wall at the correct position and mark off the top of the unit. Remove the unit and measure up 20mm to get the top level for the hook bracket. Place the hook bracket (hooks up) under the mark and mark in the 3 screw holes. Remove the bracket and drill three (3) ∅8mm holes 115mm apart. Insert plastic plugs into the holes and fix the hook bracket onto the wall. Place the hood main unit onto the hooks. See pic1.

Add the soot tube to the one way valve, and vent it outside (See pic2).

Screw the centre bracket onto the back of the u-shaped section using the supplied short screws (this helps keep the width at the back even with the front). Place the u-shaped section onto the main unit and fix in place with 2 short screws (see pic3A). Slide the glass into position and fix into place with 4 screws (see pic3B).

Calculate the final height of the u-shaped section and pull out the inside u-shaped section to a suitable height (see pic4) to check. Mark the 2 sides near the top and push the inner section out of the way. Place the top bracket (slots to the bottom) centred between the 2 marks, mark the 2 screw holes. Remove the bracket and drill two (2) ∅8mm holes at the marks. Insert plastic plugs into the holes and fix the hook bracket onto the wall (slightly loose). Note: The top edge of the u-shaped bracket matches the top edge of the u-shaped section – adjust according to your own needs.

Pull up the inside u-section to allocate the top bracket correctly, and tighten the screws. Pull the u-section over the bracket completely and fix into place with 2 screws at the sides (see pic5).

For timber framed houses, special care should be taken that all brackets are attached to areas that will support the weight of the range hood.

Hook Soot tube U-shaped section pic 3A pic 3B Glass Plate. pic 4A pic 4B pic 4

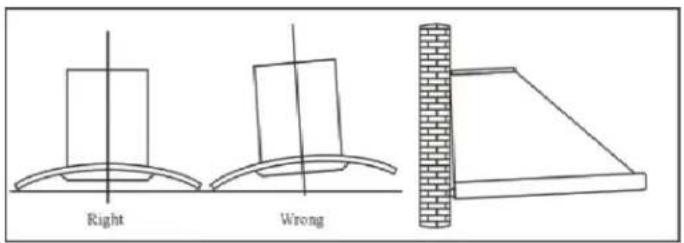

NOTE: Care should be taken that the range hood is fitted correctly (see diagram below). Incorrect installation can cause a build up of grease and oils and cause damage to the unit.

Right Wrong

Pic5
NOTE: Remove all protective plastic coatings from the stainless steel surfaces before use.

OPERATING INSTRUCTIONS

Note: Before the unit can be operated, it must be ducted.

Connect the plug into the power.

FOR RBES92 ELECTRONICALLY OPERATED RANGEHOODS

The range hood has indication diagrams to allow you to easily select the fan operating speed required.

Push the low button, indicated by a fan with 3 blades, and the motor will run at a low speed. An indicator light will also illuminate. Push it again and the motor will stop.

Push the medium button, indicated by a fan with 4 blades and the motor will run at a medium speed. An indicator light will also illuminate. Push it again and the motor will stop.

Push the high button, indicated by a fan with 5 blades and the motor will run at a high speed. An indicator light will also illuminate. Push it again and the motor will stop.

Push the light button; the indicating light on, and the two lighting lamps will come on. Push it again and the lamps will turn off.

Indicatorlight

①

②

③

④

Low

Mid

High

Light

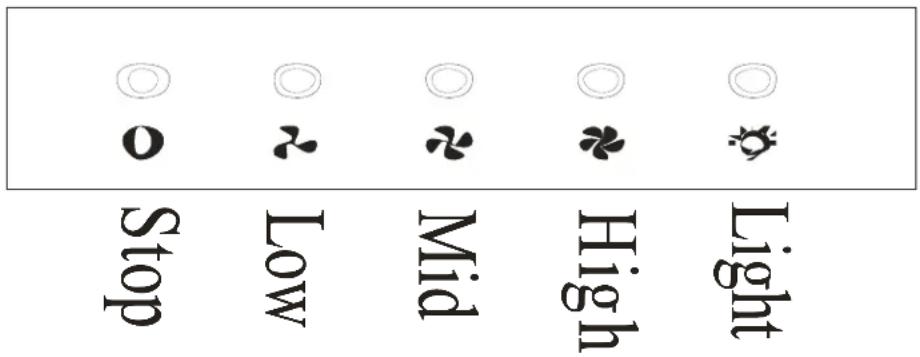

FOR RBES63 & RBES91 PUSH BUTTON OPERATED RANGEHOODS

The range hood has indication diagrams to allow you to easily select the fan operating speed required.

Push the low button, indicated by a fan with 3 blades, and the motor will run at a low speed.

Push the medium button, indicated by a fan with 4 blades and the motor will run at a medium speed.

Push the high button, indicated by a fan with 5 blades and the motor will run at a high speed.

Push stop button, indicated by an (O) and the motor will stop.

Push the light button, indicated by a lit globe and the two lights will come on. Push it again and the light will turn off.

Stop Low Mid High Light

CLEANING

SAFETY PRECAUTION

Before cleaning your range hood or performing any maintenance, please ensure that the range hood is turned off at the power point.

Do not use abrasive cleaners to clean the range hood. The use of warm soapy water and a cloth are recommended.

Ensure that the range hood is cleaned regularly, as a build up of grease and fat may occur otherwise.

The filters on the range hood must be cleaned regularly to maintain efficiency, and prevent grease build up.

It is recommended that this is undertaken every 4 - 6 weeks, depending on frequency of use.

The filters can be cleaned with warm soapy water or a cloth, or they may be washed in a dishwasher. If washed in a dishwasher, discolouration may occur to the mesh and frame.

Cleaning of the range hood must be performed as described above, otherwise there is a possibility of a fire hazard due to grease and fat build up.

The filters on the range hood must be cleaned regularly to maintain efficiency, and prevent grease build up.

The filter mesh is made of a high density Stainless Steel. It is recommended that this is undertaken every 4 – 6 weeks, depending on frequency of use.

The filters can be cleaned with warm soapy water or a cloth, or they may be washed in a dishwasher. If washed in a dishwasher, discolouration may occur to the mesh and frame.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	The impellor leaf blocked Get rid of the blockage
	The capacitor damaged Replace capacitor (By an authorised person only)
	The motor bearing damaged or jammed	Replace motor (By an authorised person only)
	A bad smell from the motor Replace motor (By an authorised person only)
Light does not work, motor does not work	Light damaged Replace lights
	Power cord loose or disconnected Connect the wires as per the electric diagram (By an authorised person only)
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with sealant
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Shaking of the hood	The impellor leaf damaged and causes shaking	Replace the leaf (By an authorised person only)
	The motor is not fixed tightly Lock the motor tightly (By an authorised person only)
	The body is not fixed tightly Fix the body tightly
Insufficient suction	The distance between the range hood and the gas top is too far	Refit the range hood to the correct distance
The Range hood inclines	The fixing screw not tight enough Tighten the hanging screw and make it horizontal

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above.

A division of Shriro Australia Pty Ltd 23-27 Chaplin Drive Lane Cove NSW 2066 1300 766 066 www.everdurekitchen.com.au

IM Ref: RBES63 27/2009/02FC

FOR INDOOR USE ONLY
