KY-B64BG - Hob PANASONIC - Free user manual and instructions

Product type	Induction hob
Brand	PANASONIC
Model	KY-B64BG
Dimensions (W x D x H)	607 x 536 x 66 mm
Net weight	13,4 kg
Power supply	Single-phase 220-240 V ~ 50 Hz / Three-phase 380-415 V 2N~ 50 Hz
Total power consumption	7 200 W
Standby power consumption	0.2 W (approx.)
Number of cooking zones	4 (2 front, 2 rear)
Front zones diameter	ø 210 mm
Rear zones diameter	ø 150 mm
Maximum power per front zone	3 300 W
Maximum power per rear zone	1 800 W
Heat setting	18 levels (70 W to 3,300 W for front zones)
IR sensor	Yes (temperature control sensor)
Cooking menus	Medium heat cooking (5 levels, 140-230°C) and Deep frying (7 levels, 140-200°C)
Timer	1 to 99 minutes
Child safety lock	Yes
Light ring	Not included
Cleaning	Ceramic glass top: damp cloth and neutral detergent
Safety	Automatic shut-off (pan detection, overheating, forgetting), high temperature indicator
Warranty	Warranty certificate included (see document)
Repairability	Contact an authorized after-sales service; repair by qualified personnel only

Frequently Asked Questions - KY-B64BG PANASONIC

What types of pans can I use on the KY-B64BG hob?

Use pans made of iron, cast iron, or magnetic stainless steel. The bottom must be flat and fully cover the cooking zone. Pans made of aluminum, copper, heat-resistant glass, ceramic, or earthenware are not compatible. Check with a magnet: if it sticks, the pan is compatible.

How to use the temperature sensor for deep frying?

Select the left front zone, press the Deep fry menu button (deep frying temperature control sensor). Set the desired temperature (140-200°C). Wait for the preheating to finish (the indicator disappears) before adding food. Use at least 200 g of oil (1 cm depth) and do not exceed 800 g.

What to do if the hob does not heat up?

Check that the main power switch is on. Make sure the child lock is not activated. Check that the pan is properly centered and compatible. If an error code appears, consult the Error indications section of the manual. If the problem persists, turn off the appliance and contact after-sales service.

How to clean the ceramic glass hob?

Turn off the appliance and wait for it to cool down. For light stains, use a damp cloth. For oil stains, use a cloth soaked with a diluted neutral detergent. For stubborn stains, apply a cleaning cream and rub with crumpled plastic wrap. Never use a steam cleaner or acidic detergents.

What is the maximum power of each zone?

The front zones can reach 3,300 W and the rear zones 1,800 W. Total power is limited to 7,200 W; if several zones operate simultaneously, power may be automatically reduced to respect this limit.

How to activate the child lock?

After turning on the appliance, touch and hold the (lock) button for 3 seconds. The indicator lights up and all buttons are locked. To deactivate, repeat the same action.

What does the high temperature warning indicator mean?

The ⚠️ indicator lights up when the top plate is hot, even after switching off. It stays on as long as the temperature is high. Do not touch the plate while this indicator is on. It flashes on the controls to indicate that the zones are hot.

Can I use a timer with the temperature sensors?

No, the timer cannot be used with the medium heat cooking temperature control sensor nor with the deep frying sensor. It is reserved for the standard heating mode (heating menu).

What to do if an error code "H" is displayed?

An error code "H" (followed by a number) indicates an internal malfunction. Immediately turn off the main switch and the circuit breaker. Contact after-sales service or the seller. Do not attempt to repair it yourself.

How to save energy with this hob?

Use pans adapted to the diameter of the zones to maximize heat transfer. Cover the pans to reduce losses. Use the timer for long cooking. Turn off the appliance a few minutes before the end of cooking to take advantage of residual heat.

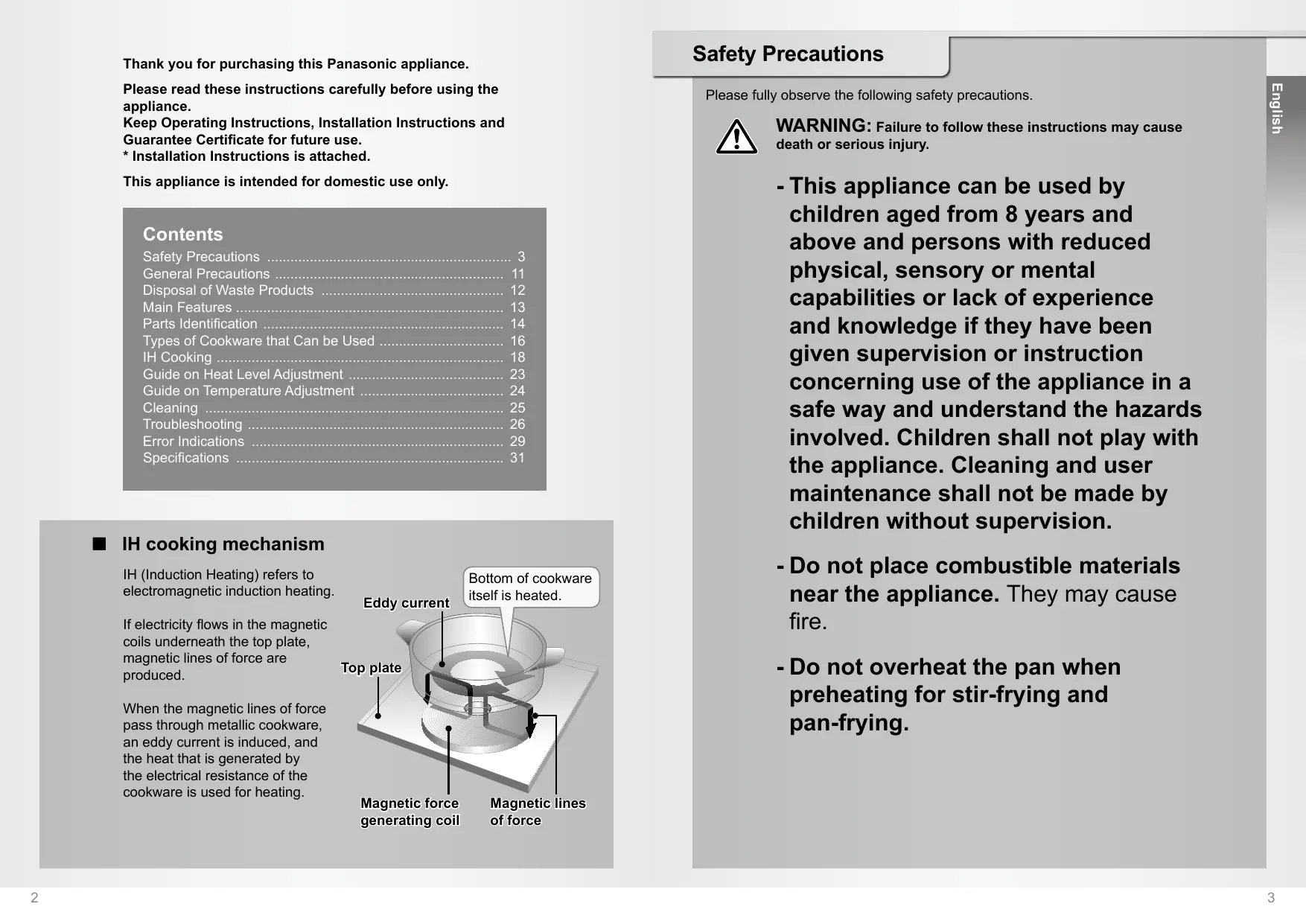

USER MANUAL KY-B64BG PANASONIC

Model No. KY-B84BX / KY-B84BG KY-B64BX / KY-B64BG

Exterior view of a modern office building (no signage)

English 2-31

Deutsch 32-61

Français 62-91

Nederlands 92-121

Thank you for purchasing this Panasonic appliance.

Please read these instructions carefully before using the appliance.

Keep Operating Instructions, Installation Instructions and Guarantee Certificate for future use.

* Installation Instructions is attached.

This appliance is intended for domestic use only.

Contents

Safety Precautions 3

General Precautions 11

Disposal of Waste Products 12

Main Features 13

Parts Identification 14

Types of Cookware that Can be Used 16

IH Cooking 18

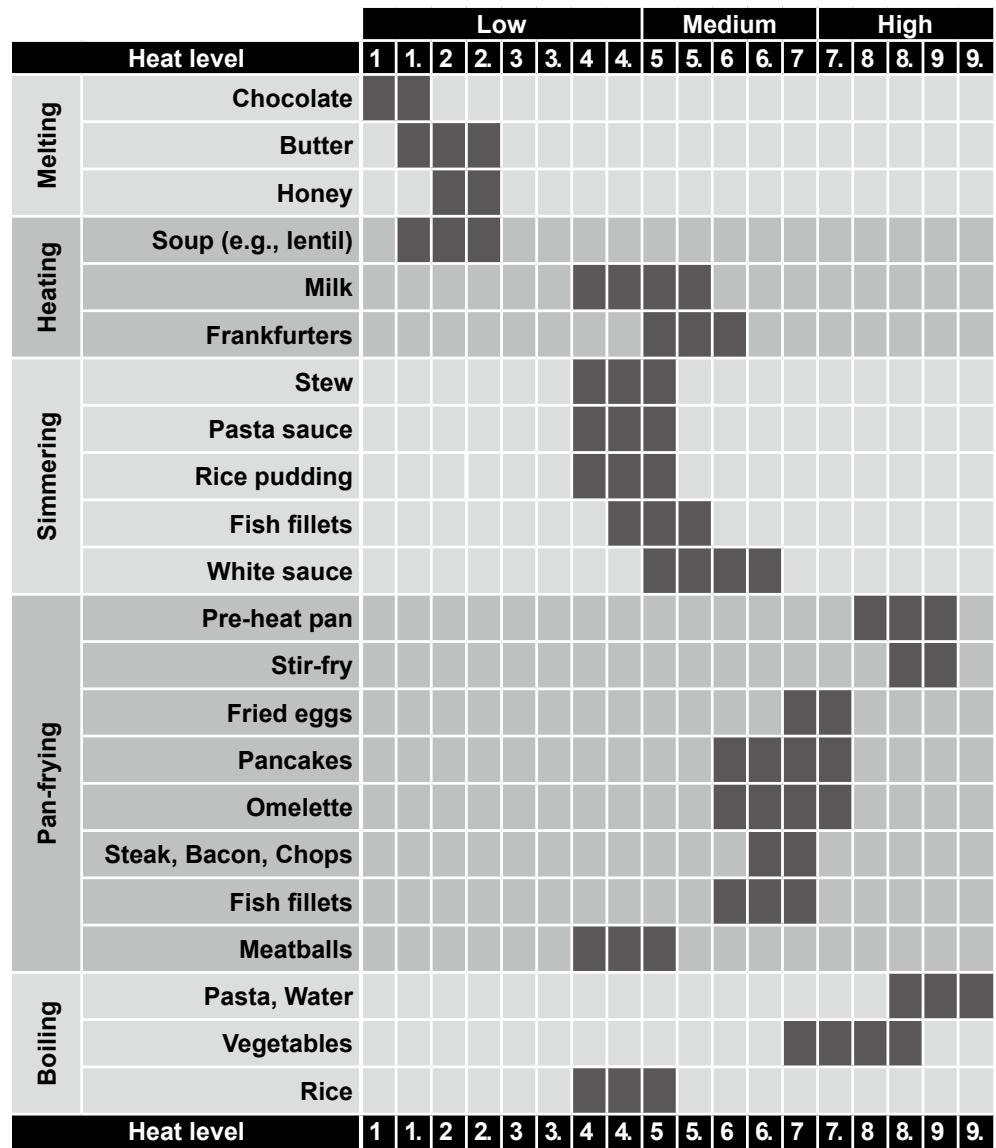

Guide on Heat Level Adjustment 23

Guide on Temperature Adjustment 24

Cleaning 25

Troubleshooting 26

Error Indications 29

Specifications 31

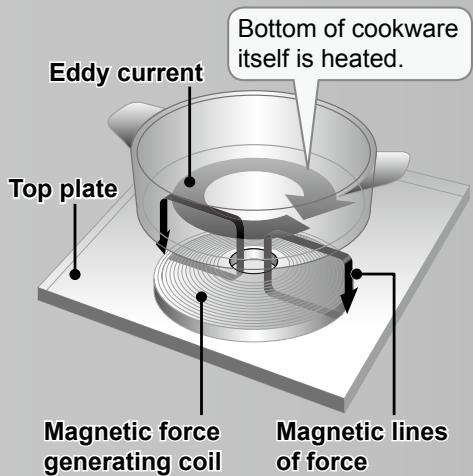

■ IH cooking mechanism

IH (Induction Heating) refers to electromagnetic induction heating.

If electricity flows in the magnetic coils underneath the top plate, magnetic lines of force are produced.

When the magnetic lines of force pass through metallic cookware, an eddy current is induced, and the heat that is generated by the electrical resistance of the cookware is used for heating.

Eddy current Bottom of cookware itself is heated. Top plate Magnetic force generating coil Magnetic lines of force

Safety Precautions

Please fully observe the following safety precautions.

WARNING: Failure to follow these instructions may cause death or serious injury.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not place combustible materials near the appliance. They may cause fire.
• Do not overheat the pan when preheating for stir-frying and pan-frying.

WARNING: Failure to follow these instructions may cause death or serious injury.

- Observe the following warnings to keep the IR sensor functioning properly.

• Make sure that cookware completely covers the IR sensor (sensor).
• Select and use the left front IH heater with the Deep frying temperature control sensor (☐) for deep-frying.
  Do not use the other IH heater for deep-frying. Make sure to follow instructions for amounts and depths of oil.

Amount: minimum 200 g (0.22 L)

Depth: minimum 1 cm

- Wipe water off the top plate and the insides and outsides of cookware. If these warnings are not observed, the IR sensor may not function properly and cause oil overheating resulting in fire.

- Stir liquids, such as soup and stewed food, before heating. Otherwise, liquids may splatter and cause burns or injuries, or pot may jump and damage the top plate.

- Do not touch the top plate or top frame during or after use. Pay extra attention when the high temperature caution light ( ) illuminates, or H flashes on any IH heater display.

- Do not apply high pressure to or drop things on the top plate. The top plate may crack and cause an electric shock.

- Do not place explosive objects, such as portable gas burners, steel cylinders and canned goods, on or near the appliance. If they are mistakenly heated, they may explode.

WARNING: Failure to follow these instructions may cause death or serious injury.

- Do not let metallic objects, such as knives, forks, spoons, lids, aluminum foil/tray, retort pouch, magnetic rings, watches or accessories, be placed on or near the top plate, or touch the cookware while the IH heater is operating. They may get hot and cause burns or injuries.

• Do not disassemble, repair, or modify the appliance. For repairs, contact the dealer where you purchased the appliance.
• After use, use the controls to turn off the appliance (main power switch) and do not rely on the pot detector (safety features). When the appliance will not be used for a long period of time, turn off the circuit breaker.

- In case of malfunction or breakdown, immediately stop using the appliance. Turn off the main power switch and the circuit breaker, and then contact the service centre.

Failure to do this may cause smoke, burns, and electric shock.

Breakdown examples:

• Burning smell comes from the appliance.
• Can feel electricity when touching the top plate and the top frame.
• The top plate is cracked.
• The power cord overheats.
• The electricity shuts off when the power cord is moved.

→ If the power cord with type Y attachment is damaged, it must be replaced by the manufacturer or its service centre or a similar qualified person in order to avoid a hazard.

- This appliance must be earthed to prevent electric shock or fire.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire : do not store items on the cooking surfaces.

WARNING: If the top plate is cracked, do not touch it and turn off the main power switch to avoid the possibility of electric shock. Contact the dealer where you purchased the appliance for repair.

CAUTION: Failure to follow these instructions may cause injury or property damage.

• If the oil emits smoke, immediately turn off the main power switch. Otherwise, it may catch fire.
• Pay attention to spattering hot oil. Do not let your face get near the cookware. This may cause burns.
• Do not use oil preheated by other appliances, such as a gas range. Otherwise, the “oil temperature control system” will not work properly and may cause fire.
• Pay extra attention when preheating the pan with a small amount of oil. The pan may overheat and get damaged.
• Keep cookware stable. Otherwise, it may cause injuries or burns.

CAUTION: Failure to follow these instructions may cause injury or property damage.

• Do not place paper or dish towels under the cookware. They may get scorched due to the heat of the cookware.
• Do not heat empty cookware or overheat ingredients. The ingredients may burn and the cookware may be damaged.
• Do not use the appliance for purposes other than cooking. This may cause overheating or malfunction resulting in fire.
• If you are wearing a medical device (such as a pacemaker), consult your doctor. The operation of the appliance may affect a medical device.
• Do not use a steam cleaner.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The appliance emits magnetic lines of force. Do not place anything affected by magnetism close to the appliance.
• Radios, TVs, hearing aids, for example, may get noise interference.
• Automatic turnstile tickets, or bank cards, for example, may be erased or damaged.
• Do not use other IH cooking appliances, such as IH rice cooker or portable IH cooktop, on the top plate. Electro magnetic waves generated by these appliances may damage the appliance.
• Do not place seasoning or food in the cabinet below the appliance. They may be spoiled by the exhaust heat.
• If the top plate or top frame is stained by acidic foods, such as vinegar, jam, or lemon juice, immediately wipe it off. Otherwise, the top plate or top frame may be discoloured.
• Do not scratch the top frame with the bottom of the cookware, or put hot cookware on it. The top frame may be damaged.
• Do not put water on or place anything on the operation panel. The operation panel keys may malfunction.
• Do not clog up the intake or exhaust vent. The filter clog detection for the intake and exhaust vents may be activated and thereby automatically shut off the main power.
• Since the heat level 📋 for the front IH heaters is strong, check and adjust the heat level frequently.

■ Information on disposal for users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

■ Information on disposal in other countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

■ Safe, clean, highly efficient

Illustration of a hand stirring a pot on an induction cooktop (no text or symbols)

Flat top plate is easy to care for
Flameless

Illustration of a hand cleaning a surface with starry background (no text or symbols)

Efficient heating is provided

3D rendering of a white ceramic kettle on a stovetop (no text or symbols visible)

Home-friendly
For insulated homes and island kitchens
Earth-friendly
Emits zero carbon dioxide in homes and is energy-saving

■ IR sensor technology of Panasonic

IR sensor

The IR sensor of Panasonic (Temperature control system) regulates set temperatures by quickly detecting the temperatures on the bottom of the cookware, so it is easy to prepare delicious food.

• Pan frying temperature control sensor
• Deep frying temperature control sensor, etc.

■ Main unit and operation panel

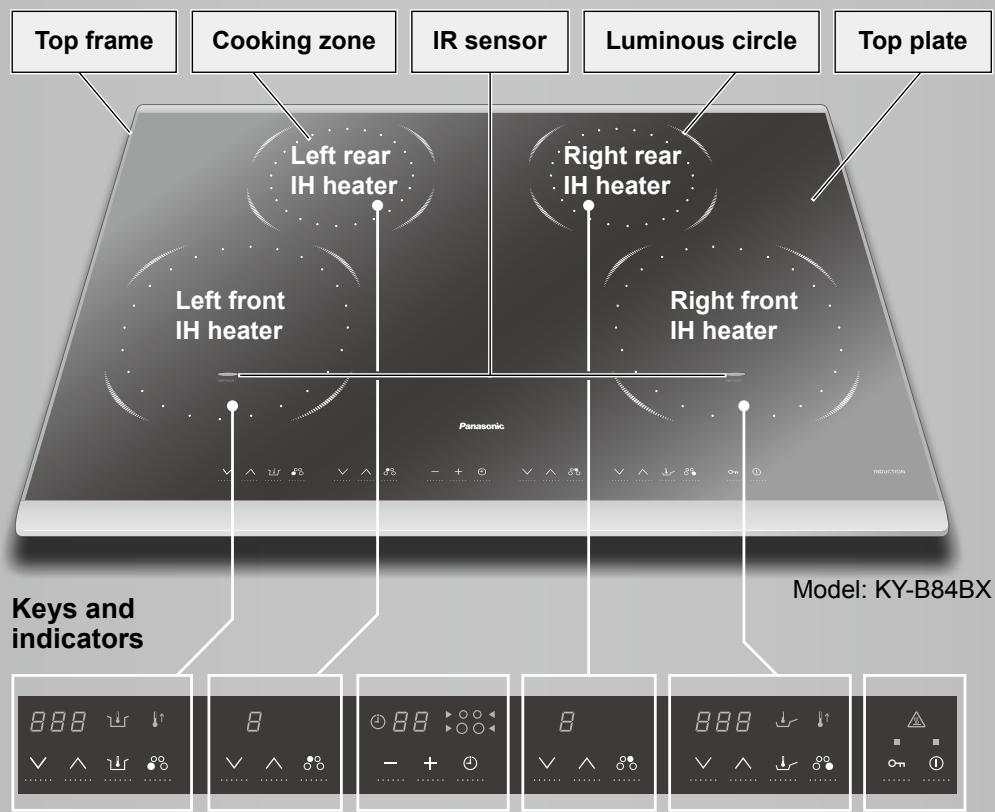

Top frame Cooking zone IR sensor Luminous circle Top plate Left rear IH heater Right rear IH heater Left front IH heater Right front IH heater Panasonic INDUCTION Keys and indicators Model: KY-B84BX
