BA-106A - Tripod Oben - Free user manual and instructions

Product Type	Ballhead
Brand	Oben
Model	BA-106A
Maximum Load Capacity	Up to 10 lbs (4.5 kg)
Height	3.5 in (89 mm)
Weight	0.6 lb (270 g)
Material	Aluminum alloy
Color	Black
Mounting Thread	1/4"/-20 UNC
Base Rotation	360° calibrated
Quick-Release	Dual-locking
Bubble Levels	Yes (integrated)
Locking Knob	Single lock
Operating Temperature Range	-22°F to 140°F (-30°C to 60°C)
Water Resistance	Not waterproof; avoid saltwater
Maintenance	Wipe clean with dry cloth; dry if wet
Safety	Always secure camera; do not exceed load
Warranty	Check packaging for details
Accessories Included	Quick-release plate, reducer bushing
Intended Use	Photography/videography

Frequently Asked Questions - BA-106A Oben

How do I mount the ballhead to a tripod?

First, tighten the locking knob on the ballhead. Then, carefully align the tripod stud with the ballhead hole and rotate the ballhead clockwise onto the tripod. Tighten by hand.

What if my tripod has a 1/4" threaded mounting stud?

Insert the supplied Reducer Bushing into the threaded mounting hole of the ballhead to ensure a proper fit.

How do I lock and unlock the ballhead?

Turn the Main Locking Knob counterclockwise to unlock and clockwise to lock. Always keep one hand on the camera while adjusting.

How do I use the calibrated base?

Unlock the base by turning the locking knob counterclockwise. Rotate the base to your desired position (full 360° rotation) and lock it by turning the knob clockwise. The degree markings help with precise positioning.

How does the dual-locking quick-release work?

To unlock, press the small latch while pulling outward on the main latch simultaneously. The dual-locking design keeps the camera securely attached and prevents accidental release.

How do I mount the quick-release plate to my camera?

Attach the plate to the threaded hole on the camera base using the 1/4"-20 screw. Tighten the screw and fold the thumbscrew flat against the bottom of the plate.

How do I mount the camera to the ballhead?

Ensure the locking knob is tightened. Insert the side of the quick-release plate opposite the latch first, then press down on the side nearest the latch. The latch will automatically lock into place. Always secure the camera with one hand.

What is the maximum load capacity of the BA-106A?

The maximum load capacity is specified on the packaging. Do not exceed it. For typical compact ballheads, it is often up to 10 lbs (4.5 kg).

Can I use the ballhead in wet conditions?

No, do not operate in saltwater. If the ballhead gets wet, dry it immediately. Operating temperature range is -22°F to 140°F (-30°C to 60°C).

What should I do to maintain the ballhead?

Wipe clean with a dry cloth. Avoid exposure to saltwater. Remove the camera during setup or transport. Keep out of reach of children.

USER MANUAL BA-106A Oben

Black camera headluster with adjustable lever and red circular base (no text or symbols visible)

You're on steady ground™

Thank You for choosing Oben!

This Oben BA Series ballhead is a compact and lightweight head that provides nimble, reliable operation. The single lock makes it easy to rapidly adjust the ball and calibrated base. A snap-in quick-release plate is included for effortless mounting and dismounting of the camera. The dual-locking quick-release keeps the camera securely attached to the ballhead and prevents the camera from being accidentally released. For additional security, the ballhead is constructed with extra tension to offer greater control when repositioning the camera.

Integrated bubble levels ensure accurate alignment of the camera with the horizon. The calibrated base of the ballhead allows for full 360° panning, as well as precise placement of the camera.

Please read through this entire manual before using the BA series ballhead.

Note: Images are for illustrative purposes only. Actual product may vary.

Key Features

Mount Ballhead To Tripod 5

Converting Mounting Thread 5

Main Locking Knob Operation 5

Calibrated Base

Dual-Locking Quick-Release 6

Mount Quick-Release Plate 6

Mount Camera

Warnings 7

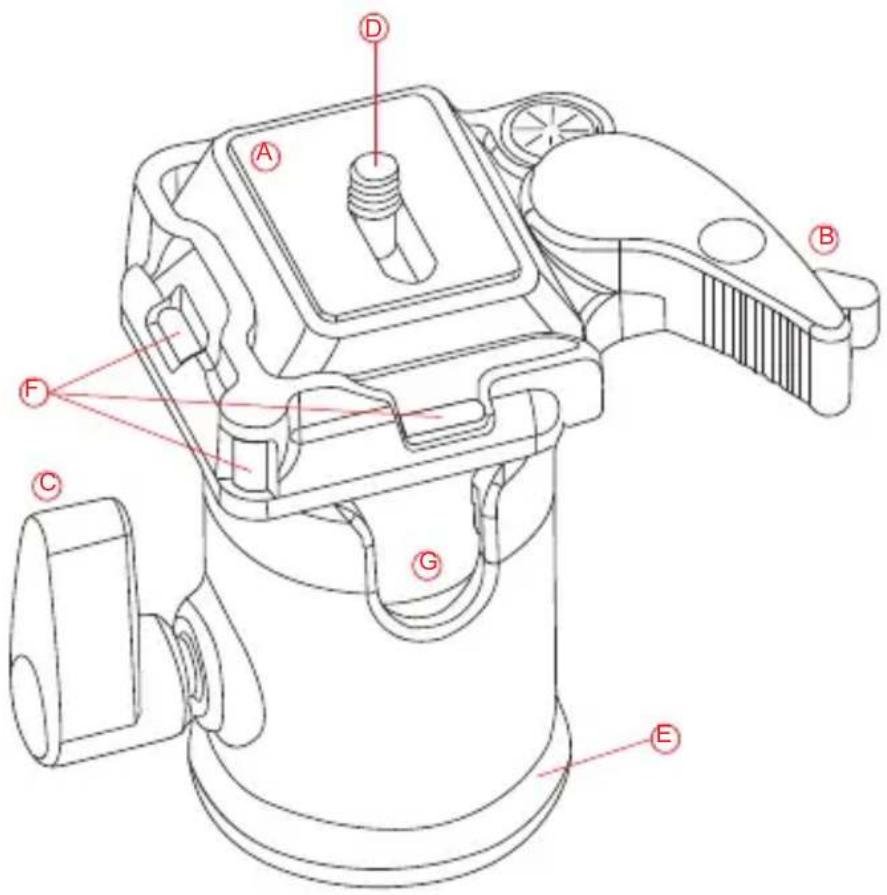

(A) Quick-Release Plate
B Dual-Locking Quick-Release
© Single Lock
1/4"-20 UNC Mounting Screw
E Base With 360° Markings
⑤ Bubble levels
G 90° Groove

Technical line drawing of a mechanical device with a red curved arrow indicating rotation or adjustment (no text or symbols)

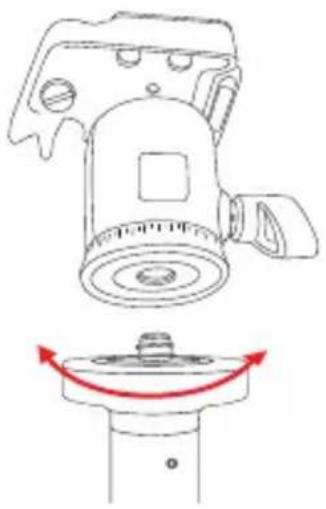

1. Mount Ballhead To Tripod

To mount the ballhead on the tripod, first tighten the locking knob on the head. Then, being careful to properly align the tripod stud and the ballhead hole to avoid damaging them, rotate the ballhead clockwise onto the tripod, and tighten it by hand.

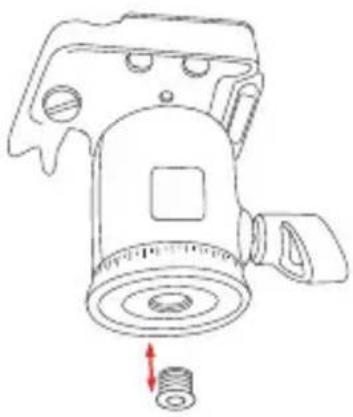

2. Converting Mounting Thread

Technical line drawing of a mechanical device with a spring and housing (no text or symbols)

For tripods with a 1/4" threaded mounting stud: insert the supplied Reducer Bushing into the threaded mounting hole of the head to enable a proper fit.

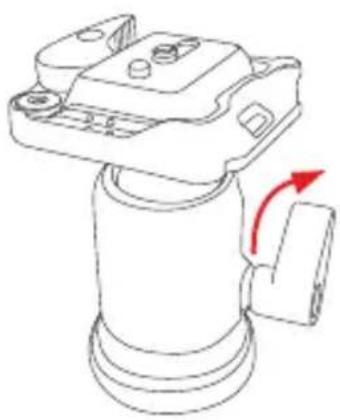

3. Main Locking Knob Operation

Technical line drawing of a mechanical component with a red arrow indicating rotation (no text or symbols)

The single Locking Knob locks and unlocks the ballhead, which allows you to change the position of the camera. When changing camera position using the Locking Knob, always keep one hand on the camera. Turn the knob counterclockwise to unlock the head and clockwise to lock it. Ensure that the knob is firmly tightened before letting go of the camera.

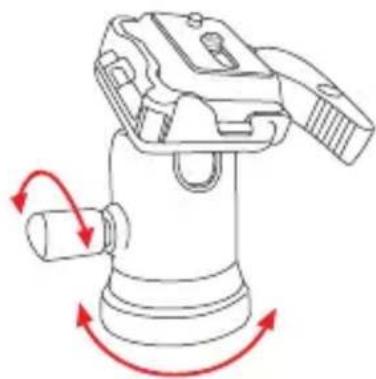

4. Calibrated Base

The base of the ballhead can be rotated a full 360° and is controlled by the single locking knob on the side of the ballhead. Twist the knob counterclockwise to unlock the base. Rotate the base to the desired position, and lock the base by turning the knob clockwise. Calibrated degree markings on the base of the ballhead mark the position of the camera precisely.

Diagram of a mechanical device with red arrows indicating rotational motion (no text or symbols)

5. Dual-Locking Quick-Release

The BA series is designed with a dual-locking quick-release latch to keep the camera securely in place on the head. To unlock the quick-release, press the small latch while pulling outward on the main latch at the same time.

Diagram of a handheld device with red arrows indicating motion or force direction (no text or symbols)

6. Mount Quick-Release Plate

Mount the Quick-Release Plate to the threaded hole on the base of your camera. The plate utilizes a 1/4"-20 screw that will fit most cameras. After tightening the screw, fold the thumbscrew flat against the bottom of the quick-release plate.

Technical line drawing of a DSLR camera with a red arrow pointing to the lens (no text or symbols present)

Technical line drawing of a DSLR camera with a red arrow pointing to the component (no text or symbols present)

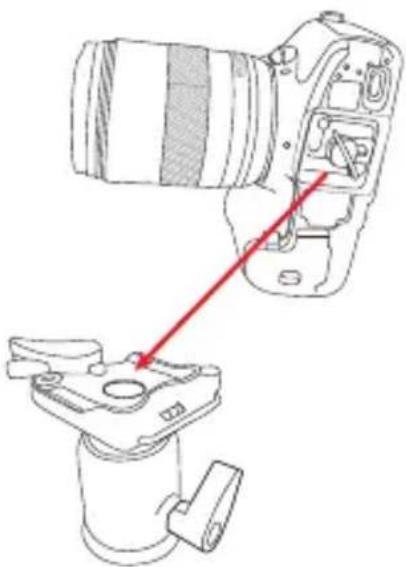

7. Mount Camera

After mounting the quick-release plate to your camera, ensure that the locking knob on the ballhead is securely tightened. To mount the camera to the ballhead, first insert the side of the Quick-Release Plate that is opposite the quick-release latch. Then, press down on the side of the quick-release plate nearest the quick-release latch. The quick-release latch will automatically lock into place when the plate is pushed into the groove.

Warning: Always use one hand to secure the camera while adjusting the ballhead, and ensure that the lock is engaged before letting go of the camera.

Warnings:

• Do not exceed the ballhead's maximum load capacity (see packaging for details).
• Ensure that all appropriate locks are engaged when necessary.
• Ballhead should only be used in temperatures ranging between -22^ and 140^ (-30° and 60°C). Do not operate in saltwater. Dry ballhead if it becomes wet.
• Remove the camera from the ballhead during setup or transport.
• Keep out of reach of children.

Visit our website at ObenSupports.com for more Oben products.
