CH0217 - Office chair AFX - Free user manual and instructions

Product Type	Office Chair
Brand	AFX
Model	CH0217
Backrest Material	Mesh
Seat Material	Foam with fabric upholstery
Base Material	Nylon with casters
Seat Height Adjustment	45-55 cm
Maximum Weight Capacity	120 kg
Product Weight	15 kg
Functions	Height adjustment, tilt lock, 360-degree swivel
Warranty	1 year
Maintenance	Clean with damp cloth; avoid harsh chemicals
Safety Standards	Complies with ANSI/BIFMA standards
Assembly Required	Yes (instructions included)
Color	Black
Package Dimensions	70 x 60 x 30 cm

Frequently Asked Questions - CH0217 AFX

How do I assemble the AFX CH0217 office chair?

Follow the included instruction manual. Attach the casters to the base, insert the gas lift, mount the seat and backrest, and tighten all screws. Usually takes 15-30 minutes.

What is the weight capacity of this chair?

The chair supports up to 120 kg (265 lbs).

Can I adjust the armrests?

This model does not feature adjustable armrests. Armrests are fixed.

How do I clean the mesh backrest?

Use a soft brush or vacuum to remove dust. Wipe with a damp cloth if needed. Avoid soaking.

Does the chair have a tilt lock function?

Yes, the chair includes a tilt lock mechanism to secure the backrest in an upright position.

What tools are required for assembly?

Only the included Allen key and screwdriver are needed. All bolts are supplied.

Is the chair suitable for carpeted floors?

The casters are designed for hard floors and low-pile carpets. For thick carpets, consider a chair mat.

How do I adjust the seat height?

Lift the height adjustment lever under the seat while sitting, then release at desired height.

What is the warranty period?

AFX provides a 1-year limited warranty covering manufacturing defects.

Can I replace the casters?

Yes, standard caster wheels are available for purchase. Ensure compatibility with the base.

USER MANUAL CH0217 AFX

Line drawing of an office chair with adjustable armrest and wheels (no text or symbols)

WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION

Only use your product when fully assembled as described in the instruction Book. If the product is damaged in any way stop using immediately and consult the store where you purchased your product for guidance.

We continually strive to improve our products, specifications may change without prior notice.

• Incorrect assembly can result in severe personal injury and property damage.
• Do not tilt chair or lean over the sides – always ensure all casters are firmly placed on a level surface.
  • Children should not play with the chair.

- Do not lean over the arms. This could cause the product to become unbalanced and result injury.

• Always use the chair on a flat, stable surface to prevent injury.

- Do not stand on chair.

- If the damaged product is irreparable please dispose of the product. Using a damaged product may lead to personal injury.

- This appliance is intended for indoor household use.

- Only trained personnel can replace or repair seat height adjustment components with energy accumulators.

- To clean the unit, wipe the case with a slightly moist, lint-free cloth.

- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.

- Keep this instruction manual for future reference.

CUSTOMER HELPLINE (UK Customers Only)

0344 561 1234

130 kg

135°

Line drawing of an office chair with gray backrest and white seat, no text or symbols present

360^

Line drawing of an office chair with a circular head and rotation arrow (no text or symbols)

Icon of an open box with an upward arrow, symbolizing upload or send (no text or symbols present)

A x 1

Line drawing of a car seat or seat frame with no text or symbols

B x 1

Line drawing of a closed bag with handles and straps (no text or symbols)

C x 1

D x 1

E x 1

Technical line drawing of a five-petal mechanical component with threaded ends (no text or symbols)

F × 5

G x 1

H x 1

1 x 1

J x 1

K x 1

L x 1

M × 2

N x 2

○ x 1

P x 1

Simple line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

Q x 1

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

R x 19

M8 × 25

S x 1

M8 × 40

T × 4

M6 × 18

U x 4

M5 × 10

V × 4

W x 6

X x 1

Y x 1

If items are missing, or damaged contact Partmaster on 0344 800 3456 (UK customers only).

1

Diagram of a four-petal mechanical structure with labeled components (no text or symbols present)

2

3

Diagram of a vertical office chair with six legs and a cylindrical top, showing a downward arrow and a small circular mark (no text or symbols present)

4

5

6

7

8

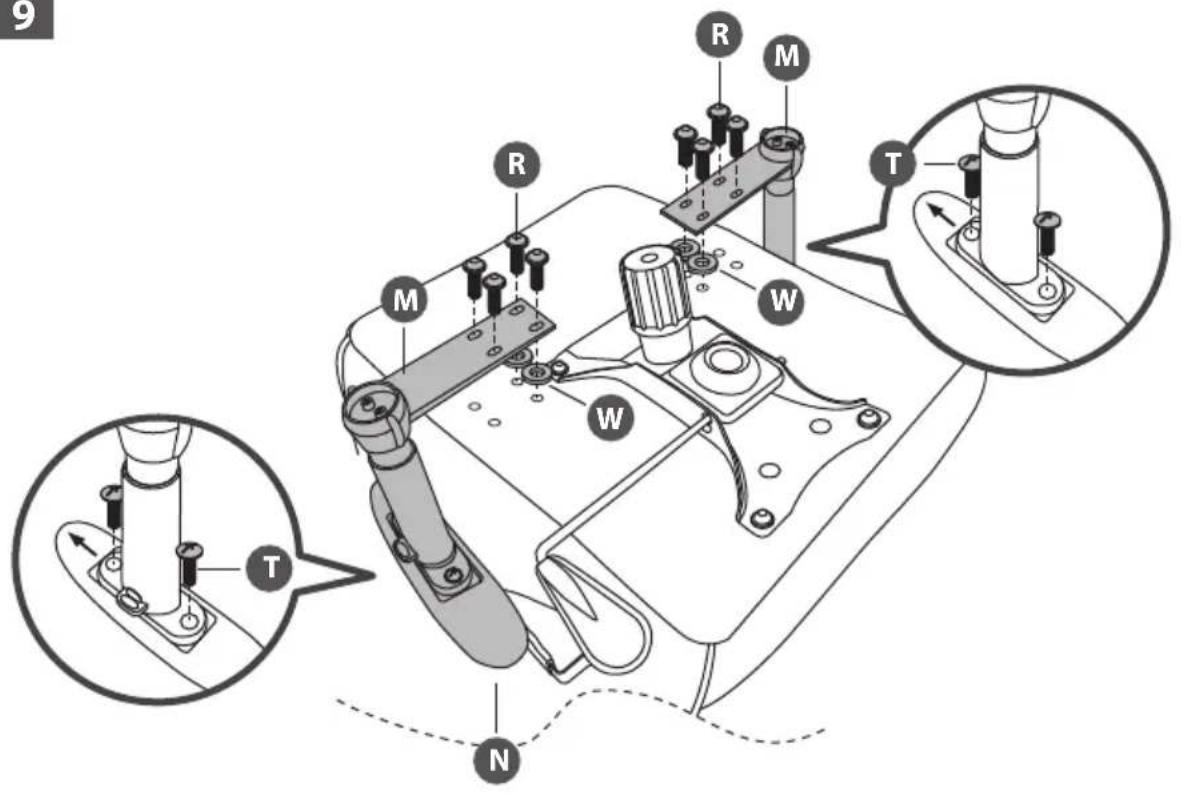

9

10

Line drawing of an office chair with a vertical post and seat base, showing no text or symbols

11

12

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234.
