Notice Oras Saga 1910F - page 1
1 / 44
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Single-lever basin mixer faucet
Brand Oras
Model Saga 1910F
Material Brass
Finish Chrome
Installation Type Single-hole deck mount
Height 150 mm
Spout Height 100 mm
Spout Reach 120 mm
Weight 1.0 kg
Power Supply None (manual operation)
Cartridge Type Ceramic disc
Flow Rate 5.7 L/min at 3 bar
Swivel Angle 360°
Maximum Static Pressure 10 bar
Recommended Operating Pressure 1 – 5 bar
Care Instructions Clean with a soft damp cloth; avoid abrasive or acidic cleaning agents
Safety Features Lead-free materials; hot water limit setting optional
Spare Parts Availability Cartridge (ref. Oras 12345), aerator, handle, fixing set
Warranty 5 years

Frequently Asked Questions - Saga 1910F Oras

What tools are needed for installing the Oras Saga 1910F faucet?
You will need an adjustable wrench, basin wrench, plumber's tape, and a screwdriver. Ensure the water supply is turned off before starting.
How do I clean the faucet without damaging the finish?
Use a soft, damp cloth with mild soap. Avoid scouring pads, bleach, or acidic cleaners. Rinse and dry thoroughly to maintain the chrome finish.
What is the recommended water pressure for optimal performance?
The faucet operates best at a dynamic pressure between 1 and 5 bar. Maximum static pressure is 10 bar. Higher pressure may require a pressure reducer.
How do I replace the ceramic cartridge?
Close the water supply, remove the lever handle, unscrew the cartridge retaining nut, and pull out the old cartridge. Install the new cartridge (Oras 12345), reassemble, and test for leaks.
Why does my faucet drip after installation?
A dripping faucet often indicates issues with the cartridge or an improperly seated aerator. Check the cartridge for wear and ensure all connections are tight. Also inspect the O-rings.
Can I install the faucet myself or do I need a professional plumber?
The installation is straightforward for DIY enthusiasts with basic plumbing skills. However, if you are unsure, hiring a professional is recommended to avoid damage.
How do I adjust the hot water limit on this faucet?
Loosen the set screw on the lever, remove the handle, and adjust the temperature limiter ring to the desired maximum angle. Reassemble and test.
What are the dimensions and weight of the faucet?
The faucet has a height of 150 mm, spout height 100 mm, spout reach 120 mm, and weighs approximately 1.0 kg. Ensure your sink has a single 35 mm hole.
Is the Oras Saga 1910F compatible with under-sink water heaters?
Yes, it is compatible with most standard water heaters. However, check the maximum temperature rating of the faucet (usually up to 80°C). Use flexible hoses with appropriate connections.
Where can I find spare parts for this faucet?
Spare parts such as the cartridge, aerator, and handle are available through Oras authorized dealers or online. Use the part numbers listed in the user manual.

User questions about Saga 1910F Oras

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Faucet in PDF format for free! Find your manual Saga 1910F - Oras and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Saga 1910F by Oras.

USER MANUAL Saga 1910F Oras

Installation and Maintenance Guide

Oras Saga

GB Thank you for selecting an Oras product. This installation and maintenance guide will introduce you to the installation, functions, and use of the faucet. Please read the guide carefully before installation, and keep it on hand for any potential future maintenance. If an operating malfunction or fault appears in your faucet, a plumbing professional is your best source of assistance. Information on cleaning the faucet, conditions of use, and warranty terms is available in the brochure that came with your product: "Important notes on Oras products".

natural_image Illustration of a kitchen faucet with handle and faucet (no text or symbols)

Oras Saga 1910F - Oras Saga - 1

natural_image Illustration of a kitchen faucet with handle and faucet (no text or symbols)

Oras Saga 1910F - Oras Saga - 2

Oras Saga 1910F - Oras Saga - 3

Oras Saga 1910F - Oras Saga - 4

Technical data....6-8

Installation 19-20

Maintenance 26, 29

Spare parts 30

Technical data....9-10

Installation 22-23

Maintenance 26-27, 29

Spare parts 31

Technical data....11

Installation....21

Maintenance 26-29

Spare parts 30

Technical data....12-18

Installation 24-25

Maintenance 26, 29

Spare parts 32

Technical data....18

Installation....19

Maintenance 26, 29

Spare parts ....33

Technical data....34

Installation 35-37

Maintenance 29

Spare parts 38-39

1904

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

75 kPa (0.1 l/s)

max. +80°C

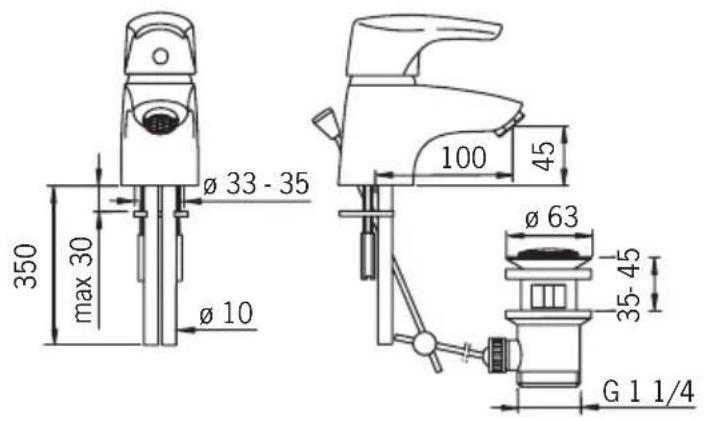

350 max 30 ø 33 - 35 ø 10 100 45 ø 63 35-45 G 1 1/4

Oras Saga 1910F - 1904 - 2

VA 1.42/19637

1904F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

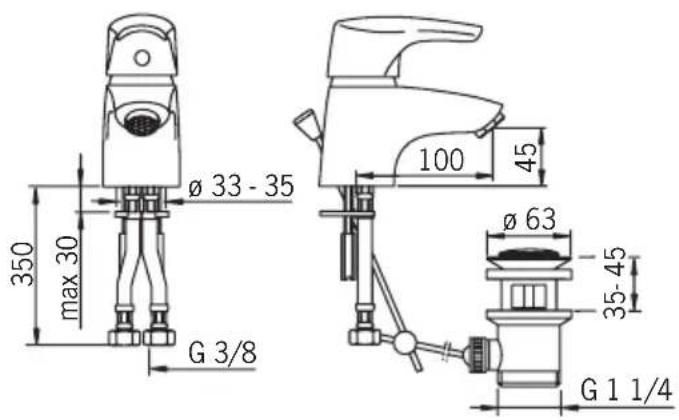

350 max 30 ø 33 - 35 G 3/8 100 45 ø 63 35 - 45 G 1 1/4

Oras Saga 1910F - 1904F - 2

1.42/19637

KIWA K6345/07

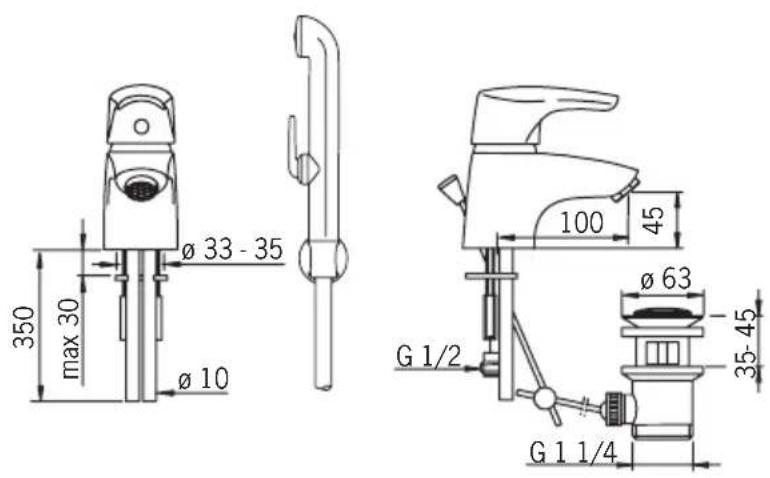

1908

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.14 l/s (300 kPa)

140 kPa (0.1 l/s)

max. +80°C

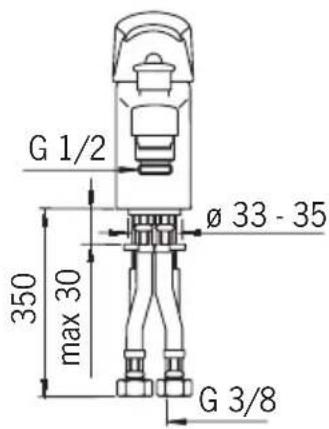

350 max 30 ø 33 - 35 ø 10 100 45 ø 63 G 1/2 35-45 G 1 1/4

Oras Saga 1910F - 1908 - 2

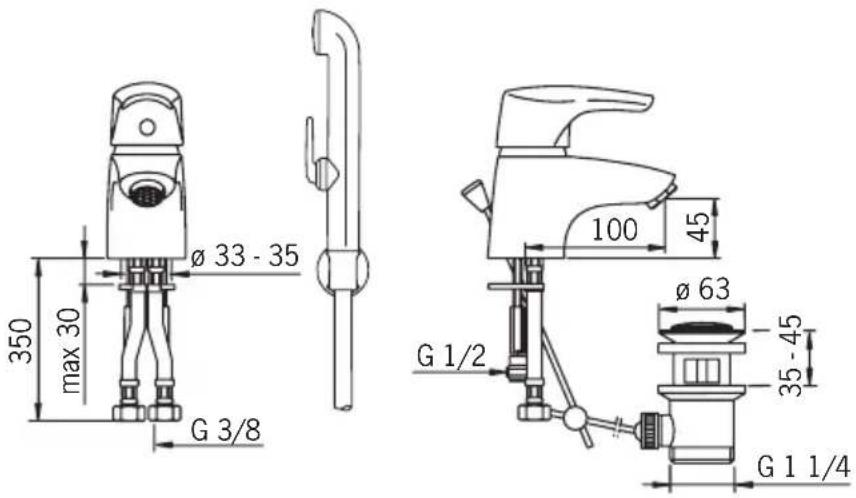

1908F

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.14 l/s (300 kPa)

155 kPa (0.1 l/s)

max. +80°C

350 max 30 Ø 33 - 35 G 3/8 100 45 Ø 63 35 - 45 G 1/2 G 1 1/4

Oras Saga 1910F - 1908F - 2

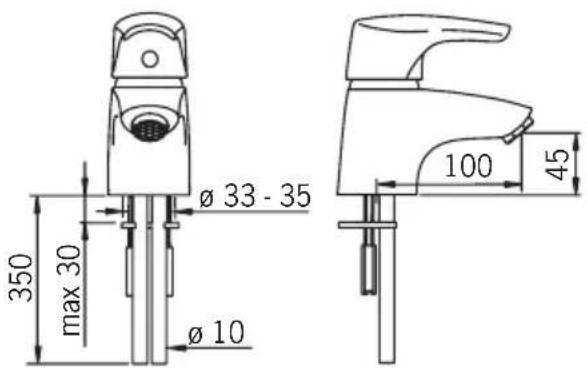

1910

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

75 kPa (0.1 l/s)

max. +80°C

350 max 30 Ø 33 - 35 Ø 10 100 45

Oras Saga 1910F - 1910 - 2

VA 1.42/19637

Sintef Nr. 1154

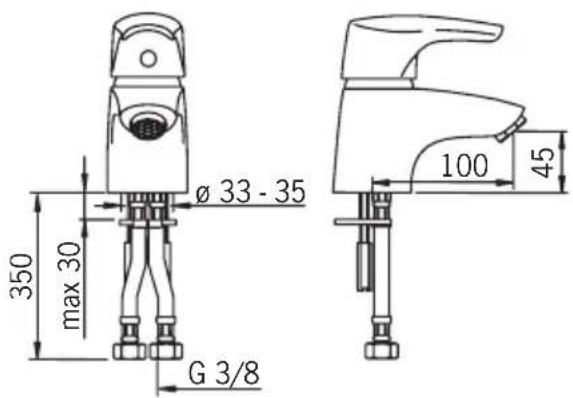

1910F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

350 max 30 Ø 33 - 35 G 3/8 100 45

Oras Saga 1910F - 1910F - 2

VA 1.42/19637

KIWA K6345/07

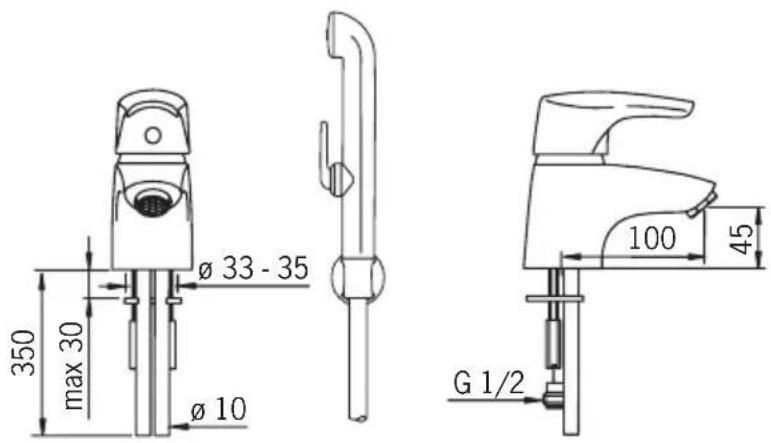

1912

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.14 l/s (300 kPa)

140 kPa (0.1 l/s)

max. +80°C

Oras Saga 1910F - 1912 - 1

Oras Saga 1910F - 1912 - 2

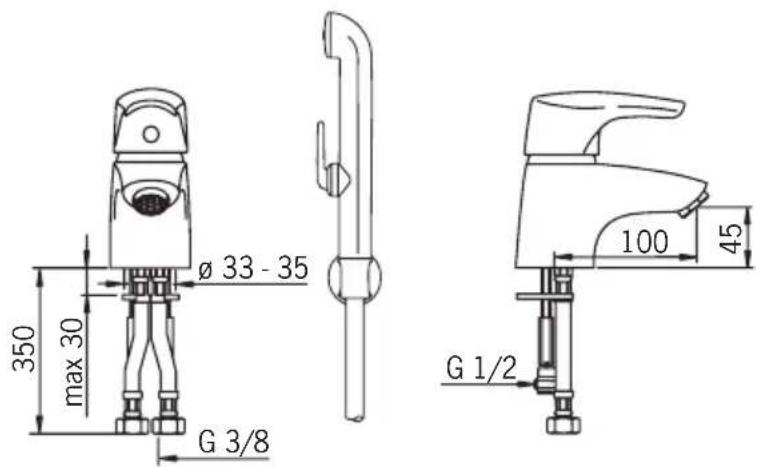

1912F

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.14 l/s (300 kPa)

155 kPa (0.1 l/s)

max. +80°C

Oras Saga 1910F - 1912F - 1

Oras Saga 1910F - 1912F - 2

1918F

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

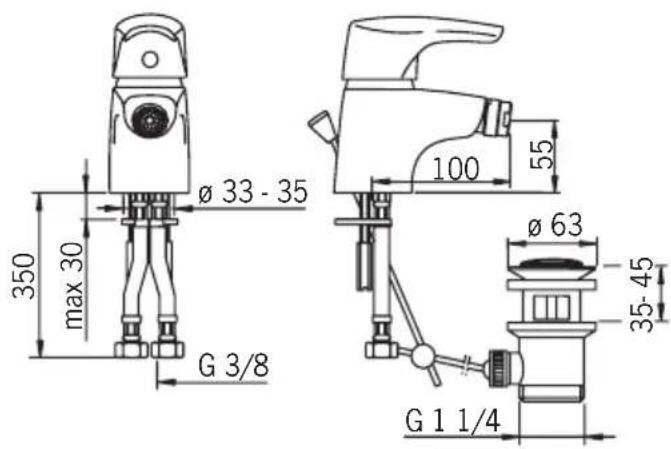

Oras Saga 1910F - 1918F - 1

Oras Saga 1910F - 1918F - 2

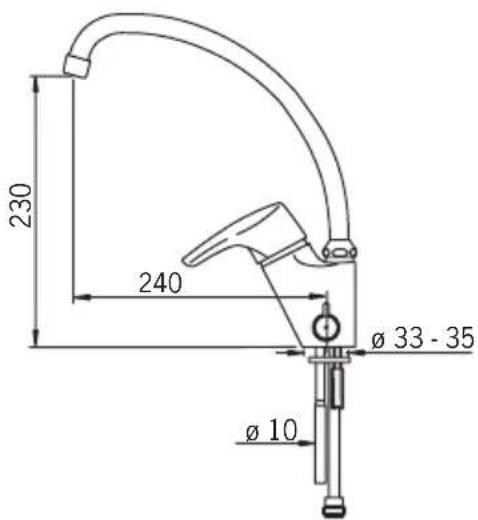

1933

EN 817

I (ISO 3822)

50 - 1000 kPa

0.27 l/s (300 kPa)

165 kPa (0.2 l/s)

max. +80°C

Oras Saga 1910F - 1933 - 1

VA 1.42/19643

Sintef Nr. 1156

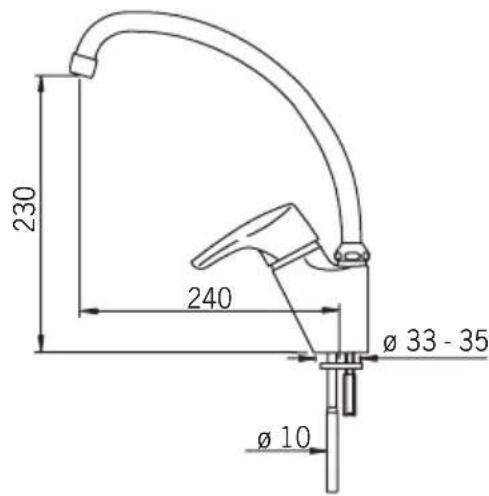

230 240 Ø 33 - 35 Ø 10

max 40 350

1933F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.23 l/s (300 kPa)

220 kPa (0.2 l/s)

max. +80°C

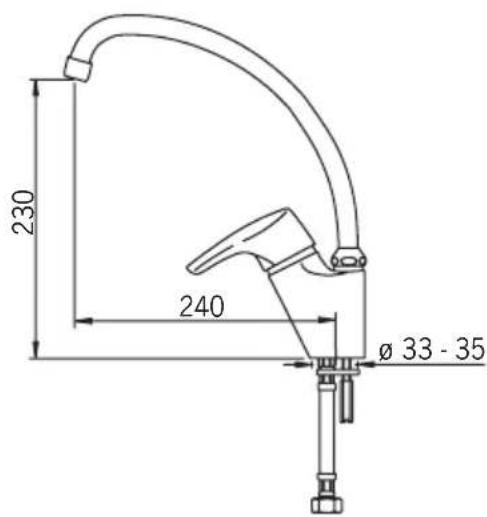

230 240 Ø 33 - 35

max 40 350

Oras Saga 1910F - 1933F - 3

V7A 1.42/19643

1934

EN 817

I (ISO 3822)

50 - 1000 kPa

0.27 l/s (300 kPa)

165 kPa (0.2 l/s)

max. +80°C

230 240 Ø 33 - 35 Ø 10

max 40 350 365 G 1/2

Oras Saga 1910F - 1934 - 3

VA 1.42/19643

Sintef Nr. 1156

1934F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.23 l/s (300 kPa)

220 kPa (0.2 l/s)

max. +80°C

Oras Saga 1910F - 1934F - 1

VA 1.42/19643

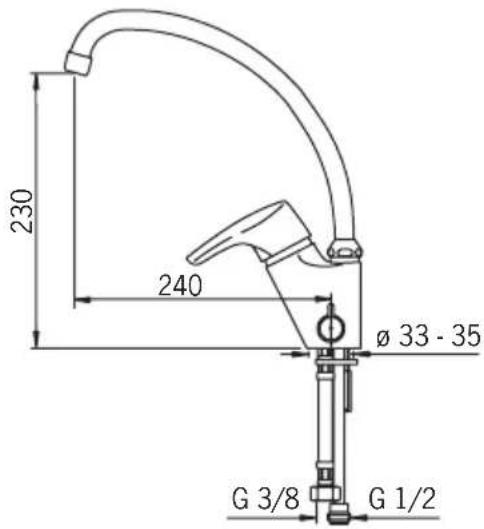

230 240 Ø 33 - 35 G 3/8 G 1/2

max 40 350 365

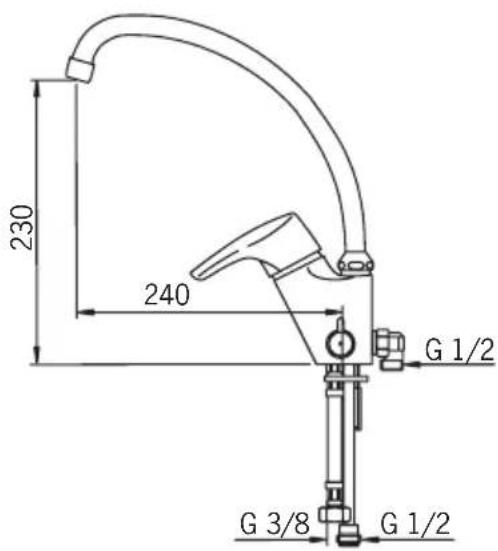

1939F

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.23 l/s (300 kPa)

220 kPa (0.2 l/s)

max. +80°C

230 240 G 1/2 G 3/8 G 1/2

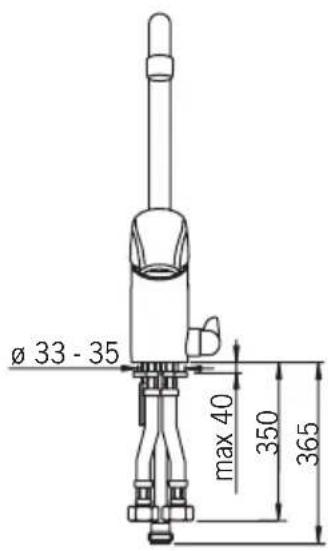

Ø 33 - 35 max 40 350 365

Oras Saga 1910F - 1939F - 3

1930

EN 817

I (ISO 3822)

50 - 1000 kPa

0.27 l/s (300 kPa)

170 kPa (0.2 l/s)

max. +80°C

Oras Saga 1910F - 1930 - 1

VA 1.42/19639

Sintef Nr. 1155

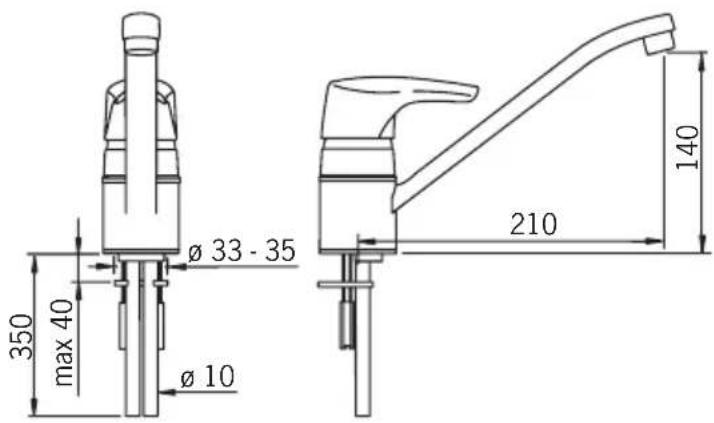

350 max 40 Ø 33 - 35 Ø 10 210 140

1930F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.24 l/s (300 kPa)

210 kPa (0.1 l/s)

max. +80°C

Oras Saga 1910F - 1930F - 1

VA 1.42/19639

CSTB 348-M1-14/1

KIWA K6345/07

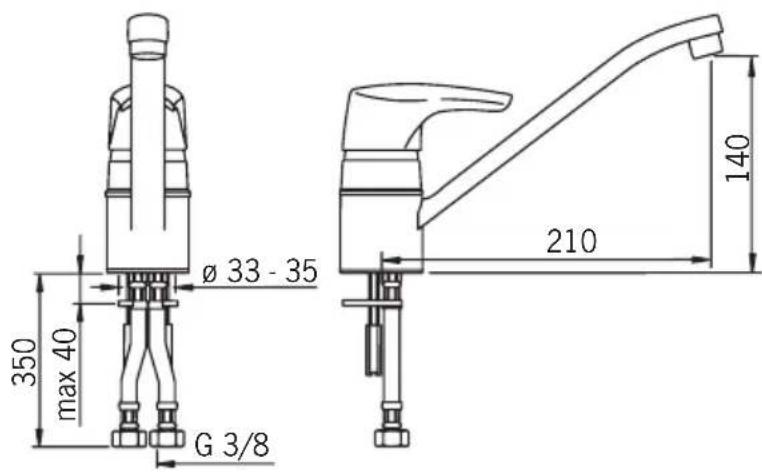

350 max 40 Ø 33 - 35 G 3/8 210 140

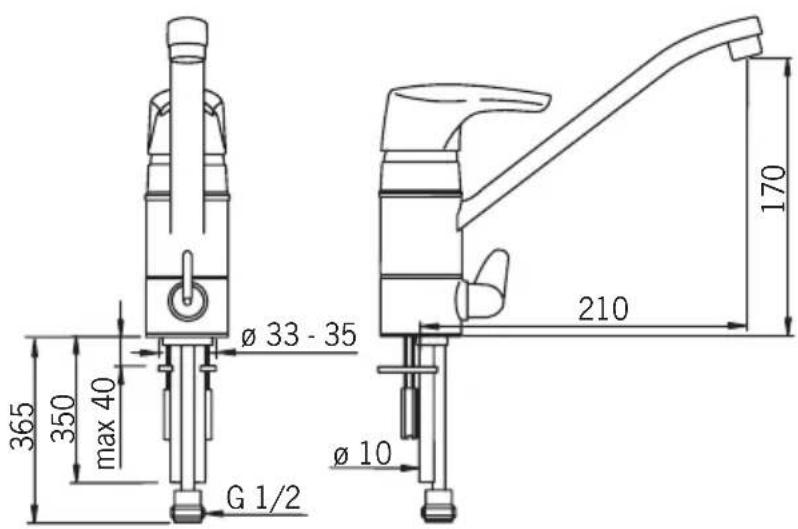

1935

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.27 l/s (300 kPa)

170 kPa (0.2 l/s)

max. +80°C

Oras Saga 1910F - 1935 - 1

365 350 max 40 Ø 33 - 35 G 1/2 Ø 10 210 170

1937

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.27 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±3 90

G 3/4 50 200

Oras Saga 1910F - 1937 - 3

VA 1.42/19640

1937Y

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.27 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±15 90

G 1/2 85 200

Oras Saga 1910F - 1937Y - 3

KIWA K6345/07

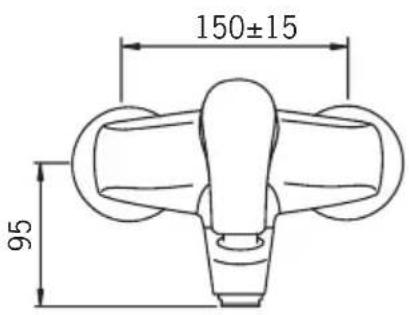

1915Y

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.27 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±15 95

G1/2 85 150

Oras Saga 1910F - 1915Y - 3

1940

EN 817

II (ISO 3822)

50 - 1000 kPa

0.33 l/s (300 kPa)

250 kPa (0.3 l/s)

max. +80°C

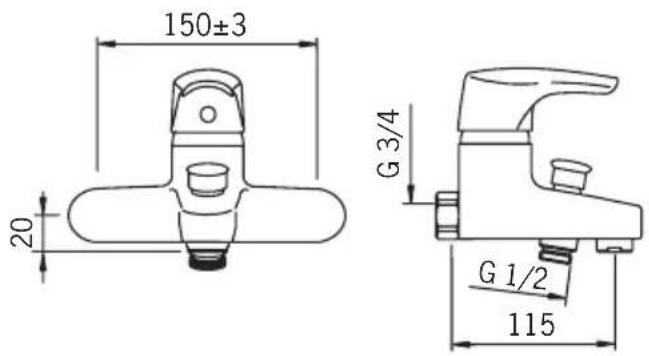

150±3 20 G 3/4 G 1/2 115

Oras Saga 1910F - 1940 - 2

VA 1.42/19642

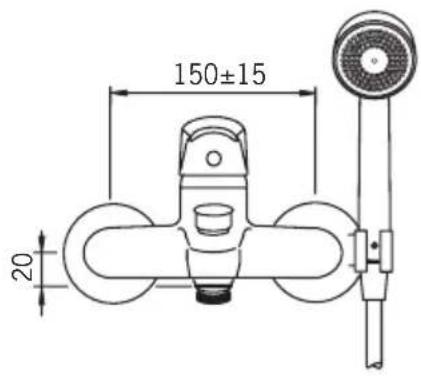

1940Y

EN 817

II (ISO 3822)

50 - 1000 kPa

0.33 l/s (300 kPa)

250 kPa (0.3 l/s)

max. +80°C

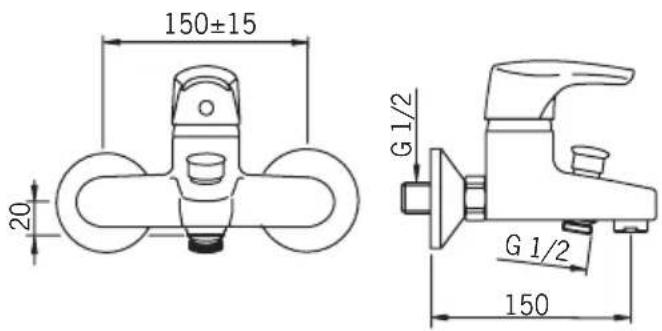

150±15 20 G 1/2 G 1/2 150

Oras Saga 1910F - 1940Y - 2

KIWA K6345/07

1940U

EN 817

I (ISO 3822)

50 - 1000 kPa

0.33 l/s (300 kPa)

250 kPa (0.3 l/s)

max. +80°C

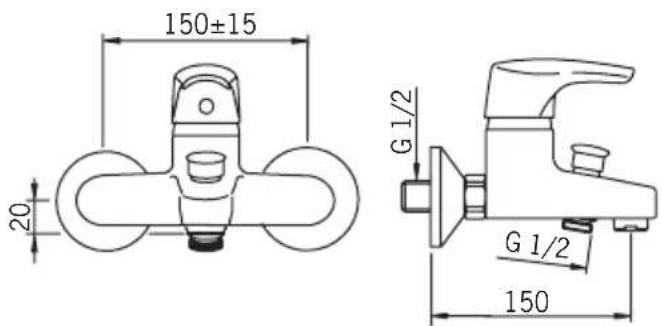

150±15 20 G1/2 G1/2 150

Oras Saga 1910F - 1940U - 2

1951Y

EN 817

II (ISO 3822) Oras lab.

50 - 1000 kPa

0.33 l/s (300 kPa)

250 kPa (0.3 l/s)

max. +80°C

150±15 20

G1/2 G1/2 150

1941Y

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.33 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

260 kPa (0.3 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

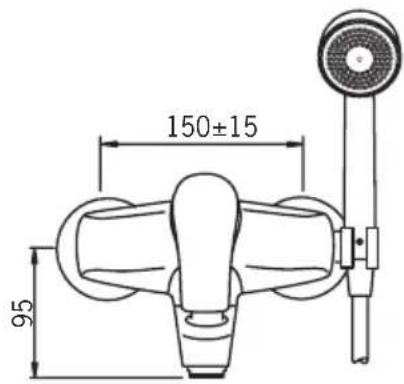

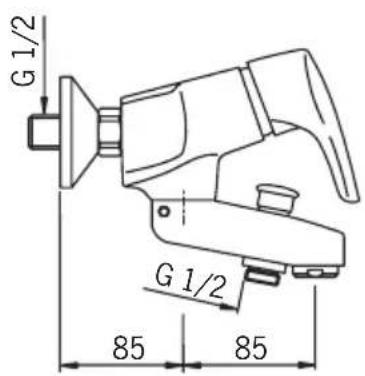

150±15 95

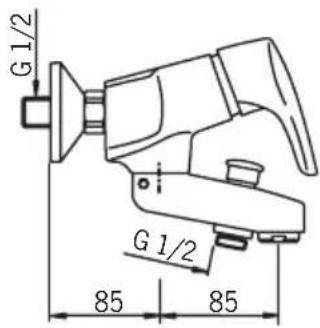

G 1/2 G 1/2 85 85

Oras Saga 1910F - 1941Y - 3

KIWA K6345/07

1960

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.26 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

180 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±3

G 3/4 55 50 G 1/2

Oras Saga 1910F - 1960 - 3

VA 1.42/19638

1960Y

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.26 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

180 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±15 55

G1/2 85 G 1/2

Oras Saga 1910F - 1960Y - 3

KIWA K6345/07

1960U

EN 817

I (ISO 3822)

50 - 1000 kPa

0.25 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

180 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±15 55

G1/2 85 G 1/2

Oras Saga 1910F - 1960U - 3

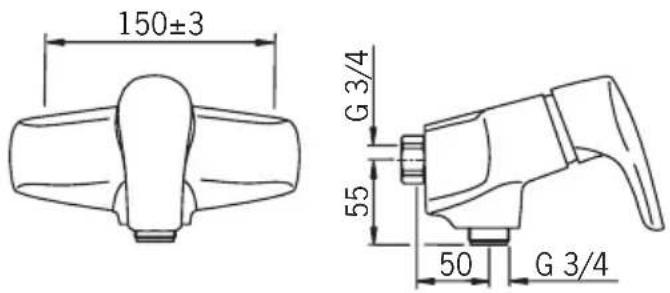

1970

EN 817

50 - 1000 kPa

max. +80°C

150±3 G 3/4 55 50 G 3/4

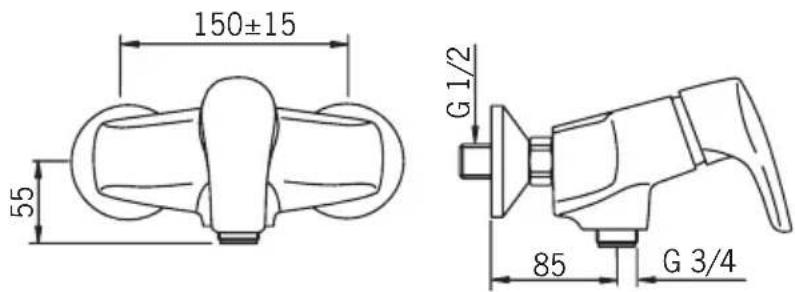

1970Y

EN 817

50 - 1000 kPa

max. +80°C

150±15 55 G1/2 85 G3/4

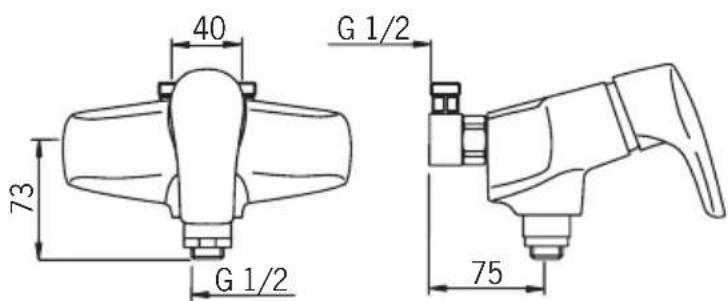

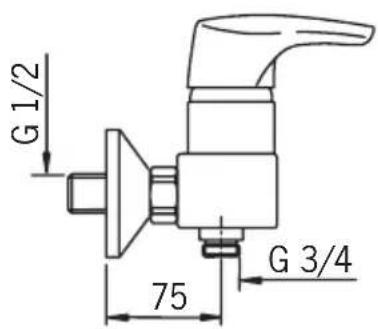

1990

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.25 l/s (300 kPa

0.2 l/s (300 kPa, with flow reducers)

200 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

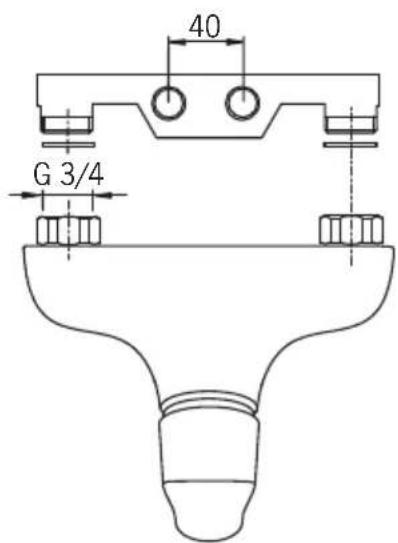

40 G 1/2 73 G 1/2 75

1972

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.33 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

260 kPa (0.3 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±3 95

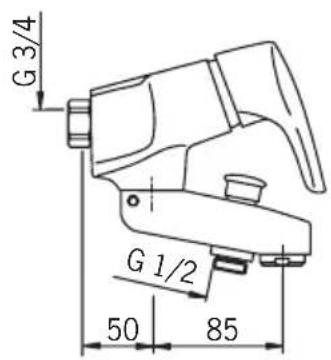

G3/4 G 1/2 50 85

1972Y

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

0.33 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

160 kPa (0.2 l/s)

260 kPa (0.3 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

150±15 95

G 1/2 G 1/2 85 85

1942

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.25 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

190 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

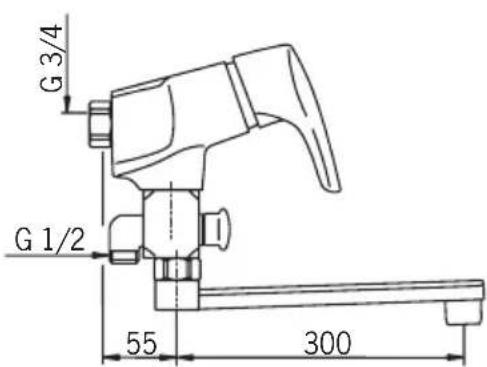

150±3 135

G 3/4 G 1/2 55 300

Oras Saga 1910F - 1942 - 3

VA 1.42/19641

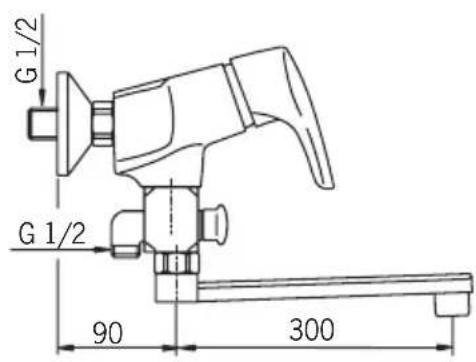

1942Y

EN 817

I (ISO 3822) (0.2 l/s) Oras lab.

II (ISO 3822) (0.3 l/s) Oras lab.

50 - 1000 kPa

0.25 l/s (300 kPa)

0.2 l/s (300 kPa, with flow reducers)

190 kPa (0.2 l/s)

300 kPa (0.2 l/s, with flow reducers)

max. +80°C

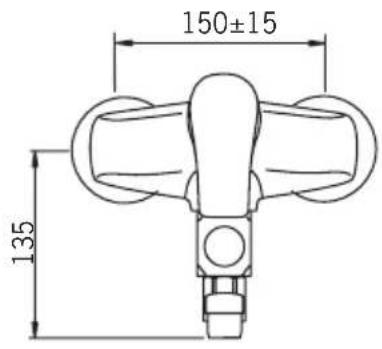

150±15 135

G1/2 G 1/2 90 300

Oras Saga 1910F - 1942Y - 3

1946F

EN 817

II (ISO 3822)

50 - 1000 kPa

0.3 l/s (300 kPa)

300 kPa (0.3 l/s)

max. +80^ C

G 1/2 ø 33 - 35 350 max 30 G 3/8

125 40

Oras Saga 1910F - 1946F - 3

1969

EN 817

50 - 1000 kPa

max. +80°C

45 35

G 1/2 75 G 3/4

Oras Saga 1910F - 1969 - 3

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

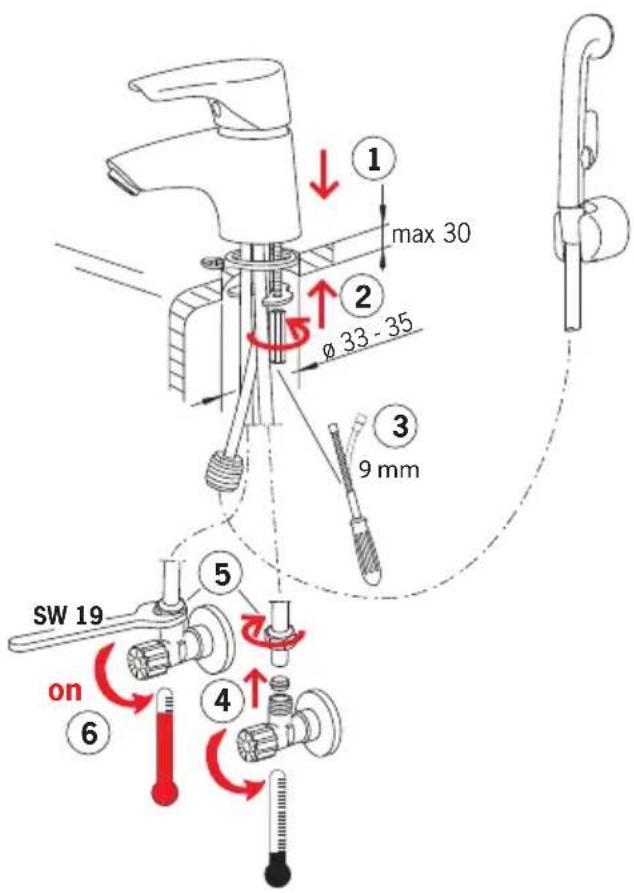

1 max 30 2 ø 33 - 35 3 9 mm SW 19 on 4 6

Oras Saga 1910F - Installation - 2

F-Model
Oval<15% R R>30mm

Oras Saga 1910F - Installation - 4

Oras Saga 1910F - Installation - 5

Oras Saga 1910F - Installation - 6

natural_image Pure technical diagram of two U-shaped pipe fittings with a red X mark indicating a gap or defect (no text or symbols)

Oras Saga 1910F - Installation - 7

F-Model

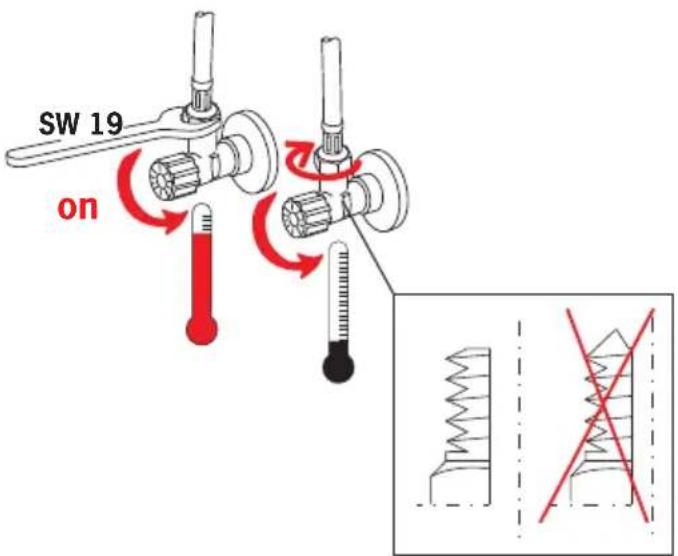

SW 19 on

Installation

CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje

FI Asennus
FR Installation
IT Montaggio
LT Montavimas

natural_image Technical line drawing of a mechanical device with no visible text or symbols

Diagram illustrating fluid flow and mechanical change in a valve or pump system, showing top-down and bottom-down states with red arrows indicating direction and rotation.

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

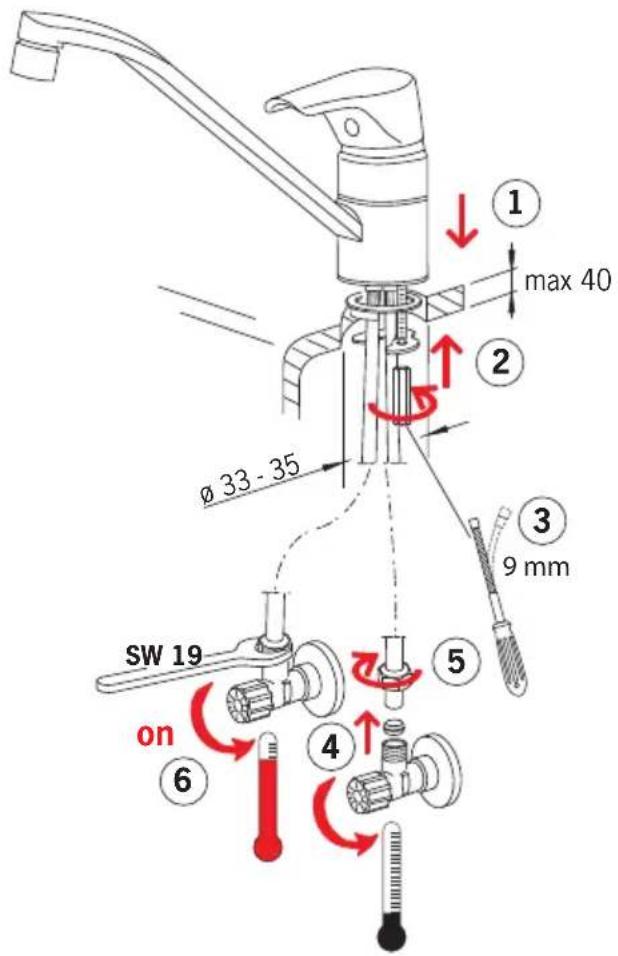

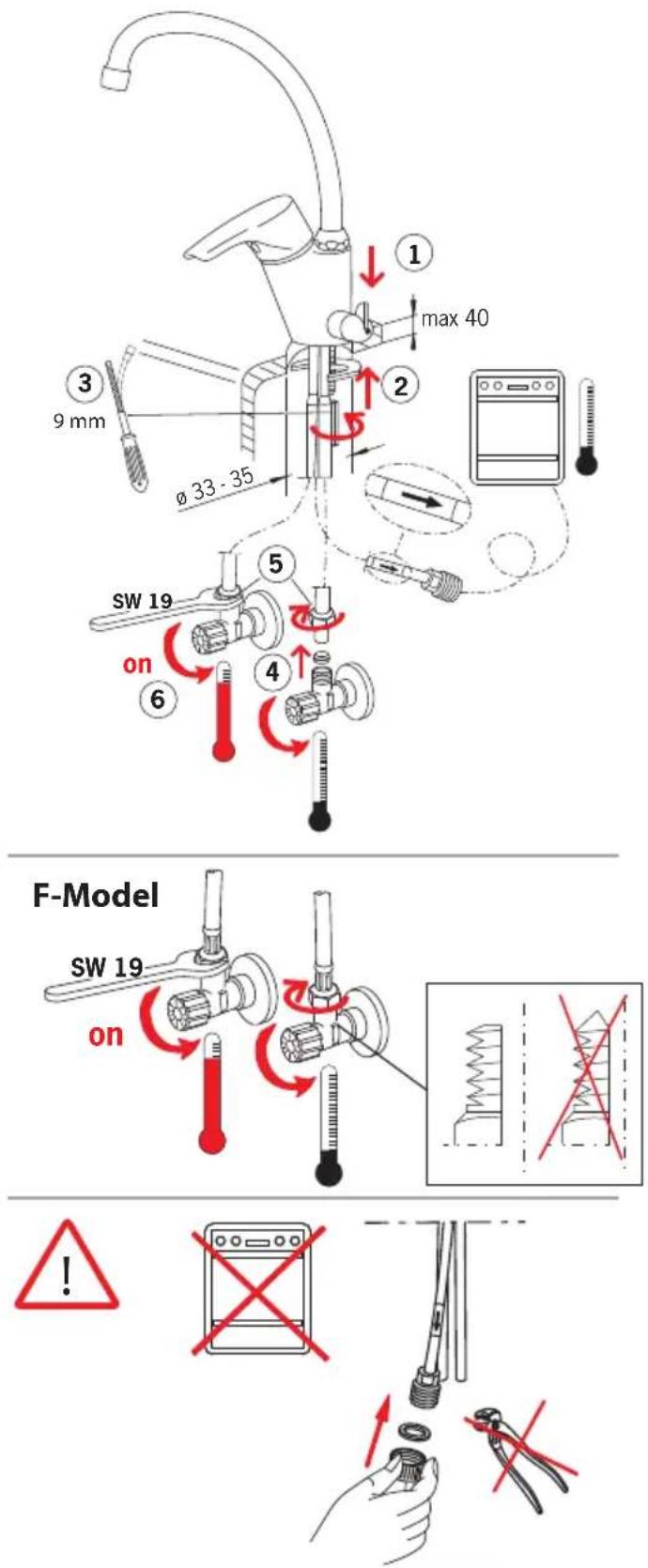

1 max 40 2 ø 33 - 35 3 9 mm SW 19 on 6 4 5

F-Model

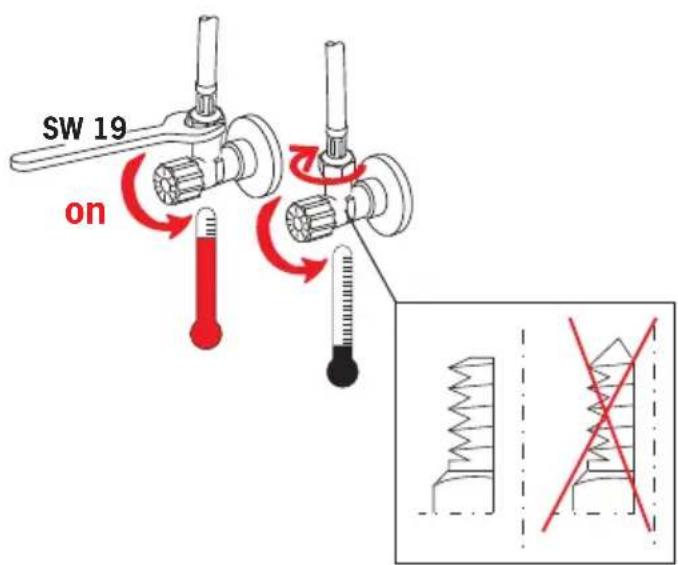

SW 19 on

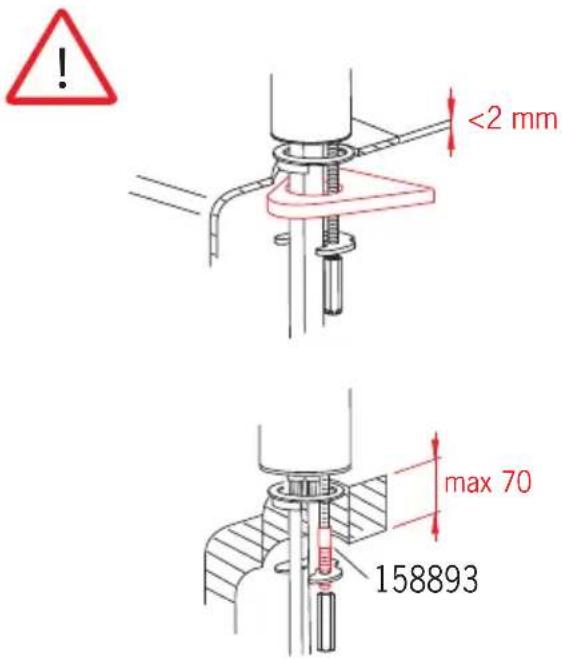

! <2 mm max 70 158893

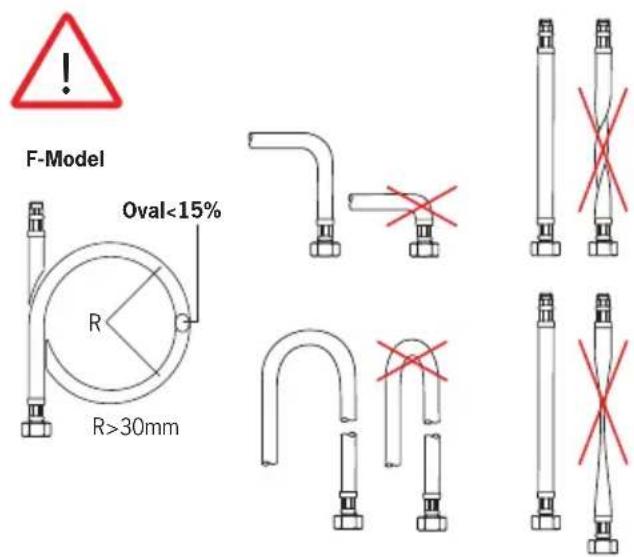

F-Model Oval<15% R R>30mm

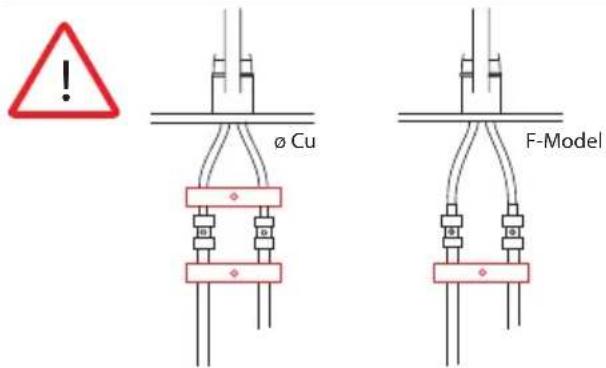

ø Cu F-Model

Installation

CZ Montáž

FI Asennus

LV Montāža

RO Instalare

DE Montage

FR Installation

NL Installatie

RU Установка

DK Installation

IT Montaggio

NO Montering

SE Installation

EE Paigaldus

LT Montavimas

PL Instalacja

SK Inštalácia

ES Montaje

Oras Saga 1910F - Installation - 1

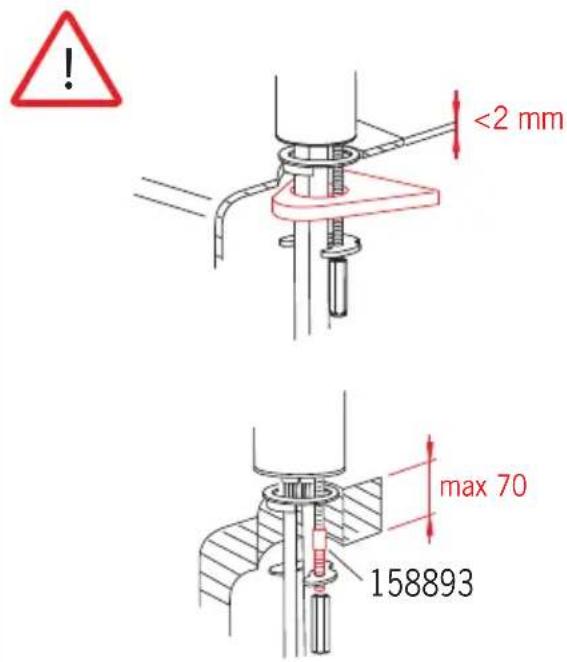

! <2 mm max 70 158893

Oras Saga 1910F - Installation - 3

F-Model
Oval<15% R R>30mm

Oras Saga 1910F - Installation - 5

Oras Saga 1910F - Installation - 6

Oras Saga 1910F - Installation - 7

natural_image Technical line drawing of two U-shaped pipe fittings with a red X mark indicating a defect or dislocation (no text or symbols present)

Oras Saga 1910F - Installation - 8

Oras Saga 1910F - Installation - 9

ø Cu

F-Model

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

Oras Saga 1939F

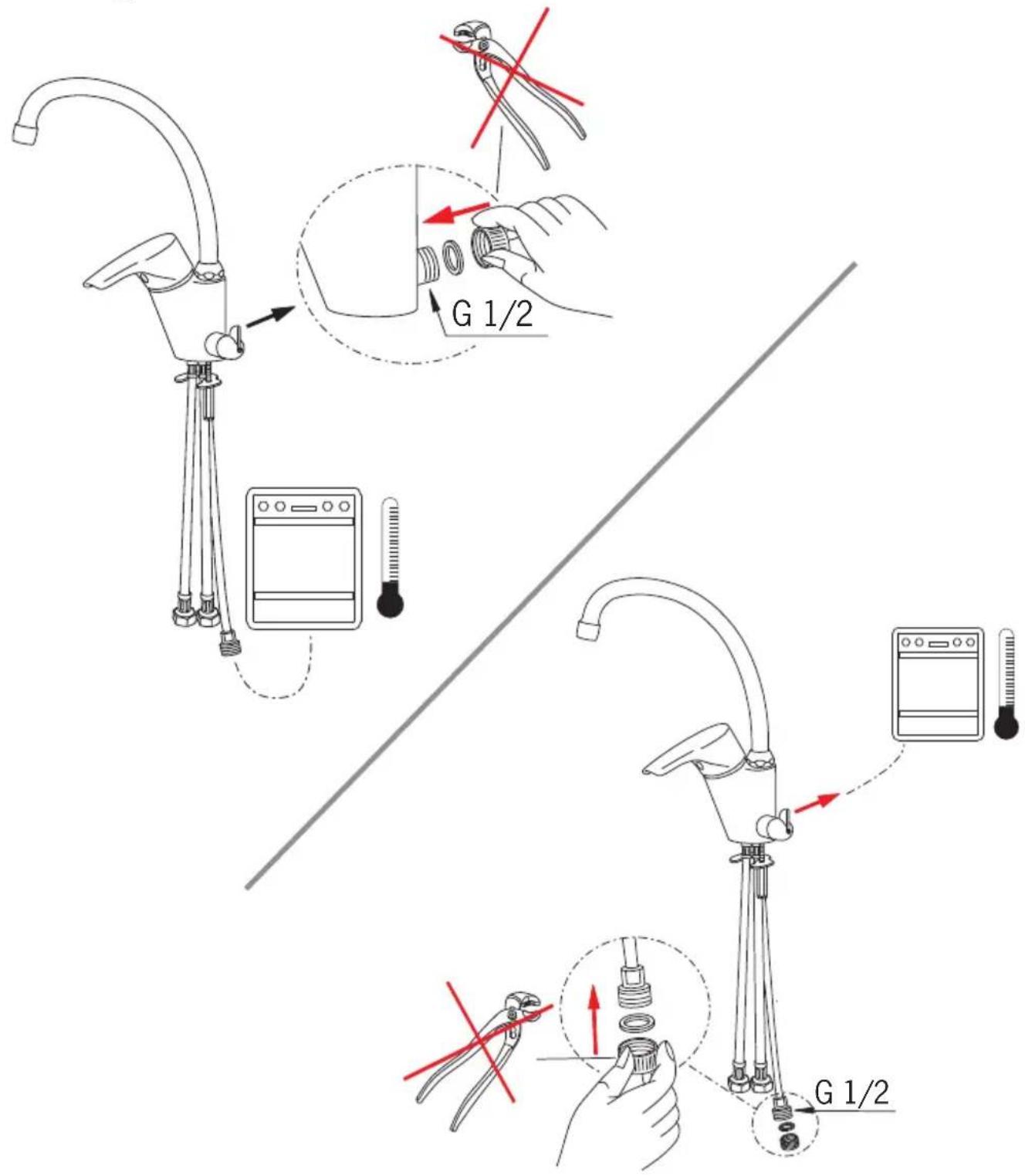

G 1/2 G 1/2

Installation

CZ Montáž

FI Asennus

LV Montāža

RO Instalare

DE Montage

FR Installation

NL Installatie

RU Установка

DK Installation

IT Montaggio

NO Montering

SE Installation

EE Paigaldus

LT Montavimas

PL Instalacja

SK Inštalácia

ES Montaje

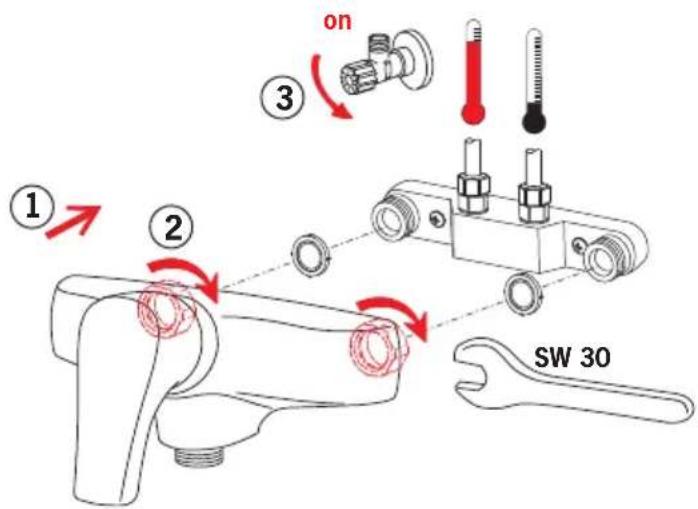

① ② ③ on SW 30

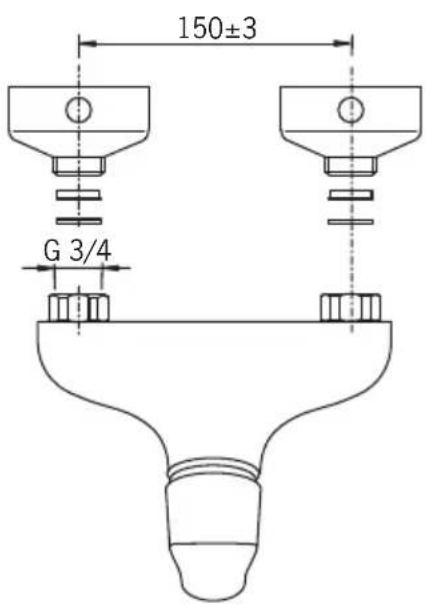

150±3 G 3/4

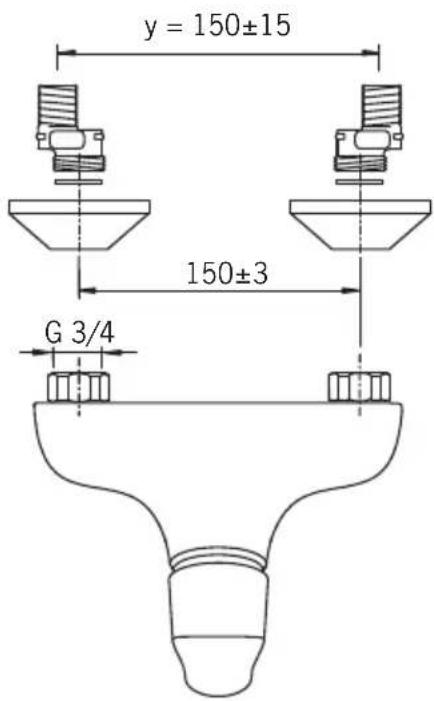

y = 150±15 150±3 G 3/4

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

1990

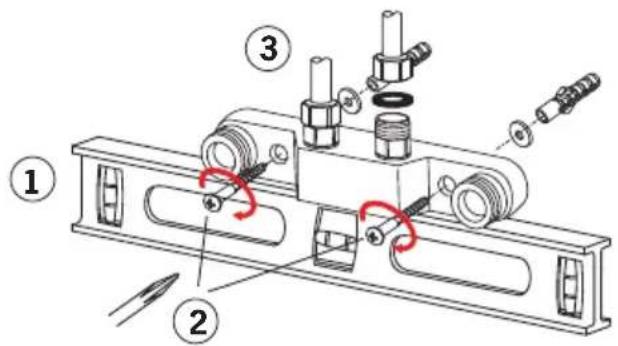

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Oras Saga 1910F - Installation - 2

Oras Saga 1910F - Installation - 3

natural_image Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Oras Saga 1910F - Installation - 4

natural_image Pure mechanical assembly diagram showing a bolted joint with intersecting lines (no text or symbols)

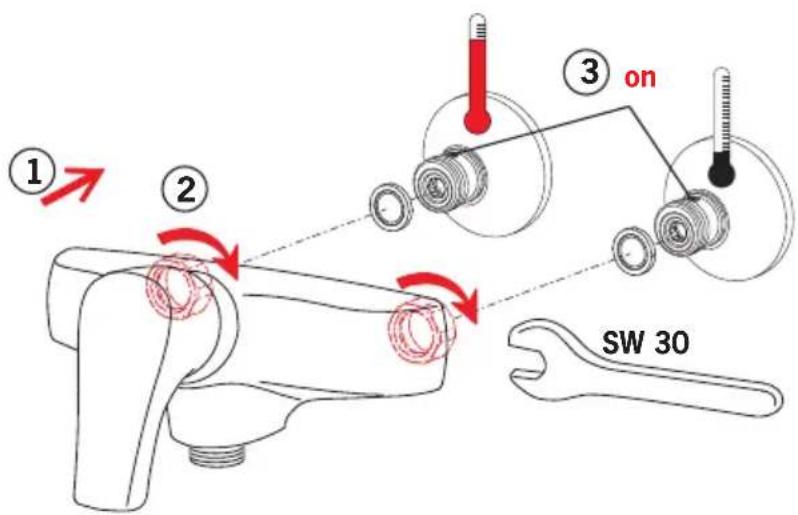

① ② ③ on SW 30

40 G 3/4

Oras Saga 1910F - Installation - 7

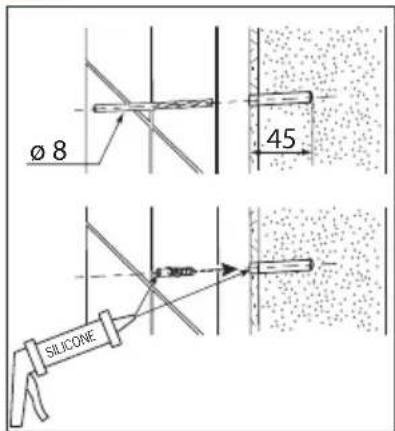

Ø 8 45 SILICONE

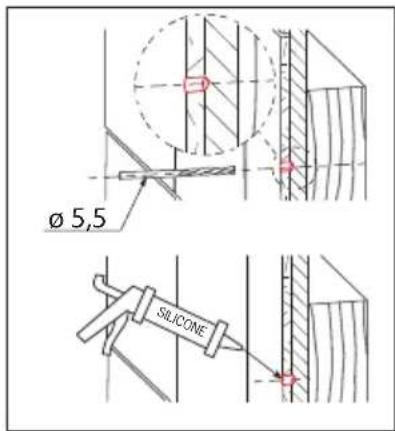

Ø 5,5 SILICONE

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

Limiting the flow rate

CZ Omezeni průtoku

Changing for hot water

CZ Přestavení na horkou vodu
DE Umstellung auf Warmwasseranschluß
DK Omstilling til varmt vand
EE Paigaldamine külma vee asendisse
ES Cambio para agua caliente
FI Muuttaminen kuumalle vedelle
FR Valvole per lavastoviglie o lavatrici
IT Per miscelatore per lavello
LT Ventilio nustatymas karštam vandeniui

LV Krano nustatymas karštam vandeniui
NL Changement pour arrivée eau chaude
NO Omstilling til varmt vann
PL Zmiana na ciepłą wodę
RO Modificarea pentru apă caldă
RU Перенастройка на подачу горячей вод
SE Omställning till varmt vatten
SK Prestavenie na teplú vodu

1
OFF

3

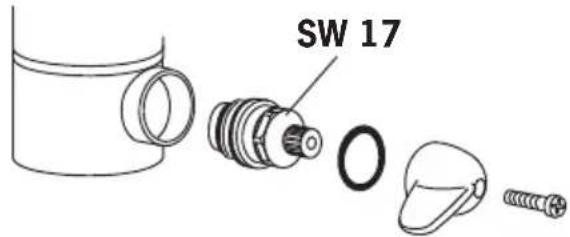

SW 17

2
OFF ON

4

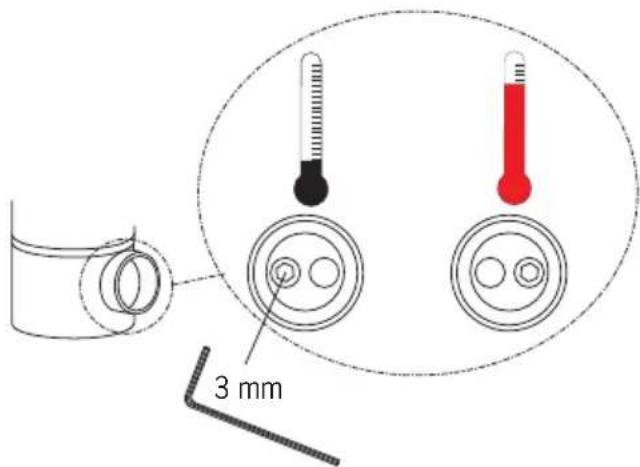

3 mm

Changing the spout's seals

CZ Výměna těsnění

To change the cartridge

CZ Výména kartuše

1934, 1934F, 1939

1 159260V

2 158174

3 158726

4 158890

5 232201

6 219563/10

7 469360/10

8 219595/10

9 219110V

10 119717/10

11 158747/10

12 158825

13 159607V

14 158203V

15 159206V

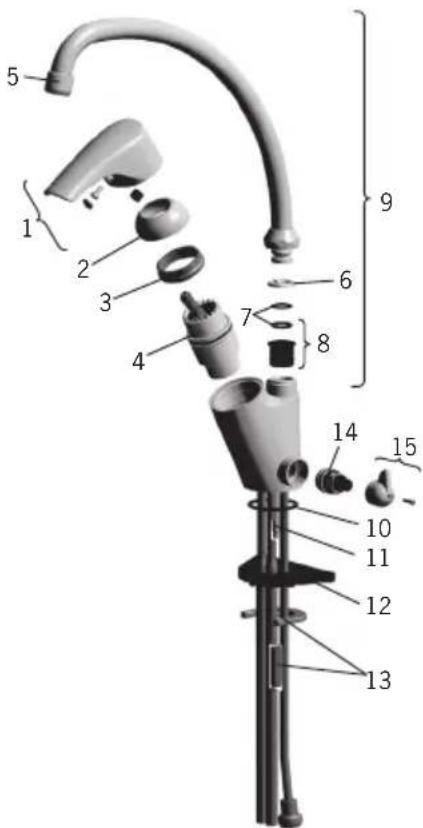

5 1 2 3 4 7 8 6 9 10 11 12 13 14 15

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

1289
Oras Saga 1910F - Spare parts - 1

natural_image Pure diagram of a T-shaped pipe fitting with threaded ends and base (no text or symbols)

Rinsing

CZ Vypláchnutí

DE Spülen

DK Gennemskyldning

EE Loputama

ES Aclarar

FI Huhtelu

FR Rinçage

IT Spurgo

LT Praplovimas

LV Skalošana

NL Spoelen

NO Rengjøring

PL Płukania

RO Spălare

RU Промывка

SE Renspolning

SK Vypláchnutie

Oras Saga 1910F - Rinsing - 1

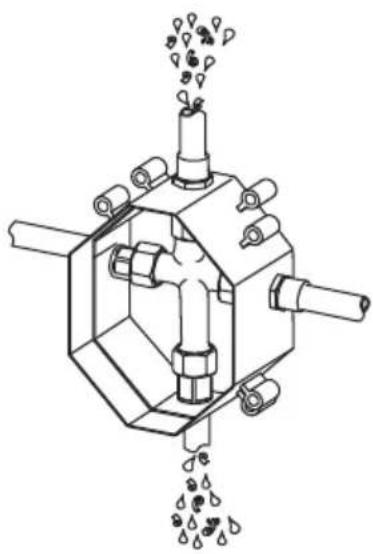

Oras Saga 1910F - Rinsing - 2

natural_image Technical line drawing of a mechanical device with internal components and water droplets (no text or symbols)

Oras Saga 1910F - Rinsing - 3

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

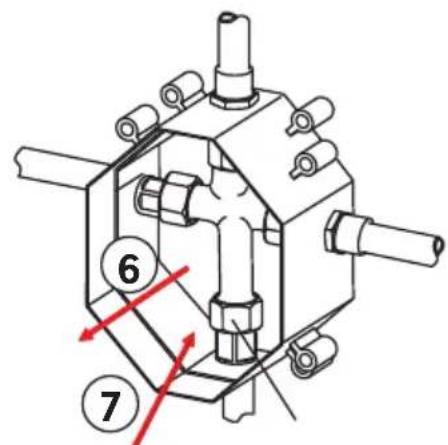

Technical diagram of a mechanical device with numbered components and red directional arrows indicating motion or flow.

Oras Saga 1910F - Installation - 2
SW 32

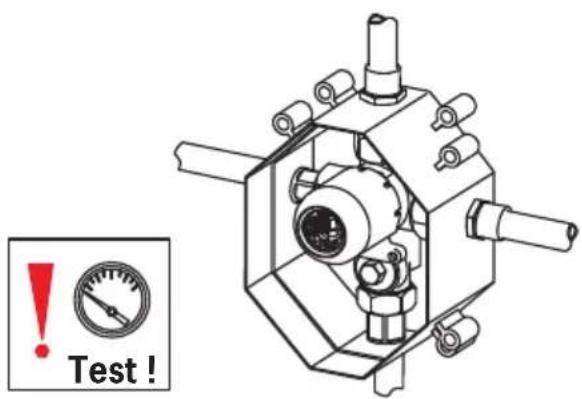

Test !

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

198539

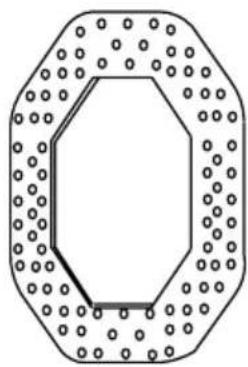

Oras Saga 1910F - Installation - 1

natural_image Octagonal frame with dotted circular border and central hole (no text or symbols)

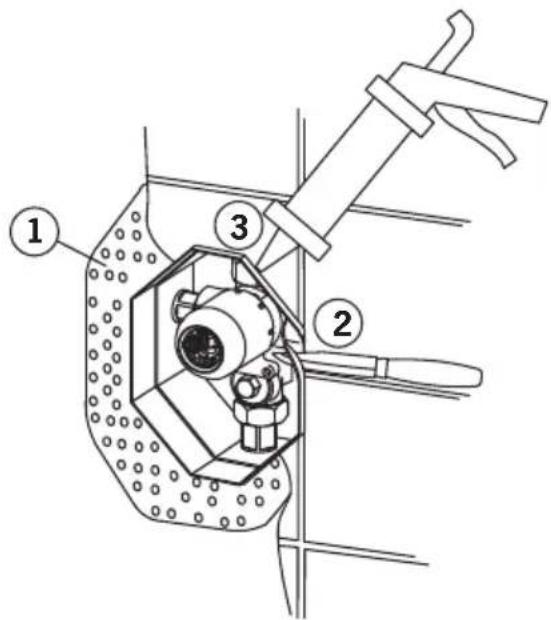

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

1087

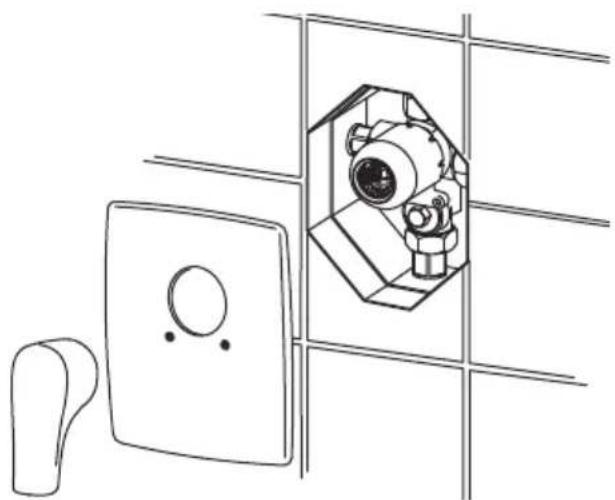

Oras Saga 1910F - Installation - 3

natural_image Line drawing of a bathroom sink with an open mirror and a wall-mounted camera (no text or symbols)

1088

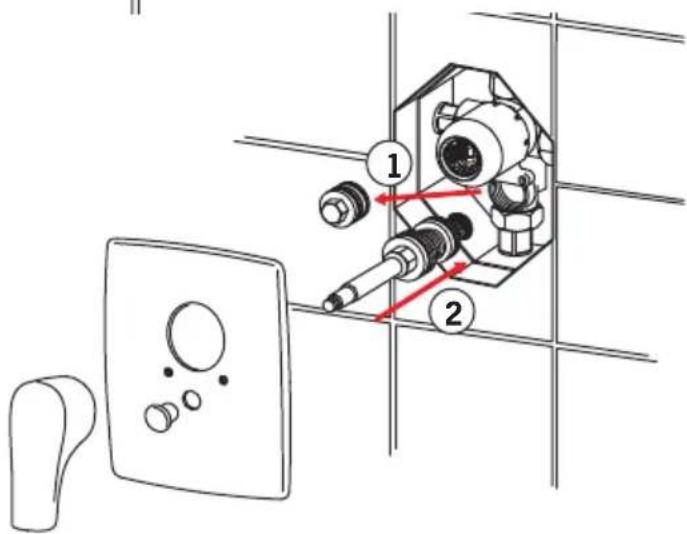

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

1987

1 159260V

2 158174

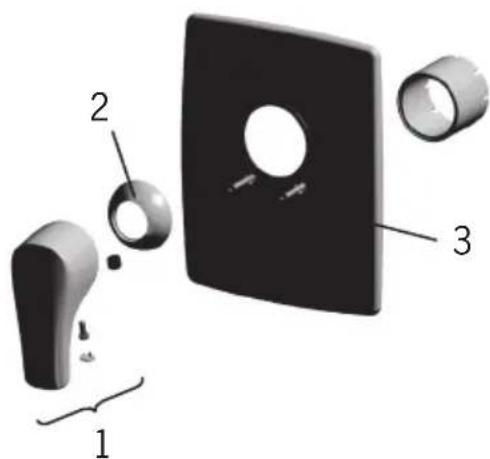

Exploded view diagram of a wall-mounted device with labeled parts 1, 2, and 3

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Oras is a significant developer, manufacturer and marketer of sanitary fittings. Since its founding in 1945 the company has introduced high-quality design products featuring user-friendly technical solutions that contribute to savings of water and energy. As early as in the in the 1990s, Oras introduced the first touchless electronic faucets in the market.

Oras is owned by Oras Invest, a family company. In September 2013 Oras acquired Hansa Metallwerke AG, a German faucet manufacturer, with its subsidiaries, and together the companies form the new Oras Group. The head office of the Group is located in Rauma, Finland, and the company's factories are located in Rauma, Burglengenfeld (Germany), Kralovice (Czech Republic) and Olesno (Poland). The Group employs about 1 400 people.

Det Norske Veritas Certification OY/AB certifies that the Quality Management System of Oras Oy in Rauma Finland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for development, manufacture, marketing, sales and after sales services of faucets, accessories and valves.

The TÜV CERT Certification Body of TÜV NORD Zertifizierungs- und Umweltgutachter Gesellschaft mbH certifies that the Quality Management System of Oras Olesno Sp. z o.o. in Olesno Poland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for manufacture, storage, marketing, sales and after sales services of faucets, valves and accessories.

Oras Saga 1910F - Spare parts - 1

Oras Saga 1910F - Spare parts - 2

pie | Category | Percentage (%) | |---|---| | TUV NORD Top 500 Paks to 2nd | 90 | | TUV NORD Top 500 Paks to 3rd | 140 | | TUV NORD Top 500 Paks to 4th | 140 |

ORAS GROUP

Isometsäntie 2, P.O. Box 40

FI-26101 Rauma

Tel. +358 2 83 161

Fax +358 2 831 6300

Info.Finland@oras.com

www.oras.com

® oras

www.oras.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Oras

Model : Saga 1910F

Category : Faucet
