Electra 6189 - Faucet Oras - Free user manual and instructions

Product Type	Single-lever kitchen faucet
Brand	Oras
Model	Electra 6189
Material	Brass with chrome finish
Height	Approx. 20 cm (7.9 in)
Spout Reach	Approx. 15 cm (5.9 in)
Weight	Approx. 1.5 kg (3.3 lbs)
Installation	Deck-mounted, single hole
Water Supply Connections	Flexible hoses 3/8"
Operating Pressure	0.5 – 5 bar (7 – 72 psi)
Max. Temperature	80°C (176°F)
Cartridge Type	Ceramic disc cartridge
Spout Features	360° swivel, aerator
Flow Rate	Approx. 5.7 L/min at 3 bar
Cleaning Instructions	Wipe with damp cloth; avoid abrasive cleaners
Spare Parts Available	Cartridge, aerator, hose set
Warranty	2 years

Frequently Asked Questions - Electra 6189 Oras

How do I install the Oras Electra 6189 faucet?

Installation requires a single 35mm hole in the sink. Connect the flexible hoses to the water supply (hot and cold), then mount the faucet through the hole and tighten the locking nut from below. Ensure O-rings are properly placed.

What should I do if the faucet is leaking?

A leaking faucet often indicates a worn ceramic cartridge. Turn off water supply, remove the handle and cap, then replace the cartridge with a compatible Oras spare part.

How can I reduce low water pressure?

Check that the aerator is not clogged. Unscrew it from the spout and clean or replace it. Also ensure the supply valves are fully open and that flexible hoses are not kinked.

Can I use the faucet with a tankless water heater?

Yes, the faucet is compatible with tankless heaters, but ensure the maximum temperature (80°C) is not exceeded. The flow rate is suitable for most heaters.

How do I clean the chrome finish?

Use a soft, damp cloth with mild soap. Avoid abrasive sponges, scouring pads, and harsh chemicals like bleach or ammonia to prevent damage to the chrome finish.

What spare parts are available?

Common spare parts include the ceramic cartridge, aerator, handle, and flexible hoses. They can be ordered from Oras service centers or authorized dealers.

How do I replace the aerator?

Unscrew the aerator at the tip of the spout by hand or with a wrench (use a cloth to avoid scratches). Clean or replace with a new one, then screw back on tightly.

Is the faucet suitable for outdoor use?

No, the Oras Electra 6189 is designed for indoor use only. Exposure to outdoor elements may cause corrosion or damage to internal components.

What is the warranty period?

Oras offers a 2-year warranty against manufacturing defects. Keep your receipt and register the product online for full coverage.

How do I adjust the handle tension?

Under the handle, there is a setscrew that can be tightened or loosened. Remove the decorative cap, adjust with an Allen key, then replace the cap.

USER MANUAL Electra 6189 Oras

Metallic cylindrical shower tube with flanged ends and a small base (no text or symbols visible)

Contents

CZ Obsah

FI Sisällysluettelo

NL Inhoud

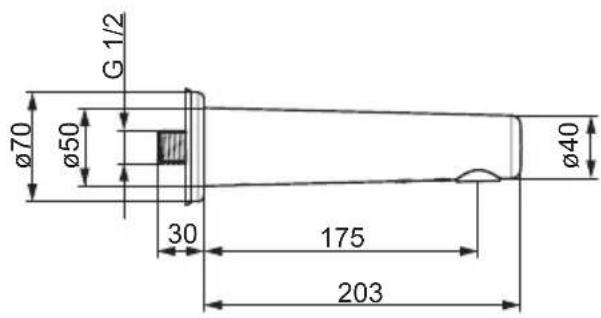

Simple line drawing of a cylindrical mechanical part with flanged ends (no text or symbols)

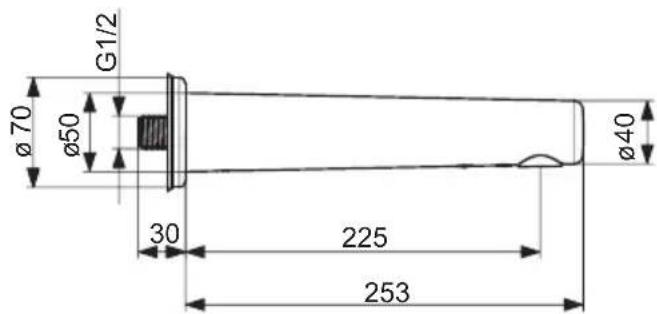

Technical data....4

Installation 5-6

Operation....7

Maintenance....7-12

Spare parts....13

6188

EN 15091

I (ISO 3822) Oras lab.

100 - 1000 kPa

0.1 l/s (300 kPa with flow controller)

200 kPa (0.1 l/s)

max. +70°C

IP 55

AA 1.5 V Lithium x 2

GODKENDT TIL DRIKKEVAND

CE (EMC 2004/108/EY)

6189

EN 15091

I (ISO 3822) Oras lab.

100 - 1000 kPa

0.1 l/s (300 kPa with flow controller)

200 kPa (0.1 l/s)

max. +70°C

IP 55

AA 1.5 V Lithium x 2

GODKENDT TIL DRIKKEVAND

CE (EMC 2004/108/EY)

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

1

2

Mechanical assembly diagram showing a clamping mechanism with red spring and shaft, no text or symbols present

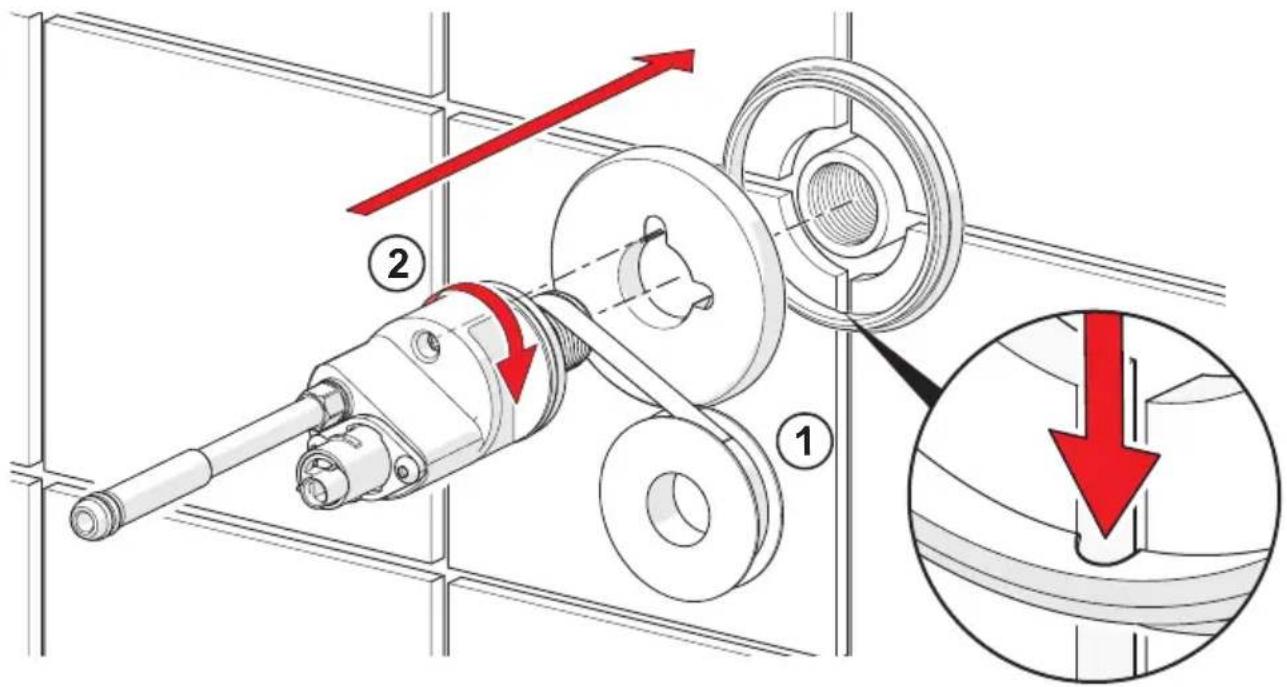

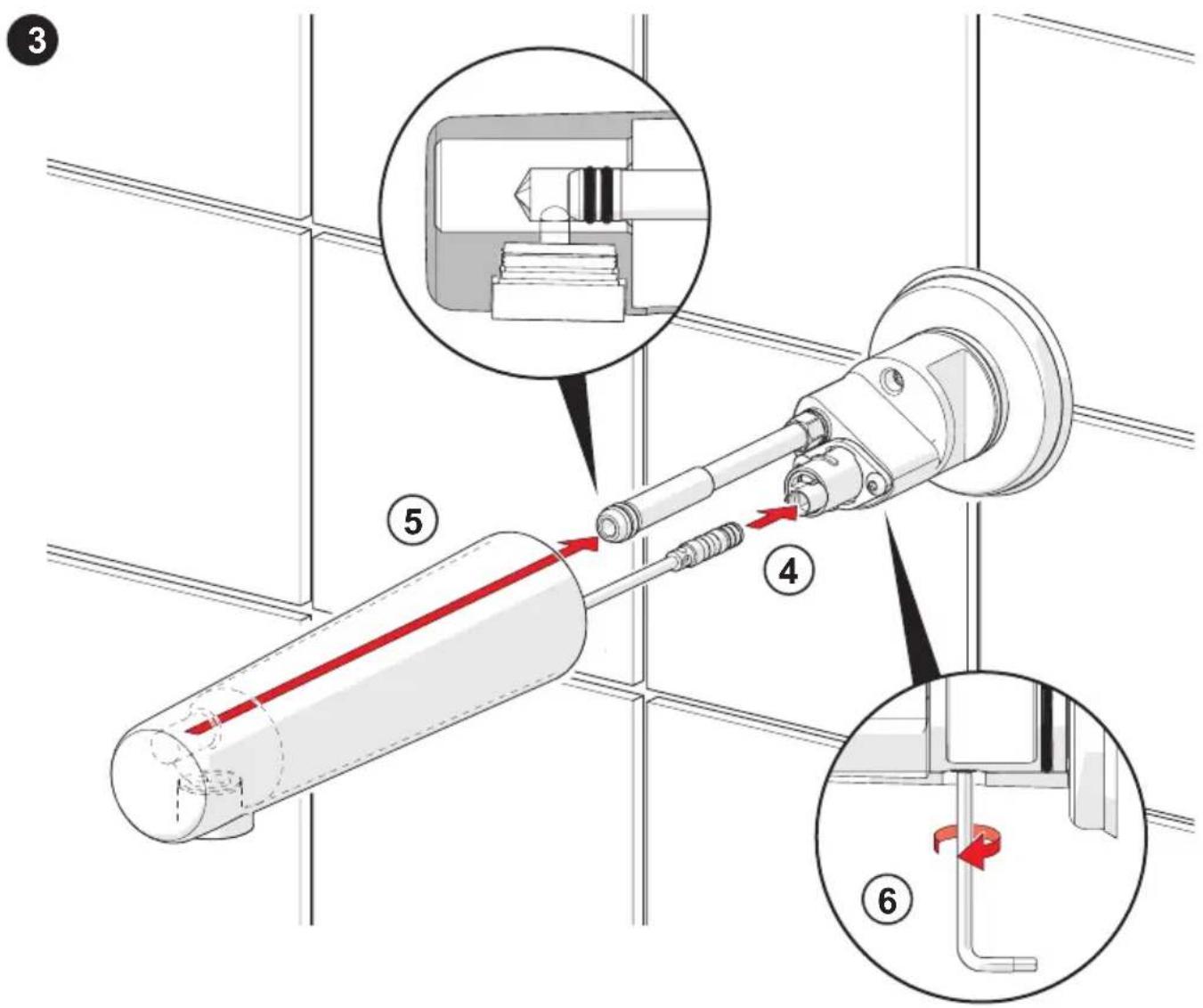

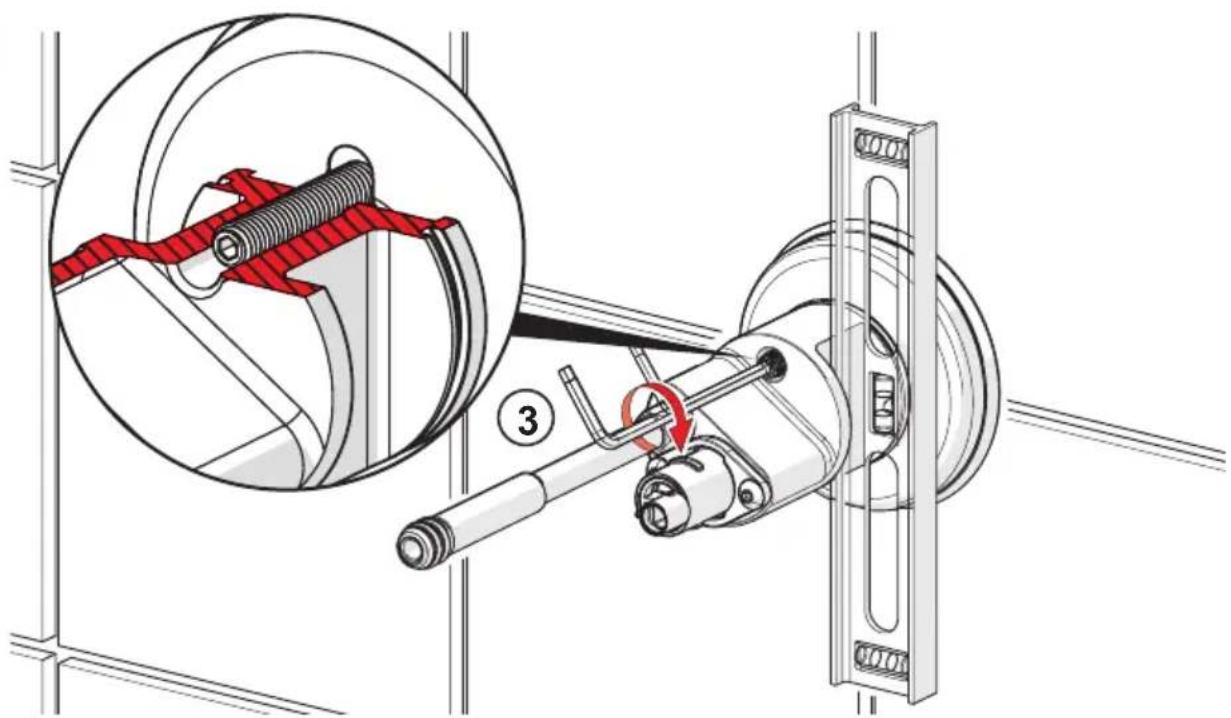

Installation

CZ Montáž

FI Asennus

NL Installatie

SE Installation

DE Montage

FR Installation

NO Montering

SK Inštalácia

DK Installation

IT Montaggio

PL Instalacja

UA Встановлення

EE Paigaldus

LT Montavimas

RO Instalare

ES Montaje

LV Montāža

RU Установка

6

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

Illustration of a hand reaching toward a pipe with a textured vertical layer, against a grid background (no text or symbols)

Automatic

Illustration of a hand receiving a showerhead with sound waves (no text or symbols)

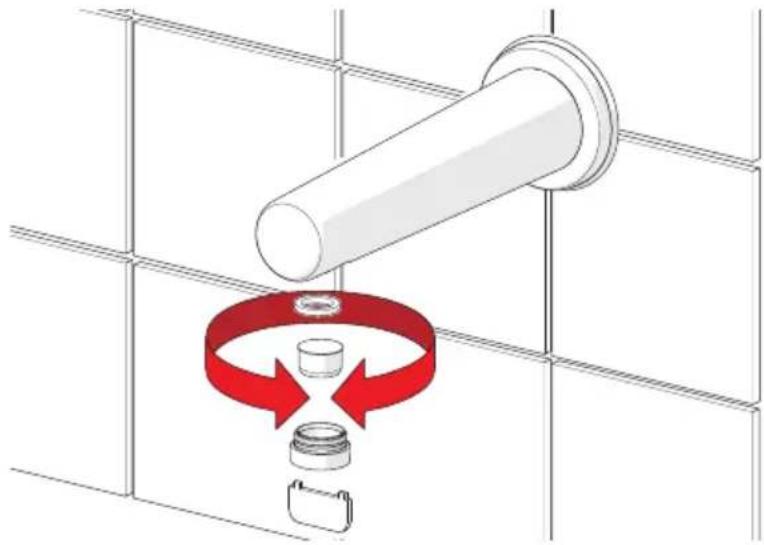

Cleaning/Changing the aerator

Two technical diagrams showing a rectangular component and a multi-pin connector (no text or symbols)

Diagram of a pipe installation with a red circular component and mechanical parts, no text or symbols present

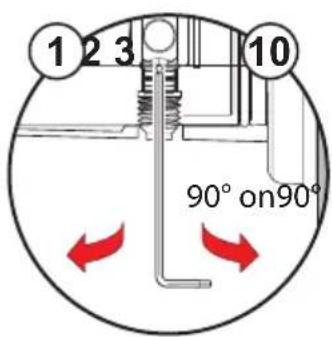

Changing the factory settings

Simple line drawing of a cylindrical object with a handle and base, no text or symbols present.

Example 1: After Flow 2s → 8s

Example 2: Cleaning mode 30s → 60s

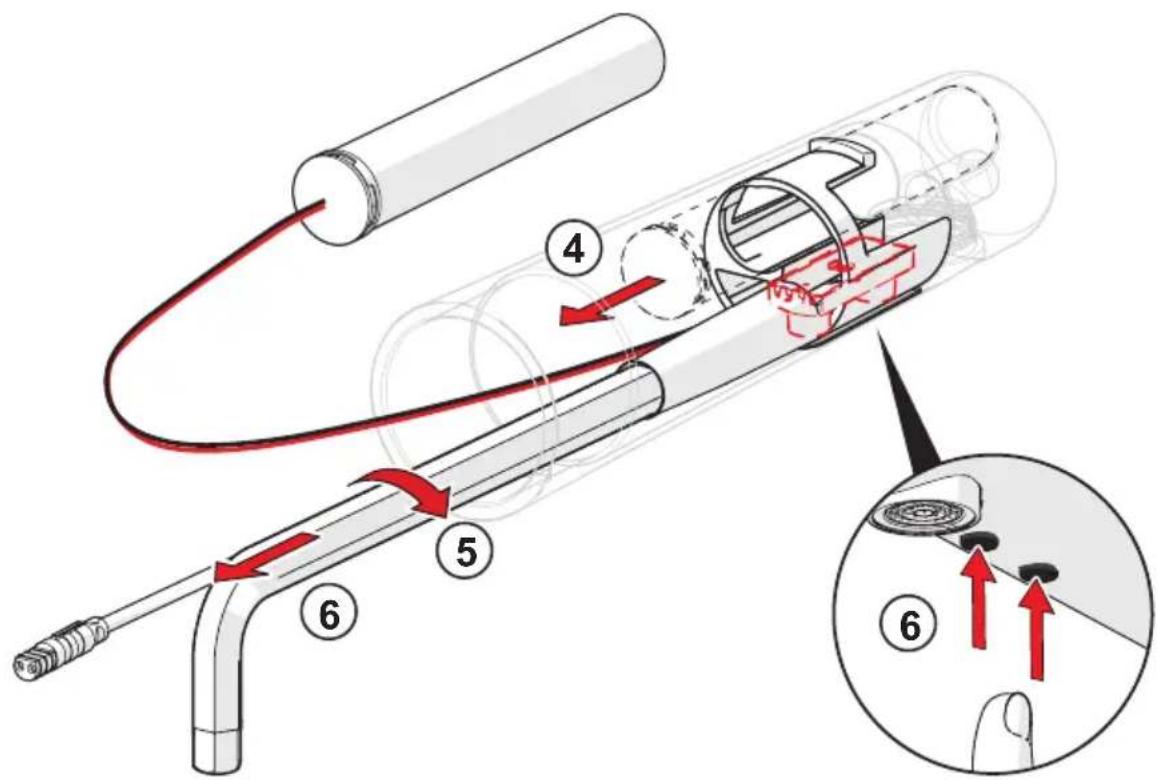

Changing the battery

CZ Výměna baterie

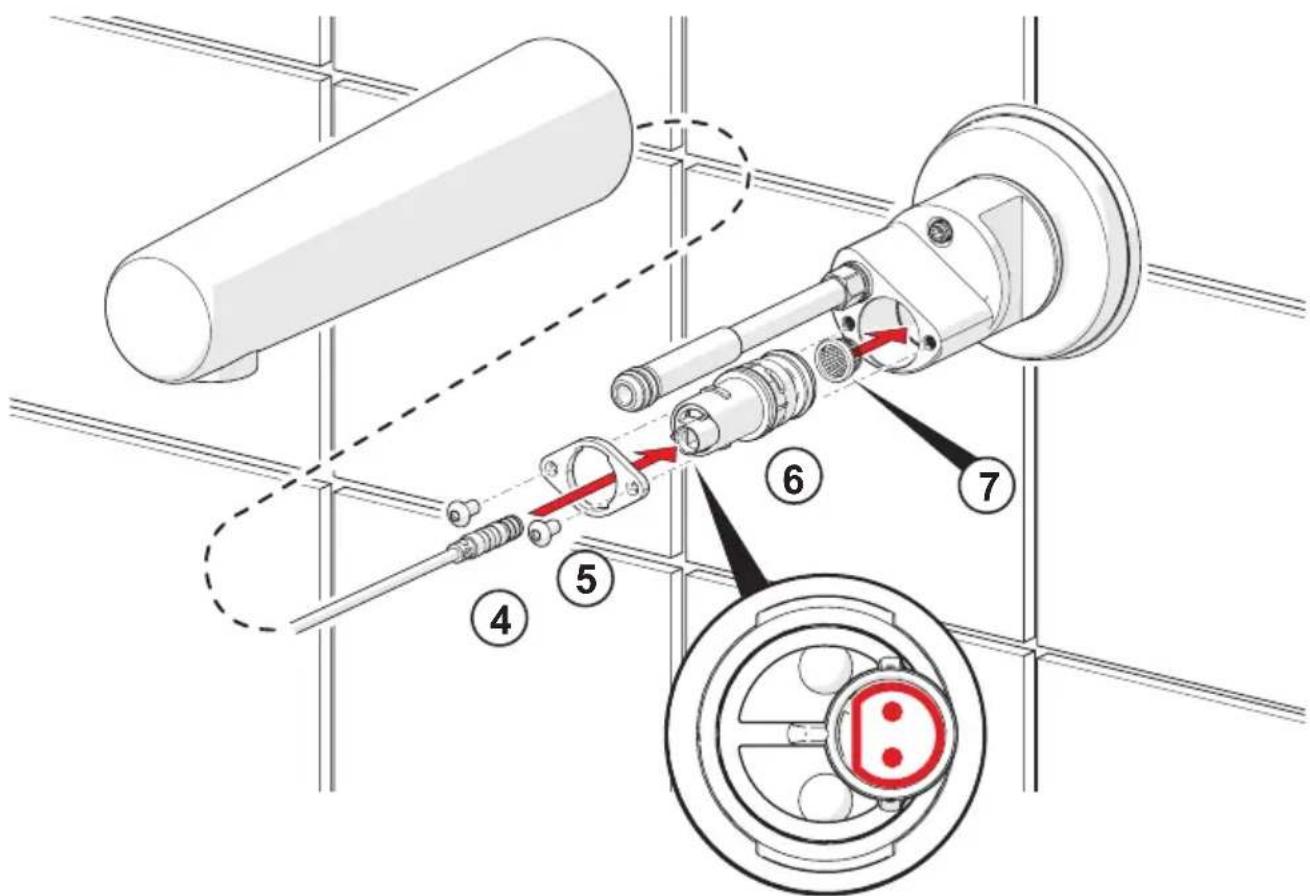

Servicing the solenoid valve

CZ Servis solenoidového ventilu
DE Wartung der Magnetventil
DK Rensning/udskiftning af magnetventilens
EE Magnetventiili vahetamine
ES Cambiar la válvula magnética
FI Magneettiventtiilin vaihto
FR Changement de l'électrovanne
IT Sostituzione della valvola magnetica
LT Elektromagnetinio vožtuvo pakeitimas

LV Elektromagnētiskā vārsta maiņa
NL Vervanging van de magneetventiel
NO Bytting av magnetventil
PL Wymiana zaworu solenoidowego
RO Întreținerea valvei solenoidale
RU Замена электромагнитного клапана
SE Byte av magnetventil
SK Výmena elektromagnetického ventilu
UA Заміна електро магнітного клапана

① ⑩

② ⑨

5

7

Changing the sensor

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Cleaning mode

CZ Režim úklid

DE Reinigungsmodus
