| Product Type | Single-lever basin mixer |
| Brand | Oras |
| Model | Cubista 2814F-105 |
| Material | Brass |
| Finish | Chrome |
| Height | 150 mm |
| Spout Reach | 120 mm |
| Weight | 1.2 kg |
| Flow Rate | 5.7 L/min at 3 bar |
| Cartridge Type | Ceramic disc cartridge |
| Installation Type | Deck-mounted, single hole |
| Connection | 3/8" flexible hoses |
| Handle Type | Lever |
| Swivel | 360° rotation |
| Aerator | Flow-optimized aerator |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Pressure | 0.5 bar |
| Maximum Hot Water Temperature | 80°C |
| Warranty | 2 years |
| Maintenance | Clean with damp cloth, avoid abrasive cleaners |
| Spare Parts Available | Cartridge, aerator, handle, hose |
| Certifications | CE, EN 817 |
Frequently Asked Questions - Cubista 2814F-105 Oras
User questions about Cubista 2814F-105 Oras
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Faucet in PDF format for free! Find your manual Cubista 2814F-105 - Oras and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Cubista 2814F-105 by Oras.
USER MANUAL Cubista 2814F-105 Oras
Maintenance....38-39
Spare parts....13
Technical data 14–19
Installation 20-24
Operation....25
Maintenance....26-28
Spare parts....29–32


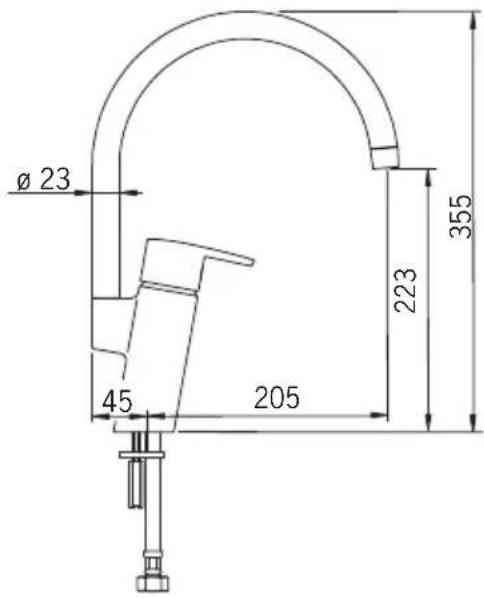

Line drawing of a kitchen faucet with curved handle and handle (no text or symbols)Technical data 33-34
Installation 35-37
Maintenance....38-39
Spare parts....40
Technical data 41-43
Installation 43
Operation....44
Maintenance....44-46
Spare parts....46–47
Technical data 48-49
Installation 50-51, 56
Maintenance....52-54
Spare parts....55

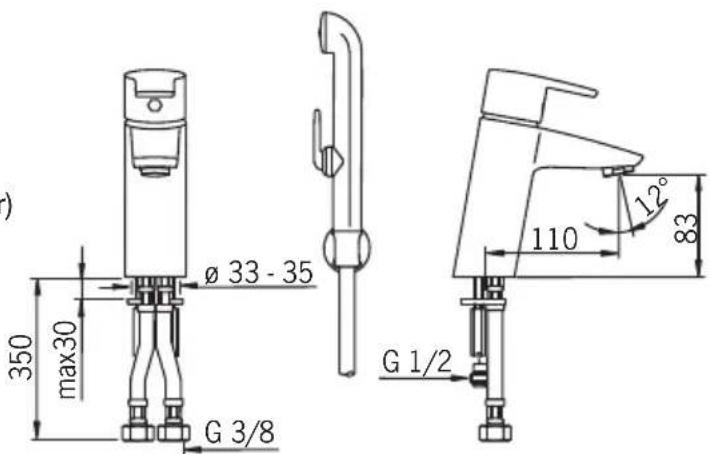

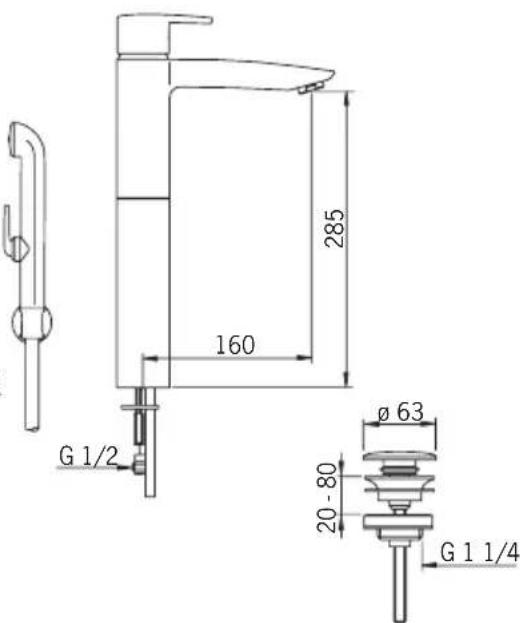

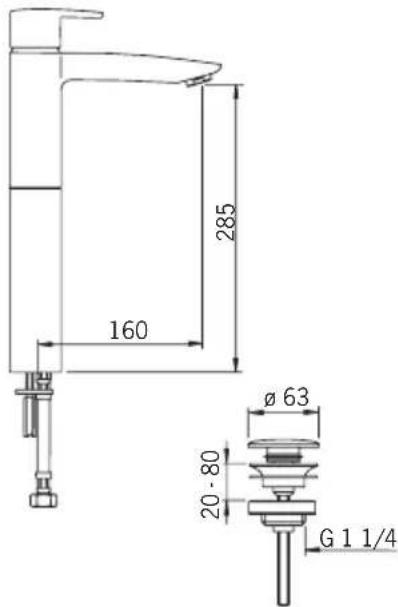

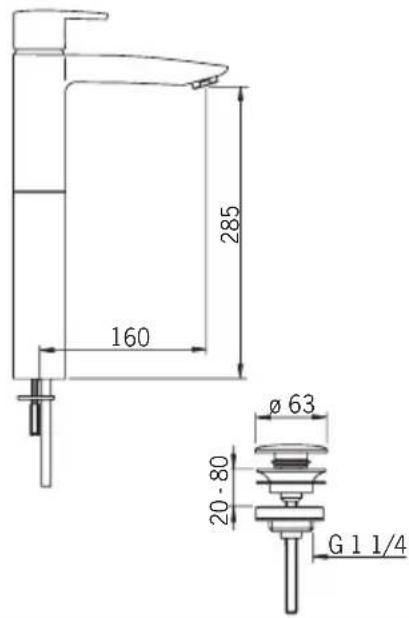

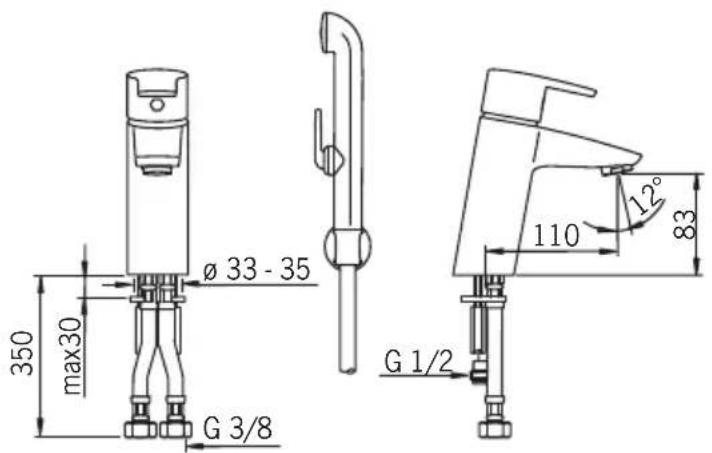

2801
EN 817
I (ISO 3822)
50 - a1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
1.42/17872
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 1322
2801F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
GODKENDT
TIL DRIKKEVAND
2802
EN 817
I (ISO 3822)
50 - 1000 kPa
0.14 l/s (300 kPa)
150 kPa (0.1 l/s)
max. +80^ C
STF VTT-RTH-04951-08
1.42/17872
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 1322
2805
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
70 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
1.42/17872
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1322
2805F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
GODKENDT TIL DRIKKEVAND
2806
EN 817
I (ISO 3822)
50 - 1000 kPa
0.14 l/s (300 kPa)
150 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
1.42/17872
GODKENDT TIL DRIKKEVAND
2804
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
70 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
.42/17873
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 1322
2804F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
GODKENDT
TIL DRIKKEVAND

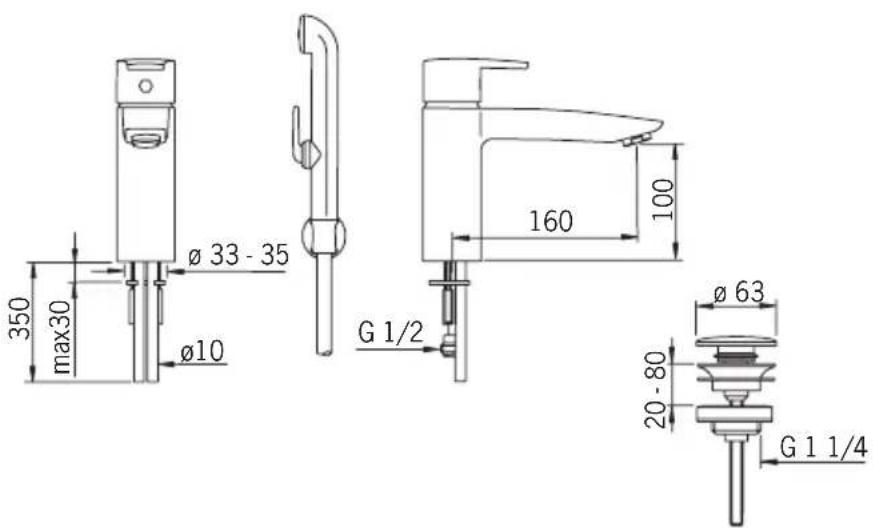

2808
EN 817
I (ISO 3822)
50 - 1000 kPa
0.14 l/s (300 kPa)
140 kPa (0.1 l/s)
max. +80^ C
STF VTT-RTH-04951-08
.42/17873
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 1322
2808F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
165 kPa (0.1 l/s)
max. +80°C
GODKENDT TIL DRIKKEVAND
2810
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
70 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
1.42/17873
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1322
2810F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
GODKENDT TIL DRIKKEVAND
2812
EN 817
I (ISO 3822)
50 - 1000 kPa
0.14 l/s (300 kPa)
140 kPa (0.1 l/s)
max. +80°C
STF VTT-RTH-04951-08
.42/17873
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 1322
2812F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
165 kPa (0.1 l/s)
max. +80°C
GODKENDT
TIL DRIKKEVAND
2818
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
max. +80^ C
STF VTT-RTH-04951-08
1.42/17875
GODKENDT
TIL DRIKKEVAND
2818F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
max. +80°C
GODKENDT TIL DRIKKEVAND
2810F-105
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.083 l/s (300 kPa) (with flow controller)
max. +80°C
GODKENDT TIL DRIKKEVAND
2812F-105
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.083 l/s (300 kPa) (with flow controller)
max. +80°C
GODKENDT TIL DRIKKEVAND

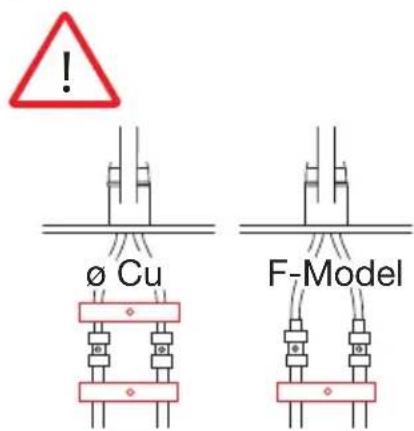

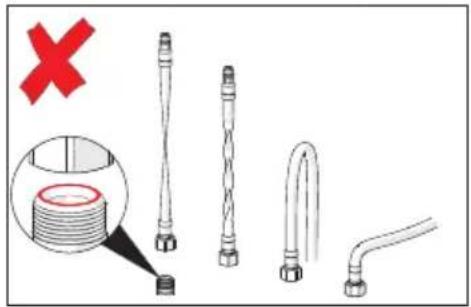

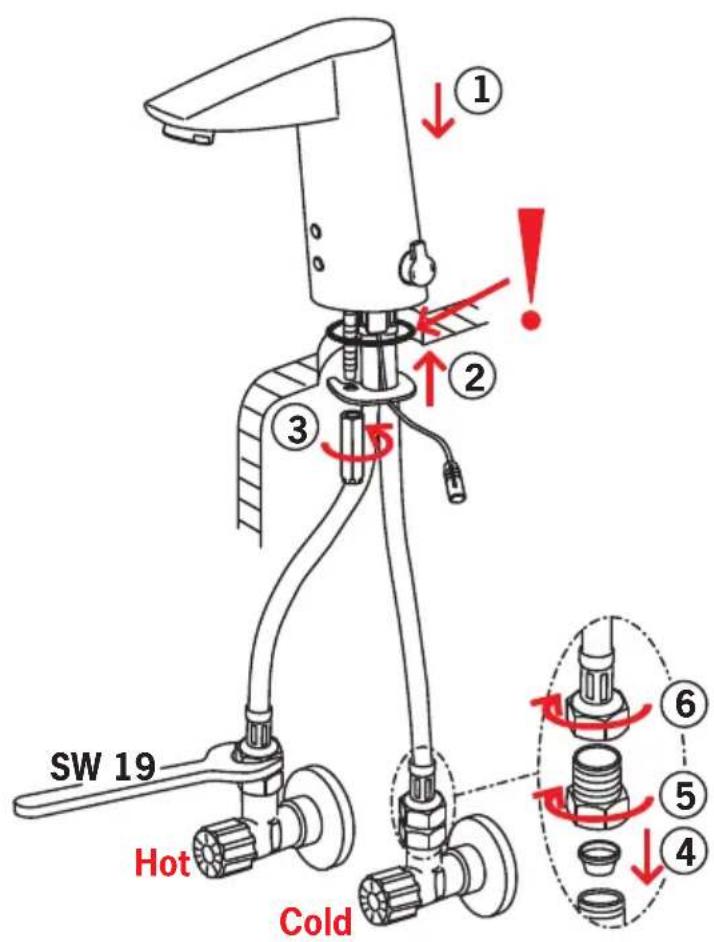

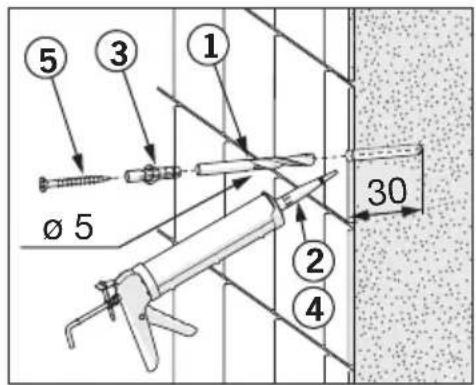

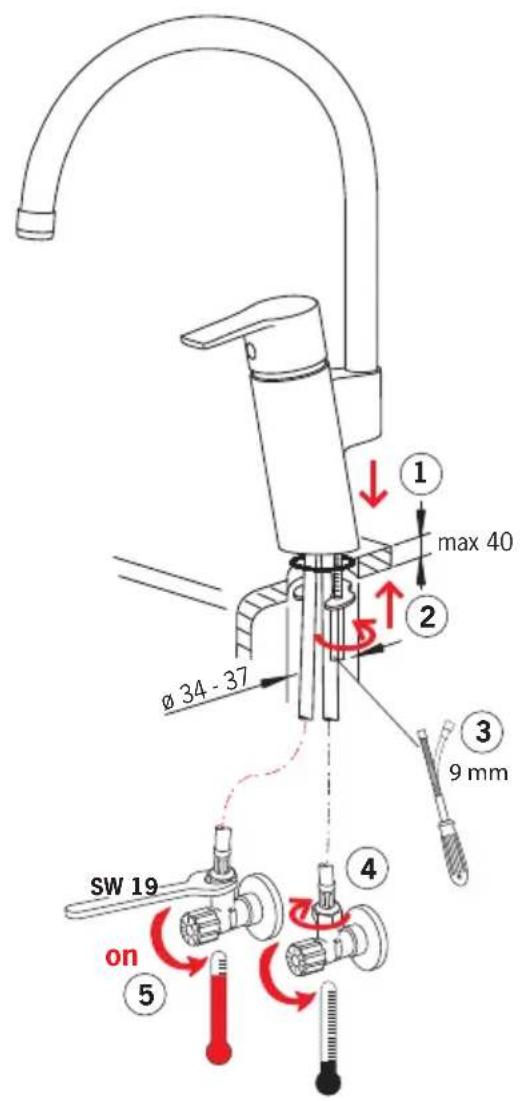

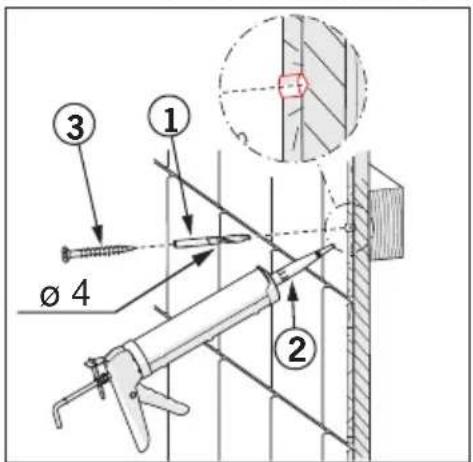

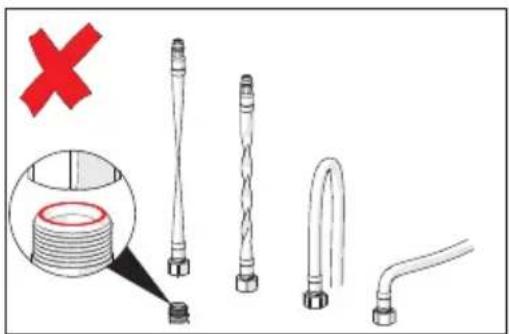

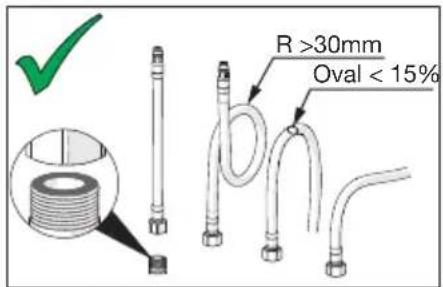

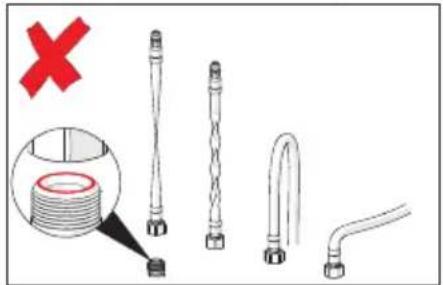

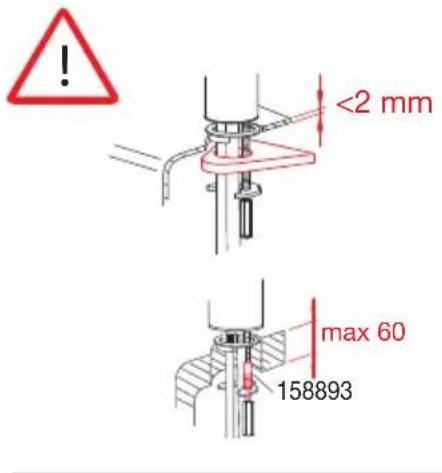

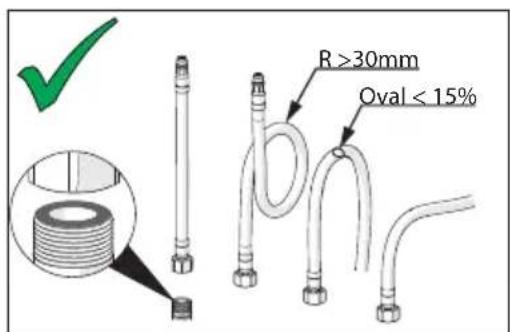

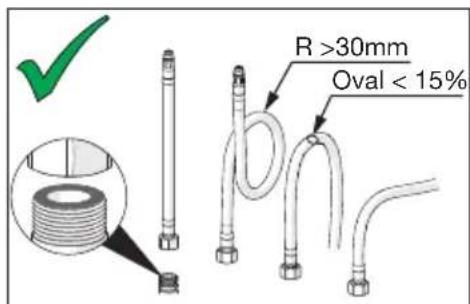

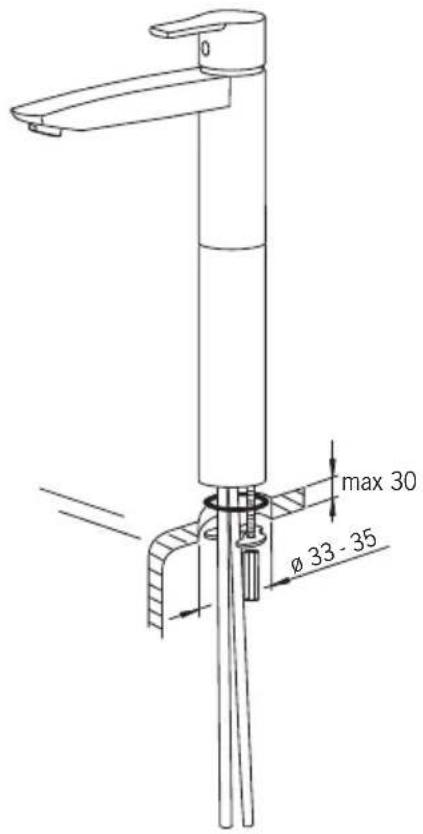

Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення

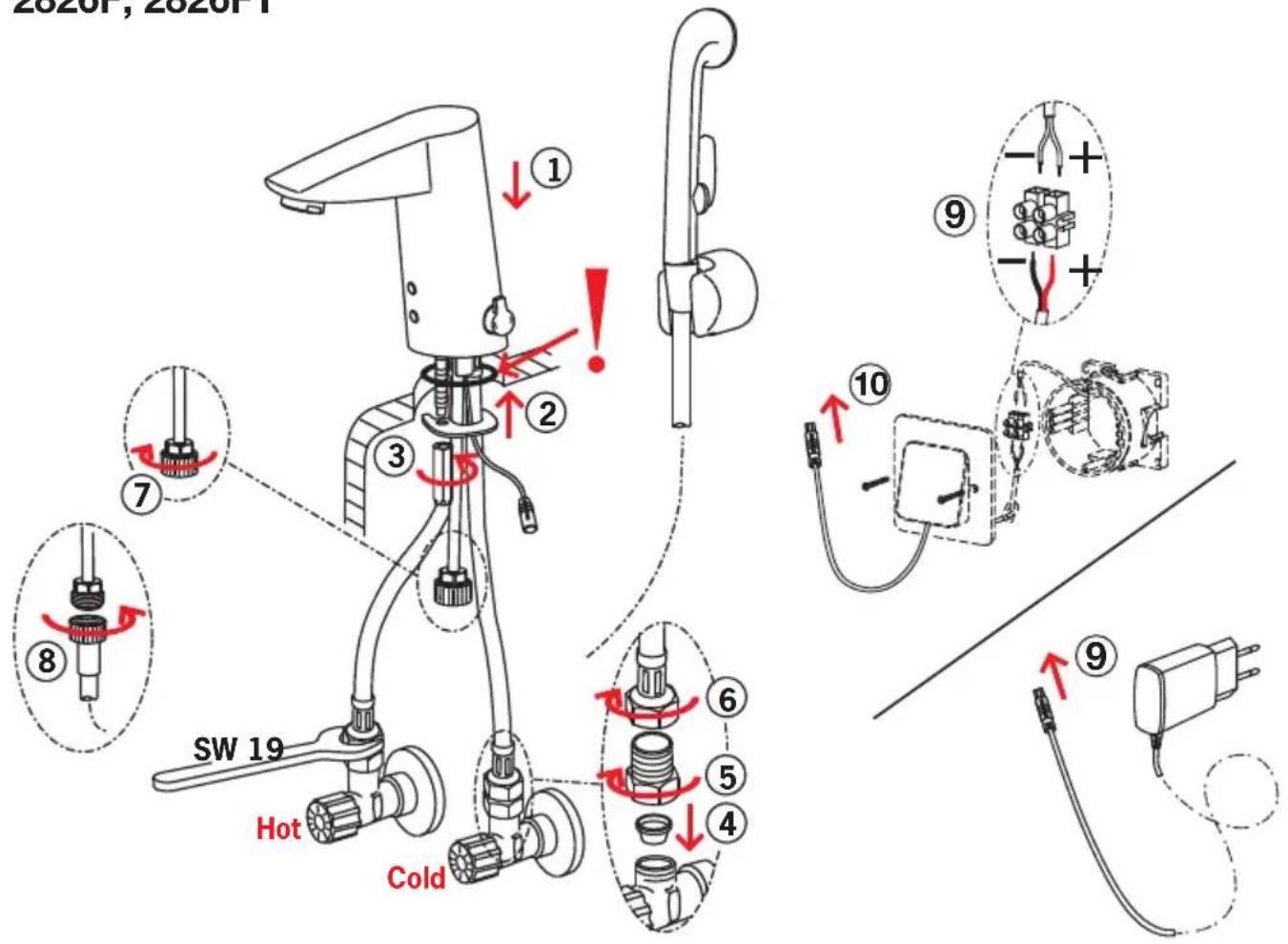

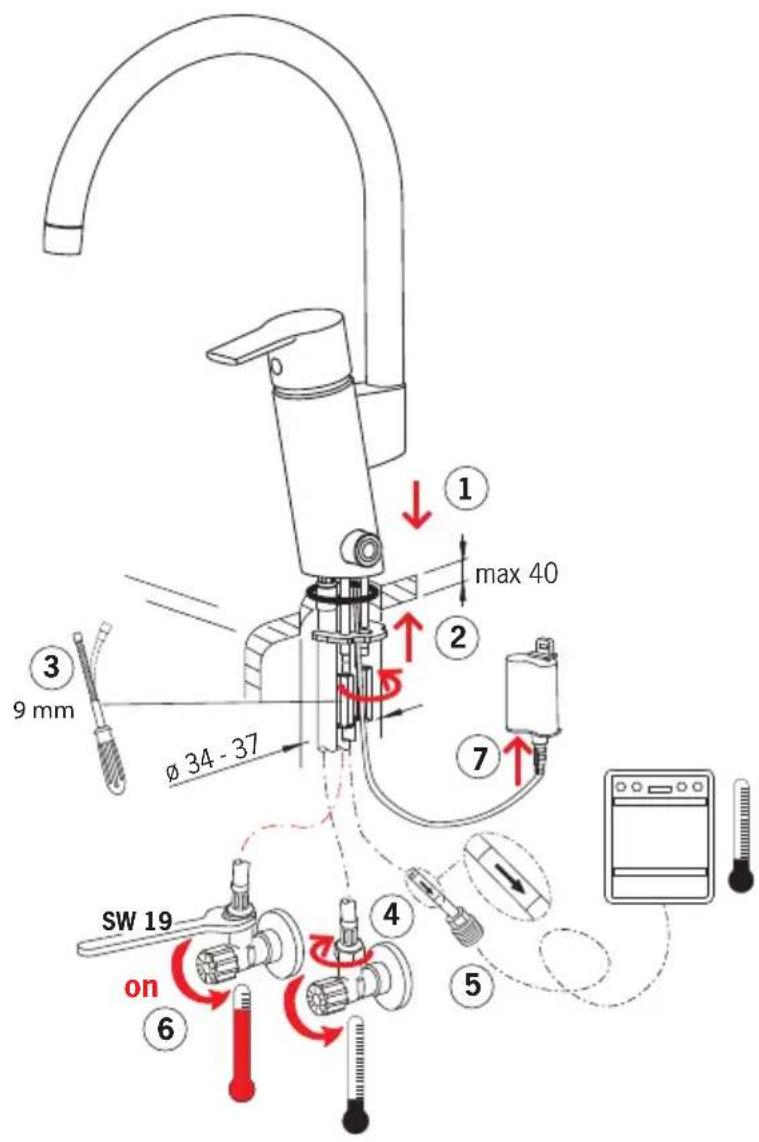

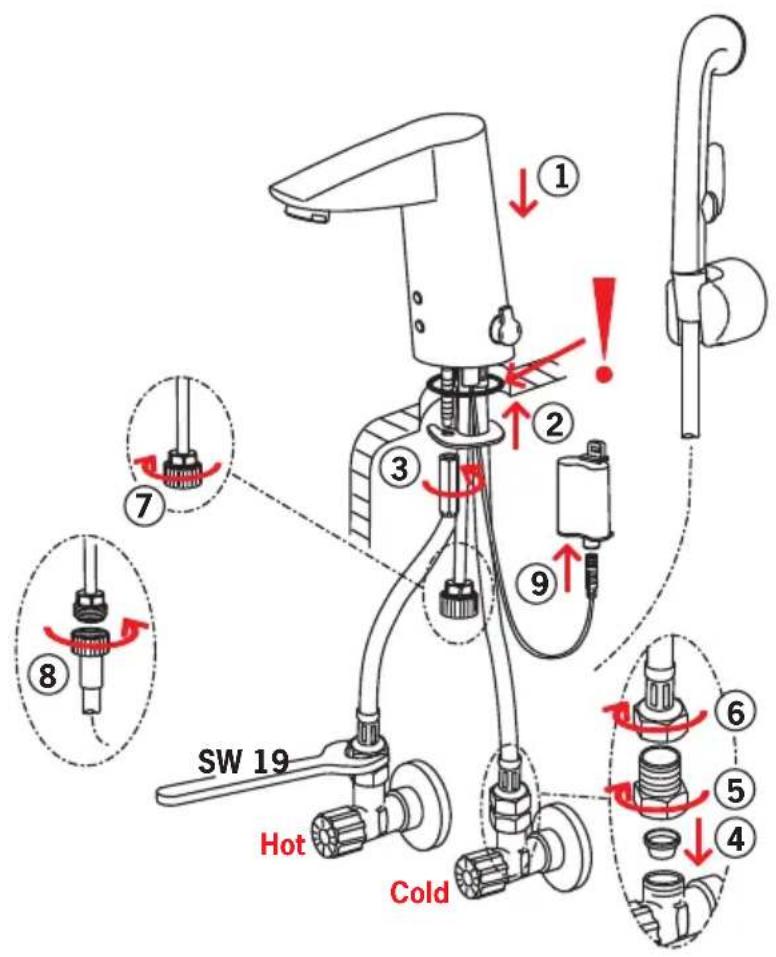

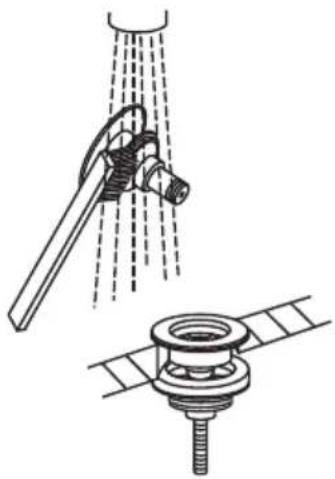

Installation/Operation
CZ Montáž/Funkce
DE Montage/Funktion
DK Installation/Betjening
EE Paigaldus/Toimimine
ES Montaje/Servicio
FI Asennus/Toiminta
FR Installation/Utilisation


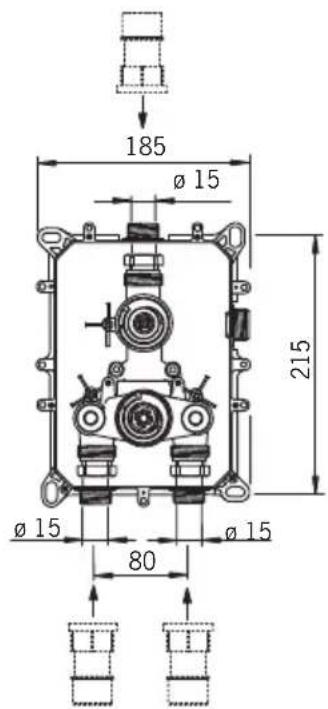

Technical diagram of a mechanical assembly with a knob and threaded base (no text or symbols)


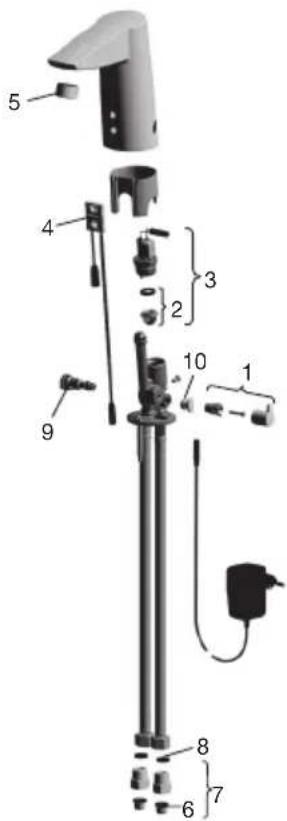

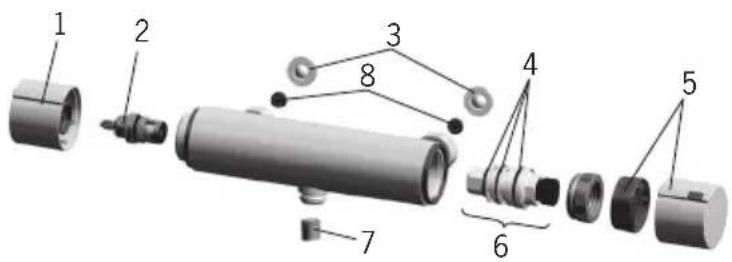

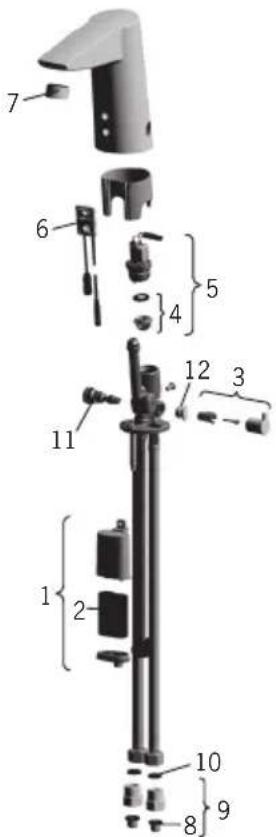

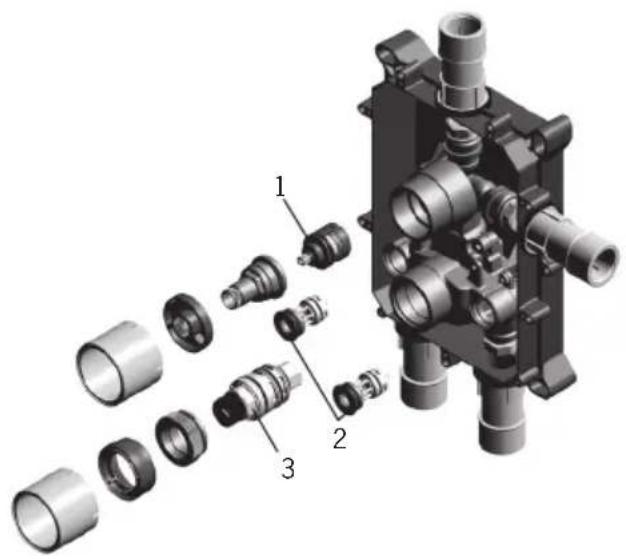

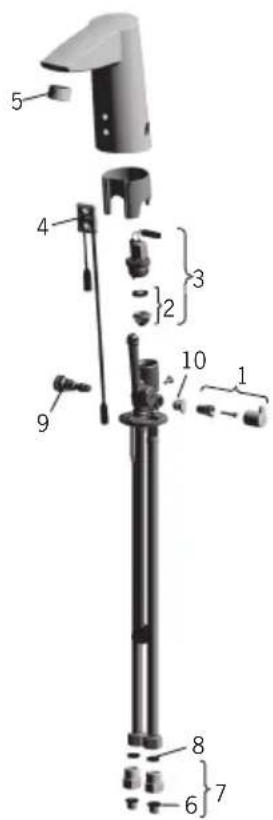

CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
0.1 l/s (300 kPa) (with flow controller)
200 kPa (0.1 l/s)
max. +70°C

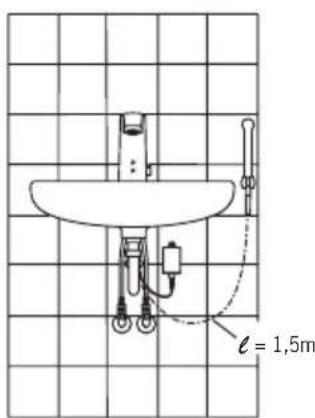

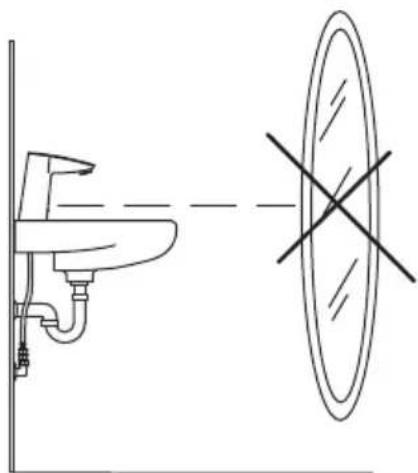

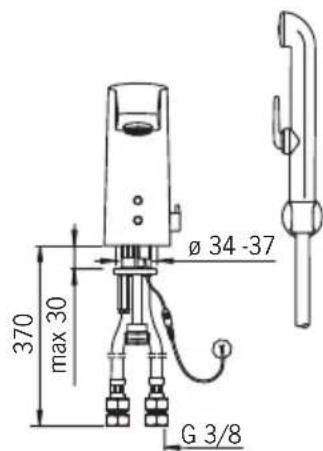

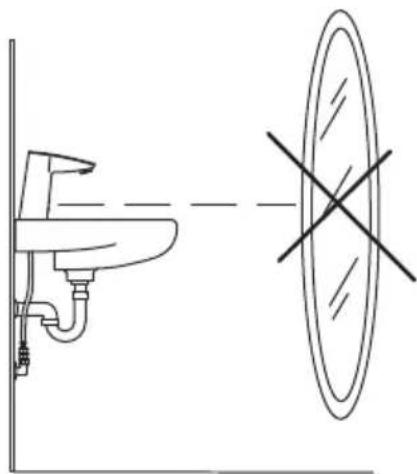

Diagram showing a faucet and a circular dial with a cross symbol (no text or labels)
STF VTT-RTH-00002-10
1.42/19220
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1534
(EMC 2004/108/EY)

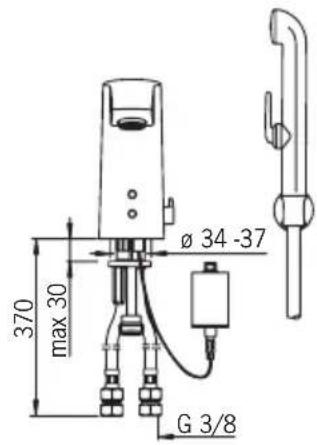

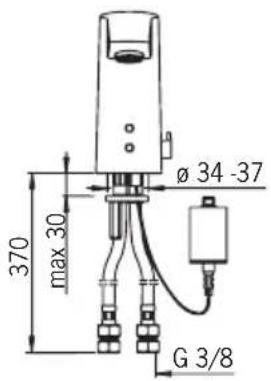

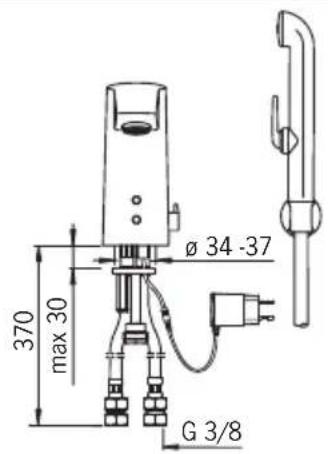

2816F
EN 15091
I (ISO 3822)
100 - 1000 kPa
0.1 l/s (300 kPa) (with flow controller)
250 kPa (0.1 l/s)
max. +70°C


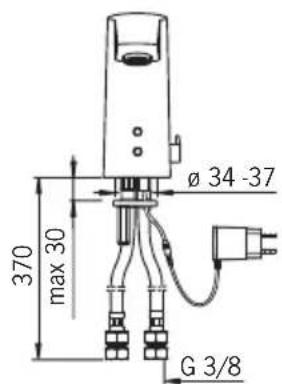

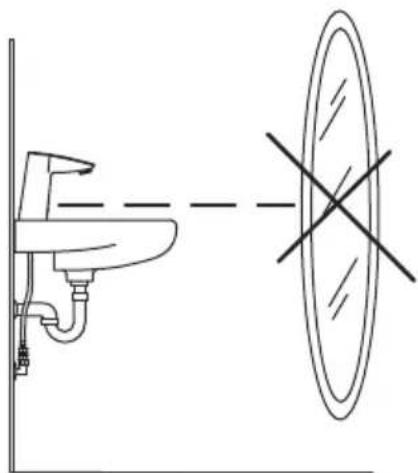

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)
STF VTT-RTH-00002-10
1.42/19220
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1534
(EMC 2004/108/EY)

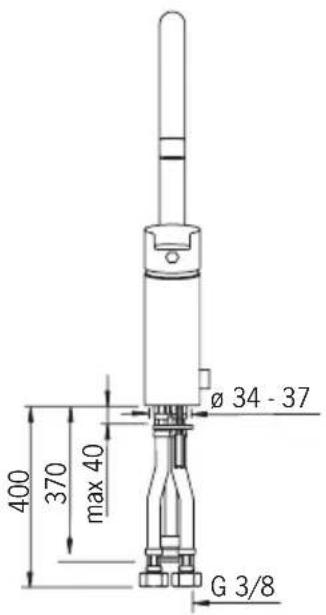

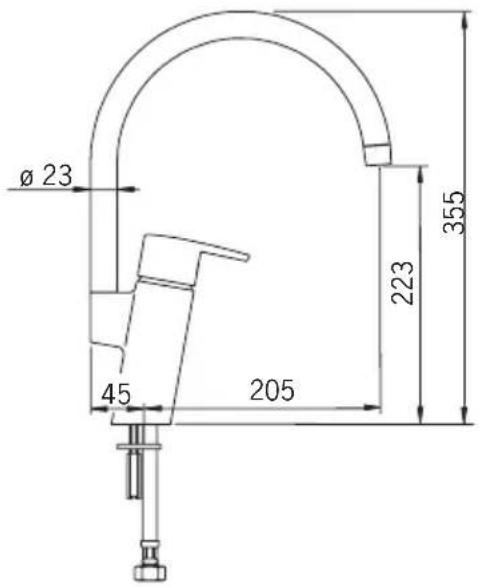

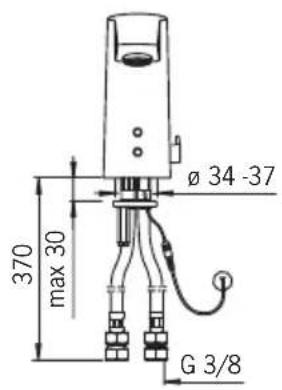

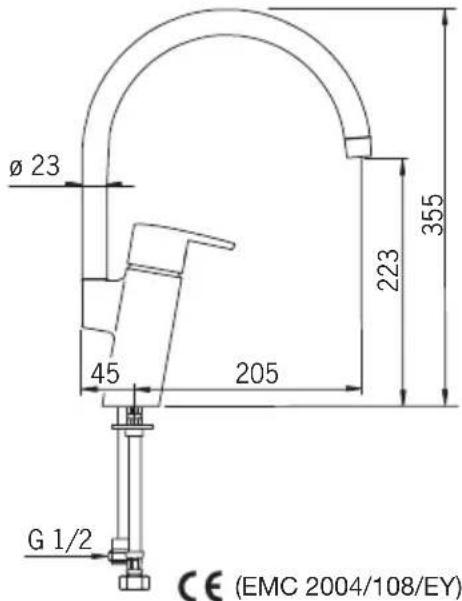

Technical data
CZ Technická data
DE Technische Daten
DK Tekniske data
EE Tehnilised andmed
ES Datos técnicos
FI Tekniset tiedot
Intelligent afterflow period
0.1 l/s (300 kPa) (with flow controller)
200 kPa (0.1 l/s)
max. +70°C

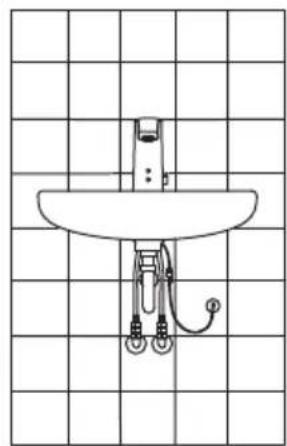

(EMC 2004/108/EY)
STF VTT-RTH-00002-10
GODKENDT TIL DRIKKEVAND

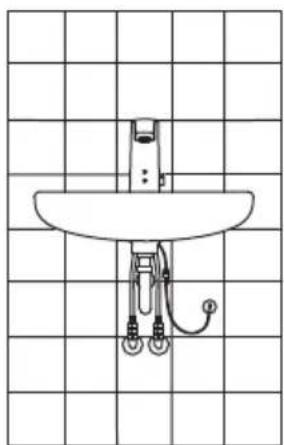

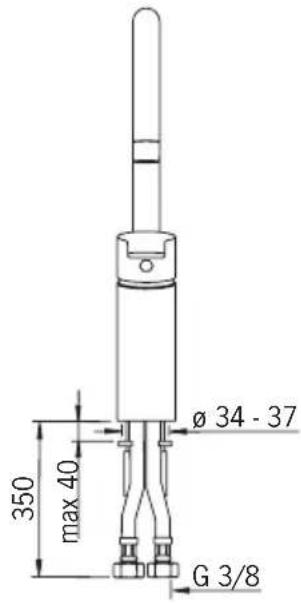

2824FT
EN 15091
I (ISO 3822)
100 - 1000 kPa
0.1 l/s (300 kPa) (with flow controller)
200 kPa (0.1 l/s)
max. +70^ C

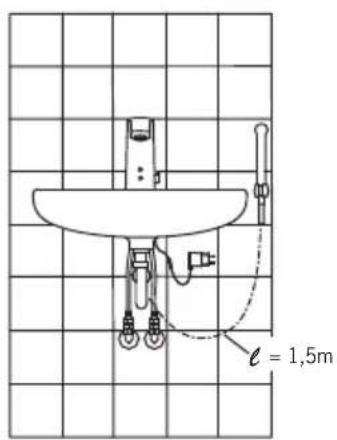

(EMC 2004/108/EY)
STF VTT-RTH-00002-10
GODKENDT TIL DRIKKEVAND
2824FNT
EN 15091
I (ISO 3822)
100 - 1000 kPa
0.1 l/s (300 kPa) (with flow controller)
200 kPa (0.1 l/s)
max. +70°C
STF VTT-RTH-00002-10
GODKENDT TIL DRIKKEVAND
2826F
EN 15091
I (ISO 3822)
100 - 1000 kPa
0.1 l/s (300 kPa) (with flow controller)
250 kPa (0.1 l/s)
max. +70°C
STF VTT-RTH-00002-10
GODKENDT TIL DRIKKEVAND
2826FT
EN 15091
I (ISO 3822)
100 - 1000 kPa
0.1 l/s (300 kPa) (with flow controller)
250 kPa (0.1 l/s)
max. +70°C
STF VTT-RTH-00002-10
GODKENDT TIL DRIKKEVAND
Technical data
| CZ | Technická data | EE Tehnilised andmed | FR Données techniques | LV Tehniskie dati | PL Dane techniczne | SE Teknisk information |
| DE | Technische Daten | ES Datos técnicos | IT Dati tecnici | NL Technische gegevens | RO Date tehnice | SK Technické údaje |
| DK | Tekniske data | FI Tekniset tiedot | LT Techniniai duomenys | NO Teknisk informasjon | RU Технические данные | UA Технічні дані |
| GB | Protection class | Recognition range | Max. flow period | Intelligent afterflow period | ||
| CZ | Trída bezpečnosti | Rozlišovací rozsah | Max. doba průtoku | Čas dodatečného průtoku | ||
| DE | Sicherheitsklasse | Sensorreichweite | Max. Fließdauer | Intelligente Nachlaufzeit | ||
| DK | Beskyttelsesklasse | Sensor område | Max. løbetid | Intelligent efterløbetid | ||
| EE | Kaitseklass | Toimimiskaugus | Maksimaalne vee vooluaja pikkus | Optimaalne järelvooluaja pikkus | ||
| ES | Grado de protección | Alcance del sensor | Período máximo de flujo | Tiempo caudal posterior | ||
| FI | Suojausluokka | Tunnistusalue | Max. virtausaika | Älykäs jälkivirtaama-aika | ||
| FR | Norme de sécurité | Longueur du faisceau | Durée maximum d'écoulement | Temporisation de débit intelligente | ||
| IT | Protezione classe | Raggio d'azione del sensore | Scorrimento mass. | Tempo di scorrimento a posteriori | ||
| LT | Saugumo klasė | Atpažinimo atstumas | Maksimali srovės tekėjimo trukmė | Tekėjimo trukmė po prausimosi | ||
| LV | Aizsardzības klase | Atpazīšanas diapazpns | Maksimālais plūsmas periods | Skalošanas periods | ||
| NL | Veiligheidsklasse | Sensorbereik | Max. looptijd | Intelligente nalooptijd | ||
| NO | Tetthetsklasse | Folsomhetsområde | Funksjonstid | Intelligent etterrenningstid | ||
| PL | Klasa bezpieczeństwa | Zasięg działania | Max czas przeplywu | Inteligentne opóźnienie zamknięcia | ||
| RO | Clasa de protectie | Raza de sesizare | Perioadă max. de curgere | Perioadă de curgere remanentă intelligentă | ||
| RU | Степень защиты | Расстояние опознавани | Макс. время подачи воды | Продолжительность окончат. смыва | ||
| SE | Kapslingsklass | Känslighetsområde | Max. flödestid | (автоматическая настройка) | ||
| SK | Trieda bezpečnosti | Rozlišovacia vzdialenost | Max. doba prietoku | Intelligent efterflödestid | ||
| UA | Ступінь захисту | Відстань розпізнавання | Макс. час подачі води | Inteligentná doba po prietoku | ||
| IP 67 | optimally preset | 2 min | Тривалість кінц. змиву (автоматичне налаштування) | |||
| 2 s ± 1 s | ||||||

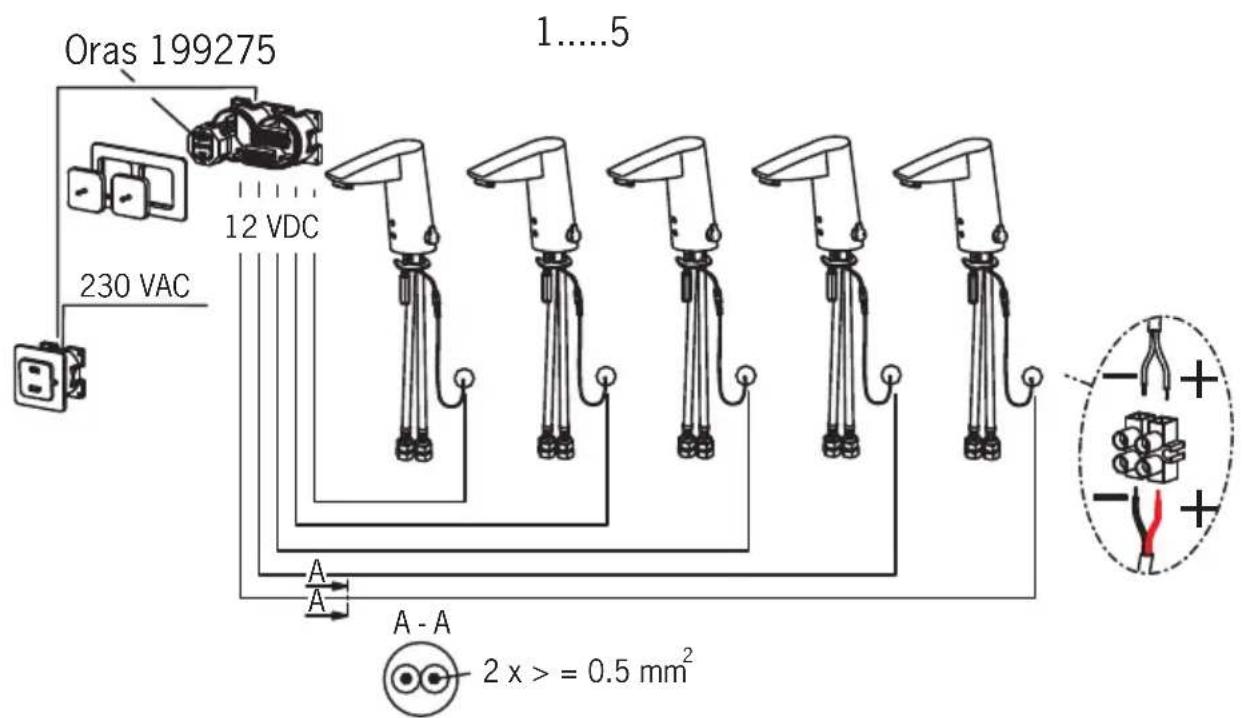

| GB | Electrical Connection | Nominal current consumption | Min. current consumption | Allowed power supply ripple | ||
| CZ | Napájecí napěti | Nominální spotřeba | Minimální spotřeba | Povolená tolerance ripple | ||
| DE | Elektr. Anschluß | Nominaler Stromverbrauch | Min. Stromverbrauch | Zulässiger Netzanschluß | ||
| DK | Elektrisk tilslutning | Nominelt strømforbrug | Min. strømforbrug | Tilladt udsving strømforsyning | ||
| EE | Elektriliides | Nominaalne voolutarve | Min. voolutarve | Lubatud toitepinge hälve | ||
| ES | Instalación eléctrica | Consumo nominal | Consumo mínimo | Ondulación fuente alimentación | ||
| FI | Sähköliitäntă | Nimellinen virrankulutus | Min. virrankulutus | Sallittu syöttöjännitteen rippeli | ||
| FR | Connexion électrique | Consommation courante nominale | Consommation courante mininale | Crête de puissance autorisée | ||
| IT | Collegamento elettrico | Consumo di corrente nominale | Consumo di corrente (Min.) | Corrente alternata consentita | ||
| LT | Maitinimo šaltinis | Nominalus srovės sunaudojimas | Minimalus srovės sunaudojimas | Leistinas maitinimas | ||
| LV | Elektrobarošana | Nominalais energijas patériņš | Min. energijas patériņš | Pielaujamās barošanas svärstības | ||
| NL | Electrische aansluiting | Nominaal stroomverbruik | Min. stroomverbruik | Toegestane stroomdeining | ||
| NO | Elektrisk tilkobling | Nominelt strømforbruk | Min. strømforbruk | Tillatt rippelspenning | ||
| PL | Podlaczenie elektryczne | Nominalne bieżące zużycie | Minimalne bieżące zużycie | Dopuszczalna wiązka dostarczanej energii | ||
| RO | Conexiune electrică | Consum nominal de curent | Consum min. de curent | Ondulantă admisă ptr. puterea de alimentare | ||
| RU | Электропитание | Номинальное потребление тока | Минимальное потребление тока | Допустимый уровень пульсации напряжения | ||
| SE | El-anslutning | Nominell strömförbrukning | Min. strömförbrukning | Max. rippelspänning | ||
| SK | Elektrické pripojenie | Nominálna spotreba prúdu | Minimálna spotreba prúdu | Povolenė kolísanie napájania | ||
| UA | Електроживлення | Номинальне споживання струму | Минимальне споживання струму | Допустимий рівень пульсації напруги | ||
| 12 VDC ± 5 % | 0.2 A | 0 A | <100 mVpp | |||

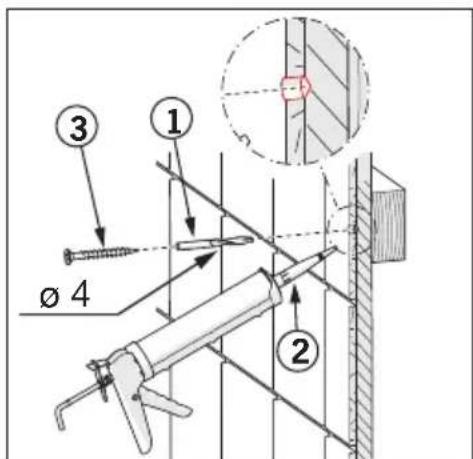

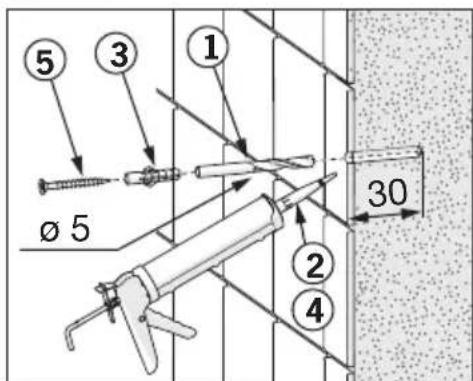

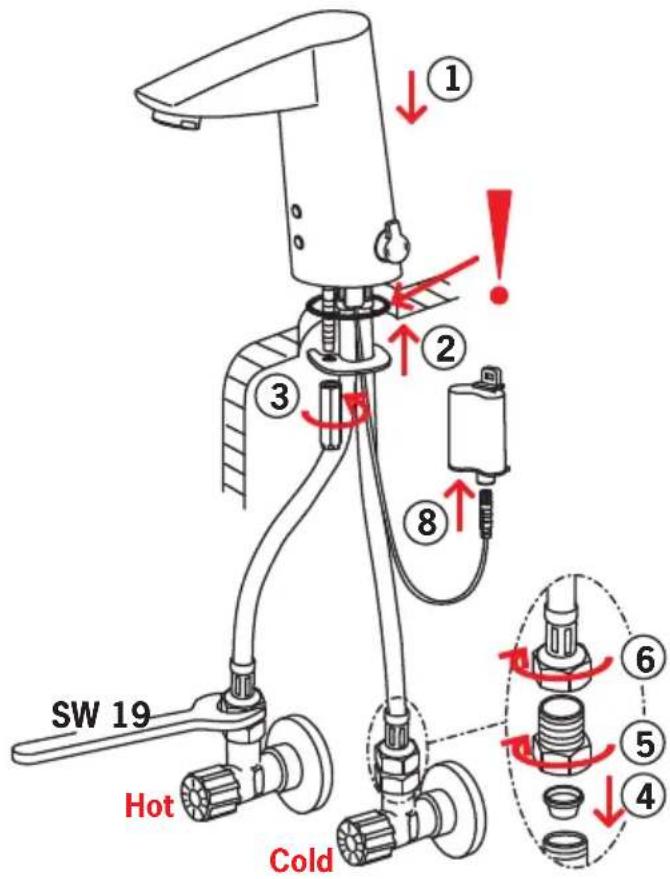

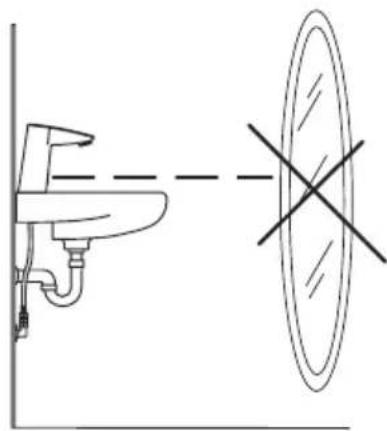

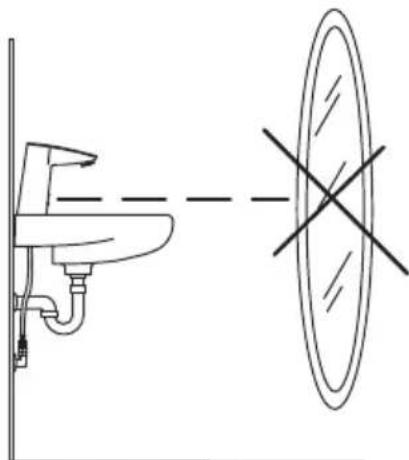

Installation
CZ Montáž
FI Asennus
NL Installatie
RU Установка
DE Montage
FR Installation
NO Montering
SE Installation
DK Installation
IT Montaggio
PL Instalacja
SK Inštalácia
EE Paigaldus
LT Montavimas
RO Instalare
UA Встановлення
ES Montaje
LV Montāža

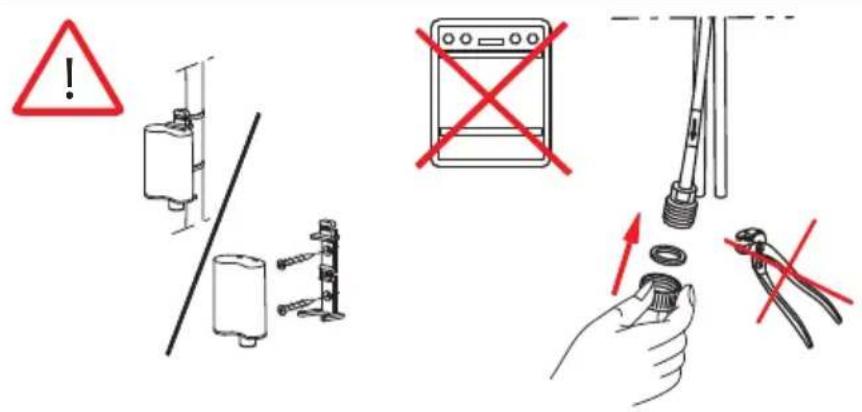

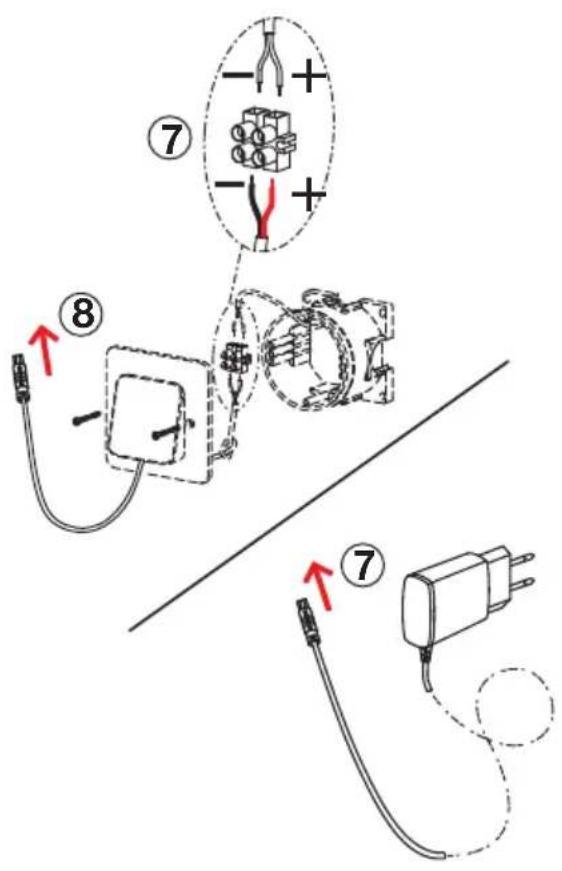

GB Power supply requirement: Power supply output must be short circuit protected
CZ Požadavky týkající se napájecího zdroje: Výstup napájecího zdroje musí být chráněn proti zkratu
DE Stromversorgungsvoraussetzungen: Stromversorgungsspannung muss kurzschlussgeschützt sein
DK Krav til strømforsyning: Strømforsyningsudgang skal være kortslutningsbeskyttet
EE Nõuded vooluallikale: Vooluallika väljund peab olema kaitstud lühise eest
ES Requisitos del suministro eléctrico: el suministro eléctrico debe estar protegido contra cortocircuitos
FI Vaatimukset virtalähteelle: Virtalähteen ulostulon tulee olla oikosulkusuojattu
FR Unité d'alimentation électrique: La sortie de l'unité d'alimentation oit être protégée contre le court-circuit
IT Requisiti dell'alimentazione: L'uscita deve essere protetta da cortocircuiti
LT Reikalavimai maitinimo šaltiniui: turi būti apsauga nuo trumpo jungimo
LV Prasības attiecībā uz barošanas ierīci: ierīces izvadam jābūt aizsargātam pret īsslēgumiem
NL Vereisten voor de voeding: De uitgang van de voeding moet beschermd zijn tegen kortsluitingen
NO Krav til strømforsyning: Strømforsyningsspenning må være kortslutningssikret
PL Wymagania w stosunku do zasilacza: Zasilacz musi być wyposażony w zabezpieczenie przeciwzwarciowe
RO Pentru alimentarea cu putere: borna de putere trebuie să fie protejată la scurtcircuit
RU Требования к источнику тока: Выход источника тока защищен от короткого замыкания
SE Krav på matningsdon: Utspänningen skall vara kortslutningssäker
SK Požiadavka na napájanie: Výstup napájania musí byť chránený voči skratu
UA Вимоги до джерела струму: Вихід джерела струму захищений від короткого замикання
2824F, 2824FT, 2724FNT, 2826F, 2826FT

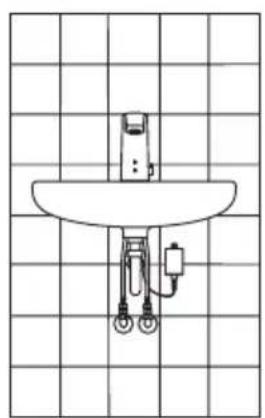

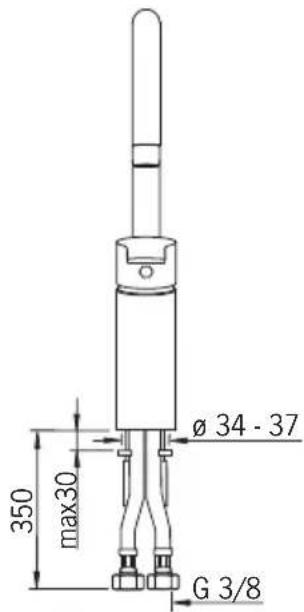

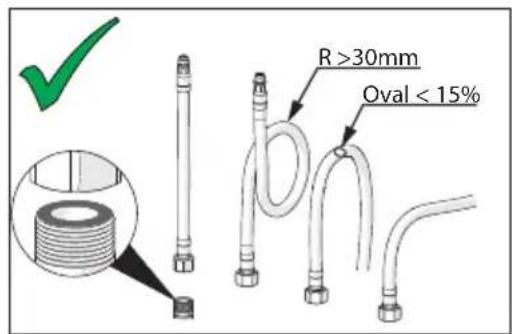

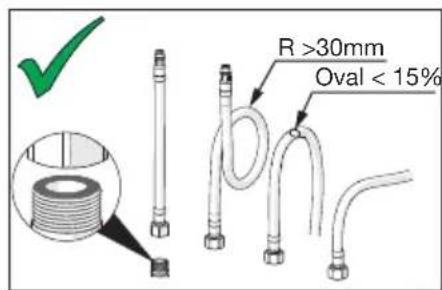

Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення

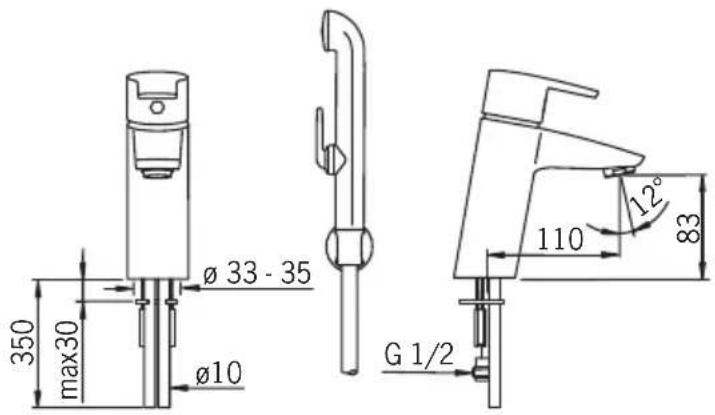

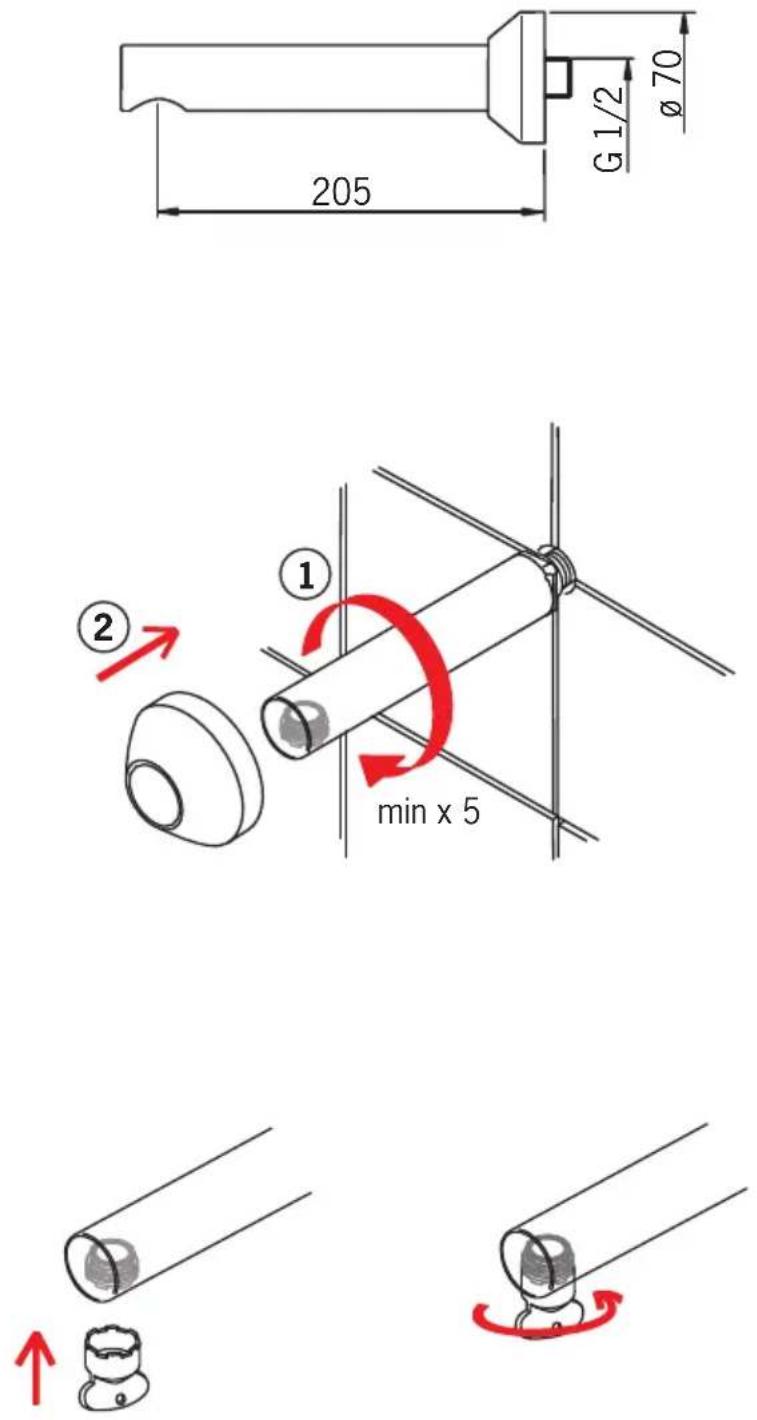

2814F


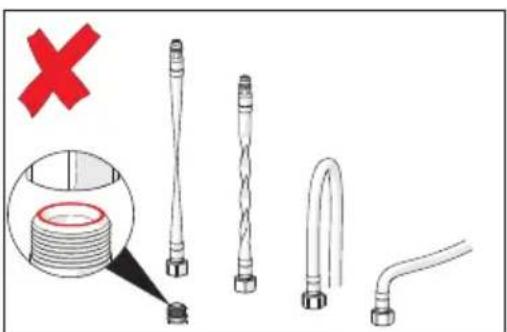

Illustration of various pipe fittings and connectors with a red X mark, no text or symbols present


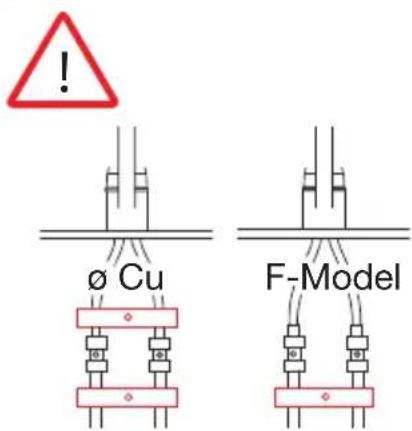

Installation
CZ Montáž
FI Asennus
NL Installatie
RU Установка
DE Montage
FR Installation
NO Montering
SE Installation
DK Installation
IT Montaggio
PL Instalacja
SK Inštalácia
EE Paigaldus
LT Montavimas
RO Instalare
UA Встановлення
ES Montaje
LV Montāža

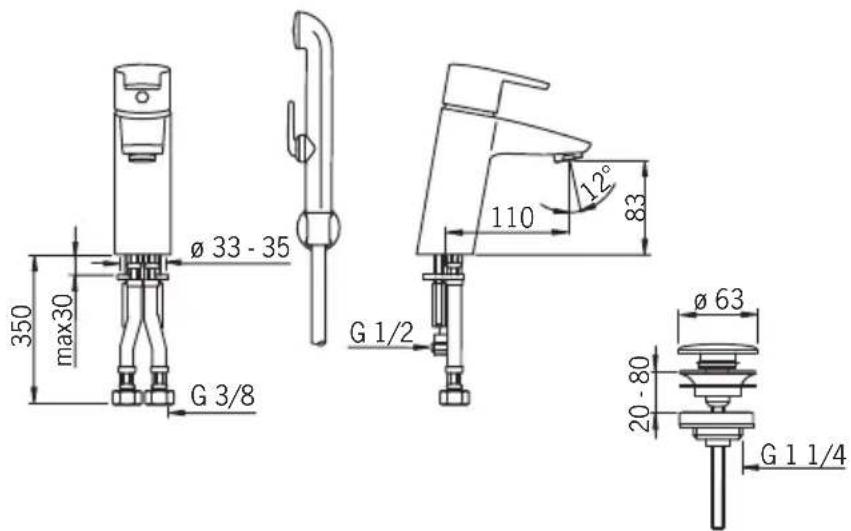

2816F


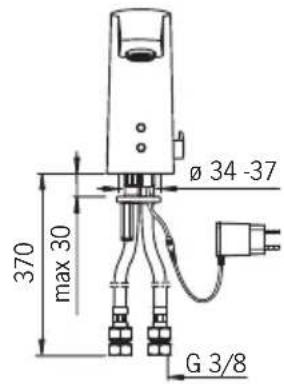

Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення

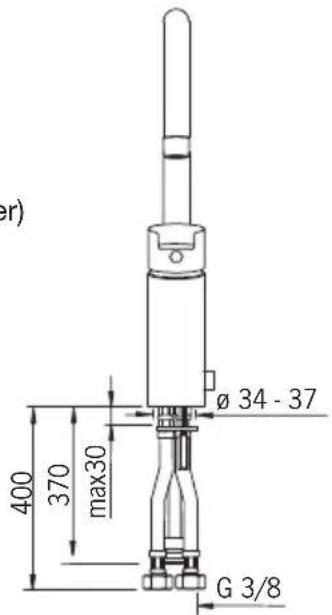

2824F, 2824FT, 2724FNT

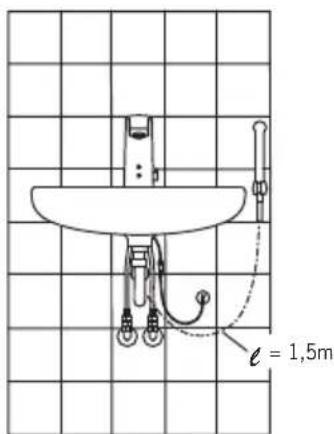

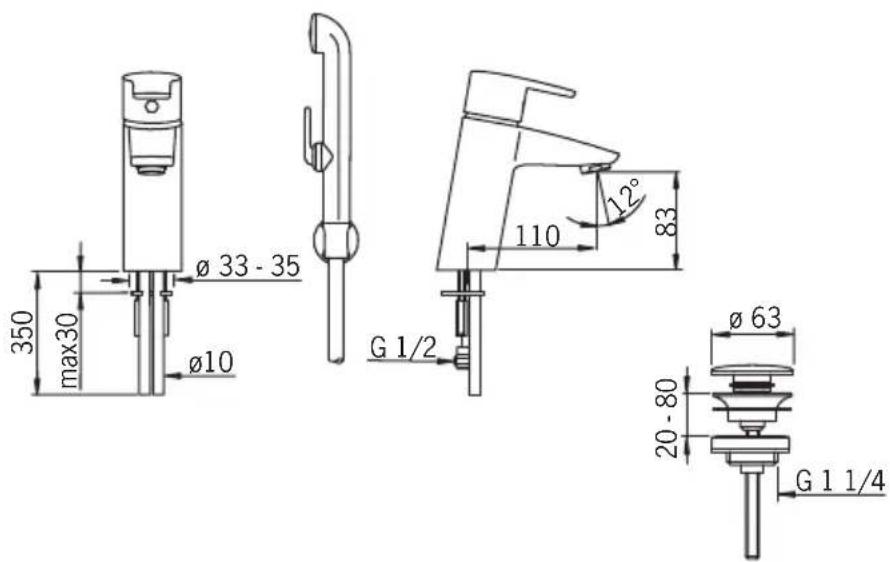

Installation
CZ Montáž
FI Asennus
NL Installatie
RU Установка
DE Montage
FR Installation
NO Montering
SE Installation
DK Installation
IT Montaggio
PL Instalacja
SK Inštalácia
EE Paigaldus
LT Montavimas
RO Instalare
UA Встановлення
ES Montaje
LV Montāža
2826F, 2826FT
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas
Cleaning the faucet
CZ Čištění baterie
DE Reinigung der Armatur
DK Rengøring af armaturet
EE Puhastamine
ES Limpieza de la grifería
FI Puhdistus
FR Nettoyage du robinet
IT Pulizia della rubinetteria
LT Maišytuvo valymas
LV Krāna tīrīšana
NL Reinigen van de kraan
NO Rengjøring av kranen
CZ Výměna baterie
Cleaning/changing the litter filters
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
2816F
1 199417V
2 198330
3 600493V
4 199205V
5 199206V
6 600657V
7 601166V
8 199257/2
9 198473/2
10 600705/10
11 199201V
12 601141V
1 159684
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
2824FT
1 600493V
2 199205V
3 199206V
4 600839V
5 199266V
6 199257/2
7 198473/2
8 600705/10
9 199201V
10 601141V
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
2826F
1 600493V
2 199205V
3 199206V
4 600974V
5 601166V
6 199257/2
7 198473/2
8 600705/10
9 199201V
10 601141V
1 159684
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
2838F
EN 817
50 - 1000 kPa
I (ISO 3822)
0.24 l/s (300 kPa)
210 kPa (0.2 l/s)
max. +80°C
STF VTT-RTH-04950-08
1.42/17876
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1323
2839F
EN 817
50 - 1000 kPa
I (ISO 3822)
0.2 l/s (300 kPa)
300 kPa (0.2 l/s)
max. +80°C
STF VTT-RTH-04950-08
1.42/17876
GODKENDT TIL DRIKKEVAND
Sintef Nr. 1323
(EMC 2004/108/EY)
2838F-105
EN 817
50 - 1000 kPa
I (ISO 3822) Oras lab.
0.083 l/s (300 kPa) (with flow controller)
max. +80°C
GODKENDT TIL DRIKKEVAND
2839F-105
EN 817
50 - 1000 kPa
I (ISO 3822) Oras lab.
0.083 l/s (300 kPa) (with flow controller)
max. +80^ C
GODKENDT
TIL DRIKKEVAND
(EMC 2004/108/EY)
Technical data
CZ Technická data
DE Technische Daten
DK Tekniske data
EE Tehnilised andmed
ES Datos técnicos
FI Tekniset tiedot

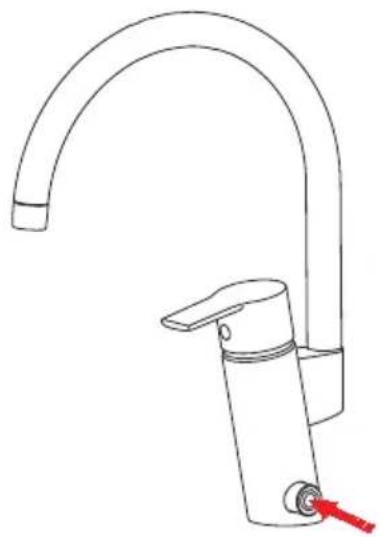

Dishwasher valve open period
push 5 s → on 12 h → automatic off/push off
Installation
CZ Montáž
FI Asennus
NL Installatie
RU Установка
DE Montage
FR Installation
NO Montering
SE Installation
DK Installation
IT Montaggio
PL Instalacja
SK Inštalácia
EE Paigaldus
LT Montavimas
RO Instalare
UA Встановлення
ES Montaje
LV Montāža

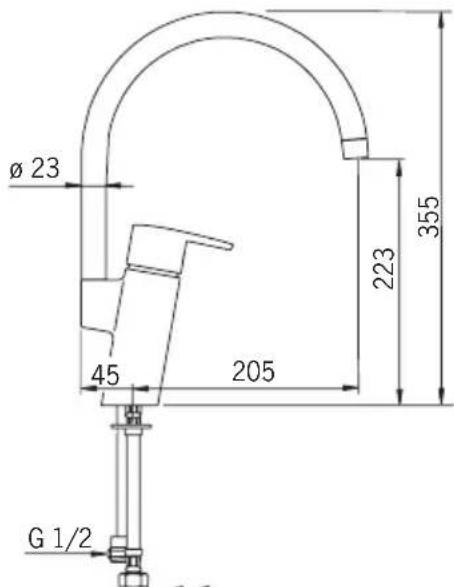

2838F, 2838F-105
Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення
2839F, 2839F-105

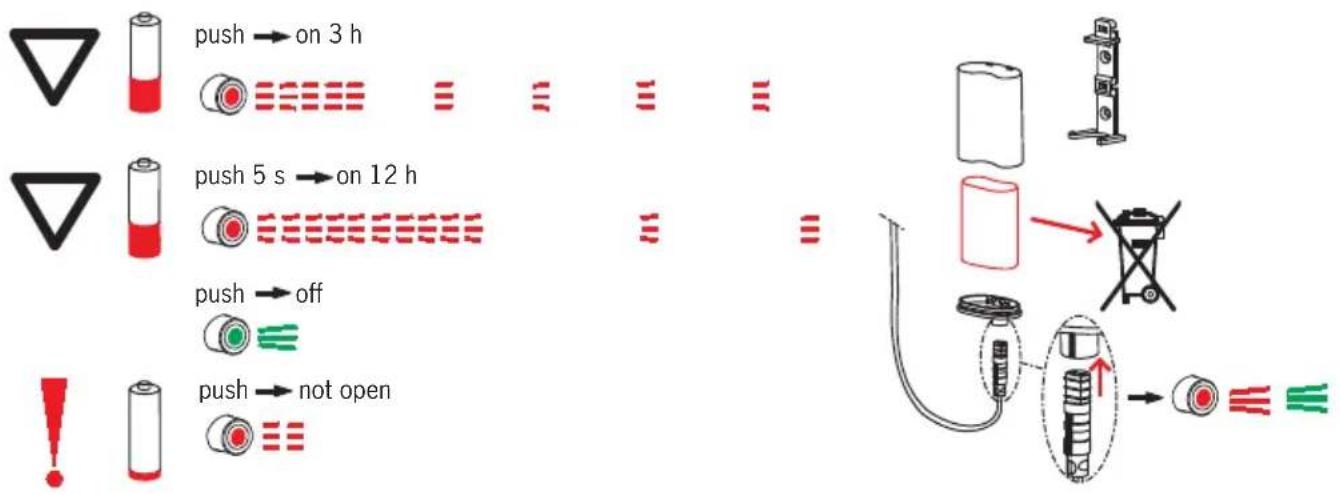

Changing the battery
CZ Výměna baterie
DE Wechsel der Batterie
DK Udskiftning af batteri
EE Patarei vahetamine
ES Cambiar la batería
FI Pariston vaihto
FR Changement de la pile
IT Sostituzione della batteria
LT Baterijos pakeitimas
LV Baterijas maina
NL Batterij vervangen
NO Bytting av batteri
PL Wymiana baterii zasilającej
RO Înlocuirea bateriei electrice
RU Замена батарейки
SE Byte av batteri
SK Výmena batérie
UA Заміна батарейки
2839F, 2839F-105
Limiting the flow rate
CZ Omezeni průtoku
DE Bergenzung der Durchflußmenge
DK Begrænsning af vandmængden
EE Vooluhulga piiramine
ES Limitación de la tasa de flujo
FI Virtaaman rajoitus
FR Limitation du débit
IT Limitazione della portata
LT Vandens srovės reguliavimas
LV Ūdens plūsmas ierobežošana
NL Begrenzing van de doorstroomhoeveelheidg
NO Begrensning av vannmengde
PL Ograniczenie wielkości strumienia
RO Limitarea debitului
RU Регулирование потока
SE Flödesbegränsning
SK Obmedzenie prietoku
UA Регулювання потоку
To change the cartridge
CZ Výména kartuše
0.12 l/s (300 kPa) (with flow controller)
max. +80°C
Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення
Operation
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas
SERVICE 1: Temperature adjustment
Cleaning/changing the litter filters
To change the cartridge
CZ Výména kartuše
Changing the operating valve
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad

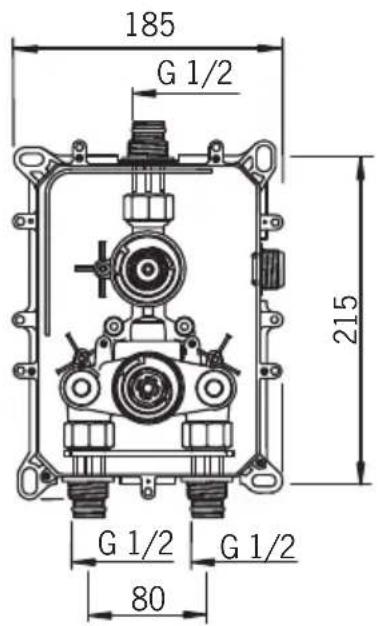

2470
1 159045V
2 109898
3 178375V
4 178796V
5 159048V
6 178780V
7 600978 (9 l/min)
8 600977 (6 l/min)

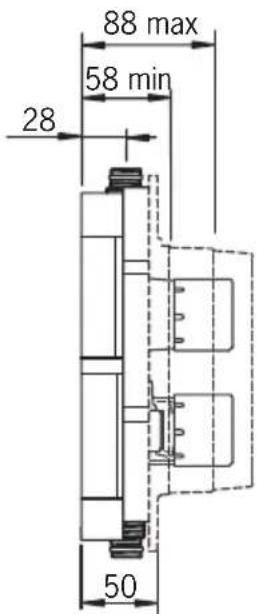

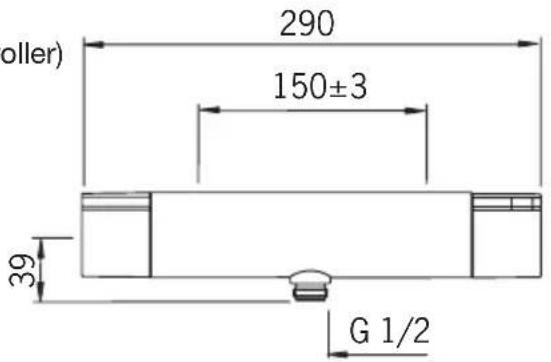

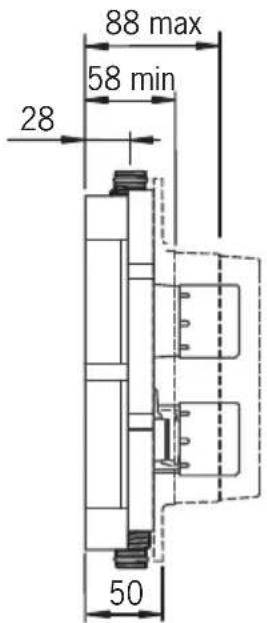

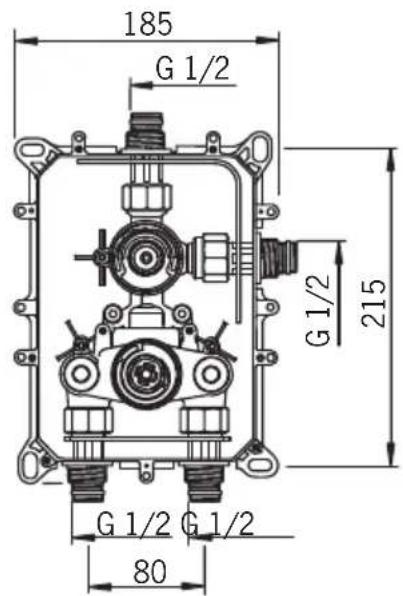

7127
EN 1111
II (ISO 3822)
100 - 1000 kPa
0.27 l/s (300 kPa)
165 kPa (0.2 l/s)
0.21 l/s (300 kPa) Eco-flow
max. +80^ C
KIWA K13876/03
7128
EN 1111
II (ISO 3822)
100 - 1000 kPa
0.33 l/s (300 kPa), 250 kPa (0.3 l/s)
0.27 l/s (300 kPa), 165 kPa (0.2 l/S)
0.24 l/s (300 kPa) Eco-flow
max. +80°C
KIWA K13876/03

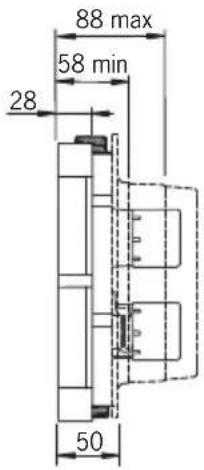

7117
EN 1111
I (ISO 3822)
100 - 1000 kPa
0.27 l/s (300 kPa)
165 kPa (0.2 l/s)
0.21 l/s (300 kPa) Eco-flow
max. +80°C
STF VTT-RTH-04952-08
1.43/17988
7118
EN 1111
I (ISO 3822)
100 - 1000 kPa
0.33 l/s (300 kPa), 250 kPa (0.3 l/s)
0.27 l/s (300 kPa), 165 kPa (0.2 l/s)
0.24 l/s (300 kPa) Eco-flow
max. +80°C
STF VTT-RTH-04952-08
1.43/17988

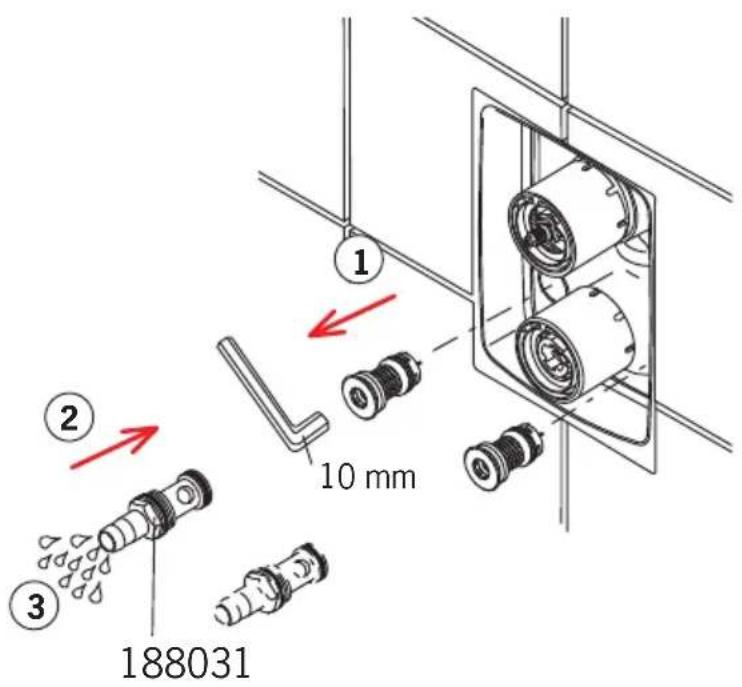

Rinsing
CZ Vypláchnutí
DE Spülen
DK Gennemskyldning
EE Loputama
ES Aclarar
FI Huhtelu
FR Rinçage
IT Spurgo
LT Praplovimas
LV Skalošana
NL Spoelen
NO Rengjøring
PL Płukania
RO Spălare
RU Промывка
SE Renspolning
SK Vypláchnutie
UA Промивання
Operation
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas

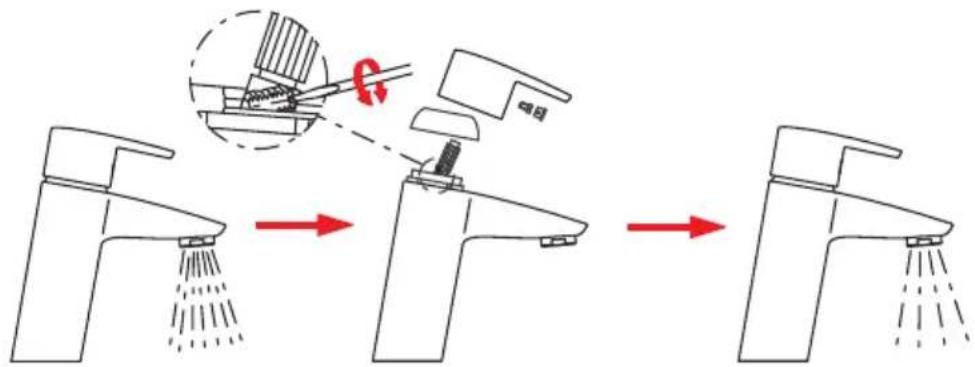

SERVICE 1: Temperature adjustment
To change the cartridge
CZ Výména kartuše
④ SERVICE 1
Changing the operating valve
Changing the diverter cartridge
Cleaning/changing the litter filters
1 198282V
2 178295
3 178780V

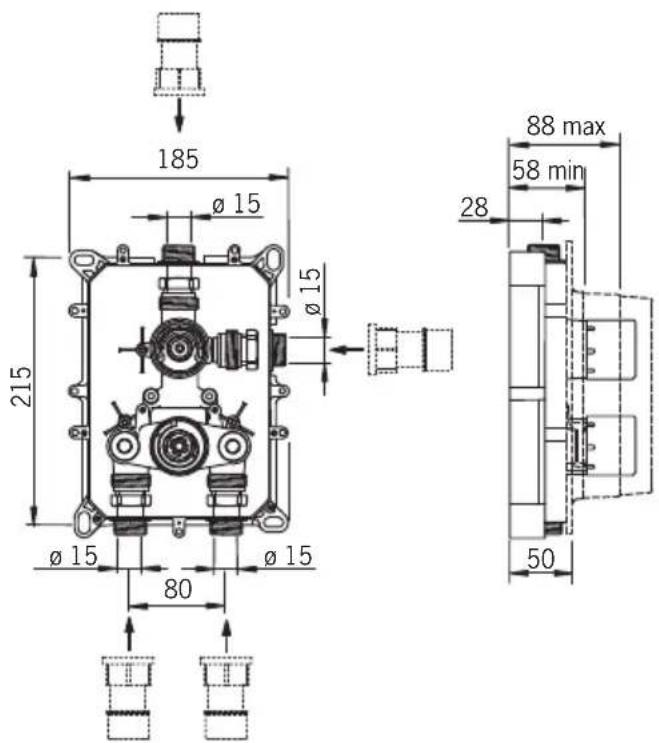

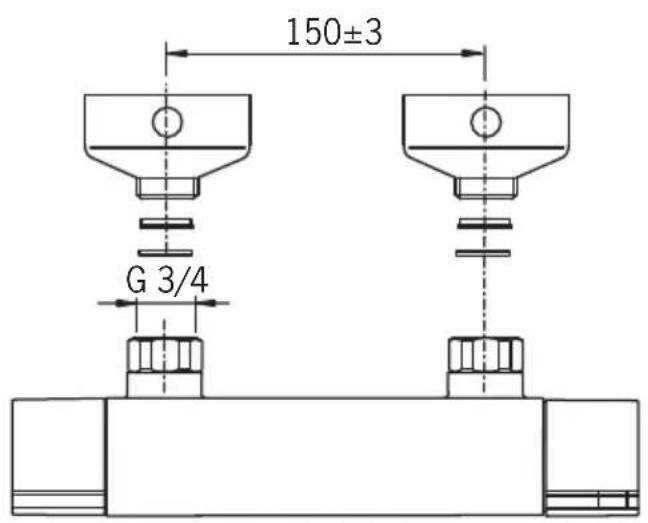

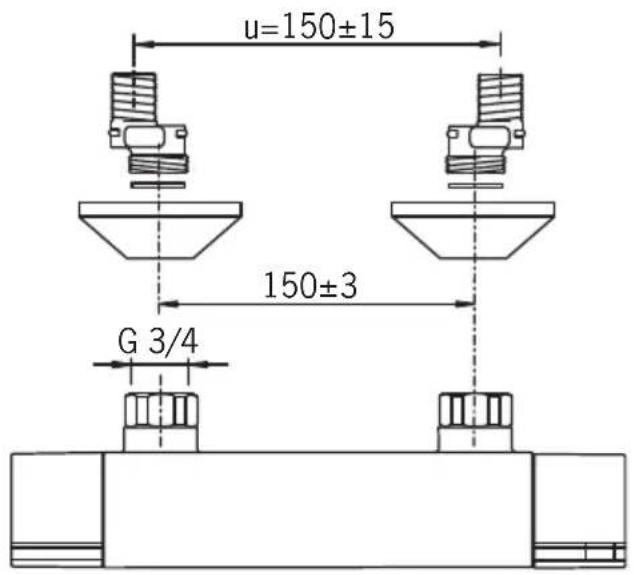

Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення
221250
Oras Group is a powerful European provider of sanitary fi ttings: the market leader in the Nordics and a leading company in Continental Europe. The company's mission is to make the use of water easy and sustainable and its vision is to become the European leader of advanced sanitary fi ttings. Oras Group has two strong brands, Oras and Hansa.
The head office of the Group is located in Rauma, Finland, and the Group has four manufacturing sites: Burglengenfeld (Germany), Kralovice (Czech Republic), Olesno (Poland) and Rauma (Finland). Oras Group employs approximately 1400 people in twenty countries. Oras Group is owned by Oras Invest, a family company and an industrial owner.
ORAS GROUP
Isometsäntie 2, P.O. Box 40
FI-26101 Rauma
Tel. +358 2 83 161
Fax +358 2 831 6300
info.fi nland@oras.com
www.oras.com
Water Is Worth Loving.
