Electra 6151F - Faucet Oras - Free user manual and instructions

Product Type	Single-lever basin mixer
Brand	Oras
Model	Electra 6151F
Category	Faucet
Material	Brass body, chrome-plated finish
Dimensions	Height: 150 mm, Spout reach: 110 mm
Net Weight	1.2 kg
Connection Size	G 1/2 hot and cold flexible hoses
Cartridge Type	Ceramic disc, 35 mm diameter
Operating Pressure	1.0–10.0 bar (recommended 1–5 bar)
Flow Rate	Approx. 5 L/min at 3 bar pressure
Aerator	M24 aerator, flow-reducing, swirl type
Installation	Deck-mounted, single hole, with fixing set
Functions	Single lever for flow and temperature; smooth ceramic cartridge
Maximum Hot Water Temperature	80°C
Safety Features	Built-in non-return valve; anti-scald limitation
Maintenance	Wipe with soft damp cloth; clean aerator periodically
Spare Parts Available	Cartridge (p/n 6151F001), aerator, handle lever, fixing set
Repairability	Yes, user-replaceable cartridge and aerator
Certifications	CE, EN 817, Water Regulations Approval
Warranty	5 years (manufacturer warranty)
Included Accessories	Faucet body, flexible hoses, fixing nuts, mounting instructions

Frequently Asked Questions - Electra 6151F Oras

How to install the Oras Electra 6151F faucet?

Turn off water supply. Connect the flexible hoses to 1/2-inch shut-off valves. Insert faucet through the sink hole, secure with the mounting nut from below. Tighten using a basin wrench. Turn water on and check for leaks.

What tools are needed for installation?

You will need a basin wrench, adjustable spanner, flathead screwdriver, and possibly a basin wrench for tight spaces. PTFE tape may be used on threads.

How to replace the cartridge in the Electra 6151F?

Remove the lever handle by unscrewing the set screw (Allen key). Unscrew the retaining nut under the handle using a cartridge removal tool or pliers. Lift out the old cartridge, insert new Oras 6151F cartridge, reassemble.

How to clean the faucet and remove limescale?

Wipe with a soft cloth dampened with mild soapy water. For limescale, use a vinegar solution (1 part vinegar to 3 parts water) on a cloth. Rinse thoroughly. Avoid abrasive cleaners.

What is the recommended water pressure for this faucet?

The recommended operating pressure is between 1 and 5 bar. Minimum required is 1 bar for proper function; maximum 10 bar. If pressure exceeds 5 bar, install a pressure reducer.

How to adjust the flow rate or install a flow limiter?

This model may have an aerator with built-in flow limiter. To reduce flow further, replace the aerator with a low-flow aerator (M24 thread). Alternatively, adjust the cartridge stop if equipped.

Is the faucet compatible with low-pressure systems?

No, this faucet requires a minimum 1 bar static pressure. For systems with lower pressure (gravity-fed), consider an Oras low-pressure model with larger internal passages.

How to remove and clean the aerator?

Unscrew the aerator at the spout tip by hand or with aerator removal key. Soak in vinegar/water solution, brush away debris, rinse, and reinstall. Ensure washer is intact.

What to do if the faucet drips from the spout?

Dripping usually indicates a worn cartridge. Turn off water supply, remove handle, and replace the cartridge. Also check the aerator for debris causing secondary dripping.

Where can I buy spare parts for the Oras Electra 6151F?

Spare parts are available from authorized Oras dealers, plumbing supply stores, or online retailers. Use the model number 6151F and part numbers: cartridge 6151F001, aerator 6151FAE, handle kit 6151FH.

USER MANUAL Electra 6151F Oras

Modern stainless steel faucet with digital display (no text or symbols visible)

Water Is Worth Loving.

Contents

CZ Obsah

FI Sisällysluettelo

NL Inhoud

Line drawing of a handheld device with a handle and spout (no text or symbols)

Technical data 4-5

Installation....6-8

Operation....9

Maintenance....10-13

Spare parts....14

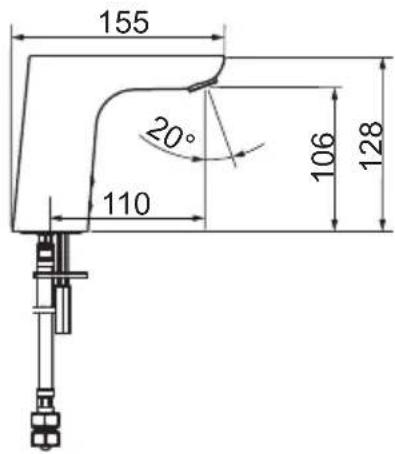

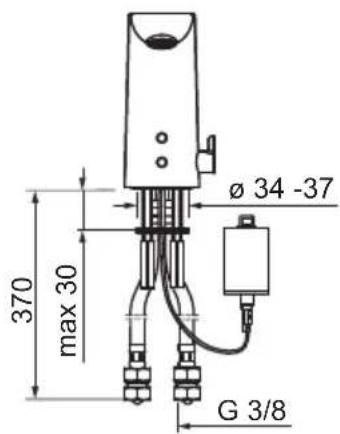

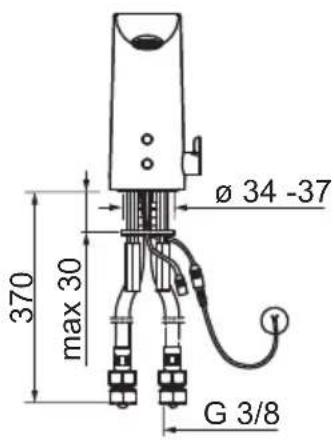

6121F

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70^ C

GODKENDT

TIL DRIKKEVAND

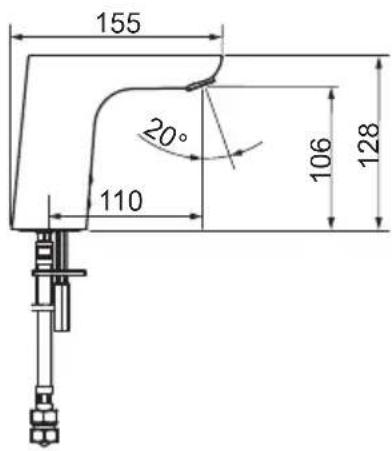

6151F

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70°C

GODKENDT

TIL DRIKKEVAND

Technical data

CZ Technická data	FI Tekniset tiedot	NL Technische gegevens	SE Teknisk information
DE Technische Daten	FR Données techniques	NO Teknisk informasjon	SK Technické údaje
DK Tekniske data	IT Dati tecnici	PL Dane techniczne	UA Технічні дані
EE Tehnilised andmed	LT Techniniai duomenys	RO Date tehnice
ES Datos técnicos	LV Tehniskie dati	RU Технические данные

GB	Protection class	Battery	Electrical Connection
CZ	Třída bezpečnosti	Monočlánek	Napájecí napětí
DE	Sicherheitsklasse	Batterie	Elektr. Anschluß
DK	Beskyttelsesklasse	Batteri	Elektrisk tilslutning
EE	Kaitseklass	Patareid	Elektriliides
ES	Grado de protección	Batería	Instalación eléctrica
FI	Suojausluokka	Paristo	Sähköliitäntä
FR	Norme de sécurité	Piles	Connexion électrique
IT	Protezione classe	Batterie	Collegamento elettrico
LT	Saugumo klasé	Baterija	Maitinimo šaltinis
LV	Aizsardzības klase	Baterija	Elektrobarošana
NL	Veiligheidsklasse	Batterij	Electrische aansluiting
NO	Tetthetsklasse	Batteri	Elektrisk tilkobling
PL	Klasa bezpieczeństwa	Bateria	Podlaczenie elektryczne
RO	Clasa de protectie	Baterie electrică	Conexiune electrică
RU	Степень защиты	Батарея	Электропитание
SE	Kapslingsklass	Batteri	El-anslutning
SK	Trieda bezpečnosti	Monočlánok	Elektrické pripojenie
UA	Ступінь захисту	Батарея	Електроживлення

IP 55 / transformer IP 40

Lithium 2CR5 6V (6151F)

12 VDC (6121F)

GB	Recognition range	Intelligent afterflow period	Max. flow period
CZ	Rozlišovací rozsah	Čas dodatečného průtoku	Max. doba průtoku
DE	Sensorreichweite	Intelligente Nachlaufzeit	Max. Fließdauer
DK	Sensor område	Intelligent efterløbetid	Max. løbetid
EE	Toimimiskaugus	Optimaalne järelvooluaja pikkus	Maksimaalne vee vooluaja pikkus
ES	Alcance del sensor	Tiempo caudal posterior	Periodo máximo de flujo
FI	Tunnistusalue	Älykäs jälkivirtaama-aika	Max. virtausaika
FR	Longueur du faisceau	Temporisation de débit intelligente	Durée maximum d'écoulement
IT	Raggio d'azione del sensore	Tempo di scorrimento a posteriori	Scorrimento mass.
LT	Atpažinimo atstumas	Tekėjimo trukmė po prausimosi	Maksimali srovės tekėjimo trukmė
LV	Atpazišanas diapazpns	Skalošanas periods	Maksimālais plūsmas periods
NL	Sensorbereik	Intelligente nalooptijd	Max. looptijd
NO	Følsomhetsområde	Intelligent etterrenningstid	Funksjonstid
PL	Zasięg działania	Intelligentne opóźnienie zamknięcia	Max czas przepływu
RO	Raza de sesizare	Perioadă de curgere remanentă inteligentă	Perioadă max. de curgere
RU	Расстояние опознавани	Продолжительность окончат.смыва (автоматическая настройка)	Макс. время подачи воды
SE	Känslighetsområde	Intelligent efterflödestid	Max. flödestid
SK	Rozlišovacia vzdialenost	Inteligentná doba po prietoku	Max. doba prietoku
UA	Відстань розпізнавання	Тривалість кінц. змиву (автоматичне налаштування)	Макс. час подачі води

optimally preset

2 s ± 1 s

2 min

Installation

CZ Montáž

FI Asennus

NL Installatie

SE Installation

DE Montage

FR Installation

NO Montering

SK Inštalácia

DK Installation

IT Montaggio

PL Instalacja

UA Встановлення

EE Paigaldus

LT Montavimas

RO Instalare

ES Montaje

LV Montāža

RU Установка

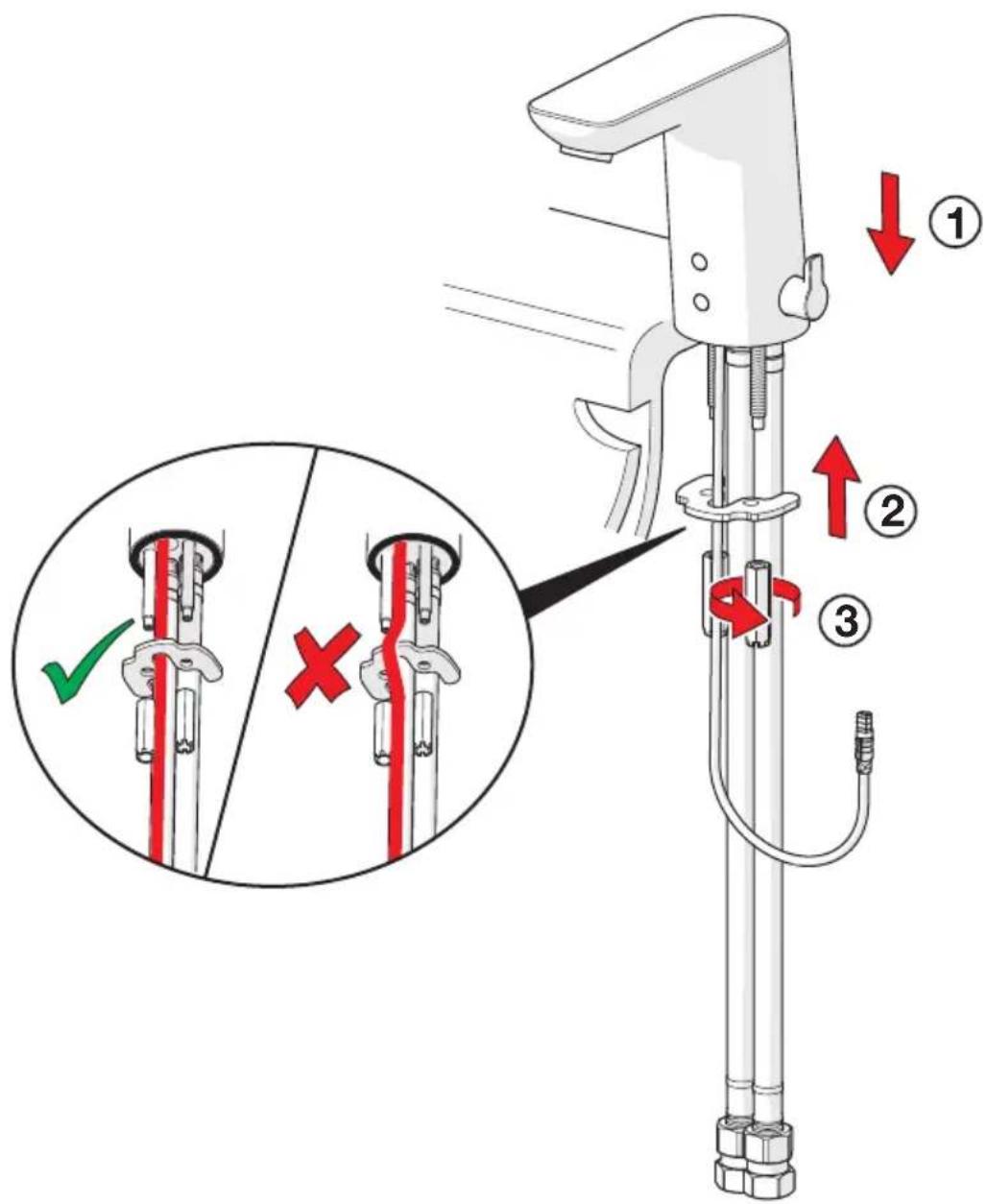

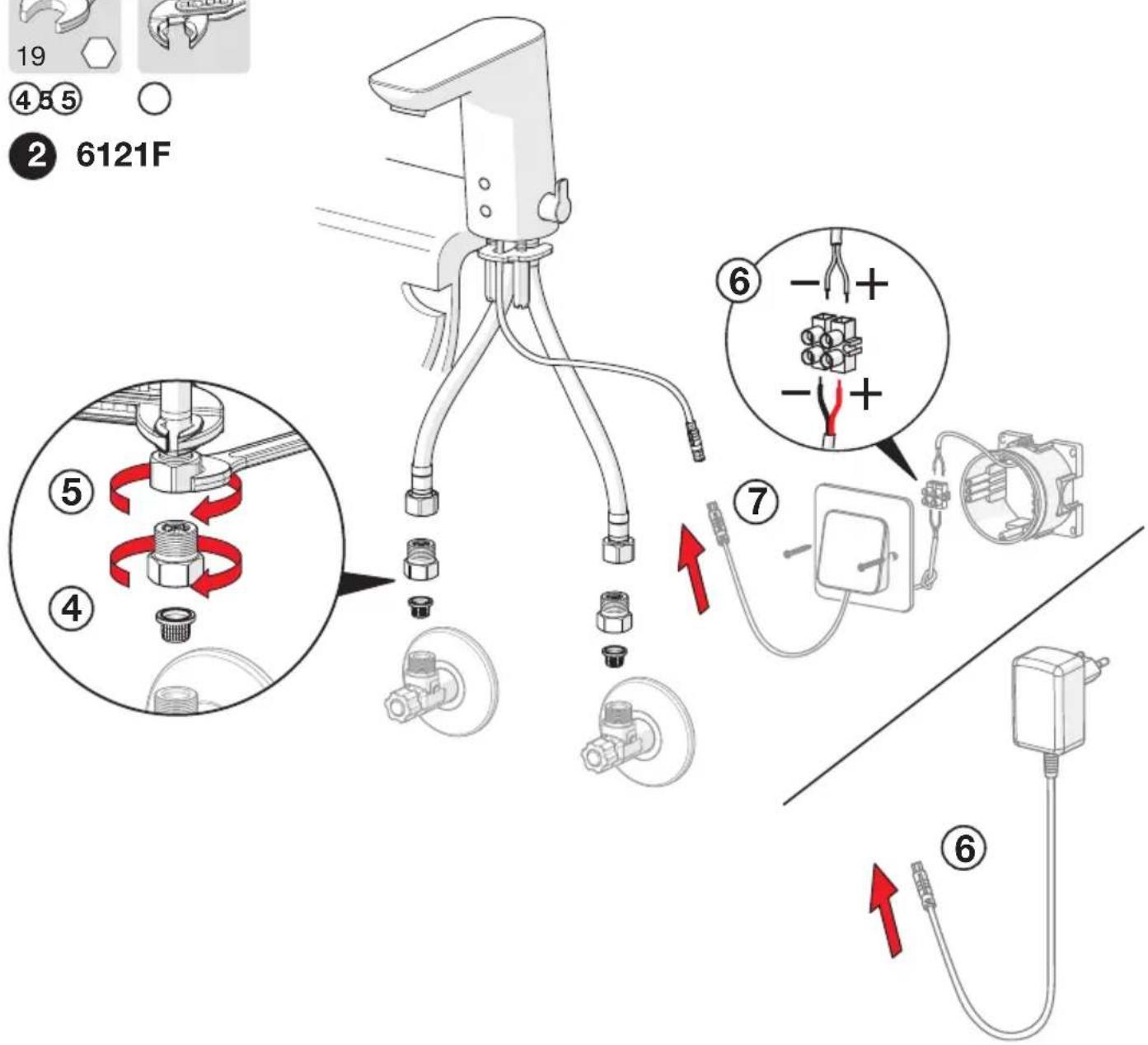

1 6151F, 6121F

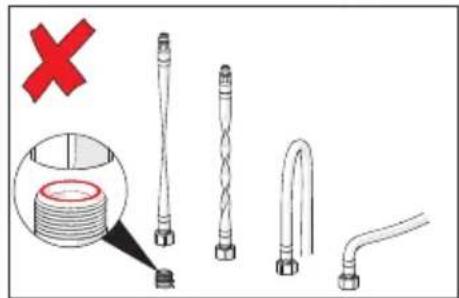

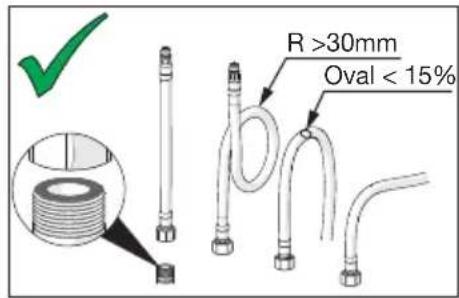

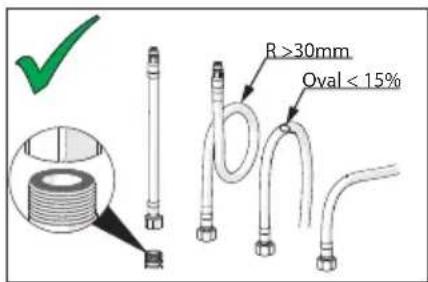

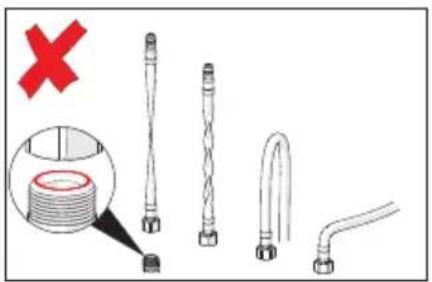

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

Two hand tools: a wrench and a pliers, shown side by side with no visible text or symbols.

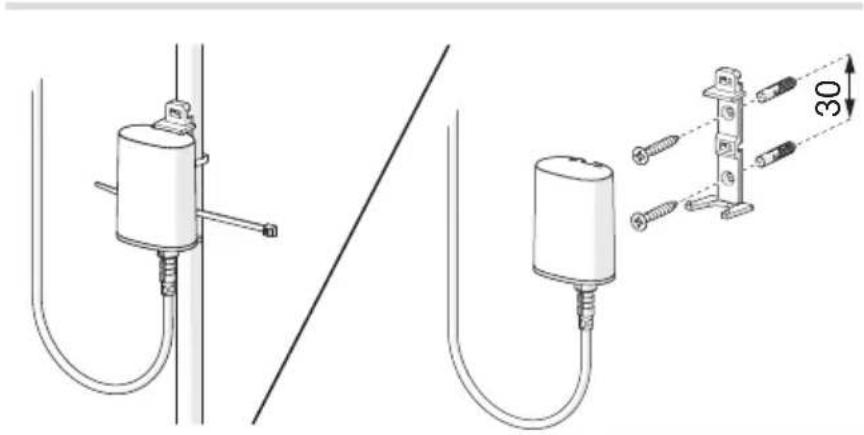

Technical illustration of two U-shaped pipe fittings with a central component and a separate view showing a 30mm bolt installation (no text or symbols present)

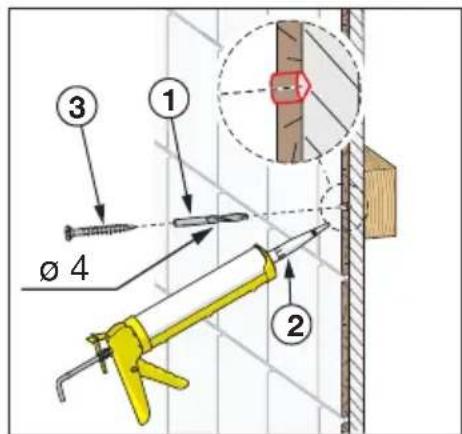

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

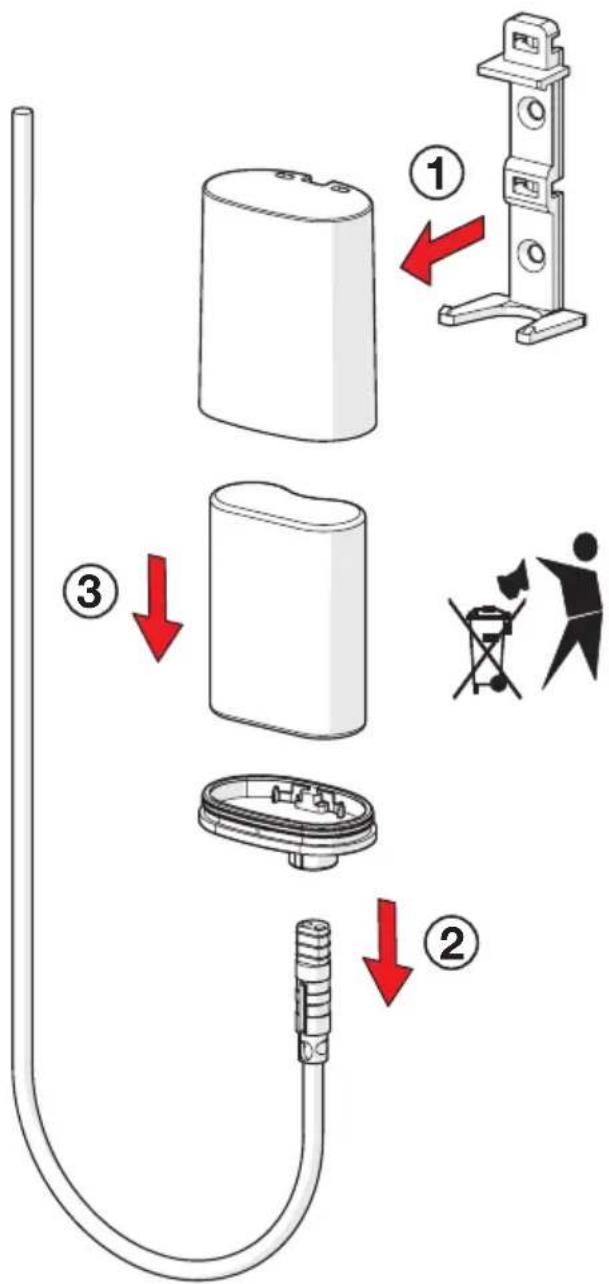

Changing the battery

CZ Výměna baterie
DE Wechsel der Batterie
DK Udskiftning af batteri
EE Patarei vahetamine
ES Cambiar la batería
FI Pariston vaihto
FR Changement de la pile
IT Sostituzione della batteria
LT Baterijos pakeitimas

LV Baterijas maina
NL Batterij vervangen
NO Bytting av batteri
PL Wymiana baterii zasilającej
RO Înlocuirea bateriei electrice
RU Замена батарейки
SE Byte av batteri
SK Výmena batérie
UA Заміна батарейки

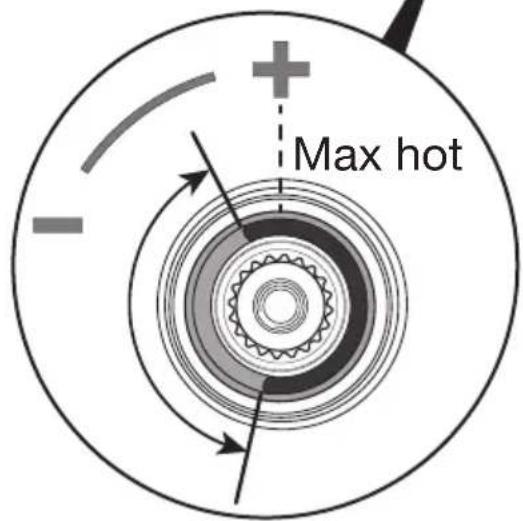

Limiting temperature

CZ Omezeni teplé vody
DE Temperaturbegrenzung
DK Forindstilling af vandets max. temperatur
EE Temperatuuri piiramine seadeosast
ES Limitación de la temperatura
FI Lämpötilan rajoitus
FR Limitation de la température
IT Limitazione della temperatura
LT Temperatūros apribojimas
LV Karstā ūdens temperatūras ierobežošana

Line drawing of a handheld smart water heater with ports and mounting feet (no text or symbols)

Diagram of a mechanical component with a red arrow indicating rotation or movement (no text or symbols)

②

①

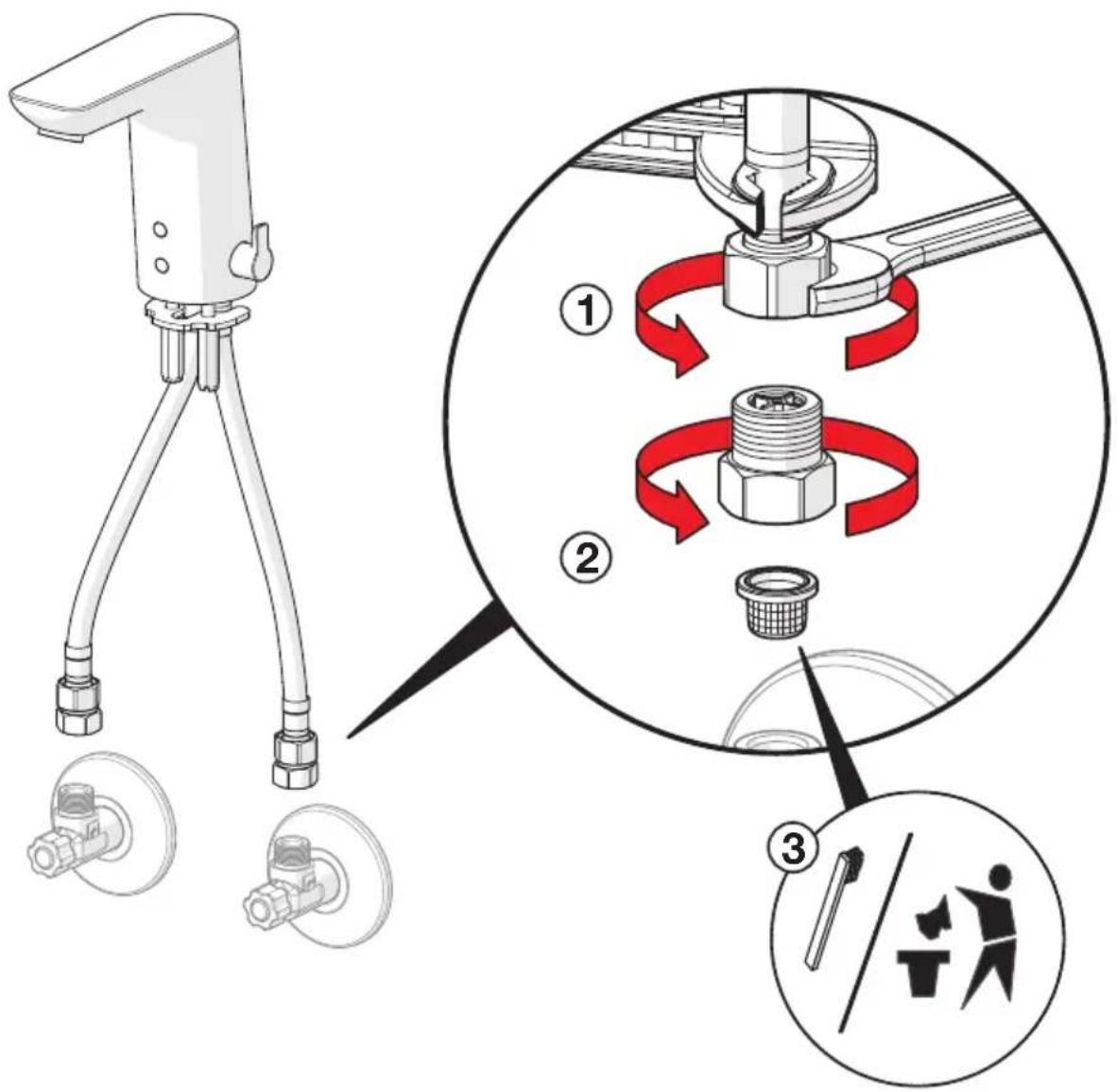

Cleaning/changing the litter filters

CZ Čištění/Výměna filtrů
DE Reinigung/Wechsel der Filter
DK Rensning/udskiftning af filtre
EE Prügipüüduri puhastamine/vahetamine
ES Limpieza/cambio de los filtros
FI Roskasiivilöiden puhdistaminen/vaihtaminen
FR Nettoyage/changement des filtres
IT Pulizia/sostituzione dei filtri
LT Filtrų valymas ir pakeitimas

LV Dublu filtru tīrīšana/maina
NL Reinigen/veranderen van de filters
NO Rensing/bytting av filter
PL Czyszczenie/wymiana filtra
RO Curățirea/înlocuirea filtrelor
RU Очистка и замена уплотнительных фильтро
SE Rengöring/byte av smutsfilter
SK Čistenie/výmena odpadových filtrov
UA Чищення та заміна ущільнюючих фільтрів

①

① ②

Cleaning the faucet

CZ Čištění baterie

Diagram showing a device with a red arrow indicating transformation from a curved component to a flat base (no text or symbols present)

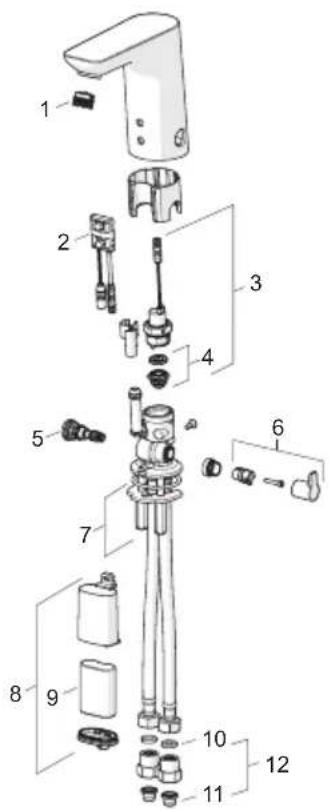

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

6151F

1 601901V

2 600659V

3 199206V

4 199205V

5 199201V

6 600493V

7 158697

8 199417V

9 198330

10 600705/10

11 199257/2

12 198473/2
