Product Type	Tripod with fluid head
Brand	Oben
Model	VH-R2
Color	Black
Material	Aluminum alloy
Max Height	150 cm (59 in)
Min Height	30 cm (12 in)
Closed Length	50 cm (20 in)
Weight	2.5 kg (5.5 lbs)
Load Capacity	5 kg (11 lbs)
Leg Sections	3
Leg Lock Type	Twist lock
Head Type	Fluid drag head
Pan Range	360°
Tilt Range	±90°
Bubble Level	Yes
Quick Release Plate	Yes, with 1/4\" and 3/8\" screw
Feet	Rubber
Carrying Case	Included
Warranty	2 years
Cleaning	Use a soft, dry cloth
Safety	Do not exceed maximum load capacity

Frequently Asked Questions - VH-R2 Oben

What is the maximum height of the Oben VH-R2 tripod?

The maximum height is 150 cm (59 inches) with the center column extended.

How much weight can the VH-R2 support?

It has a load capacity of up to 5 kg (11 lbs), suitable for most cameras and lenses.

Does the tripod come with a carrying case?

Yes, a padded carrying case is included for storage and transport.

What type of head does the VH-R2 have?

It features a fluid drag head for smooth pan and tilt movements, ideal for video.

Is the quick release plate compatible with Arca-Swiss?

No, the plate uses a proprietary design. Spare plates are available from Oben.

How do I clean the tripod?

Wipe with a soft, dry cloth. Avoid solvents. Keep leg locks clean from sand and dust.

What is the warranty period?

Oben offers a 2-year limited warranty against manufacturing defects.

Can I use the VH-R2 for photography?

Yes, it works well for both photo and video due to its stable legs and fluid head.

How many leg sections does it have?

Three leg sections with twist locks for quick setup.

Does it have a bubble level?

Yes, a built-in bubble level on the head helps with leveling.

USER MANUAL VH-R2 Oben

Abstract red geometric logo design with interlocking shapes (no text or symbols)

Oben™

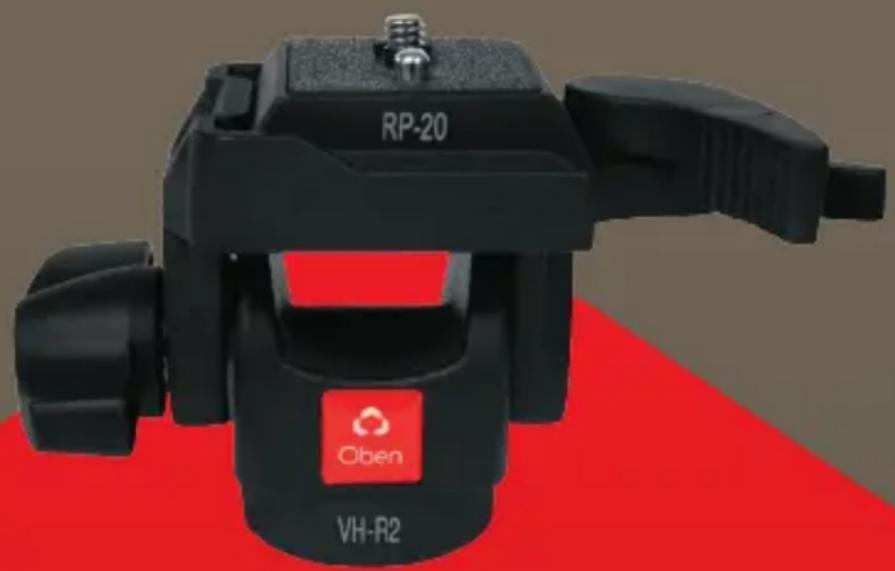

VH-R2

Tilt Head

Black RP-20 camera clamp with red label, no visible text or symbols on the device itself

You're on steady ground™

Thank You for choosing Oben!

This sturdy Oben VH-R2 Tilt Head provides smooth, accurate, and quick operation for a 180° vertical tilt. The quick-release latch features a locking pin to prevent accidental camera release.

Included with the Tilt Head is a snap-in quick-release plate for rapid mounting and dismounting of the camera, and a reducer bushing to ensure a proper fit to your monopod or tripod.

Note: When using monopods with a large diameter top plate, a full 180^ tilt range may not be possible.

Please read this entire manual before using the VH-R2 Tilt Head.

Note: Images are for illustrative purposes only. Actual product may vary.

Key Features

Mount Tilt Head To Monopod 5

Converting Mounting Thread 5

Tilt Locking Knob 5

Dual-Locking Quick Release 6

Mount Quick-Release Plate 6

Mount Camera

Warnings 7

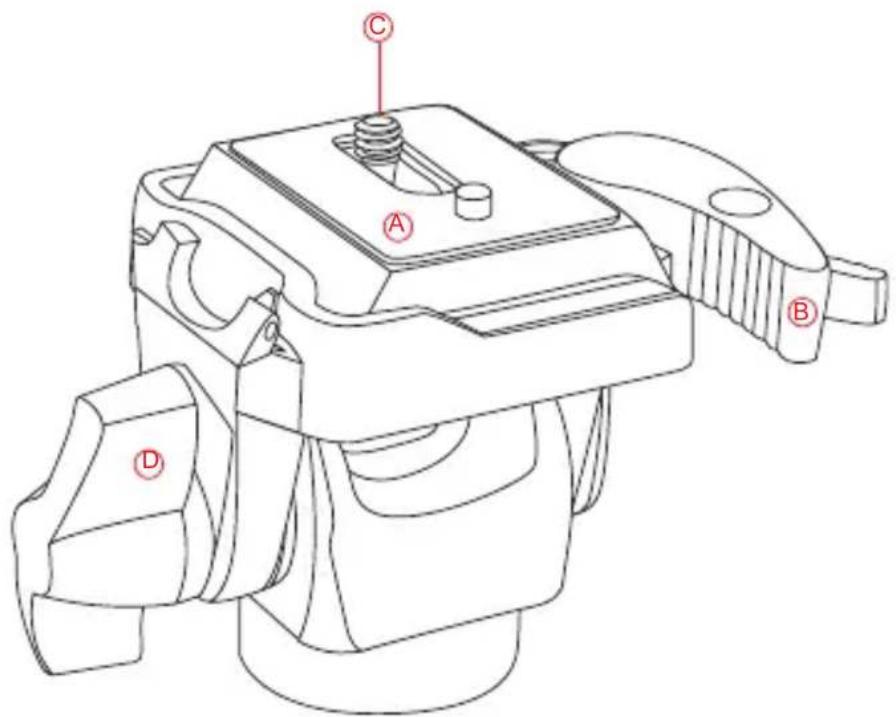

(A) Quick-Release Plate
® Dual-Locking Quick Release
© 1/4"-20 UNC Mounting Screw
D Tilt Locking Knob

Technical line drawing of a mechanical component with red rotation arrow (no text or symbols)

Technical line drawing of a mechanical component with a red curved arrow indicating rotation (no text or symbols)

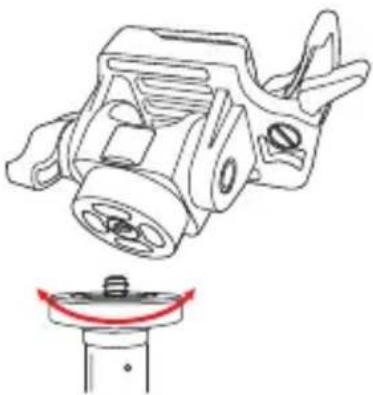

1. Mount Tilt Head To Monopod

To mount the head on a monopod, first tighten the tilt locking knob on the head. Then, being careful to properly align the monopod stud with the head's mounting hole to avoid damaging them, rotate the head clockwise onto the monopod and hand-tighten.

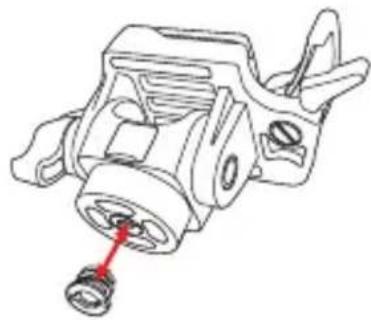

2. Converting Mounting Thread

Technical line drawing of a mechanical component with a red arrow pointing to a small component (no text or symbols present)

For monopods with a 1/4" threaded mounting stud: insert the supplied reducer bushing into the threaded mounting hole of the head to enable a proper fit.

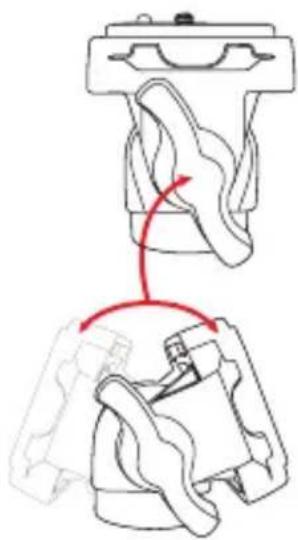

3. Tilt Locking Knob

Mechanical assembly diagram showing two connected components with a red curved arrow indicating motion (no text or symbols)

The tilt locking knob locks and unlocks the head, which allows you to tilt the head 180 degrees vertically. Turn the knob counterclockwise to unlock the head, and clockwise to lock it. After positioning the head, make sure to firmly tighten the knob.

Warning: Always use one hand to secure the camera while adjusting the head, and ensure that the lock is engaged before letting go of the camera.

4. Dual-Locking Quick Release

The VH-R2 Tilt Head is designed with a dual-locking quick-release latch to keep the camera securely in place on the head.

To unlock the quick-release, press the small latch while pulling outward on the main latch at the same time.

Technical line drawing of a mechanical component with no visible text or symbols

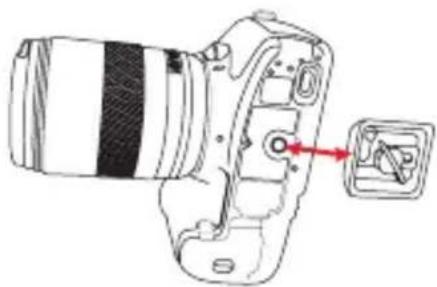

5. Mount Quick-Release Plate

Mount the quick-release plate to the threaded hole on the base of your camera. The plate utilizes a 1/4"-20 screw that will fit most cameras. After tightening the screw, fold the thumbscrew flat against the bottom of the quick-release plate.

Diagram of a DSLR camera with a close-up view showing internal components (no text or symbols)

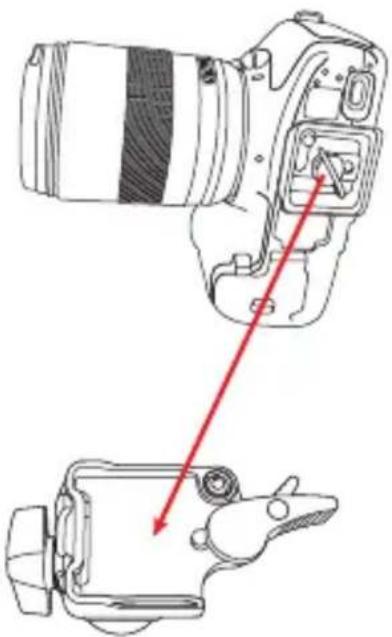

5. Mount Camera

After mounting the quick-release plate to your camera, ensure that the tilt locking knob on the VH-R2 head is securely tightened.

To mount the camera to the head, first insert the side of the quick-release plate that is opposite the quick-release latch. Then, press down on the side of the quick-release plate nearest the quick-release latch. The quick-release latch will automatically lock into place when the plate is pushed into the groove.

Technical line drawing of a camera with red arrows indicating component alignment (no text or symbols)

Warnings:

• Do not exceed the head's maximum load capacity of 11 lb (5 kg).
• Ensure that all appropriate locks are engaged when necessary.
• The VH-R2 head should only be used in temperatures ranging between -4^ and 158^ F (-20° and 70°C).
• Do not operate in saltwater. Dry head if it becomes wet.
• Remove the camera from the head during setup or transport.
• Avoid long-term exposure to sunlight.
• Keep out of reach of children.

Visit our website at ObenSupports.com

for more Oben products.

© Copyright 2013 The Brands Group All other trademarks are the property of their respective owners
