I3-350A28 - Security Camera Provision-ISR - Free user manual and instructions

Product Type	Security Camera
Brand	Provision-ISR
Model	I3-350A28
Image Sensor	1/3" Progressive Scan CMOS
Resolution	3 Megapixels (2048 x 1536)
Lens	2.8mm Fixed Lens
Night Vision	Up to 30m IR Range
Power Supply	12V DC / PoE (802.3af)
Power Consumption	< 6W
Dimensions	70mm x 70mm x 150mm
Weight	500g
Protection Rating	IP67
Operating Temperature	-30°C to 60°C
Storage Temperature	-40°C to 70°C
Video Compression	H.265 / H.264
Motion Detection	Yes, configurable
Audio	1-Channel Audio Input
Network Interface	10/100Mbps Ethernet
Supported Protocols	TCP/IP, HTTP, RTSP, ONVIF
Maintenance	Clean lens with soft dry cloth; check connections periodically
Safety	Use only with provided power adapter; avoid exposure to extreme conditions
Spare Parts & Repairability	Contact authorized service center for replacement parts

Frequently Asked Questions - I3-350A28 Provision-ISR

How do I reset the I3-350A28 camera to factory defaults?

Press and hold the reset button on the camera for 10 seconds using a paperclip. The camera will reboot and restore default settings.

What power supply is recommended for this camera?

Use a 12V DC power adapter or a PoE switch compliant with IEEE 802.3af. Ensure the power source is stable and within the specified voltage range.

How can I access the camera remotely?

Connect the camera to your network, assign a static IP or enable DHCP, then use the Provision-ISR CMS software or a web browser to access the IP address. Ensure port forwarding is configured on your router.

What is the maximum SD card capacity supported?

The camera supports microSD cards up to 128GB (Class 10 or higher). Format the card to FAT32 or exFAT before use.

How do I enable motion detection alerts?

Log into the camera's web interface, go to Event > Motion Detection, enable it, and draw detection zones. Configure email or FTP notifications in the Alert section.

Can I use this camera outdoors?

Yes, the camera has an IP67 rating, making it weatherproof and suitable for outdoor use. Ensure the cables are properly sealed to prevent moisture ingress.

What is the default username and password?

The default username is admin and password is 123456. Change these immediately after first login for security.

How do I update the firmware?

Download the latest firmware from the Provision-ISR website. Access the camera's web interface, go to Maintenance > Firmware Upgrade, and upload the file. Do not power off during the update.

The camera shows no image at night. What can I do?

Check that the IR LEDs are enabled in the camera settings. Ensure there is no obstruction in front of the lens and the camera is powered correctly. Clean the lens if dirty.

Can I record video continuously?

Yes, you can enable continuous recording via the camera's web interface or using an NVR. Set up a schedule or choose 24/7 recording. Ensure sufficient storage space is available.

USER MANUAL I3-350A28 Provision-ISR

Four technical line drawings of mechanical components, showing front, side, top, and side views (no text or symbols)

USER MANUAL

■ 5MP 4 in 1 Series

FCC

www.provision-ISR.com

Contents

1) Cautions:
2) Product Introduction

2.1 Camera Introduction
2.2 Product Features

3) Menu Setup
4) Product Installation

4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Setting the Camera
4.5 Setting the video output type
4.6 Connection
4.7 OSD Control
4.8 OSD Menu Scheme

5) Technical Specification

1 Cautions:

1. To reduce the risk of electric shock, do not open the camera or perform internal maintenance by yourself. Please consult a professional service person if needed.

2. To prevent fire or electrical shock hazard, make sure that the input voltage, current, polarity and operating temperature meet the requirements of the camera.

3. Please note the operating temperature and environmental limits of the camera. Do not install in higher/lower temperatures than -30^ +50^ ( -4^ 122^ ). These cameras are not waterproof! Minimize dust and moisture erosion, otherwise camera would be damaged.

4. Avoid directing the camera to sunlight while powered on, otherwise the sensor will be damaged.

5. Do not touch the sensor surface. If any foreign objects exist use a cotton swab or lens paper to clean, if it is difficult to remove, use a neutral detergent diluted with water.

6. In order to ensure smooth and satisfactory image, the power and video cables shouldn't be too long. Please follow general AHD/Analog sepcifications for cables types and lenghts.

7. In order to prevent the camera from falling, please install the camera on a stable surface.

8. The camera should not be placed near a radiator or heating resistor.

2 Product Introduction

2.1 Camera Introduction

PROVISION-ISR's new series of cameras have adopted a high performance CMOS image sensor, which provides mega pixel resolution and supports HD video. Moreover, it supports monitoring signals coaxial transmission. Transmission distance can reach more than 200M based on Rg59 coaxial cable. The series can support all HD analog resolutions: AHD/TVI/CVI as well as CVBS 960H output.

2.2 Product Features

• Coaxial cable with BNC connector
  • DIP Switch for output selection
  • Auto Day/Night (ICR)
  • BLC
• 2D-DNR
  • Super High Resolution Lens
  • AHD/TVI/CVI/CVBS Signal Selectable

3 Menu Setup

AHD/TVI: Click on "Iris+" button from the DVR's PTZ interface to call the OSD Menu. Use the PTZ interface to scroll through the menu and "Iris+" to confirm.

CVI: Click "▶" button from the DVR's PTZ interface, then click "💡" and press "Enter" to call the OSD Menu.

4 Product Installation

4.1 General Notes

1. Make sure the unit is powered off before installation.
2. Check power supply voltage consistent with the electric voltage to prevent voltage unworthy, resulting in damage to the device.
3. Do not use in environment conditions exceeding the specified temperature and humidity.
4. The installation and maintenance of this product should be done by a professional. Please do not remove or modify the camera in any way.

4.2 Installation Tools and Information

Prepare the required tools and instructions. Before installation please prepare the following tools: A straight or a Phillips-head screwdriver, multi-meter, cutter, needle nose pliers, measuring tape, pencil.

4.3 Installation Method

1. Check the camera for any external damage.
2. Mount the bracket or base:
   ① For cement wall, install the expansion screws, and then mount the bracket/base.
   ② For wooden wall use self-tapping screws to mount.

Note:

The wall needs to bear at least 3X weight of bracket (base) and camera. Installation method above is for reference only.

4.4 Setting the camera:

a. Dome Camera

Adjust the lens position so it aims at the main monitoring point and gives a clear picture.

b. Bullet Camera

Adjust the body so that the lens aims at the main monitoring point and gives a clear picture. Tighten the screws to ensure that it does not move.

4.5 Setting the video output type:

The camera supports AHD/TVI/CVI/CBVS video output. Choosing the output type is done by setting a DIP switch on the cable as illustrated:

Close-up of a black cable connector with two ends, no visible text or symbols

4.6 Connection

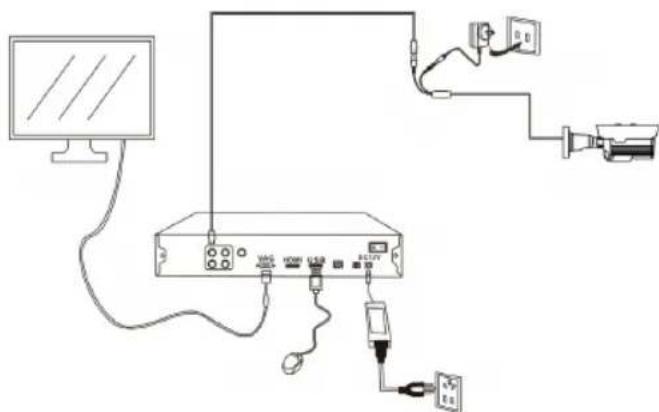

Connection as shown in the figure below

4.7 OSD Control

The OSD control is available by CoC (Control over Coax). If your AHD/TVI/CVI DVR supports this function*, use the DVR's PTZ interface to press on "Iris+" or "💡" to open the OSD menu. Navigate through the OSD menu using the PTZ direction arrows.

* Notice: CoC function works no more than 200M by RG59 coaxial cable
* All of Provision-ISR's DVRs support CoC Starting from version 3.4.4

4.8 OSD Menu Scheme:

Main Menu Second Menu Third Menu
AE	Brightness 1~20
	Exposure Mode	GLOBE
		BLC(1-9)
WB	ATW
	MWB	RGAIN 1~127
		BGAIN 1~127
Day / Night	EXT
	Auto
	Color
	B/W
Image Enhance	Contrast 1~16
	Sharpness 1~16
	Color Gain 1~16
	DNR 1~16
	Mirror DEFAULT / H / V / HV
Video Output	Video Standard	4MP 30 / 4MP 25 / 5MP 20
	Reboot & Apply
Language	English/Chinese/Traditional Chinese
Reset
Save-Exit
Exit

5 Specifications:

5MP 4 in 1 camera

Model	DI-350A36	DI-350AVF	DAI-350AVF
Image Sensor	1/2.7" 5MP Sensor
Effective Pixels	2592(H)×1944(V)
Scanning System	Progressive
Resolution	Digital: 2560X1936, Analog: 960H
Min. Illumination	0.01Lux (0 Lux with IR on)
IR LED	2 LED Array (20m)	3 LED Array (25m)	35 LED(20m)
OSD Menu	Available via CoC Only
CoC Support	Yes
Day & Night Mode	EXT, Color, B&W, Auto
Backlight Compensation	BLC
S/N Ratio	≥35dB (AGC Off)
White Balance	ATW / MWB
Noise Reduction	2D-DNR
Video Output	5MP AHD/TVI; 4MP AHD/TVI/CVI; CVBS(Signal Selectable by DIP switch)
Defog	Not Available
Privacy Mask	Not Available
Motion Detection	Not Available
D-Effect	Miror
Lens	3.6mm	2.8-12mm	2.8-12mm
Power	DC12V±10%, ~300mA	DC12V±10%, ~380mA	DC12V±10%, ~300mA
Operation temp.	-30°C~+50°C
Waterproof	IP66
Dimension	104*82*93.2mm	129.5*119*104mm	ø145*119.5mm
Net Weight	270g	476g	960g

I3-350A36 / I4-350AVF

Model	I3-350A36	I4-350AVF
Image Sensor	1/2.7" 5MP Sensor
Effective Pixels	2592(H)×1944(V)
Scanning System	Progressive
Resolution	Digital: 2560X1936, Analog: 960H
Min. Illumination	0.01Lux (0 Lux with IR on)
IR LED	3 LED Array (30m)	4 LED Array (40m)
OSD Menu	Available via CoC Only
CoC Support	Yes
Day & Night Mode	EXT, Color, B&W, Auto
Backlight Compensation	BLC
S/N Ratio	≥35dB (AGC Off)
White Balance	ATW / MWB
Noise Reduction	2D-DNR
Video Output	5MP AHD/TVI; 4MP AHD/TVI/CVI; CVBS(Signal Selectable by DIP switch)
Defog	Not Available
Privacy Mask	Not Available
Motion Detection	Not Available
D-Effect	Miror
Lens	3.6mm	2.8-12mm
Power	DC12V±10%, ~380mA	DC12V±10%, ~475mA
Operation temp.	-30°C~+50°C
Waterproof	IP66
Dimension	206.5*67.6*68.5mm	286*77*85.6mm
Net Weight	380g	836g
