CTM-2500 - Tripod Oben - Free user manual and instructions

Product Type	Monopod
Brand	Oben
Model	CTM-2500
Material	Carbon Fiber
Color	Black
Maximum Load Capacity	26 lb (11.8 kg)
Maximum Working Height	64.5 in (164 cm)
Folded Length	17.3 in (43.9 cm)
Weight	1 lb (454 g)
Number of Leg Sections	5
Leg Lock Type	Twist Lock
Mounting Screw	Reversible 1/4-20 and 3/8-16
Foot Type	Retractable Spike with Rubber Foot
Wrist Strap	Included with integrated belt clip
Leg Warmer	Padded cover for cold weather handling
Operating Temperature	-22°F to 140°F (-30°C to 60°C)
Maintenance	Keep dry, avoid salt water, clean with soft cloth
Safety Warnings	Do not exceed max load; remove camera during transport; keep away from children
Warranty	Not specified (likely manufacturer's warranty)
Country of Origin	Not specified

Frequently Asked Questions - CTM-2500 Oben

How do I adjust the height of my Oben CTM-2500 monopod?

To adjust height, twist the leg lock clockwise to loosen, reposition the leg section, then twist counterclockwise to tighten. Ensure locks are secure before use.

Can I change the mounting screw size on the CTM-2500?

Yes, the mounting screw is reversible. Use the included hex key to loosen the set screw, unscrew the plate, reverse the screw to the desired size (1/4-20 or 3/8-16), then reassemble and tighten the set screw.

What is the maximum weight this monopod can hold?

The Oben CTM-2500 has a maximum load capacity of 26 lb (11.8 kg). Do not exceed this limit to avoid damage or instability.

How do I extend or retract the spike on the foot?

To extend the spike, rotate the rubber foot counterclockwise. To retract, rotate clockwise. Use the rubber foot on indoor/flat surfaces and the spike on soft ground, grass, or sand.

Is the CTM-2500 compatible with any tripod head?

Yes, it features a standard 1/4-20 or 3/8-16 mounting screw to attach most tripod heads. For compatible heads, you can tighten the three integrated set screws with the hex key for extra security.

How do I use the wrist strap and belt clip?

Secure the wrist strap around your wrist while gripping the leg warmer for stability. The strap also has an integrated belt clip that you can slide onto your belt for hands-free carrying.

What is the folded length and weight of the monopod?

The folded length is 17.3 in (43.9 cm) and it weighs only 1 lb (454 g), making it highly portable.

Can I use the monopod in wet or cold conditions?

The monopod is designed for temperatures between -22°F and 140°F. Avoid use in salt water. If it gets wet, dry it thoroughly. The leg warmer provides comfortable handling in cold weather.

How many leg sections does the CTM-2500 have?

It has 5 leg sections with twist locks for quick adjustment and anti-twist alignment to prevent rotation during operation.

What maintenance does the monopod require?

Keep the monopod clean and dry. Wipe with a soft cloth. Do not use in salt water. Periodically check and tighten all locks. Store in a safe place away from children.

USER MANUAL CTM-2500 Oben

Black Oben brand walkie stick with attached strap, against a red background (no text or symbols on the device itself)

You're on steady ground™

Thank you for choosing Oben.

Oben monopods are versatile and durable supports. Both carbon fiber and aluminum models are constructed to provide rigidity and strength to support for your camera. The leg features secure twist locks for swift height adjustment. And leg sections, designed with anti-twist alignment, are extremely easy to operate when opening and collapsing the monopod.

The monopods include a wrist strap to help secure the monopod and keep it stable during shooting, and a leg warmer for comfortable handling in cold weather.

Please read this entire manual before using your Oben monopod.

Warnings:

Do not exceed the monopod's maximum load capacity.

Ensure that all appropriate locks are engaged when necessary.

The monopod should be used only in temperatures between -22^ and 140^ . Do not use it in salt water. Dry the monopod if it gets wet.

Remove the camera from the monopod during transport.

Keep out of reach of children.

Images are for illustrative purposes only.

Integrated Mount

The top mount attaches a camera or a lens collar directly onto the monopod. A tilt head can be used for greater control.

Wrist Strap and Belt Clip

Wrist strap for more secure handling while shooting. Belt clip offers a convenient carry option.

Leg Warmer

Padded leg for handling the monopod in cold weather.

Twist Locks

Twist locks provide quick and secure height adjustment.

Retractable Spike

Integrated rubber and spiked foot for stability on a variety of surfaces and terrains.

1. Height Adjustment

Twist the lock clockwise

⑧, and reposition the leg
(b). Then twist the lock counterclockwise until secure.

2. Mounting Screw

The monopod comes with a reversible 3/8-16 and 1/4-20 mounting screw that allows you to mount any tripod head or camera. To switch between the two sizes, loosen the set screw with the included hex key. Then unscrew the plate and reverse the screw. Screw the plate back onto the tripod until it's secure, and retighten the set screw.

Diagram showing mechanical assembly with rotating components and a gear-like component (no text or symbols)

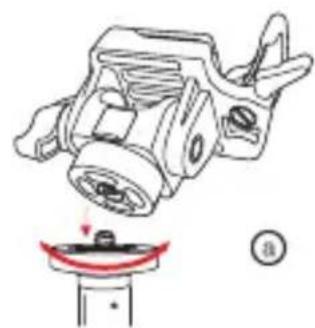

3. Mounting a Head

Align the head's socket with the monopod's mounting screw ⓐ, and twist it clockwise until fully secured. Be sure that the bottom of the head is flush with the plate.

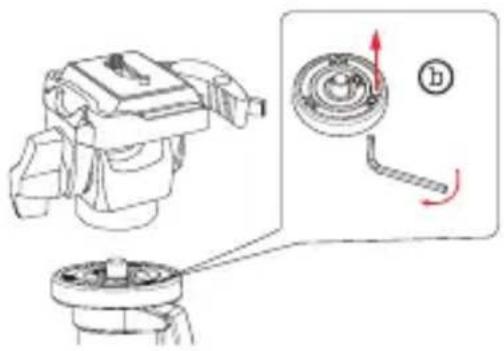

For compatible heads, tighten the three integrated set screws with the included hex key ⓑ.

Important!

Do not overtighten the head or the set screws. Overtightening may damage the monopod or head.

Technical line drawing of a mechanical component with a red arrow indicating assembly or motion (no text or symbols)

4. Wrist Strap

For a more stable monopod when shooting, secure the wrist strap around your wrist while also gripping the pad, as shown. To ensure stability, make sure there's enough tension on the strap and your wrist.

Illustration of a hand holding a pipette with a magnified inset showing the tip (no text or symbols)

5. Belt Clip

The monopod's wrist strap includes an integrated belt clip. Slide the clip onto your belt for hands-free transport.

Line drawing of a mechanical component with a circular base and attached belt (no text or symbols)

6. Retractable Spike

A spike is built into the monopod's rubber foot. Use the rubber foot for indoor or flat surfaces. Use the spike for soft ground, grass, and sand.

To extend the spike, rotate the rubber foot counterclockwise. Turn the foot clockwise to retract the spike.

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

	CTM-2400	CTM-2500	CTM-2600	ATM-2600
Camera Mounting Screw	1/4-20 male, 3/8-16 male	1/4-20 male, 3/8-16 male	1/4-20 male, 3/8-16 male	1/4-20 male, 3/8-16 male
Leg Lock Type	Twist lock Twist lock Twist lock Twist lock
Leg Sections	4566
Load Capacity	22 lb. (10 kg)	26 lb. (11.8 kg)	26 lb. (11.8 kg)	26 lb. (11.8 kg)
Maximum Working Height	59.2 in. (150.4 cm)	64.5 in. (164 cm)	64.7 in. (164.3 cm)	64.7 in. (164.3 cm)
Folded Length	18.3 in. (46.5 cm)	17.3 in. (43.9 cm)	16.7 in. (42.4 cm)	16.7 in. (42.4 cm)
Materials	Carbon fiber Carbon fiber Carbon fiber Aluminum
Weight	0.85 lb. (36 g)	1 lb. (454 g)	1.1 lb. (499 g)	1.32 lb. (599 g)

© 2019 Gradus Group LLC. All Rights Reserved. Oben is a registered trademark of the Gradus Group.

Oben®
