Product Type	Security Management Server
Brand	Check Point
Model	Smart-1 405
Form Factor	1U Rackmount
Dimensions (W x D x H)	43.0 x 43.0 x 4.4 cm (16.9 x 16.9 x 1.7 in)
Weight	Approx. 10 kg (22 lbs)
Power Supply	Dual redundant, 100-240V AC, 50-60Hz
Power Consumption	200W typical
Processor	Intel Xeon quad-core
Memory	16 GB RAM
Storage	2 x 1 TB SATA HDD RAID 1
Network Interfaces	2 x Gigabit Ethernet management ports
Main Functions	Centralized security policy management, logging, monitoring, SmartConsole, Gaia OS
Supported Software	Check Point R80.x and higher Management
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 85% non-condensing
Compliance	FCC, CE, UL
Maintenance	Regular firmware updates via SmartUpdate; backup configuration regularly.
Cleaning	Use a dry, lint-free cloth. Do not use liquids or sprays.
Safety Notes	Ensure proper airflow; do not block vents. Use only included power cords.
Repair & Spare Parts	Contact Check Point support for authorized repairs and genuine parts.

Frequently Asked Questions - Smart-1 405 Check Point

What is the Check Point Smart-1 405 used for?

The Smart-1 405 is a security management server used to centrally manage Check Point firewalls, IPS, and other security gateways. It runs the Check Point management software and provides a unified console for policy management, logging, and monitoring.

How do I initially configure the Smart-1 405?

Initial configuration is done via the Gaia WebUI or CLI. Connect to the management port, set an IP address, and run the config script. You can then access SmartConsole to define security policies.

Can the Smart-1 405 be used in a high-availability setup?

Yes, the Smart-1 405 supports high availability in an Active/Passive configuration. Two units can be paired with sync links to ensure failover and configuration synchronization.

What is the maximum number of gateways this device can manage?

The Smart-1 405 can manage up to 100 gateways or 50,000 users depending on the software version and licensing. Performance may vary based on policy complexity.

How do I backup the configuration?

Use the backup command in the CLI or schedule automated backups via SmartConsole. Backups can be saved locally or to a remote server. It is recommended to backup regularly, especially before firmware upgrades.

What versions of Check Point software does the Smart-1 405 support?

The Smart-1 405 supports Check Point R80.x and later management versions. Always verify compatibility on the Check Point support site before upgrading.

How to reset the administrator password?

If you have physical access, reboot the appliance and press Ctrl+B during boot to enter the Boot Manager menu. Select the option to reset the admin password. Alternatively, contact Check Point support.

Can I use the Smart-1 405 with third-party firewalls?

No, the Smart-1 405 is designed exclusively for Check Point security gateways. It cannot manage non-Check Point devices.

What are the LED indicators on the front panel?

The front panel includes Power, Disk, Network, and System LEDs. Refer to the user manual for color meanings: green indicates normal, amber indicates warning, red indicates fault.

How to perform a factory reset?

A factory reset can be done via the Gaia WebUI under System Management > Reset to Factory Defaults, or by using the reset_factory CLI command. Note: This erases all configuration and logs.

USER MANUAL Smart-1 405 Check Point

Front view of a black electronic device labeled 'Check Point' against a pink background (no readable text beyond branding)

WARNING! Before you begin with the appliance installation, read all the safety instructions. Search for Smart-1 405/410 Appliance Getting Started Guide. http://downloads.checkpoint.com/dc/download.htm?ID=55885

Latest Software: We recommend that you install the most recent software release to stay up-to-date with the latest functional improvements, stability fixes, security enhancements, and protection against new and evolving attacks.

Thank you for choosing the Check Point Smart-1 405/410 Security Management Appliance, part of the Check Point Infinity consolidated architecture. You are now minutes away from setting up the most advanced security platform designed to prevent the most sophisticated threats today and in the future.

Should you have any questions about your purchase, please don't hesitate to contact Check Point support services.

1

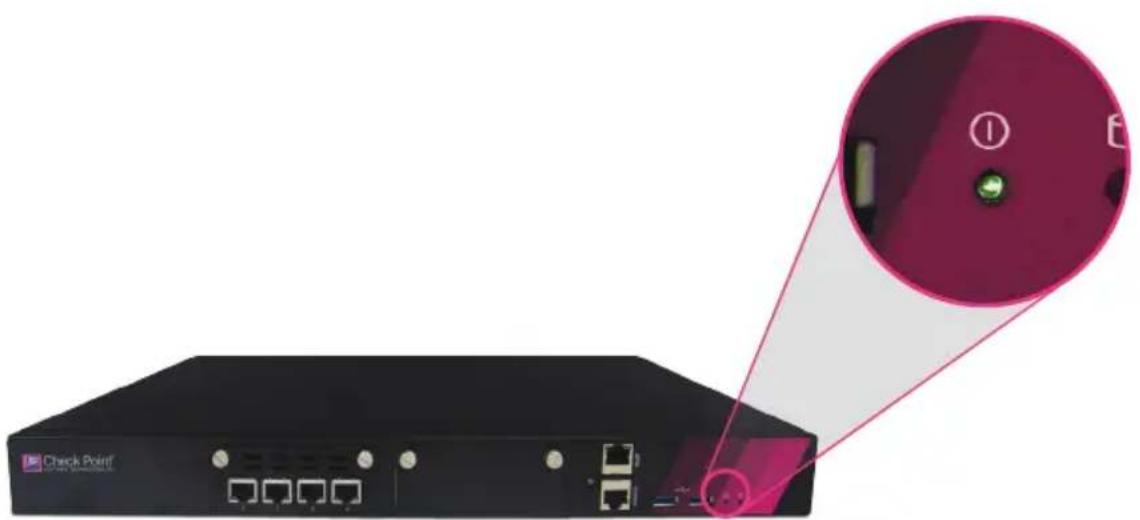

POWER UP YOUR CHECK POINT APPLIANCE

• Connect the power cable to the power port on the Smart-1 appliance rear panel and plug it into a power outlet.
• Turn the power on.

Front view of a black network switch device with ports and a highlighted circular button (no text or symbols on the device itself)

2

CONNECT YOUR PC FOR INITIAL SETUP

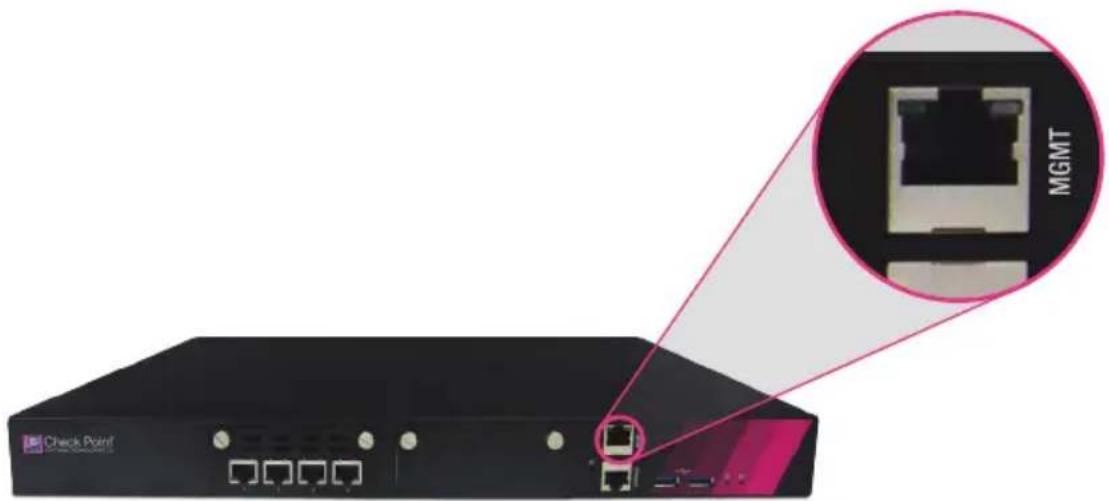

- Initial setup must be done from a PC connected to the appliance's management interface via the included Ethernet cable. Management interface is marked as MGMT on the appliance front panel.

Windows 7, 8, and 10 configuration:

• Right-click on the network adapter you want to assign an IP address and click Properties. Select Internet Protocol Version 4 (TCP/IPv4) and click the Properties button.
  • In the IP address field, enter 192.168.1.2.
  • In the Subnet mask field, enter 255.255.255.0.
• Leave the Default gateway and DNS settings fields empty.
• Click OK and close the dialog boxes.
  • After completing the initial connection, the First Time Configuration Wizard will guide you through the process of configuring the appliance.

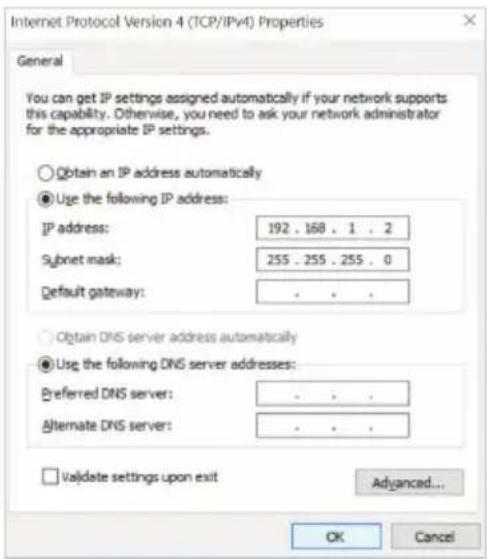

Figure 1 Internet Protocol (TCP/IP) Properties

CONFIGURE YOUR APPLIANCE

• Launch the Web browser and enter https://192.168.1.1 in the address bar.
  Note – You might receive a certificate error page due to a known, unresolved browser conflict. Click Continue to this Web site.
• Log in with the default system administrator login name/password, admin/admin, and click Login.

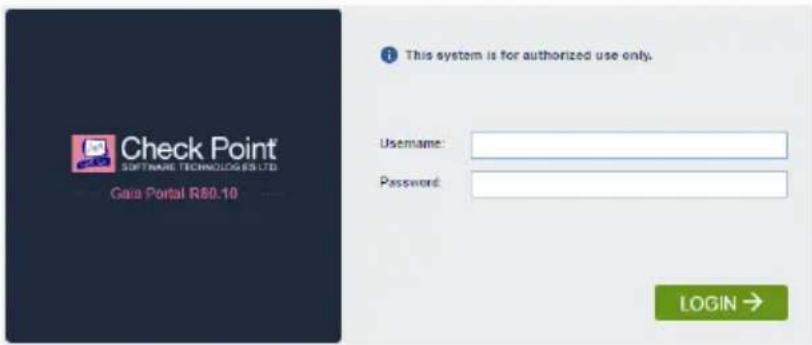

Figure 2
Appliances Login Page

Note - Popups must always be allowed on https://.

• The First Time Configuration Wizard will begin automatically (Fig. 3).
• The wizard will guide you through the connection setup process. Fill in the parameters as required.

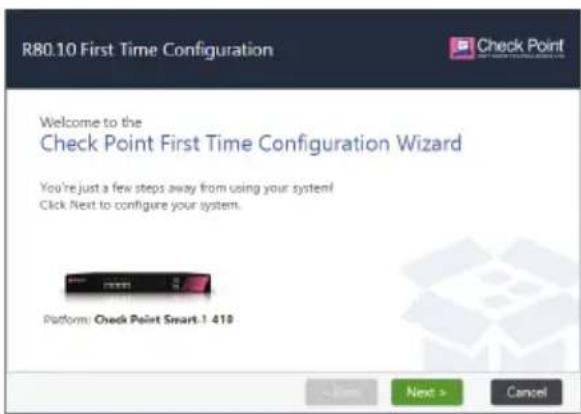

Figure 3

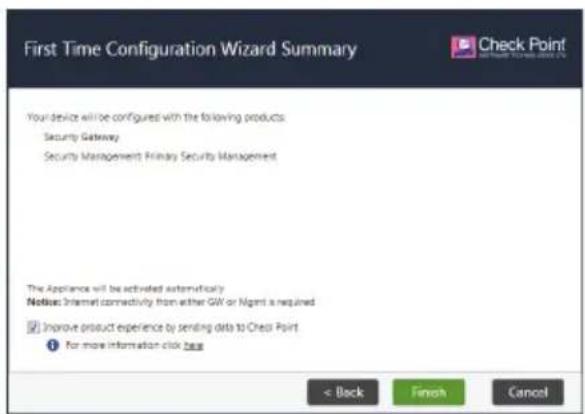

Figure 4
First Time Configuration Wizard - Welcome Page First Time Configuration Wizard - Summary Page

For additional information regarding setting up your appliance, search for Smart-1 405/410 Appliance Getting Started Guide http://downloads.checkpoint.com/dc/download.htm?ID=55885

For more information, visit the Check Point appliance Support page. Search for Check Point Smart-1 405/410 Appliance. http://supportcontent.checkpoint.com/solutions?id=sk117578

TECHNICAL SUPPORT

For further information about the appliance, search for Check Point User Center: https://usercenter.checkpoint.com/usercenter/login/cpapp

For technical assistance, contact Check Point 24 hours a day, seven days a week at:

[phone] (Americas)

[phone] (International)
