TPE-215GI - Network card / adapter TRENDNET - Free user manual and instructions

Product Type	Gigabit Power over Ethernet (PoE+) Injector
Dimensions (L x W x H)	5.5 x 2.6 x 1.2 inches (140 x 66 x 30 mm)
Weight	0.44 lbs (200 g)
Input Power	100-240V AC, 50/60Hz
Output Power	48V DC, 0.625A (30W)
Data Rate	10/100/1000 Mbps Gigabit Ethernet
PoE Standard	IEEE 802.3af/at (PoE+)
Number of Ports	1 Data In (RJ-45), 1 Data+Power Out (RJ-45)
LED Indicators	Power, PoE Active
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (non-condensing)
Certifications	FCC, CE, RoHS
Compliance	IEEE 802.3, 802.3u, 802.3ab
Safety	Do not expose to water or moisture. Use only with rated power supply.
Cleaning and Maintenance	Wipe with a dry, soft cloth. Do not use liquid cleaners.
Repair and Spare Parts	No user-serviceable parts. Contact TRENDnet support for service.
Mounting	Desktop or wall-mountable (bracket included)
Package Contents	TPE-215GI, power adapter, user manual, wall-mount kit

Frequently Asked Questions - TPE-215GI TRENDNET

What is the TRENDnet TPE-215GI?

The TRENDnet TPE-215GI is a Gigabit PoE+ Injector that combines data and power over a single Ethernet cable, delivering up to 30W to PoE-enabled devices.

How do I install the TPE-215GI?

Connect your network switch to the Data In port using an Ethernet cable. Then connect the Data+Power Out port to your PoE device (e.g., IP camera, access point). Plug in the power adapter.

What devices are compatible with this PoE injector?

Any device that supports IEEE 802.3af/at PoE (including 802.3bt with restrictions) can be powered. Devices such as IP cameras, VoIP phones, and wireless access points are typical.

Can I use the TPE-215GI with a non-PoE device?

No, the injector outputs power on the Ethernet cable. Do not connect it to non-PoE devices unless they have a PoE splitter to separate power and data.

What is the maximum cable length for PoE?

The maximum Ethernet cable length for PoE is 100 meters (328 feet) when using Cat5e or higher cable.

How do I check if the TPE-215GI is working?

Check the LED indicators: the Power LED should be solid green, and the PoE Active LED should light when a PoE device is connected and powered.

Can the TPE-215GI be mounted on a wall?

Yes, the TPE-215GI includes a wall-mount kit. Use the included brackets and screws to securely attach it to a wall or vertical surface.

What safety precautions should I follow?

Do not expose the injector to water, moisture, or extreme temperatures. Unplug before cleaning. Use only the supplied power adapter.

What is the warranty period?

TRENDnet offers a 3-year limited warranty for the TPE-215GI. Register your product online for full support.

Where can I download the full manual?

The full manual is available for download on the TRENDnet support website or from popular manual repositories like notice-facile.com.

USER MANUAL TPE-215GI TRENDNET

Gigabit PoE Injector (15.4W)

TPE-113GI

Gigabit PoE+ Injector (30W)

TPE-115GI

Gigabit Ultra PoE Injector (60W)

TPE-117Gi

Gigabit PoE++ Injector (95W)

TPE-119GI

2.5G PoE+ Injector (30W)

TPE-215GI

2.5G PoE++ Injector (95W)

TPE-219GI

10G PoE++ Injector (95W)

TPE-319GI

LED Indicators

LED	Status	Definition
Power	Green	Power on
	Off	Power off
Data Out	Green	PoE Device Connected
	Off	No link

Note: LED table definition may not apply to all injectors.

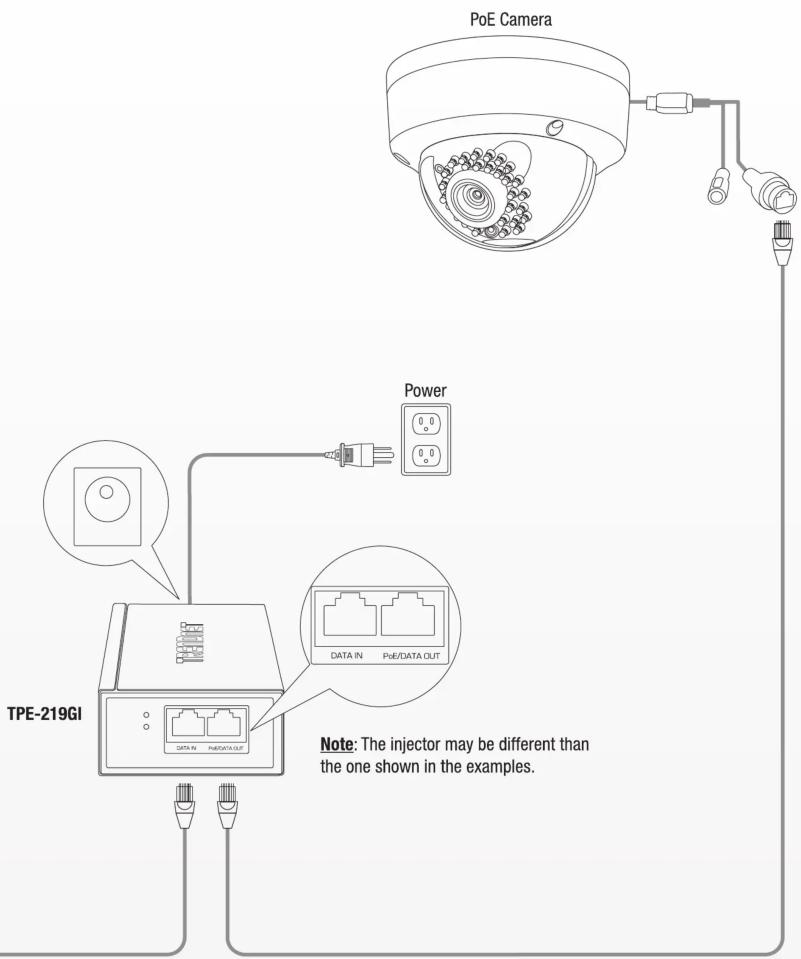

Power

Line drawing of a network device with two cables, showing connections between ports (no text or symbols)

Note: The appliance inlet is served as disconnect device, the socket-outlet shall be installed near the equipment and shall be easily accessible. The label is attached to the bottom of the injector.

Declaration of Conformity

TRENDNET®

Manufacturer's Name and Address

TRENDnet, Inc.

20675 Manhattan Place

Iomance, CA 50361 USA

Zwolsestraat 156 2587 WB The Hague The Netherlands

Product Information:

Model Number: TPE-113GI / TPE-115GI / TPE-117GI / TPE-119GI / TPE-215GI / TPE-219GI / TPE-319GI

Product Name: Gigabit PoE Injector / Gigabit PoE+ Injector / Gigabit Ultra PoE Injector / Gigabit PoE++ Injector / 2.5G PoE+ Injector / 2.5G PoE++ Injector / 10G PoE++ Injector

Trade Name: TRENDnet

TRENDnet hereby declares that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.

Safety EN 62368-1: 2014 + A11: 2017 (TPE-113G), TPE-115G, TPE-117G, TPE-119G, TPE-215G, TPE-319G) EN IC 62368-1: 2020 + A11: 2020 (TPE-219G)

EMC EN 55032: 2015 + A11: 2020 (TPE-113G) EN 55032: 2015 + A1: 2020 (TPE-119G, TPE-219G), TPE-319G) EN 55032: 2012 + AC: 2013 Class A (TPE-117G) EN 55032: 2015 + AC: 2016 (TPE-115G, TPE-215G) EN IC 61000-3-2: 2019 + A1: 2021 (TPE-119G, TPE-219G), TPE-319G) EN IC 61000-3-2: 2019 (TPE-113G) EN 61000-3-2: 2014 (TPE-115G, TPE-215G) EN 61000-3-2: 2014 Class A (TPE-117G) EN 61000-3-3: 2013 (TPE-115G, TPE-117G, TPE-215G) EN 61000-3-3: 2013 + A1: 2019 (TPE-113G) EN 61000-3-3: 2013 + A2: 2021 (TPE-119G, TPE-219G), TPE-319G) EN 55035: 2017 + A11: 2020 (TPE-113G, TPE-119G, TPE-219G, TPE-319G) EN 55034: 2010 + A1: 2015 (TPE-117G) EN 55035: 2017 (TPE-115G, TPE-117G, TPE-215G)

This product is herewith confirmed to comply with the Directives.

Directives: EMC Directive 2014/30/EU RoHS Directive (EU) 2015/863 RoHS3 Directive 2015/863/EU WEEE Directive 2012/19/EU REACH Regulation (EU) No. 1907/2006 Low Voltage Directive 2014/35/EU

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Date: October 23, 2023

Title: VP of Technology

The Hague The Netherlands

TRENDNET®

Détails du produit:

Modèle: TPE-113GI / TPE-115GI / TPE-117GI / TPE-119GI / TPE-215GI / TPE-219GI / TPE-319GI

The Hague The Netherlands

TRENDNET®

Titel: Vice President of Technology

Declaration of Conformity

Manufacturer's Name and Address

TRENDnet, Inc.

20675 Manhattan Place

lormance, CA 50361-03A

Authorized Representative: Office: [phone]

Unit 4 Rivermead Business Park,

Pipers Way, Thatcham, RG19 4EP England

Product Information:

Model Number: TPE-113GI / TPE-115GI / TPE-117GI / TPE-119GI / TPE-215GI / TPE-219GI / TPE-319GI

Product Name: Gigabit PoE Injector / Gigabit PoE+ Injector / Gigabit Ultra PoE Injector / Gigabit PoE++ Injector / 2.5G PoE+ Injector / 2.5G PoE++ Injector / 10G PoE++ Injector

Trade Name: TRENDnet

TRENDnet hereby declares that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.

Safety BS EN 62368-1: 2014 + A11: 2017 (TPE-113G), TPE-115G), TPE-117G), TPE-119G), TPE-215G), TPE-319G) BS EN IEC 62368-1: 2020 + A11: 2020 (TPE-219G) EMC BS EN 55032: 2015 + A11: 2020 (TPE-113G) BS EN 55032: 2015 + A1: 2020 (TPE-119G), TPE-219G), TPE-319G) BS EN 55032: 2012 + AC: 2013 Class A (TPE-117G) BS EN 55032: 2015 + AC: 2016 (TPE-115G), TPE-215G) BS EN IEC 61000-3-2: 2019 + A1: 2021 (TPE-119G), TPE-219G), TPE-319G) BS EN IEC 61000-3-2: 2019 (TPE-113G) BS EN 61000-3-2: 2014 (TPE-115G), TPE-215G) BS EN 61000-3-2: 2014 Class A (TPE-117G) BS EN 61000-3-3: 2013 (TPE-117G), TPE-215G) BS EN 61000-3-3: 2013 + A1: 2019 (TPE-113G) BS EN 61000-3-3: 2013 + A2: 2021 (TPE-119G), TPE-219G), TPE-319G) BS EN 55035: 2017 + A11: 2020 (TPE-113G), TPE-119G), TPE-219G), TPE-319G) BS EN 55034: 2010 + A1: 2015 (TPE-117G) BS EN 55035: 2017 (TPE-115G), TPE-215G)

This product is herewith confirmed to comply with the Directives.

Directives: Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 The Waste Electrical and Electronic Equipment Regulations 2013 (as amended) The REACH Enforcement Regulations 2008 (as amended) Electrical Equipment (Safety) Regulations 2016

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Date: October 23, 2023

Title: VP of Technology

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service. Specific warranty periods are listed on each of the respective product pages on the TRENDnet website.

Garantie Limitée

Power Input Range: 100-240V\~, 50/60Hz, 0.8A Power Output Rating: DC54V==550mA

TPE-119GI/TPE-219GI Power Input Range: 100-240V\~, 50/60Hz, 2.5A Power Output Rating: DC54V --- 1.67A

This lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the appliance.

WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: BISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Note: The appliance inlet is served as disconnect device, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Please make sure this product earthed correctly to ensure safety and prevent electrical shock.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation

Waste electrical an electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or Retailer for recycling advice.

Technical Support

If you have any questions regarding the product installation, please contact our Technical Support. Toll free US/Canada: 1-866-845-3673 Regional phone numbers available at

www.trendnet.com/support

TRENDnet

20675 Manhattan Place Torrance, CA 90501 USA

Applies to PoE Products Only: This product is to be connected only to PoE networks without routing to the outside plant.

Note The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet's website at: www.trendnet.com/register

Copyright © 2023. All Rights Reserved. TRENDnet.

TPE-113GI / TPE-115GI / TPE-117GI / TPE-119GI / TPE-215GI / TPE-219GI / TPE-319GI (v3.xR) 10.23.2023
