Product Type	Freestanding Washing Machine
Brand	Indesit
Model	WITL 861 (EU)
Energy Class	A+++
Capacity	8 kg
Maximum Spin Speed	1600 rpm
Dimensions (H x W x D)	85 cm x 59.5 cm x 60.5 cm
Weight	71 kg
Noise Level (Wash / Spin)	52 dB / 76 dB
Water Consumption per Cycle	50 L
Annual Energy Consumption	176 kWh
Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco, Rinse & Spin
Features	Start Delay, Child Lock, Easy Iron, Fast with Prewash
Display	LED Digital Display
Drum Material	Stainless Steel
Motor	Inverter
Power Supply	220-240 V, 50 Hz
Door Opening	Reversible, left or right
Installation Type	Freestanding

Frequently Asked Questions - WITL 861 (EU) INDESIT

How do I start the washing machine for the first time?

Plug in the machine, open the water tap, load laundry (max 8 kg), add detergent, select a program (e.g., Cotton 60°C), and press Start/Pause. Before first use, run an empty cycle with detergent to clean the drum.

What does error code F01 mean?

Error F01 indicates a motor control failure. Try unplugging the machine for 1 minute, then restart. If persistent, contact technical support as the control board may need replacement.

How do I clean the detergent dispenser?

Remove the drawer by pressing the release lever. Rinse under warm water, clean the compartments with a brush, and wipe the drawer housing. Reinsert fully. Repeat every 2-3 months.

Why is my laundry still wet after spinning?

Check if the spin speed is set low (e.g., 400 rpm). For maximum drying, select a high spin speed (up to 1600 rpm). Also ensure the load is balanced; redistribute clothes if necessary.

How can I delay the start of a wash cycle?

Press the Start Delay button to set a delay from 1 to 24 hours. The selected time will appear on the display. After setting, press Start/Pause; the machine will begin after the delay.

What is the maximum load for a quick wash?

For the Quick Wash program (30°C), the maximum load is 3.5 kg. Exceeding this may reduce cleaning performance.

How do I activate the child lock?

Press and hold the Child Lock button (or a combination per manual) for 3 seconds until the lock icon appears. Repeat to deactivate. This prevents accidental button presses during a cycle.

Why is the machine making unusual noises?

Check for foreign objects (coins, keys) in the drum or filter. Ensure the machine is level and not touching walls. Unbalanced loads can cause thumping; redistribute clothes.

How do I clean the filter?

Unplug the machine, open the filter cover at the bottom, place a towel, remove the filter by turning counterclockwise, clean out debris, and reinsert. Do this every 1-2 months.

Where can I find spare parts for this model?

Spare parts are available through Indesit authorized service centers or online retailers. Search for model WITL 861 (EU) on the Indesit website or use part numbers from the user manual.

USER MANUAL WITL 861 (EU) INDESIT

Unpacking and levelling

Electric and water connections

The first wash cycle

Technical details

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning your appliance

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

Cleaning the detergent dispenser

Precautions and advice, 5

General safety

Disposal

Saving energy and respecting the environment

Washing machine description, 6-7

Control panel

How to open and shut the drum

Leds

Starting and Programmes, 8

Briefly: how to start a programme

Programme table

Personalisations, 9

Setting the temperature

Setting the spin cycle

Functions

Detergents and laundry, 10

Detergent dispenser

Bleach cycle

Preparing your laundry

Special items

Woolmark Gold

Troubleshooting, 11

Service, 12

Before calling for Assistance

indesit

GB

! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.
! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

1. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).
2. Seal the gaps using the plastic plugs provided.
3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location. Warning: should the screws be re-used, make sure you fasten

the shorter ones at the top.

! Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^irc .

Levelling your appliance

correctly will provide it with stability and avoid any vibrations, noise and shifting during operation.

If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections Connecting the water inlet hose

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged pin (no text or symbols)

1. Connect the supply pipe by screwing it to a cold water tab using a 34 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical device with a pipe and valve, showing a rotational arrow indicating motion (no text or symbols present)

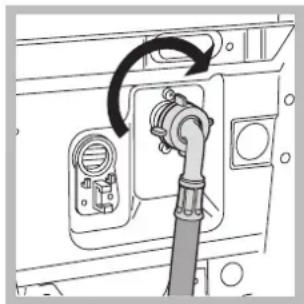

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
! Never use hoses that have already been used.

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

Simple line drawing of a bulb connected to a pipe, no text or symbols present

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

Technical details
Model	WITL 861
Dimensions	40 cm wide85 cm high60 cm deep
Capacity	from 1 to 5 kg
Electric connections	Please refer to the technical data plate fixed to the machine.
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 42 litres
Spin speed	up to 800 rpm
Test wash cycles in accordance with directives 1061/2010 and 1015/2010.	Programme 60ircC Cotton standard 60°C;Programme 40ircC Cotton standard 40°C.
	This appliance is compliant with the following European Community Directives:- 2004/108/CEE (Electromagnetic Compatibility)- 2006/95/CE (Low Voltage)- 2012/19/EU

GB

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Pure geometric diagram showing a right triangle with two arrows indicating direction (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);
2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

Pure technical line drawing of a mechanical component with no text or symbols

1. clean the inside thoroughly;
2. screw the lid back on;
3. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

How to clean the detergent dispenser

Disassembly:

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning:

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Line drawing of a hand placing a small object into a washing machine (no text or symbols)

Fig. 1 Fig. 2

Illustration of hands using a tool to clean or adjust a device (no text or symbols visible)

Line drawing of hands using a manual washing machine to clean or wash material (no text or symbols)

Fig. 3

Line drawing of a mechanical component with two cylindrical pins (no text or symbols)

Fig. 4

! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
  • Always keep children well away from the appliance while in operation.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.

All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Washing machine description

Control panel

Detergent dispenser to add detergent and fabric softener.

LEDs to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated.

FUNCTION keys to select the functions available. The button corresponding to the function selected will remain on.

SPIN SPEED knob to set the spin speed or exclude the spin cycle completely.

TEMPERATURE knob to set the temperature or the cold wash cycle.

ON/OFF key to turn the washing machine on and off.

START/RESET key to start the programmes or cancel incorrect settings.

ON-OFF/LID LOCK led, to find out whether the washing machine is on (flashing) and if the lid may be opened.

PROGRAMME knob to set the programmes.

The knob stays still during the cycle.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON/OFF button briefly and wait for the machine to start up again.

ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must wait for the lamp to flash before you open the Lid.

! The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an abnormality.

How to open and to close the drum

Line drawing of a kitchen appliance with a door and side panel, showing a curved arrow indicating rotation (no text or symbols)

Fig. 1

Hand inserting a device into a rack inside a storage unit (no text or symbols visible)

Fig. 2

Line drawing of a hand inserting a plastic bag into a washing machine (no text or symbols)

Fig. 3

Illustration of hands inserting a device into a container with numbered labels (no text or symbols on the device itself)

Fig. 4

Leds

The LEDS provide important information. This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled (see page.9), once you have started the programme, the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

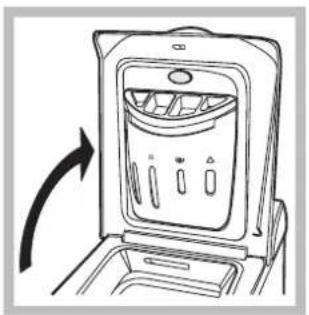

A) Opening (Fig. 1).

Lift the external lid and open it completely.

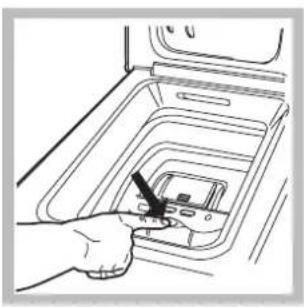

B) Opening the drum (Soft opening):

With one finger, push the button indicated in fig. 2 and the drum will open delicately.

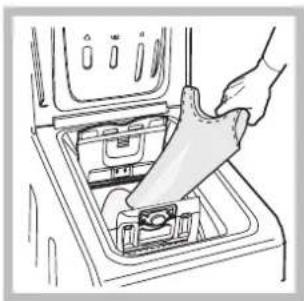

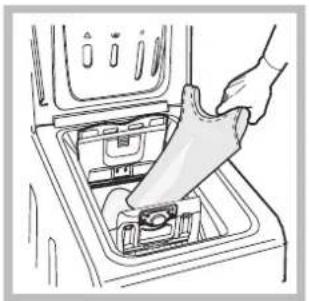

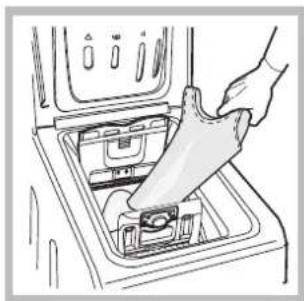

C) Loading the washing machine. (Fig. 3).

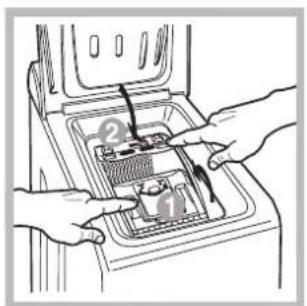

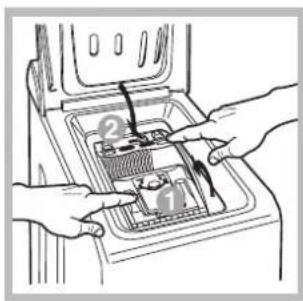

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDS.

When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Starting and Programmes

GB

Briefly: starting a programme

1. Switch the washing machine on by pressing button. All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine, add the detergent and any fabric softener and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature.

5. Set the spin speed.

6. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

7. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button (J)

Programme table

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents				Max. load (kg)	Residual dampness %	Energy consumption kWh	Total water It	Cycle duration
				Prewash	Wash	Fabric softener	Bleach
Standard
1	Cotton with prewash: extremely soiled whites. 90° 800			●	●	●		-5	71 1,82	64 150'
2	Cotton: extremely soiled whites. 90° 800				●	●	●		5	71 1,90 60	35'
3	Coloured Cotton: lightly soiled whites and delicate colours.	40°	800	-	●	●	●		5	71 0,53 50	90'
4	Synthetics: heavily soiled resistant colours.	60°	800	-	●	●	●		3	44 0,85 39	110'
4	Synthetics (3): lightly soiled resistant colours.	40°	800	-	●	●	●		3	44 0,53 39	100'
60°C	Cotton Standard 60°C (1): heavily soiled whites and resistant colours.	60°	800	-	●	●	●		5	71 0,88 47,5	160'
40°C	Cotton Standard 40°C (2): lightly soiled whites and delicate colours.	40°	800	-	●	●	●		5	71 0,91 63	150'
7	Wool: for wool, cashmere, etc.	40°	800	-	●	●	-1	-	-	- 65'
8	Cotton Standard 20°C	20° 800	-		●	●	●		5	-	-- 180'
Time 4 you
9	Cotton: Heavily soiled whites and fast colours	60°	800	-	●	●	-		3,5	71	0,81	35
10	Cotton: Lightly soiled whites and delicate colours (shirts, jumpers, etc.)	40°	800	-	●	●	-		3,5	-	-	-
11	Synthetics: Delicate colours (all types of slightly soiled garments)	40°	800	-	●	●	-		2,5	-	-	-
12	Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30° 800	-		●	●	-3		71	0,25 38	30'
Sport
13	Special Shoes	30° 600	-		●	●	-		Max. 2 pairs	-	--	55'
14	Sport Intensive	30° 600	-		●	●	-3		-	- 85'
Partial programmes
	Rinse	-	800	--		●	●		5	-	--	36'
	Spin + Drain	-	800	-	-	-	-		5	-	-	-

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 60^ircC with a temperature of 60^ircC .
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.
2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 40°C with a temperature of 40°C.
3) Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40^irc C.

Notes

-For programmes 9 and 10, we advise against exceeding a wash load of 3.5 kg.
-For programme 14 we advise against exceeding a wash load of 3 kg.

Cotton Standard 20°C (wash cycle 8) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Express (wash cycle 12) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (12 at 30^irc C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table).

The temperature can be lowered, or even set to a cold wash (※

GB

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone 800 rpm

Synthetics 800 rpm

Wool 800 rpm

Silk no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Note. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Option Effect	Comments Enabled with		programmes:
Delay Timer	Delays the start of the wash by up to 9 hours.	Pess the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.	All
Bleaching	Bleaching cycle de-signed to remove the toughest stains.	Please remember to pour the bleach into extra compartment 4 (see page 10).This option is incompatible with the EASY IRON option.	2, 3, 4, 60irc, 60irc ,8 and Rinse cycle.
Easy iron	By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases.At the end of the cycle the washing machine will perform slow rotations of the drum.	To drain the water so that the laundry may be removed, press the START/RESET button.This option is incompatible with the BLEACHING option.	1, 2, 3, 4, 60irc , 40irc , 8, 9, 10, 11.
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 60irc , 40irc , 7, 8, 9, 10, 11, 13, 14, and Rinse cycle.

GB

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

! Do not use hand washing detergents because these create too much foam.
! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

! Do not use hand wash detergent because it may form too much foam.

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid exceeding the “max” level indicated.

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 4. The fabric softener should not overflow from the grid.

compartment 4: Bleach

Bleach cycle

Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. When pouring in the bleach, be careful not to exceed the “max” level indicated on compartment 4 (see figure).

To run the bleach cycle alone, pour the bleach into compartment 4 and set the Rinse programme (for cotton fabrics) and push the button #leaching.

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
  • Empty all pockets and check for loose buttons.
• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1,200 g

1 towel 150-250 g

Special items

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem
The washing machine won't start.
The wash cycle won't start.
The washing machine fails to load water.
The washing machine continuously loads and unloads water.
The washing machine does not drain or spin.
The washing machine vibrates too much during the spin cycle.
The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.
There is too much foam.
Possible causes/Solution:

·The appliance is not plugged into the socket, or not enough to make contact.·There has been a power failure.

·The appliance door is not shut properly. The Lid locked Led flashes.·The ⏻ button has not been pressed.·The START/RESET button has not been pressed.·The water tap is not turned on.·A delayed start has been set (using the Delay Timer, see page “Personalisations”).

·The water inlet hose is not connected to the tap.·The hose is bent.·The water tap is not turned on.·There is a water shortage.·The water pressure is insufficient.·The START/RESET button has not been pressed.

• The drain hose is not fitted between 65 and 100 cm from the floor (see page 3).
• The free end of the hose is underwater (see page 3).
• The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

- The programme does not foresee the draining: some programmes require enabling the draining manually.

- The Easy iron option is enabled: to complete the programme, press the START/RESET button.

• The drain hose is bent (see page 3).

- The drain duct is clogged.

- The drum was not unblocked correctly during installation (see page 2).

- The washing machine is not level (see page 2).

- The washing machine is closed in between furniture cabinets and the wall (see page 2).

- The water inlet hose is not screwed on correctly (see page 2).

- The detergent dispenser is obstructed (to clean it, see page 4).

- The drain hose is not secured properly (see page 3).

- Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again.

If the problem persists, contact Assistance.

- The detergent is not suitable for machine washing (it should bear the definition “for washing machines” or “hand and machine wash”, or the like).

- You used too much detergent.

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010

Brand	INDESIT
Model	WITL 861 (EU)
Rated capacity in kg of cotton	5.0
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A+
Energy consumption per year in kWh 1)	169.0
Energy consumption of the standard 60 °C cotton programme at full load in kWh 2)	0.882
Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2)	0.644
Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2)	0.574
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8.0
Water consumption per year in litres 3)	8511
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	D
Maximum spin speed attained 4)	800
Remaining moisture content 5)	71%
Programme time of the "standard 60 °C cotton" at full load in minutes	160
Programme time of the "standard 60 °C cotton" at partial load in minutes	120
Programme time of the "standard 40°C cotton" at partial load in minutes	115
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing 6)	61
Noise in dB(A) re 1 pW spinning 6)	68

1) The "standard 60°C cotton" at full and partial load and the "standard 40°C cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60°C cotton and standard 40°C cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.
2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4) For the standard 60 °C at full and partial load or the 40°C at partial whichever is lower.
5) Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.
6) Based on washing and spinning phases for the standard 60°C cotton programme at full load.

CIS

РУССКИЙ

WITL 861

indesit

Содержание

Установка,14-15

Line drawing of a car door corner with a circular vent or sensor mounted on the side (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged screw (no text or symbols)

Diagram of a mechanical device with a lever and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a valve or connector (no text or symbols present)

Line drawing of a kitchen appliance with a scroll wheel and directional arrow indicating rotation (no text or symbols)

рис. 1

Line drawing of a hand inserting a device into a multi-tiered appliance (no text or symbols visible)

рис. 2

Line drawing of a hand placing a plastic bag into a shared drawer inside a microwave oven (no text or symbols)

рис. 3 рис. 4

Illustration of hands inserting a device into a container with numbered labels (no text or symbols present)

Индикаторы

Pure structural diagram showing a beam with two downward forces and a triangular support (no text or symbols)

Pure technical line drawing of a mechanical component with a circular feature and internal arrows (no text or symbols)

Line drawing of a hand placing a black object into a trash bin (no text or symbols)

Рис. 1 Рис. 2

Illustration of hands cleaning a CD3 device (no text or symbols visible)

Illustration of hands using a water dispenser to clean or wash a machine (no text or symbols visible)

Рис. 3 Рис. 4

Line drawing of a mechanical component with a bracket and internal slots (no text or symbols)

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a beaker and a flanged base (no text or symbols)

Diagram of a car air vent with a hose and valve, showing airflow direction (no text or symbols)

Diagram of a pipe connection with a connector, showing tubing and a connector (no text or symbols)

Pure structural diagram showing two vertical members with horizontal arrows indicating forces or dimensions (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand placing a tray into a shared drawer with three drawers (no text or symbols)

Fig. 1 Fig. 2

Illustration of a hand using a tool to clean or adjust a device (no text or symbols visible)

Illustration of hands washing a kitchen sink with a faucet (no text or symbols)

Fig. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Fig. 4

Diagram of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Line drawing of a hand inserting a component into a multi-tiered storage tank (no text or symbols)

Fig. 2

Line drawing of a hand inserting a plastic bag into a shared drawer inside a microwave oven (no text or symbols)

Fig. 3 Fig. 4

Illustration of hands installing or adjusting a device into a container (no text or symbols visible)

Spie

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a hairdryer with a magnified view of the bulb (no text or symbols)

Line drawing of a kitchen appliance with a scroll wheel and directional arrow (no text or symbols)

Мал. 1

Hand inserting a small electronic component into a multi-tiered storage unit (no text or symbols visible)

Мал. 2

Line drawing of a hand inserting a plastic bag into a shared internal appliance (no text or symbols)

Мал. 3 Мал. 4

Illustration of hands installing or adjusting a component inside a device (no text or symbols visible)

Індикатори

Pure structural diagram showing a beam with two downward forces and a triangular support (no text or symbols)

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a button into a shared drawer with a tray (no text or symbols)

Мал. 1

Line drawing of a hand using a tool to clean or adjust a device (no text or symbols visible)

Мал. 2

Illustration of a hand washing a container with a faucet, no text or symbols present

Мал. 3 Мал. 4

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a hexagonal nut and ring, bottom shows a flanged bolt (no text or symbols)

Diagram of a mechanical device with a pipe fitting and directional arrow indicating rotation (no text or symbols)

Diagram of a pipe connection with a bulb and connector (no text or symbols)

Pure structural diagram showing two vertical members with horizontal arrows indicating forces or dimensions (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Line drawing of a hand placing a button into a shared drawer with three panes (no text or symbols)

Obr. 1

Illustration of hands cleaning a CDG device with a tool (no text or symbols visible)

Obr. 2

Illustration of hands washing a small appliance with a faucet (no text or symbols)

Obr. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Obr. 4

Line drawing of a kitchen appliance with a right-handled door and side panel, showing a curved arrow indicating rotation (no text or symbols)

Obr. 1

Hand inserting a small electronic device into a multi-tiered storage unit (no text or symbols visible)

Obr. 2

Line drawing of a hand placing a plastic bag into a washing machine (no text or symbols)

Obr. 3

Obr. 4

Kontrolky

Line drawing of a car door corner with a spiral-shaped button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged screw (no text or symbols)

Diagram of a mechanical component with a pipe inserted, showing a curved arrow indicating rotation or assembly (no text or symbols present)

Diagram of a pipe connection with a bulb and connector (no text or symbols)

Pure structural diagram showing a beam with supports and load arrows, no text or symbols present

Simple line drawing of a mechanical component with a circular feature and arrow symbol (no text or labels)

Line drawing of a hand placing a small object into a multi-glass washing machine (no text or symbols)

Obr. 1

Line drawing of hands using a tool to clean or adjust a device (no text or symbols visible)

Obr. 2

Line drawing of hands using a kitchen sink with a faucet, no text or symbols present

Obr. 3

Line drawing of a mechanical component with a bracket and internal slots (no text or symbols)

Obr. 4

Line drawing of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Obr. 1

Line drawing of a hand inserting a small electronic device into a multi-tiered storage unit (no text or symbols visible)

Obr. 2

Line drawing of a hand inserting a plastic into a shared drawer (no text or symbols)

Obr. 3

Illustration of hands inserting a device into a container with numbered labels (no text or symbols on the device itself)

Obr. 4

Kontrolky

Line drawing of a car door handle with a circular button and rotational arrow (no text or symbols)

Technical diagram of a mechanical component with labeled section A (no text or symbols present)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe fitting with a magnified view of the handle (no text or symbols)

Line drawing of a device with an arrow indicating rotation or change, no text or symbols present

Рис. 1

Hand inserting a device into a rectangular appliance (no text or symbols visible)

Рис. 2

Illustration of a hand placing a component into a shared airway (no text or symbols visible)

Рис. 3

Рис. 4

A) AIIIY (1-cyp).

Pure technical diagram showing a structural beam with two downward arrows indicating force or direction (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and internal shaft (no text or symbols)

Line drawing of a hand placing a container into an appliance (no text or symbols)

Рис. 1

Line drawing of a hand holding a device with a magnifying glass, no text or symbols present

Рис. 2

Illustration of hands washing a small appliance with a faucet (no text or symbols)

Рис. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Рис. 4
