USER MANUAL zoopa 350 ACME

Black and white photo of a multi-rotor helicopter with propellers and landing gear, labeled '4 KWAL | CHANNEL | VOES' (no additional text or symbols)

14+ JAHRE | YEARS | ANS

Read the entire user's manual to become familiar with the characteristics of the product before using it. Incorrect use of the product may lead to damage of the product, to personal property or cause serious injury. This is an advanced hobby product. It must be operated with caution and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner can result in injury or damage to property. This product is not intended to be used by children under 14 years. Teenagers should always be accompanied by an adult when flying.

This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual prior to assembly, setup or use, in order to be able to use the product correctly and avoid damage or serious injury.

Service & Support 15

INDEX

Content of the Box 17

Exploded View 18

Technical Data 19

Tuning possibilities 19

BC4024 2.4 GHz Controller 20

Charging the helicopter 20

Connecting the controller with the helicopter 20

How to fly 21

Helicopter steering 22

Trim/Adjust 23

Flight maneuvers 24

FAQ 24

Safety Advice 24

Warranty 25

Service & Support 25

INDEX

Service & Support 35

zoopa 350

Black and white photo of a helicopter flying over a textured, open field (no visible text or symbols)

LIEFERUMFANG

Side view of a blue and red propeller helicopter in flight (no visible text or symbols)

1 x Helikopter Modell:

zoopa 350

Line drawing of an ACME remote control device (no text or symbols on the device body)

Pure technical line drawing of two elongated mechanical components with no text or symbols

Simple line drawing of a person jumping with a circular motion path and directional arrows (no text or symbols)

Isometric diagram showing a person jumping over a platform with a circular symbol labeled 'H' and a magnifying glass above (no text or symbols on the diagram itself)

ERSATZTEILLISTE

	Art. Nr.	Artikelbezeichnung		Art. Nr.	Artikelbezeichnung		Art. Nr.	Artikelbezeichnung
A	AA0350-A	Haube	J	AA0350-J	Oberer Rahmen	S	AA0350-S	Heck komplett
B	AA0350-B	Hauptrotorblätter	K	AA0350-K	Hauptrahmen	T	AA0350-T	Servos 2x
C	AA0350-C	Heckrotorblatt	L	AA0350-L	Akkurahmen	U	AA0350-U	Steuergestänge
D	AA0350-D	Stabistange+Verbinder	M	AA0350-M	Landegestell	V	AA0350-V	Hauptzahnrad
E	AA0350-E	Rotorenzentralstück	N	AA0350-N	Heckrohr	W	AA0350-W	Heckzahnräder klein + groß
F	AA0350-F	Blatthalter	O	AA0350-O	Kugellager Set	2	AA0350-2	Akku 7,4 V LiPo 850 mAh
G	AA0350-G	Taumelscheibe	P	AA0350-P	Hauptmotor	Y	AA0350-Y	ESC / Regler
H	AA0350-H	Verbinder Set	Q	AA0350-Q	Heckmotor
I	AA0350-I	Rotorwelle	R	AA0350-R	Heckstreben

www.acme-online.de

TECHNISCHE DATEN

Länge: 390 mm

Höhe: 135 mm

Gewicht: 265 g

Motoren: 370 Klasse

Akku: LiPo 7,4 V 850 mAh 2S

Yellow rectangular battery with red and black wires attached, isolated on white background (no text or symbols visible)

MAXIMALES FLUGERLEBNIS

Aerial view of a coastal hillside with winding roads and scattered buildings, overlooking the sea (no visible text or symbols)

FOTOS UND VIDEOS AUS DER LUFT

Model of a helicopter with four yellow propellers and red markings (no text or symbols visible)

GENIALER CRASHREDUZIERER

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Telefon: [phone]

Black and white photo of a helicopter flying over a textured, open field (no visible text or symbols)

CONTENT OF THE BOX

Please make sure that the set is complete before will use the helicopter for the first time*:

Side view of a blue and red model helicopter in flight (no visible text or symbols)

1 x Helicopter Model:

zoopa 350

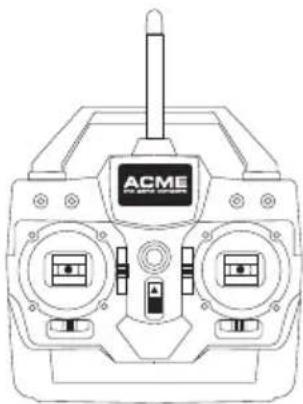

Line drawing of an ACME remote control device (no text or symbols on the device body)

Controller 2.4 GHz BC4024 Manual Phillips Screwdriver

LiPo 7,4V 850 mAh 2S LiPo Charger with Balancer 240 V Power Adapter

Simple line drawing of two elongated rectangular objects with handles, resembling a stylized pen or tool (no text or symbols)

Spare Blades Tail Rotor Balance Bar

* Before you can start using the helicopter, you need to insert 8 x AA 1,5 V batteries into the controller.

These are not included in the set.

BC4024 2.4 GHz CONTROLLER

At the backside of the controller, there is the Reset Button located next to the battery compartment.

CHARGING THE HELICOPTER

» To charge the LiPo battery, connect the power adaptor with the charger.
»Connect the white balancer plug with the charger port.
» Charging takes, depending on the battery condition, up to one hour. The LED flashes green when the battery is fully charged.

Always follow the safety instructions of this manual when charging the battery (Chapter: Safety Advice S. 25).

BINDING THE CONTROLLER WITH THE HELICOPTER

Perform the binding process as followed:

»Insert 8 AA 1,5V batteries into the controller.
»The helicopter needs to be switched off! Connect the battery plugs.
» Place the helicopter on a plain surface and let the tail rotor point into your direction.
»Switch ON the helicopter.
» Pull the gas stick of the controller towards the lower left corner and hold it while you switch on the controller.
»A minimal servo reaction of the helicopter is being heard.
»Put the gas stick into neutral position.
»Switch OFF the controller.
»Leave the helicopter turned ON.
» Get 3 meters away from the model and switch ON the controller again.
»Done!

HOW TO FLY

Caution

» Before flying check the correct movement of the swash plate by right stick control.
» Please note that flying at bad weather conditions (rain/wind) is not possible.
» As soon as the voltage of the controller batteries drops down, you will hear an alert signal. Replace the batteries as soon as possible. Do not continue flying.

I. DRIFT

The zoopa 350 is an excellent Single-Blade helicopter that has been especially developed to enter into 4-Channel helicopter flight. Attention should be paid to the fact, that 4-Channel helicopters tend to drift away into one direction. This drift can only be minimized by countersteering with the controller at all time.

II. RANGE

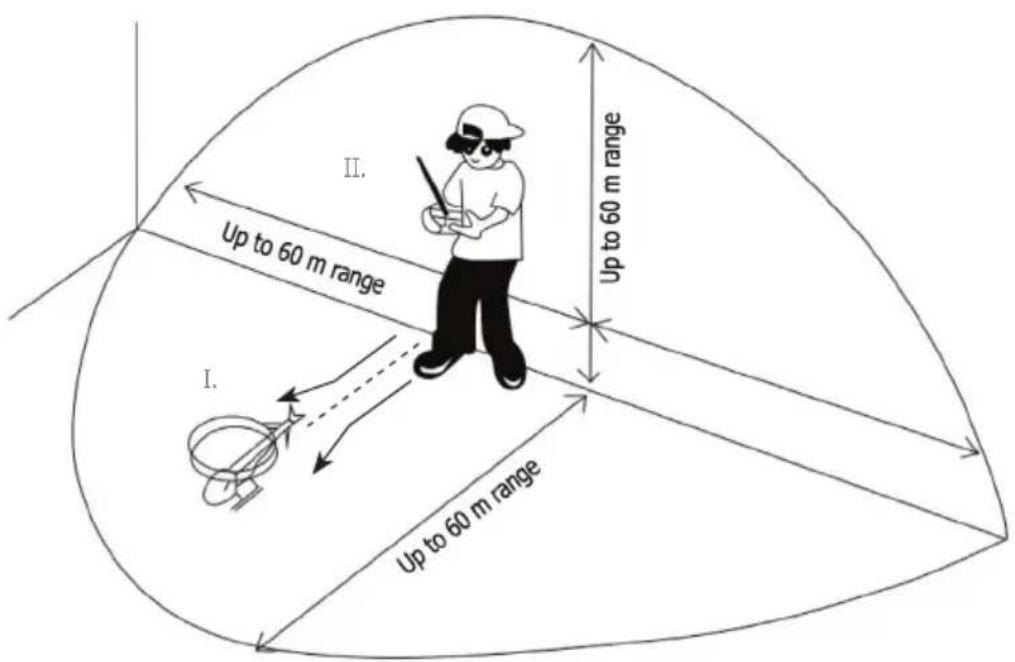

The range of the controller is about 60 m. Avoid crashes against the ceiling or other obstacles – this causes damages to the helicopter. Optimal flight can be reached at about 1 m height.

BEGINNER/ PROFESSIONAL MODE

Move down the dual-rate-switch for beginner mode: The servo movements are now reduced by 40 %. Move up the switch for professional mode with 100 % amplitude and full agility.

HELICOPTER STEERING

UP

to ascent, move up the left stick.

DOWN

to descent, move down the left stick slowly.

MOVE LEFT (ROLL)

pan to the left, move the right stick to the left.

MOVE RIGHT (ROLL)

pan to the right, move the right stick to the right.

FORWARD (NICK)

flying forward, move up the right stick.

BACKWARD (NICK)

flying backwards, move down the right stick.

LEFT ROTATION (SHEER LEFT)

turn around its own axis counterclockwise, move the left stick to the left.

RIGHT ROTATION (SHEER RIGHT)

turn around its own axis clockwise, move the left stick to the right.

TRIM / ADJUST

If the helicopter turns or drifts to one side after start, you can adjust the movements with the trims.

Move the corresponding trims against the drift movements as shown below.

DRIFT ROTATION TO THE RIGHT (SHEER TRIM)

if the helicopter is turning right, press the digital sheer trim button to the left until the result is satisfying.

DRIFT ROTATION TO THE LEFT (SHEER TRIM)

if the helicopter is turning left, press the digital sheer trim button to the right until the result is fine.

DRIFT BACKWARDS

if the helicopter is moving backwards, press the digital nick trim button to the top until the helicopter stops moving backwards.

DRIFT FORWARDS

if the helicopter is moving forward, press the digital nick trim button downwards until the helicopter stops moving forward.

DRIFT RIGHT (ROLL)

if the helicopter pans right, press the digital roll trim button to the left.

DRIFT LEFT (ROLL)

if the helicopter pans left, press the digital roll trim button to the right.

Attention should be paid to the fact, that 4-Channel helicopters tend to drift away into one direction. This drift can only be minimized by countersteering with the controller at all time.

FLIGHT MANEUVERS

If you have gained some experience, you can try to realize the following maneuvers.

Simple line drawing of a person jumping with a circular motion path and directional arrows (no text or symbols)

Isometric diagram showing a hand holding a ring above a platform with flagpoles and a central circular symbol labeled 'H' (no text or symbols beyond the label)

Turn on the spot Landing on a specified point

Flying a rectangle Flying a recumbent eight

FAQ

Error Reason Solution
The helicopter does not react on controls Batteries are not inserted in the controller correctly	Check batteries
	Batteries are empty Charge the batteries
	Binding was not correct Check chapter "Binding"
	Controller batteries are weak/empty Replace controller batteries
The helicopter does not gain height The Battery is weak Recharge the battery
The range is not sufficient Controller batteries are too weak Replace controller batteries
	The Antenna inside the model is too close to the PCB	Open the canopy and check the antenna

EXPLODED VIEW

SPARE PARTS

	Item No.	Article		Item No.	Article		Item No.	Article
A	AA0350-A	Canopy	J	AA0350-J	Upper Frame	S	AA0350-S	Complete Tail
B	AA0350-B	Main Blades	K	AA0350-K	Main Frame	T	AA0350-T	Servos
C	AA0350-C	Tail Rotor Blade	L	AA0350-L	Battery Frame	U	AA0350-U	Steering Rod
D	AA0350-D	Balance Bar	M	AA0350-M	Landing Skids	V	AA0350-V	Main Gear
E	AA0350-E	Rotorcenter Assembly	N	AA0350-N	Tail Pipe	W	AA0350-W	Tail Gear Set
F	AA0350-F	Carriage	O	AA0350-O	Bearing Set	2	AA0350-2	Battery 7,4 V LiPo 850 mAh
G	AA0350-G	Swash Plate	P	AA0350-P	Main Motor	Y	AA0350-Y	Mainboard
H	AA0350-H	Linkage Set	Q	AA0350-Q	Tail Motor
I	AA0350-I	Rotorshaft	R	AA0350-R	Rod Components

www.acme-online.net

TECHNICAL DATA

Length: 390 mm

Height: 135 mm

Weight: 265 g

Motors: 370 category

Battery: LiPo 7,4 V 850 mAh 2S

Controller: BC4024 2,4 GHz 4 Channel

TUNING OPTIONS

Yellow rectangular battery with red and black wires attached, isolated on white background (no text or symbols visible)

Raise the flight time of the zoopa 350 with a bigger 1000mAh battery and witness a clearly extended flight fun in a few quick steps.

Battery LiPo 1000mAh - Art. No.: AA0350-X

Aerial view of a coastal hillside with winding roads and scattered buildings, overlooking the sea (no visible text or symbols)

PHOTOS AND VIDEOS FROM THE AIR

Record sensational videos from the air or shoot breathtaking landscapes and buildings. The FlyCamOne eco V2 makes it possible. More detailed information at

www.camonetec.com

FlyCamOne eco V2 - Art. No.: FC2450

Model of a black helicopter with yellow propellers, shown against a plain white background (no text or symbols visible)

TRAINING KIT

Everyone starts small. In order to learn flying as gently as possible, we have invented the training assistance for you.

Landing gear – Art. No.: AA0353

SAFETY ADVICE

The product contains LiPo batteries. Take used up batteries to a scheduled collecting point.

Information about the contained LiPo battery inside the helicopter

Mishandling may lead to explosion, fire and smoke including damage of health or goods. Replace the battery by a recommended battery of the same type. Dispose of used batteries in the appropriate manner. Never charge with reversed polarity – permanent damage, fire and smoke may occur! Do not short-circuit – risk of explosion and fire! Avoid temperature of the LiPo battery being higher than 40 °C.

Important Battery Information

Always use AA alkaline batteries. If inappropriate batteries are used in the transmitter, they may become hot, leak and may rupture. Follow these precautions:

»Do not mix different types of batteries, or old and new batteries.

» When changing batteries, replace ALL of the old batteries by new ones.
» Make sure the batteries are installed with the correct polarity as shown in the battery compartment.
» Do not disassemble your transmitter batteries. Do not let them become hot or even start burning. To avoid short-circuits, avoid them getting wet.
» If liquid from inside the batteries encounters your skin or clothes, wash it off with water. If emergent battery fluid gets into your eyes, rinse them with cold water immediately and seek medical advice. Do not rub your eyes!

Dispose of empty batteries at a recycling centre. Herewith we declare that this item is in accordance with the essential requirements and other relevant regulations of the directive 1999/5/EC. A copy of the original declaration of conformity can be obtained at the following address.

Information for disposal of crossed Bin marked products

DE6989527

This symbol is marked on a product or packaging, it means that the product including the batteries must not be disposed of with your general household waste. Only discard electrical/electronic items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.

General safety advice

»Never fly close to other people!
»Do not fly in areas with obstacles that may complicate the flight!
»Do not fly when it is too windy. Close windows and doors!
» Do not try to catch the helicopter in mid-air when flying. Danger of injury!
»Avoid to touch the helicopter with clothes, hair or fingers.

WARRANTY

Please avoid crashing the helicopter. It may change the flight characteristics.
Defects caused due to mechanical influence are not covered by guarantee.

SERVICE & SUPPORT

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Phone: [phone]

Black and white photo of a helicopter flying over a textured, open field (no visible text or symbols)

CONTENU DE LA BOITE

Side view of a blue and red propeller helicopter in flight (no visible text or symbols)

Line drawing of an ACME remote control device with dual motors and a central display (no text or symbols)

Simple line drawing of an open book with horizontal lines representing text pages (no actual text or symbols)

Simple line drawing of a rectangular box with a small cube attached to its top (no text or symbols)

Technical line drawing of a mechanical component with a coiled cable (no text or symbols)

Pure technical line drawing of two elongated mechanical components (no text or symbols)

Simple line drawing of a person jumping with a circular motion path and directional arrows (no text or symbols)

Isometric diagram showing a hand holding a ring above a table with flags and a central circle labeled 'H' (no text or symbols beyond the label)

SPARE PARTS

Art. No. Article Art. No. Article Art. No. Article

A	AA0350-A	Fuselage	J	AA0350-J	Chassis haut	S	AA0350-S	Mat arrière complet
B	AA0350-B	Pales principales	K	AA0350-K	Chassis principal	T	AA0350-T	Servos
C	AA0350-C	Moteur arrière	L	AA0350-L	Support batterie	U	AA0350-U	Connecteurs servo
D	AA0350-D	Barre d'équilibrage	M	AA0350-M	Patin d'atterrissage	V	AA0350-V	Couronne principale
E	AA0350-E	Rotor central assemblé	N	AA0350-N	Mat arrière	W	AA0350-W	Pignon arrière
F	AA0350-F	Moyeu rotor	O	AA0350-O	Set de roulements	X	AA0350-2	Batterie 7,4 V LiPo 850 mAh
G	AA0350-G	Plateau cyclique	P	AA0350-P	Moteur principal	Y	AA0350-Y	Module principal
H	AA0350-H	Connecteurs	Q	AA0350-Q	Moteur arrière
I	AA0350-I	Axe rotor	R	AA0350-R	Fuselage arrière

www.acme-online.net

CARACTÉRISTIQUES TECHNIQUES

Longueur: 390 mm

Hauteur : 135 mm

Poids: 265 g

Motors: 370 classe

Batterie: LiPo 7,4 V 850 mAh 2S

Yellow rectangular battery with red and black wires attached, isolated on white background (no text or symbols visible)

DURÉE DE VOL MAXIMUM

Aerial view of a coastal town with winding roads and hills, overlooking the sea (no visible text or symbols)

PRISES DE VUES PHOTO ET VIDÉO

Model of a black helicopter with yellow wheels, no visible text or symbols

KIT D'ENTRAINEMENT

Information for disposal of crossed Bin marked products

DE6989527

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Téléphone: [phone]
