POWERJET7 - Dishwasher PITSOS - Free user manual and instructions

Product Type	Dishwasher
Brand	PITSOS
Model	POWERJET7
Dimensions (W x H x D)	60 cm x 85 cm x 60 cm
Weight	55 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Class	E (EU energy label)
Water Consumption per Cycle	Approx. 10 L
Energy Consumption per Cycle	Approx. 1.2 kWh
Place Settings	12
Noise Level	49 dB(A)
Number of Programs	6 (Eco, Intensive, Normal, Quick, Glass, Rinse)
Control Type	Electronic buttons with LED display
Water Connection	Cold water only, 3/4 inch thread
Child Lock	Yes
Self-Cleaning Filter	Yes
Salt and Rinse Aid Indicators	Yes
Interior Material	Stainless steel
Adjustable Upper Basket	Yes, height adjustable
Cutlery Basket	Yes, separate
Delay Start	Up to 24 hours
Maintenance	Clean filters monthly; check spray arms; descale every 3 months
Installation	Freestanding or built-in (panel not included)

Frequently Asked Questions - POWERJET7 PITSOS

How do I properly load dishes in the dishwasher?

Place plates facing inward, angled downwards. Bowls and pots should go on the lower rack. Glasses and cups on the upper rack. Ensure items do not block spray arms.

Which detergent should I use?

Use a high-quality dishwasher detergent (powder, gel, or tabs). For best results, use a detergent with rinse aid and salt built-in, or add separately.

How often should I clean the filter?

Clean the filter at least once a month to prevent clogs and maintain performance. Remove coarse particles and rinse under running water.

What do error codes E1, E2, etc. mean?

E1: water supply issue; E2: drainage problem; E3: heating error; E4: overflow. Refer to the manual for full list and troubleshooting.

Why is my dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the filter and ensure the sink drain is not blocked. Restart the rinse program.

How do I adjust water hardness?

Set the water hardness level using the control panel (typically via button combination). Test your water hardness and adjust accordingly. See manual for settings.

What is the most energy-saving cycle?

The Eco cycle is the most energy-efficient, using less water and lower temperatures. However, it takes longer. For daily loads, use Auto or Normal.

Why are my dishes not drying completely?

Ensure rinse aid is filled. Use a higher temperature rinse option. Allow dishes to cool before unloading. Check that the vent is not blocked.

Can I install the dishwasher myself?

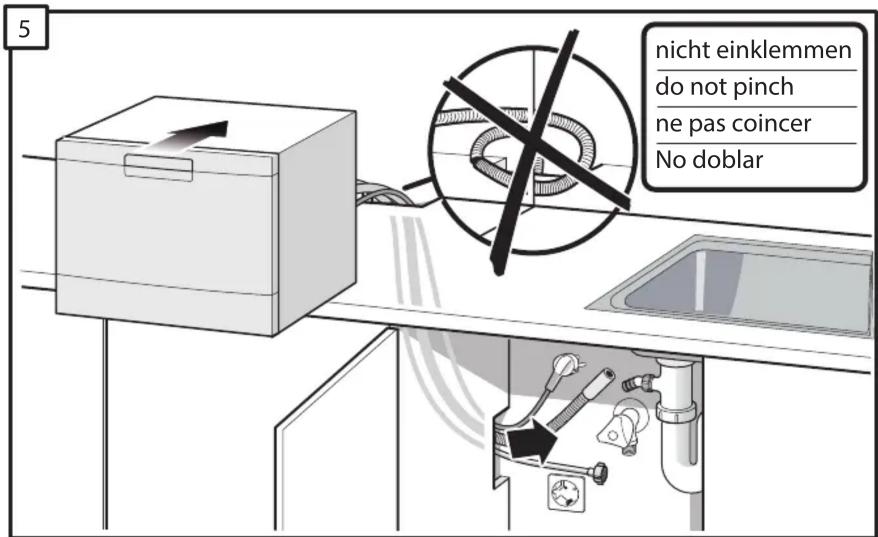

Yes, but ensure proper water and electrical connections. Level the dishwasher, connect inlet hose to cold water supply, and secure drain hose. If unsure, hire a professional.

What should I do if the dishwasher makes unusual noise?

Check if spray arms are blocked or items are rattling. Ensure the dishwasher is level. If noise persists, check for foreign objects in the pump or call service.

USER MANUAL POWERJET7 PITSOS

2

3

4
