DRS5512 - Dishwasher PITSOS - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	PITSOS
Model	DRS5512
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	50 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	1900 W
Water Pressure	0.04 – 1.0 MPa
Water Consumption	12 L per cycle
Energy Consumption	0.92 kWh per cycle
Noise Level	44 dB(A)
Place Settings	12
Programs	ECO, Intensive, Normal, Quick, Glass, Rinse & Hold
Safety Features	Child Lock, Leak Protection, Overfill Protection
Salt & Rinse Aid Dispenser	Yes
Filter System	Self-cleaning triple filter
Interior Material	Stainless Steel
Energy Efficiency Class	A+

Frequently Asked Questions - DRS5512 PITSOS

How do I install the dishwasher?

Ensure the water supply and drain hose are connected correctly. Level the appliance using the adjustable feet. Refer to the installation manual for detailed steps.

What is the recommended detergent?

Use a dishwasher tablet or powder detergent designed for automatic dishwashers. Avoid hand dishwashing liquid as it causes excessive foaming.

Why is the dishwasher not draining?

Check the drain hose for kinks or blockages. Clean the filter at the bottom of the dishwasher. Ensure the sink drain is not clogged.

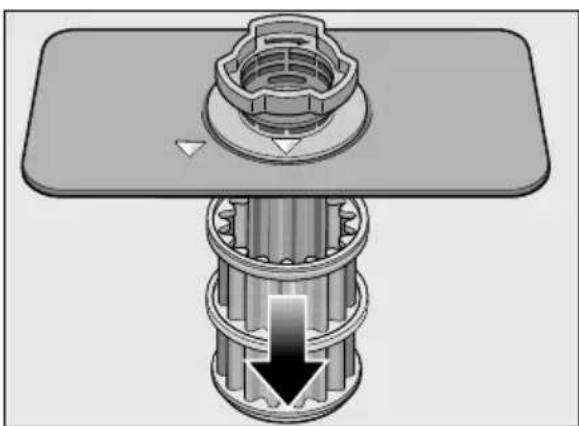

How do I clean the filters?

Turn off the dishwasher, remove the lower spray arm, then unscrew and rinse the triple filter under running water. Reassemble after cleaning.

What does error code 'E1' mean?

Error code 'E1' typically indicates a water supply issue. Make sure the water tap is open and the inlet hose is not kinked or frozen.

Can I wash pots and pans in this dishwasher?

Yes, use the Intensive program for heavily soiled pots and pans. Place them at an angle facing down for best cleaning results.

How do I add rinse aid?

Open the rinse aid dispenser cap near the detergent compartment. Fill with rinse aid until the indicator turns dark. Adjust the dosage control to prevent streaks.

Why are dishes not drying?

Ensure rinse aid is filled. Select a program with drying function. Avoid overloading and open the door slightly after cycle for steam to escape.

How do I reset the dishwasher?

Press and hold the Start/Reset button for 3 seconds to cancel the current cycle. Then select a new program and start again.

What should I do if the dishwasher is leaking?

Check the door seal for debris or damage. Inspect hose connections. If the leak persists, the leak protection system may have activated; contact service.

USER MANUAL DRS5512 PITSOS

Abstract line drawing of a stylized island or tree with scattered small shapes, no text or symbols present

Illustration of a funnel pouring granular material into a conical container with a lid, no text or symbols present

Illustration of a hand pouring liquid into a device with a magnified inset showing internal components (no text or symbols)

Illustration of a supermarket grocery basket containing various food items including vegetables, tomatoes, and condiments (no text or labels)

Υπόδειξη

Two-panel illustration showing a pencil holding a tray with a cross mark and a checkmark, no text or symbols present.

Μαγειρικά σκεύη

Κάτω καλάθι 28

Line drawing of a multi-tiered kitchen appliance with cutlery and utensils (no text or symbols)

Συμβουλή

Illustration of a plastic kitchen drawer containing various utensils and spoons (no text or symbols)

Εταζέρα \*

Illustration of a container being lifted by a hook, surrounded by coiled wires (no text or symbols)

Ράφι μαχαιριών \*

Technical line drawing of a multi-pin electronic component with grid lines and internal components (no text or symbols)

el Σκεύη

Diagram of a parking lot with lanes and wheels, no text or symbols present

Diagram of a parking lot with lanes and parking areas, no text or symbols present

Απορρυπαντικά

Illustration of a hand pressing down on a computer monitor with a brush (no text or symbols visible)

Diagram of a device with a star-shaped top and internal components, no text or symbols present

Mechanical component diagram showing a rotating assembly with a central hub and fan base (no text or symbols)

Mechanical assembly diagram showing a bolted joint inserted into a gear-like component with a downward arrow indicating force (no text or symbols present)

Diagram of internal combustion engine cylinder with valve positions and flow arrows (no text or labels)

Diagram of a kitchen appliance with a propeller and fan assembly, showing a black arrow indicating upward motion (no text or symbols present)

Mechanical assembly diagram showing a tool interacting with a circular component (no text or symbols visible)

Pure diagram of three gray rectangular blocks connected by lines, no text or symbols present

40

41

42

Diagram showing a refrigerator interior with a close-up of the refrigerator and its internal structure, illustrating airflow or mechanical motion (no text or symbols present)

Cross-sectional diagram of a kitchen appliance showing internal compartments and structural elements (no text or labels)
