Product Type	Dishwasher
Brand	PITSOS
Model	DGS5568
Energy Class	E (EU 2019/2017)
Place Settings	14
Noise Level	49 dBA
Height	84.5 cm
Width	60 cm
Depth	60 cm
Weight	42 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Consumption per Cycle	10.5 L
Annual Energy Consumption	290 kWh
Programs	Eco 50°C, Auto 45-65°C, Intensive 70°C, Quick 30 min, Glass 40°C, Pre-rinse
Delay Start	Up to 24 hours
Adjustable Upper Rack	Yes
Third Rack (Cutlery Tray)	Yes
Child Lock	Yes
Leak Protection System	AquaStop (partial)
Filter Type	Self-cleaning microfilter
Rinse Aid Indicator	Yes
Salt Indicator	Yes
Spare Parts Availability	Filters, spray arms, racks, salt cap, detergent dispenser

Frequently Asked Questions - DGS5568 PITSOS

How do I install the dishwasher correctly?

Ensure the appliance is level and connected to the cold water supply (max 60°C). Use a dedicated electrical socket with grounding. Remove all packaging and check for transport damages. Refer to the installation diagram in the manual.

What type of salt and rinse aid should I use?

Use granular dishwasher salt (sodium chloride) and a branded rinse aid. Fill the salt reservoir before first use, and adjust rinse aid dosage according to water hardness. The recommended water hardness range is 0-50°dH.

How often should I clean the filter?

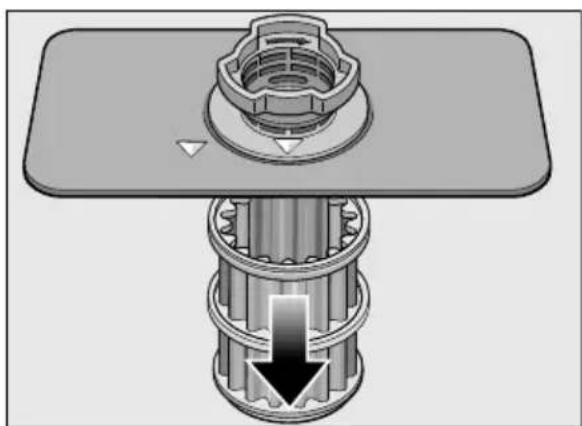

Clean the filter assembly after every use or at least weekly. Rinse under running water and remove any residues. A clogged filter reduces washing performance and can cause odors.

What do the error codes mean?

Common codes: E1 (water inlet issue), E2 (drain problem), E3 (heating failure), E4 (overflow). For detailed troubleshooting, refer to the error code table in the manual.

Why is my dishwasher not draining water?

Check if the drain hose is kinked or blocked. Clean the filter and ensure the drain pump is not jammed. If the problem persists, the pump may need replacement.

How can I reduce noise during operation?

Ensure the dishwasher is level and not touching cabinets. Do not overload or place large items that block spray arms. Using the Eco program at night can also reduce perceived noise.

What is the best way to load dishes?

Place plates facing down, cutlery in the basket with handles down, and large items like pots on the bottom rack. Avoid nesting utensils. Use the third rack for small items. Overloading prevents proper cleaning.

Can I use regular dish soap instead of dishwasher detergent?

No, never use regular dish soap – it creates excess foam and can damage the machine. Use only dishwasher detergents (powder, gel, or tablets).

How do I replace the spray arms?

Detach the spray arms by unscrewing the retaining nut or unclipping. Clean the nozzles and replace if worn. Order genuine PITSOS spare parts using model DGS5568.

Why does the door not close properly?

Check if items are blocking the door seal or the hinges are misaligned. Adjust the door tension if necessary. Avoid slamming the door.

USER MANUAL DGS5568 PITSOS

Abstract line drawing of a stylized island or tree with scattered small shapes, no text or symbols present

Illustration of a funnel pouring granular material into a conical container with a lid, no text or symbols present

Illustration of a hand pouring liquid into a device with a magnified inset showing internal components (no text or symbols)

Illustration of a multi-tiered plastic crate filled with various kitchen utensils (no text or symbols visible)

Υπόδειξη

Two-panel illustration showing a container with a cross mark and a pen-like object above it, both without any text or symbols.

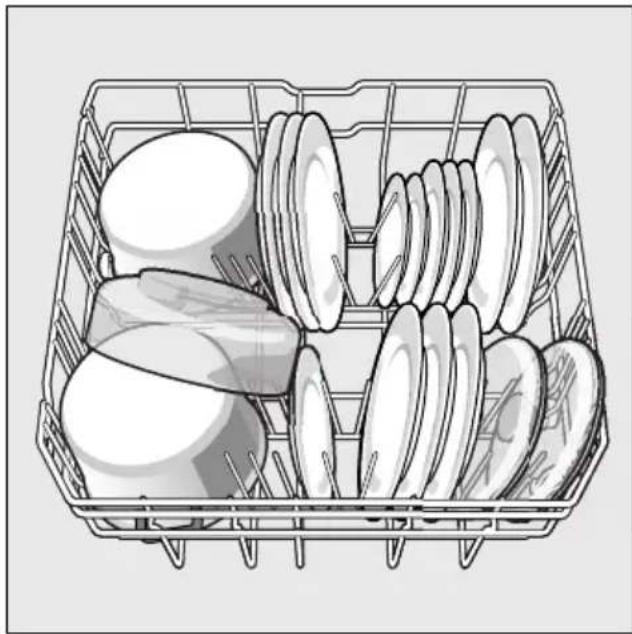

Μαγειρικά σκεύη

Κάτω καλάθι 27

Illustration of a shopping basket filled with various food items (no text or symbols visible)

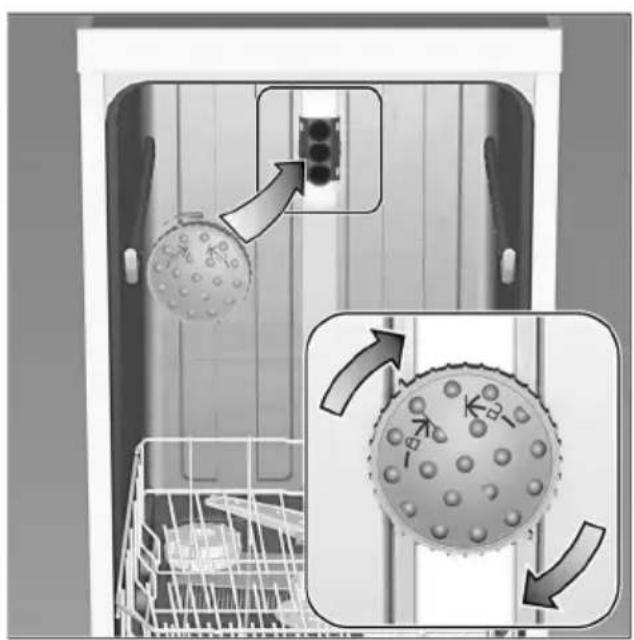

Συμβουλή

Interior view of a kitchen appliance drawer with open compartments containing various kitchen utensils (no text or labels visible)

Illustration of a container being lifted by a hook, surrounded by wavy lines (no text or symbols)

Illustration of a hand pressing down on a computer monitor (no text or symbols visible)

Diagram of a device with a star-shaped top and internal components, no text or symbols present

Mechanical assembly diagram showing a rotating component with directional arrows (no text or symbols)

Mechanical assembly diagram showing a bolted joint inserted into a cylindrical housing with a downward arrow indicating force or motion (no text or symbols present)

Diagram of a kitchen appliance showing a propeller with directional arrows indicating rotation and assembly (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a circular component (no text or symbols visible)

Pure diagram of three gray rectangular blocks connected by lines, no text or symbols present

40

41

42

Diagram showing a kitchen appliance with a computer monitor and a close-up of its interior, illustrating the process of lifting or removing a ball (no text or symbols present)

Interior view of a shared kitchen appliance with shelves, fixtures, and a rack (no text or symbols visible)
