Product Type	2-Channel Car Audio Amplifier
Brand	Mosconi
Model	AS 100.2
Number of Channels	2
RMS Power Output (4 ohms)	50 W x 2
RMS Power Output (2 ohms)	80 W x 2
RMS Power Bridged (4 ohms)	160 W x 1
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion	< 0.05%
Signal-to-Noise Ratio	> 90 dB
Input Sensitivity	0.2 V - 6 V
Crossover Filters	Low-pass (50-250 Hz) and High-pass (50-250 Hz)
Bass Boost	0-12 dB at 45 Hz
Dimensions (W x L x H)	200 x 120 x 50 mm
Weight	1.2 kg
Power Supply Voltage	10-14.4 V DC
Fuse Rating	30 A
Speaker Impedance (Stereo)	2-8 ohms
Speaker Impedance (Bridged)	4-8 ohms
Inputs	2 RCA line inputs
Outputs	2 pairs of speaker terminals
Protection Features	Thermal, short circuit, over voltage
Cooling	Heatsink
Color	Black with brushed aluminum finish

Frequently Asked Questions - AS 100.2 Mosconi

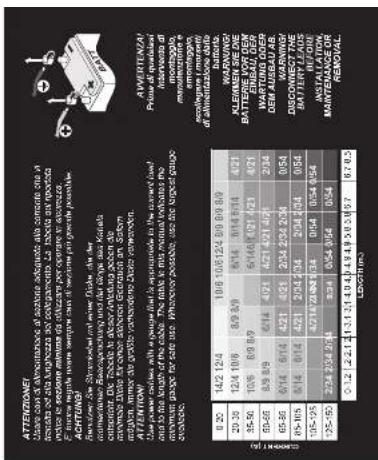

What is the recommended power wire gauge for the Mosconi AS 100.2?

For typical installations, use 8 AWG power and ground wire. Ensure proper fusing with a 30A inline fuse near the battery.

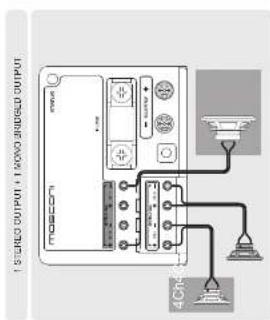

Can I bridge the AS 100.2 to power a single subwoofer?

Yes, the amplifier can be bridged to deliver 160W RMS into a 4-ohm load. Connect the positive speaker terminal to Channel 1 positive and negative to Channel 2 negative.

What is the input sensitivity range and how do I adjust the gain?

The input sensitivity is adjustable from 0.2V to 6V. Turn the gain knob clockwise to increase sensitivity. Use a multimeter or oscilloscope to set it correctly to avoid distortion.

Does the AS 100.2 have a remote turn-on lead?

Yes, it has a remote turn-on terminal (REM). Connect it to the head unit's remote output or a switched 12V source to power on the amplifier.

What crossover filters are available and how do I set them?

The amplifier features built-in low-pass (LPF) and high-pass (HPF) filters adjustable from 50 Hz to 250 Hz. Use the LPF for subwoofers and HPF for full-range speakers.

Is the amplifier stable at 2 ohms stereo?

Yes, the AS 100.2 is 2-ohm stable in stereo mode, delivering 80W RMS per channel. For bridged operation, minimum impedance is 4 ohms.

What should I do if the amplifier goes into protection mode?

Common causes include short circuits, overheating, or low voltage. Check speaker wiring, ensure proper ventilation, and verify the power supply voltage is between 10-14.4V.

Can I use the bass boost feature safely?

The bass boost provides up to 12 dB at 45 Hz. Use it sparingly to avoid clipping and potential speaker damage. It is best used with subwoofers.

What is the warranty period for Mosconi products?

Mosconi offers a limited warranty typically covering 2 years from date of purchase. Check with your dealer for specific terms and conditions.

How should I clean and maintain the amplifier?

Use a dry, soft cloth to wipe the exterior. Avoid liquid cleaners. Ensure the heatsink is free of dust for proper cooling. Periodically check connections.

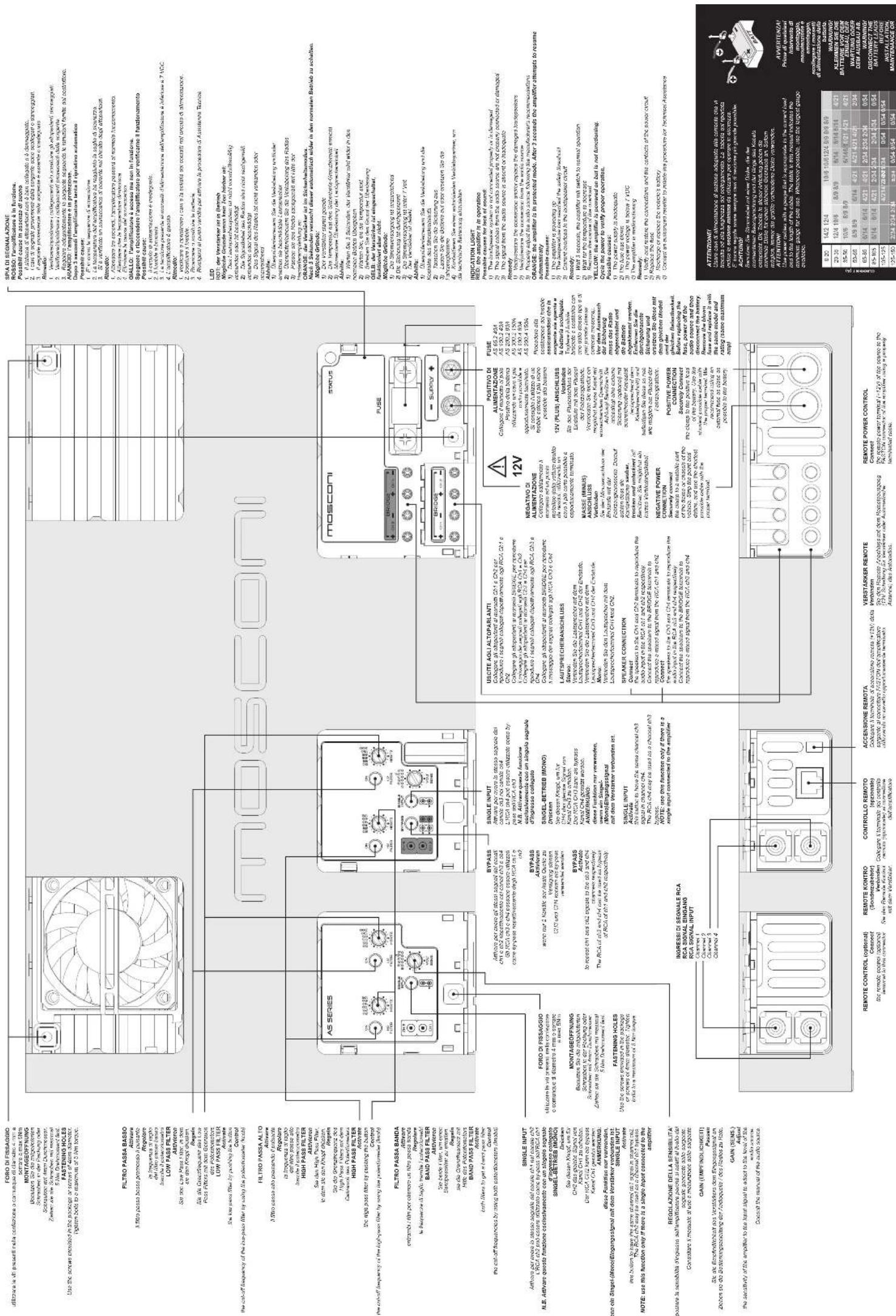

USER MANUAL AS 100.2 Mosconi

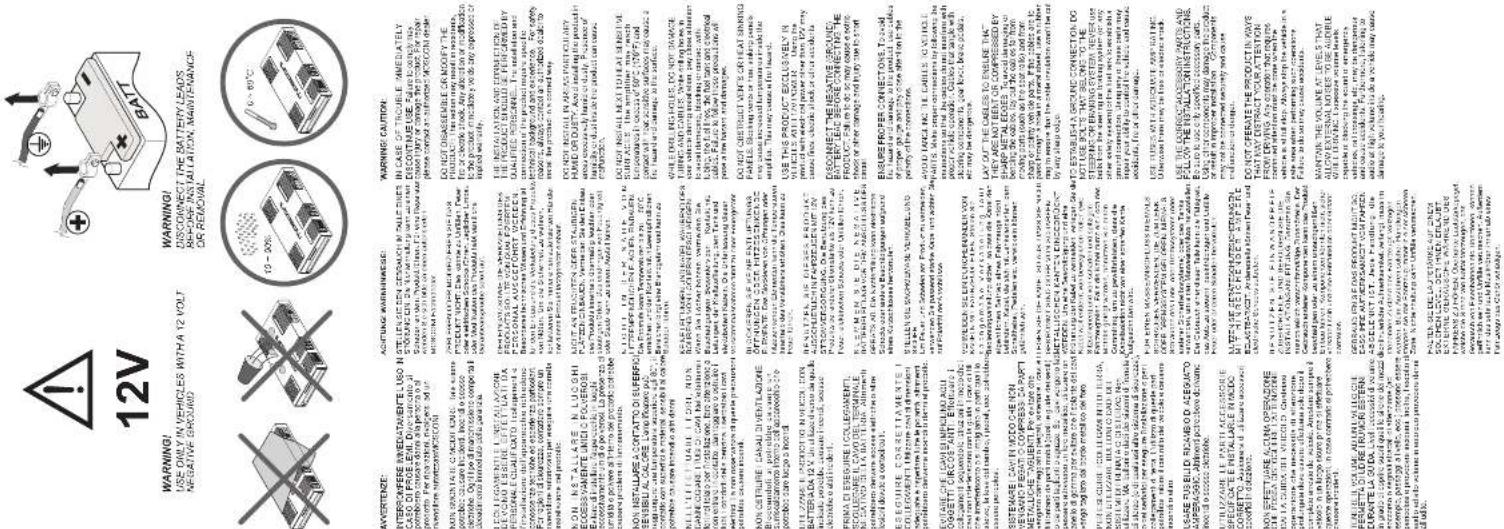

IMPORTARY, LECOETE ALIMENTARE TO LIBERTO DIUSO E FINE ESERCIE CARRITA SICUERZZA DI CHI OPERA. USSTALIZIONE E DI CHI UNITIZAPPRODITO WHATTO LESI DIESE GERVAUCHSALTEN SEAVI DUCH. UN SUCH SELBT MALL DEBONTENILEI AND PUNIONE DRESS PRODUCKS VERITARIUTI MAXOMEN. BEPOLEN IS ALLE HINNIGES. DAET DE SCHEDER CES INSTALIZION AND DES GEBAROUS DES PRODUCKS WITH ALL THE CONTROLS AND FUNCTIONS OF THIS PRODUCT FOLLOW ALL NOTICES FOR USING THE SAFETY OF THOSE INSTALINGS AND USING THE PRODUCT.

OWNER'S MANUAL WARNINGS WARBARRY CARD

Client	Automated Dealer	Product
Name		Model
Address		Serial Number
Email & Phone

VOSCONS periodic products MOSCON per 24 months delà de actuate intrascul des importes inspeitures en la documenta finale d'acquisitions (sefficulie futura à délogare alla presente la date di struttore un risorse et levranda). VOSCONS periodic products MOSCON est une positive dans la presente certificate. Ces contrapartons qu'adic camouflage suit apparaçito en editore MOSCAN é responsable de eventuali cannot se obtuse une personne que une autre imprémentaire l'importée MOSCON a cesse a quasi colesse. VOSPECIERS, 24 Morsale Garantie de MOSCON Products. Entschaltet la date du Kaufstrom auf der Rechnung des autorischem MOSCONS Paris/Vietris. Die Sonstummer des Produits muss mit der Sottentnummer der abgestomaten Garantiques Schrederlimmon. VOSO SEMMIME, korelait Haftung bei unsachsgamtem Einbau und Gebuch des Produces. VOS extends a warranty to MOSCON products for 24 months from the date of the original purchase as accordé in the appropriate tax and in the original purchase receipt. Enclose the date purchase receipt when sending the product for return or repart to the authorized dealer. VOS is not responsible for disposures or injuries caused by improper dispositions or otherwise of the product.

Designed and Manufactured in Italy by MOS - www.mosconi-system.it - www.mosconi.org
