Wireless LAN Adaptor Model No. DY-WL5 VQT4F00 until 2012/3/27 DY-WL5_E.book 2 ページ

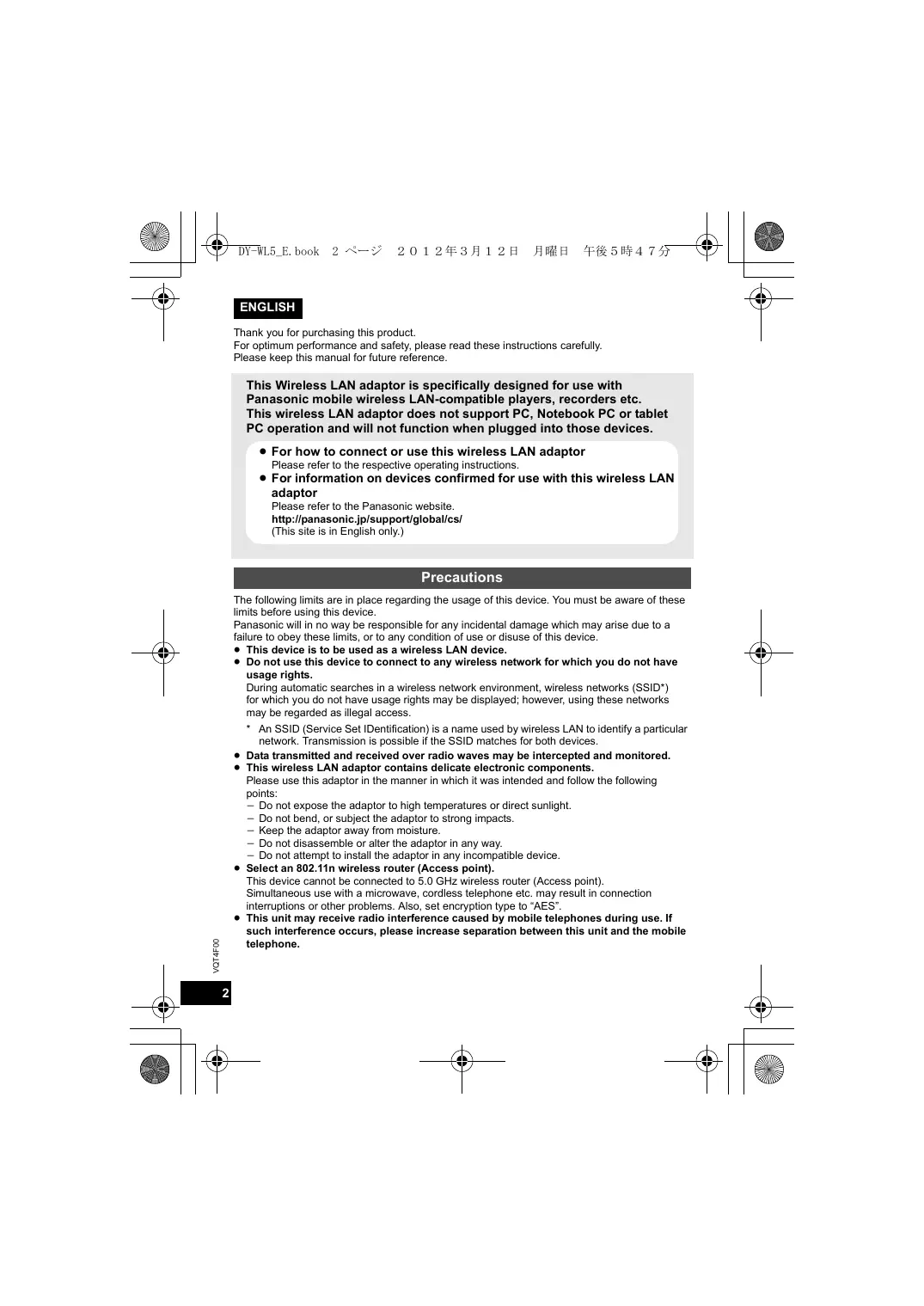

ENGLISH Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference. This Wireless LAN adaptor is specifically designed for use with Panasonic mobile wireless LAN-compatible players, recorders etc. This wireless LAN adaptor does not support PC, Notebook PC or tablet PC operation and will not function when plugged into those devices. ≥ For how to connect or use this wireless LAN adaptor Please refer to the respective operating instructions. ≥ For information on devices confirmed for use with this wireless LAN adaptor Please refer to the Panasonic website. http://panasonic.jp/support/global/cs/ (This site is in English only.) Precautions VQT4F00 The following limits are in place regarding the usage of this device. You must be aware of these limits before using this device. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this device. ≥ This device is to be used as a wireless LAN device. ≥ Do not use this device to connect to any wireless network for which you do not have usage rights. During automatic searches in a wireless network environment, wireless networks (SSID*) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.

• An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices. ≥ Data transmitted and received over radio waves may be intercepted and monitored. ≥ This wireless LAN adaptor contains delicate electronic components. Please use this adaptor in the manner in which it was intended and follow the following points: j Do not expose the adaptor to high temperatures or direct sunlight. j Do not bend, or subject the adaptor to strong impacts. j Keep the adaptor away from moisture. j Do not disassemble or alter the adaptor in any way. j Do not attempt to install the adaptor in any incompatible device. ≥ Select an 802.11n wireless router (Access point). This device cannot be connected to 5.0 GHz wireless router (Access point). Simultaneous use with a microwave, cordless telephone etc. may result in connection interruptions or other problems. Also, set encryption type to “AES”. ≥ This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

When this unit is not recognized Messages such as “No Adaptor” is displayed. ≥ Check if this unit is inserted fully and securely. ≥ Try removing this unit once, and inserting it again. If it does not get recognized even after performing the above, consult the dealer where you purchased this unit. Specifications Power supply DC 5 V (USB powered) 500 mA Power consumption Max. 2500 mW Dimensions (WkHkD) 30 mm (W)k74 mm (H)k12 mm (D) Mass Approx. 18 g Standard Compliance

• This unit supports WPA and WPA2 encryption.

Accessory (Product numbers correct as of February 2012. These may be subject to change.) 1 USB extension cable (K2KYYYY00140) ≥ Use according to the connection status of the device to be connected. Please refer to the appropriate instruction manual for details on how to use. ≥ Do not use any other USB extension cables except the supplied one. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. “Wi-Fi”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance. MAC address for this unit is located on the bottom of unit. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. VQT4F00 Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

For European Countries

Declaration of Conformity (DoC) Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de Contact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany This product is intended to be used in the following countries. Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland VQT4F00 This product is intended for general consumer. (Category 3) The WLAN feature of this product shall exclusively be used inside buildings. This product on purpose to connect to access point of 2.4 GHz WLAN.
