145308.01 - Iron Enkho - Free user manual and instructions

Product Type	Steam/Dry Iron
Model	145308.01
Brand	Enkho
Power Supply	220-240 V, 50-60 Hz
Power Consumption	2400 W
Soleplate Material	Non-stick ceramic coating
Water Tank Capacity	300 ml
Cord Length	2.0 m
Dimensions (L x W x H)	30 x 15 x 12 cm
Weight	1.2 kg
Steam Output	Continuous: 30 g/min, Burst: 120 g/min
Temperature Settings	Adjustable thermostat with LED indicator
Functions	Spray, Steam burst, Vertical steam, Self-clean, Anti-drip, Anti-calc
Safety Features	Auto shut-off, Overheat protection, Heat-resistant handle
Maintenance	Descaling every 2 months; clean soleplate with vinegar solution
Spare Parts Available	Soleplate, Water tank cap, Steam button, Power cord
Repairability Index	7.0 / 10

Frequently Asked Questions - 145308.01 Enkho

How do I descale my Enkho iron?

Mix equal parts water and white vinegar, fill the tank, heat the iron, and press the self-clean button. Repeat with clean water. For regular maintenance, descaling every 2 months prevents mineral buildup.

What type of water should I use?

Use distilled or demineralized water to avoid calcification. Tap water can be used occasionally but may shorten the iron's lifespan.

Why is my iron leaking water?

Leaking can occur if the temperature is too low for steam production, the tank is overfilled, or the anti-drip valve is dirty. Set to a higher temperature and do not exceed the max fill line.

How does the auto shut-off feature work?

The iron automatically turns off if left untouched for 8 minutes on the heel (vertical) or 30 seconds on its soleplate. This safety feature prevents accidents.

Can I use the iron for vertical steaming?

Yes, it supports vertical steam for removing wrinkles from hanging garments, curtains, and upholstery. Press the steam burst button while holding the iron upright.

What does the self-clean function do?

The self-clean function flushes steam and hot water through the soleplate to remove scale and debris. Activate it every 2-3 months for optimal performance.

Is the iron safe for delicate fabrics?

Yes, the adjustable temperature settings allow you to select low heat for synthetics or silk. Always check fabric care labels first.

How do I clean the soleplate?

Wipe the soleplate with a damp cloth when cool. For stubborn residue, use a paste of baking soda and water. Avoid abrasive cleaners that damage the non-stick coating.

What is the warranty period?

Enkho typically offers a 1-year warranty against manufacturing defects. Keep your proof of purchase. Warranty does not cover misuse or descaling neglect.

Where can I download the user manual?

Visit notice-facile.com and search for model 145308.01 to download the free PDF manual. The manual includes detailed instructions and troubleshooting tips.

USER MANUAL 145308.01 Enkho

Line drawing of a steam iron with a base, showing internal components and mounting base (no text or symbols)

2

3

4

Riempimento del serbatoio

The safety of products tested and certified for you.

wireless steam iron

INDEX

WARNING 1-2

CORRECT DISPOSAL OF THIS PRODUCT 7

CAUTION! HOT SURFACE!

This symbol placed on the appliance warns for the burning danger, since the appliance's accessible surfaces became hot during operation.

1. The iron must not be left unattended while it is connected to the power supply.
2. The plug must be removed from the socket outlet before the water reservoir is filled with water.
3. The filling aperture must not be opened during use.
4. The iron must be used and rested on a stable surface.
5. When placed on the stand, the iron must be placed on stable surface of the stand.
6. The iron must only be used with stand provided.
7. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. Cleaning and user maintenance shall not be made by children without supervision.
2. Keep the iron and its cord out of the reach of children less than 8 years of age when it is energized or cooling down.
3. The iron must not be used again if it has been dropped, if there are visible signs of damage or if it is leaking.
4. Children should be supervised to ensure that they do not play with the appliance.
5. This appliance is for household use only. Use iron is only for its intended use.
6. Please check the voltage of the iron if it is the same with the one you are to use.
7. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
8. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away.

9. To avoid risk of electrical shock, do not immerse the iron in water or other liquids.

10. After using, turn the temperature control knob off or to "MIN".

11. Always keep the instruction manual, in case the iron is passed to a third person, please hand over the manual together.

Intended use

This appliance is intended for ironing garments and textiles only. This appliance is for private household use only.

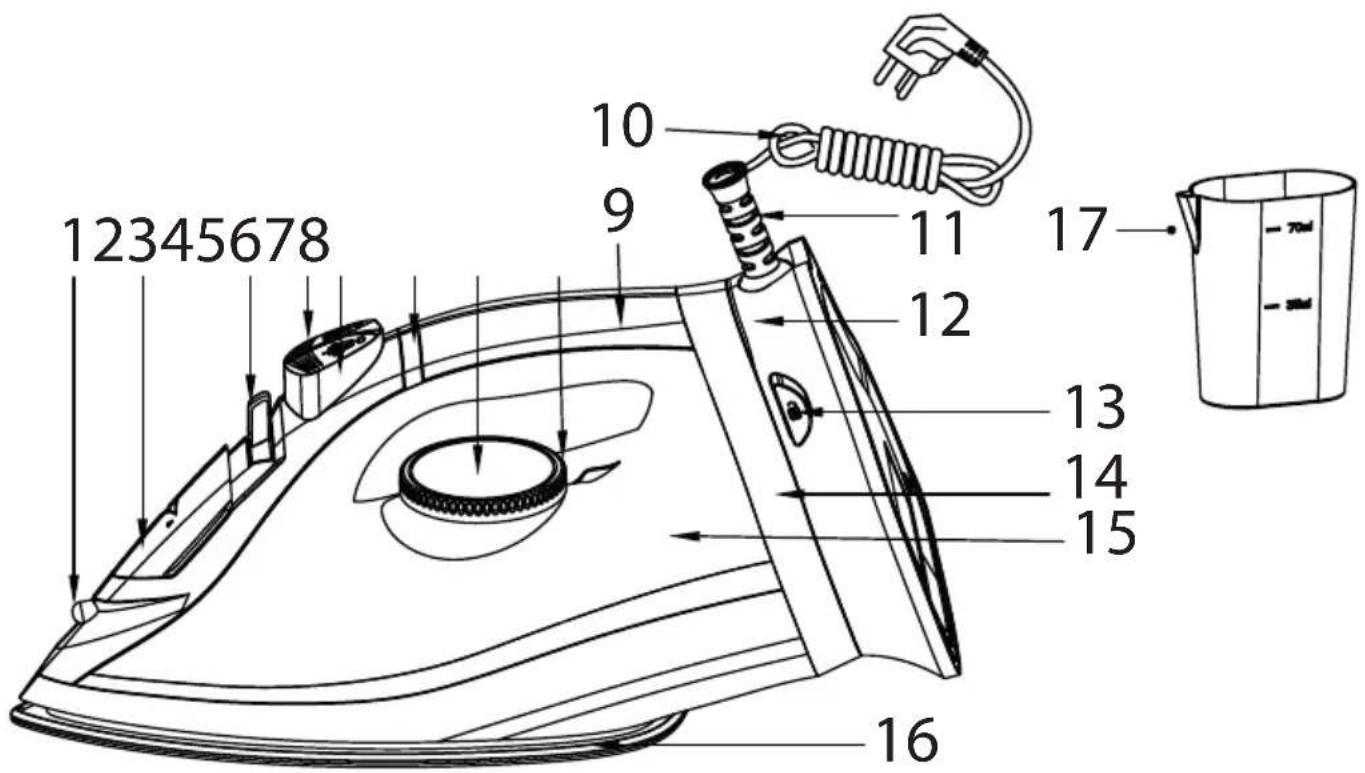

1. Spray nozzle
2. Water inlet cover
3. Steam control knob
4. Burst steam button
5. Spray button
6. Pilot light cover
7. Temperature control knob Upper cover rubber
8. Temperature control mark
9. Upper cover
10. Power cord
11. Cord sleeve
12. Base
13. Unlock button
14. Iron stand (for wireless mode)
15. Water tank
16. soleplate
17. water cup

HOW TO USE

• Remove any labels, stickers or protective foil that may be attached to the body or soleplate of the iron before the first time use.
• The iron may give off some smoke and emit an odor when you first use. This will cease after a short while. It is safe and will hot harm the performance of the iron.

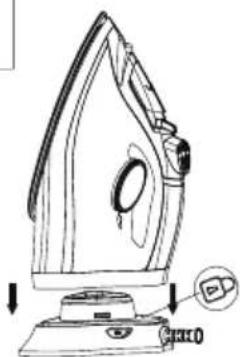

The introduction of two states cordless and with power cord

• Place the flat place of the base on a stable position as Figure 1. Fit the stand of the iron on the base and lock it by pressing lock 🔒.
  • Charge the iron with attention. The Pilot light will glow. (figure 2)
• When the Pilot light goes dark, the soleplate heats up ready. You can start ironing with cord or cordless. Ensure you lock the base with stand when you iron with cord (Figure3). Press unlock to release the base when you iron cordless (Figure4).

1

Line drawing of an iron (£) with a base, showing internal components and a close-up view of the base (no text or symbols)

2

3

4

Filling with water

• Remove the power plug from the wall socket before filling the water to iron.
• Set the steam button to position "0" and open the water inlet cover.
• Please fill your iron with water cup before the first time use.
• Use the water beaker attached to fill clean water into water tank until "max" filling level.
• For refilling, you can also use tap water. However, if the water is very hard it is advisable to use distilled water.
• Close the water inlet cover and dry the spilt water around the enclosure of the appliance.
  • Do not fill the tank beyond the max indication.
• Do not put perfume, vinegar, starch, descaling agents, ironing additives chemically descaled water or other chemicals in the water tank.

Setting the temperature

Fabric Temperature control
NYLON/ACRYLIC/ACETATE •
SILK/RAYON/POLYESTER ••
WOOL/COTTON •••
LINEN MAX

• Stand the iron on its heel and plug the power cord into wall socket.
• Turn the iron temperature control knob until you get the desired fabric/temperature setting. We recommend using the above table as a guide.
  • The temperature pilot light is on, indicating that the soleplate is heating up.
• When the pilot light is off, indicating the required temperature has been reached.
• The temperature pilot light will go on from time to time during the ironing.

Dry ironing

• For dry ironing, turn the steam control knob to "0". This will cut off the steam flow if there is water is in the water tank.
• Turn the temperature control knob to select the desired fabric/temperature setting, the pilot light will be on, put the iron on the smooth and stable place vertically.
  • After the indicating pilot light goes off, you can begin to iron.

SPRAYING

Ensure there is enough water in the water tank.

Press the spray button to produce a fine spray of water nozzle and continue ironing.

NB. Do not spray silk.

STEAM-IRONING

• As indicated on the temperature control knob on the iron, steam-ironing is only possible at higher ironing temperatures (between “•••” e “MAX”).
• Ensure that there is enough water in the water tank.
• Stand the iron on its end; Insert the power plug into the wall socket.
• Set the temperature control knob at the required position within the steam area.
  • After the indicator pilot light has gone off and come back on again, you may start ironing.
• Turn the steam control knob to the required position. Adjust it to half steam 🏠 or full steam

• ATTENTION: Never direct the steam towards people. Burns or serious injury may occur.

STRONG STEAM

Ensure that there is enough water in the water tank.

When the temperature control knob is set to steam setting (between “•••” to “MAX”) strong steam can be used.

Press the burst steam button, the soleplate will spray out strong steam.

NOTE

• Only use the steam push button when the steam iron has reached the steam or maximum temperature.
• Do not press this burst steam button more than 3 times at once. For optimal steam output, leave an interval of at least four seconds between pressing the burst steam button.
• The burst steam feature can be used with Dry or Steam ironing as desired.
  • ATTENTION: Never direct the steam towards people. Burns or serious injury may occur.

VERTICAL SHOT OF STEAM

• When the temperature control knob is set to a steam setting (between “•••” to “MAX”) vertical steam can be used.
• Simply hold the iron vertically, positioned in front with a slight distance from the item to be steamed, and press the burst steam button.
  • ATTENTION: Never direct the steam towards people. Burns or serious injury may occur.

NOTE This is especially useful for getting wrinkles out of hanging clothes, curtains, wall hangings etc.

Automatic anti-calc function

• Your iron contains an anti-calc cartridge to reduce scale deposits. This considerably prolongs the operational life of your iron.
• The anti-calc cartridge is an integral part of the water tank and dose not needs to be replaced.

Automatic anti-drip function

- Your iron have anti-drip function. The iron automatically stops generating steam when the temperature is too low to prevent water form dripping out of the soleplate.

NOTE

When the steam will be on, wait for few seconds. The steam takes time to be ready.

Self clean function

• Use the self clean function once every two weeks. If the water in your area is very hard, the self clean function should be used more frequently.
  • Make sure the iron is unplugged.
• Set the steam control knob to "0" position.
  • Fill the water tank to the maximum level.
  • Put the plug in the wall socket.
• Select the maximum ironing temperature.
  • Unplug the iron when the temperature pilot light has turned off.
• Hold the iron over the sink, rotate the steam knob to "self-clean" position and hold it, and you may gently shake the iron to and fro.
  • Release the self clean dial after 5-10 seconds.
• Repeat the self clean process if the iron still contains a lot of impurities.

Self clean

0

Note:

Steam and boiling water will come out of the soleplate, impurities and flakes(if have)will be flushed out. Do not push and hold the self clean button while ironing.

CARE AND CLEAN

• Before cleaning, set the steam control knob to the "0", unplug the iron from the wall socket, and allow the appliance completely cool down, and then clean with a damp cloth, do not immerse the unit into water or other liquids.
  • Regularly rinse the water tank with water, empty the water tank after clean.
• If ironing clothes with high temperature, which is not recommended on the garment table, will cause burns to your clothes and residue left on the soleplate of the unit, it is proposed to iron a old cloth to remove these residue from the soleplate.
• If you use spray starch, wipe the soleplate occasionally with a soft damp cloth to prevent the build-up of deposits.
• After use, set the steam control knob to the "0", disconnect the unit from main socket, empty remaining water from water tank and then store the iron after it has been completely cooled down.
• Never use scouring pads, abrasive or chemical cleaners, or solvents to clean the exterior or soleplate of your iron. Doing so will scratch and/or damage the surface.

WARRANTY

The appliance is guaranteed for three years from the date of delivery years from the date of delivery, as shown by the date on the receipt/invoice.

In case of defect existing before purchase, the replacement is guaranteed.

The warranty does not cover those parts found to be faulty as a result of negligence or careless use. The warranty also excludes all cases of improper use of the appliance or any instances of use of professional type.

CORRECT DISPOSAL OF THIS PRODUCT

The seller refuses to accept any liability for damage that may directly or indirectly be caused to people, property or pets as a result of failure to abide by all instructions contained in this manual. The symbol representing the crossed out trash can on the appliance indicates that the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance. Correct consignment of the no-longer used appliance to a recycling centre for treatment and environmentally compatible elimination avoids negative impact on the environment and public health, and makes possible the recovery the materials that the product is made from. The user is responsible for taking the appliance to the recycling centre at the end of its life. For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. Anyone who leaves or throws away this appliance without taking it to a collection centre for electrical-electronic waste, shall be punished by administrative fine as per applicable law on illegal waste disposal.

ENKHO

Line drawing of an iron (£) with a base, showing internal components and a close-up view of the base (no text or symbols)

2

3

4

Polnjenje z vodo

Line drawing of an iron (£) with a baseplate and handle, showing mechanical components (no text or symbols)

2

3

4

Ulijevanje vode

• Izvucite utikač za napajanje iz zidne utičnice prije ulijevanja vode u glačalo.
• Postavite gumb za paru u položaj "0" i otvorite poklopac ulaza za vodu.
• Napunite vaše glačalo posudom za vodu prije prvog korištenja.
• Koristite posudu za vodu namiijenjenu za punjenje čiste vode u spremnik sve do "MAKS" razine punjenja.
• Za punjenje, također možete koristiti vodu iz slavine. Ipak, u slučaju vrlo tvrde vode, savjetuje se korištenje destilirane vode.
• Zamijenite poklopac za dovod vode i osušite prolivenu vodu oko kućišta aparata.
• Nemojte puniti spremnik iznad oznake max.
• Ne stavljajte parfem, ocat, štirku, sredstva za uklanjanje kamenca, dodatke za glačanje, vodu iz koje je kemijski uklonjen kamenac ili druge kemikalije u spremnik za vodu.

Exterior view of a steam iron with visible branding and warning symbols (no text extraction needed)
