| Brand | DeLonghi |
| Model | D714PWM19 |
| Product Type | Freestanding Washing Machine |
| Loading Type | Front Load |
| Rated Capacity | 7 kg |
| Maximum Spin Speed | 1400 rpm |
| Energy Class | A+++ |
| Noise Level (Wash/Spin) | 54 dB / 76 dB |
| Product Dimensions (H x W x D) | 85 cm x 59.5 cm x 60.5 cm |
| Weight | 72 kg |
| Energy Consumption per Year | 195 kWh |
| Water Consumption per Year | 11000 L |
| Number of Programs | 16 |
| Key Programs | Cotton, Synthetics, Delicates, Wool, Quick 30 min, Eco, Rinse & Spin, Drum Clean |
| Display | LED Digital Display |
| Control Type | Rotary Dial + Touch Buttons |
| Delay Start | Up to 24 hours |
| Safety Features | Child Lock, Anti-Flood System, Overheating Protection |
| Drum Material | Stainless Steel |
| Power Supply | 220-240 V, 50 Hz |
| Rated Power | 2200 W |
Frequently Asked Questions - D714PWM19 DELONGHI
How do I clean the detergent drawer?
Remove the drawer by pressing the release catch. Rinse under warm water and use a soft brush to remove residue. Dry thoroughly before reinserting.
Why is the drum not spinning?
Check if the appliance is level, the door is properly closed, and the load is balanced. A blocked pump filter or an overloaded drum can also cause this issue.
How can I reduce excessive vibration?

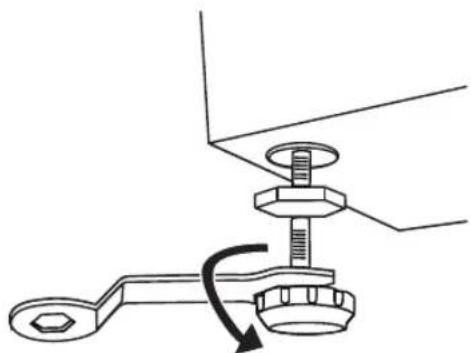

Ensure all transport bolts are removed. Level the feet and avoid washing unbalanced loads (e.g., single heavy items).
What does error code E01 mean?
E01 indicates a door lock problem. Check if the door is closed correctly and the locking mechanism is not obstructed. Restart the cycle.
How often should I clean the pump filter?
Clean the pump filter every 2-3 months or if you notice drainage issues. Refer to the manual for location and procedure.
Can I wash a duvet in this machine?
Yes, but ensure the duvet is not larger than 7 kg capacity and select the 'Duvet' or 'Bulky Items' program if available. Do not use a spin speed above 800 rpm.
Why is there water left in the detergent drawer?
This is normal if too much detergent was used, or the siphon is clogged. Clean the drawer and use the correct amount of detergent.
How do I perform a drum clean cycle?
Select the 'Drum Clean' program (if available) or run a hot wash (90°C) with an empty drum and a descaling agent. This helps remove bacteria and limescale.
What is the maximum wash temperature?
The maximum wash temperature is 95°C for cotton programs. Always check garment care labels and select the appropriate program.
How can I save energy with this machine?
Use the Eco program which consumes less energy and water, wash at lower temperatures (30-40°C), and always load the machine to its full capacity.
