Product Type	Wristwatch
Brand	Festina
Model	F6339
Movement Type	Quartz
Case Material	Stainless Steel
Case Diameter	42 mm
Case Thickness	12 mm
Band Material	Stainless Steel or Leather (depending on variant)
Band Width	22 mm
Crystal	Mineral
Water Resistance	50 meters (5 ATM)
Weight	Approximately 80 g
Power Source	Battery (SR626SW or equivalent)
Battery Life	2-3 years
Functions	Hour, minute, second, date display, chronograph (depending on variant)
Clasp Type	Deployant buckle or folding clasp
Warranty	2 years
Maintenance	Battery replacement every 2-3 years; clean with soft cloth
Repairability	Battery and strap easily replaceable; other repairs by professional

Frequently Asked Questions - F6339 FESTINA

How do I set the time on my Festina F6339 watch?

To set the time, pull the crown out to the second position (fully extended). Turn the crown clockwise or counterclockwise to set the correct time. Push the crown back in when done.

How do I change the date on the F6339?

Pull the crown out to the first position (middle click). Turn the crown to adjust the date. Some models may require turning the crown in a specific direction. Push the crown back in.

What type of battery does the Festina F6339 use?

The watch typically uses a SR626SW silver oxide battery. However, always check the old battery for the correct reference before replacement.

How do I replace the battery in my Festina F6339?

Remove the back cover (usually screw-down or snap-off). Carefully remove the old battery and insert the new one with the correct polarity (+ side up). Replace the back cover and ensure it is sealed properly to maintain water resistance.

Is the Festina F6339 water resistant?

Yes, the watch is water resistant up to 50 meters (5 ATM). It can withstand splashes, rain, and swimming in shallow water, but not diving.

What should I do if the watch stops running?

First, check if the battery needs replacement. If the watch still doesn't run after a new battery, it may have a mechanical issue. Contact a professional watch repair service.

Can I wear the Festina F6339 while swimming?

Yes, but only for shallow swimming. Avoid pressing buttons underwater and ensure the crown is pushed in. After exposure to saltwater, rinse with fresh water.

How do I clean my Festina F6339 watch?

Use a soft lint-free cloth to wipe the case and crystal. For metal bracelets, use a damp cloth and mild soap, then dry thoroughly. Avoid harsh chemicals.

How do I adjust the metal bracelet on the F6339?

The metal bracelet has removable links. Use a small screwdriver or pin to push out the pins connecting the links. Remove an equal number from each side for proper centering.

What should I do if the crown becomes stiff?

Do not force it. The crown may be gummed up from dirt. Have it serviced by a professional watchmaker to avoid damage.

USER MANUAL F6339 FESTINA

D. HOW TO SET AND OPERATE EACH MODE 7

1. Hand Movement Demonstration 7

2. Setting the Time (TME) 9

3. Setting the Calendar (CAL.) 12

4. Setting the Quick-set Alarm (AL-1) 16

5. Setting the Daily Alarm (AL-2) 20

6. Stopwatch Operation (CHR) 25

7. Setting the Timer (TMR) 29

8. Setting the Local Time (L-TM) 32

9. Monitoring in the Normal Time Mode 36

a. Calendar monitor 36

b. Daily alarm (AL-2) set monitor 37

1. All Reset Function 39

2. TACHYMETER BEZEL 41

E. SPECIFICATIONS 43

F. USE PRECAUTIONS 45

C. BEFORE USE

Before use, follow the procedures below to ensure that all watch components are in proper working order: Confirm the Zero position setting.

• All hands move to the "0" position.
  •The 24-hour hand is synchronized with the hour/minute hands.

Each hand positioned as listed below confirms the "0" position setting is correct.

If the watch hands are not positioned as above, follow the Zero position setting procedures to ensure proper use.

Zero position setting

1) Pull the (M) button out to the first step position. Push the (A) button to set the second hand to the 0 sec. position. Push the (B) button to set the Aux. feature hand to the 0 hour position. Push the (C) button to set the hour/minute/24-hour hands to the 0 hour,0 minute position.

2) Be sure to push the (M) button in to its normal position. This completes the Zero position setting.

☆ Press and hold down either of the (A), (B), (C) buttons to activate the quick-advance feature.
☆ A strong shock may cause hands to move from the zero position in to shift. In this case, reset to the correct zero position.

D. HOW TO SET AND OPERATE EACH MODE

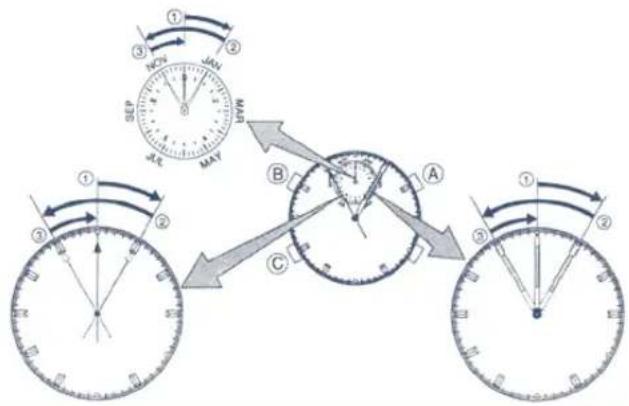

1. Hand Movement Demonstration

Pushing either of the (A), (B) and (C) buttons once will cause the second, minute and auxiliary feature hands to stop in the "0" position after moving through the following stages.

- Minute hand: ① + 5min. → ② -10min. → ③ +5min. - Second hand: ① + 5sec. → ② -10sec. → ③ +5sec. - Aux. hand: ① + 5 → ② -10 → ③ +5

8

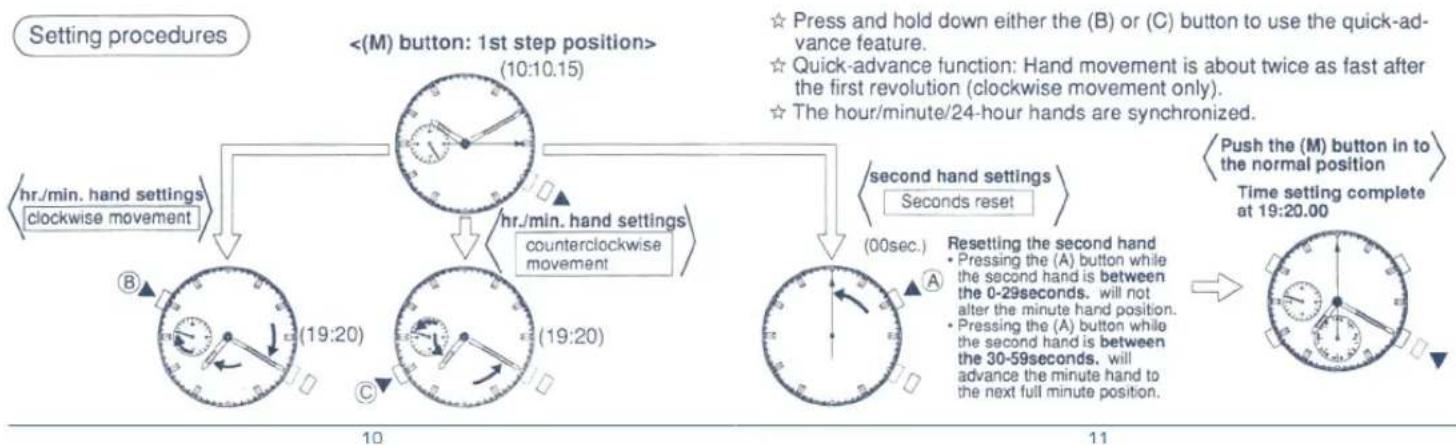

2. Setting the Time (TME)

Changing the time from 10:10.15 to 19:20.00

<(M) button normal position>

- The hour/minute hand is based on the 12-hour clock system. Use the 24-hour hand as a reference under normal time setting procedures to determine morning/afternoon times.

9
    note right of B: <M button: 1st step position>
    note right of B: <M button: 2nd hand settings clockwise movement
    note right of E: second hand settings seconds reset
    note right of E: second hand reset
    note right of H: Push the (M) button in to the normal position
    note right of H: Time setting complete at 19:20.00
    note right of H: Press and hold down either the (B) or (C) button to use the quick-advance feature.
    note right of H: Quick-advance function: Hand movement is about twice as fast after the first revolution (clockwise movement only).
    note right of H: The hour/minute/24-hour hands are synchronized.
    note right of H: Resetting the second hand
    note right of H: Pressing the (A) button while the second hand is between the 0-29 seconds. will not alter the minute hand position.
    note right of H: Pressing the (A) button while the second hand is between the 30-59 seconds. will advance the minute hand to the next full minute position.

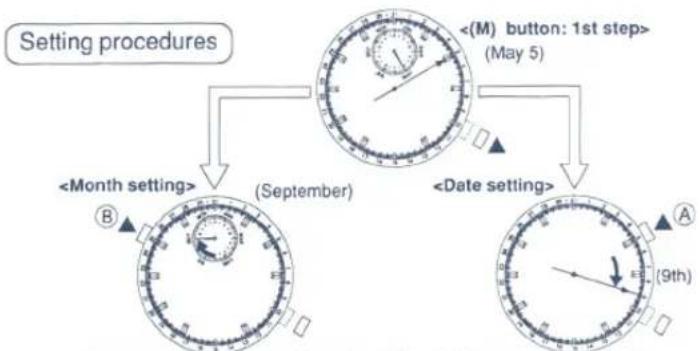

3. Setting the Calendar (CAL.)

Changing the calendar from May 5 to Sep. 9

Automatic calendar system

The calendar feature on this watch requires no adjustment at the end of the month. Adjustment is required for Feb. 29 during a leap year.

<(M) button normal position>

☆ Press and hold down either the (A) or (B) button for the quick-advance feature.
☆ The month and date must be independently set.

Calendar setting complete at Sep. 9

Automatic calendar correction system

When a nonexistent date is entered, the watch will automatically set the date to the 1st of the following month when the (M) button is pushed in to the normal position.

(For example: Feb. 30 * March 1)

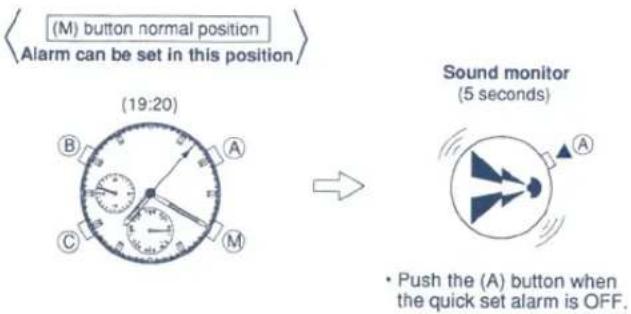

4. Setting the Quick-set Alarm (AL-1)

Setting the alarm to ring 50 minutes from the current time, 19:20, at 20:10

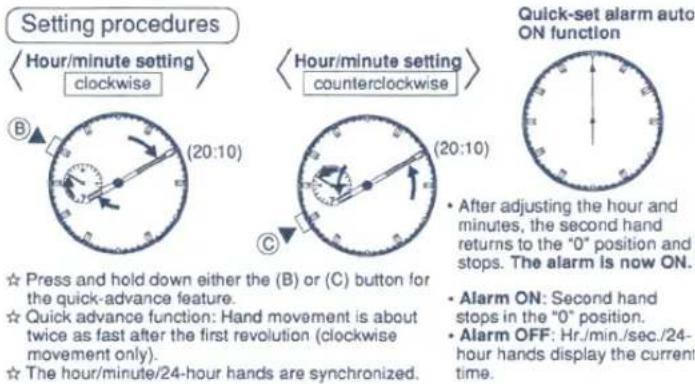

Quick-set alarm function

When the alarm is OFF the hr./min./sec./24-hour hands display the current time. This feature allows the alarm to be easily set to the desired time within the 23 hour 59 minute maximum limit. Following one ring of the alarm (10 seconds) the alarm setting is automatically cleared from memory and the auxiliary time display returns to the current time.

☆ Press and hold down either the (B) or (C) button for the quick-advance feature.
☆ Quick advance function: Hand movement is about twice as fast after the first revolution (clockwise movement only).
☆ The hour/minute/24-hour hands are synchronized.
• After adjusting the hour and minutes, the second hand returns to the "0" position and stops. The alarm is now ON.
- Alarm ON: Second hand stops in the "0" position.
- Alarm OFF: Hr./min./sec./24-hour hands display the current time.

Alarm quick-set is complete
(20:10)

Canceling the quick-set alarm

- Press the (A) button after setting the quick-set alarm and the hour/minute/second/24-hour hands will display the current time. The quick-set alarm will be turned OFF.

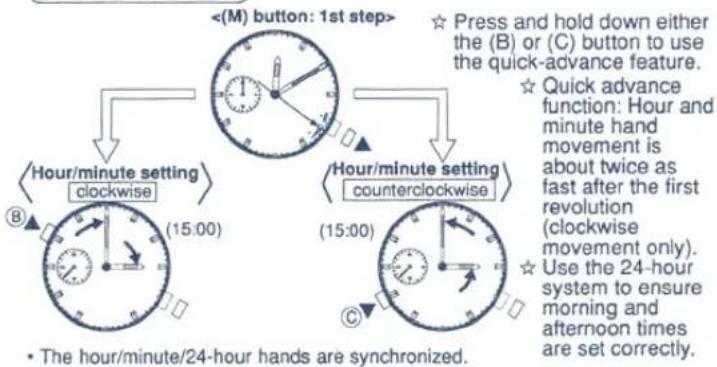

5. Setting the Daily Alarm (AL-2) Setting the alarm to ring everyday at 15:00

• Daily Alarm function
  After the alarm time has been set once, the alarm will sound everyday at the same time for 15 seconds.
  • Alarm sound switch
  This switch lets you choose between 2 levels of sounds (loud or soft) for the alarm.

<(M) button normal position>

Sound monitor (8 seconds)

• Sound can be monitored by pressing the (A) button when the daily alarm is ON or OFF.

Setting procedures

Daily Alarm auto ON Daily Alarm sound selector

- Pull the (M) button out to the 1st step position. The second hand moves to position ② and the alarm is turned ON.

- Press the (A) button to switch between a softer or louder sound level, (The level of the alarm sound in position ③ is softer than position ②.) or to switch alarm OFF (Position ①).

Alarm setting is complete

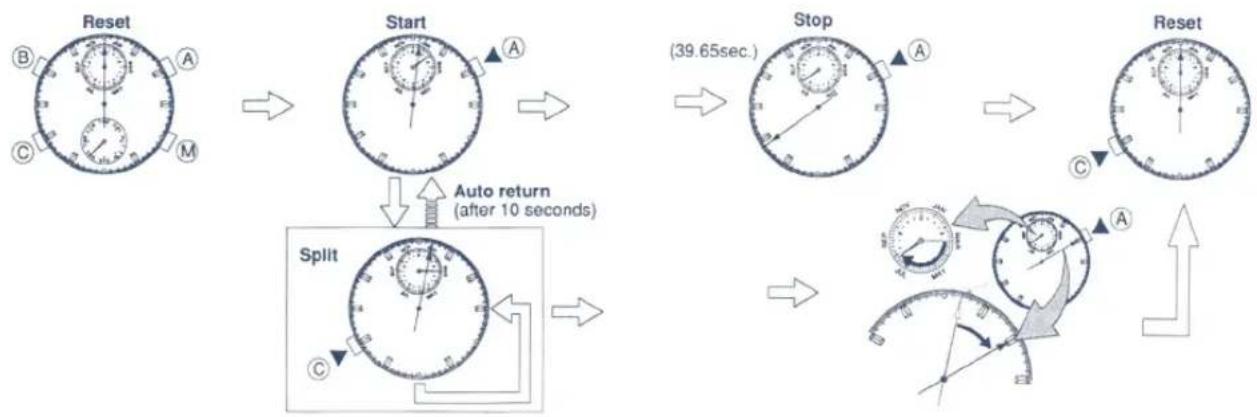

6. Stopwatch Operation (CHR)

• Max.stopwatch range: 60 minutes in 1/20sec. intervals. The auxiliary hand displays in 1/20 sec. increments.
• Starting from the stopwatch reset state, the auxiliary hand advances for 1 minute. The number of elapsed minutes exceeding one minute are displayed.
  • The hour/minute/24-hour hands display the current time in the stopwatch mode.


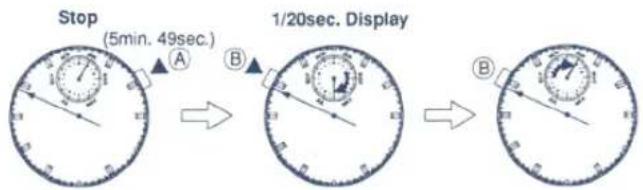

1/20 sec. Display (effective only timings exceeding 1 minute.)

• 1/20sec. displays only while the (B) button is held down.
- Release the (B) button to display the number of elapsed minutes with the auxiliary hand.

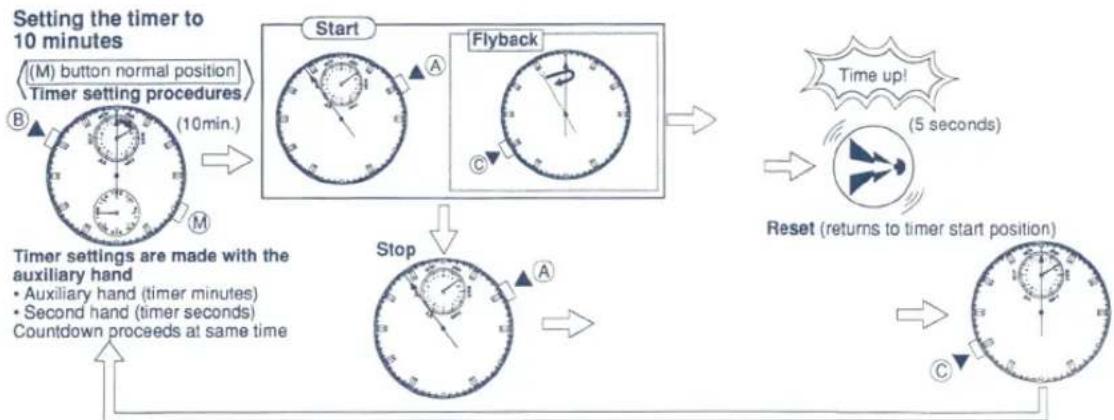

1. Setting the Timer (TMR)

• Max.timer range: 60 minutes in 1-minute intervals.
- Flyback function: This feature allows you to press the (C) button after the timer countdown has started to return to the beginning of the timer setting and automatically start the countdown over again.
• The hour/minute/24-hour hands display the current time in the timer mode.

☆ A confirmation beep sounds with each start, stop, reset and flyback operation.
☆ Press and hold down the (B) button to use the quick-advance feature while setting the timer.

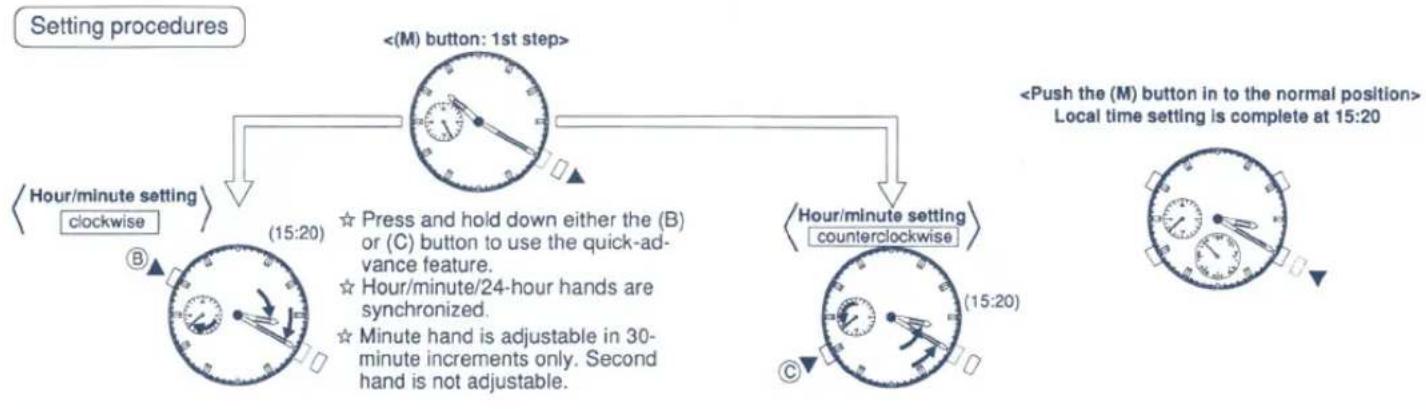

8. Setting the Local Time (L-TM) Changing the local time from 10:20 to 15:20

- Local time is the time in the current location. On business trips and the like, the dual time feature can be used by setting the watch to the local time.

<(M) button normal position>
    note1["Press and hold down either the (B) or (C) button to use the quick-advance feature."]
    note2["Hour/minute/24-hour hands are synchronized."]
    note3["Minute hand is adjustable in 30-minute increments only. Second hand is not adjustable."]
    note1 -.-> note2
    note2 -.-> note3
    note1 -.-> note1
    note2 -.-> note2
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note1 -.-> note1
    note2 -.-> note1
    note2 -.-> note1

9. Monitoring in the Normal Time Mode

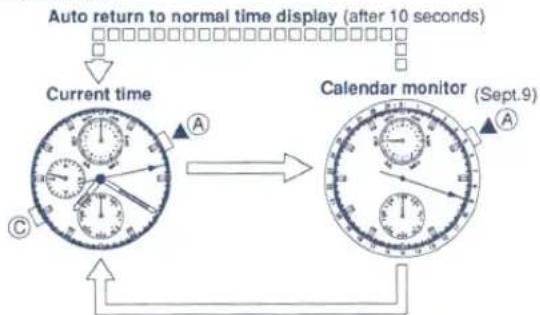

a. Calendar monitor

• Push the (A) or (C) button to cancel the calendar monitor.

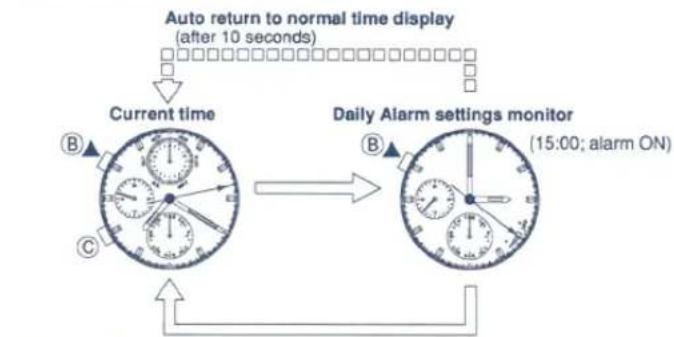

b. Daily alarm (AL-2) set monitor

• Push the (B) or (C) button to cancel monitoring.

☆ Press the (B) button while monitoring the calendar to monitor the alarm (AL-2) settings.
☆ Press the (A) button while monitoring the daily alarm (AL-2) settings to monitor the calendar settings.
☆ Both of the above monitor modes automatically return to the current time after 10 seconds. (auto return)

10. All Reset Function

The all reset function is used following battery replacement or abnormal watch movement

All reset procedure

1. Pull the (M) button out to the first step position.
2. Push and hold down the (A),(B),(C) buttons simultaneously for more than 2 seconds.
3. Release all three buttons and a confirmation beep will sound and the minute, second, auxiliary hands will move slightly. Push the (M) button in to the normal position after completing the above procedures and set all hands (except mode hand) to 0. (See BEFORE USE: "Zero position setting", and then set the time.)

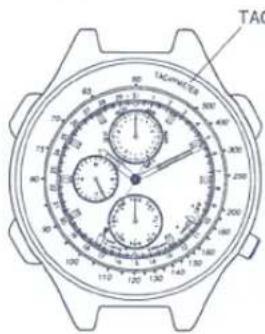

11. TACHYMETER BEZEL

The tachymeter is the device which measures the speed of an automobile. Knowing in how many seconds the car covers a distance of 1km, the meter can measure the approximate average speed per hour during a journey (up to the maximum measurable range of; 60 seconds.)

If the stopwatch is started at the same time as measurement, and stopped after 1km, the average speed per hour can be determined according to the position of the second hand.

If the car covers the distance of 1km in 45 seconds, the average hourly speed during the journey will be about 80km.

E. SPECIFICATIONS

1. Type: Analog multi-hand quartz watch

2. Quartz oscillation frequency: 32,768 hertz

3. Accuracy: ±20 seconds per month at normal temperature (5°C-35°C/41°F-95°F)

4. Effective temperature range: -10°C to 60°C (14°F to 140°F)

5. Converters: Bi-polar step motor x 3 pcs.

6. Additional features

• Hand-display calendar

Leap year, month, date display; automatic month-end, leap year adjustment

• Alarm 1 (Quick-set alarm)

Maximum setting: 23 hours 59 minutes at 1-minute increments

• Alarm 2 (Daily alarm)

-Stopwatch

Maximum setting: 60 minutes

Split time measurements in minutes, seconds, 1/20 seconds

- Timer

Maximum setting: 60 minutes at 1-minute increments

- Local time

Hour, minute (30-minute increment settings; seconds cannot be adjusted)

- Calendar monitor

• Daily Alarm set time monitor

• Second reset function

1. Battery: 1 Silver oxide cell

• Battery No.: 280-44 (SR927W)

- Battery Life: about 2 years after installation of new battery under

the following conditions

Alarm total: 25sec./day

(Alarm 1: 10sec.)

(Alarm 2: 15sec.)

Timer: once/day

Chronograph: 60min./day

1. IC

1 CMOS-LSI

F. USE PRECAUTIONS

1.Resistance to water (check your watch's water resistance.)

	Watch underside	Watch face
Non-water resistant	——	——
Ordinary water resistance	These words are engraved on watch underside.	——
Ordinary strengthen water resistance (5 bar) (10bar)		WATER RESIST※※※

After swimming

- Wash the watch in the fresh water cianly from sea water as otherwise it may rust.

• Dry the watch after washing.

With a small amount of moisture included inside the watch, the inner surface of the glass may be blurred for a while if the atmospheric temperature happens to be lower than that inside the watch. The blurred glass will soon clear. If the blurred glass does not clear, Please ask at the watch to the store where it was purchased or the store that handles Citizen Quartz watches.

2. Temperature

Do not expose the watch to direct sunlight or high temperatures for a long time as this may shorten power cell life.

Do not expose to extreme cold for a long time. This may reduce accuracy. Normal accuracy returns when the watch is restored to normal temperature.

3. Strong Shocks

This watch is designed to with stand external shocks such as those associated with golfing or playing ball.

Avoid dropping it or subjecting it to other strong jolts.

4. Magnetism

OK

This watch is not influenced by the magnetic force exuded by television sets, stereo sets and other electric home appliances.

NO

Do not place near magnets.

The watch runs faster or slower temporarily when it is placed close to magnets. Magnetic health equipment (e.g. magnetic necklace, magnetic stomach band, etc.), magnetic refrigerator door or magnetic mahjong table. In such cases, adjust the time.

5. Chemicals, Gas and Mercury

NO

Do not expose it to chemicals or gas. Be careful of using chemicals. Solvents such as benzine and paint thinner (and products containing solvents such as gasoline, manicure remover, certain cleaners and adhesives) may cause discoloration, melting and cracking the watch case. Do not expose the watch to mercury, such as that in clinical thermometers, since mercury could discolor the case, face and band of the watch.

6. Care of Leather Watch Bands

The leather band is damaged much more easily by moisture and perspiration than the metal band. Therefore, we would like to recommend you to replace to suitable metal band or rubber band if you use your watch under wet conditions frequently.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
