| Product Type | Wall-mounted range hood |
| Brand | Miele |
| Model | DA 398-7 Classic |
| Width | 90 cm (approx. 35.4 inches) |
| Depth | 50 cm (approx. 19.7 inches) |
| Height (min-max) | 60-110 cm (adjustable) |
| Weight | Approx. 20 kg |
| Power Supply | 230 V / 50 Hz |
| Max Extraction Rate (free outlet) | 620 m³/h |
| Noise Level (max speed) | 67 dB(A) |
| Number of Speeds | 4 + Intensive |
| Filter Type | Grease filter (washable stainless steel) |
| Carbon Filter | Optional (for recirculation mode) |
| Lighting | 2 x 20 W halogen or LED (depending on version) |
| Controls | Push buttons |
| Installation Type | Ducted or recirculation |
| Material | Stainless steel |
| Cleaning | Grease filter dishwasher safe; surface with mild detergent |
| Safety Features | Automatic shut-off timer, safety switch |
| Accessories | Recirculation kit (optional), carbon filter |
| Reparability | Spare parts available; service by authorized technicians |
| Energy Class | D (typical for older models) |
Frequently Asked Questions - DA 398-7 Classic MIELE
User questions about DA 398-7 Classic MIELE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual DA 398-7 Classic - MIELE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DA 398-7 Classic by MIELE.
USER MANUAL DA 398-7 Classic MIELE
Operating and Installation Instructions Ventilation Hood
IMPORTANT SAFETY INSTRUCTIONS 3
Caring for the environment 12
Description of functions 13
Guide to the ventilation hood.... 14
Operation.... 16
Turning on the blower.... 16
Selecting the power level 16
Turning off the blower.... 17
Turning the overhead lighting on/off.... 17
Safety switch-off 17
Cleaning and care 18
Stainless steel housing.... 18
Important information for appliances with lacquered casing.... 18
Grease filters 19

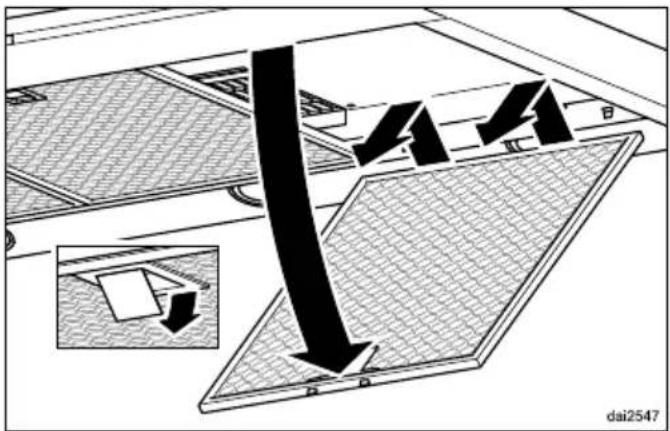

Replacing the grease filter.... 20

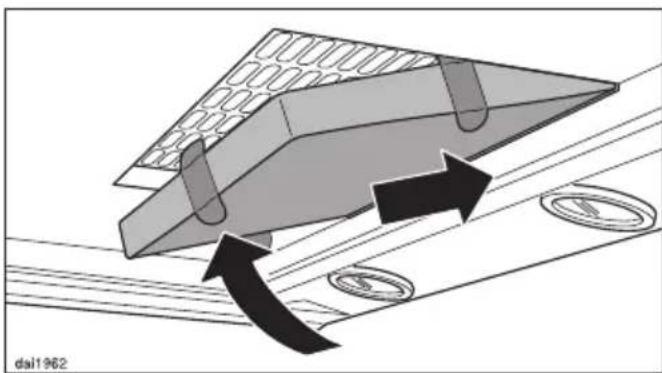

OdorFree Charcoal Filter 21
Disposing of charcoal filters 21

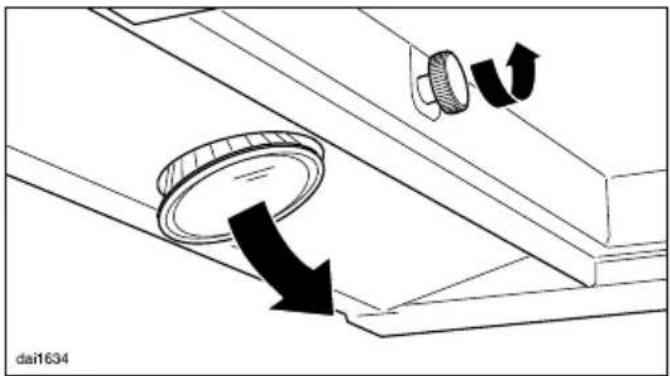

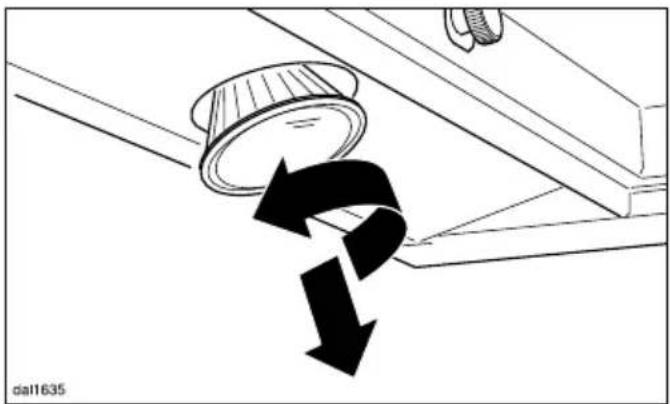

Changing a light bulb 22
Customer Service 23
Contact in the event of a fault 23
Location of the data plate 23
Installation.... 24
Before installation.... 24
Removing the protective film.... 24
Installation materials.... 24

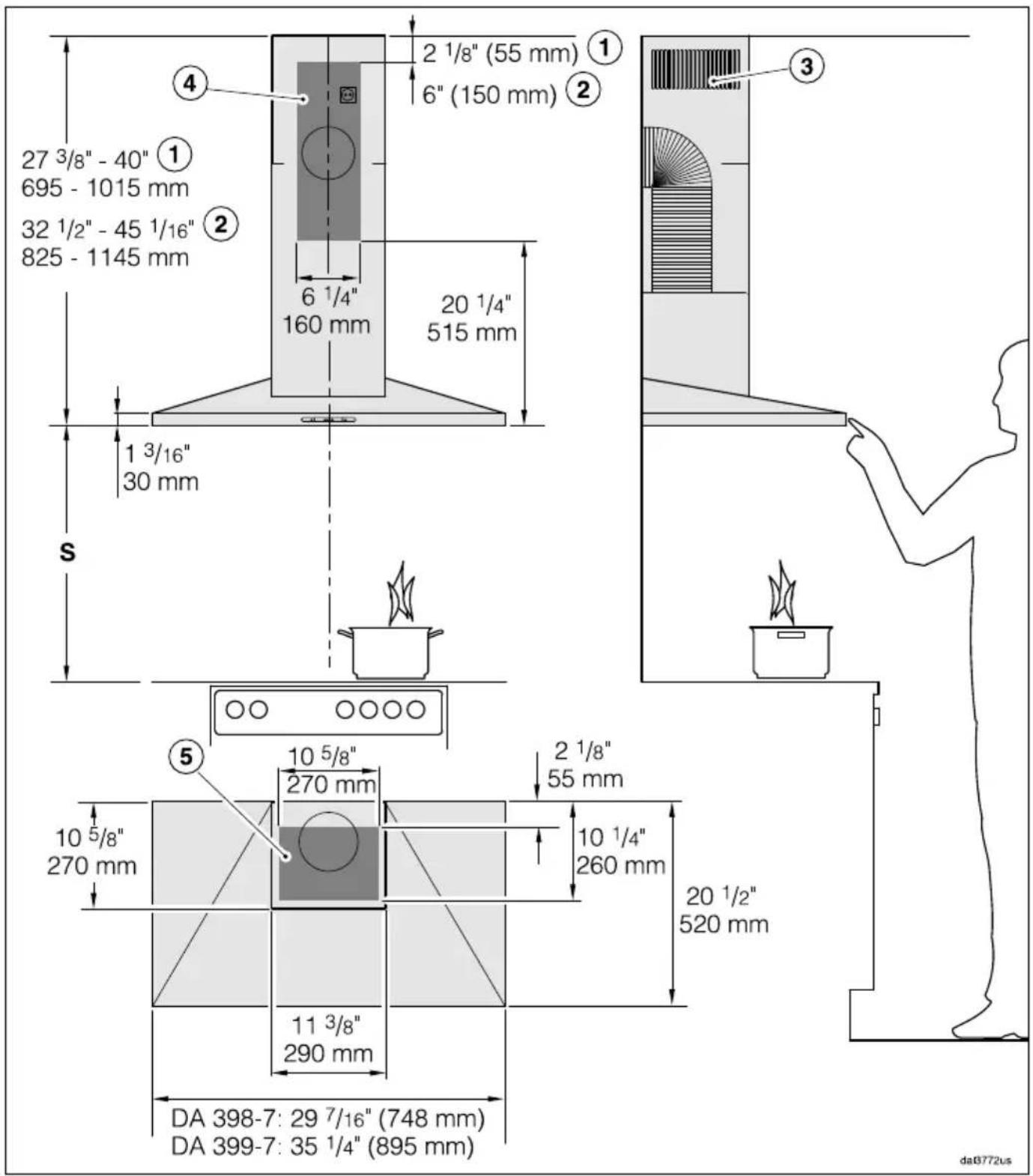

Appliance dimensions 26
Distance between cooktop and ventilation hood (S).... 27
Installation recommendations 28

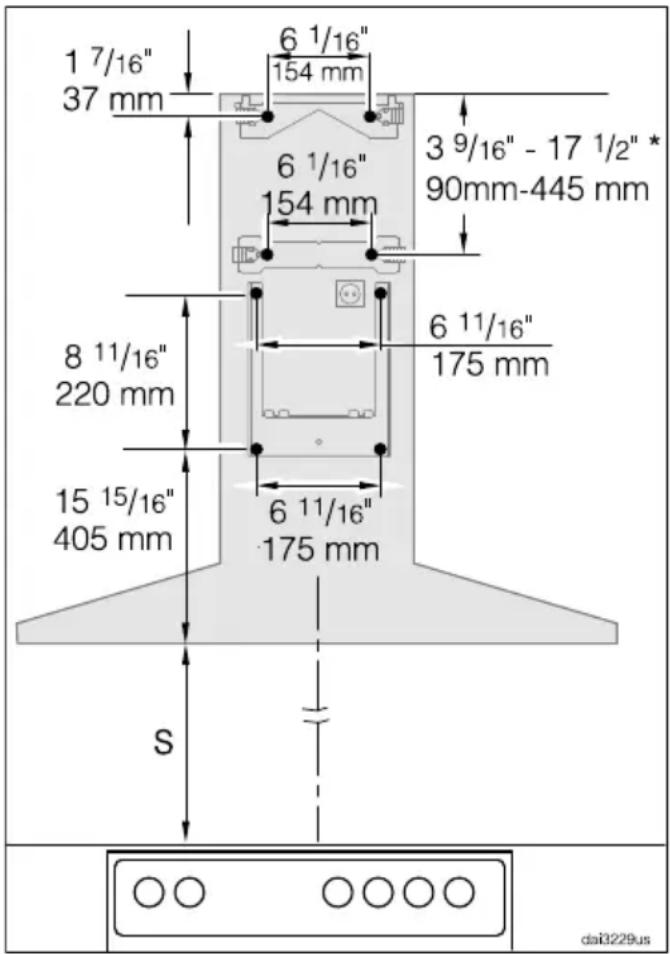

Drilling diagram for wall mounting.... 28

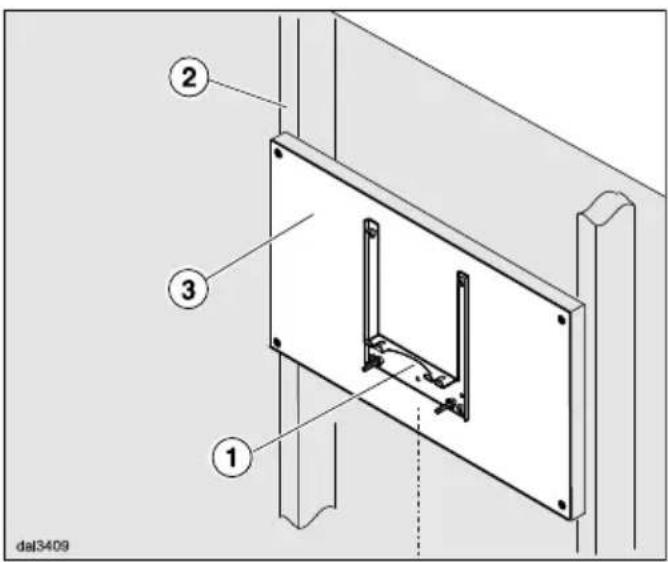

Plywood backing 29
To install a plywood backing 29
Air venting 30

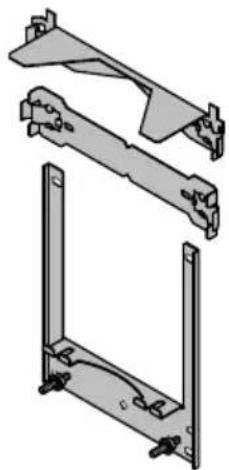

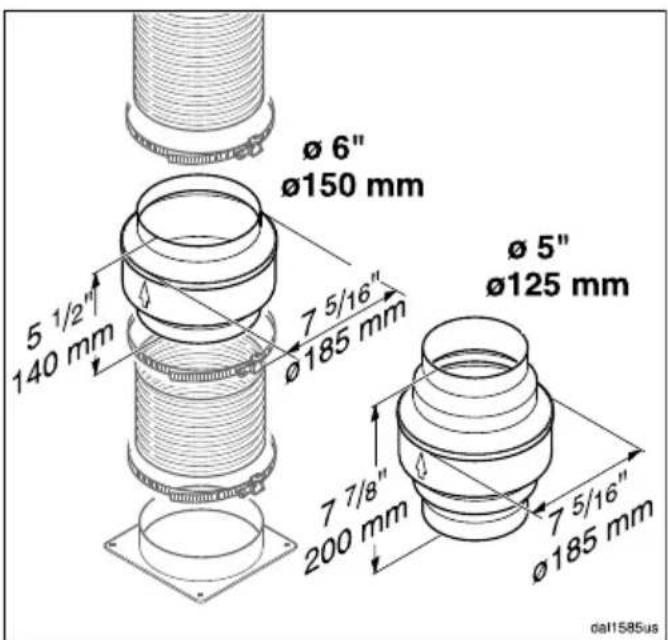

Non-return flap 30
Condensate 31

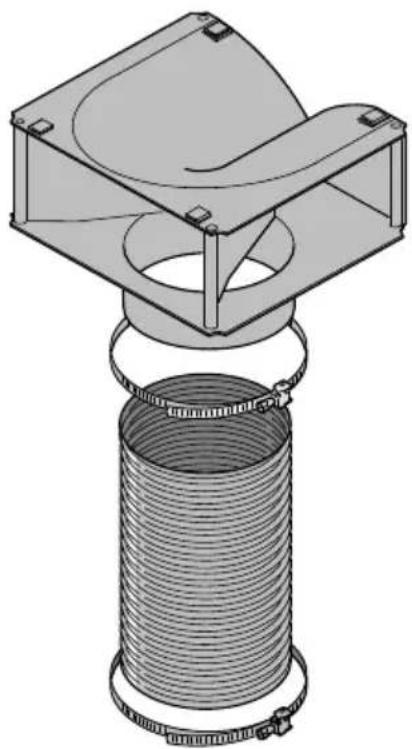

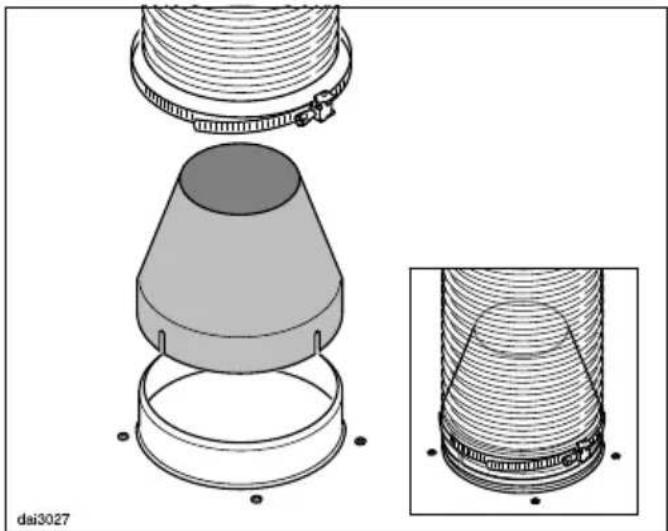

Reducing Collar 31
Electrical connection 32
Technical data 33
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.
Read all instructions before installing or using the appliance for the first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them on to any future user.
Appropriate use
▶ CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during cooking. Any other use occurs at the owner's own risk.
▶ Where a recirculation ventilation hood is installed above a gas cooktop, please check that all local codes are observed to insure an adequate supply of fresh air.
This appliance is suitable for installation above gas or electric cooking surfaces.
▶ Persons who lack physical, sensory or mental abilities, or experience with the appliance should not use it without supervision or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
Children must be kept away from the ventilation hood unless they are constantly supervised.
Children must not be allowed to clean or service the hood.
▶ Please supervise children in the vicinity of the hood and do not let them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
Danger of suffocation. While playing, children may become entangled in packaging material (such as plastic wrapping) or pull it over their head, presenting the risk of suffocation. Keep packaging material away from children.
Technical safety
▶ WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. If the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
▶ Unauthorized installation, maintenance, and repairs can cause considerable danger for the user. Installation, maintenance, and repairs must only be carried out by a Miele authorized technician.
▶ A damaged ventilation hood can be dangerous. Always check for visible signs of damage. Never use a damaged ventilation hood.
IMPORTANT SAFETY INSTRUCTIONS
Be certain your appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance, continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.
▶ Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronized with the grid power supply (e.g., island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with national and local codes.
The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronized with the grid power supply, or these measures must be replaced by equivalent measures in the installation.
To avoid damaging the ventilation hood, make sure that the connection data (voltage and frequency) on the data plate correspond to the building's power supply before connecting the appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the ventilation hood to electricity. These are a fire hazard and do not guarantee the required level of appliance safety.
▶ To ensure safe operation, only use the ventilation hood after it has been properly installed.
This ventilation hood may not be used in non-stationary locations (e.g. on a ship).
▶ Adequate ventilation must be provided when the hood is operated simultaneously with devices that burn gas or other fuels.
IMPORTANT SAFETY INSTRUCTIONS
Only open the housing as described in the enclosed “Installation diagram” and in the “Cleaning and care” section of this manual. Under no circumstances should any other parts of the housing be opened.
Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operation faults.
▶ If the power cord is damaged, it must only be replaced by a qualified service technician.
During installation, maintenance, and repair work, the ventilation hood must be disconnected from the electrical supply. It is only completely isolated from the electricity supply if one of the following applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been removed.
- The power cord (if present) has been unplugged from the socket (pull the plug not the cord).
Correct use
▶ WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE FIRE:
- a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers may ignite. Heat oils slowly on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for the size of the cooking area.
IMPORTANT SAFETY INSTRUCTIONS
▶ Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not permitted. To avoid the danger of fire, do not flambé or grill over an open flame. When switched on, the ventilation hood could draw flames into the filter. Fat deposits could ignite, presenting a fire hazard.
▶ WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
-
d) Use a fire extinguisher ONLY if:
-
1) You have a class ABC extinguisher, and you know how to operate it.
- 2) The fire is small and contained in the area where it started.
- 3) The fire department is being called.
- 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that any burners in use are always covered by cookware. Turn burners off when removing the cookware, even if doing so for just a short time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
IMPORTANT SAFETY INSTRUCTIONS
▶ Always turn the ventilation hood on whenever a burner is in use to prevent damage from condensation.
▶ Overheated oil and fat can ignite, causing fire damage to the ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when cooking with oil or fat. Similarly, never leave an open flame unattended when grilling.
▶ Fat and debris deposits impair the proper functioning of the ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the ventilation hood without the grease filters in place.
▶ Please note that the heat rising from the stovetop during cooking can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation hood has cooled down.
Proper installation
▶ WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases through the flue (chimney of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above your cooking appliance, please refer to the information provided by the appliance's manufacturer.
▶ Safety regulations prohibit the installation of a ventilation hood over solid fuel stoves.
An insufficient safety distance between the cooktop and the ventilation hood can result in damage to the ventilation hood. The minimum safety distances between the top of the cooktop and the bottom of the ventilation hood given in the “Installation” section of this manual must be observed, unless the cooktop manufacturer states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the ventilation hood, and they have different minimum safety distances to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
The information provided in “Installation” must be observed when installing the ventilation hood.
Components can have sharp edges which may cause injury. Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of non-flammable material. These can be obtained from your Miele dealer or from Miele Technical Service. Always observe local building code requirements when selecting duct material.

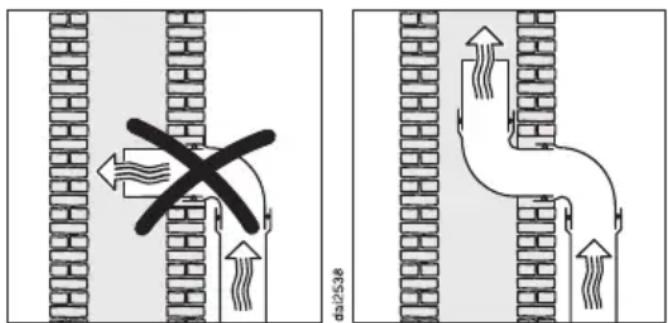

Exhaust air should not be vented into a chimney or vent flue which is otherwise in use and should not be channeled into ducting which ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other purposes, seek professional advice.
▶ WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL DUCTWORK.
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the instructions in this manual.
▶ Never use a steam cleaner to clean the ventilation hood. The steam can reach the electrical components and cause a short circuit.
Accessories and parts
▶ Use only genuine original Miele parts. If parts or accessories from other manufacturers are used, the warranty may become void.
▶ Defective components should be replaced by Miele original parts only. Only with these parts can safety of the appliance be assured as intended by the manufacturer.
▶ Miele will guarantee to supply functional parts for a minimum of 10 years and up to 15 years following the discontinuation of your ventilation unit.
Disposal of the packing material
The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these materials improperly by disposing of them in your household waste can be harmful to your health and the environment. Therefore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.
Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed. Please ensure that your old appliance is kept away from children until removal. Observe safety requirements for appliances that may tip over or pose an entrapment hazard.
The following functions are available on your ventilation hood, depending on the model:
Extraction mode
dai0494a
Recirculation mode
The recirculation mode requires a recirculation kit and OdorFree Charcoal Filter (available as optional accessories, see “Technical Data” for more information)
The air is drawn in and first cleaned by the grease filters and then by an OdorFree Charcoal Filter. The cleaned air is then recirculated back into the kitchen.

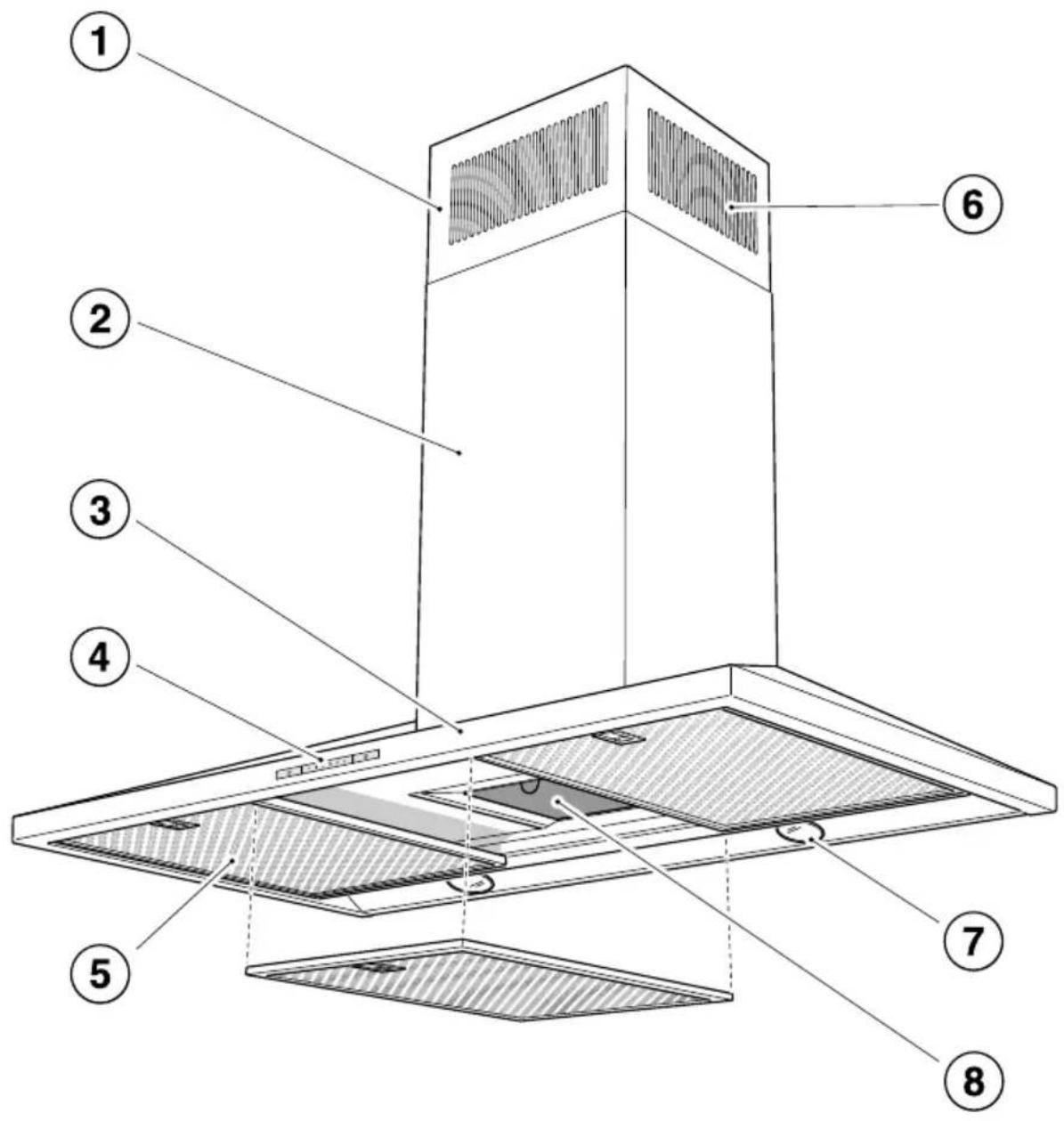

dal3773
① Telescopic extension piece
② Duct cover
③ Canopy
④ Controls
⑤ Grease filter
⑥ Recirculation vents
Only for recirculation mode
⑦ Overhead lighting
⑧ Charcoal filters
Optional accessories for recirculation mode
⑨ Control for switching the blower on and off
⑩ Controls for setting the blower power
⑪ Button for switching the lighting on and off
Turning on the blower
Switch the blower on as soon as you start cooking. This is to ensure that vapors are captured right from the start.
■ Press the On/Off control ⏻.
The blower turns on at level 2. The ⏻ symbol and 2 will light up in the blower level display.
Selecting the power level
Power levels 1 to 3 are available for light to heavy cooking vapors and odors.
For strong vapors and odors that are temporarily produced when cooking, e.g., during searing, select the B Booster setting.
■ Select the power level you want by pressing the — or + control.
Automatic Booster setting switch-off
You have the option to program the booster level to ensure the fan will always switch back to level 3 automatically after 10 minutes.
■ To do this, turn off the fan and the overhead lighting first.
■ Press the — and + buttons at the same time for approx. 10 seconds, until 1 lights up.
■ Then, press the following buttons in order:
- the lighting button ⚙️,
- Followed by the — button and then
- the lighting button - again.
If automatic switch-off is not activated, the 1 and IS displays will flash.
■ To activate it, press the + button.
If 1 and B are lit, automatic switch-off is activated.
■ To deactivate it, press the — button.
■ Use the On/Off button ① to confirm your choice of setting.
If you do not confirm within 4 minutes, the system will revert to the old setting.
Turning off the blower
■ Press the On/Off control ⏻ to turn the blower off.
The ⏻ symbol will go out.
Turning the overhead lighting on/off
The overhead lighting can be turned on and off separately from the blower.
■ To do this, press the lighting control ⚙️.
The ⚙ symbol will light up when the overhead lighting is turned on.
Safety switch-off
If the ventilation hood is switched on but not used for 10 hours, the fan shuts off automatically. The cooktop lighting remains switched on.
- Pressing the On/Off button ⏻ will switch the fan back on again.
⚠️ WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
■ Before cleaning or servicing the hood, disconnect it from the power supply, see “IMPORTANT SAFETY INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can damage the surfaces and control elements.
Do not use any cleaning agents containing soda, acid, chloride, or solvent.
Do not use any abrasive cleaning agents, e.g., powder cleaners or cream cleaners and abrasive sponges, as well as pot scourers or sponges which have been used previously with abrasive cleaning agents
⚠️ Moisture in the ventilation hood can cause damage.
Make sure that water does not get into the ventilation hood.
■ Clean all surfaces and control buttons using a small amount of warm water and liquid dish soap. Apply with a sponge cloth.
■ After cleaning, wipe the surfaces dry using a soft cloth.
Important information for appliances with stainless steel surfaces
This information does not apply to the control buttons.
Stainless steel surfaces can be cleaned with a non-abrasive cleaning agent designed specifically for use on stainless steel.
To prevent the surfaces from quickly becoming dirty again, we recommend treating them with a stainless steel care product (available from Miele).
Important information for appliances with lacquered casing
(Customization on request)
Minor scratches on the surface are inevitable when cleaning the casing; they may be visible depending on the lighting in the kitchen.
Important information for the controls
If soiling is not removed promptly, it could cause the control elements to alter or discolor.
Remove soiling immediately.
The surface of the control elements can become damaged if they are cleaned using stainless steel cleaning agents.
Do not use stainless steel cleaning agents on the control elements.
Grease filters
Risk of fire
Oversaturated grease filters are a fire hazard.
Clean the grease filters at regular intervals.
The re-usable metal grease filters in the appliance remove solid particles (grease, dust, etc.) from the kitchen vapors, preventing soiling of the ventilation hood.
The grease filters must be cleaned at regular intervals.
Heavily soiled grease filters hinder air extraction and will lead to increased levels of soiling in the ventilation hood and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a longer period of time and makes cleaning more difficult. The grease filters should therefore be cleaned every 3 to 4 weeks.
Removing the grease filters
When handling the grease filter, reful not to drop it.
This can result in damage to the filter and the cooktop below.
Make sure you hold the filter securely at all times when handling it.
■ To remove a grease filter, release the locking clip. Then, open the filter to a 45^ angle, unhook it, and remove it from the hood.
Cleaning the grease filters by hand
■ Clean the filters with a soft nylon brush in a mild solution of hot water and dish soap. Do not use undiluted dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage to the filter surfaces if used regularly. Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and degreaser sprays
- Oven sprays
Cleaning the grease filters in a dishwasher
■ Place the grease filters upright or slightly inclined in the lower basket. Ensure the spray arm is not obstructed.
■ Use a commonly available household dishwashing detergent.
In a Miele dishwasher use the "Normal" program.
Depending on the detergent used, cleaning the filters in a dishwasher may cause the inside filter surfaces to become discolored. However, this will not affect the functioning of the grease filters in any way.
After cleaning
■ After cleaning, leave the filters on an absorbent surface to dry.
■ When removing the filters for cleaning, also clean off any accessible oil or fat buildup from the housing. Doing so will prevent a fire hazard.
■ Reinstall the grease filters. When inserting the filters, make sure that the locking clip is facing down.

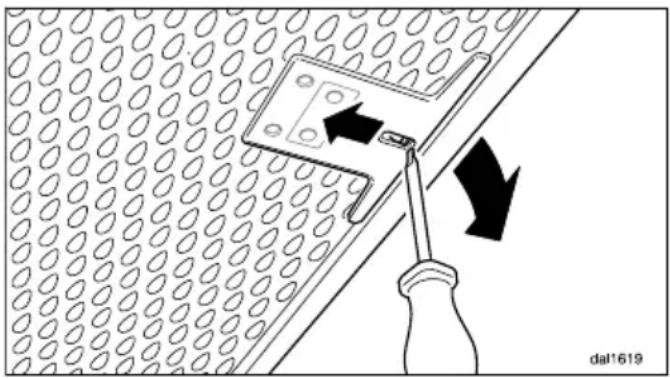

■ If the filters have been installed incorrectly, you can insert a small screwdriver into the slit to disengage the locking clip.
Replacing the grease filter
Regular usage and cleaning can cause the filter surfaces to become worn.
If you identify any damage, replace the grease filters.
Grease filters are available to order via Miele Customer Service (see end of these operating instructions for contact details) or from your Miele dealer.
OdorFree Charcoal Filter
With recirculation mode, a charcoal filter must be installed in addition to the grease filters. The charcoal filter is designed to absorb cooking odors.
The charcoal filter is installed in the canopy above the grease filters.
Charcoal filters are available to order via the Miele Web Store, Miele Technical Service (see end of this manual for contact details), or from your Miele dealer. The model designations are listed in the “Technical data” chapter.
How to install/replace a charcoal filter
■ Remove the grease filters before fitting or replacing a charcoal filter.
■ Take the charcoal filter out of its packaging.
■ Reinsert the grease filters.
When to change the OdorFree Charcoal Filter
■ Replace the charcoal filter when it no longer absorbs kitchen odors effectively. It should be replaced at least every 6 months.
Disposing of charcoal filters
■ Used charcoal filters can be disposed of with normal household waste.
Changing a light bulb
The bulbs should be replaced with the following:
Bulb type ..... LED, GU10 Power ..... 3W
Replacement bulbs are available from Miele.
■ Turn off the blower and the lighting.
Only use the specified lamps. Other lamps, for example halogen lamps, may become damaged due to the high generation of heat.
■ Disconnect the hood from the electrical supply before replacing the bulbs (see "IMPORTANT SAFETY INSTRUCTIONS").
■ Remove the grease filters.
■ Replace the new bulb in reversed order. Please observe the manufacturer's instructions.
■ Reinstall the grease filters.
Contact in the event of a fault
In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Customer Service.
You can book a Miele Service Call online at www.miele.com/service.
Contact information for Miele Customer Service can be found at the end of this document.
Please quote the model identifier and serial number of your appliance (SN) when contacting Miele Customer Service. Both pieces of information can be found on the data plate.
Location of the data plate
The data plate is visible once you have removed the grease filters.
Warranty
For further information, please refer to your warranty booklet.
Before installation
⚠️ Before installation, it is important to read the information contained in this chapter and in the “IMPORTANT SAFETY INSTRUCTIONS” chapter.
Removing the protective film
The housing components are covered by a protective film to prevent them from damage during transport.
■ Please remove this film before installing the housing components. It can be peeled off easily without any additional tools.
Installation materials
08169470
1 non-return flap
for fitting into the exhaust socket on the motor unit (not needed for recirculation mode). Depending on the model, the non-return flap may already be mounted.
3 wall brackets
for securing the ventilation hood on the wall
8 screws measuring 5 x 60 mm and
8 plugs measuring 8 x 50 mm
for attaching to the wall
⚠️ The screws and plugs are designed for use in solid walls only. Use different fasteners for other wall construction types. Make sure that the wall can support the load.
00031682
2 M6 locknuts
for mounting the appliance unit
08256130
2 screws measuring 3.9 x 7.5 mm for securing the chimney
dna3mle
Installation plan
See the installation plan for details of the individual steps involved in the installation of this appliance.
Conversion kit for recirculation mode
The conversion kit contains an exhaust grille, hose, and hose clips (not supplied, but available as an optional accessory. See “Technical data”).
Appliance dimensions
The drawing is not to scale
① Extraction mode
② Recirculation
③ Air vent positioned at the top for recirculation
④⑤ Installation area (only ④ is required for recirculation operation). Wall or ceiling area for the ducting cutout and for the electrical outlet. For recirculation operation, only an electrical outlet needs to be installed.
Exhaust connection ∅ 6" (150 mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop, follow the minimum safety distances between a cooktop and the bottom of the hood.
Please also observe the information contained in the “IMPORTANT SAFETY INSTRUCTIONS” section.
| Minimum distance S | ||
| Cooking appliance Miele | appliance | Non-Miele appliance |
| Electric Cooktops 24" (610 mm) | ||
| Electric Barbeques and Fryers 26" (660 mm) | ||
| Multiburner Gas Cooktops≤ 43,000 BTU/hr (12.6 kW),no burner > 15,000 BTU/hr (4.5 kW). | 26" (660 mm) | 30" (760 mm) |
| Multiburner Gas Cooktops≤ 73,800 BTU/hr (21.6 kW),no burner > 16,500 BTU/hr (4.8 kW) | 30" (760 mm) | |
| Multiburner Gas Cooktops> 73,800 BTU/hr (21.6 kW),or one of the burners > 16,500 BTU/hr (4.8 kW) | Not possible | |
| Single Burner Gas Cooktops≤ 20,500 BTU/hr (6 kW) | 26" (660 mm) | 30" (760 mm) |
| Single Burner Gas Cooktops> 20,500 BTU/hr (6 kW)≤ 27,600 BTU/hr (8.1 kW) | 30" (760 mm) | |
| Single Burner Gas Cooktops> 27,600 BTU/hr (8.1 kW) | Not possible | |
Installation recommendations
- A distance of at least 26" (660 mm) is recommended above electric cooktops to provide more workspace and easier cooking under the hood.
- When selecting an installation height, always take the user height into consideration. Users should have ample space to work comfortably on the cooktop and reach the ventilation hood controls with ease.
- Please note that the greater the distance from the cooktop, the less effective the hood is at drawing in the cooking vapors.
- To achieve optimum vapor extraction, the hood must be centered over the cooktop, not to the side.
- The cooktop should be no wider than the hood. Preferably, it should be narrower for better extraction.
- The mounting area must be easily accessible. The ventilation hood should be easy to reach and disassemble in case a service call is necessary. This should be taken into consideration when planning the position of cabinetry, shelves, ceilings or decorative elements in the vicinity of the ventilation hood.
Drilling diagram for wall mounting
■ When drilling, please follow the directions contained on the accompanying installation sheet.
■ When installing a custom back wall with pre-drilled holes, please refer to the drilling distances in the drawing above (screws ^3/_16 " (5 mm)).
* The dimension for the middle wall bracket is variable. It will depend on the position of the wall vent and the socket. It should be set as low as possible.
Plywood backing
The majority of the weight of the installed ventilation system will be supported by the lower retaining plate. It must be firmly attached to the stud framing behind the drywall. If studs are not available in the required locations, a plywood backing (min. 12 " (13 mm) thick) spanning at least two studs must be installed.
Failure to adequately support the weight as stated may result in the ventilation system falling off the wall, causing personal injury and property damage.
If plywood backing is not needed, proceed to the included "Installation diagram".
To install a plywood backing
■ Determine and mark the location of the retaining plate ① for the canopy as outlined on the “Installation diagram”.
■ Make a cutting line 3" (76 mm) above and 3" (76 mm) below the outline of the retaining plate.
■ Find the studs ② to the left and right of the mounting location by tapping the wall or using a stud finder.
■ Mark a vertical cutting line along the center of each stud.
CAUTION: When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Remove the drywall between the cutting lines and replace it with plywood ③ of a matching thickness (min. 12 " (13 mm) thick). Tape the joints and refinish the wall.
■ Proceed to the enclosed “Installation diagram” to complete the installation.
Air venting
WARNING: Danger of toxic fumes. Gas cooking appliances release carbon monoxide that can be harmful or fatal if inhaled.
To reduce the risk of fire and to properly exhaust air, the exhaust gases extracted by the hood should be vented outside of the building only.
Do not vent exhaust air into spaces within walls or ceilings or in attics, crawl spaces or garages.
To reduce the risk of fire, only use metal ductwork.
Please read and follow the "IMPORTANT SAFETY INSTRUCTIONS" to reduce the risk of personal injury. Follow all local building codes when installing the hood.
Only use smooth pipes or flexible ducting made from approved non-flammable materials for ducting.
To achieve the most efficient air throughput with the lowest noise levels, please note the following:
- The diameter of the vent ducting must not be smaller than the cross-section of the vent collar (see "Appliance dimensions"). This applies in particular when using flat ducting.
- The ducting should be as short and straight as possible.
- Only use wide radius bends.
-
The ducting must not be kinked or compressed.
-
All connections must be strong and airtight.
- If the ducting has flaps, these must be opened whenever the ventilation hood is switched on.
Any constriction of the air throughput will reduce extraction performance and increase operating noise.
Ventilation stack
If the exhaust air is to be ducted into a flue, the ducting must be directed in the flow direction of the flue.
If the flue is used by several ventilation units, the cross-section of the flue must be large enough.
Non-return flap
■ Use a non-return flap in the vent system.
A non-return flap ensures that when the ventilation hood is not in operation, the duct is closed to prevent unwanted exchange of room air and outside air.
If the exhaust is ducted through an outside wall, a Miele wall vent or roof vent (available as an optional accessory) is recommended. Both of these have a built-in non-return flap.
If the on-site vent system does not have a non-return flap, one is supplied with the ventilation hood.
The non-return flap is installed in the exhaust socket of the fan.
Condensate
If the ducting is to run through cool rooms or ceiling space, for example, the significant variations in temperature between the different areas can cause condensate to form. Insulate the ducting to reduce temperature variations.
If the ducting is to be laid horizontally, it must be laid with a downwards sloping gradient of at least 3/8'' (1 cm) per meter. This is to ensure that condensate cannot drain back into the ventilation hood.
In addition to insulating the ducting, it is advisable to also install a condensate trap for collecting and evaporating any potential condensate.
Condensate traps for 5" (125 mm) or 6" (150 mm) diameter ducting are available as optional accessories.
When installing a condensate trap, ensure that it is positioned vertically and as closely as possible to the ventilation hood above the exhaust vent. The arrow on the casing indicates the direction of airflow.
Miele will not accept warranty claims for any functional defects or damage caused by inadequate ducting.
Reducing Collar
(optional accessory)
■ Push the Reducing Collar on the exhaust port of the blower.
■ Push the exhaust hose over it.
■ Secure both with a hose clamp.
Electrical connection
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
All electrical work should be performed by a qualified electrician in strict accordance with national regulations (for USA: ANSI-NFPA 70) and local safety regulations. Installation, repairs and other work by unqualified persons could be dangerous.
Ensure that power to the appliance is OFF while installation or repair work is performed.
Verify that the voltage, load and circuit rating information found on the data plate (see "Technical Service"), match the household electrical supply before installing the hood.
Use only with ventilation hood cord-connection kits that have been investigated and found acceptable for use with this model hood.
If there is any question concerning the electrical connection of this appliance to your power supply, please consult a licensed electrician or call Miele's Technical Service Department.
WARNING: THIS APPLIANCE MUST BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can result in a risk of electric shock.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing a path of least resistance. This appliance is equipped with a cord having a grounding wire with a grounding plug.
If there is any doubt, have the electrical system of the house checked by a qualified electrician.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.
■ The plug must be plugged into an outlet that is properly installed and grounded.
WARNING - Grounding instructions (Canada)
The grounding-type attachment plug shall be connected to a grounding-type receptacle installed in accordance with CSA C22.1-12, Canadian Electrical Code, Part I.
| Blower motor 350 W | |
| Cooktop lighting 2 x 3 W | |
| Total connected load 356 W | |
| Supply voltage, frequency 120 V AC, 60 Hz | |
| Fuse 15 A | |
| Power cord length 2.5 ft (0.75 m) | |
| Weight | |
| DA 398-7 55.3 lbs (25.1 kg) | |
| DA 399-7 57.2 lbs (26 kg) |
Optional accessory for recirculation mode
DUW 20 conversion kit to change from extraction mode to recirculation mode and OdorFree Charcoal Filter DKF 12-900
Please have the model and serial number of your appliance available when contacting Customer Service.
U.S.A.
Miele, Inc.
National Headquarters
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
Customer Support
Phone: 888-99-MIELE (64353)
info@mieleusa.com
Canada
Importer
Miele Limited
Headquarters and Miele Centre
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone: 1-800-565-6435
905-532-2272
customercare@miele.ca
International Headquarters
Miele & Cie. KG
- Operating and Installation Instructions Ventilation Hood
- IMPORTANT SAFETY INSTRUCTIONS 3
- Caring for the environment 12
- Description of functions 13
- Guide to the ventilation hood.... 14
- Operation.... 16
- Cleaning and care 18
- Customer Service 23
- Installation.... 24
- Technical data 33
- READ AND SAVE THESE INSTRUCTIONS
- Appropriate use
- IMPORTANT SAFETY INSTRUCTIONS
- Safety with children
- Technical safety
- Correct use
- Proper installation
- Cleaning and maintenance
- Accessories and parts
- Disposal of the packing material
- Disposal of your old appliance
- Recirculation mode
- Turning on the blower
- Selecting the power level
- Automatic Booster setting switch-off
- Turning off the blower
- Turning the overhead lighting on/off
- Safety switch-off
- Stainless steel housing
- General information
- Important information for appliances with stainless steel surfaces
- Important information for appliances with lacquered casing
- Important information for the controls
- Grease filters
- Cleaning intervals
- Removing the grease filters
- Cleaning the grease filters by hand
- Unsuitable cleaning agents
- Cleaning the grease filters in a dishwasher
- After cleaning
- Replacing the grease filter
- OdorFree Charcoal Filter
- How to install/replace a charcoal filter
- When to change the OdorFree Charcoal Filter
- Disposing of charcoal filters
- Changing a light bulb
- Contact in the event of a fault
- Location of the data plate
- Warranty
- Before installation
- Removing the protective film
- Installation materials
- non-return flap
- wall brackets
- screws measuring 5 x 60 mm and
- plugs measuring 8 x 50 mm
- M6 locknuts
- Installation plan
- Conversion kit for recirculation mode
- Distance between cooktop and ventilation hood (S)
- Installation recommendations
- Drilling diagram for wall mounting
- Plywood backing
- Air venting
- Non-return flap
- Condensate
- Reducing Collar
- Electrical connection
- Grounding Instructions
- Optional accessory for recirculation mode
- U.S.A.
- National Headquarters
- Customer Support
- Canada
- Importer
- Miele Limited
- Headquarters and Miele Centre
- Customer Care Centre
- International Headquarters
Brand : MIELE
Model : DA 398-7 Classic
Category : Range hood
