V-LA01 - Drone Valore - Free user manual and instructions

Product Type	Drone
Model	V-LA01
Brand	Valore
Dimensions (folded)	Approx. 16 x 10 x 5 cm
Dimensions (unfolded)	Approx. 30 x 25 x 6 cm
Weight	Approx. 200 g
Battery Type	Li-Po 3.7V 1800 mAh
Flight Time	Approx. 12 minutes
Charging Time	Approx. 90 minutes
Camera Resolution	720p HD (may vary)
Max Range	Up to 100 meters (Wi-Fi)
Functions	Altitude hold, headless mode, one-key return, 360° flips, speed modes
Controller	2.4 GHz remote control with smartphone holder
Power Supply for Controller	3 x AA batteries (not included)
Connectivity	Wi-Fi for FPV, remote control via 2.4 GHz
FPV Transmission	Real-time video on smartphone app
Spare Parts Available	Yes (propellers, battery, motors, landing gear)
Maintenance	Clean with soft cloth, keep dry, calibrate before use
Safety Precautions	Do not fly near people, animals, or obstacles; respect local drone laws
Recommended Age	14+ years
Package Contents	Drone, remote controller, battery, USB charging cable, 4 spare propellers, user manual

Frequently Asked Questions - V-LA01 Valore

How do I pair the drone with the remote controller?

Turn on the drone and then the controller. Move the throttle stick up and down until the drone's lights become solid. Refer to the manual for detailed steps.

What should I do if the drone does not take off?

Check that the battery is fully charged, the propellers are correctly installed, and the drone is on a flat surface. Calibrate the gyroscope by moving both sticks to the lower-right position.

How long does the battery last?

The flight time is approximately 12 minutes under normal conditions. Charging takes about 90 minutes.

Can I use my smartphone with this drone?

Yes, the drone supports Wi-Fi FPV. Download the designated app (e.g. 'Valore FPV') and connect your phone to the drone's Wi-Fi network.

What is the maximum range of the drone?

The control range is up to 100 meters via remote controller, and the Wi-Fi video transmission range is about 80 meters in open areas.

How do I activate the headless mode?

Press the headless mode button on the controller or in the app. The drone will then move relative to the pilot's orientation instead of its own nose direction.

What should I do if the camera feed is laggy or interrupted?

Ensure you are within the Wi-Fi range and there are no obstructions. Move your smartphone closer to the drone and avoid interference from other devices.

How can I replace the propellers?

Use the included screwdriver to remove the screws holding the damaged propeller. Install new propellers in the correct orientation (A and B markings) and tighten the screws.

Why does the drone drift to one side?

Perform a gyroscope calibration: place the drone on a level surface and move both sticks to the lower-right or specific combination indicated in the manual. Also check for damaged propellers.

Can I fly the drone in windy conditions?

The drone is designed for light wind (below 3 on the Beaufort scale). Strong winds can affect stability and may cause loss of control.

USER MANUAL V-LA01 Valore

Thank you for purchasing the Valore Mini Drone.

Enjoy a smooth piloting experience with this responsive, stable and easy to navigate mini drone. Its one-key return function ensures a hassle free passage back to you.

Important: Please read the user manual thoroughly before using your Mini Drone.

Specifications:

• Maximum speed: 35km/h
• Maximum charging time: 50 mins
- Controller wireless range: 50m max (outdoor)
- Material: ABS
- Battery for drone: 3.7V 250mAh (included)
- Drone dimensions (L x W x H): 150 x 150 x 40mm
- Controller dimensions (L x W x H): 150 x 170 x 70mm
- Drone weight: 38g
- Controller weight: 183g

Package Coi

• Mini Drone
  • 2.4G remote controller
  (4 x AA batteries not included)
• Extra blade x 4
• Screwdriver
• USB cable

UNDERSTANDING THE PRODUCT

① Body cover
② Main blades
③ Protecting frame
④ Motor
⑤ Receiver board
⑥ Battery

① High/Low speed switch
② Left control lever (Accelerator)
③ Power On/Off switch
④ Sideward fine-tuning
⑤ 3D eversion state
⑥ Right control lever
⑦ Backward/Forward fine-tuning
⑧ Left/Right fine-tuning
⑨ Intelligent direction (headless mode)
⑩ Fly back (One key return)

Technical line drawing of a car's front view showing battery pack and internal components (no text or symbols)

Diagram of a car's front view showing battery pack and internal compartments (no text or symbols)

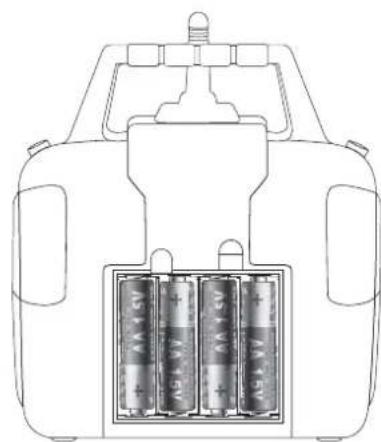

Battery Cover

(4 x AA batteries not included)

START USING MINI DRONE

1) Operating direction.

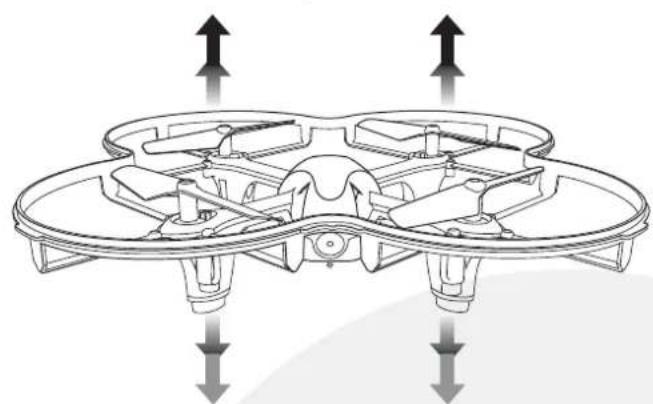

a) Hovering up and down

Press Power On/Off switch up to turn on.

Technical diagram of a mechanical assembly with directional arrows indicating force or movement (no text or symbols present)

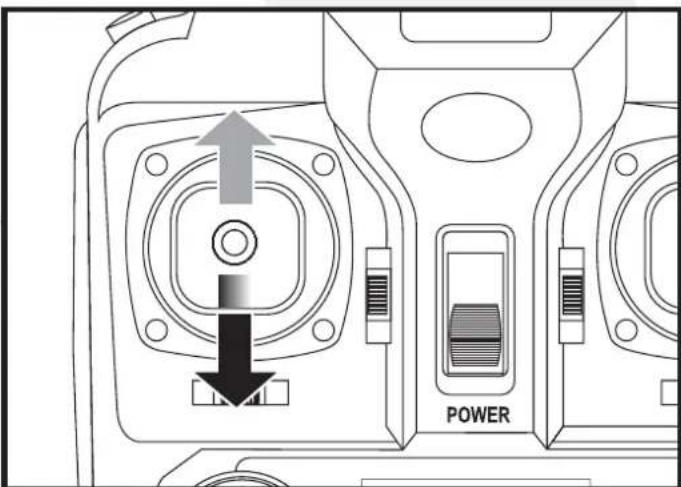

Push left control lever up or down, the mini drone flies upward or downward.

b) Forward and backward

Technical line drawing of a four-petal drone with directional arrows indicating flight or movement (no text or symbols)

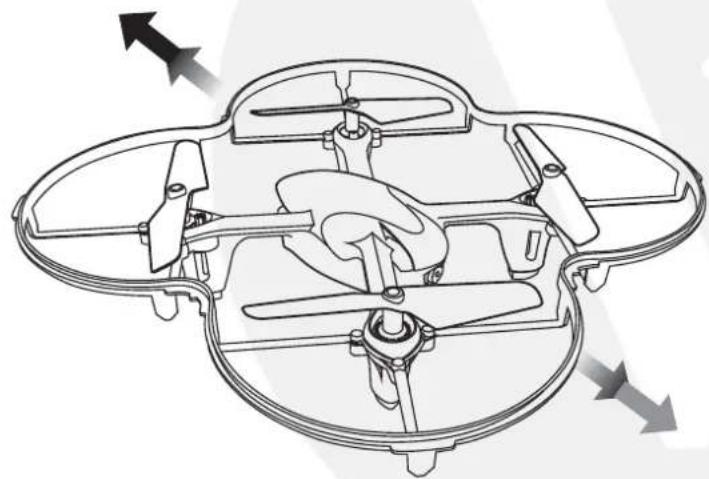

Push right control lever up or down, the mini drone flies forward or backward.

c) Turn left and right

Diagram of two mechanical components with curved internal structures, shown in side and top views (no text or symbols)

Front view of a mechanical control device with labeled ports and a power input (no readable text or symbols beyond basic labels)

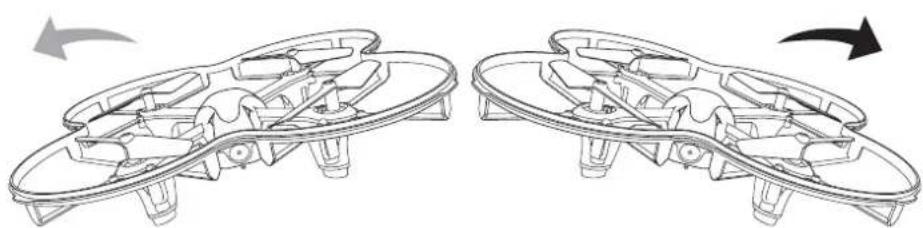

Push right control lever left or right, the mini drone turns to left or right.

d) Sideward fly

Technical line drawings of a multi-rotor drone with control panels and directional arrows indicating motion (no text or symbols)

Pull the left control lever left or right, the mini drone will fly left or right accordingly.

2) Fine-tuning operation.

a) Forward/Backward fine-tuning

When mini drone keeps flying forward/backward, you can correct it by pressing the right fine-tuning button up or down.

b) Turn left/right fine-tuning

When mini drone keeps flying left/right, you can correct it by pressing the right fine-tuning button left or right.

c) Sideward fly fine-tuning

When mini drone keeps rotating to left/right, you can correct it by pressing the left fine-tuning button left or right.

Press the Power On/Off switch up to turn on the transmitter.

When the mini drone indicator flashes from quick to slow, push the left control lever to the highest position, then pull it down to the lowest point. The mini drone indicator will then flash from slow to fully lit.

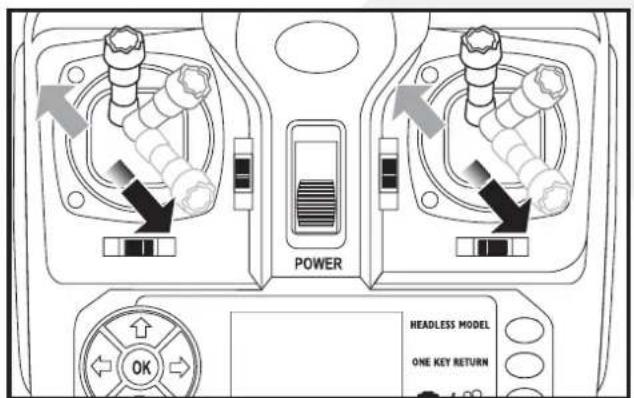

Reset the default direction of the intelligent direction mode (headless mode), place the mini drone with the back facing you, push both control lever to lowest left corner for 3-5 seconds. At the same time, indicator on the mini drone will change from lit to slowly flashing. After hearing a beep, return both control lever to the middle position. At this time, the indicator on the mini drone will flash for 1-2 seconds to fully lit. The mini drone have now reset/restart successfully.

Reset the horizontality of the mini drone as default. Place the mini drone in a horizontality position, push both control lever to lowest right corner for 3-5 seconds. At the same time, indicator on the mini drone will change from lit to slowly flashing. After hearing a beep, return both control lever to the middle position. At this time, the indicator on the mini drone will flash for 1-2 seconds to fully lit. The mini drone have now reset/restart successfully.

4) 3D eversion

When you are more familiar with the basic controls of the mini drone, you can do some awesome stunts by using the 3D eversion function.

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

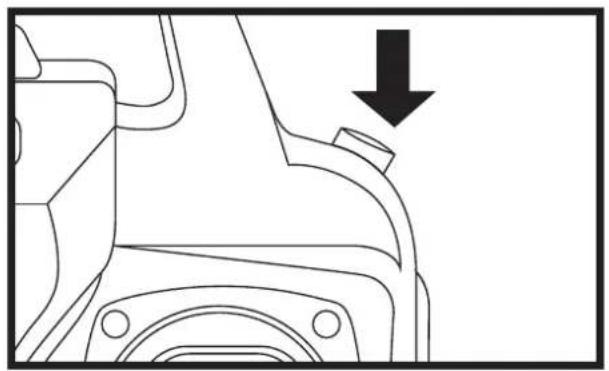

1) Press 3D eversion key

Pure technical diagram of a mechanical component with four bolted features and directional arrows, no text or symbols present.

2) Press the direction that you want to 3D eversion.

4) Headless function

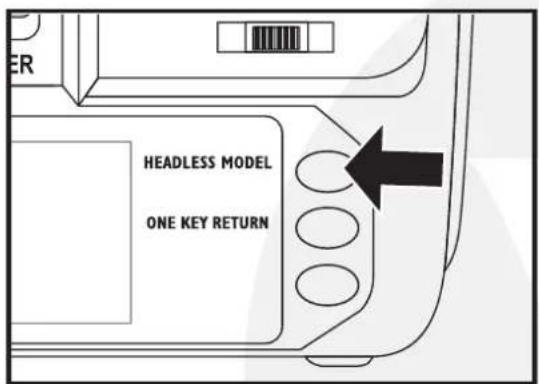

Press the button on the controller, you will hear 2 beeps, then you will get into headless flying mode. To quit, press the button again, you will hear a beep.

5) One key return function

Press the button on the controller, you will hear a beep, then you will get into one key return mode. To quit, press the button again.

When the drone is taking off, press the one key return button, the indicator on the mini drone will start flashing. Make sure the red indicator light is on it's front direction. You will hear a beep sound when you have enter the one key return function. The drone will fly back to where is started flying from.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the mini drone in a high temperature environment.
• Do not place the mini drone near a fire or other excessively hot environments.
• Do not expose this mini drone to moisture or submerge it in liquid. Keep mini drone dry at all times.
• Do not disassemble this mini drone or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this mini drone. If there is any damage to the mini drone such as dents, punctures, tears, deformities or corrosion, stop using the mini drone and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with

IDA standards

DA 103331
